Presentation Transcript
Grid activities in cyprus marios dikaiakos university of cyprus l.jpg

Grid Activities in CyprusMarios DikaiakosUniversity of Cyprus


Overview l.jpg
Overview

  • A few words about the Grid

  • Grid activities in Cyprus

  • CyGrid and the Local Testbed

  • Program of talks


The dead supercomputer society and the killer micros l.jpg
The Dead Supercomputer Societyand the “killer micros”

Once upon a time……..

Microcomputer

Mini Computer

Cluster

(by Christophe Jacquet)


The grid distributed computing idea l.jpg
The GRID distributed computing idea

…and today

(by Christophe Jacquet)


Why now l.jpg
Why Now?

Moore’s Law vs. storage improvements vs. optical improvements. Graph from Scientific American (Jan-2001) by Cleo Vilett, source Vined Khoslan, Kleiner, Caufield and Perkins.


What is a grid l.jpg
What is a Grid?

  • Collaborative set of computing, data storage and network resources belonging to different administrative domains that has knowledge about the status of its components through active, distributed information services.

    • Uses standard, open, general-purpose protocols and APIs.

    • Allows certified users belonging to multi-domain Virtual Organizations to access a large amount of resources via single log in. (sign on).

    • Offers a simple, consistent, dependable, and pervasive access across wide-area networks and presents users with an integrated global resource.

    • Manages concurrent access by large numbers of dispersed users.


What is a grid7 l.jpg
What is a Grid ?

  • An infrastructure that couples:

    • Networked Computers – PCs, workstations, clusters, supercomputers, laptops, notebooks,

      mobile devices, PDA, etc;

    • Software – e.g., ASPs renting expensive special purpose applications on demand;

    • Catalogued data and databases – e.g. transparent access to human genome database;

    • Special devices– e.g., radio telescope – [email protected] searching for life in galaxy, [email protected] for pulsars)

    • People/collaborators.


A view of the grid infrastructure l.jpg

Applications and Portals

Grid

Apps.

Prob. Solving Env.

Collaboration

Engineering

Web enabled Apps

Scientific

Grid

Tools

Development Environments and Tools

Web tools

Libraries

Languages

Monitoring

Resource Brokers

Debuggers

Distributed Resources Coupling Services

Grid

Middleware

QoS

Data Access

Sign on & Security

Information

Comm.

Process

Local Resource Managers

TCP/IP & UDP

Queuing Systems

Operating Systems

Libraries & App Kernels

Grid

Fabric

Networked Resources across Organisations

Scientific Instruments

Storage Systems

Data Sources

Clusters

Computers

A View of the Grid Infrastructure


What it takes to build the grid l.jpg
What it takes to build the Grid?

  • New programming tools.

  • Software that can translate the requirements of an application into requirements for computers, networks, and storage.

  • Security mechanisms that permit resources to be accessed only by authorized users.

  • Computers and operating systems that are more tightly integrated with high-speed networks.

  • Strong standardisationefforts (common, open protocols).

  • Killer applications?


Grid activities in cyprus l.jpg
Grid Activities in Cyprus

  • Focused around the University of Cyprus.

  • Funded by European Commission through IST-FP5.

  • Currently, three running projects:

    • BioGrid

    • CrossGrid

    • SeLeNe


Grid projects in cyprus l.jpg
Grid Projects in Cyprus

  • BioGrid (September 2002 / 24 months)

    • Development of a research infrastructure for large genomics and proteomics databases applications.

    • Globus

  • CrossGrid (March 2002 / 36 months)

    • Grid Infrastructure for Interactive applications.

    • EDG/CG

  • SeLeNe (November 2002 / 12 months)

    • Feasibility study of using Semantic Web technology for dynamically integrating metadata from heterogeneous and autonomous educational resources.


Cygrid l.jpg
CyGrid

  • An activity funded in the context of the CrossGrid project.

  • Goal:

    • Establish the local node of the pan-european CrossGrid testbed.

    • Establish a Certification Authority for Cyrpus.

    • Promote the uptake of Grid technologies in Cyprus and the deployment of new applications on the CyGrid testbed.

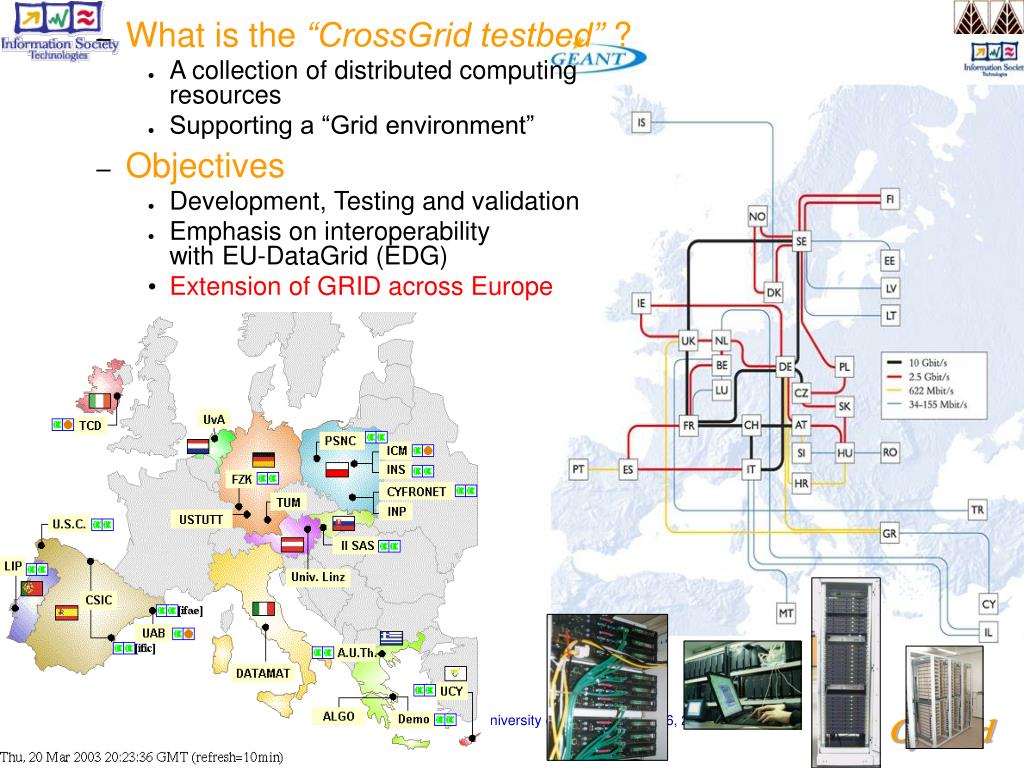

Slide13 l.jpg

  • What is the “CrossGrid testbed” ?

    • A collection of distributed computing resources

    • Supporting a “Grid environment”

  • Objectives

    • Development, Testing and validation

    • Emphasis on interoperability with EU-DataGrid (EDG)

    • Extension of GRID across Europe


Cg testbed overview l.jpg
CG Testbed Overview

  • A collection of distributed computing resources

    • 16 sites (small & large) in 9 countries, connected through Géant + NRN

      • 115 CPUs (Worker Nodes)

      • 4 TB (Storage Elements)

    • + Grid Services: Middleware (based on Globus,EDG) RB, VO, RC…

  • A group of people and resources make up the CrossGrid Virtual Organization (VO) and trust each other through national Certification Authorities.



The cygrid testbed l.jpg

local testbed

Submit

CE

UI

apelatis

thales

2xPIII 1.2GHz

1GB RAM

18GB scsi

100Mbit

P4 2GHz

1GB RAM

40GB scsi

1000Mbit

nfs

SE

2xPIII 800MHz

1GB RAM

128GB scsi

/home NFS

nfs

WN

WN

WN

LCFG

WN

CA

P4 2GHz

1GB RAM

40GB

1000Mbit

(installation

server)

(certificate generation)

The CyGrid Testbed



Cyca the certification authority of cygrid l.jpg
CyCA: The Certification Authority of CyGrid

  • Established within the EU project "CrossGrid" & the CyGrid testbed.

  • Goal: to enable researchers to safely use the Grid.

  • Main operation: provides X.509 certificates for identification and authentication purposes related to Grid activities.

  • CyGrid CA is independent of any single organization.

  • Signs certificates for individuals thatare allowed access to the grid resources and hosts.



Cyca acceptance l.jpg
CyCA Acceptance

  • List of mutually recognized Certification Authorities and their status maintained in the Acceptance Matrix of Brian Coghlan, TCD.

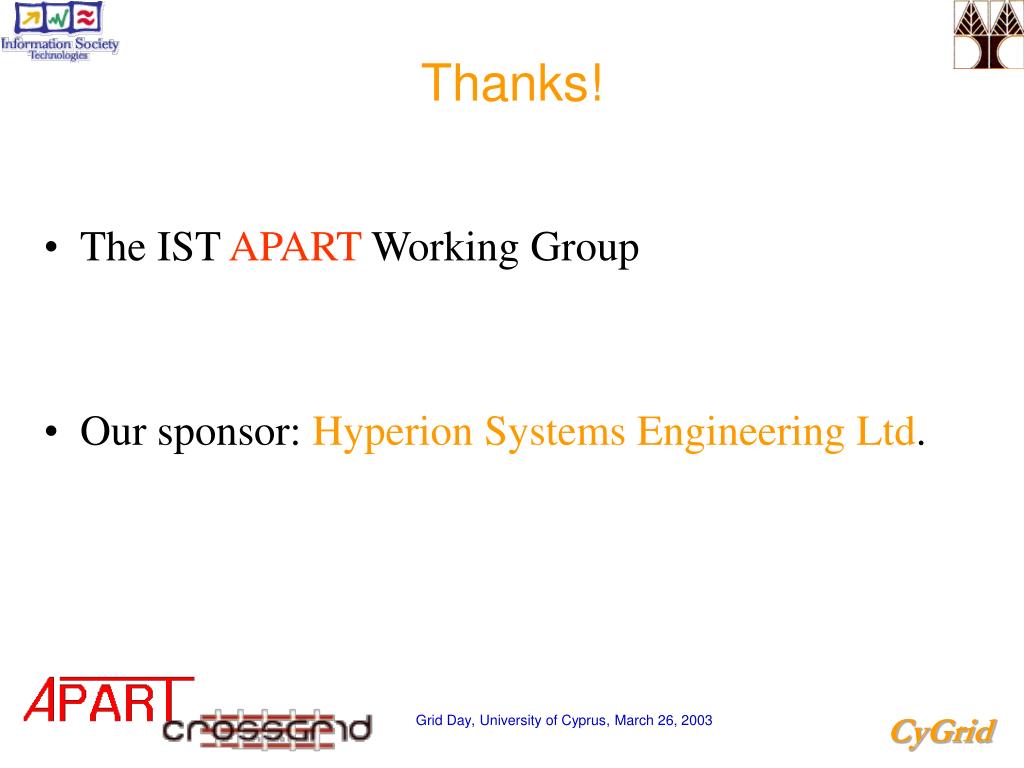

Thanks l.jpg
Thanks!

  • The IST APART Working Group

  • Our sponsor: Hyperion Systems Engineering Ltd.


Grid day program l.jpg
Grid Day Program

Official Opening and Welcome

Professor Stavros Zenios, Rector, University of Cyprus

Overview of Grid Activities in Cyprus

Dr. Marios Dikaiakos, Dept of Computer Science, U. of Cyprus

CrossGrid: Architecture, Applications, Tools and New Grid Services

Dr. Marian Bubak, Institute of Computer Science, AGH & Cyfronet, Poland

ASKALON: A Tool Set for Cluster and Grid Computing (16:15-16:45)

Dr. Thomas Fahringer, Institute for Computer Science, U. of Innsbruck, Austria

Coffee Break (16:45-17:15)

Distributed Query Processing on the Grid (17:15-17:45)

Dr. Rizos Sakellariou, Dept. of Computer Science, U. of Manchester, UK

Introduction of a Grid Approach in the Biotechnology Industry (17:45-18:15)

Dr. Dimitrios Vogiatzis, Dept. of Computer Science, U. of Cyprus

Panel Discussion (18:15-19:00)
