Presentation Transcript

Slide2 l.jpg
Plan

  • Tape drives

  • Optical disks

  • Displays


Rationale l.jpg
Rationale

  • Magnetic tape is used as secondary storage when…

    • Offline storage is acceptable or preferred

    • Capacity requirements exceed that of floppy disks

    • Sequential access is adequate

  • Magnetic tape is used for…

    • Off-site data preparation

    • Backup


Terminology l.jpg
Terminology

  • Backup

    • The act of copying files to a second medium (typically disk or tape) as a precaution in case the first medium fails

    • It is important in computing to “backup your files regularly”


Types of tape drives l.jpg
Types of Tape Drives

  • Two types:

    • Reel-to-reel

      • Used on mainframe computers

    • Cartridge

      • Used on PCs

  • In either case, the tape can be removed from the drive (i.e., the tape drive supports offline storage)

  • When a tape is loaded in a tape drive and is ready to be accessed, the tape is mounted




Tape reel specifications l.jpg
Tape Reel Specifications

  • Reel diameter: 10 ½”

  • Tape width: ½”

  • Tape length: 2400 feet

  • Number of tracks: 9

  • Drive has nine read/write heads

    • 9 bits of data are read/written at a time (8 data + parity)

    • Each group of nine bits is called a frame

  • Datadensity/capacity

    • 1600 frames/inch  2400 x 12 x 1600 = 46,080,000 bytes/reel

    • 6250 frames/inch  2400 x 12 x 6250 = 180,000,000 bytes/reel


Nine track tape layout l.jpg
Nine-track Tape Layout

Physicalrecord

Inter-recordgap

Track 1

½”

Track 9

1 byte of data

(8 data bits + parity)



Types of tape cartridges l.jpg
Types of Tape Cartridges

  • QIC (Quarter Inch Cartridge)

  • DAT (Digital Audio Tape)


Qic quarter inch cartridge l.jpg
QIC (Quarter Inch Cartridge)

  • Pronounced: quick

  • Introduced in 1970s

  • Popular format for backing up personal computers

  • Two general classes

    • Full-sized, 5¼” (also called “data cartridge”)

    • Mini-cartridge, 3½”

  • Capacities up to 10 GB


Dat digital audio tape l.jpg
DAT (Digital Audio Tape)

  • Tape width: 8 mm or 4 mm

  • Uses helical scan technique to record data (like VCRs)

  • Capacities to 24 GB (4 mm) or 40 GB (8 mm)


Slide14 l.jpg
Plan

  • Tape drives

  • Optical disks

  • Displays


Operation l.jpg
Operation

  • Uses light generated by lasers to record and retrieve information

  • Information is stored by varying the light reflectance characteristics of the medium

  • Available in read-only (CD-ROM) and read/write formats


Cd rom l.jpg
CD-ROM

  • CD-ROM stands for “compact disc, read-only memory”

  • Evolved from audio CDs

  • Disk size: 120 mm (5¼”)

  • Capacity: 550 MB



Cd rom data organization l.jpg
CD-ROM Data Organization

  • 270,000 blocks of 2048 bytes each (typically)

  • 270,000  2048 = 552,960,000 bytes

  • Extensive error checking and correction (e.g., bad regions of the disk flagged)

  • Substantial overhead for error correction and identifying blocks

  • Capacity can be as high as 630 MB



Pits and lands 1 of 2 l.jpg
Pits and Lands (1 of 2)

  • Data are stored as “pits” and “lands”

  • These are burned into a master disk by a high powered laser

  • Master disk is reproduced mechanically by a stamping process

  • Data surface is protected by a clear coating

  • Data are read by sensing the reflection of laser light

    • A pit scatters the light

    • A land reflects the light


Pits and lands 2 of 2 l.jpg

Land

Pit

Reflectedlight

Scatteredlight

Laser

Laser

Laser

Pits and Lands (2 of 2)


Cd rom read process l.jpg

Land

Pit

Transparent

protective layer

Prism

Light detector

Laser

diode

More detail

CD-ROM Read Process



Read write variations l.jpg
Read/Write Variations

  • WORM (Write Once, Read Many)

  • Magneto Optical


Worm disks and drives l.jpg
WORM Disks and Drives

  • WORM = Write-once, read many

  • Also called CD-R, for CD Recordable

  • Begin with blank CDs

  • WORMs drives are used to write the CD

  • The write process is irreversible

  • Many standards, some disks may be read on standard CD-ROM drive, others may not

  • Applications

    • Infrequent data distribution

    • Small quantities

    • For large quantities, cheaper to have CR-ROMs manufactured


Magneto optical l.jpg
Magneto Optical

  • Disk may be written, read, and rewritten

  • Write process is preformed at high temperature

  • Combines features of optical and magnetic technology

  • Data are stored as a magnetic charge on the disk surface

  • During reading, the polarity of the reflected light is sensed (not the intensity)


Slide28 l.jpg
Plan

  • Tape drives

  • Optical disks

  • Displays


Types of displays l.jpg
Types of Displays

  • Two main types

    • CRT (cathode ray tubes)

    • LCD (liquid crystal display)

  • Related terms

    • Monitor or screen

      • A display is often called a “monitor” or “screen”

      • However, the term “monitor” usually refers to the entire box, where as “screen” often implies just a sub-assembly within the box


Colour displays l.jpg
Colour Displays

  • CRT displays

    • each pixel is composed of three superimposed dots: red, green, and blue

    • Hence, RGB display

    • The three dots are created by three separate beams

    • Ideally, the three dots should converge at the same point, however, in practice there is a small amount of convergence error, and this makes the pixels appear fuzzy

  • LCDs

    • Colour is created by filtering/blocking different frequencies of light


Operation of a crt display l.jpg
Operation of a CRT Display

  • A CRT display contains a vacuum tube

  • At one end are three electron guns, one each for red, green, and blue

  • At the other end is a screen with a phosphorous coating

  • The three electron guns fire electrons at the screen and excite a layer of phosphor

  • Depending on the beam, the phosphor glows, either red, green, or blue



Operation of an lcd l.jpg
Operation of an LCD

  • Two sheets of polarizing material with a liquid crystal solution between them

  • An electric current passes through the liquid, causing the crystals to align so that light cannot pass through them

  • Each crystal, therefore, acts like a shutter, either allowing light to pass through or blocking the light



Pixels l.jpg
Pixels

  • A Pixel is a “picture element”

    • a single point in a graphic image

    • A graphics display is divided into thousands (or millions) of pixels arranged in rows and columns

    • The pixels are so close together, they appear connected

    • The number of bits used to represent each pixel determines how many colours or shades of grey can be represented

    • For a B&W (black and white) monitor, each pixel is represented by 1 bit

    • With 8 bits per pixel, a monitor can display 256 shades or grey or 256 colours (Note: 28 = 256)


Display size l.jpg

15”

Display Size

  • Usually specified in “inches”

  • Value cited is the diagonal dimension of the raster -- the viewable area of the display

  • E.g., a 15” monitor


Resolution l.jpg
Resolution

  • Resolution is the number of pixels on a screen display

  • Usually cited as n by m

    • n is the number of pixels across the screen

    • m is the number of pixels down the screen

  • Typical resolutions range from…

    • 640 by 480 (low end), to

    • 1,600 by 1,200 (high end)


Video ram requirements l.jpg
Video RAM Requirements

  • Total number of pixels is n  m

  • Examples

    • 640  480 = 307,200 pixels

    • 1,600  1,200 = 1,920,000 pixels

  • Video RAM required equals total number of pixels times the number of bits/pixel

  • Examples

    • 640  480  8 = 2,457,600 bits = 307,200 bytes = 300 Kbytes

    • 1,600  1,200  24 = 46,080,000 bits = 5,760,000 bytes = 5,625 Kbytes = 5.49 Mbytes


Video ram kb per image l.jpg
Video RAM (KB) Per Image

See previous slide for calculations


Aspect ratio l.jpg
Aspect Ratio

  • Aspect ratio is the ratio of the width to height of a display screen

  • For a 640 by 480 display, the aspect ratio is 640:480, or 4:3

  • Related terms

    • Landscape

      • The width is greater than the height

    • Portrait

      • The height is greater than the width


Dot pitch l.jpg
Dot Pitch

  • Dot pitch is a measure of the diagonal distance between phosphor dots (pixels) on a display screen

  • One of the principal characteristics that determines the quality of a display

  • The lower the number, the crisper the image

  • Cited in mm (millimeters)

  • Typical values range from 0.15 mm to 0.30 mm

  • Note

    • Dot pitch, as specified, is the capability of the display

    • For a particular image, dot pitch can be calculated as…

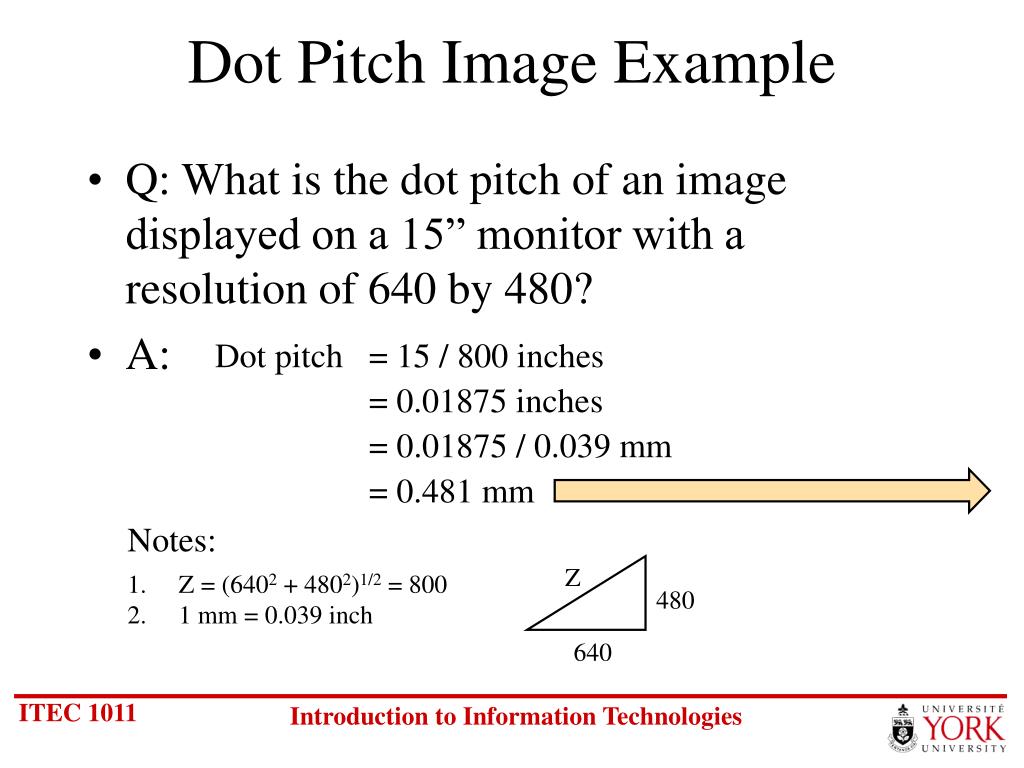

Dot pitch image example l.jpg

Dot pitch = 15 / 800 inches

= 0.01875 inches

= 0.01875 / 0.039 mm

= 0.481 mm

Notes:

Z

480

  • Z = (6402 + 4802)1/2 = 800

  • 1 mm = 0.039 inch

640

Dot Pitch Image Example

  • Q: What is the dot pitch of an image displayed on a 15” monitor with a resolution of 640 by 480?

  • A:


Dot pitch illustrated l.jpg
Dot Pitch Illustrated

Pixel

0.481 mm


Exercise dot pitch image l.jpg
Exercise – Dot Pitch Image

  • Q: What is the dot pitch of an image displayed on a 19” monitor with a resolution of 1,280 by 1,024?

Skip answer

Answer


Exercise dot pitch image45 l.jpg
Exercise – Dot Pitch Image

Answer

  • Q: What is the dot pitch of an image displayed on a 19” monitor with a resolution of 1,280 by 1,024?

  • A:

Dot pitch = 19 / 1639.2 inches

= 0.01159 inches

= 0.01159 / 0.039 mm

= 0.30 mm

Note:

Z = (12802 + 10242)1/2 = 1639.2


Dot pitch image table l.jpg
Dot Pitch Image Table

Note: Dot pitch figures in mm (millimeters)


Dot pitch example l.jpg
Dot Pitch Example

  • Q: A 19” CRT monitor, made by Vapour Hardware Inc., has a dot pitch specification of 0.28 mm. What is the highest resolution at which this monitor will reliably operate?

  • A:

1,280 by 1,024

Discussion: Just read the value above from the dot pitch image table. For a 19” monitor, a 1,280 by 1,024 image has a dot pitch of 0.30 mm. The monitor’s dot pitch specification exceeds this, therefore, the monitor will work fine at this resolution. However, a 1,600 by 1,200 image on a 19” monitor requires a dot pitch of 0.24, which is beyond the capability of the example monitor.


Exercise dot pitch l.jpg
Exercise – Dot Pitch

  • Q: A 17” CRT monitor has a dot pitch specification of 0.30 mm. What is the highest resolution at which this monitor may operate?

  • A:

Skip answer

Answer


Exercise dot pitch49 l.jpg
Exercise – Dot Pitch

Answer

  • Q: A 17” CRT monitor has a dot pitch specification of 0.30 mm. What is the highest resolution at which this monitor may operate?

  • A: 1,024 by 768


Interlacing l.jpg
Interlacing

  • Interlacing is an image drawing technique whereby the electron guns draw only half the horizontal lines with each pass

  • The odd lines are drawn on the 1st pass, the even lines are drawn on the 2nd pass

  • A non-interlaced imaged is completely drawn in one pass

  • Let’s see…


Interlacing animation l.jpg

Electron beam “on” (drawing)

Electron beam “off” (retracing)

Interlacing Animation

Non-interlaced scanning

Interlaced scanning


Uses of interlacing l.jpg
Uses of Interlacing

  • TVs use interlaced scanning

  • Computer monitors (CRTs) use non-interlaced scanning


Retracing l.jpg

Horizontalretrace

Verticalretrace

Retracing

  • Retracing is the act of repositioning the electron beam

  • The beam must undergo horizontal retrace (once per line) and vertical retrace (once per image)


Scan frequency l.jpg
Scan Frequency

  • Horizontal scan frequency

    • The frequency with which an electron beam moves back-and-forth

    • The rate of drawing each line in an image

    • Typical range: 30-65 kHz

  • Vertical scan frequency

    • The frequency with which an electron beam moves up-and-down

    • Also called vertical refresh rate , refresh rate, vertical frequency, vertical scan rate, or frame rate

    • The rate of drawing images

    • Typical range: 45-120 Hz


Multi scan monitors l.jpg
Multi-scan Monitors

  • A multi-scan monitor can adjust to the horizontal and vertical scan frequencies of the video signal produced by the interface

  • Also called multi-sync, multi-frequency, or variable-frequency monitors


Video frequency l.jpg
Video Frequency

  • The frequency at which pixels are drawn on the display

  • Specified as a maximum capability of the monitor

  • Also called video bandwidth

  • Typical ranges 50-100 MHz


Video frequency vs resolution and frame rate l.jpg
Video Frequency vs. Resolution and Frame Rate

Video Frequency > Resolution  Frame Rate

Example: Daewoo CMC-1703B specifications: Video frequency = 85 MHz Max resolution = 1280 by 1024 @ 60Hz

Note: 1280  1024  60 = 78,643,200 = 78.6 MHz


Display properties in windows l.jpg
Display Properties in Windows

  • Right click on the desktop (display) and select Properties

  • Click Settings to determine/change the setting for Colors and Screen area (Resolution)

  • To determine/change screen refresh rate, click on Advanced, then click on Adapter

Next 2 slides


Slide59 l.jpg

Note:Varies on different systems


Slide60 l.jpg

Note:Varies on different systems

Demo


Colour control l.jpg
Colour Control

  • Three ways to control colour

    • Selecting from a predefined palette

    • Individually control red, green, and blue

    • Individually control colour and brightness

      • Colour is also called chrominance (C)

        • Chrominance consists of hue and saturation

      • Brightness is also called luminance (Y)

  • Most applications support all three techniques

Next 2 slides




Video interfaces 1 of 2 l.jpg
Video Interfaces (1 of 2)

  • Composite video

    • Definition: a video interface in which all the colour and sync information is contained in one signal

    • Contrast with RGB

    • TVs in North America use composite video

  • RGB (Red, Green, Blue)

    • Definition: a video interface in which the red, green, and blue signals, and the horizontal and vertical sync signals, are separate

    • Computer monitors use RGB


Video interfaces 2 of 2 l.jpg
Video Interfaces (2 of 2)

  • S-video

    • A technology for transmitting video signals over a cable by dividing the video information into two separate signals: one for colour (chrominance, C), and one for brightness (luminance, Y)

    • Also called Y/C video

    • Televisions (internally) are designed for separate luminance and chrominance signals

    • Computer monitors are designed for separate red, green, and blue signals


Rgb video standards l.jpg
RGB Video Standards

  • A variety of standards exist for delivering RGB signals to a video display monitor

  • Developed and consolidated by VESA (Video Electronics Standards Association)

  • Examples

    • VGA – video graphics adapter

    • SVGA – super-VGA

    • XGA – extended graphics adapter


Vga svga xga pinouts l.jpg
VGA/SVGA/XGA Pinouts

DE15 connector


S video pinouts l.jpg
S-video Pinouts

4-pin mini-DIN connector


Flat panel displays l.jpg
Flat Panel Displays

  • A very thin display screen

  • Most flat panel displays use LCD technology

  • Other technologies

    • ELD (electro-luminescent display)

    • Gas plasma display


Active matrix display l.jpg
Active-Matrix Display

  • A type of liquid crystal display in which the image is refreshed more frequently than in conventional (passive matrix) displays

  • Most common type of active-matrix display is known as TFT (thin-film transistor)

  • The terms active matrix and TFT are used interchangeably


Thank you l.jpg
Thank you

Next topic


ad
