Case study 3: orthogonal Latin squares

Modelled by Barbara Smith


Modelling decisions l.jpg

Modelling decisions

  • Many different ways to model even simple problems

  • Combining models can be effective

    • Channel between models

  • Need additional constraints

    • Symmetry breaking

    • Implied (but logically) redundant


Orthogonal latin squares l.jpg

Orthogonal Latin squares

  • Find a pair of Latin squares

    • Every cell has a different pair of elements

  • Generalized form:

    • Find a set of m Latin squares

    • Each possible pair is orthogonal


Orthogonal latin squares4 l.jpg

1 2 3 4 1 2 3 4

2 1 4 3 3 4 1 2

3 4 1 2 4 3 2 1

4 3 2 1 2 1 4 3

11 22 33 44

23 14 41 32

34 43 12 21

42 31 24 13

Two 4 by 4 Latin squares

No pair is repeated

Orthogonal Latin squares


History of orthogonal latin squares l.jpg

History of (orthogonal) Latin squares

  • Introduced by Euler in 1783

    • Also called Graeco-Latin or Euler squares

  • No orthogonal Latin square of order 2

    • There are only 2 (non)-isomorphic Latin squares of order 2 and they are not orthogonal


History of orthogonal latin squares6 l.jpg

History of (orthogonal) Latin squares

  • Euler conjectured in 1783 that there are no orthogonal Latin squares of order 4n+2

    • Constructions exist for 4n and for 2n+1

    • Took till 1900 to show conjecture for n=1

    • Took till 1960 to show false for all n>1

  • 6 by 6 problem also known as the 36 officer problem

    “… Can a delegation of six regiments, each of which sends a colonel, a lieutenant-colonel, a major, a captain, a lieutenant, and a sub-lieutenant be arranged in a regular 6 by 6 array such that no row or column duplicates a rank or a regiment?”


More background l.jpg

More background

  • Lam’s problem

    • Existence of finite projective plane of order 10

    • Equivalent to set of 9 mutually orthogonal Latin squares of order 10

    • In 1989, this was shown not to be possible after 2000 hours on a Cray (and some major maths)

  • Orthogonal Latin squares are used in experimental design

    • To ensure no dependency between independent variables


A simple 0 1 model l.jpg

A simple 0/1 model

  • Suitable for integer programming

    • Xijkl = 1 if pair (i,j) is in row k column l, 0 otherwise

    • Avoiding advice never to use more than 3 subscripts!

  • Constraints

    • Each row contains one number in each square

      Sum_jl Xijkl = 1 Sum_il Xijkl = 1

    • Each col contains one number in each square

      Sum_jk Xijkl = 1 Sum_ik Xijkl = 1


A simple 0 1 model9 l.jpg

A simple 0/1 model

  • Additional constraints

    • Every pair of numbers occurs exactly once

      Sum_kl Xijkl = 1

    • Every cell contains exactly one pair of numbers

      Sum_ij Xijkl = 1

      Is there any symmetry?


Symmetry removal l.jpg

Symmetry removal

  • Important for solving CSPs

    • Especially for proofs of optimality?

  • Orthogonal Latin square has lots of symmetry

    • Permute the rows

    • Permute the cols

    • Permute the numbers 1 to n in each square

  • How can we eliminate such symmetry?


Symmetry removal11 l.jpg

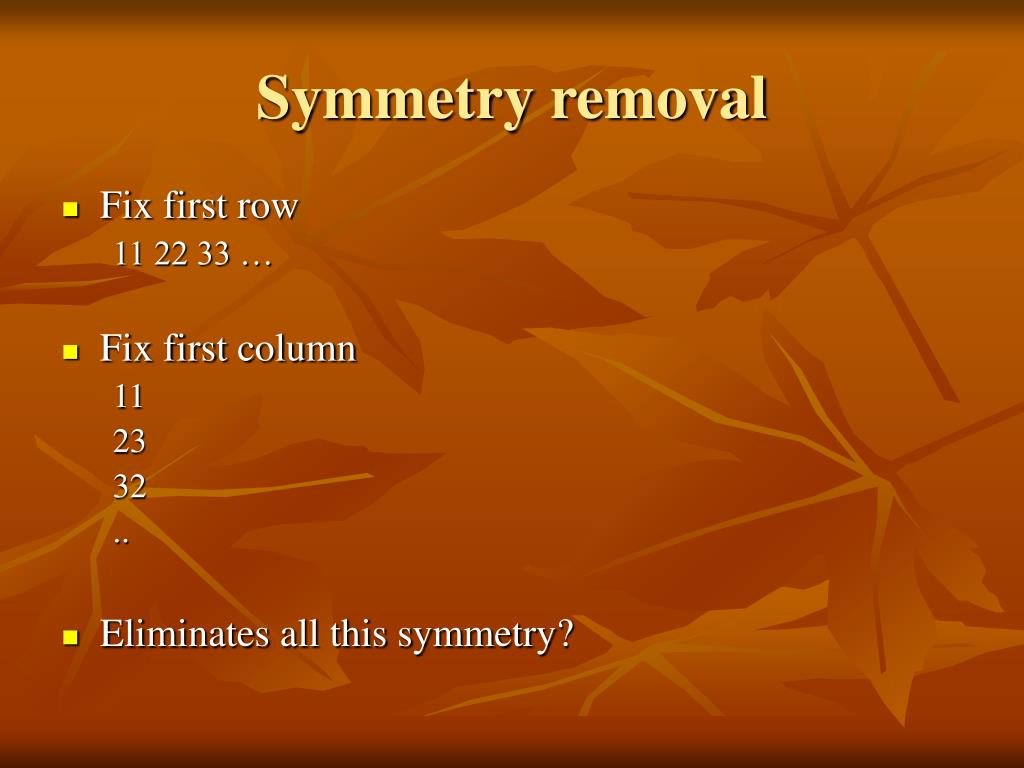

Symmetry removal

  • Fix first row

    11 22 33 …

  • Fix first column

    11

    23

    32

    ..

  • Eliminates all this symmetry?


What about a csp model l.jpg

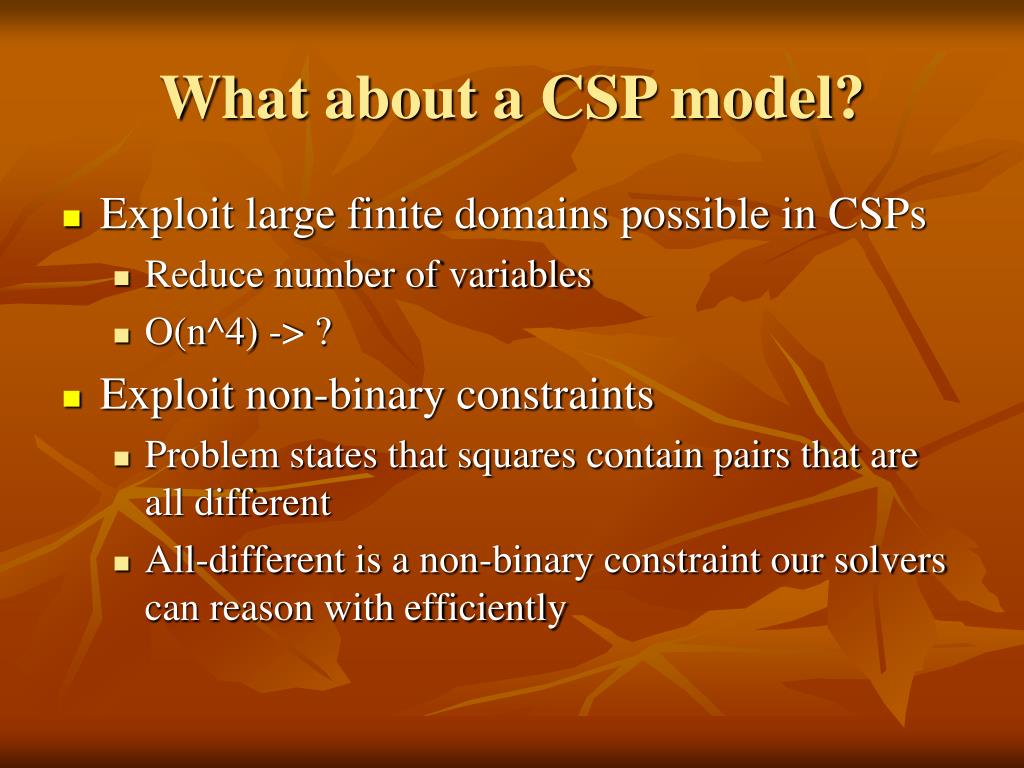

What about a CSP model?

  • Exploit large finite domains possible in CSPs

    • Reduce number of variables

    • O(n^4) -> ?

  • Exploit non-binary constraints

    • Problem states that squares contain pairs that are all different

    • All-different is a non-binary constraint our solvers can reason with efficiently


Csp model l.jpg

CSP model

  • 2 sets of variables

    • Skl = i if the 1st element in row k col l is i

    • Tkl = j if the 2nd element in row k col l is j

  • How do we specify all pairs are different?

    • All distinct (k,l), (k’,l’)

      if Skl = i and Tkl = j then Sk’l’=/ i or Tk’l’ =/ j

      O(n^4) loose constraints, little constraint propagation!

      What can we do?


Csp model14 l.jpg

CSP model

  • Introduce auxiliary variables

    • Fewer constraints, O(n^2)

    • Tightens constraint graph => more propagation

    • Pkl = i*n + j if row k col l contains the pair i,j

  • Constraints

    • 2n all-different constraints on Skl, and on Tkl

    • All-different constraint on Pkl

    • Channelling constraint to link Pkl to Skl and Tkl


Csp model v o 1 model l.jpg

CSP model

3n^2 variables

Domains of size n, n and n^2+n

O(n^2) constraints

Large and tight non-binary constraints

0/1 model

n^4 variables

Domains of size 2

O(n^4) constraints

Loose but linear constraints

Use IP solver!

CSP model v O/1 model


Solving choices for csp model l.jpg

Solving choices for CSP model

  • Variables to assign

    • Skl and Tkl, or Pkl?

  • Variable and value ordering

  • How to treat all-different constraint

    • GAC using Regin’s algorithm O(n^4)

    • AC using the binary decomposition


Good choices for the csp model l.jpg

Good choices for the CSP model

  • Experience and small instances suggest:

    • Assign the Skl and Tkl variables

    • Choose variable to assign with Fail First (smallest domain) heuristic

      • Break ties by alternating between Skl and Tkl

    • Use GAC on all-different constraints for Skl and Tkl

    • Use AC on binary decomposition of large all-different constraint on Pkl


Performance l.jpg

Performance


Dual csp model l.jpg

Dual CSP model

  • 4 subscripts in 0/1 model are interchangeable

    • Suggests a dual model

    • DSij = k if the pair (i,j) occurs in row k

    • DTij = l if the pair (i,j) occurs in the row l

    • DPij = k*n + l if the pair (i,j) occurs in row i col j

  • Dual constraints to the primal model


Combined model l.jpg

Combined model

  • Primal and dual model together

    • Channelling constraints to link them

  • But new search decisions

    • Do we assign both primal and dual variables?

    • How do handle dual constraints (AC, GAC …)?

  • Other dualities

    • Any choice of 2 subscripts from 4

    • Diminishing returns


Dual performance l.jpg

Dual performance


Conclusions l.jpg

Conclusions

  • Many ways to model even simple problems

  • Introduce auxiliary variables

    • Reduce number of constraints, improve propagation

  • Combining models often beneficial

    • Channelling constraints link models

  • Need to deal with symmetry

  • Don’t always use GAC on all-different constraints


General methodology l.jpg

General methodology?

  • Choose a basic model

  • Consider auxiliary variables

    • To reduce number of constraints, improve propagation

  • Consider combined models

    • Channel between views

  • Break symmetries

  • Add implied constraints

    • To improve propagation


Case study 4 template design l.jpg

Case study 4: template design

Again model due to Barbara Smith


Introduction l.jpg

Introduction

  • Prob002 at www.csplib.org

  • Problem comes from a printing firm

    • Cat food labels that need to be printed using templates

    • Several designs (tuna, chicken, …) go on each template

    • Different demand for each flavour

      • Aside: where did cats get the taste for tuna?


Template design problem l.jpg

Template design problem

  • For Francesca’s benefit

  • How else can I get a cat picture into my talk?


Basic csp model l.jpg

Basic CSP model

  • Assume number of templates is fixed

  • Variables

    • Pij = number of slots on template i for design j

    • Ri = run length for template i

  • Constraints

    • Sum_j Pij = s, number of slots on each template

    • Sum_i Pij * Ri >= dj, total production equals demand


Basic csp model28 l.jpg

Basic CSP model

  • Optimization problem

    • Introduce variable to minimize

    • Production = Sum_i Ri

    • Solved as sequence of decision problems

      Production < l1, Production < l2 …

      l1 set to minimum number of printings with 1 template


Symmetry l.jpg

Symmetry

  • Does the model have any symmetry?

  • If so, how can we eliminate it?


Symmetry30 l.jpg

Symmetry

  • The templates are indistinguishable and can be permuted

    • Swap all designs on one template with all those on a second template

  • Break this symmetry by distinguishing the templates

    • R1 <= R2 <= R3 …


Symmetry31 l.jpg

Symmetry

  • Designs j, k with the same demand are indistinguishable

  • We can break this symmetry

    • [P1j,P2j,P3j,…] <lex [P1k,P2k,P3k,…]

    • Efficient GAC algorithm for lex ordering constraint


Sort of symmetry l.jpg

Sort of symmetry?

  • Symmetries can be subtle to spot!

  • Consider designs j and j’ with demand for j less than for j’

  • Suppose we produce more of j than j’

  • We could swap j and j’ and still have solution

  • Prevent this with constraint on production

    • Sum_i Pij Ri <= Sum_i Pij’ Ri


Implied constraints l.jpg

Implied constraints

  • We should always look for implied constraints we can add to model

    • Encourage constraint propagation


Implied constraints34 l.jpg

Implied constraints

  • 2 templates

    • R1+R2 = Production

    • R1 <= R2

    • Hence

      R1 <= Production/2

      R2 >= Production/2


Implied constraints35 l.jpg

Implied constraints

  • 3 templates

    • R1 + R2 + R3 = Production

    • R1 <= R2 <= R3

    • Hence

      R1 <= Production/3

      R2 <= Production/2

      R3 >= Production/3


Solving choices l.jpg

Solving choices

  • Variable ordering

    • As with Golomb ruler, assign variables to construct solution systematically

    • Assign all designs on one template before moving on to a second template

    • Encourages constraint propagation on runlength constraints


Performance37 l.jpg

Performance

  • Basic model

    • Difficult to solve 2 or 3 template problems

  • Full model

    • Problem solved quickly

    • Can solve much larger problems than feasible with the basic model

    • Optimality can still be tough!


Conclusions38 l.jpg

Conclusions

  • Basic model often obvious

  • To refine such a model we need:

    • Consider dual/combined models

    • Symmetries eliminated

    • Implied constraints

    • Variable ordering heuristics

  • Hopefully you can start to see patterns in what we do!
