Presentation Transcript

Video on demand2 l.jpg
Video on Demand

  • One video server

  • Many video data

  • Many clients

  • Client want to watch at any time

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Assumptions l.jpg
Assumptions

  • Constant bitrate stream

  • Perfect network transport

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Unicast solution l.jpg
Unicast Solution

  • One channel per client

  • No start-up latency

  • No client buffer

  • Low client bandwidth

  • Large server bandwidth

  • Not scalable

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Multicast solution l.jpg
Multicast Solution

  • Batching

    • aggregate client requests

    • serve using multicast

    • clients have to wait

    • No client buffer

    • Low client bandwidth

      “Scheduling Policies for an On-Demand Video Server with Batching”

      Dan, Sitaram, Shahabuddin, IBM

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Multicast solution6 l.jpg
Multicast Solution

  • User-centered approach

    • Scheduling data based on user requests

  • Data-centered approach

    • Don’t care about user

    • Just broadcast popular video

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Multicast solution7 l.jpg
Multicast Solution

  • Batching

  • Staggered Broadcast

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Staggered broadcast l.jpg
Staggered Broadcast

Video

C0

C1

C2

:

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Staggered broadcast9 l.jpg
Staggered Broadcast

  • 2 hour video

  • 5 minutes waiting time

  • Number of channels =

    2 x 60 / 5 = 24

  • Required bandwidth =

1.5Mbps x 24 = 36Mbps

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Multicast solution10 l.jpg
Multicast Solution

  • Batching

  • Staggered Broadcast

    • clients have to wait

    • No client buffer

    • Low client bandwidth

    • Huge server bandwidth

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Multicast solution11 l.jpg
Multicast Solution

  • Batching

  • Staggered Broadcast

  • Periodic Broadcast

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Periodic broadcast l.jpg

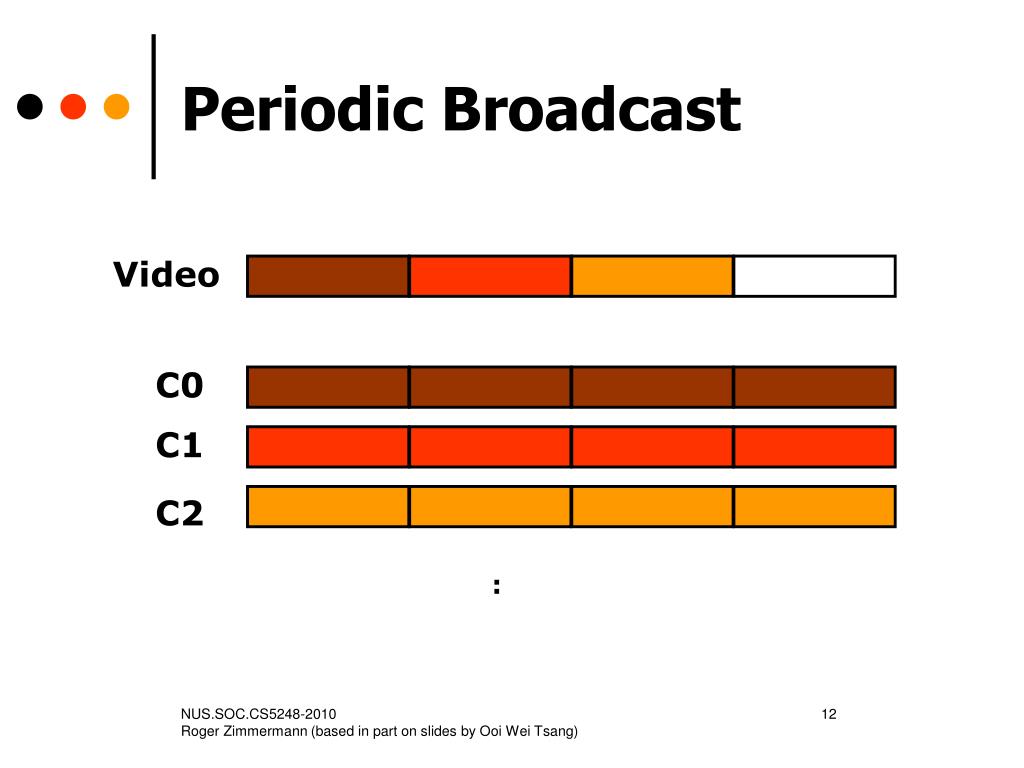

Periodic Broadcast

Video

C0

C1

C2

:

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Pyramid broadcast l.jpg
Pyramid Broadcast

Video

C0

C1

C2

:

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Pyramid broadcast14 l.jpg
Pyramid Broadcast

Video

C0

C1

C2

:

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Analysis of pyramid broadcast l.jpg
Analysis of Pyramid Broadcast

  • Notations

    • B : Total available bandwidth

    • Bv : Bandwidth of video

    • Tv : Total length of each video

    • K : Number of segments per video

    • Ti : Length of segment i

    •  : Factor in geometric series

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Channel bandwidth l.jpg
Channel Bandwidth

playback time = Ti

i

i+1

i+1

D’oh!

Just

miss

it!

download time = Ti+1Bv/Bi

Download time for segment i+1 needs

to be smaller than Ti for it to arrive in time.

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Channel bandwidth17 l.jpg
Channel Bandwidth

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Slide18 l.jpg
 = 2

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Start up latency l.jpg
Start-up Latency

  • Worst case waiting time =

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Optimal l.jpg
Optimal

T1

2.5

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Storage requirements l.jpg
Storage Requirements

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Pyramid broadcast22 l.jpg
Pyramid Broadcast

  • Large client bandwidth (KBv)

  • Huge client buffer (70–80% Tv)

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Permutation based pyramid broadcast l.jpg

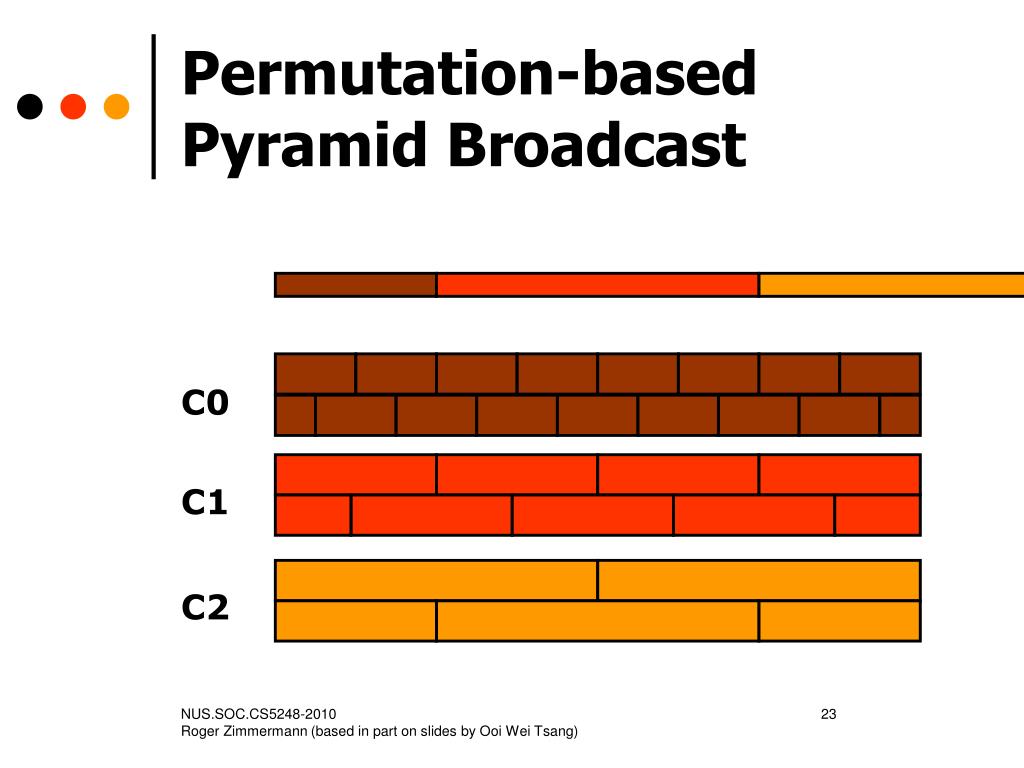

Permutation-based Pyramid Broadcast

C0

C1

C2

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Channel bandwidth24 l.jpg
Channel Bandwidth

playback time = Ti

i

i+1

i+1

i+1

i+1

D’oh!

Just

miss

it!

download time = Ti+1Bv/Bi

X

X needs to be smaller than Ti for segment

i+1 to arrive in time.

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Channel bandwidth25 l.jpg
Channel Bandwidth

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Client latency l.jpg
Client Latency

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Storage requirement l.jpg
Storage Requirement

  • One channel at a time

  • Can pause and wait

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Storage requirement28 l.jpg
Storage Requirement

pause

k-1

k-1

k

resume

k

Within time X, better

not consume all data

in buffer.

X

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Storage requirement29 l.jpg
Storage Requirement

pause

k-1

k-1

k

k

resume

Within time X, better

not consume all data

in buffer.

X

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Storage requirement30 l.jpg
Storage Requirement

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Comparisons l.jpg
Comparisons

Carter, Long and Paris

“Video on Demand Broadcasting Protocols”

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Slide32 l.jpg

Pyramid Broadcasting

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Skyscraper broadcasting l.jpg
Skyscraper Broadcasting

  • Observations:

    • storage requirement is affected by size of the largest chunk

      So, let’s limit the size of the largest chunk!

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Slide34 l.jpg

Pyramid

Skyscraper

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Skyscraper broadcasting35 l.jpg
Skyscraper Broadcasting

  • Uses series

    1 2 2 5 5 12 12 25 25 52 52 … W W W

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Skyscraper example l.jpg
Skyscraper Example

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Skyscraper example37 l.jpg
Skyscraper Example

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Comparisons38 l.jpg
Comparisons

Carter, Long and Paris

“Video on Demand Broadcasting Protocols”

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Other schemes l.jpg
Other schemes

  • Pagoda Broadcasting1 3 5 15 25 75 125 …

  • Harmonic Broadcasting

    Equal segment size, varies bandwidth instead!

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Multicast solution40 l.jpg
Multicast Solution

  • Batching

  • Staggered Broadcast

  • Periodic Broadcast

    • Sending rate ≥ playback rate

    • May need multiple channels

    • Need additional client buffer

    • Need to wait

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Multicast solution41 l.jpg
Multicast Solution

  • Batching

  • Staggered Broadcast

  • Periodic Broadcast

  • Patching

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Patching l.jpg
Patching

Time

mcast

unicast

Client Request

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Patching43 l.jpg
Patching

Patching Window: W

Time

mcast

mcast

Client Request

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Grace patching l.jpg
Grace Patching

ifW < B

client buffer video[W .. end]

  • 30 minutes video

  • 1 client arrival per minute

  • Total data delivered =

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Scenario 1 b 15mins l.jpg
Scenario 1: B = 15mins

  • 30 minutes video

  • 1 client arrival per minute

  • Total data delivered =

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Scenario 2 b 5mins l.jpg
Scenario 2: B = 5mins

  • 30 minutes video

  • 1 client arrival per minute

  • Total data delivered =

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Scenario 3 b 2mins l.jpg

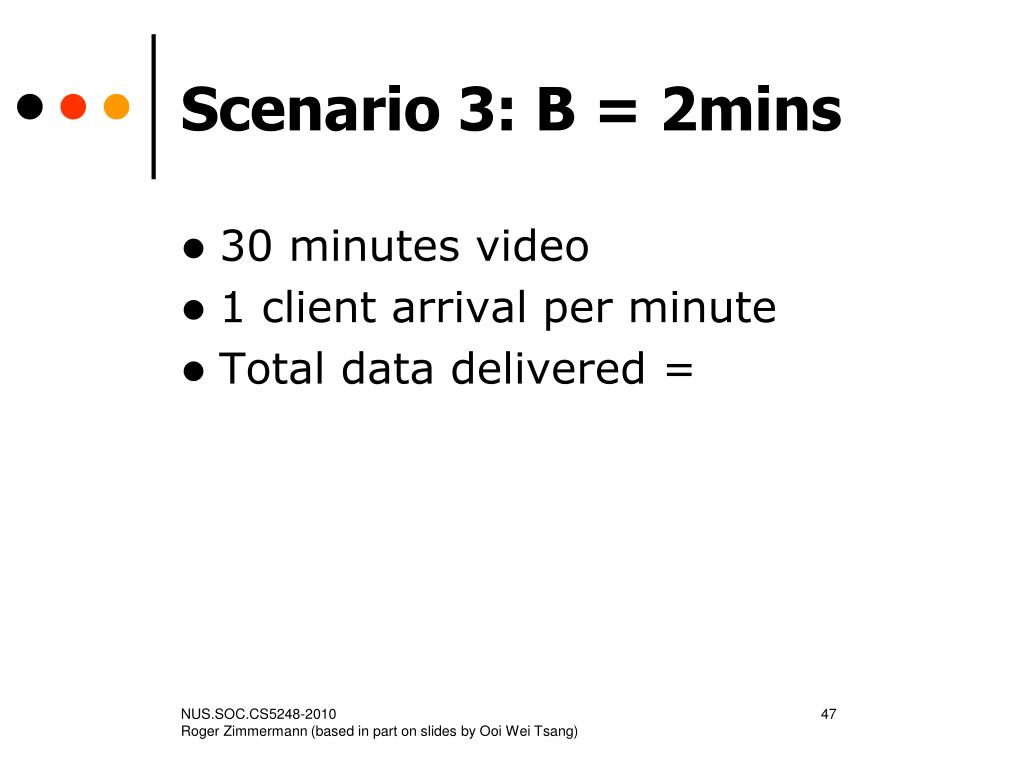

Scenario 3: B = 2mins

  • 30 minutes video

  • 1 client arrival per minute

  • Total data delivered =

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)


Summary l.jpg
Summary

  • Batching (User Centered)

  • Staggered Broadcast (Data Centered)

  • Periodic Broadcast (Data Centered)

  • Patching (True VOD)

NUS.SOC.CS5248-2010

Roger Zimmermann (based in part on slides by Ooi Wei Tsang)
