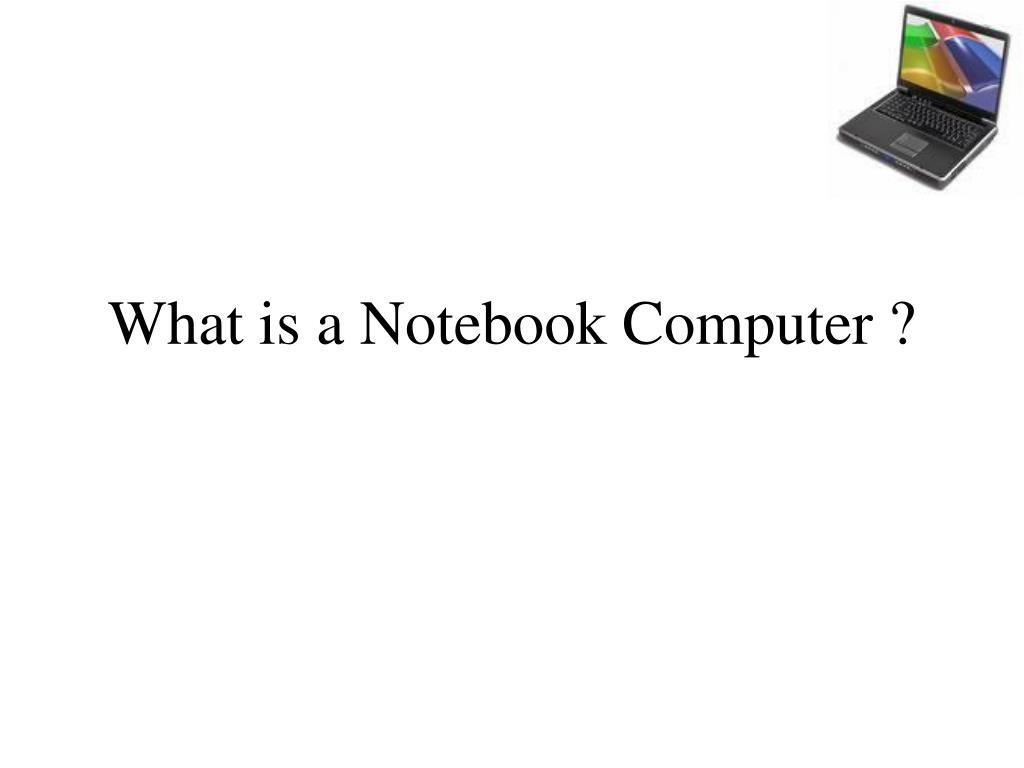

What is a Notebook Computer - PowerPoint PPT Presentation


  • 357 Views
  • Updated On :

What is a Notebook Computer ?. A Notebook is a portable computer. Portable Computers. Laptops - largest Notebooks - smaller Palmtops - smallest. A portable computer is much smaller and lighter than the most compact PC. The screen and keyboard are integrated parts of the unit.

loader
I am the owner, or an agent authorized to act on behalf of the owner, of the copyrighted work described.
capcha
Download Presentation

PowerPoint Slideshow about 'What is a Notebook Computer ' - RexAlvis


An Image/Link below is provided (as is) to download presentation

Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author.While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server.


- - - - - - - - - - - - - - - - - - - - - - - - - - E N D - - - - - - - - - - - - - - - - - - - - - - - - - -
Presentation Transcript

Slide2 l.jpg

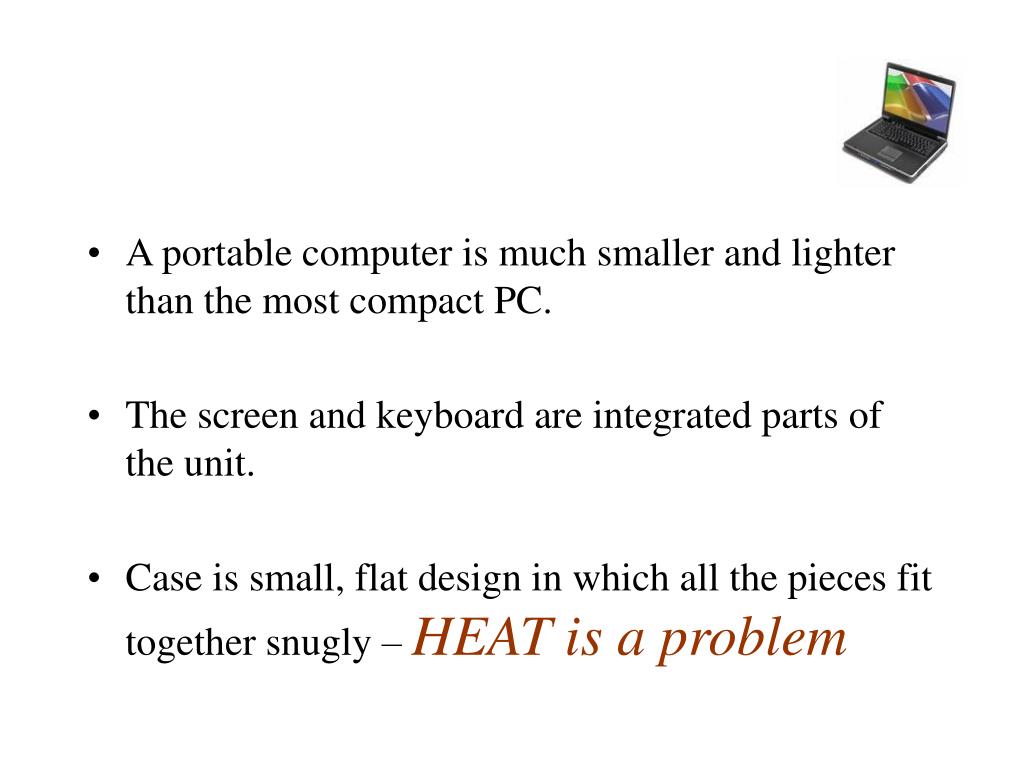

A Notebook is a portable computer


Portable computers l.jpg

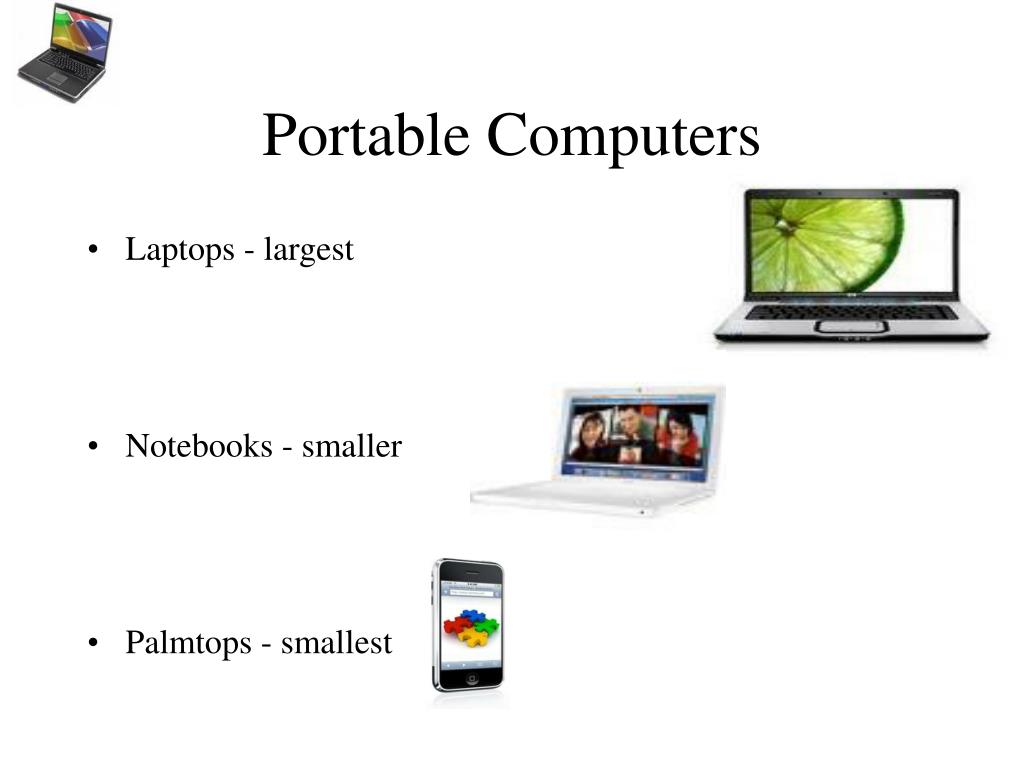

Portable Computers

  • Laptops - largest

  • Notebooks - smaller

  • Palmtops - smallest


Slide5 l.jpg


Ever heard of xerox l.jpg
Ever heard of Xerox ? most compact PC.

  • In the 1970s, Alan Kay of the Xerox Palo Alto Research Center sketched the Dynabook – a vision for a wireless portable computer

  • Dynabook never got past sketches and a cardboard model, but the idea got out …



Slide9 l.jpg

  • 1979 - William Moggridge of Grid Systems Corporation created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

  • 1109 had 340 KB memory, a die-cast magnesium case and a folding electroluminescent graphics display screen.

  • NASA bought 1109s at $800 for the space program.


Slide10 l.jpg


Ibm pc convertible l.jpg
IBM PC Convertible .. created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

  • Weighed 12 lbs (5.4 kg),

  • sold for $3,500.

  • was the first portable computer with the clamshell design used in today's laptops.

  • The success of the PC Convertible was the catalyst for competitors like Compaq and Toshiba to switch to the clamshell design in their portable computers. And so began the era of the laptop computer.


Ibm pc convertible had l.jpg
IBM PC Convertible had .. created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

  • An 8088 microprocessor

  • 256 kilobytes of memory

  • Two 3.5-inch (8.9-cm) floppy drives

  • An LCD display

  • Parallel and serial printer ports

  • Space for an internal modem

  • A software suite including basic word processing, appointment calendar, telephone/address book, and calculator software


What to look for in a portable computer today l.jpg
What to look for in a portable computer today … created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

  • Don’t plan to upgrade anything except memory and a PCI Card

  • Get a warranty

  • Buy light (as in not heavy) with fastest processor, active matrix display, lithium battery


Slide14 l.jpg
FYI … created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

  • In the mid 90’s one of the most exciting innovations was channel aggregation – a notebook could have 2 modem connections to speed up data transfer


Extending a notebook l.jpg
Extending a Notebook created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

Cards slot into a notebook and extend the functionality, for ..

  • Memory

  • Modems

  • Drives

    PCMCIA standards define these cards.


The pc card standard cardbus l.jpg
The PC Card Standard, CardBus created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

  • Memory (type 1) – 3.3 mm thick

  • Modems (type 2) – 5.5 mm thick

  • Drives (type 3) – 10.5 mm thick

    CardBus uses 16 bit or 32 bit operation.


Expresscard l.jpg
ExpressCard created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

  • Intended to replace PC Card

  • Designed to use PCI Express or USB 2.0


Expresscard18 l.jpg
ExpressCard created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

  • ExpressCard/34 is 34 mm wide, 75 mm long and 5 mm high.

  • ExpressCard/54 is 54 mm wide, 75 mm long and 5 mm high.


To use pc card and or expresscard l.jpg
To use PC Card and/or ExpressCard .. created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

The Operating System needs

  • Socket Services

  • Card Services


To unplug a pc card l.jpg
To unplug a PC Card created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

  • Windows XP : Use the unplug icon in the system tray

  • Windows 2000: Add/Remove Hardware


Slide21 l.jpg
Find … created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

  • A PC Card that supports gigabit ethernet

  • A TV Tuner PC Card

  • A PC Card that supports an external SATA drive


Memory l.jpg
Memory created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

  • SO-DIMMS

  • SO-RIMMS

  • PC Card Memory

  • Proprietary Memory


What is an active matrix display l.jpg
What is an Active Matrix Display ? created the first functioning portable computer - Grid Compass Computer 1109 (find a picture)

  • A TFT (Thin Film Transistor) LCD Display


Slide24 l.jpg


Difference between active matrix and passive matrix l.jpg
Difference between Active Matrix and Passive Matrix ? like liquid.

Passive matrix flat panel displays consist of a grid of horizontal and vertical wires. At the intersection of each grid is an LCD element that constitutes a single pixel.

Active matrix flat panels have a transistor built into each pixel within the screen.

Active matrix displays have

- higher resolution,

- higher contrast,

- faster pixel response rates … than passive matrix LCDs.



And what is the fastest processor in a portable computer l.jpg

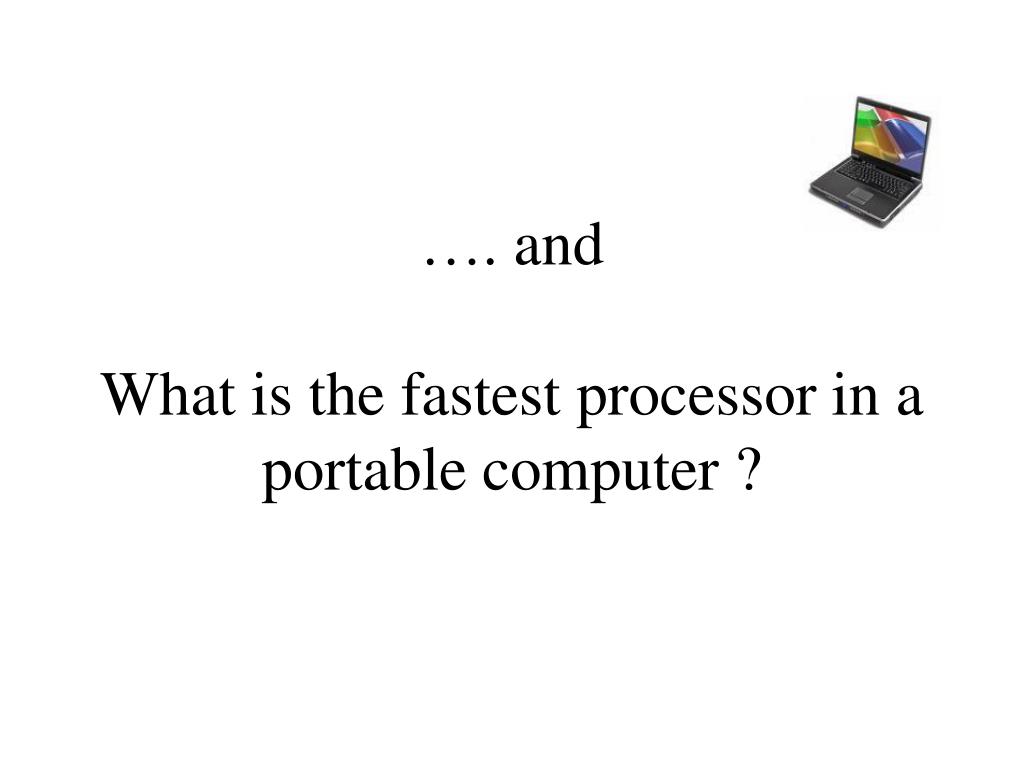

…. and display ? Try …What is the fastest processor in a portable computer ?


Batteries l.jpg
Batteries … display ? Try …

There are 4 major types of batteries used in portable computers :

  • Alkaline

    in remote controls – not used for computers today

  • Nickel-Cadmium (NiCd)

    Older, up to 12 hours to charge, memory effect, Cadmium is toxic

  • Nickel-metal-hydride (NiMH)

    Better than NiCd, but only recharged up to 500 times

  • Lithium-ion (Li-ion)

    Non-toxic but lithium highly reactive with water, lightweight, no memory effect, expensive

  • Direct methanol fuel cell (this is new)


So dimms l.jpg
SO-DIMMS display ? Try …

  • 72 pin (32 bit) – outdated with FPM or EDO memory

  • 144 pin (64 bit) - SDRAM

  • 200 pin (64 bit) - SDRAM


So rimms l.jpg
SO-RIMMS display ? Try …

  • 160 pins

  • RAMBUS technology


Pc card memory l.jpg
PC Card Memory display ? Try …

  • Available as both CARDBUS and ExpressCard

    (Sometimes CARDBUS just called PCM, PC CARD …, but ExpressCard Memory will be referenced as ExpressCard)


Mini pci card standard l.jpg

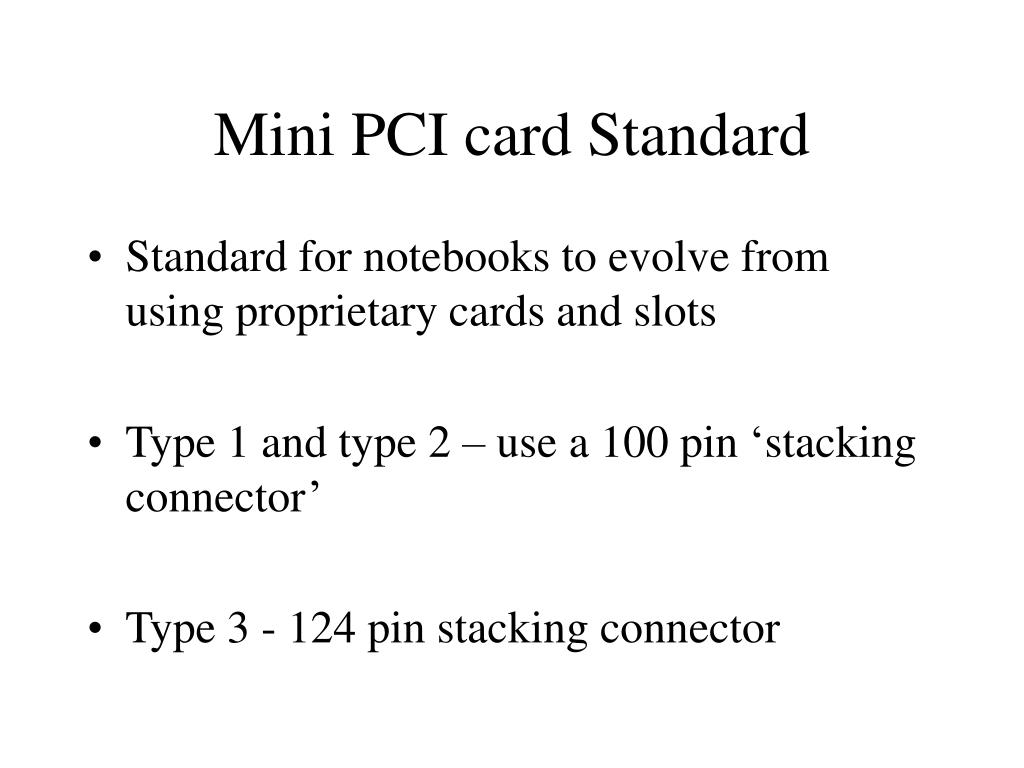

Mini PCI card Standard display ? Try …

  • Standard for notebooks to evolve from using proprietary cards and slots

  • Type 1 and type 2 – use a 100 pin ‘stacking connector’

  • Type 3 - 124 pin stacking connector


Port replicator vs docking station l.jpg
Port Replicator Vs Docking Station display ? Try …

  • Port Replicator : Allows notebook to connect to power outlet, full size monitor

  • Docking station : As provided by Port Replicator, but also connection to hard drive, floppy drive, DVD/CD drives


Find a l.jpg
Find a .. display ? Try …

  • Port Replicator

  • Docking Station


Spend 15 minutes l.jpg
Spend 15 minutes… display ? Try …

  • … online selecting a notebook computer for less than $1,500.


Servicing your own notebook l.jpg
Servicing your own Notebook ? display ? Try …

All notebooks are different, usually with proprietary components, so ……

Get a service manual / user manual / helpful web site


Good support l.jpg
Good Support ? display ? Try …

  • Lenovo and Dell have free online service manuals and phone support (through Canada)

  • Compaq have good web support and good phone support

  • Apple – Good web support, good phone support, good store support


Others l.jpg
Others ? display ? Try …

  • Try manufacturer’s web site

  • Try WWW.ESERVICEINFO.COMfor a free online manual or information .. Go visit


Www eserviceinfo com l.jpg
WWW.ESERVICEINFO.COM display ? Try …

For support software go to WWW.RARLAB.COM


Today we have a l.jpg
Today we have a …. display ? Try …

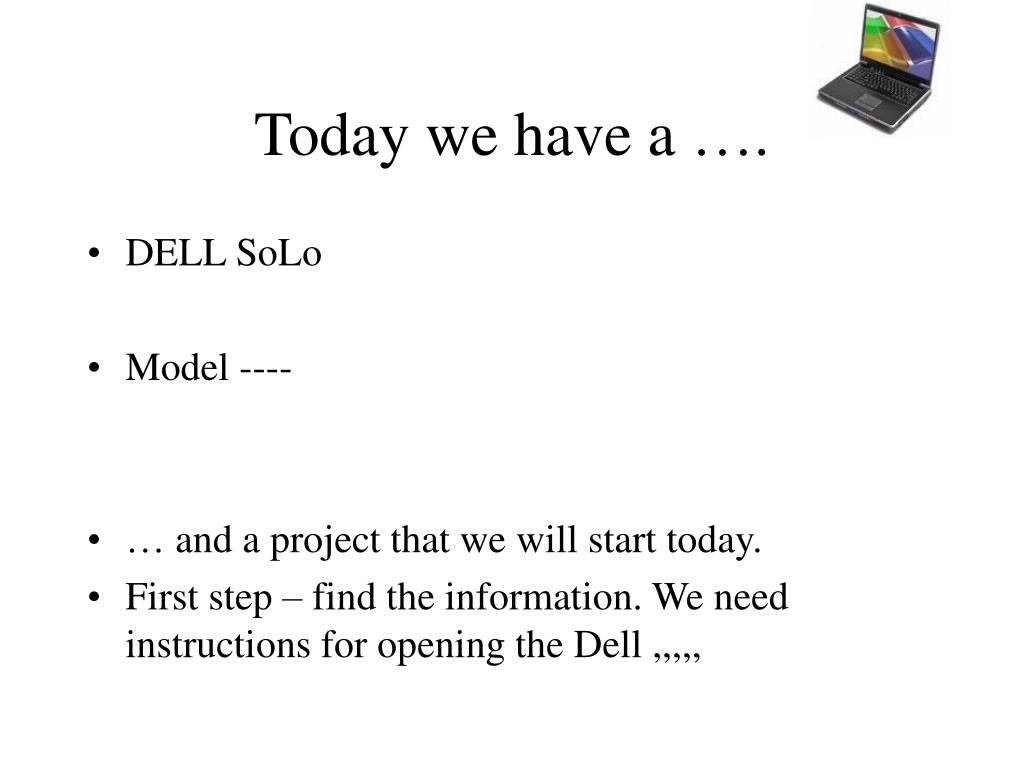

  • DELL SoLo

  • Model ----

  • … and a project that we will start today.

  • First step – find the information. We need instructions for opening the Dell ,,,,,


Servicing your own notebook41 l.jpg

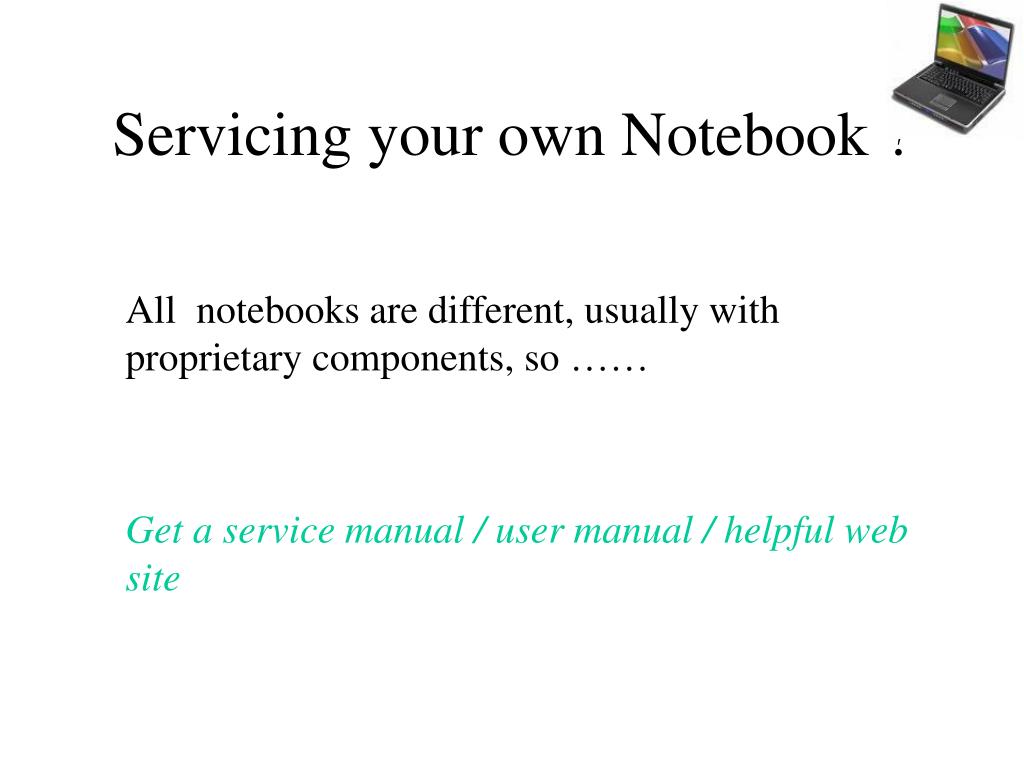

Servicing your own Notebook ? display ? Try …

All notebooks are different, usually with proprietary components, so ……

Get a service manual / user manual / helpful web site


Others42 l.jpg
Others ? display ? Try …

  • Try manufacturer’s web site

  • Try WWW.ESERVICEINFO.COMfor a free online manual or information .. Go visit


Www eserviceinfo com43 l.jpg
WWW.ESERVICEINFO.COM display ? Try …

For support software go to WWW.RARLAB.COM
