Presentation Transcript
Slide1 l.jpg

Pork Slaughter and Processing

September 9, 2002

TEXAS TECH

ASFT Department - Meat Science


Slide2 l.jpg

Seven Steps of Slaughter

1. Stunning

2. Sticking (Exsanguination)

3. Dehairing

4. Head Removal

5. Evisceration

6. Splitting

7. Weigh and Wash

TEXAS TECH

ASFT Department


Pre slaughter handling l.jpg

Porcine Stress Syndrome- genetic condition

Must handle pigs gently and calmly

Stress can cause Pale, Soft and Exudative (watery) meat (PSE).

Pre-Slaughter Handling


Slide4 l.jpg

Stunning/Immobilization

  • Weigh Animal

  • Restrain Animal

  • Wash animal thoroughly to remove dirt and aid in conductivity

  • Stun with electrical stunner (300-550 volts, 1/2-3 amps) at both temples

TEXAS TECH

ASFT Department


Slide5 l.jpg

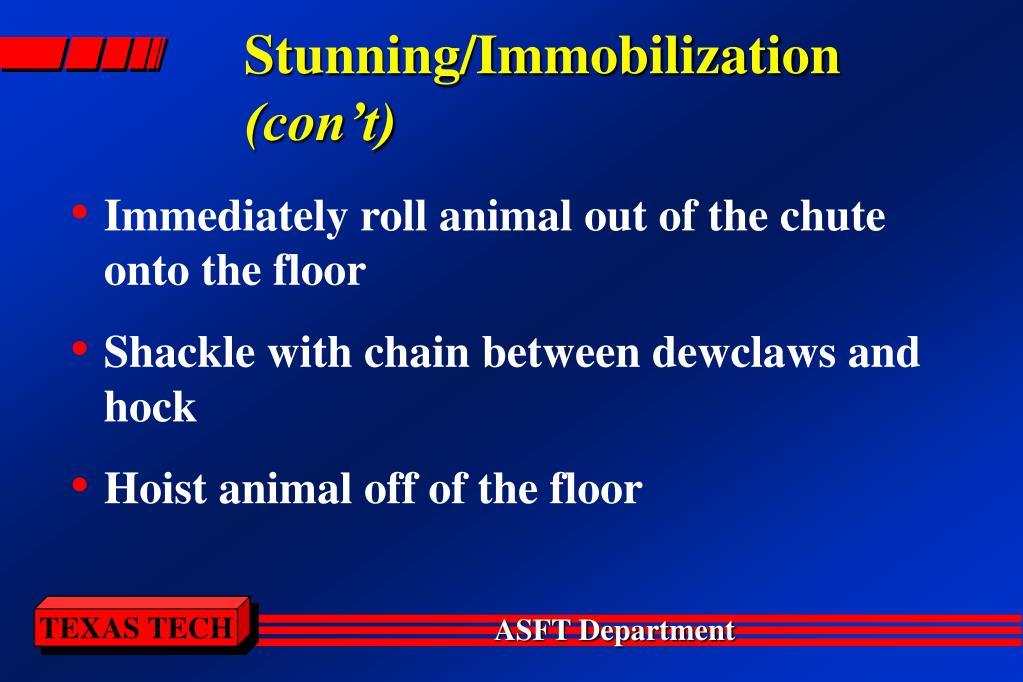

Stunning/Immobilization (con’t)

  • Immediately roll animal out of the chute onto the floor

  • Shackle with chain between dewclaws and hock

  • Hoist animal off of the floor

TEXAS TECH

ASFT Department



Slide7 l.jpg

Sticking

  • Position animal over blood collector

  • Make incision anterior to the sternum, severing the carotid artery and jugular vein

  • Allow 6-9 minutes for bleeding, should yield 6-8 pounds of liquid blood

TEXAS TECH

ASFT Department


Slide8 l.jpg

Sticking

TEXAS TECH

ASFT Department


Slide9 l.jpg

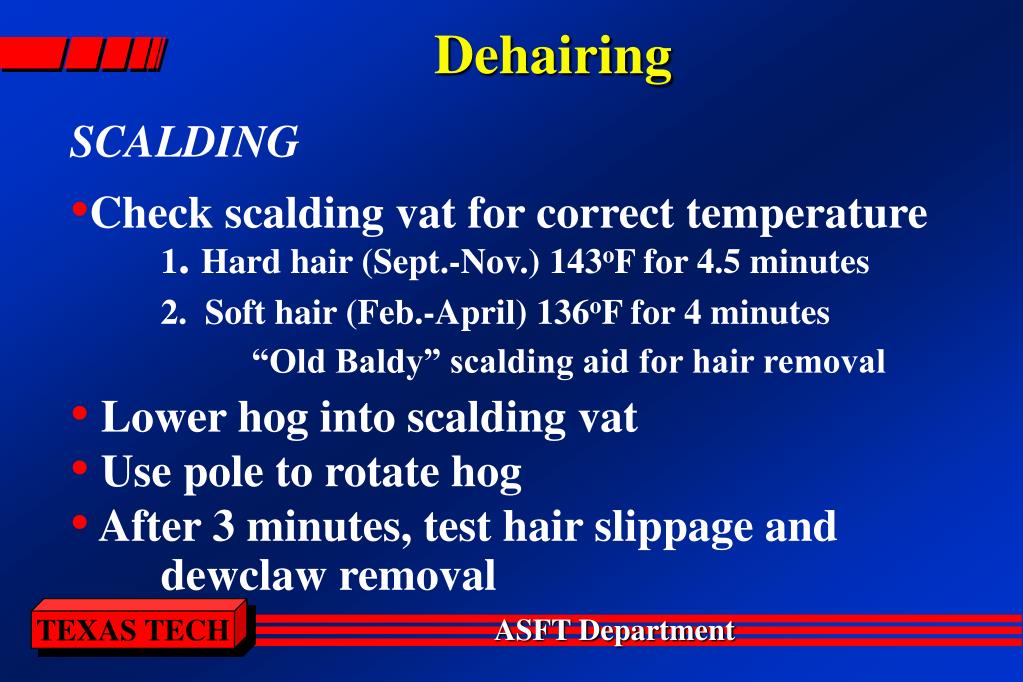

Dehairing

  • SCALDING

  • Check scalding vat for correct temperature

  • 1. Hard hair (Sept.-Nov.) 143oF for 4.5 minutes

  • 2. Soft hair (Feb.-April) 136oF for 4 minutes

  • “Old Baldy” scalding aid for hair removal

  • Lower hog into scalding vat

  • Use pole to rotate hog

  • After 3 minutes, test hair slippage and dewclaw removal

TEXAS TECH

ASFT Department



Slide11 l.jpg

Dehairing continued

  • MECHANICAL DEHAIRING

  • Turn on dehairer

  • Roll hog into dehairer

  • Shower animal with warm water while dehairing

  • Turn off dehairer and move hog to gambrel

  • Remove dewclaws, toenails, and any remaining hair and scurf

  • Expose gambrel cords and insert gambrel

TEXAS TECH

ASFT Department


Slide12 l.jpg

Dehairing

TEXAS TECH

ASFT Department


Singing and shaveing l.jpg

Hoist hog from gambrel to table

Singe carcass with gas-flame singer

Shave remaining hair from carcass

Wash animal to remove any hair or scurf

Singing and Shaveing


Slide14 l.jpg

Head Removal

  • Remove head between atlas vertebrae and the occipital condyles, just behind the ears

  • Jowls should be left on carcass

  • Place head in head station

  • Remove inner ear, eyelids, and lips

  • Rinse head with cold water to prepare for inspection

  • Spray carcass with latic acid to prevent microbial contamination (CCP).

TEXAS TECH

ASFT Department



Slide16 l.jpg

Evisceration

  • Loosen bung cutting around anus, then tie off and push down into body cavity

  • Split sternum with knife cutting off ventral midline (Do not cut stomach or intestine)

  • Split hams along ventral midline

  • Remove pizzle if hog is a male

  • Open abdominal and thoracic cavity along ventral midline (Caution: Do not cut the viscera)

TEXAS TECH

ASFT Department


Slide17 l.jpg

Evisceration continued

  • Pull out viscera and put into paunch truck

  • Expose kidneys

  • Remove pluck (heart, lungs, trachea and esophagus)

  • Remove leaf fat

TEXAS TECH

ASFT Department



Slide19 l.jpg

Splitting and Washing

  • Split down the center of the vertebral column with and or well saw

  • Wash carcass thoroughly with warm water

  • Weigh carcass and place hot carcass weight tags inside rib cage

  • Roll carcass into hot box after being inspected by federal inspector

TEXAS TECH

ASFT Department


Slide20 l.jpg

Splitting and Washing

TEXAS TECH

ASFT Department


Slide21 l.jpg

CLEAN UP

TEXAS TECH

ASFT Department
