Presentation Transcript


Forecasting global bc and oc emissions to 2030 and 2050 l.jpg

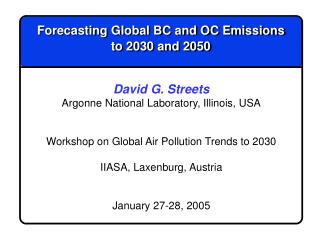

Forecasting Global BC and OC Emissionsto 2030 and 2050

David G. StreetsArgonne National Laboratory, Illinois, USAWorkshop on Global Air Pollution Trends to 2030IIASA, Laxenburg, AustriaJanuary 27-28, 2005


The source of carbonaceous aerosols is unburned carbon emitted during inefficient combustion l.jpg

Technically, we are most concerned about:

black carbon (BC), fine aerosol particles generally smaller than 1 micrometer in diameter and mostly elemental carbon,

and

organic carbon (OC), similar particles in which the carbon is bonded to other atoms.

These particles are small enough to travel in the air for a week or more, forming regional air pollution and ultimately being deposited far from the source.

The source of carbonaceous aerosols is unburned carbon emitted during inefficient combustion

Kathmandu: Brick Kilns


Slide4 l.jpg

Global distribution of BC emissions in 1996: it’s mostly China, India, and biomass burning (Bond et al., JGR, 2004)

China contributes about one-fourth of global BC


Inefficient combustion of coal in small stoves in china produces large quantities of black carbon l.jpg

Inefficient combustion of coal in small stoves in China produces large quantities of black carbon

Coal-burning cook stoves

in Xi’an, China


Give me a future any future range of ipcc forecasts of temperature change l.jpg

“Give me a future, any future…”(Range of IPCC forecasts of temperature change)

A2 and B2 done subsequently

2030 and 2050 done

A1B and B1 used in ICAP

(Courtesy of Loretta Mickley)


Slide7 l.jpg

IPCC energy forecasts have been disaggregated to worldregions by the IMAGE team (RIVM, The Netherlands)


Calculation of bc and oc emission factors g kg 1 of fuel burned for a given tech fuel combination l.jpg

EFBC = EFPM x F1.0 x FBC x Fcont

EFOC = EFPM x F1.0 x FOC x Fcont

where:

EFPM= bulk particulate emission factor (usually PM10)

F1.0= fraction of the emissions that are < 1 μm in diameter

FBC, FOC = fraction of the particulate matter that is carbon

Fcont= fraction of the fine PM that penetrates any control device that might be installed (= 1 if no controls)

Calculation of BC and OC emission factors (g kg-1 of fuel burned) for a given tech/fuel combination:

(Change with time)


Approach to forecasting bc and oc emissions from the 1996 base year reference point l.jpg

Approach to forecasting BC and OC emissions from the 1996 base-year reference point

From Bond et al., JGR, 2004


Major factors influencing future emissions l.jpg

Level:

1Change in energy use and fuel type, by sector and world region

2Improvements in particle control technology

3Shifts in technology from low-level to higher-level technology/fuel combination

4Improvements in emission performance of a given technology/fuel combination

Major factors influencing future emissions:


Which fuels are used in which sectors in which parts of the world ipcc forecasts used l.jpg

Which fuels are used in which sectors in whichparts of the world? (IPCC forecasts used)

China photo courtesy of Bob Finkelman

Residential coal use has very high BC emissions

Level 1 forecasting

Residential electricity use from nuclear power has zero BC emissions


Slide12 l.jpg

Fuel use is partitioned among sectors and technology types(this example is part of the residential sector)


How fast will particle control technology improve better designs capture of smaller particles l.jpg

How fast will particle control technology improve (better designs, capture of smaller particles)?

Electrostatic precipitator, high collection efficiency

Level 2 forecasting

Cyclone, low collection efficiency


Slide14 l.jpg

Particle penetration fractions (Fcont) are included for each type of control device (this example is the power sector)

At present, we assume that control technology performance does not vary with world region


A stove is a stove is a tech fuel shifts for a particular energy service l.jpg

A stove is a stove is a…(tech/fuel shifts for a particular energy service)

Photo of street vendor’s stove in Xi’an, courtesy of Beverly Anderson

Coal-fired, high BC

Level 3 forecasting

Gas or electric, low BC


Technology splits reflect scenario regional and technology differences and change with time l.jpg

Technology splits reflect scenario, regional, and technology differences, and change with time

Eight alternative configurations of conventional hard-coal-fired power plants

We assume that regional GDP growth determines the rate of replacement of the worst-performing tech/fuel option, with a “nudge” for the environmental scenarios in some cases


Insight tuk tuk or hummer technology performance within a tech fuel class l.jpg

Insight, tuk-tuk, or Hummer?(technology performance within a tech/fuel class)

Huge variations in fuel efficiency and BC emission rates, often regulatory driven

Level 4 forecasting


Slide18 l.jpg

Emission factors for a given tech/fuel combination are determined using an S-shaped technology penetration curve

1996 current emission factor (Bond/Streets)

Shape factor depends on lifetime, build rate, etc.

Emission rate (g/kg)

“Net” performance in 2030

“Ultimate” performance

Time (years)


How to forecast future biomass burning the view is greatly obscured modified ipcc view used l.jpg

How to forecast future biomass burning?? The viewis greatly obscured (modified IPCC view used)

Many unpredictable factors influence future biomass burning. The IPCC projects only direct anthropogenic influences related to slash-and-burn agriculture, crop residue burning, loss of grassland, etc., driven by regional food demands. We have added natural fires.

No accounting for fundamental land-use changes, timber industry practices, climate change influence on fire frequency, and other natural influences.


Slide20 l.jpg

Components of BC emission changes between 1996 and 2030A1B: technology development overcomes energy growth!

(Gg)

Energy growth

Technology improvement

1996

Bond/Streets

Net 2030A1B


Results for all scenarios a general decline in all cases l.jpg

Results for all scenarios: a general decline in all cases

BC/anthro

BC bioburn

OC/bioburn

OC/anthro


Bc emissions in 2050 from anthropogenic activities under the a1b scenario l.jpg

BC emissions in 2050 from anthropogenic activities under the A1B Scenario


Bc emissions from open biomass burning in 2050 under the a1b scenario l.jpg

BC emissions from open biomass burning in 2050 under the A1B Scenario


Conclusions l.jpg

A model has been developed to project the global base-year 1996 inventory of Bond/Streets to future years, driven by IPCC regional forecasts of energy, fuel use, and economic activity.

The rate of technology development and adoption is an important determinant of future emission levels.

The gradual phase-out of inefficient technologies and small-scale solid fuel combustion in the developing world will slowly reduce primary aerosol emissions; more vehicles everywhere will tend to increase emissions

Our results suggest that we are headed for a world with stable or lower primary aerosol emissions in the future

Conclusions
