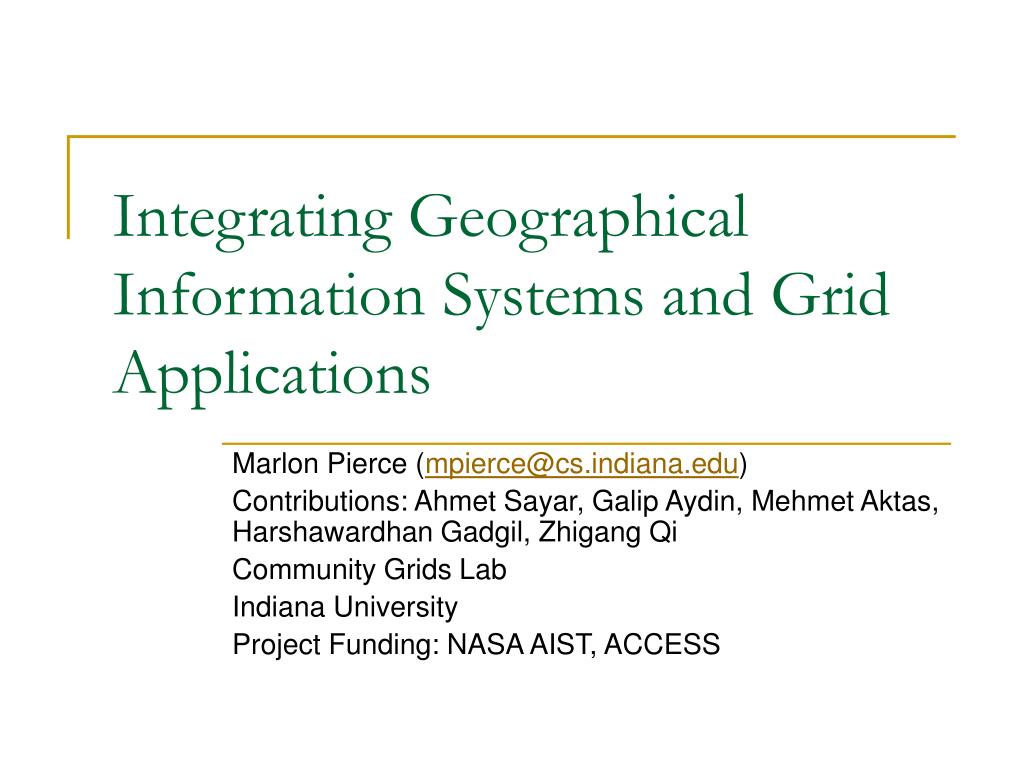

Integrating Geographical Information Systems and Grid Applications

Marlon Pierce ([email protected])

Contributions: Ahmet Sayar, Galip Aydin, Mehmet Aktas, Harshawardhan Gadgil, Zhigang Qi

Community Grids Lab

Indiana University

Project Funding: NASA AIST, ACCESS


Quakesim project overview l.jpg
QuakeSim Project Overview Applications

  • QuakeSim is a NASA funded collaboration of geophysicists and computer scientists to build cyber-infrastructure for geophysical research.

  • CI research and development includes

    • Portlet-based portals

      • AJAX enabled

    • Geographical Information System services

    • Application services to run codes.


Quakesim project development overview l.jpg
QuakeSim Project Development Overview Applications

  • Portlet-based portal components allow different portlets to be exchanged between projects.

    • Form-based portlets --> Interactive Maps

    • These are clients to Web services

    • Share with collaborators of REASoN portal.

  • Sensor Grid: Topic based publish-subscribe systems support operations on streaming data.

  • Web services allow request/response style access to data and codes.

    • GIS services (WMS, WFS)

    • “Execution grid” services for running codes: RDAHMM, ST_Filter

      • Use application specific WSDL on top of generic code management services.

    • GPS daily archive Web Services provided by Scripps.


Sensor grid overview l.jpg

Sensor Grid Overview Applications


Sensor grid overview6 l.jpg
Sensor Grid Overview Applications

  • SensorGrid architecture supports access to both archived (databases), and real-time geospatial data through universal GIS standards and Web Service interfaces.

  • The architecture provides tools for coupling geospatial data with scientific data assimilation, analysis and visualization codes, such as:

    • Pattern Informatics

    • Virtual California

    • IEISS

    • RDAHMM


Real time services for gps observations l.jpg

Input Signal Applications

Filter

Output Signal

Real-Time Services for GPS Observations

  • Real-time data processing is supported by employing filters around publish/subscribe messaging system.

  • The filters are small applications extended from a generic Filter class to inherit publish and subscribe capabilities.


Filter chains l.jpg
Filter Chains Applications






Federating map servers l.jpg

Federating Map Servers Applications

Zao Liu, Marlon Pierce, Geoffrey Fox

Community Grids Laboratory

Indiana University


Integrating map servers l.jpg
Integrating Map Servers Applications

  • Geographical Information Systems combine online dynamic maps and databases.

  • Many GIS software packages exist

  • GIS servers around state of Indiana

    • ESRI ArcIMS and ArcMap Server (Marion, Vanderburgh, Hancock, Kosciusco, Huntington, Tippecanoe)

    • Autodesk MapGuide (Hamilton, Hendricks, Monroe, Wayne)

    • WTH Mapserver™ Web Mapping Application (Fulton, Cass, Daviess, City of Huntingburg) based on several Open Source projects (Minnesota Map Server)

  • Challenge: make 17 different county map servers from different companies work together.

    • 92 counties in Indiana, so potentially 92 different map servers.


Considerations l.jpg
Considerations Applications

  • We assume heterogeneity in GIS map and feature servers.

    • GIS services are organized bottom-up rather than top-down.

    • Local city governments, 92 different county governments, multiple Indiana state agencies, inter-state (Ohio, Kentucky) consideration, federal government data providers (Hazus).

    • Must find a way to federate existing services.

  • We must reconcile ESRI, Autodesk, OGC, Google Map, and other technical approaches.

    • Must try to take advantage of Google, ESRI, etc rather than compete.

  • We must have good performance and interactivity.

    • Servers must respond quickly--launching queries to 20 different map servers is very inefficient.

    • Clients should have simplicity and interactivity of Google Maps and similar AJAX style applications.


Caching and tiling maps l.jpg
Caching and Tiling Maps Applications

  • Federation through caching:

    • WMS and WFS resources are queried and results are stored on the cache servers.

    • WMS images are stored as tiles.

      • These can be assembled into new images on demand (c. f. Google Maps).

      • Projections and styling can be reconciled.

      • We can store multiple layers this way.

    • We build adapters that can work with ESRI and OGC products; tailor to specific counties.

  • Serving images as tiles

    • Client programs obtain images directly from our tile server.

      • That is, don’t go back to the original WMS for every request.

    • Similar approaches can be used to mediate WFS requests.

    • This works with Google Map-based clients.

    • The tile server can re-cache and tile on demand if tile sections are missing.


Map server example l.jpg
Map Server Example Applications

Marion and Hancock county parcel plots and IDs are overlaid on IU aerial photographic images that are accessed by this mashup using Google Map APIs.

We cache and tile all the images from several different map servers. (Marion and Hancock actually use different commercial software.)
