Presentation Transcript

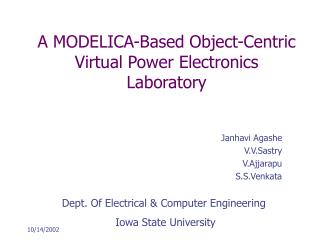

A modelica based object centric virtual power electronics laboratory l.jpg

A MODELICA-Based Object-Centric Virtual Power Electronics Laboratory

Janhavi Agashe

V.V.Sastry

V.Ajjarapu

S.S.Venkata

Dept. Of Electrical & Computer Engineering

Iowa State University


Outline l.jpg
Outline Laboratory

  • Power Electronics Simulators

  • Object-Oriented Modeling Language – Modelica

  • Modeling of Components in Modelica

  • Various Models Developed

  • Simulation Results

  • Conclusions

North American Power Symposium 2002, Arizona State University, Tempe


Inter disciplinary nature of power electronics l.jpg

System Area Laboratory

System &

Control theory

Modeling &

Simulation

High Power Area

Low Power Area

Analog Electronics

Circuit Theory

Signal Processing

Electric machines

Power

Electronics

Solid-State Physics

Power Systems

Digital Electronics

Electromagnetics

Inter-Disciplinary Nature of Power Electronics

Power Electronics

North American Power Symposium 2002, Arizona State University, Tempe


Power electronics simulators l.jpg
Power Electronics Simulators Laboratory

  • A simulator for power electronic systems should

    • Haveevent handling capabilities.

    • Handle hybrid/ mixed-mode systems.

    • Support multi-domain modeling.

  • Widely used simulators: SABER, PSPICE, MATLAB/SIMULINK etc.

    • Lack of Object-oriented features

    • Closed modeling environment

North American Power Symposium 2002, Arizona State University, Tempe


Object oriented modeling language modelica l.jpg
Object-oriented Modeling Language - Modelica Laboratory

  • Developed by the Modelica Association, Germany

  • Key Features

    • Object-oriented modeling language

      • Hierarchical structuring

      • Reuse

      • Effective in solving large and complex models

    • Open Modeling Environment

North American Power Symposium 2002, Arizona State University, Tempe


Object oriented modeling language modelica6 l.jpg
Object-oriented Modeling Language - Modelica Laboratory

  • Additional Features

    • Acausal modeling

      • Ports are not committed to ‘input’ and ‘output’ early in the modeling/design process

      • Simpler models

      • More efficient simulation

    • Multi-domain

      • Electrical circuits, multi-body systems, drive trains, hydraulics, thermodynamic systems

North American Power Symposium 2002, Arizona State University, Tempe


Object oriented modeling language modelica7 l.jpg
Object-oriented Modeling Language – Modelica Laboratory

  • Additional Features (contd.)

    • Several formalisms

      • ODE, DAE, bond graphs, finite state automata, state charts

    • Graphical user interfaces

      • Icons representing model components

      • Menu driven interface for modeling and simulation

    • Standardization effort

      • Group of internationally recognized and experienced researchers and companies worked for language and model development

North American Power Symposium 2002, Arizona State University, Tempe


Modeling of components in modelica l.jpg
Modeling of LaboratoryComponents in Modelica

  • Model is derived as an extension of some base class using the “extends” statement

  • Required variables are declared

  • Necessary equations are defined in the “equation” section

  • The “annotation” section defines the graphical symbol i.e. icon for the model

  • The file is saved as “*.mo”

North American Power Symposium 2002, Arizona State University, Tempe


Modeling of components in modelica9 l.jpg
Modeling of Components in Modelica Laboratory

North American Power Symposium 2002, Arizona State University, Tempe


Thyristor model in modelica l.jpg
Thyristor Model in Modelica Laboratory

model Thyristor

constant Boolean DymolaCompatibility=true;

extends Modelica.Electrical.Analog.Interfaces.ThreePin;

Real Gate;

Real u;

Real GOp = 1.E-5;

Real RCl = 1.E-5;

Real i;

Boolean GATE;

Boolean Op(start=true);

equation

cont.v = Gate;

u = p.v-n.v;

i=p.i;

0=p.i+n.i;

GATE = if (Gate < 1.0) then false else true;

0 = if Op then i - GOp*(p.v - n.v) else (p.v - n.v) - RCl*i;

when (not (Op) and i < 0) or (Op and u > 0 and GATE) then

new(Op) = (not (Op) and i < 0) or (Op and not ((u > 0 and GATE)));

end when;

end Thyristor;

North American Power Symposium 2002, Arizona State University, Tempe


Models in the power electronics library l.jpg
Models in the Power Electronics Library Laboratory

North American Power Symposium 2002, Arizona State University, Tempe


Architecture of simulator l.jpg
Architecture of Simulator Laboratory

  • Front-end

    • Pre-processing tool that helps effective understanding and modeling

    • DYMODRAW

  • Simulation Engine

    • For conversion DAE’s into state space form and solving them symbolically or with efficient numerical techniques.

    • DYMOSIM. Any other simulator like ACSL, SIMULINK, etc. can also be used.

  • Post-processing tool

    • Visualization of dynamic behavior, 2-D or 3-D graphical view or animation.

    • DYMOVIEW

North American Power Symposium 2002, Arizona State University, Tempe


Architecture of simulator13 l.jpg

Graphical LaboratoryFront-end

Object-oriented Modeling

Simulation Engine

Post-processing Tool

Architecture of Simulator

North American Power Symposium 2002, Arizona State University, Tempe


Step by step simulation procedure l.jpg
Step by Step Simulation Procedure Laboratory

Single Thyristor

Switch Library

Various Libraries

North American Power Symposium 2002, Arizona State University, Tempe


Step by step simulation procedure15 l.jpg
Step by Step Simulation Procedure Laboratory

Connection of components

Entire Circuit & its Translation

North American Power Symposium 2002, Arizona State University, Tempe


Step by step simulation procedure16 l.jpg
Step by Step Simulation Procedure Laboratory

Simulation Control

Plot Window & Output Variables

North American Power Symposium 2002, Arizona State University, Tempe


Single phase bridge rectifier l.jpg
Single-Phase Bridge Rectifier Laboratory

North American Power Symposium 2002, Arizona State University, Tempe


Single phase bridge rectifier18 l.jpg
Single-Phase Bridge Rectifier Laboratory

Firing Angle = 45 degrees

Firing Angle = 30 degrees

North American Power Symposium 2002, Arizona State University, Tempe


Buck chopper l.jpg
Buck Chopper Laboratory

iout

Vout

North American Power Symposium 2002, Arizona State University, Tempe


Buck chopper20 l.jpg
Buck Chopper Laboratory

Duty Ratio = 0.75

North American Power Symposium 2002, Arizona State University, Tempe


Modelica based ee 452 laboratory experiments l.jpg
MODELICA Based EE 452 Laboratory Experiments Laboratory

  • Single Phase Thyristor Rectifier

  • Three Phase Thyristor Rectifier

  • Buck Chopper

  • Boost Chopper

  • Single Phase Square-Wave Inverter

  • Three Phase Square-Wave Inverter

  • Chopper-fed DC Motor Drive

  • V/F control of Induction Motor

North American Power Symposium 2002, Arizona State University, Tempe


Conclusions l.jpg
Conclusions Laboratory

  • Object-oriented modeling language enabled reuse of models, hierarchical structuring and easy maintenance of models

  • The power electronics library using MODELICA has been developed at Iowa State University

  • EE 452 experiments earlier written in DYMOLA have been designed around the new MODELICA library

North American Power Symposium 2002, Arizona State University, Tempe
