Ball-Mill-Grinder

Ball Mill Grinder is a benchtop type Vertical Semi-circular Arc Planetary <br>Ball mill comprised with gear drive mode and variable frequency speed control. <br>Features adjustable rotation speed of 120 to 1160 rpm and revolution speed of <br>60 to 580 rpm with 1 to 9999 min of adjustable timer. Designed with pneumatic<br>spreaders, cooling fan hole and security lock, has safety cover door with <br>see-through window.

Mary238
Download Presentation

Ball-Mill-Grinder

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

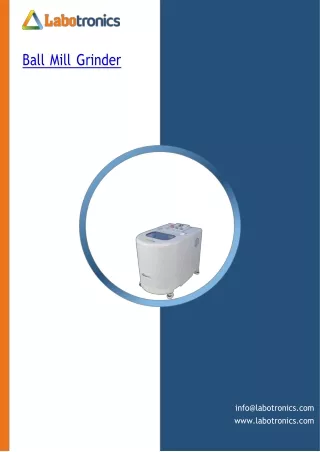

  1. Ball Mill Grinder info@labotronics.com www.labotronics.com

  2. Overview Ball Mill Grinder is a benchtop type Vertical Semi-circular Arc Planetary Ball mill comprised with gear drive mode and variable frequency speed control. Features adjustable rotation speed of 120 to 1160 rpm and revolution speed of 60 to 580 rpm with 1 to 9999 min of adjustable timer. Designed with pneumatic spreaders, cooling fan hole and security lock, has safety cover door with see-through window. Specifications : Capacity 0.2L Jar Capacity 10 to 50 ml Time Range 1 to 9999 min Forward And Backward Time Range 1 to 999 min Speed Revolution 60 to 580 rpm Speed Rotation 120 to 1160 rpm Speed Regulation Mode Variable frequency speed control Soil material ≤10 mm, other materials ≤3 mm Feed Size No. Of Jars 4 Lubrication Mode Grease Noise ≤50 ± 5 dB Power Consumption 0.09 kW Power Supply Single phase; 220 V, 50 Hz Dimension (L×W×H) 430×250×270 mm

  3. Weight 18kg Features : Compact tabletop units offer smooth, quiet, safe, and reliable operation Gear drive, variable speed which meets diverse experiment needs Offers dry and wet grinding, and mixing with different particle sizes and materials Pneumatic spreaders, cooling fan hole and security lock, convenient operation Safety cover door with see-through window, allows easy monitoring of operation Applications : Ball Mill Grinder is used to grind samples under vacuum across geology, minerals, metallurgy, electronics, building materials, ceramics, chemical industry, light industry, medicine, beauty, environmental protection etc. Labotronics Ltd. Union House, 111 New Union Street, Coventry CV1 2NT, UK info@labotronics.com | www.labotronics.com
