Fall 2004 GALE Design Project

Advisor: Dr. Sundar Krishnamurty

Team Members:

Sean Pringle

Tim Smith

Brian Swearengin


Introduction l.jpg

Introduction

  • Project Goal:

    • Design a wheelchair lift and storage device for the John Deere Gator to make it handicap accessible and functional.

  • Prototype Criteria:

    • Modular, low cost (<$500), safe, effective, and maximize bed utility and functionality.


Assumptions l.jpg

Assumptions

  • Maximum wheelchair weight is approximately 50 lbs

  • User has use of both arms and hands

  • Used on John Deere 6x4 Gator

  • User will not have the wheelchair stored when tipping bed.

  • Folding wheelchair is used.

  • User can reach 1.5 feet behind on the driver side of the gator.


Overview of design l.jpg

Overview of Design

  • Clamp

  • Lower Swing Arm

  • Hinge

  • Mounting Frame

  • Actuator

  • Slider Frame


Geometry calculations l.jpg

Geometry Calculations

Lower Swing Arm


Geometry calculations6 l.jpg

Geometry Calculations

Actuator Placement


Applied force changes l.jpg

Applied Force Changes


Finite element analysis l.jpg

Finite Element Analysis

Clamp


Finite element analysis9 l.jpg

Finite Element Analysis

Lower Swing Arm


Prototyping l.jpg

Prototyping


Prototyping11 l.jpg

Prototyping


Prototyping12 l.jpg

Prototyping


Possible improvements and add ons l.jpg

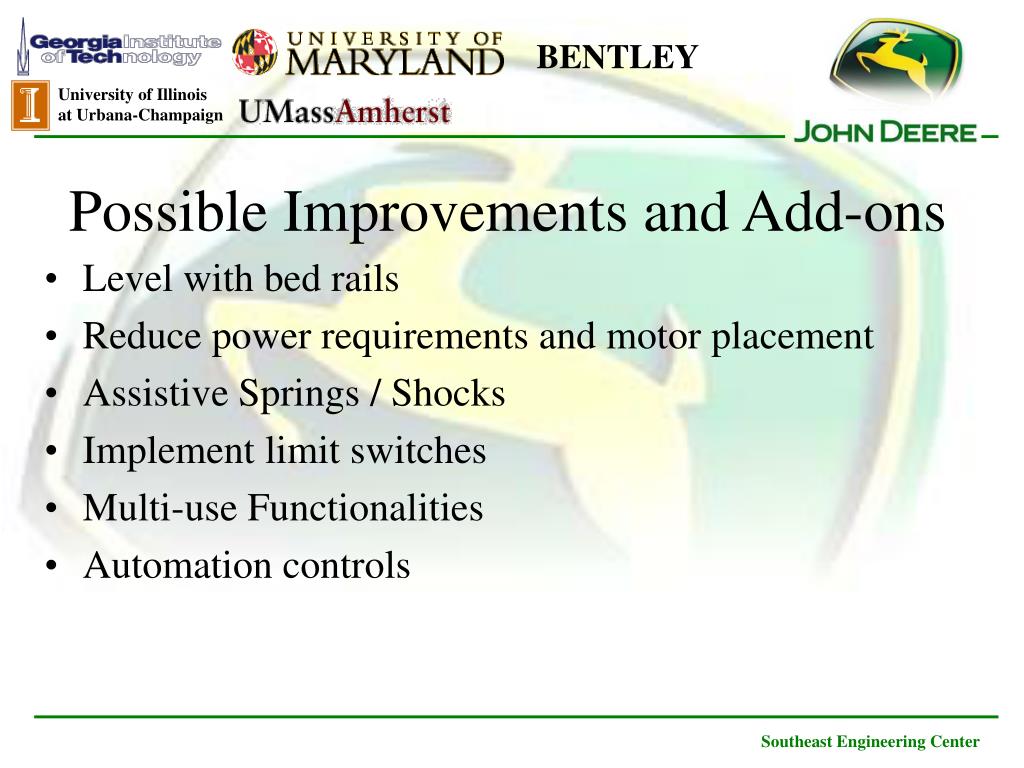

Possible Improvements and Add-ons

  • Level with bed rails

  • Reduce power requirements and motor placement

  • Assistive Springs / Shocks

  • Implement limit switches

  • Multi-use Functionalities

  • Automation controls


Resources l.jpg

Implemented

ProE

ProMechanica

Engineer Equations Solver (EES)

ANSYS

Would have liked to implement

ProMotion

Windchill

Groove

Resources


Conclusion l.jpg

Conclusion

  • Design met all criteria therefore is a success

    • Prototype works

    • Improvement over previous semester’s design

    • Design is universal

    • Low cost (Prototype <$500)

    • Maximizes bed space


Acknowledgements l.jpg

Acknowledgements

  • UMass Amherst

    • MechE Metal Shop

      • Miles Eastman, Rick Winn, Rick Mascenowski

    • Prof. Krishnamurty, Prof. Rinderle

  • GaTech: Tord Dennis, Bobby Henebry

  • PTC: Melissa Botto

  • John Deere: Tom Hill, EJ Smith


Questions l.jpg

Questions?
