Presentation Transcript
Remote system restarter l.jpg

Remote System Restarter

ECE 4542-01: Senior Design II

Mississippi State University

October 4, 2005


Presentation overview l.jpg
Presentation Overview

  • Background Information

  • Current Status

  • Design Requirements

  • Hardware Aspects

  • Software Aspects

  • PCB Layout

  • Where we are headed


Remote control system access l.jpg
Remote Control System Access

  • Access computer from anywhere


Slide4 l.jpg
Uses

  • File Access

    • Homework

    • Personal Files

  • Server Update

    • Web Updates

    • Maintenance

  • Technical Support

    • Computer Assistance

    • Helping a Friend


Team assignments l.jpg
Team Assignments

Thomas Brown

PIC software

Audio Playback

PC interface

Lindsey Coggin

Team Leader

PIC software

Audio Playback

DTMF decoding

Ken Bush

PCB Layout

Testing

Bret Birdwell

Ring Detection

PC interface

Hook control

Dr. Follett

Advisor


Accomplishments l.jpg

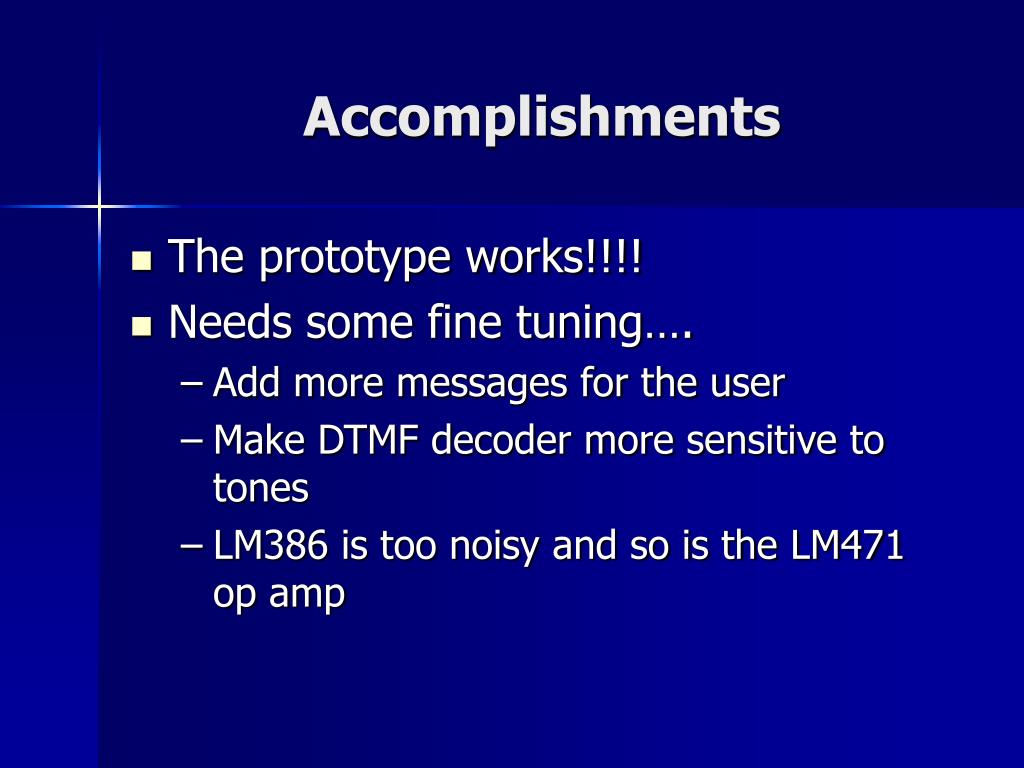

Accomplishments

  • The prototype works!!!!

  • Needs some fine tuning….

    • Add more messages for the user

    • Make DTMF decoder more sensitive to tones

    • LM386 is too noisy and so is the LM471 op amp


Senior design ii goals l.jpg
Senior Design II Goals

  • PCI slot

  • Detect button presses 95%

  • Understandable audio

  • Will go to a “locked” state





Ethical l.jpg
Ethical

  • Password Protection

  • Consecutive Failure

    • Device Disables

    • Must be Manually Reset


Hardware flowchart l.jpg

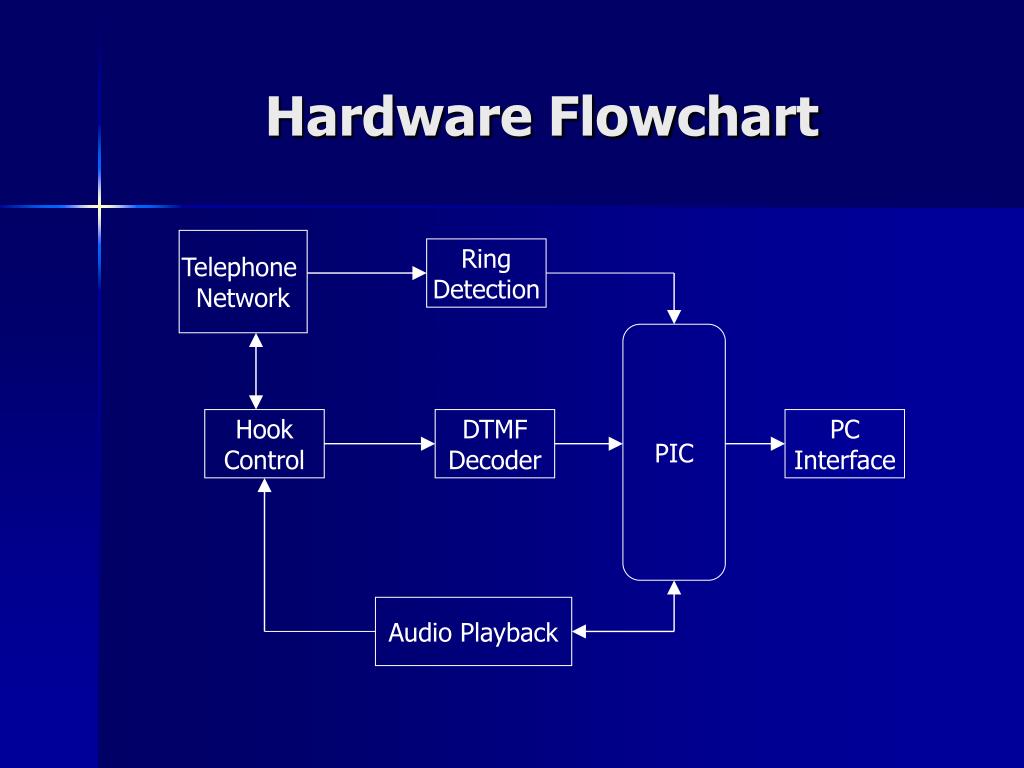

Hardware Flowchart

Telephone

Network

Ring

Detection

PIC

Hook

Control

DTMF

Decoder

PC

Interface

Audio Playback


Ring detection l.jpg

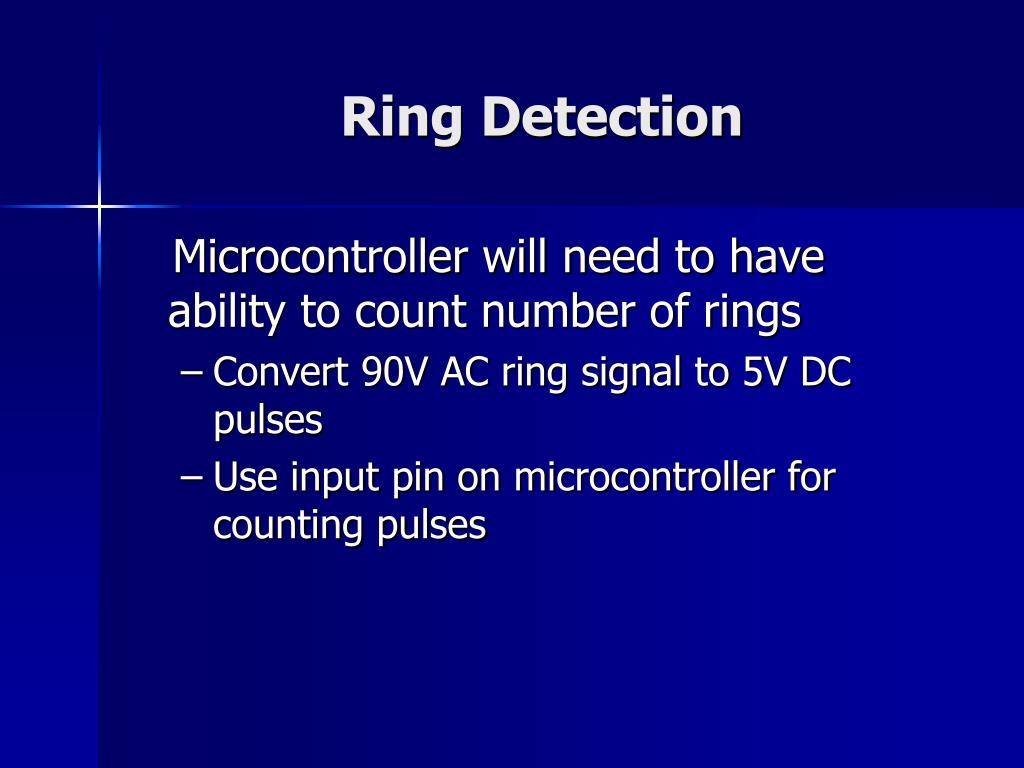

Ring Detection

Microcontroller will need to have ability to count number of rings

  • Convert 90V AC ring signal to 5V DC pulses

  • Use input pin on microcontroller for counting pulses


Ring detection14 l.jpg
Ring Detection

  • Build or use IC with ring detection?

  • Decision: Build it!!

    • ICs would have wasted functionality

    • Cost



Dtmf decoder l.jpg
DTMF Decoder

  • Dual Tone Multifrequency (DTMF) Decoder used to decode button presses of touch-tone keypad

  • Allows RSR to receive commands from user


Dtmf decoder17 l.jpg
DTMF Decoder

  • Used CM8870 DTMF Decoder IC

    • Four output pins connected as inputs to microcontroller

    • Output is 4-bit binary number

    • Cheap


Audio playback l.jpg
Audio Playback

  • Audio playback needed to play recorded messages to user as instructions

  • Options:

    • EEPROM with DAC

    • Audio Record/Playback IC


Problems l.jpg
Problems:

  • Serial EEPROMs:

    • Overclocking I2C SCL line

    • Not enough address pins

  • Parallel EEPROMs:

    • Expensive

    • Would use too many I/O pins on microcontroller


Isd5116 l.jpg

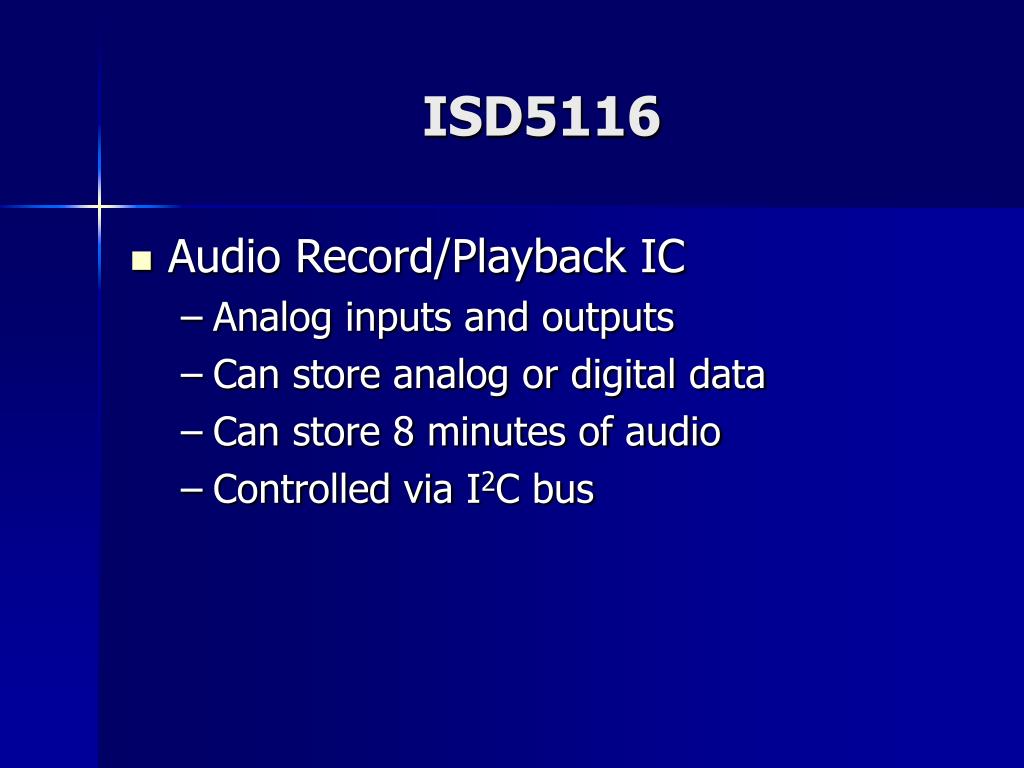

ISD5116

  • Audio Record/Playback IC

    • Analog inputs and outputs

    • Can store analog or digital data

    • Can store 8 minutes of audio

    • Controlled via I2C bus


Relays l.jpg
Relays

  • Minimum Requirements:

    • Coil voltage of 5V

    • High coil resistance

    • Current rating of at least 20mA

    • FCC Part 68 compliant


Test plan l.jpg
Test Plan

  • Each part tested independently before added to the rest of the circuit

  • Ring Detection

    • Connected to telephone network and called

    • Check output with oscilloscope

  • Voltage Regulators

    • Use oscilloscope to check voltage supplied to circuit

  • DTMF Decoder

    • Diodes used at output pins to visually see decoded key press


Voltage supply from pc l.jpg
Voltage supply from PC

  • The voltage supplied from the stand by 5VDC pin of the computer power supply is 5.04V


Ring detection circuit output l.jpg
Ring Detection Circuit Output

  • Output of Ring detection circuit is low while ringing for 2.3 sec and high in between rings for 3.7 sec.


Software l.jpg
Software

  • Three layers

    • Top layer: PIC software (FSM)

      • Finite State Machine controls everything

    • Middle layer: ISD functions

      • Invoked by FSM to control audio chip

    • Bottom layer: I2C functions

      • Invoked to provide communication between PIC and audio chip


Top layer pic software fsm l.jpg
Top layer: PIC software (FSM)

  • The FSM uses the bottom two layers.

  • FSM implemented using a C switch statement like below:

    #define firstState = 0;

    #define secondState =1;

    unsigned char state:

    state= firstState;

    switch(state){

    case firstState:

    // do some operations

    break;

    case secondState:

    // do some operations

    break;

    }


Top layer pic software fsm27 l.jpg
Top layer: PIC software (FSM)

  • The FSM makes control of the program very easy.

  • Our device has 14 states:


Middle layer isd functions l.jpg
Middle layer: ISD functions

  • ISD functions enable audio playback of messages

  • ISD functions use the bottom layer I2C functions

  • Playback function:

    • isd_play_address(unsigned int address);

  • Stop playback function:

    • isd_stop( );


Bottom layer i2c functions l.jpg
Bottom layer: I2C functions

  • Popular communication protocol

  • Used on the master chip (PIC18) to communicate with:

    • ISD5116 Audio Chip


Testing software l.jpg

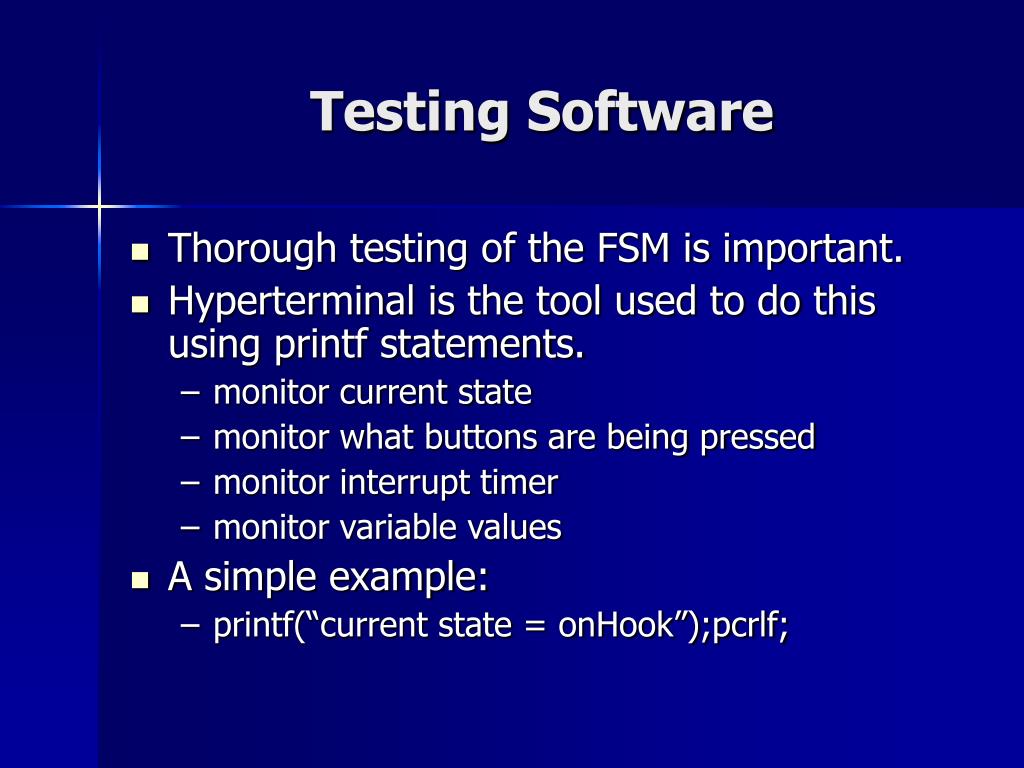

Testing Software

  • Thorough testing of the FSM is important.

  • Hyperterminal is the tool used to do this using printf statements.

    • monitor current state

    • monitor what buttons are being pressed

    • monitor interrupt timer

    • monitor variable values

  • A simple example:

    • printf(“current state = onHook”);pcrlf;


Time line l.jpg
Time Line

Aug. 18

Sept. 18

Nov. 28

Oct. 18

Nov. 18

Schematic

100 %

Initial PCB Layout Finished and In Hand

75%

PCB Population

Populated Testing

DTMF Troubleshooting

85%

Audio Troubleshooting

100%

PIC Software Testing/Fine Tuning


Actual size used l.jpg

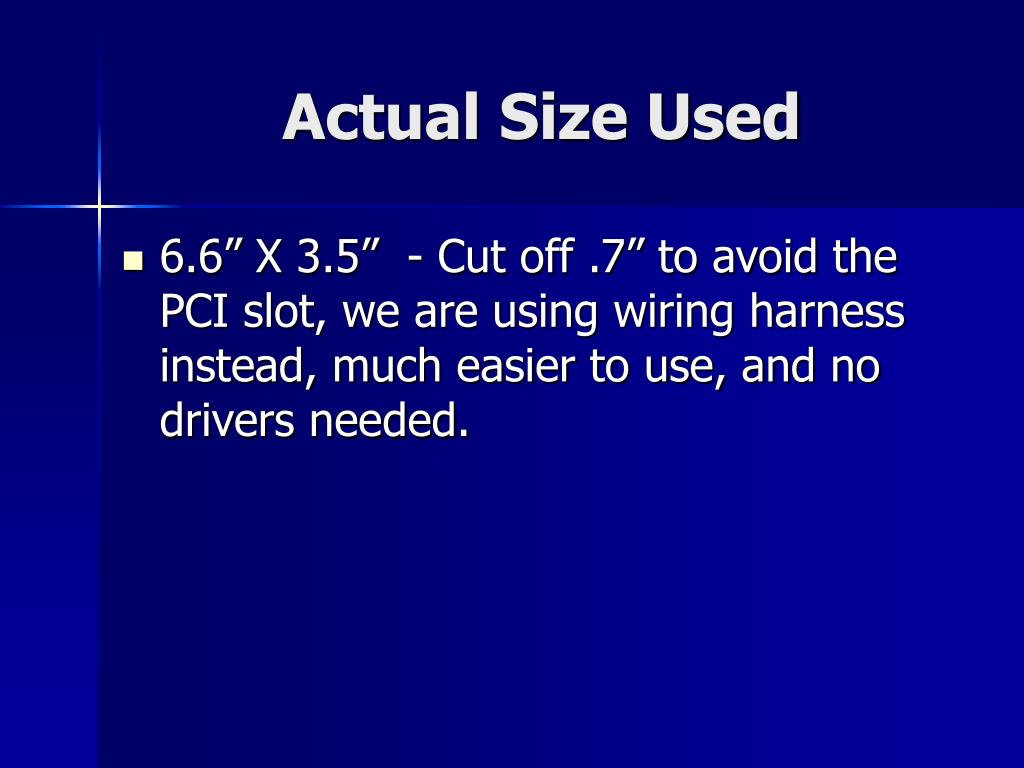

Actual Size Used

  • 6.6” X 3.5” - Cut off .7” to avoid the PCI slot, we are using wiring harness instead, much easier to use, and no drivers needed.


Pcb layout l.jpg

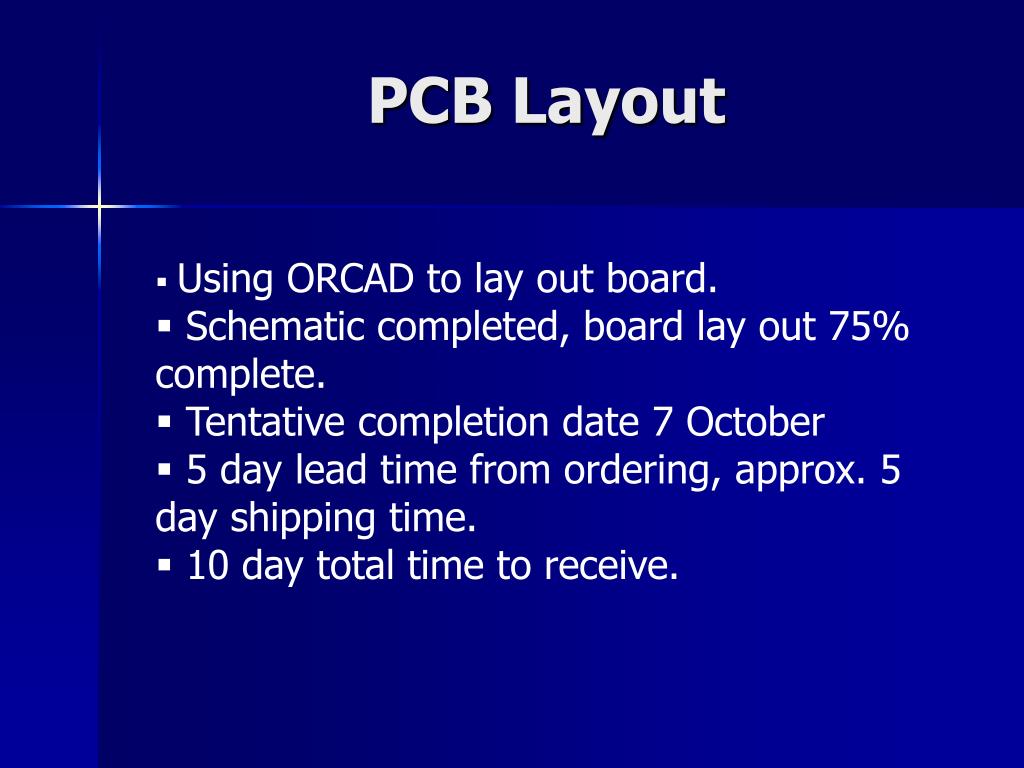

PCB Layout

  • Using ORCAD to lay out board.

  • Schematic completed, board lay out 75% complete.

  • Tentative completion date 7 October

  • 5 day lead time from ordering, approx. 5 day shipping time.

  • 10 day total time to receive.


Attachment to pc l.jpg

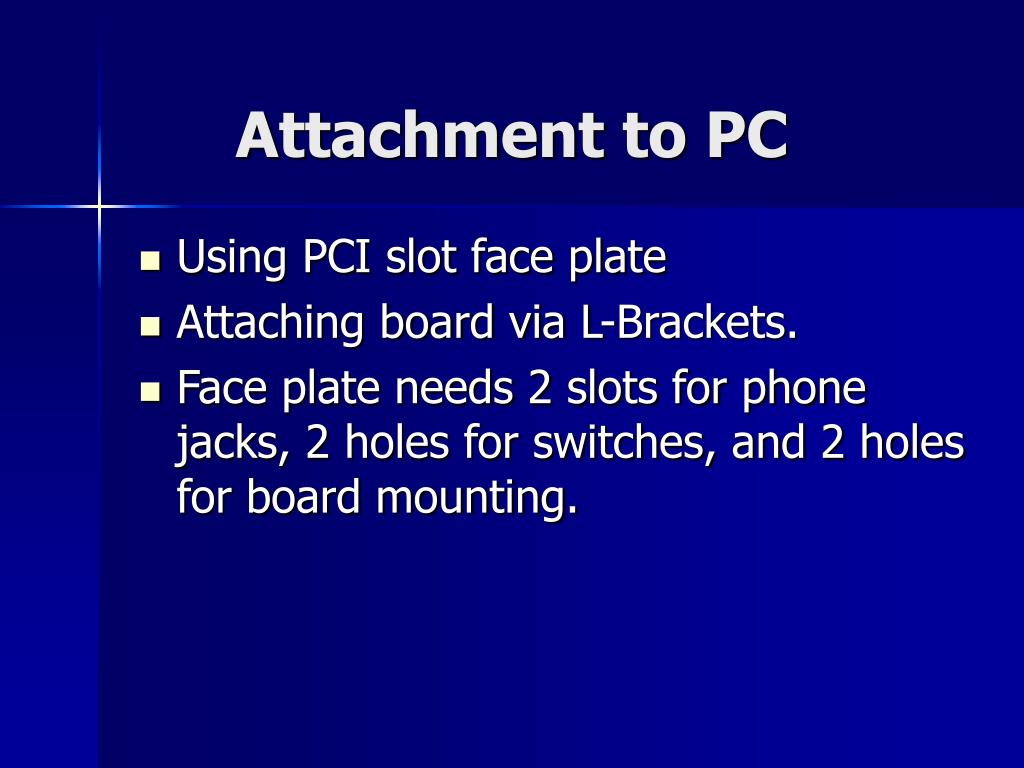

Attachment to PC

  • Using PCI slot face plate

  • Attaching board via L-Brackets.

  • Face plate needs 2 slots for phone jacks, 2 holes for switches, and 2 holes for board mounting.


Senior design ii goals35 l.jpg
Senior Design II Goals

  • Clear up audio messages as much as possible

  • Increase DTMF decoder reliability

  • Make as user friendly as possible

  • Make a PCB version


Acknowledgements l.jpg
Acknowledgements

  • Dr. Randy Follett

  • Dr. Robert Reese

  • Dr. James Harden
