Introduction to information systems whiteley palgrave chapter 19 system development lifecycles l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles

System

Development

Lifecycles


Introduction to information systems whiteley palgrave chapter 19 system development lifecycles2 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles

A system analysis and design methodology is:

a recommended collection of philosophies, phases, procedures, techniques, tools documentation, management and training for developers of an information system.

 (Maddison, 1983)

The stages / phases are termed the lifecycle


Introduction to information systems whiteley palgrave chapter 19 system development lifecycles3 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles

This chapter covers the following topics:

  • Part 1: The Waterfall Lifecycle.

  • Part 2: SSADM Lifecycle.

  • Part 3: Iterative Lifecycles.

  • Part 4: DSDM Lifecycle.

  • Part 5: Comparative Methodologies

    This is too much for one lecture (arguably it is five lectures), please select your slides.

    Note, Part 4 includes additional material that is not included in the book (identified by the yellow heading box).


Slide4 l.jpg

Feasibility

Study

System Analysis

and Design

Program and

Unit Test

System and

Acceptance Test

Operations

introduction to information systems: whiteley / palgravechapter 19 – system development lifecyclespart 1

Waterfall Lifecycle


Slide5 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecyclespart 1

Stage 1: Feasibility Study

A short stage to answer three questions:

  • Technically feasibility – will it work?

  • Financially feasibility – can we afford it?

  • Ethical / Organisational feasibility – is it right?

    End products:

  • Feasibility Report

  • Authorisation for the Project to proceed (or to quit).


Slide6 l.jpg

Requirements

Analysis

Logical

Design

Technical

Design

introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 1

Stage 2: System Analysis and Design

The stage has three tasks:

  • Requirements Analysis.

  • Logical Design.

  • Technical Design.


Slide7 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 1

Stage 2: System Analysis and Design

The first phase, requirements analysis, finds out what the users do and how it might be improved.

The techniques used are:

  • Interviews

  • Observation

  • Questionnaires

  • Inspect Current System

    Leading to the requirements specification.


Slide8 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 1

Stage 2: System Analysis and Design

The second phase is the logical system design:

A theoretical system that:

  • Meets the business’s requirements.

  • Is independent of any specific IT.

    The idea is to devise the most appropriate business solution and then find the IT that fits it.


Slide9 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 1

Stage 2: System Analysis and Design

The final phase is the physical / technical design:

At this stage we determine:

  • What the system will look like.

  • The technology that is needed.

  • The way it will be used.


Slide10 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 1

Stage 2: System Analysis and Design

The end products of the SA&D stage will be:

  • Diagrams of the processing and data requirements.

  • Specifications of the IT equipment to and technical procedures.

  • Details of the organisational structures and procedures.

  • Program / process specifications.


Slide11 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 1

Stage 3: Program and Unit Test

This is the stage where the system is implemented on the IT equipment.

This can be achieved by:

  • Programming.

  • An application generator or 4GL.

  • The adoption of a ready written package.

    As each program / module is written it needs to be thoroughly unit tested.


Slide12 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 1

Stage 4: System and Acceptance Test

The whole system is subject to:

  • System test –by the project team.

  • Acceptance test – by the users


Slide13 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 1

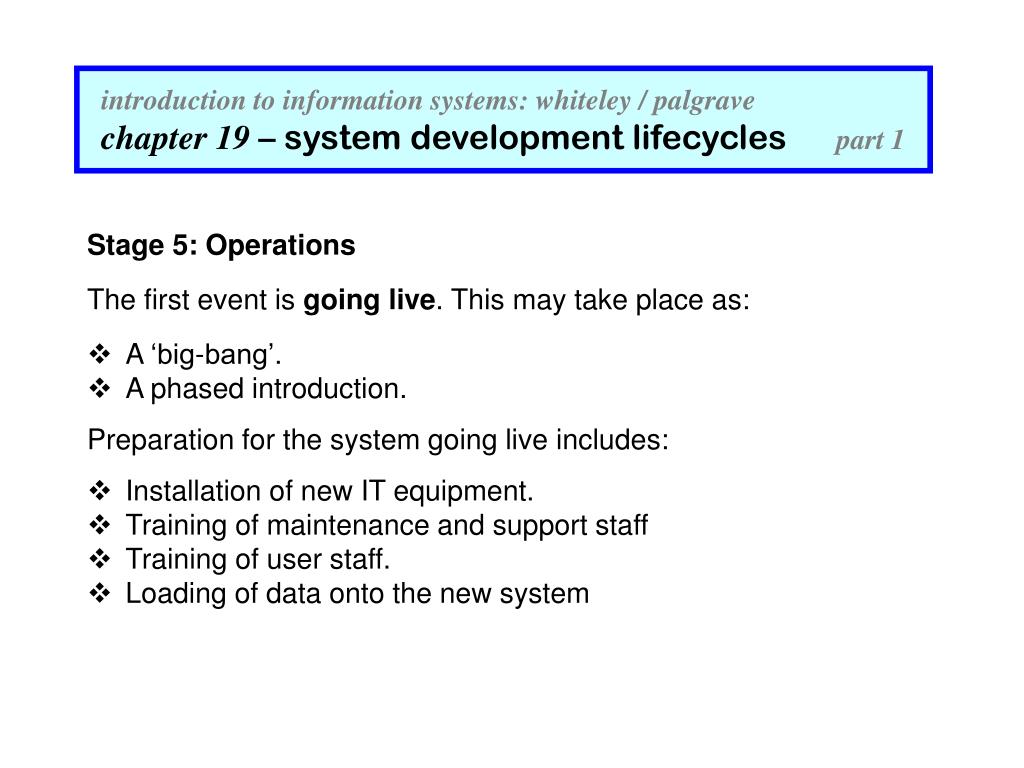

Stage 5: Operations

The first event is going live. This may take place as:

  • A ‘big-bang’.

  • A phased introduction.

    Preparation for the system going live includes:

  • Installation of new IT equipment.

  • Training of maintenance and support staff

  • Training of user staff.

  • Loading of data onto the new system


Slide14 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 1

Stage 5: Operations

Once live the true operations stage includes:

  • Support – helping the users.

  • Maintenance – dealing with bugs.

  • Enhancement – amending the system.

    Over time, technology and the business will move on and eventually it is time to start afresh.


Slide15 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 1

The Waterfall Lifecycle

Expects one activity to be signed off before the next activity starts.

Allows for clear cut project management.

Problems with a waterfall lifecycle are that:

  • It assumes that user requirements are fully captured.

  • It assumes that no requirements change.

  • It can be bureaucratic, long winded and expensive.


Slide16 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 2

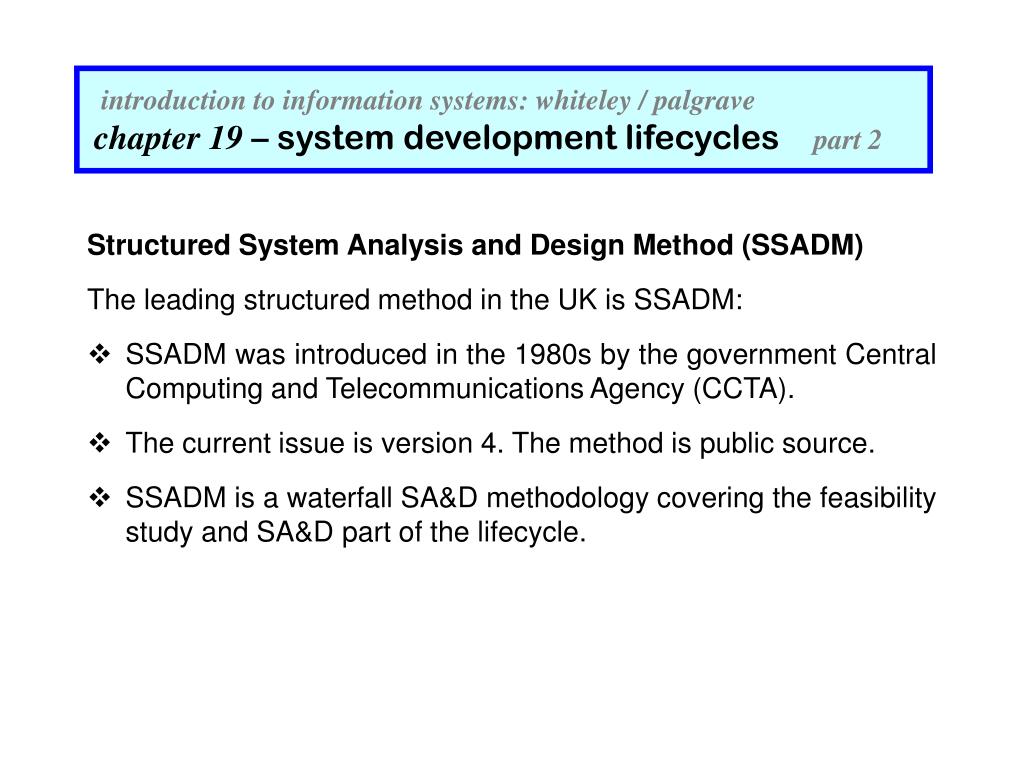

Structured System Analysis and Design Method (SSADM)

The leading structured method in the UK is SSADM:

  • SSADM was introduced in the 1980s by the government Central Computing and Telecommunications Agency (CCTA).

  • The current issue is version 4. The method is public source.

  • SSADM is a waterfall SA&D methodology covering the feasibility study and SA&D part of the lifecycle.


Slide17 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 2

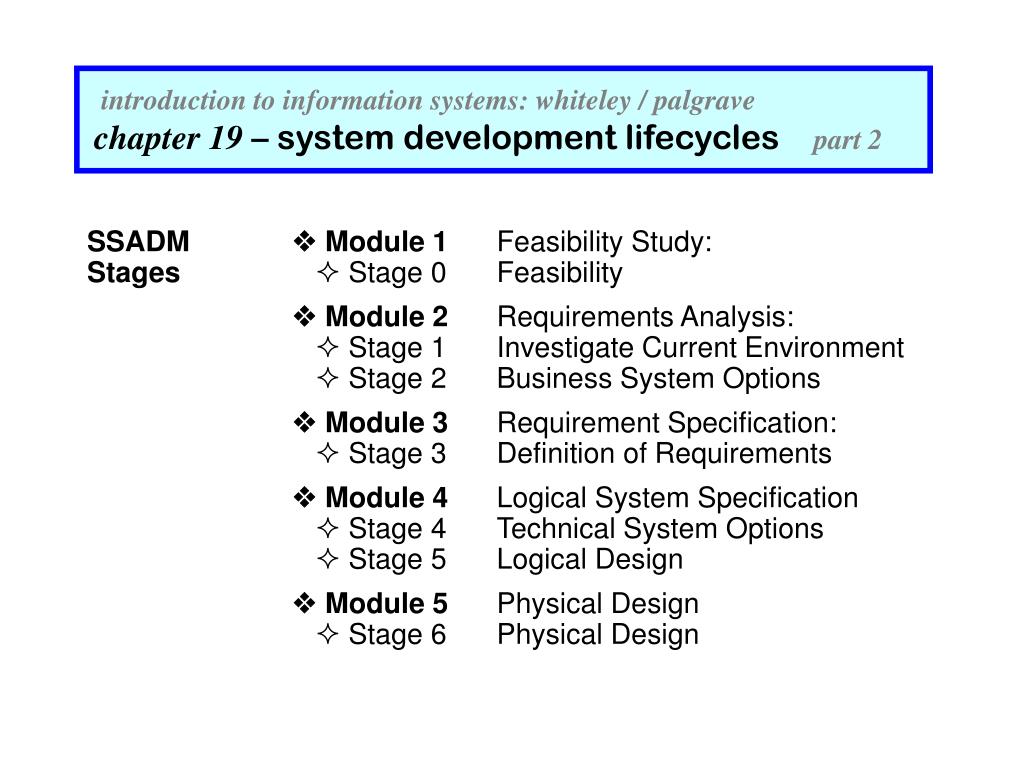

SSADM  Module 1 Feasibility Study:

Stages  Stage 0 Feasibility

 Module 2 Requirements Analysis:

 Stage 1 Investigate Current Environment

 Stage 2 Business System Options

 Module 3 Requirement Specification:

 Stage 3 Definition of Requirements

 Module 4 Logical System Specification

 Stage 4 Technical System Options

 Stage 5 Logical Design

 Module 5 Physical Design

 Stage 6 Physical Design


Slide18 l.jpg

Stage 0

Feasibility Study

Stage 1

Requirements Analysis

Stage 2

Business System Options

Stage 3 / 5

Logical Design

Stage 4

Technical System Options

Stage 6

Physical Design

introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 2

SSADM

Stages

Three main stages

Three linking /

transition stages


Slide19 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 2

SSADM: Stage 0: Feasibility

(The first of the transition stages).

A short sharp study to decide whether to proceed with the project.


Slide20 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 2

SSADM: Stage 1: Requirements Analysis

Investigation of:

  • The current system

  • business and user requirements for the proposed system.

    End products include:

  • Data flow diagram (DFD) of the current system.

  • Logical data structure (LDS) of the current system.

  • Problem requirement list.


Slide21 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 2

SSADM: Stage 2: Business System Options

(The second of the transition stages).

The job of this stage is to:

  • Think of alternative business approaches.

  • Choose the optimum way forward.

    The main end product of the stage is:

  • Data flow diagram (DFD) for the proposed logical system.


Slide22 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 2

SSADM: Stage 3/5: Definition of Requirements/Logical Design

The proposed logical system is specified in some detail.

The documentation for the logical design includes:

  • Data flow diagram (DFD) of the proposed system.

  • Logical data structure (LDS) of the proposed system.

  • Relational data analysis (RDA).

  • Entity life histories (ELH).


Slide23 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 2

SSADM: Stage 4: Technical System Options

(Third and final transition stage).

The task here is to choose the hardware, software and communication provision for the proposed system.

Scheduled part way through the logical design so:

  • There will be sufficient information to make technical decisions.

  • Leave time for the IT to be ordered.


Slide24 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 2

SSADM: Stage 6: Physical Design

The logical design is mapped onto the intended technical provision.

End products for the physical design are:

  • Physical database design.

  • Physical process design.


Slide25 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 2

SSADM: Techniques

The main techniques used in SSADM are:

  • The data flow diagram (DFD).

  • The logical data structure (LDS) / ER diagram.

  • Relational data analysis (RDA – also known as normalisation).

  • Entity life history (ELH), one diagram for each entity on the LDS.

    SSADM also includes:

  • Effect correspondence diagrams (ECD).

  • Process and dialogue design using Jackson structures.


Slide26 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 3

Iterative Lifecycles

The main alternative to the waterfall lifecycle is an:

  • iterative or prototype lifecycle.

    With this approach:

  • The project team knock up a prototype of the system.

  • Discuss the prototype with the users.

  • Modify the prototype to incorporate the improvements.

  • Modify the prototype to add further functionality.

    And return to discuss the prototype with the users.

    Eventually the prototype becomes the agreed system


Slide27 l.jpg

Feasibility

Study

Initial

Prototype

Enhance

Prototype

Test

Prototype

System

Test

Operations

introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 3

Iterative Lifecycle


Slide28 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 3

Iterative Lifecycle – Feasibility Study

Firstly we need to assess whether the system is:

  • Technically feasible,

  • Financially justified,

  • Ethically acceptable.

    We also need to:

  • Work out what will be in the initial prototype,

  • Plan the iterations and the timescales.


Slide29 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 3

Iterative Lifecycle – Initial Prototype

A prototype is a model or mock-up of the system.

The first prototype will concentrates on:

  • Establishing user requirements for the main system functions.

    Prototypes need to be:

  • Put together quickly and changed quickly.

    The use of a fourth generation language / application generator can greatly assist in this process.


Slide30 l.jpg

Enhance

Prototype

Test

Prototype

introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 3

Iterative Lifecycle – Test Prototype / Enhance Prototype

The two main stages in the iterative lifecycle are:


Slide31 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 3

Iterative Lifecycle – Test Prototype / Enhance Prototype

The questions for the test prototype stage are:

  • Does the prototype do what the user requires?

  • Is the prototype function well designed?

  • What functions and functionality should be added?

    The enhance prototype stage is then used to:

  • Make any substantial changes.

  • Include additional functionality.

    The final iteration of the prototype loop produces a fully functional, documented and technically acceptable software system.


Slide32 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 3

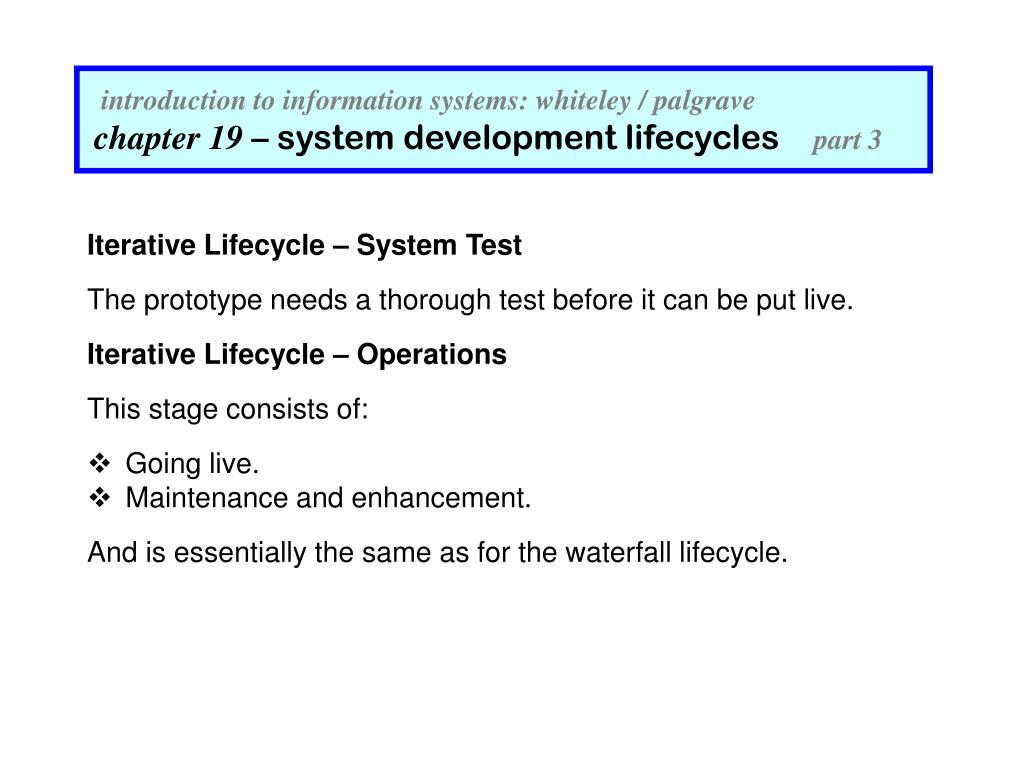

Iterative Lifecycle – System Test

The prototype needs a thorough test before it can be put live.

Iterative Lifecycle – Operations

This stage consists of:

  • Going live.

  • Maintenance and enhancement.

    And is essentially the same as for the waterfall lifecycle.


Slide33 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 3

Iterative Lifecycle

Advantages of the iterative lifecycle include:

  • Ease of working out user requirements

  • Generally quicker than the waterfall lifecycle.

  • Changes are more readily incorporated

  • The user is involved throughout the process.

    Drawbacks of an iterative prototype approach include:

  • Project management is made more difficult.

  • The software is unlikely to be well designed.

  • No formal point where the system should be sized.

  • Not appropriate for large-scale monolithic systems.


Slide34 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

DSDM

Dynamic System Development Methodology

Developed by IT industry and IS user organisations.

DSDM has become the de-facto UK RAD standard

(RAD is Rapid Application Development)

DSDM is ‘… not a method the accepted sense, but a framework of controls for RAD, supplemented by guidance on how to apply those controls.’.

The lifecycle of the DSDM is:

  • More complex than the generalised evolutionary lifecycle.

  • Affectionately known as ‘three pizzas and a cheese cake’


Slide35 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4


Slide36 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

DSDM

three pizzas

and a

cheese cake


Slide37 l.jpg

Feasibility

Business Study

Functional

Model Iteration

Implementation

Design and

Build Iteration

introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

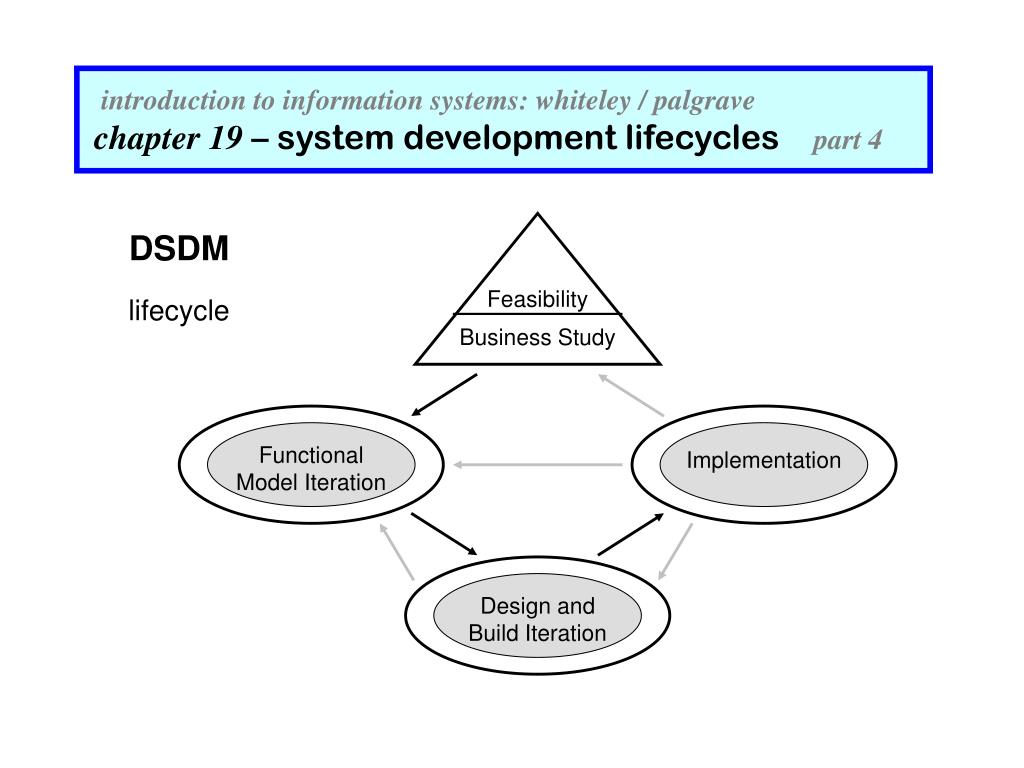

DSDM

lifecycle


Slide38 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

DSDM – Feasibility Study

To check that the proposed system is:

  • Technically achievable,

  • Affordable, and

  • Acceptable.

    We must also check that RAD is appropriate:

  • The system is not be computationally complex, and

  • All stakeholders are committed to the RAD philosophy.


Slide39 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

DSDM – Business Study

A short exercise to elucidate the business requirements and determine the technical constraints.

The end products include:

  • Business area definitions.

  • System architecture definition.

  • Outline prototype plan.


Slide40 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

DSDM – Business Study

Uses JAD (Joint Application and Development) workshops:

‘a series of facilitated workshops of knowledgeable staff who can pool their knowledge and gain consensus as to the priority of development’

and produces:

  • Business Area Definition (for each business area).

  • System Architecture Definition.

  • Outline Prototype Plan.


Slide41 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

DSDM – Functional Model Iteration

The functional model iteration is used to:

  • Prototype the system.

  • Document the system.

    We start with the main functions and iterate to:

  • Correct our understanding of the requirement.

  • Add further functionality.


Slide42 l.jpg

Agree Schedule

Create

functional

prototype

Identify

functional

prototype

FUNCTIONAL

MODEL

ITERATION

Review prototype

introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

DSDM – Functional

Model Iteration

  • Four steps:

  • Identify what is to be done;

  • Agree how it is to be done;

  • Do it;

  • Check the documentation and the prototype, and iterate.


Slide43 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

DSDM – Design and Build Iteration

The design and build iteration is used to:

  • Complete the IT infrastructure.

  • Ensure adequate performance robustness.

    The stage is iterative.


Slide44 l.jpg

Identify design prototype

Agree

Schedule

Review

design

prototype

DESIGN AND BUILD

ITERATION

Create design prototype

introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

DSDM – Design

and Build Iteration

  • Four steps:

  • Accept the code and documentation;

  • Determine what more needs to be done in further iterations;

  • Correct and update (add in non-functional requirements);

  • Check it out - is it done?; and iterate.


Slide45 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

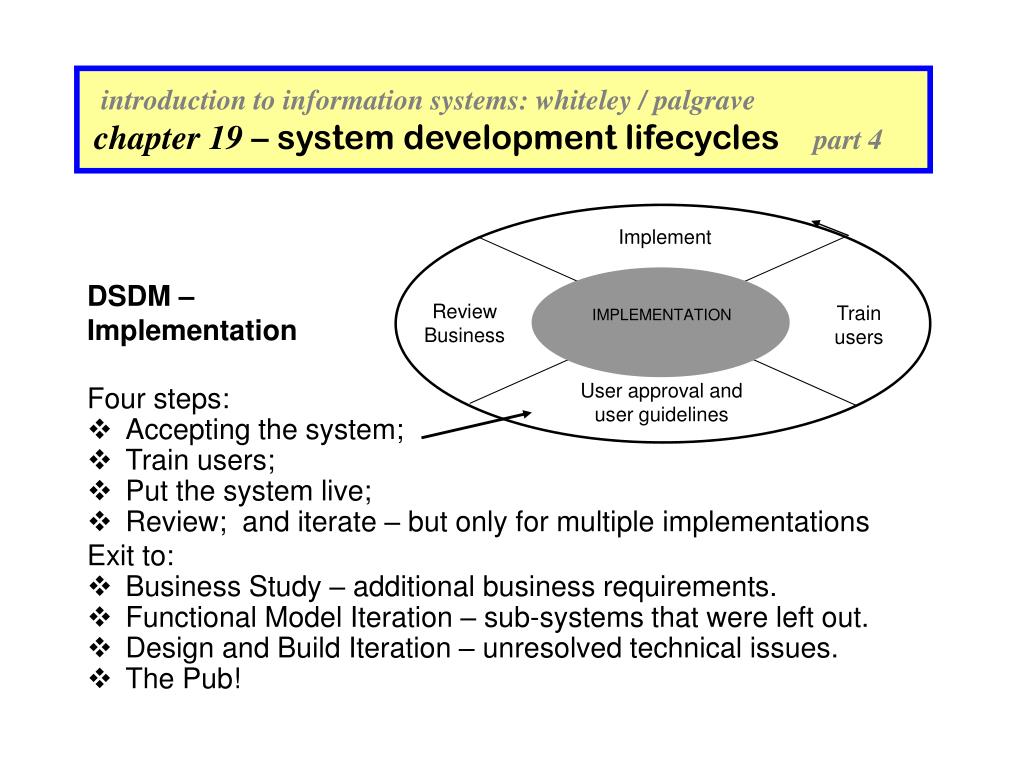

DSDM – Implementation

The system is made live.

The stage may iterate to implement in a number of locations.


Slide46 l.jpg

Implement

Review

Business

Train

users

IMPLEMENTATION

User approval and

user guidelines

introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

DSDM –

Implementation

  • Four steps:

  • Accepting the system;

  • Train users;

  • Put the system live;

  • Review; and iterate – but only for multiple implementations

  • Exit to:

  • Business Study – additional business requirements.

  • Functional Model Iteration – sub-systems that were left out.

  • Design and Build Iteration – unresolved technical issues.

  • The Pub!


Slide47 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

DSDM Principles

In addition to the lifecycle, DSDM, for successful application, requires adherence to nine underlying principles:

‘The foundations of DSDM are contained in nine underlying principles. For DSDM to be successful, all nine of these principles must be applied in a project.’


Slide48 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 4

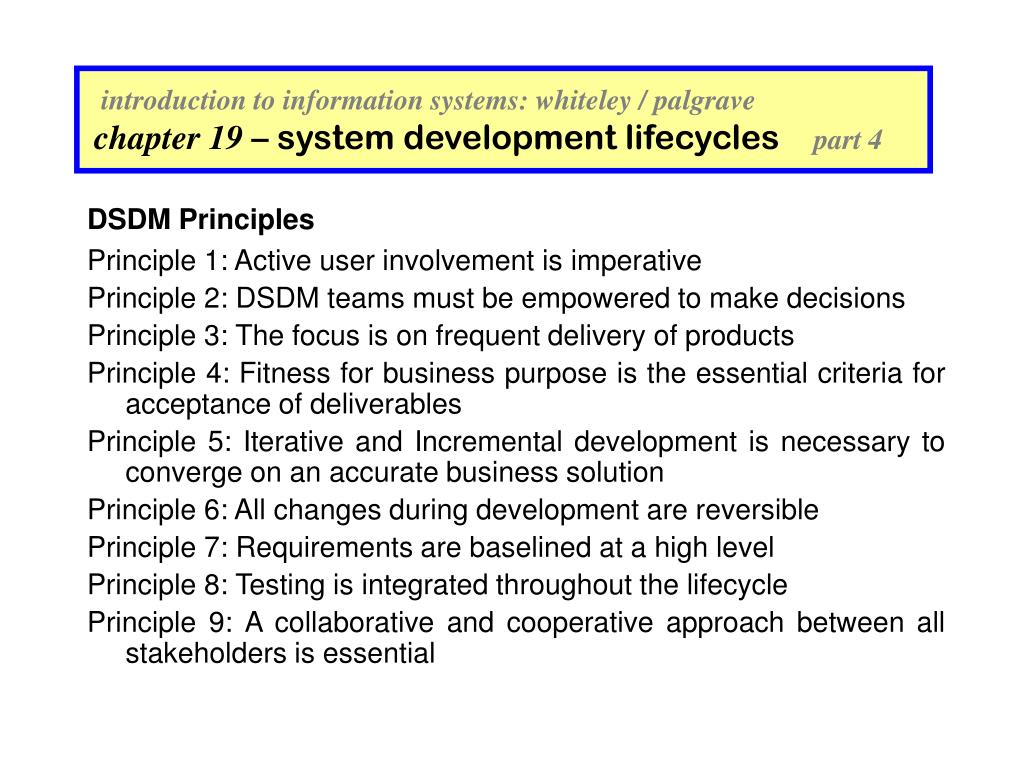

DSDM Principles

Principle 1: Active user involvement is imperative

Principle 2: DSDM teams must be empowered to make decisions

Principle 3: The focus is on frequent delivery of products

Principle 4: Fitness for business purpose is the essential criteria for acceptance of deliverables

Principle 5: Iterative and Incremental development is necessary to converge on an accurate business solution

Principle 6: All changes during development are reversible

Principle 7: Requirements are baselined at a high level

Principle 8: Testing is integrated throughout the lifecycle

Principle 9: A collaborative and cooperative approach between all stakeholders is essential


Slide49 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 5

Classifying SA&D Methodologies

  • Hard systems:

    • Assume that there is a problem to solve

    • Take a scientific, reductionist approach.

  • Soft systems:

    • People centred – diverse views, needs and responsibilities.

    • Starts with the problem domain.

    • Does not assume the need for a specific system.


Slide50 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 5

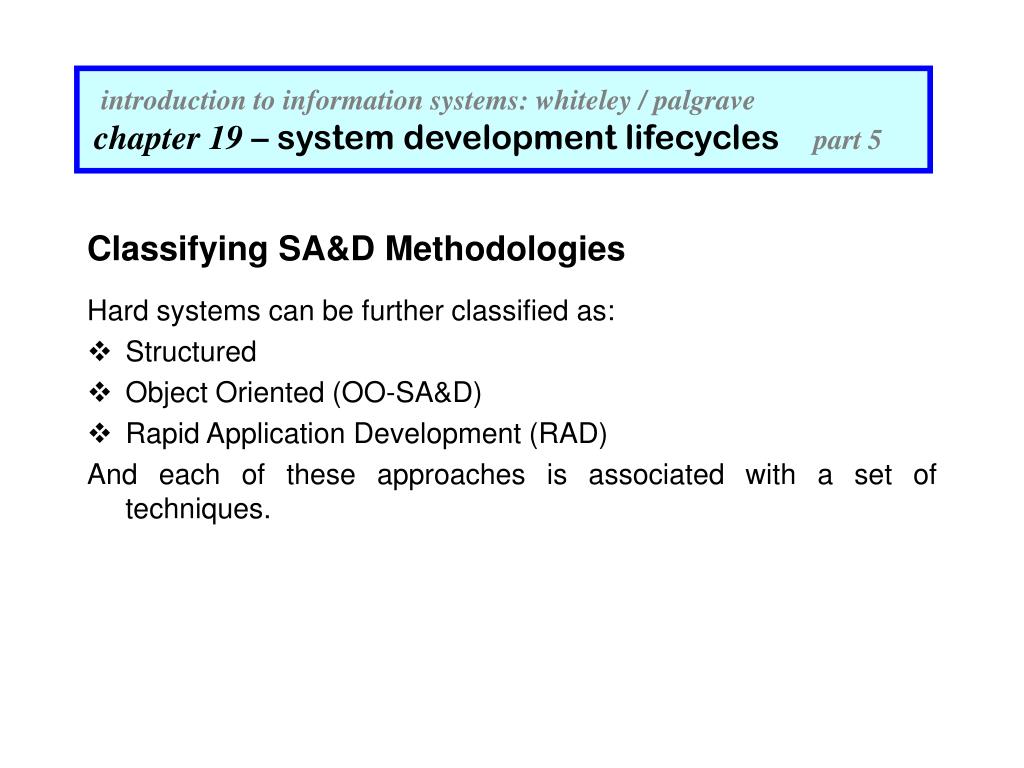

Classifying SA&D Methodologies

Hard systems can be further classified as:

  • Structured

  • Object Oriented (OO-SA&D)

  • Rapid Application Development (RAD)

    And each of these approaches is associated with a set of techniques.


Slide51 l.jpg
introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 5

Classifying SA&D Methodologies

There are two (essential lifecycles):

  • Waterfall (sequential)

  • Iterative (prototyping)

    Structured techniques are generally associated with the waterfall lifecycle whereas RAD and Soft Systems would be associated with an iterative lifecycle.


Slide52 l.jpg

Hard System

Approaches

Soft System

Approaches

Socio-tech.

Techniques

Object Oriented

Approach

Rapid Application

Development

Structured

SA&D

Data

Analysis

Prototypes

OO

Techniques

Process

Diagrams

Waterfall Lifecycles

Iterative Lifecycles

introduction to information systems: whiteley / palgravechapter 19 – system development lifecycles part 5

Classifying SA&D Methodologies


ad
