Presentation Transcript

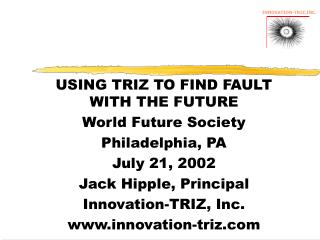

Slide1 l.jpg

INNOVATION-TRIZ,INC.

USING TRIZ TO FIND FAULT WITH THE FUTURE

World Future Society

Philadelphia, PA

July 21, 2002

Jack Hipple, Principal

Innovation-TRIZ, Inc.

www.innovation-triz.com


Objectives l.jpg
OBJECTIVES

  • Briefly review the concepts of TRIZ

    • Ideality, resources, patterns of invention

  • Explain and demonstrate the use of “reverse” TRIZ thinking in forecasting and planning

    NOTE: All day workshop on TRIZ problem solving and forecasting on Tuesday at WFS


What is triz l.jpg
WHAT IS “TRIZ” ?

A Russian acronym:

Theoria Resheneyva Isobretatelskehuh Zadach

(Theory of Solving Problems Inventively)


What is triz4 l.jpg
WHAT IS “TRIZ” ?

  • A way of thinking

  • A family of tools, thinking processes, and software

    The “way of thinking” can ALWAYS be used, but the tools in the tool kit can be selected depending the nature of the problem, time available, etc.


Basics of other creativity tools l.jpg
BASICS OF OTHER CREATIVITY TOOLS

  • Psychology more than science and technology

    • DeBono, Lateral Thinking/Six Hats™, Creative Problem Solving

    • Can discuss integration

  • Randomness

    • Brainstorming, picture, etc. stimulation

    • Can discuss integration

  • Highly dependent upon facilitation skills

  • Fine for simple problems and can be easily learned

  • Limited by knowledge in the room--TRIZ looks outside the knowledge and experience in the room in a systematic and structured way


The history of triz l.jpg
THE HISTORY OF TRIZ

  • A discovery of a talented patent examiner for the Russian navy, Genrich Altshuller, 1950’s

  • Originated from the study of several hundred thousand of the world’s most inventive patents--now in the millions

  • He recognized that the development of technological systems follows predictable patterns that cut across ALL areas of technology--the speed of technical evolution can be accelerated

  • Also recognized that problem solving principles are also predictable and repeatable--anyone can invent!

  • Established schools to teach after a Stalin 7 yr. prison term--deceased in 1999 at age 71


Basic concepts l.jpg
BASIC CONCEPTS

  • Systems evolve toward IDEALITY irreversibly

  • Using RESOURCES within the system or easily convertible

  • Resolving CONTRADICTIONS as they evolve

  • PATTERNS OF INVENTIONS/OPERATORS are constantly recognized and used


Slide8 l.jpg

PILL INSPECTION WORKSTATION

Vibratory feed move pills around an internal spiral to top of vibratory bowl where the pills are discharge and slide down an incline plane onto a conveyor. As the pills go by, the inspectors identify and remove the damaged pills.

Damaged Pills

Conveyor

Trash Can

® Ideation International


System proposal and challenge l.jpg
SYSTEM PROPOSAL AND CHALLENGE

  • Replace inspectors with a $200K video inspection system

  • High return project, but capital is not available

  • Boss says, that’s a great idea, but “Find another way!!”


Good pills bad pills l.jpg
GOOD PILLS/BAD PILLS

  • What is IDEALITY?

  • What are the RESOURCES we have?


Slide11 l.jpg

PILL INSPECTION WORKSTATION

Vibratory feed move pills around an internal spiral to top of vibratory bowl where the pills are discharge and slide down an incline plane onto a conveyor. As the pills go by, the inspectors identify and remove the damaged pills.

Damaged Pills

Conveyor

Trash Can

® Ideation International


An elegant solution the pill inspects itself l.jpg
An Elegant Solution: The Pill Inspects Itself

Change the escapement for the vibratory bowl so that the pills are ejected standing on their edge. Move the conveyor 3 inches. Pills that are round will roll at a velocity that allows them to jump to the conveyor. The pills that are chipped will slide or will roll at a lower velocity and fall into the trash.

Resource:

Velocity of the sliding or rolling pills

Function (inspection of pills) is performed without the system (human inspectors or video inspection system).

Trash Can

®Ideation International


Resource checklist l.jpg
RESOURCE CHECKLIST

  • Substances

  • Fields

  • Space

  • Time

  • Information

  • Functional


Solving a contact lense problem l.jpg
SOLVING A CONTACT LENSE PROBLEM

  • Space resources

    • from the perspective of a contact lense manufacturer

    • from the standpoint of a semi-conductor manufacturer


Other triz tools l.jpg
OTHER TRIZ TOOLS

  • Patterns of Invention for Forecasting

  • Algorithms and tables for problem solving, both technical and non-technical

  • Software products



Slide17 l.jpg

Potential AND FORECASTING

Failures

Potential

Cause

REVERSE TRIZ

  • What failures/problems may occur?

System

  • Why failures/problems did occur?

Failures


Combines l.jpg
COMBINES….. AND FORECASTING

  • The rigor of the TRIZ process, but in reverse

  • Proactive, rather than checklist, mental process


Reverse triz l.jpg
REVERSE TRIZ AND FORECASTING

  • Formulate original problem (the “ideal” final result)

  • Invert the original problem (the opposite of the ideal final result/ideality)

  • Amplify the inverted problem: reverse ideality

  • Search for information and resources

  • Hypothesis, tests, and correction


Slide20 l.jpg

Real view AND FORECASTING


SMOKE-FREE TEST SHIP


Slide21 l.jpg

Bulk storage AND FORECASTING

Received by rail car and truck, unloaded by N2 pressure or pump

Distribution to process

Scrubber for containment

Unloading with pressure transfer (T/C) and pump (T/T)

Foam control in storage area

HAZARDOUS CHEMICAL HANDLING SYSTEM


Slide22 l.jpg

Unload AND FORECASTING

Vent

N2

Scrubber

To Process


The reverse triz approach l.jpg
THE REVERSE TRIZ AND FORECASTING APPROACH

  • The problem: I want to prevent a leak

  • Invert the problem: I WANT to have a leak

  • Exaggerate/amplify the inverted problem: I WANT to have a CATASTROPHIC leak, causing MAJOR damage and public affairs impact

  • What RESOURCES do I need to have/cause a leak?

™afd is a trademark of Ideation International


Resource checklist24 l.jpg
RESOURCE CHECKLIST AND FORECASTING

  • Substances

  • Fields

  • Space

  • Time

  • Information

  • Functional


Reverse triz this workshop l.jpg
“REVERSE” TRIZ THIS WORKSHOP AND FORECASTING

  • I want to have a successful workshop

  • I want to have an unsuccessful workshop

  • I want to have the WORST workshop the WFS has ever hosted--no one ever comes again and WFS loses a ton of money!

  • How would I make sure this happened?

  • What resources do I need?


Vs other processes l.jpg
VS. OTHER PROCESSES AND FORECASTING

  • Compared to the HAZOP or FEMA checklist process, generates far more real possibilities, puts people in an aggressive mind set, and finds possibilities not otherwise found

  • Software supported

  • Larger knowledge base

  • Use inventive skills and thinking from traditional TRIZ problem-solving


Slide27 l.jpg
USES AND FORECASTING

  • Failure prediction for projects and product designs

  • Failure prediction and/or analysis for technology developments

  • Failure prediction for technology adoption and commercialization

  • Failure prediction for management/organizational processes


Examples l.jpg
EXAMPLES AND FORECASTING

  • How would I prevent this product from being successfully used?

  • How would I make sure that this new technology would never be adopted?


Slide29 l.jpg

WALL STREET JOURNAL AND FORECASTING03/29/1999

Ford to Recall 945,000 Cars, Trucks to Fix Cruise Control DEARBORN, Mich. - Ford Motor Co. is warning owners of 945,000 1998 and 1999 model cars and trucks not to use the cruise-control feature because of a potential defect that could cause the accelerator to stick open.

The auto maker said it knows of no accidents related to the problem, which company engineers discovered during tests, a Ford spokeswoman said. The vehicles will be recalled and repaired at no cost to customers starting in May when Ford gets replacement parts, the spokeswoman said. In the meantime, customers may get the cruise-control mechanism disabled, the company said.

The models affected are about 567,000 1998 and 1999 Explorer and Mountaineer sport-utility vehicles; about 166,000 1998 and 1999 Ranger pick-ups; 99,000 1998 and 1999 Mustangs; 88,000 1999 Super Duty F-Series trucks and about 25,000 1999 Super Duty F-Series stripped chassis.

To alert owners to the problem, Ford is sending letters and directing customers to a Web site, www.recall.ford.com, where they can enter the vehicle identification number to learn if their caror truck is affected.


Application at different levels l.jpg
APPLICATION AT DIFFERENT LEVELS AND FORECASTING

  • The principles of TRIZ and “reverse” TRIZ can be applied at different system levels from a competitive standpoint

  • Need to understand what those levels are and how they might affect us

  • What are potential negative events and causes at DIFFERENT levels?


For example airline hijacking l.jpg
FOR EXAMPLE….. AND FORECASTINGAIRLINE HIJACKING

  • Levels

    • The cockpit

    • The plane

    • The boarding area

    • The airport

    • The space around the airport

    • The atmosphere


For each level l.jpg
FOR EACH LEVEL…. AND FORECASTING

  • What resources are available to deliberately cause the unwanted event?


Takeaways l.jpg
TAKEAWAYS AND FORECASTING

  • Try the “reverse” TRIZ process (“how” vs. “what”) for some failure or forecasting problem you currently have

  • Substitute and compare this process with ANY checklist process currently used


Resources l.jpg
RESOURCES AND FORECASTING

  • Web site, www.innovation-triz.com, monthly newsletter available

  • Annual Altshuller conference, Philadelphia, spring, 2003

    • Introductory workshops, TRIZ in non-technical areas, how to implement, application presentations

    • Altshuller Institute, www.aitriz.org

  • TRIZ Journal, on line at www.triz-journal.com

  • Books

    • “And Suddenly the Inventor Appeared”, Altshuller, $40, Amazon.com

    • “TRIZ: The Right Solution at the Right Time”, Salamatov, $75, www.insytec.com, Amazon

    • “The Engineering of Creativity”, Savransky, CRC Press/Amazon

    • “Hands On Systematic Innovation”, Mann, www.creax.com
