Topics lesson 7 l.jpg
Topics Lesson 7

  • Basic Telecommunication Concepts

  • Telecommunication Models

  • Networking

  • Client/server Computing

  • Telecommunication Standards

  • Wireless Communications

  • Internet


Modems l.jpg
Modems

  • Baud - transfer rate (bits per second)

  • Analog signals: continuous

  • Digital signals: discrete

  • Modulation: translating digital data to analog

  • Demodulation: translating analog data to digital

  • Modems modulate & demodulate data

  • Fax/Modem

    • telephone as well as facsimile


Modems3 l.jpg
Modems

  • A typical telephone line can only accommodate an analog signal (a continuous, curving signal)

  • A computer generates a digital signal representing bits

  • Modem: a device that translates data from digital to analog and analog to digital




Electronic communication terminology l.jpg
Electronic Communication Terminology

  • Simplex

    • one way (i.e. transmit, or receive)

  • Half Duplex

    • both directions (one-at-a-time)

  • Full Duplex

    • both directions at the same time

  • Baud vs. bit/s (bps)


Electronic communication modes l.jpg
Electronic Communication Modes

  • Communications Protocols

  • Handshaking

  • Redundancy

    • CRC – Cyclic Redundancy Checking


Multiplexers l.jpg
Multiplexers

  • Multiplexers (a.k.a. “mux”): device that allows several telecommunications signals to be transmitted over a single communications medium at the same time

  • Demultiplexer (“demux”)

  • http://en.wikipedia.org/wiki/Multiplexer


Front end processors l.jpg
Front-End Processors

  • Front-end processors: special-purpose computers that manage communications to and from a computer system (to networks, peripheral devices)

  • Connect a midrange or mainframe computer to hundreds or thousands of communications lines


Slide10 l.jpg
Figure 6.9: Use of a Multiplexer to Consolidate Data Communications onto a Single Communications Link


Figure 6 10 front end processor l.jpg
Figure 6.10: Front-End Processor Communications onto a Single Communications Link


Telecommunications media l.jpg

Telecommunications Media Communications onto a Single Communications Link


Connections l.jpg
Connections Communications onto a Single Communications Link

  • Micro to micro (modem)

  • (Dumb) Terminal to host (mainframe/minicomputer) (direct wiring)

  • Micro to micro (direct)

  • LAN, WAN, PAN – Computer Networks

  • Uploading vs. downloading


Fig 6 19 l.jpg
Fig 6.19 Communications onto a Single Communications Link


Types of media l.jpg
Types of Media Communications onto a Single Communications Link

  • Twisted Pair

  • Coaxial Cable

  • Fiber-Optic Cable

  • Wireless

    • Microwave Transmission, RF (WiFi, Bluetooth, cellular), Inferred


Twisted pair l.jpg
Twisted Pair Communications onto a Single Communications Link

  • Fig 6.4


Coaxial cable l.jpg
Coaxial Cable Communications onto a Single Communications Link

  • Fig 6.5


Fiber optic cable l.jpg
Fiber Optic Cable Communications onto a Single Communications Link

  • Fig 6.6


Microwave transmission l.jpg
Microwave Transmission Communications onto a Single Communications Link

  • Fig 6.7

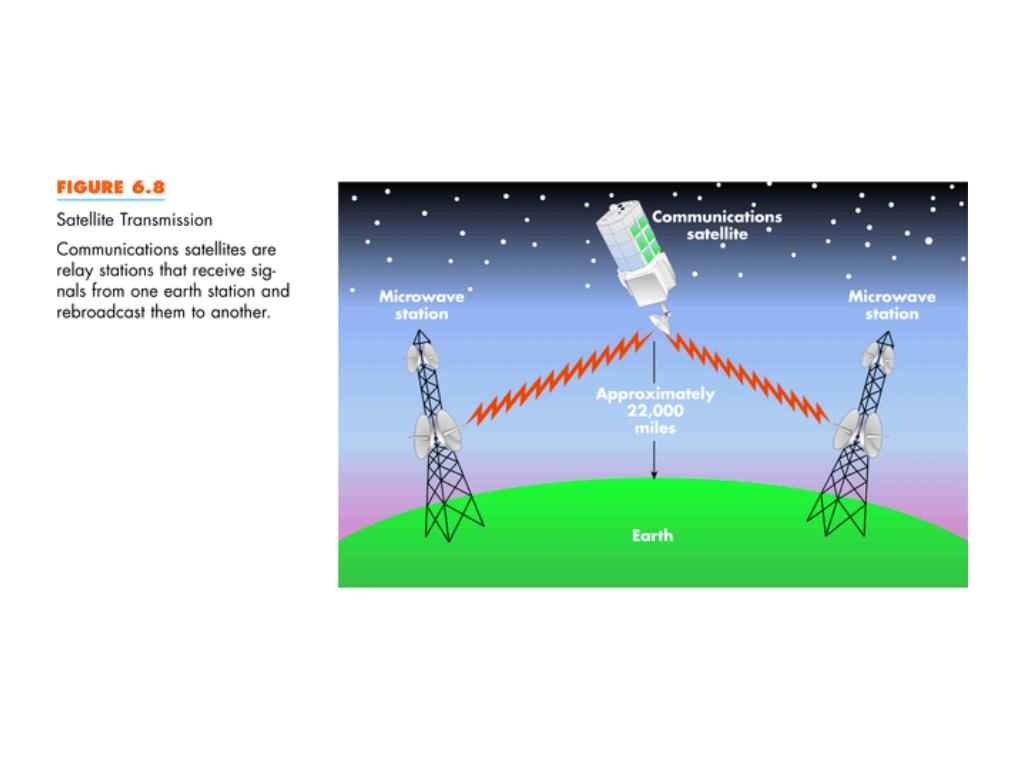

Satellite l.jpg
Satellite Communications onto a Single Communications Link

  • Fig 6.8


Cellular l.jpg
Cellular Communications onto a Single Communications Link

  • Fig 6.9


Infrared transmission l.jpg
Infrared Transmission Communications onto a Single Communications Link

  • Line of sight

  • Short distances


Local area networks l.jpg
Local Area Networks Communications onto a Single Communications Link

  • Server Based (Novell/Microsoft Active Directory)

  • Peer-to-Peer (LANtastic, Windows)

  • Physically most common: Ethernet over unshielded twisted pair.


Figure 6 15 the basic network topologies l.jpg
Figure 6.15: The Basic Communications onto a Single Communications LinkNetwork Topologies


Other l.jpg
Other Communications onto a Single Communications Link

  • Gateway – for attaching different networks – converts one protocol to another.

  • WAN

  • Wireless (Wi-Fi (802.11), Bluetooth)

    • PAN


What is client server l.jpg
What Is Client/Server? Communications onto a Single Communications Link

  • Client/serveris a term used to describe a computing model for the development of computerized systems. This model is based on the distribution of functions between two types of independent and autonomous processes; servers and clients.

  • A client is any process that requests specific services from server processes.

  • A server is a process that provides requested services for clients.

  • The key to client/server power is where the requested processing takes place.


What is client server27 l.jpg
What Is Client/Server? Communications onto a Single Communications Link

Basic Client/Server Computing

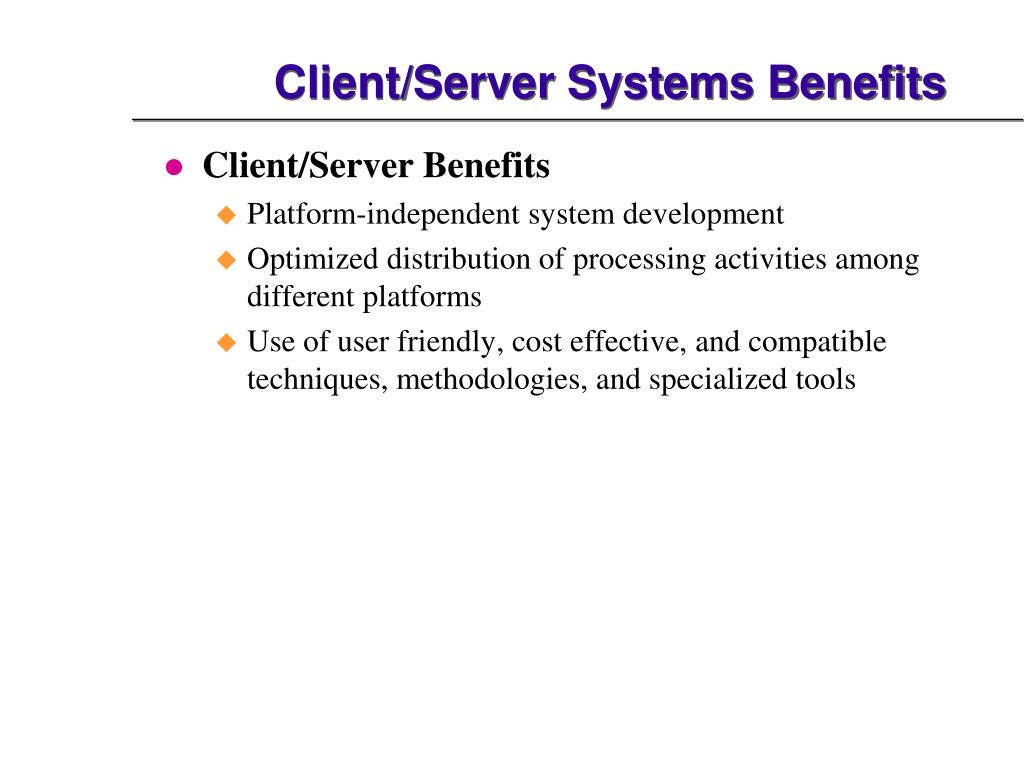

Client server systems benefits l.jpg
Client/Server Systems Benefits Communications onto a Single Communications Link

  • Client/Server Benefits

    • Platform-independent system development

    • Optimized distribution of processing activities among different platforms

    • Use of user friendly, cost effective, and compatible techniques, methodologies, and specialized tools


Managerial expectations of client server systems benefits l.jpg
Managerial Expectations of Communications onto a Single Communications LinkClient/Server Systems Benefits

  • Organizational Expectations of Client/Server Benefits

    • Flexibility and adaptability

    • Improved employee productivity

    • Improved company work flow and a way to re-engineer business operations

    • New opportunities to provide competitive advantages

    • Increased customer service satisfaction


Client server architecture l.jpg
Client/Server Architecture Communications onto a Single Communications Link

  • Components of Client/Server Architecture

    • Client. The client is any computer process that requests services from the server. It is also known as the front-end application.

    • Server. The server is any computer process providing services to the clients. The server is also known as the back-end application.


Client server architecture31 l.jpg
Client/Server Architecture Communications onto a Single Communications Link

  • Client Components

    • Powerful hardware

    • An operating system capable of multitasking

    • A graphical user interface (GUI)

    • Communications capability


Client server architecture32 l.jpg
Client/Server Architecture Communications onto a Single Communications Link

  • Types of Services

    • File services

    • Print services

    • Fax services

    • Communications services

    • Database services

    • Transaction services

    • Application services

    • Web Services


The internet intranets and extranets l.jpg

The Internet, Intranets, and Extranets Communications onto a Single Communications Link


Types of internet connections l.jpg
Types of Internet Connections Communications onto a Single Communications Link

  • Dialup (Modem)

  • ISDN (It Still Does Nothing, Innovations Subscribers Don't Need)

  • Broadband (“high speed”)

    • DSL (ADSL) – (Asynchronous Digital Subscriber Line)

    • Cable

  • T1, T2, T3, T4


Use and functioning of the internet l.jpg

Use and Functioning Communications onto a Single Communications Linkof the Internet


The internet l.jpg
The Internet Communications onto a Single Communications Link

  • See Introduction to the Internet and the WWW


What is the internet l.jpg
What is the Internet Communications onto a Single Communications Link

  • a global set of interconnected data networks running the TCP/IP protocols

  • Traditional services include email, file transfer (FTP); current focus is on the World Wide Web

  • Largely self-financing; no single point of control or administration (ANARCHY)


How the internet works l.jpg
How the Internet Works Communications onto a Single Communications Link

  • Hosts

  • Routers forward packets to other networks

  • Internet Protocol Stack (TCP/IP)

    • Internet Protocol (IP)

    • Transport Control Protocol (TCP)

  • Backbones


How the internet works39 l.jpg
How the Internet Works Communications onto a Single Communications Link

  • Uniform Resource Locator(URL)

  • http://www.whitehouse.gov

World Wide Web

Domain category

Hypertext transfer protocol

Host Network Name


Table 7 1 l.jpg
Table 7.1 Communications onto a Single Communications Link


Figure 7 3 several ways to access the internet l.jpg
Figure 7.3: Several Ways to Communications onto a Single Communications LinkAccess the Internet

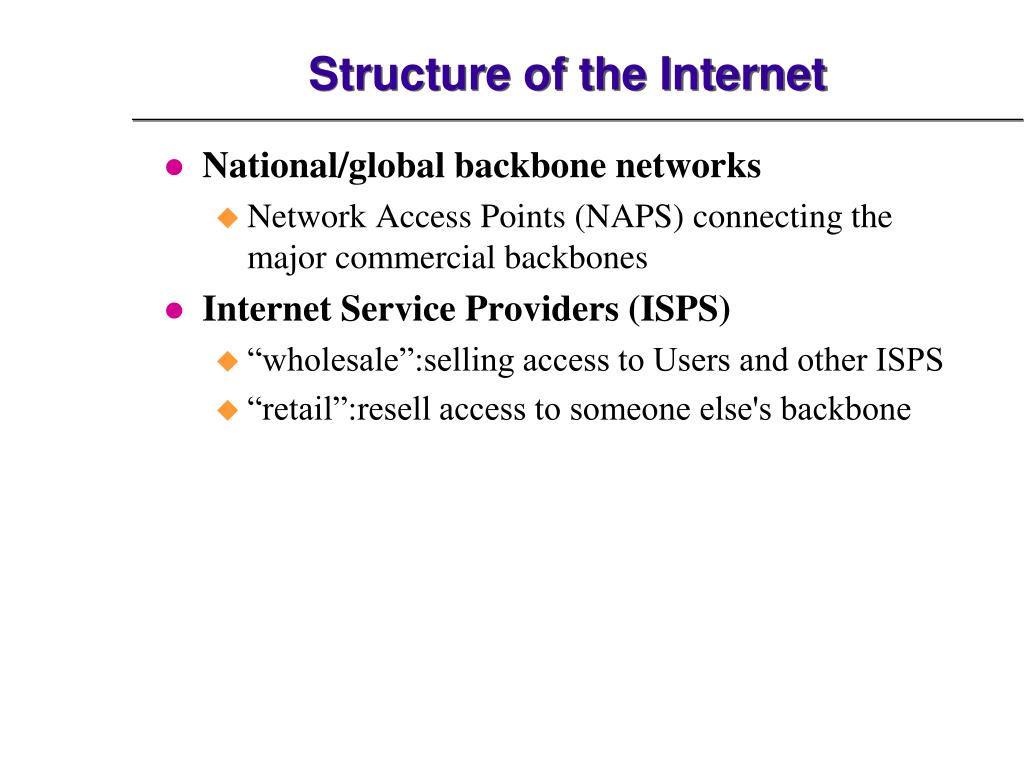

Structure of the internet l.jpg
Structure of the Internet Communications onto a Single Communications Link

  • National/global backbone networks

    • Network Access Points (NAPS) connecting the major commercial backbones

  • Internet Service Providers (ISPS)

    • “wholesale”:selling access to Users and other ISPS

    • “retail”:resell access to someone else's backbone


The world wide web l.jpg

The World Wide Web Communications onto a Single Communications Link


The world wide web44 l.jpg
The World Wide Web Communications onto a Single Communications Link

  • World Wide Web: AKA the Web, WWW, or W3

  • A menu-based system that uses the client/server model

  • Organizes Internet resources throughout the world into a series of menu pages, or screens, that appear on your computer

  • Hypermedia: tools that connect the data on Web pages, allowing users to access topics in whatever order they wish


The world wide web continued l.jpg
The World Wide Web (continued) Communications onto a Single Communications Link

  • Hypertext Markup Language (HTML): the standard page description language for Web pages

  • HTML tags: inform browsers how to format text on a Web page, and whether images, sound, and other elements should be inserted

  • Extensible Markup Language (XML): markup language for Web documents containing structured information, including words, pictures, and other elements


Slide46 l.jpg


Figure 7 4 sample hypertext markup language l.jpg
Figure 7.4: Sample Hypertext Communications onto a Single Communications LinkMarkup Language


Web software l.jpg
Web Software Communications onto a Single Communications Link

  • Web browsers

  • Search engines

    • Keyword indexes: fast & broad

    • Subject indexes: focused searches


Table 7 7 l.jpg
Table 7.7 Communications onto a Single Communications Link


Webcasting l.jpg
Webcasting Communications onto a Single Communications Link

  • aka Push Technology

  • Consolidates information according to a user’s profile & displays in the browser


Internet services l.jpg

Internet Services Communications onto a Single Communications Link


Web services l.jpg
Web Services Communications onto a Single Communications Link

  • Web services: standards and tools that streamline and simplify communication among Web sites for business and personal purposes

  • XML is used within a Web page to describe and transfer data between Web service applications


Web services continued l.jpg
Web Services (continued) Communications onto a Single Communications Link

  • Besides XML, other components are used in Web service applications:

    • SOAP (Simple Object Access Protocol)

    • WSDL (Web Services Description Language)

    • UDDI (Universal Discovery Description and Integration)


Internet and web applications l.jpg
Internet and Web Applications Communications onto a Single Communications Link

  • E-mail and instant messaging

  • Instant messaging: a method that allows two or more individuals to communicate online using the Internet

  • Internet cell phones and handheld computers

  • Career information and job searching


Internet and web applications continued l.jpg
Internet and Web Applications (continued) Communications onto a Single Communications Link

  • Telnet and FTP

    • Telnet: a terminal emulation protocol that enables users to log on to other computers on the Internet to gain access to public files

    • File Transfer Protocol (FTP): a protocol that describes a file transfer process between a host and a remote computer and allows users to copy files from one computer to another


Internet and web applications continued57 l.jpg
Internet and Web Applications (continued) Communications onto a Single Communications Link

  • Web log (blog): a Web site that people can create and use to write about their observations, experiences, and feelings on a wide range of topics

  • Usenet and newsgroups

    • Usenet: a system closely allied with the Internet that uses e-mail to provide a centralized news service; a protocol that describes how groups of messages can be stored on and sent between computers

    • Newsgroups: online discussion groups that focus on specific topics


Internet and web applications continued58 l.jpg
Internet and Web Applications (continued) Communications onto a Single Communications Link

  • Chat room: a facility that enables two or more people to engage in interactive “conversations” over the Internet

  • Internet phone and videoconferencing services

  • Content streaming: a method for transferring multimedia files over the Internet so that the data stream of voice and pictures plays more or less continuously without a break, or very few of them; enables users to browse large files in real time

  • Shopping on the Web


Fig 6 24 l.jpg
Fig 6.24 Communications onto a Single Communications Link


Figure 7 7 how voice over ip works l.jpg
Figure 7.7: How Voice Over IP Works Communications onto a Single Communications Link


Internet and web applications continued61 l.jpg
Internet and Web Applications (continued) Communications onto a Single Communications Link

  • Web auctions

  • Music, radio, and video on the Internet

  • Office on the Web

  • Internet sites in three dimensions

  • Free software and services


Table 7 6 summary of internet and web applications l.jpg
Table 7.6: Summary of Internet and Communications onto a Single Communications LinkWeb Applications




Intranets and extranets65 l.jpg
Intranets and Extranets (continued)

  • Intranet

    • Internal corporate network built using Internet and World Wide Web standards and products

    • Slashes the need for paper

    • Provides employees with an easy and intuitive approach to access information that was previously difficult to obtain


Intranets and extranets continued l.jpg
Intranets and Extranets (continued) (continued)

  • Extranet: a network based on Web technologies that links selected resources of a company’s intranet with its customers, suppliers, or other business partners

  • Virtual private network (VPN): a secure connection between two points across the Internet

  • Tunneling: the process by which VPNs transfer information by encapsulating traffic in IP packets over the Internet




Net issues l.jpg

Net Issues Users


Net issues70 l.jpg
Net Issues Users

  • Management issues: preventing attacks

  • Service and speed issues

    • Web server computers can be overwhelmed by the amount of “hits” (requests for pages)

    • Routers can become bottlenecks


Figure 7 9 typical sources of internet attacks l.jpg
Figure 7.9: Typical Sources of UsersInternet Attacks


Net issues continued l.jpg
Net Issues (continued) Users

  • Privacy

    • Spyware: hidden files and information trackers that install themselves secretly when you visit some Internet sites

    • Cookie: a text file that an Internet company can place on the hard disk of a computer system

  • Fraud

    • Phishing


Net issues continued73 l.jpg
Net Issues (continued) Users

  • Security with encryption and firewalls

    • Cryptography: converting a message into a secret code and changing the encoded message back to regular text

    • Digital signature: encryption technique used to verify the identity of a message sender for processing online financial transactions

    • Firewall: a device that sits between an internal network and the Internet, limiting access into and out of a network based on access policies

  • Unauthorized sites



New organizations are emerging l.jpg
New Organizations Usersare Emerging

  • “Virtual Corporations”

  • Increasing usage of consultants; temporary employees

  • Telecommuting



ad
