Local Administrator Meeting

1. Local Administrator Meeting 2-25-03 Brian Drendel

2. What will we talk about today? • Announcements • Win2k Migration Progress • Key Server Retired • New WinXP Ghost Image • Site Netbios Block • Fermilab Active Directory Structure • Beams Division OU Structure • Administering the BD OU

3. Win2k Migration Progress • Win2k Migration Progress • Workstations: • 458 Users/463 Computers in Fermi • 95 computers on Beams browse list • Servers • Win2k: www-bdnew, Beamssrv1, Beams-Fmpro, beams-prt-srv, beams-backup, Beams-flexlm • WinNT: Beams-cdrom, beamsappsrv1, beamsappsrv2 • Further Concerns • Macintoshes • BD-Controls Domain

4. No more Key Server! • Announcements • Win2k Migration Progress • Key Server Retired • New WinXP Ghost Image • Site Netbios Block • Fermilab Active Directory Structure • Beams Division OU Structure • Local Admin Administrative Setup • Administrative Task Examples

5. Key Server Retired • Key Server Retired Feb. 17th. • Email warnings • Help desk tickets • Key server error messages.

6. Casper the friendly ghost image! • Announcements • Win2k Migration Progress • Key Server Retired • New WinXP Ghost Image • Site Netbios Block • Fermilab Active Directory Structure • Beams Division OU Structure • Local Admin Administrative Setup • Administrative Task Examples

7. Casper the friendly ghost image! • Latest Drive Image • Office XP Pro • Exceed 8 • Kerberos FTP • Jim Smedinghoff custom ACNET configuration • Remote Registry Service • Needed for SP Management • Turn it back on

8. Site Netbios Block • Announcements • Win2k Migration Progress • Key Server Retired • New WinXP Ghost Image • Site Netbios Block • Fermilab Active Directory Structure • Beams Division OU Structure • Local Admin Administrative Setup • Administrative Task Examples

9. Site Netbios Block • Network • NetBIOS Block • 137, 138, 139, 445 ports blocked in three stages • Fermi DCs • Site with exemptions for servers • Entire Site • Possible solution for offsite connectivity • VPN • Site VPN in Beta • BD Controls VPN • Cross Platform

10. Win2k Domain Structure at Fermilab • Announcements • Fermilab Active Directory Structure • Root Domain • Child Domains • Organizational Units (OU) • BD OU • Beams Division OU Structure • Local Admin Administrative Setup • Administrative Task Examples

11. Active Directory • Active Directory allows us to organize and manage domain objects: • Users • Computers • Printers • Global Groups • Shares • What does the Fermilab Active Directory structure look like?

12. Root Domain • The Root Win2k Domain is called WIN.FNAL.GOV. • Contains two Domain Controllers (FCC and WH). • Owned, managed and maintained by Computing Division. • BD has no administrative access to this domain. • Functions of Domain: • Used only for security. • Can push policies down to other OUs • Legal Banner • Minimum password length

14. Child Domains • Announcements • Fermilab Active Directory Structure • Root Domain • Child Domains • Organizational Units (OU) • BD OU • Beams Division OU Structure • Local Admin Administrative Setup • Administrative Task Examples

15. Child Domains • Active Directory Objects are connected to the Win.fnal.gov domain via separate child domains. • Child Domains: • Have a two way transitive trust with Win. • Must be approved by Computer Security. • Fermi Domain: All users and computers at Fermilab • Other Domains: Critical System??? • Computer Security does not allow: • Unattached Domains. • Child Domains of the Child Domains.

16. Child Domains • Fermi Child Domain • Contains all users, computers, printers, global groups and shares for the entire Fermilab Windows desktop community. • Contains all Child Domain user accounts. • Domain Controllers scattered throughout the site. • The BD Domain Controller is called Bert.

18. Organizational Units • Announcements • Fermilab Active Directory Structure • Root Domain • Child Domains • Organizational Units (OU) • BD OU • Beams Division OU Structure • Local Admin Administrative Setup • Administrative Task Examples

19. Organizational Units • Child Domains are further broken down into Organizational Units (OUs). • Each Division has its own OU. • Management to each OU is delegated to managers in their respective Divisions. • BD OU • Has all Beams Division users, computers, printers, global groups and shares. • Managed by the BD/Networking Group.

21. BD OU • Announcements • Fermilab Active Directory Structure • Root Domain • Child Domains • Organizational Units (OU) • BD OU • Beams Division OU Structure • Local Admin Administrative Setup • Administrative Task Examples

22. BD OU Management • The BD OU is further broken down into Sub-OUs for: • Computers • Users • Groups • Printers • File Shares

24. BD OU in Detail • Announcements • Fermilab Active Directory Structure • Beams Division OU Structure • Win2k Admin Guide • Users • Computers • Printers • Global Groups • Shares • Local Admin Administrative Setup • Administrative Task Examples

25. Win2k Admin Guide • The Win2k Admin guide covers administration of the BD OU. • Covers specific details for administration by: • BD Active Directory Administrators (BD\Network Group) • Local Administrators • More detail can be found in my Win2k Admin Guide Document located at http://www-bdnew.fnal.gov/network/Win2k-Adminguide/Adminguide.htm

27. Users • Announcements • Fermilab Active Directory Structure • Beams Division OU Structure • Win2k Admin Guide • Users • Computers • Printers • Global Groups • Shares • Local Admin Administrative Setup • Administrative Task Examples

28. Users • We now want to take a few moments to explore each of the subOUs within the Fermi\BD OU. • Users • Computers • Printers • Shares • Global Groups

29. User’s OU • The BD User’s OU is further divided by the org chart. • Each department/group has their own OU. • Each department/group OU is further broken down into a General and Special OU. • Management of Users is covered in the users portion of the Win2k Admin Guide: http://www-bdnew.fnal.gov/network/Win2k-Adminguide/users.htm

31. 5 Types of Fermi Domain Accounts • There are five types of users in the Fermi Domain: • Users: • Admins: • Managers: • Captive Accounts: • Service Accounts:

32. User Accounts • Every user that wants to access Fermi Domain resources has a user account. • All of your everyday work. • The account does not have administrative privileges across multiple computers. • Equivalent of your Kerberos Principal. • Cannot share your password • Cannot send your password over the network. • User accounts are cloned to the Fermi Domain to maintain Beams Domain access. • Username has the format of Fermi\{username}. • Users live in AD in the Fermi\BD\Users\{Department or Group}\General • Only Computing Division creates accounts. • You can apply for a user account at http://www-bdnew.fnal.gov/network/add_user.asp.

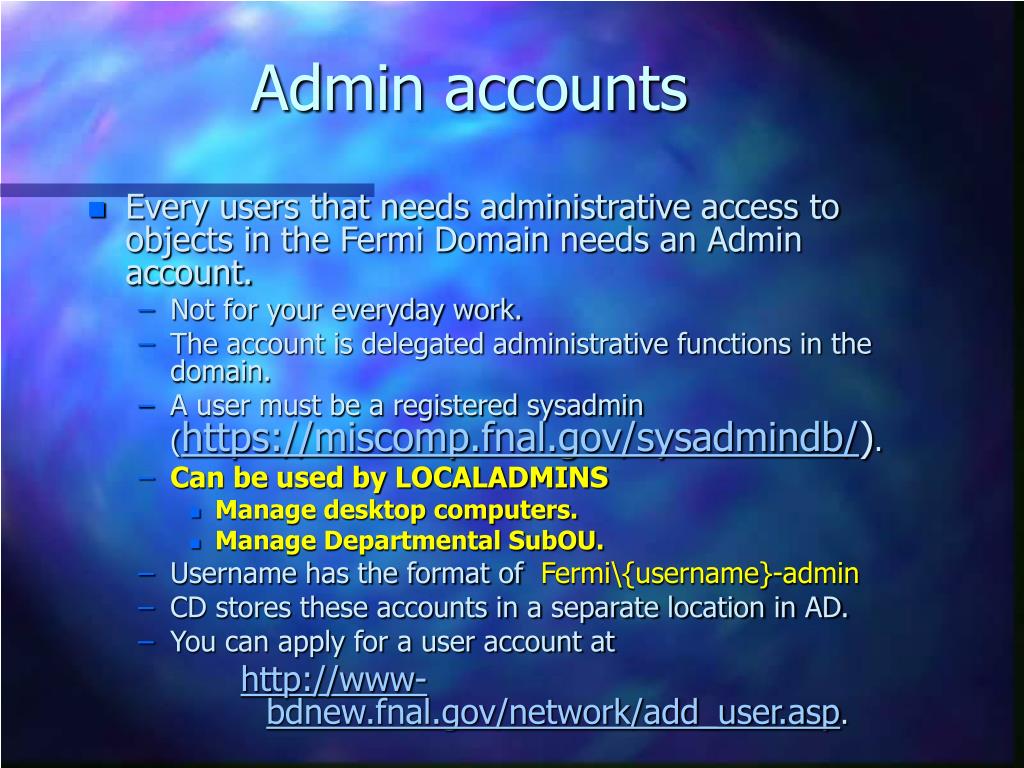

33. Admin accounts • Every users that needs administrative access to objects in the Fermi Domain needs an Admin account. • Not for your everyday work. • The account is delegated administrative functions in the domain. • A user must be a registered sysadmin (https://miscomp.fnal.gov/sysadmindb/). • Can be used by LOCALADMINS • Manage desktop computers. • Manage Departmental SubOU. • Username has the format of Fermi\{username}-admin • CD stores these accounts in a separate location in AD. • You can apply for a user account at http://www-bdnew.fnal.gov/network/add_user.asp.

34. Manager Accounts • Each Division assigns no more than three administrators to perform advanced Active Directory Administration for their respective Division. • The account is used to create active directory structure, move users and create group policy. • Username has the format of Fermi\{username}-mgr • CD stores these accounts in a separate location in AD • These accounts are assigned. There is no web application form.

35. Captive Accounts • These are domain accounts that require a shared login to a dedicated console. • Computing Security does not allow users to share their account passwords, so user accounts can not be used for this function. • These accounts need Win2k Policy Committee and CD Security approval. • Accounts names are of the form Fermi\bd-cap-{function}. • Accounts are stored in Active Directory in Fermi\BD\Users\{Department or Group}\Special • Accounts can be applied for at http://computing.fnal.gov/pcmanagers/captiveform.html.

36. Service Accounts • When accounts are required to run applications, a shared service account is used. • Computing Security does not allow users to share their account passwords, so user accounts can not be used for this function. • Win2k Policy Committee and CD Security approval. • A Shared Service Account has the following requirements: • Run software as an unattended service, like Unix daemons • Use Domain account authentication • Usage of this account over the network • Sharing of the account password between multiple administrators • These accounts need Accounts names are of the form Fermi\bd-srv-{function}. • Accounts are stored in Active Directory in Fermi\BD\Users\{Department or Group}\Special • Accounts can be applied for at http://www-win2k.fnal.gov/pub/Docs/Sharing_service_accounts.doc.

37. Users OU Users are stored in Active Directory in Fermi\BD\Users\{Department or Group}\General.

38. Computers • Announcements • Fermilab Active Directory Structure • Beams Division OU Structure • Win2k Admin Guide • Users • Computers • Printers • Global Groups • Shares • Local Admin Administrative Setup • Administrative Task Examples

39. BD Computers OU • The BD Group OU is further divided by the org chart. • Each department/group has their own OU. • Each department/group OU is further broken down into a Desktop, Laptop and Server OU. • The GPO applied on Servers different from Desktops, different from laptops. • Management of Computers is covered in the computers portion of the Win2k Admin Guide: http://www-bdnew.fnal.gov/network/Win2k-Adminguide/computers.htm

41. Computers OU Computers are stored in Fermi\BD\Computers\{Department or Group}\{Computer Type}.

42. Printers • Announcements • Fermilab Active Directory Structure • Beams Division OU Structure • Win2k Admin Guide • Users • Computers • Printers • Global Groups • Shares • Local Admin Administrative Setup • Administrative Task Examples

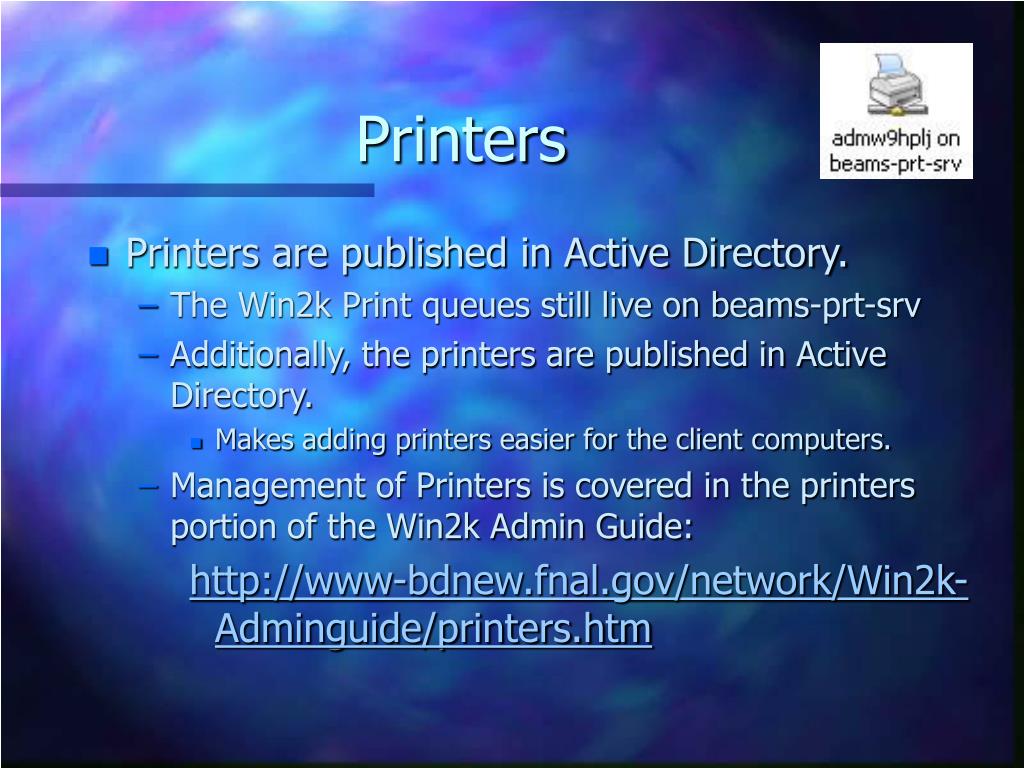

43. Printers • Printers are published in Active Directory. • The Win2k Print queues still live on beams-prt-srv • Additionally, the printers are published in Active Directory. • Makes adding printers easier for the client computers. • Management of Printers is covered in the printers portion of the Win2k Admin Guide: http://www-bdnew.fnal.gov/network/Win2k-Adminguide/printers.htm

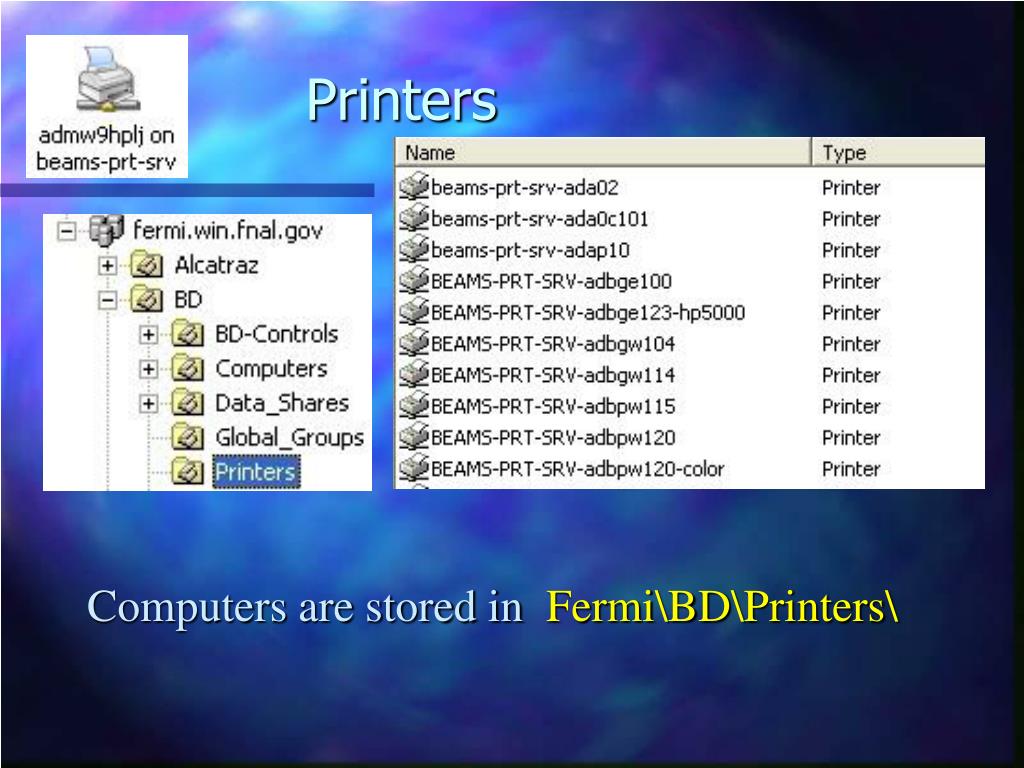

45. Printers Computers are stored in Fermi\BD\Printers\

46. Global Groups • Announcements • Fermilab Active Directory Structure • Beams Division OU Structure • Win2k Admin Guide • Users • Computers • Printers • Global Groups • Shares • Local Admin Administrative Setup • Administrative Task Examples

47. Global Groups • Win2k Domain permissions are assigned by global groups. • Beams Domain global groups are cloned to the Fermi Domain to maintain Beams Domain access. • Global groups follow the naming convention Fermi\BD {group name}. • Management of Global Groups is covered in the global groups portion of the Win2k Admin Guide: http://www-bdnew.fnal.gov/network/Win2k-Adminguide/groups.htm

49. Global Groups Computers are stored in Fermi\BD\Global Groups\

50. Shares • Announcements • Fermilab Active Directory Structure • Beams Division OU Structure • Win2k Admin Guide • Users • Computers • Printers • Global Groups • Shares • Local Admin Administrative Setup • Administrative Task Examples
