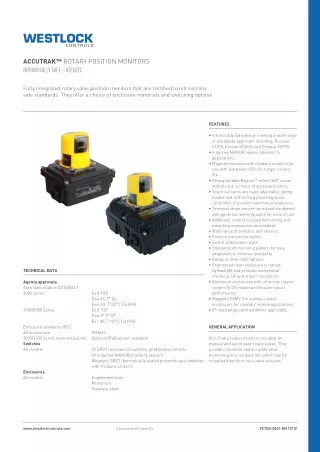

  1. ACCUTRAK™ ROTARY POSITION MONITORS INTRINSICALLY SAFE – ATEX/IEC Fully integrated rotary valve position monitors that are certified to intrinsically safe standards. They offer a choice of enclosure materials and switching options FEATURES • Intrinsically Safe design meeting a wide range of worldwide approvals including, Russian CUTR, Korean KOSHA and Chinese NEPSI. • Inductive NAMUR sensor rated for IS applications. • Magnum switches with rhodium contacts for use with low power I/O’s for longer contact life. • Strong durable BeaconTM offers 360° visual indication in a choice of styles and colors. • Touch set cams are hand adjustable, spring loaded and self-locking providing quick calibration of position switches and sensors. • Terminal strips are pre-wired and numbered with generous working space for ease of use. • Additional conduit for easy field wiring and mounting accessories as standard. • Wide range of switches and sensors. • Position transmitter option. • Switch stabilisation plate. • Standardized mounting pattern for easy adaptation to common bracketry. • Range of drive shaft options. • Engineered resin enclosure is robust, lightweight and provides exceptional chemical, UV and impact resistance. • Aluminum enclosures with ultra-low copper content (0.2% maximum) ensure robust performance. • Rugged CF8M / 316 stainless steel enclosures for coastal / marine applications. • IP rated plugs certified where applicable. TECHNICAL DATA Agency approvals Area classification (ATEX/IEC) 3000 series Ex II 1GD Exia IIC T* Ga Exia IIIC T120°C Da IP6X Ex II *GD Exia II* T* G* Ex t IIIC T135°C Da IP6X 3300/8300 Series GENERAL APPLICATION Enclosure standards (IEC) All enclosures 3000/3300 Series resin enclosures Switches All models IP66/67 Optional IP68 version available AccuTrak position monitors are ideal for manual and automated rotary valves. They provide consistent and accurate valve monitoring in a compact unit which can be mounted directly or via a valve actuator. V3 SPDT mechanical switches, gold plated contacts V3 inductive NAMUR proximity sensors Magnum, SPDT (hermetically sealed proximity type) switches with rhodium contacts Enclosures All models Engineered resin Aluminum Stainless steel www.westlockcontrols.com VCTDS-0041-EN 17/10 A business of Crane Co. VCTDS-0041-LAYER.indd 1 10/18/2017 3:36:08 PM

  2. ACCUTRAK™ ROTARY POSITION MONITORS INTRINSICALLY SAFE – ATEX/IEC 3000 SERIES RESIN ENCLOSURE DIMENSIONS 140.0 [5.510] 4 holes M8 x 1.25P 8 deep 4 holes M6 x 1.0P 8 deep [5.510] 140.0 35.36 Sq [1.392] Ø 64 [2.523] Conduit entry x 2 M20 x 1.5P or 1/2” - 14 NPT 57.15 Sq 9.525 9.513 .3750 .3745 [2.250] Ø [ ] [0.350] [0.196] 8.89 4.98 [5.622] 142.80 [0.522] 13.26 Low profile 3.98 3.93 .157 .155 A/F [ ] Beacon Ø 4.85 [0.191] (Flat cover) 9.525 9.513 .3750 .3745 6.30 6.24 .2480 .2457 Ø [0.255] A/F [ ] [ ] 6.48 [4.067] 103.3 [2.700] 68.6 [1.062] NAMUR shaft details Standard shaft details 27.0 [1.273] 44.8 [1.765] 32.3 C Dimensions in mm, imperial dimensions (inches) in parenthesis TECHNICAL SPECIFICATIONS Materials of construction Enclosure Shaft and hardware Bushing Beacon visual indicator Drive shaft Westlock standard NAMUR standard Available switches Engineered resin Stainless steel Nylon Co-polyester Double-D with ¼” A/F NAMUR standard VDI/VDE 3845 V3 SPDT mechanical switches, gold plated contacts V3 inductive NAMUR proximity sensors Magnum, SPDT (hermetically sealed proximity type) switches with rhodium contacts NOTES 1. See selection guide for standard conduit entries 2. See switches & sensors data sheet for further information 3. Please consult your sales office for any other requirements 2 VCTDS-0041-LAYER.indd 2 10/18/2017 3:36:13 PM

  3. ACCUTRAK™ ROTARY POSITION MONITORS INTRINSICALLY SAFE – ATEX/IEC 3000 SERIES ALUMINUM AND STAINLESS STEEL ENCLOSURE DIMENSIONS 110.00 [4.331] 57.15 Sq 44.80 [1.764] [2.250] 35.05 Sq M6 x 1.0P - 6H x 8 mm deep min 4 off places [1.380] [0.690] 17.53 [2.638] 67.00 [1.125] .157 ] .155 28.57 3.98 3.93 [ [5.276] 134.00 View on underside [2.638] 67.00 M8 x 1.25P - 6H x 8 mm deep min 4 off places Ø 64 [2.523] 44.80 [1.764] 30.2 [1.189] Conduit entry x 2 See housing machining drawing for options [0.157] [0.350] [0.511] 12.98 8.89 3.98 [5.837] 9.525 9.513 .3750 .3745 A/F 148 [ ] [0.250] 6.35 6.30 6.24 .2480 .2457 [ ] 3.98 3.93 .1567 .1547 A/F [ ] Standard shaft details 3.15 3.12 .1240 .1228 Ø 4.85 [0.191] NAMUR shaft details [ ] [1.427] 36.25 30.20 [1.189] [1.299] 9.525 9.513 .3750 .3745 Ø 33.00 [ ] C Dimensions in mm, imperial dimensions (inches) in parenthesis TECHNICAL SPECIFICATIONS Materials of construction Enclosure Aluminum with powder coat finish Stainless steel with electropolished finish Stainless steel Oil impregnated bronze (aluminum enclosure) PTFE (stainless steel enclosure) Co-polyester Shaft and hardware Bushing Beacon visual indicator Drive shaft Westlock standard NAMUR standard Available switches Double-D with ¼” A/F NAMUR standard VDI/VDE 3845 V3 SPDT mechanical switches, gold plated contacts V3 inductive NAMUR proximity sensors Magnum, SPDT (hermetically sealed proximity type) switches with rhodium contacts NOTES 1. See selection guide for standard conduit entries 2. See switches & sensors data sheet for further information 3. Please consult your sales office for any other requirements 3 VCTDS-0041-LAYER.indd 3 10/18/2017 3:36:18 PM

  4. ACCUTRAK™ ROTARY POSITION MONITORS INTRINSICALLY SAFE – ATEX/IEC 3300 SERIES RESIN ENCLOSURE DIMENSIONS 133 [5.228] 55 [2.185] 57.15 Sq [2.250] Conduit entry 2 posns M20 standard (other thread options available) 4 holes M8 x 1.25P x 8 deep 28.57 [1.125] [2.573] 65 [5.118] [5.236] 130 133 4 holes M6 x 1.0P x 8 deep View on underside Ø 64 [2.523] 17.53 [0.690] 35.05 Sq [1.380] Standard Beacon [0.350] [0.154] Low profile 8.89 3.91 Beacon [6.009] 152.6 Flat cover [0.547] 13.9 [4.654] 118.20 [3.087] 78.4 [1.487] 37.8 3.980 3.930 .1567 .1547 6.30 6.24 .2480 .2457 A/F Ø 4.85 [0.191] [0.250] 9.525 9.513 .3750 .3745 A/F [ ] [ ] 6.35 3.15 3.12 .1240 .1228 9.525 9.513 .3750 .3745 [ ] Ø Ø [0.440] [ ] [ ] 11.18 NAMUR shaft details Standard shaft details C [1.130] 43.2 [1.700] 28.71 Dimensions in mm, imperial dimensions (inches) in parenthesis TECHNICAL SPECIFICATIONS Materials of construction Enclosure Shaft and hardware Bushing Beacon visual indicator Drive shaft Westlock standard NAMUR standard Available switches Engineered resin Stainless steel Nylon Co-polyester Double-D with ¼” A/F NAMUR standard VDI/VDE 3845 V3 SPDT mechanical switches, gold plated contacts V3 inductive NAMUR proximity sensors Magnum, SPDT (hermetically sealed proximity type) switches with rhodium contacts NOTES 1. See selection guide for standard conduit entries 2. See switches & sensors data sheet for further information 3. Please consult your sales office for any other requirements 4 VCTDS-0041-LAYER.indd 4 10/18/2017 3:36:23 PM

  5. ACCUTRAK™ ROTARY POSITION MONITORS INTRINSICALLY SAFE – ATEX/IEC 3300 SERIES ALUMINUM AND STAINLESS STEEL ENCLOSURE DIMENSIONS 134 [5.291] 57.15 [2.250] 77 [3.029] 4 holes M8 x 1.25P x 12.5 deep 28.58 [1.125] 45.5 [1.790] 12.4 [0.490] [0.690] [2.646] 17.5 67 [5.291] 134 4 holes M6 x 1.0P x 9.5 deep [1.380] 35 Sq Conduit entry 3 posns M20 standard (other thread options available) View on underside Ø 64 [2.523] NAMUR shaft details Standard shaft details [0.157] [0.350] 8.89 3.98 [5.984] [0.551] 152 14.00 3.980 3.930 .1567 .1547 A/F Ø 4.85 [0.191] 9.525 9.513 .3750 .3745 [3.035] Ø 3.15 3.12 .1240 .1228 [ ] [0.250] [ ] [ ] 6.30 6.24 .2480 .2457 6.35 77 A/F [ ] [1.280] 32.5 [1.284] 33 9.525 9.513 .3750 .3745 Ø [ ] Dimensions in mm, imperial dimensions (inches) in parenthesis TECHNICAL SPECIFICATIONS Materials of construction Enclosure Aluminum with powder coat finish Stainless steel with electropolished finish Stainless steel Oil impregnated bronze (aluminum enclosure) PTFE (stainless steel enclosure) Co-polyester Shaft and hardware Bushing Beacon visual indicator Drive shaft Westlock standard NAMUR standard Available switches Double-D with ¼” A/F NAMUR standard VDI/VDE 3845 V3 SPDT mechanical switches, gold plated contacts V3 inductive NAMUR proximity sensors Magnum, SPDT (hermetically sealed proximity type) switches with rhodium contacts NOTES 1. See selection guide for standard conduit entries 2. See switches & sensors data sheet for further information 3. Please consult your sales office for any other requirements 5 VCTDS-0041-LAYER.indd 5 10/18/2017 3:36:29 PM

  6. ACCUTRAK™ ROTARY POSITION MONITORS INTRINSICALLY SAFE – ATEX/IEC 8300 SERIES RESIN ENCLOSURE DIMENSIONS 167 [6,575] 74 Conduit entry B Conduit entry D [2,913] See shaft detail below 72 [2,835] 137 [5,394] OPEN BEACON 174 [6,850] 11 [0,430] 93,8 [3,693] Flat cover 42 [1,650] Conduit entry A Conduit entry C Conduit entry E 65 [2,560] 130 [5,120] 6 [0,236] 33 [1,30] 57 sq [2,250] 6.32 A/F 4 holes fitted with M8 x 1.25P x 7.5 deep moulded inserts 28,5 [1,125] [0,249] 14 [0,550] 5 [0,197] 8,9 [0,350] 9,52 Ø [0,375] 4,85 [0,191] 3.98 A/F 4 holes fitted with M6 x 1.0P x 7.5 deep moulded inserts [0,157] 9,52 [0,375] NAMUR shaft details Standard shaft details 17,5 [0,689] 35 sq [1,378] Dimensions in mm, imperial dimensions (inches) in parenthesis TECHNICAL SPECIFICATIONS Materials of construction Enclosure Shaft and hardware Bushing Beacon visual indicator Drive shaft Westlock standard NAMUR standard Available switches Engineered resin Stainless steel Nylon Co-polyester Double-D with ¼” A/F NAMUR standard VDI/VDE 3845 V3 SPDT mechanical switches, gold plated contacts V3 inductive NAMUR proximity sensors Magnum, SPDT (hermetically sealed proximity type) switches with rhodium contacts NOTES 1. See selection guide for standard conduit entries 2. See switches & sensors data sheet for further information 3. Please consult your sales office for any other requirements 6 VCTDS-0041-LAYER.indd 6 10/18/2017 3:36:36 PM

  7. ACCUTRAK™ ROTARY POSITION MONITORS INTRINSICALLY SAFE – ATEX/IEC 8300 SERIES ALUMINUM AND STAINLESS STEEL ENCLOSURE DIMENSIONS Conduit B (option) Conduit A (standard) 57.15 Sq 179 M8 x 1.25 threaded x 8 mm min deep 4 places 28,58 Conduit E (option) M6 x 1 threaded x 9 mm min deep 4 places E B 17,53 L C 35.05 Sq 140 C A CLOSED S O D E O N Conduit C (option) Conduit D (option) CLOSED 162 Standard shaft details Ø 9,525 Ø 9,513 8,89 14 Ø 9,525 Ø 9,513 3,9 33 6,35 3.98 A/F 6.3 A/F Ø 9,52 Ø 4,85 Dimensions in mm, imperial dimensions (inches) in parenthesis TECHNICAL SPECIFICATIONS Materials of construction Enclosure Aluminum with powder coat finish Stainless steel with electropolished finish Stainless steel Oil impregnated bronze (aluminum enclosure) PTFE (stainless steel enclosure) Co-polyester Shaft and hardware Bushing Beacon visual indicator Drive shaft Westlock standard NAMUR standard Available switches Double-D with ¼” A/F NAMUR standard VDI/VDE 3845 V3 SPDT mechanical switches, gold plated contacts V3 inductive NAMUR proximity sensors Magnum, SPDT (hermetically sealed proximity type) switches with rhodium contacts NOTES 1. See selection guide for standard conduit entries 2. See switches & sensors data sheet for further information 3. Please consult your sales office for any other requirements 7 VCTDS-0041-LAYER.indd 7 10/18/2017 3:36:37 PM

  8. ACCUTRAK™ ROTARY POSITION MONITORS MODELS 3000, 3300 AND 8300 SELECTION GUIDE Housing 30 33 83 3000 3300 8300 Cover style 4 6 Flat cover With Beacon Switch type 5 7 Inductive NAMUR sensor Material A R S Stainless steel Microswitch SPDT contacts 9 0 Magnum XT90 (rhodium contact SPDT switch) No switches fitted Aluminum Engineered resin Beacon type and color BY LY AR GR 00 No Beacon fitted Drive shaft type S N * Black/Yellow Black/Yellow low profile ANSI Red/White Green/Red B1 B3 B5 B7 B9 BM3-1 pattern 90° BM3-3 pattern 90° BM3-5 pattern 90° BM3-7 pattern 180° BM3-9 pattern 180° Westlock standard – ¼” A/F (6.32 mm) NAMUR standard shaft – VDI/VDE 3845 Non-standard (consult sales office) Ancillary options 000 * * * Non-standard material and build (consult sales office) Switch/sensor quantity 0 1 2 3 4 Four switches/sensors (consult sales office for 3300/8300 series only) Conduit entries supplied 2 3 4 5 Five entries (consult sales office for 8300 series only) Unit specification AAA ADZ DAV FAN * * * Non-standard material (consult sales office) Certification A * No ancillary options No switch/sensor fitted One switch/sensor Two switches/sensors Three switches/sensors (consult sales office for 3300/8300 series only) Two entries – All enclosures Three entries (consult sales office for 3000/3300 series) Four entries (8300 series only) Standard build- M20 conduit entries ¾” NPT conduit entries M25 conduit entries ½” NPT conduit entries ATEX & IECEx Other options (consult sales office) Revision R* R1 Internal revision # = Model number 3045RBYN00022AAA-AR1 30 4 5 R BY N 000 2 2 AAA A NOTES 1. Please contact your sales office for guidance on selecting the best possible combination for your control and monitoring requirements. 2. See Hazardous area classification technical bulletin for further information on global standards. WESTLOCK CONTROLS 280 N. Midland Avenue,Ste 258 Saddle Brook, NJ 07663 United States Crane Co., and its subsidiaries cannot accept responsibility for possible errors in catalogues, brochures,other printed materials, and website information. Crane Co. reserves the right to alter its products without notice, including products already on order provided that such alteration can be made without changes being necessary in specifications already agreed. All trademarks in this material are the property of the Crane Co. or its subsidiaries. The Crane and Crane brands logotype (WESTLOCK CONTROLS®) are registered trademarks of Crane Co. All rights reserved. 8 VCTDS-0041-LAYER.indd 8 10/18/2017 3:36:37 PM
