Presentation Transcript


Active contours snakes l.jpg

CSci 8810 Image Processing

Active Contours - SNAKES

Meghana Viswanath

March 19, 2009


Object recognition how l.jpg

Object Recognition… How?

  • Edge detectors

Works well for some images


Not so much for others l.jpg

Not so much for others

  • Too many spurious edges

  • Linking edges belonging to the same object is difficult


Active contours or snakes l.jpg

Active Contours or Snakes

  • Results from the work of Kass et.al. in 1987

  • Snakes are shapes or curves that transform themselves to take the shape of an object in an image.

  • Snakes are energy minimizing splines


Aorta segmentation using snakes l.jpg

Aorta Segmentation using snakes


Snake behavior l.jpg

Snake Behavior

  • An initial curve/snake is defined near the object

  • The curve is iteratively refined to form the least energy contour

  • Snakes operate locally, thus one must provide an initial position for them


Snake initialization l.jpg

Snake Initialization


Snake representation l.jpg

Snake Representation

  • A snake is a contour in the image plane, defined by a set of ncontrol points.

    vi = (xi, yi), i = 0, .... n-1


Energy minimization l.jpg

Energy Minimization

vi-1

vi

vi+1

snake

object boundary

Find the local minimum and move towards it.


Snake energy l.jpg

Snake Energy

The snake - v(s) = [x(s), y(s)], is defined as a function of a real variable s ϵ [0,1]

The energy of the snake is given by -

Esnake = 0∫1 (Eint + Eext)ds


Internal energy l.jpg

Internal Energy

  • Internal energy describes the manner in which the snake moves

  • It can be written as -

    Eint = (α (v’)2 + β (v”)2)

  • α, β specify the amount of elasticity and stiffness of the snake, respectively


Internal energy12 l.jpg

Internal Energy

  • First Term : α (v’)2

  • If you want the snake to shrink, then make Eint directly proportional to snake length

  • Instead,

    Eint = Σα (distance b/w control pt. and left neighbour)2

  • This makes the control points to spread out evenly


Internal energy13 l.jpg

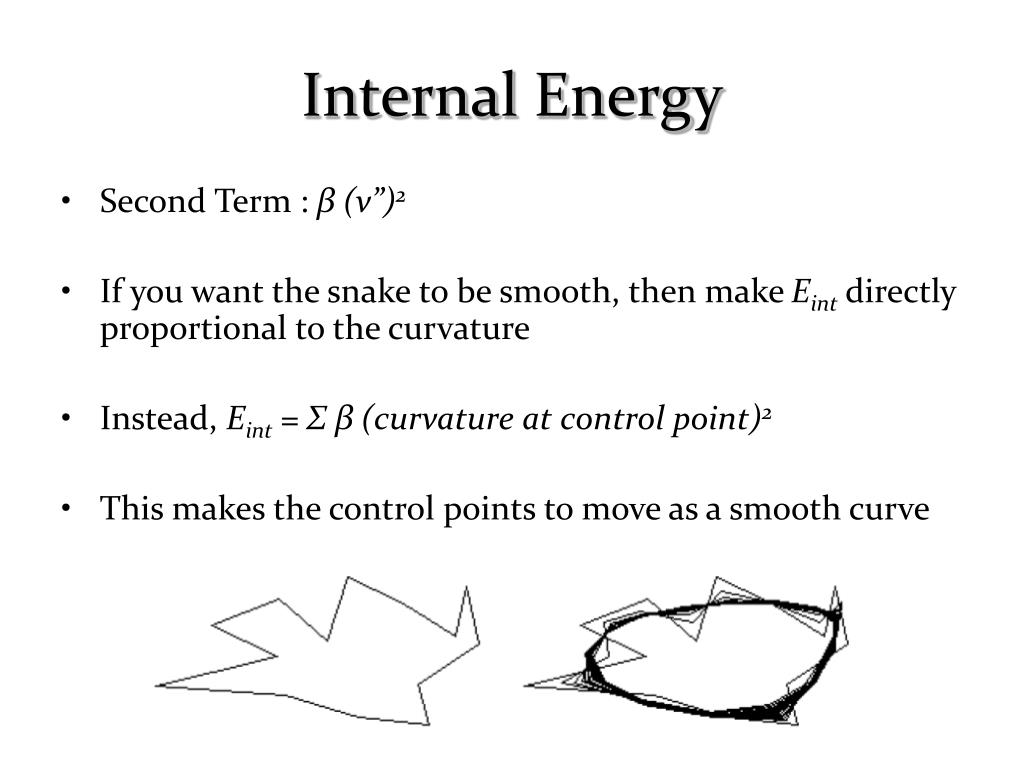

Internal Energy

  • Second Term : β (v”)2

  • If you want the snake to be smooth, then make Eint directly proportional to the curvature

  • Instead, Eint = Σβ (curvature at control point)2

  • This makes the control points to move as a smooth curve


Internal energy14 l.jpg

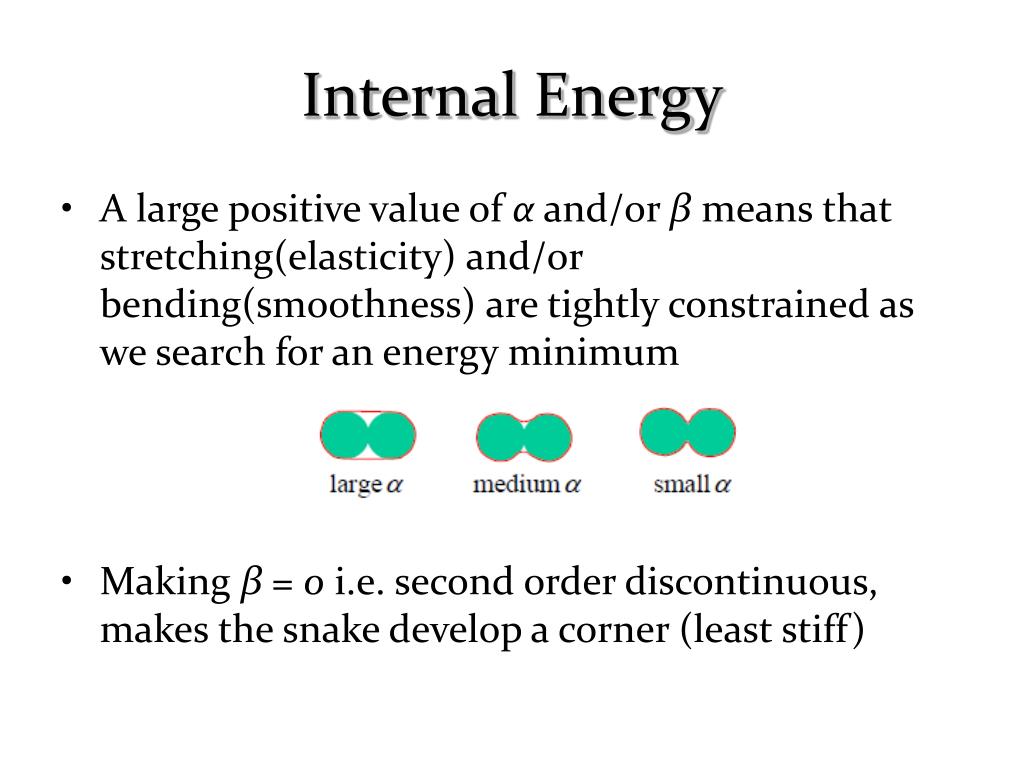

Internal Energy

  • A large positive value of α and/or β means that stretching(elasticity) and/or bending(smoothness) are tightly constrained as we search for an energy minimum

  • Making β = 0 i.e. second order discontinuous, makes the snake develop a corner (least stiff)


External energy l.jpg

External Energy

  • External energy pulls the snake towards desirable features such as edges

  • Tells the snake where to stop

  • It is derived from the image

  • External energy – negative gradient

    Eext = -|∇I(x,y)|2


External energy16 l.jpg

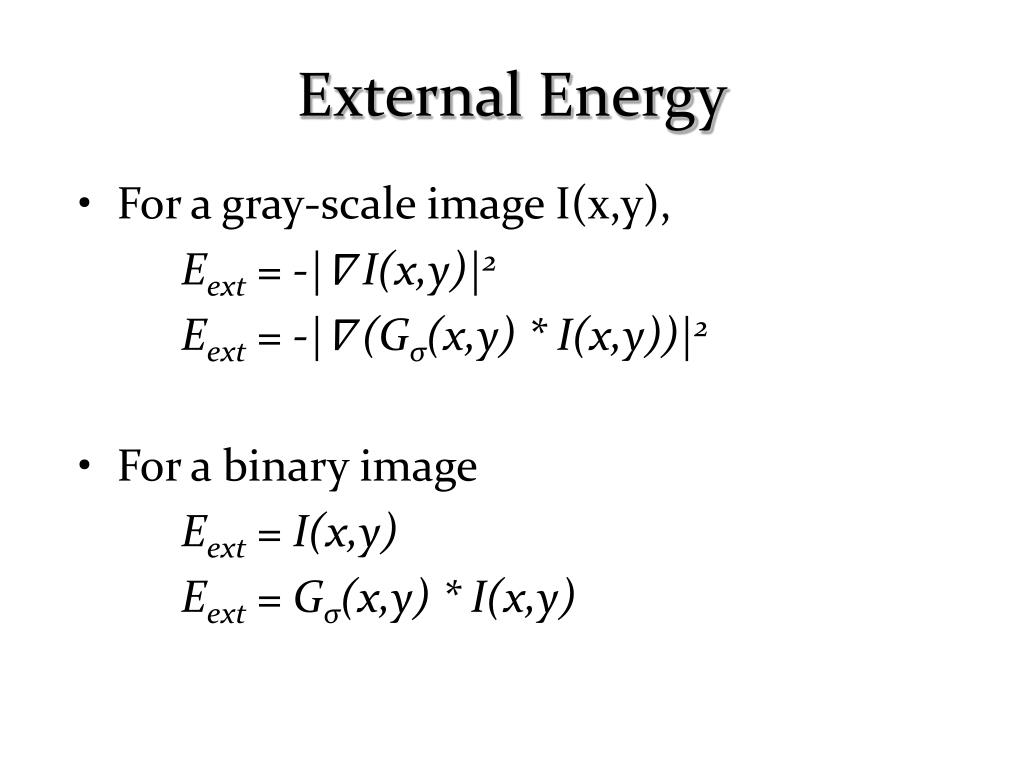

For a gray-scale image I(x,y),

Eext = -|∇ I(x,y)|2

Eext = -|∇ (Gσ(x,y) * I(x,y))|2

For a binary image

Eext = I(x,y)

Eext = Gσ(x,y) * I(x,y)

External Energy


Euler equation l.jpg

Euler Equation

  • A snake that minimizes E must satisfy the Euler equation –

    α v”(s)- β v””(s) -∇Eext = 0


Force balance equation l.jpg

Force Balance Equation

Minimizing energy equation can be interpreted as a force balance equation

Fint + Fext = 0

where

Fint = α v” - β v””

and

Fext = −∇ Eext

The internal force Fint discourages stretching and bending while the external potential force Fext pulls the snake toward the desired image edges


Problems with traditional snakes l.jpg

Problems with traditional snakes

  • Low capture range

    • Initial snake position should be close to the object boundary

    • Reason - External force field is non-existent in uniform regions

  • Unable to move into boundary concavities

    • Reason – External force vectors are normal to the object boundary


Traditional snakes l.jpg

Traditional Snakes

(a)

(a)

(a)

(b)

(b)

(b)

(c)

(c)

  • Convergence of the snake

  • External Force Field

  • Close-up of the force field within the boundary concavity


Gradient vector flow gvf snakes l.jpg

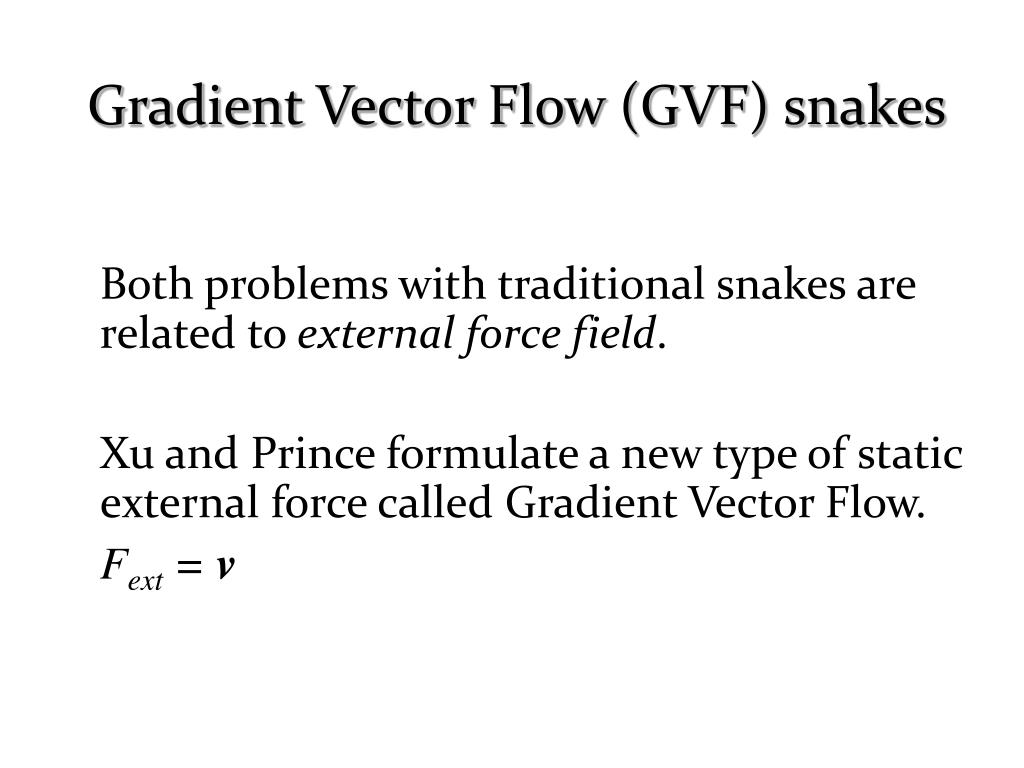

Gradient Vector Flow (GVF) snakes

Both problems with traditional snakes are related to external force field.

Xu and Prince formulate a new type of static external force called Gradient Vector Flow.

Fext = v


Edge map l.jpg

Edge Map

  • For any gray-scale or binary image, let the edge map be defined such that it has large values near edges.

    Eg.Eext =-|∇ I(x,y)|2

  • Properties of edge maps

    • Gradient vectors point toward and are normal to the edges

    • Gradients are large only in the immediate neighborhood of edges

    • In homogeneous regions, gradient is almost zero


How edge map properties affect traditional snake behavior l.jpg

How edge map properties affect traditional snake behavior

  • Gradient vectors point toward and are normal to the edges

    => a snake initialized close to the edge will converge to a stable configuration near the edge

  • Gradients are large only in the immediate neighborhood of edges

    => small capture range

  • In homogeneous regions, gradient is almost zero

    => homogeneous regions will have no external forces


Gvf approach l.jpg

GVF Approach

  • Retain the highly desirable property of the gradients near the edges

  • But extend the gradient map farther away from the edges and into homogeneous regions using a computational diffusion process.

  • As an important benefit, the inherent competition of the diffusion process will also create vectors that point into boundary concavities.


Gvf energy functional l.jpg

GVF energy functional

  • We define the gradient vector flow field to be the vector fieldv(x,y)=(u(x,y),v(x,y)) that minimizes the energy functional

    Ɛ = ∫ ∫ Ч(ux2+uy2+vx2+vy2)+|∇ f |2|v-∇ f |2dxdy

    • When ∇ f is low, the first term dominates yielding a slowly varying field

    • When ∇ f is high, the second term dominates and is minimized by setting v =∇ f.


Gvf euler equations l.jpg

GVF Euler equations

  • It can be shown that the GVF field can be found by solving the following Euler equations –

  • In homogeneous regions, second term = 0

  • u and v are determined only by the Laplace equation

  • v is determined from the region’s boundary

  • a kind if competition among boundary vectors

    Therefore, GVF snakes can move into boundary concavities


Gvf snakes l.jpg

GVF Snakes

(a)

(b)

(c)

  • Convergence of the snake

  • External Force Field

  • Close-up of the force field within the boundary concavity


Subjective contours l.jpg

Subjective Contours


Applications l.jpg

Applications

  • Motion Tracking

  • Speech Analysis

  • Traffic monitoring

  • Surveillance

  • Actor-driven facial animation

  • Gait Analysis


Speech analysis l.jpg

Speech Analysis


Traffic monitoring l.jpg

Traffic Monitoring

By automatically tracking cars, the emergency services could obtain rapid warning of an accident or traffic jam.


Surveillance l.jpg

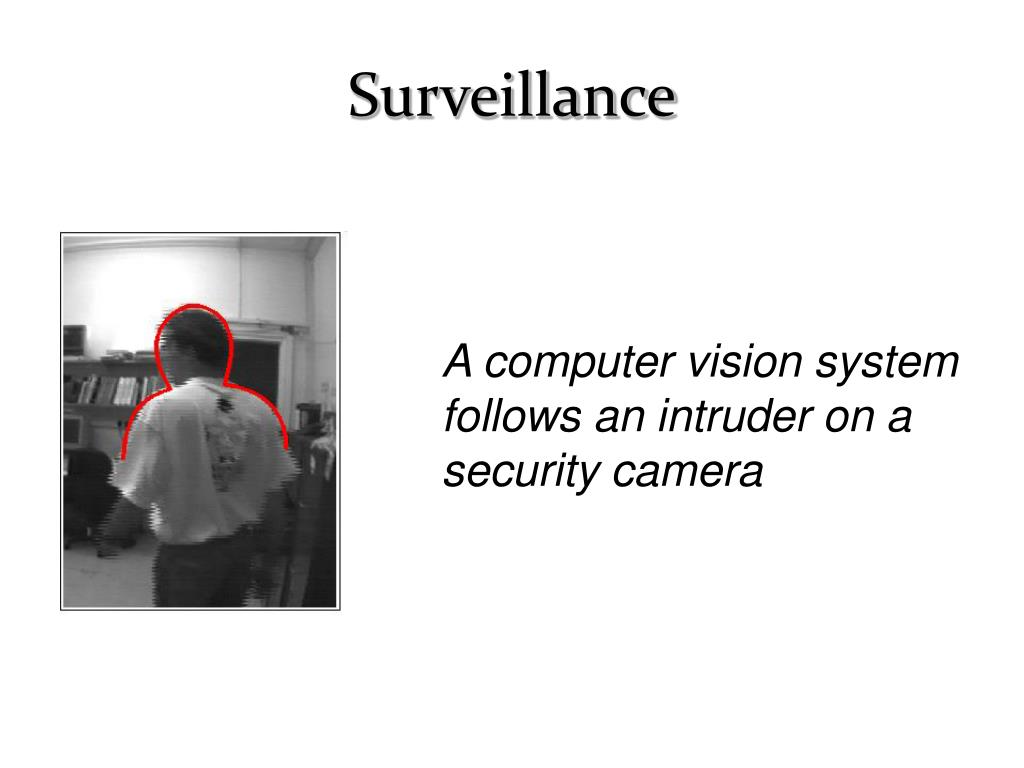

Surveillance

A computer vision system follows an intruder on a security camera


Actor driven facial animation l.jpg

Actor-driven facial animation

Tracked facial motions drive input channels to a cartoon cat, programmed with some exaggeration of expression


Motion tracking l.jpg

Motion Tracking

Tracking the articulated motion of a human body is applicable both to biometrics and clinical gait analysis and for actor-driven whole body animation


References l.jpg

References

Books -

  • Computer Vision – L. Shapiro and G. Stockman

  • Active Contours – Blake and Isard

    Technical papers -

  • Snakes: Active contour models - M. Kass, A. Witkin and D. Terzopoulos.

  • Snakes, Shapes, and Gradient Vector Flow - Chenyang Xu and Jerry L. Prince


Questions l.jpg

Questions?
