Presentation Transcript
Aviation weather office l.jpg

Aviation Weather Office

FAA and In Situ Observations


Faa and in situ observations l.jpg
FAA and In Situ Observations

  • In Situ Utilization Today

    • Operations

      • ITWS

    • Research

      • AWRP

  • Next Gen Implications

    • Overview

    • Major Programs With In Situ Implications

      • NNEW

      • RWI

      • WTIC

  • Questions?


Faa in situ utilization today operations l.jpg
FAA In Situ Utilization TodayOperations

Integrated Terminal Weather System (ITWS)

  • Fully automated, integrated terminal weather information system.

  • Provides current conditions / forecasts (up to 60 min) of terminal weather

  • Accurate, easy-to-understand, and immediately useable graphical weather information on a single, full color display

  • Uses sophisticated algorithms to integrate data from FAA and NWS sensors, radars, weather models, and from aircraft in flight


Slide4 l.jpg
ITWS

Pilots

NEXRAD

TDWR

ASR

1-hr Forecast

Microburst Prediction

Gust Front Prediction

Storm Location & Motion

Storm Cell Information

Terminal Winds

Tornado

ITWS

Real-Time

Processor

ITWS

Controllers

AWOS/ASOS

RUC

Supervisors

  • TRACON

  • ARTCC TMU

  • CWSU

Airlines

  • Dispatch

  • Ramp Tower

LLWAS

Aircraft (MDCRS)

Lightning


Faa in situ utilization today operations5 l.jpg
FAA In Situ Utilization TodayOperations

Integrated Terminal Weather System (ITWS)

  • Users:

    • Air Traffic personnel in the Air Traffic Control Tower (ATCT) and Terminal Radar Control (TRACON) facility

    • Traffic Management and Center Weather Service Unit personnel in the Air Route Traffic Control Center (ARTCC)

    • Air Traffic Control Systems Command Center (ATCSCC), airport authorities, airline dispatch offices and other Users (i.e. airlines)

  • Authorized FAA & non-FAA users have internet access to ITWS products

  • ITWS products will be made compatible with NextGen requirements

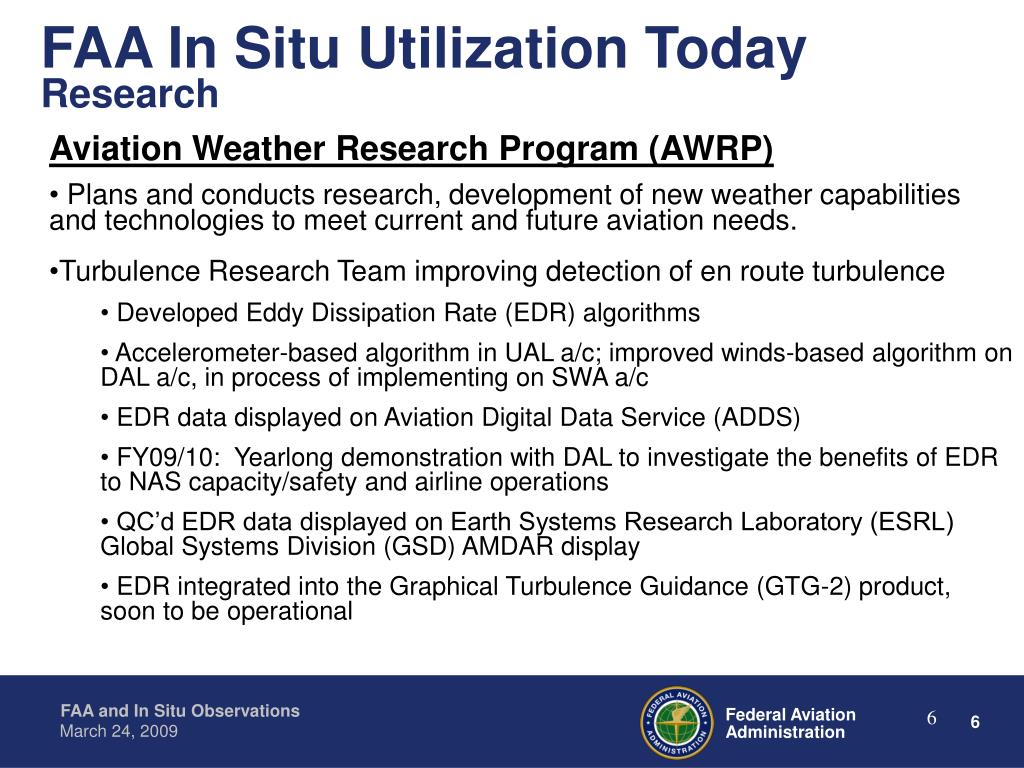

Faa in situ utilization today research l.jpg
FAA In Situ Utilization TodayResearch

Aviation Weather Research Program (AWRP)

  • Plans and conducts research, development of new weather capabilities and technologies to meet current and future aviation needs.

  • Turbulence Research Team improving detection of en route turbulence

    • Developed Eddy Dissipation Rate (EDR) algorithms

    • Accelerometer-based algorithm in UAL a/c; improved winds-based algorithm on DAL a/c, in process of implementing on SWA a/c

    • EDR data displayed on Aviation Digital Data Service (ADDS)

    • FY09/10: Yearlong demonstration with DAL to investigate the benefits of EDR to NAS capacity/safety and airline operations

    • QC’d EDR data displayed on Earth Systems Research Laboratory (ESRL) Global Systems Division (GSD) AMDAR display

    • EDR integrated into the Graphical Turbulence Guidance (GTG-2) product, soon to be operational


Graphical turbulence guidance gtg l.jpg
Graphical Turbulence Guidance (GTG)

  • Based on RUC NWP model

    • GTG1

      • Upper-level CAT (>FL200)

      • Operational on ADDS since 3/2003

      • http://adds.aviationweather.noaa.gov

    • GTG2

      • Clear-air sources 10,000 ft MSL-FL450

      • On Experimental ADDS since 11/2004

      • Will replace GTG1 on operational ADDS in 2009

    • Uses a combination of turbulence diagnostics, merged and weighted according to current performance (pireps, EDR)

  • Current work areas

    • Probabilistic forecasts of moderate-or-greater (MOG) and severe-or-greater (SOG) turbulence

    • Optimal use of insitu reports

    • Assimilation of turbulence-related observations


Slide8 l.jpg

- NVA

UBF

FRNTGth

DTF3

Ellrod1

Ri

NCSU1

CLIMO

NCSU2

GTG

TEMPG

EDRS10

VWS

GTG =Weighted ensemble of turbulence diagnostics

0 h forecast valid at 22 Sep 2006 15Z



Graphical turbulence guidance gtg10 l.jpg

UAL In situ edr

AIREPs

deterministic

Ude

Elevated Ude

Probability > moderate

Graphical Turbulence Guidance (GTG)

Based on RUC, GFS, or WRF NWP forecasts

Current work areas include:

Optimal use of in situ reports

Probability of Moderate Or Greater, Severe Or Greater > some EDR threshold

Global applications (global GFS, regional WRF)

Incorporate satellite-based feature detectors

Output expected to populate the SAS of the NextGen 4D Weather Data Cube


Next generation air transportation system nextgen l.jpg

NextGen

Satellite-based Navigation and Surveillance

Routine Information Sent Digitally

Information More Readily Accessible

Air Traffic “Management”

Forecasts Embedded into Decisions

Operations Continue Into Lower Visibility Conditions

Prognostic Safety Systems

Today’s National Airspace System

Next Generation Air Transportation System (NextGen)

Ground-based Navigation and Surveillance

Air Traffic Control Communications By Voice

Disconnected Information Systems

Air Traffic “Control”

Fragmented Weather Forecasting

Airport Operations Limited By Visibility Conditions

Forensic Safety Systems


Nextgen aviation weather l.jpg

Today

Not integrated into aviation decision-support systems (DSS)

Inconsistent/conflicting weather information

Low temporal resolution (for aviation decision making purposes)

Updated by schedule

Fixed graphic or text product formats

Inconsistent access

Disjointed point-to-point communications

Human intensive processing

NextGen

Totally integrated in DSS

Nationally consistent weather information

High temporal resolution

Updated by events/situation

Interactive data formats

Universal common access

Net-enabled information connection

Increased machine to machine communications

NextGen Aviation Weather


Nextgen network enabled weather nnew l.jpg

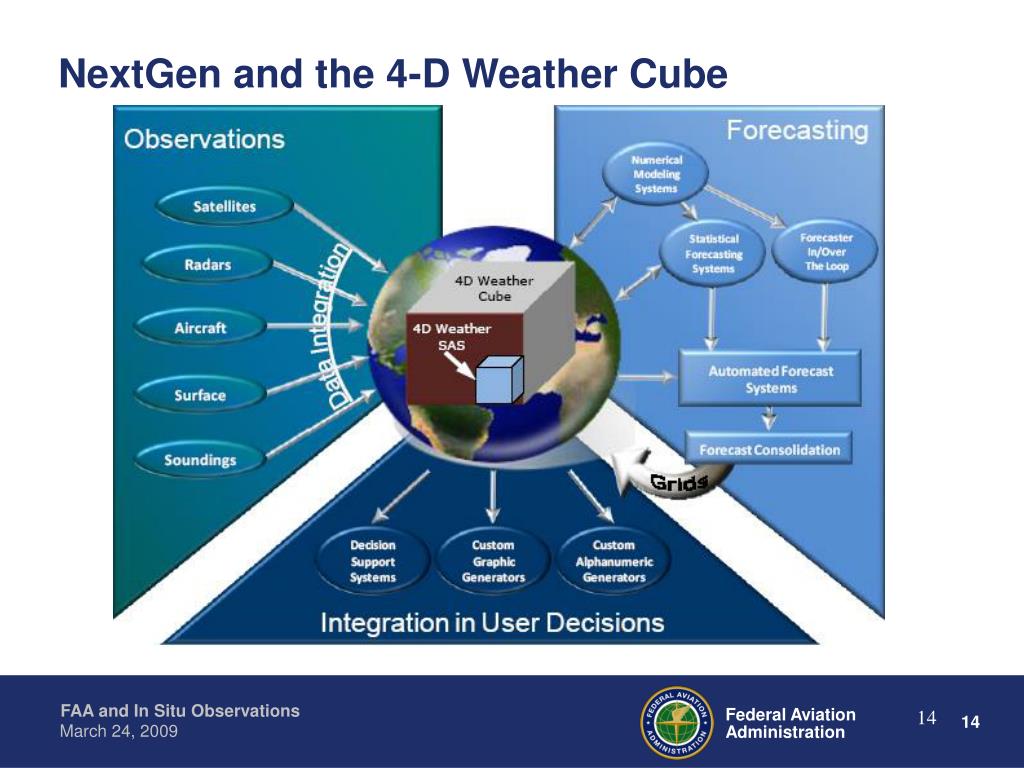

NextGen Network Enabled Weather (NNEW)

  • The 4-D Weather Cube will provide common, universal access to aviation weather data.

  • Improved weather data (observations & forecasts) available from the 4-D Weather Data Cube will improve traffic management capability and reduce delays.

  • Provide Single Authoritative Source (SAS) of weather information for all users.

  • Provide access to weather information indexed by aircraft and weather type.

  • Reduce the need for human interpretation of data by direct machine-to-machine access & integration in decision support tools.



Reduce weather impact rwi l.jpg

NLDN Lightning

NOAA GOES Satellites

MDCRS

RUC Model Forecasts

Integrated into user systems and DSTs

…e.g., URET, RAPT, TFMS

Meteorologist

Advanced Weather Forecasts & Legacy Applications

NWP

Reduce Weather Impact (RWI)

  • A portfolio of NextGen capability improvements to mitigate the effects of weather in future NAS operations.

  • Provide consistent weather information that will support more effective and timely decision making through the use of automated decision support tools.


Reduce weather impact l.jpg
Reduce Weather Impact

Two major elements:

Weather Forecast Improvements

  • Integrate weather information tailored for Decision Support Tools (DSTs) and systems into NextGen operations

  • Implement improved forecasts by transitioning advanced capabilities from aviation weather research

  • Develop metrics to evaluate the effectiveness of weather improvements in the NAS

  • Develop probabilistic forecasts which can be used for traffic flow management

  • Determine the most effective solution for a processor architecture to support these capabilities

  • Propose recommendations for transitioning FAA legacy weather systems into NextGen.


Reduce weather impact17 l.jpg
Reduce Weather Impact

Two major elements:

Weather Observation Improvements

  • Optimize the weather sensor network to eliminate redundancy and inconsistencies among sensor types, configurations, and ground infrastructure reducing cost and improving performance

  • Determine the right sensor mix among ground-based, satellite, and airborne atmospheric sensor networks

  • Improve the resolution of the weather sensor network

  • Effort being worked jointly with government, industry, and academic agencies


Weather technology in the cockpit wtic l.jpg
Weather Technology in the Cockpit (WTIC)

  • A portfolio of related research and development (R&D) activities to ensure the adoption of cockpit, ground, and communication technologies, practices, and procedures that will:

    • Provide pilots with shared and consistent weather information to enhance common situational awareness

    • Provide airborne tools to exploit the common weather picture

    • Utilize the “aircraft as a node” functions to autonomously exchange weather information with surrounding aircraft and ground systems

    • Facilitate integration of weather information into cockpit NextGen capabilities (e.g. Trajectory Based Operations)

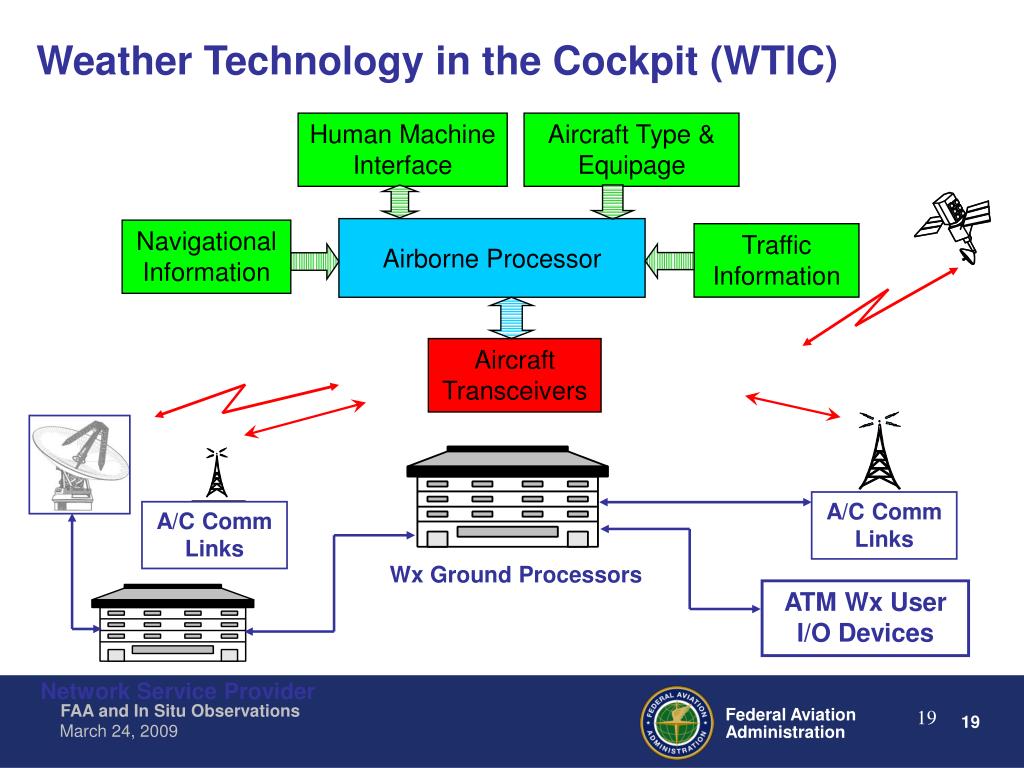

Weather technology in the cockpit wtic19 l.jpg

Human Machine Interface

Aircraft Type & Equipage

Airborne Processor

Navigational Information

Traffic Information

Aircraft Transceivers

A/C Comm Links

A/C Comm Links

Wx Ground Processors

ATM Wx User I/O Devices

Network Service Provider

Weather Technology in the Cockpit (WTIC)




Corridor integrated weather system ciws l.jpg
Corridor Integrated Weather System (CIWS)

  • Background

    • CIWS is an automated weather processing system that ingests weather sensor and model data to generate a suite of convective weather forecast (0 – 2 Hr) products for the northeast corridor.

      • CIWS does not incorporate airborne sensor data

      • Integration of CIWS products with Traffic Flow Management Decision Support Tools

      • CIWS functionality will be component in NextGen Weather Processor

    • CIWS products are currently disseminated to 15 FAA facilities (ATCSCC, ARTCCs, TRACONs), airlines operations centers, and several R&D organizations.

    • CIWS was developed, operated and maintained by MIT Lincoln Laboratory



Corridor integrated weather system ciws graphical coverage l.jpg

Current Coverage Area

2007 Coverage Area

Corridor Integrated Weather System (CIWS)Graphical Coverage


Corridor integrated weather system ciws display l.jpg
Corridor Integrated Weather System (CIWS)Display

Color Bars

System Menus

  • Product Status Button colors:

    • White: the product is not displayed

    • Green: the product is displayed

    • Yellow: the product is displayed but filtered

    • Red: the product is unavailable

  • Left-click to toggle; right-click for menus

Loop Controls

Additional Products

Base Products

View Menu

Base Product Forecast


Itws how does it fit into the nas l.jpg
ITWS-How does it fit into the NAS?

  • ITWS is integrated into the FAA’s Strategic Management Plan

  • ITWS helps fill the performance gap identified in the FAA’s Greater Capacity goal:

    • Objective 1: Increase airport capacity to meet projected demand

    • Strategy 1: Improve technologies to make air traffic flow more efficiently during periods of adverse weather

  • ITWS provides significant economic benefits in airline operations efficiencies and passenger time savings

    • Estimated benefits to cost ratios as high as 19.8:1


Graphical turbulence guidance gtg27 l.jpg

UAL In situ edr

AIREPs

deterministic

Ude

Elevated Ude

Probability > moderate

Graphical Turbulence Guidance (GTG)

Based on RUC, GFS, or WRF NWP forecasts

Current work areas include:

Optimal use of in situ reports

Probability of Moderate Or Greater, Severe Or Greater > some EDR threshold

Global applications (global GFS, regional WRF)

Incorporate satellite-based feature detectors

Output expected to populate the SAS of the NextGen 4D Weather Data Cube

Dr. Bob Sharman

[email protected]

303-497-8457
