Presentation Transcript
Nuclear medicine pet spect l.jpg

Nuclear medicinePet/Spect

Chapters 18 to 22


Activity l.jpg
Activity

  • Number of radioactive atoms undergoing nuclear transformation per unit time.

    Change in radioactive atoms N in time dt

    Number of radioactive atoms decreases with time (- minus sign)


Activity3 l.jpg
Activity

  • Expressed in Curie

    • 3.7x1010 disintegrations per second dps

      Becquerel discovers natural radioactive materials in 1896 the SI unit for radioactivity is the Becquerel. 1 becquerel = 1dps


Nuclear medicine l.jpg
Nuclear medicine

  • Therapeutic and diagnostic use of radioactive substances

  • First artificial radioactive material produced by the Curies 1934  “Radioactivity,” “Radioactive


Definitions nuclide l.jpg
Definitions: Nuclide

  • Nuclide: Specie of atoms characterized by its number of neutron and protons

  • Isotopes

  • Isotones

  • Isobars

  • (…)


Definitions nuclide6 l.jpg
Definitions: Nuclide

  • Isotopes are families of nucleide with same proton number but different neutron number.

  • Nuclides of same atomic number Z but different A  same element

  • AZX

  • A mass number, total # of protons and neutrons

  • Z atomic number (z# protons)


Definitions nuclide7 l.jpg
Definitions: Nuclide

  • Radionuclide: Nuclide with measurable decay rate

  • A Radionuclide can be produced in a nuclear reactor by adding neutrons to nucleides 59Co + neurtron -> 60Co

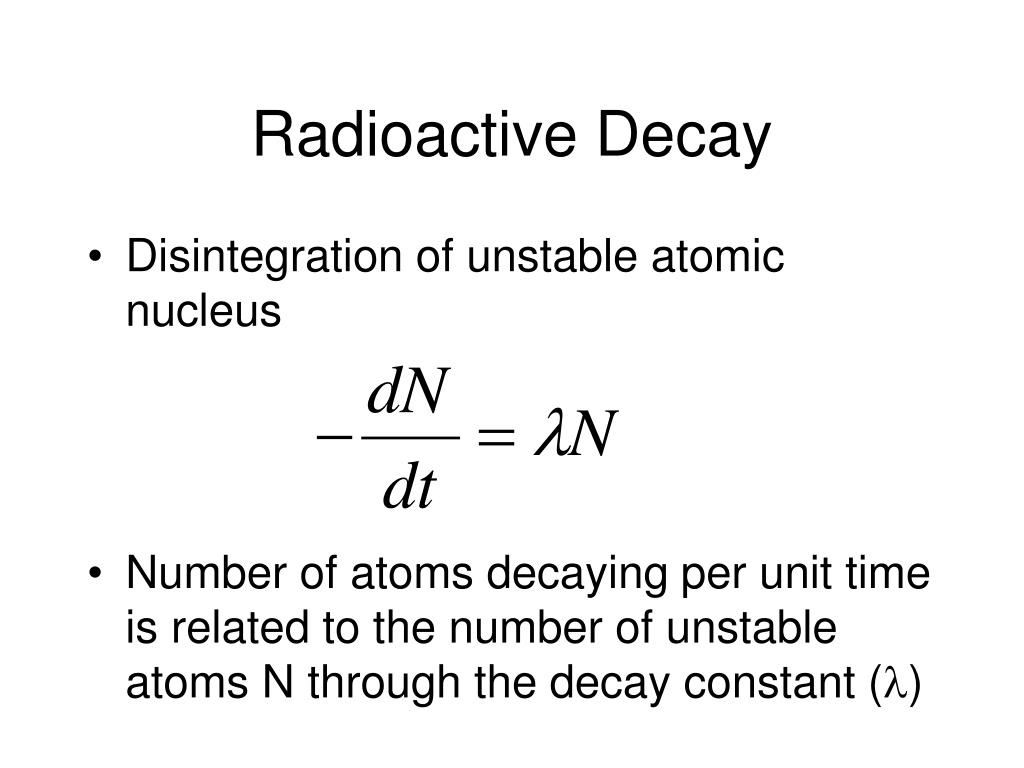

Radioactive decay l.jpg
Radioactive Decay

  • Disintegration of unstable atomic nucleus

  • Number of atoms decaying per unit time is related to the number of unstable atoms N through the decay constant (l)


Radioactive decay9 l.jpg
Radioactive Decay

  • Radioactive decay is a random process.

  • When an atom undergoes radioactive decay -> radiation is emitted

  • Fundamental decay equation (Number of radioactive atoms at time t -> Nt


Radioactive decay10 l.jpg
Radioactive Decay

  • Father and daughter.

  • Is Y is not stable will undergo more splitting (more daughters)

Daughter

Father




Alpha decay l.jpg
Alpha decay

  • Spontaneous nuclear emission of a particles

  • a particles identical to helium nucleus -2 protons 2 neutrons

  • a particles -> 4 times as heavy as proton carries twice the charge of proton


Alpha decay14 l.jpg
Alpha decay

  • Occurs with heavy nuclides

  • Followed by g and characteristic X ray emission

  • Emitted with energies 2-10MeV

  • NOT USED IN MEDICAL IMAGING


Positron emission b l.jpg
Positron emission b+

  • Decay caused by nuclear instability caused by too few neutrons

  • Low N/Z ratio neutrons/protons

  • A proton is converted into a neutron – with ejection of a positron and a neutrino


Positron emission b16 l.jpg
Positron emission b+

  • Decrease of protons by 1 atom is transformed into a new element with atomic # Z-1

  • The N/Z ratio is increased so “daughter” is more stable than parent


Positron emission b17 l.jpg
Positron emission b+

Fluorin oxygen


Positron emission b18 l.jpg
Positron emission b+

Fluorin oxygen


Positron emission b19 l.jpg
Positron emission b+

  • Positron travels through materials loosing some kinetic energy

  • When they come to rest react violently with their antiparticle -> Electron

  • The entire rest mass of both is converted into energy and emitted in opposite direction

    • Annihilation radiation used in PET


Annihilation radiation l.jpg
Annihilation radiation

  • Positron interacts with electron->annihilation

  • Entire mass of e and  is converted into

    two 511keV photons

511keV

energy equivalent of

rest mass of electron


B decay l.jpg
b- decay

  • Happens to radionuclide that has excess number of neutron compared to proton

  • A negatron is identical to an electron

  • Antineutrino neutral atomic subparticle


Electron captive e l.jpg
Electron captive e

  • Alternative to positron decay for nuclide with few neutrons

  • Nucleus capture an electron from an orbital (K or L)

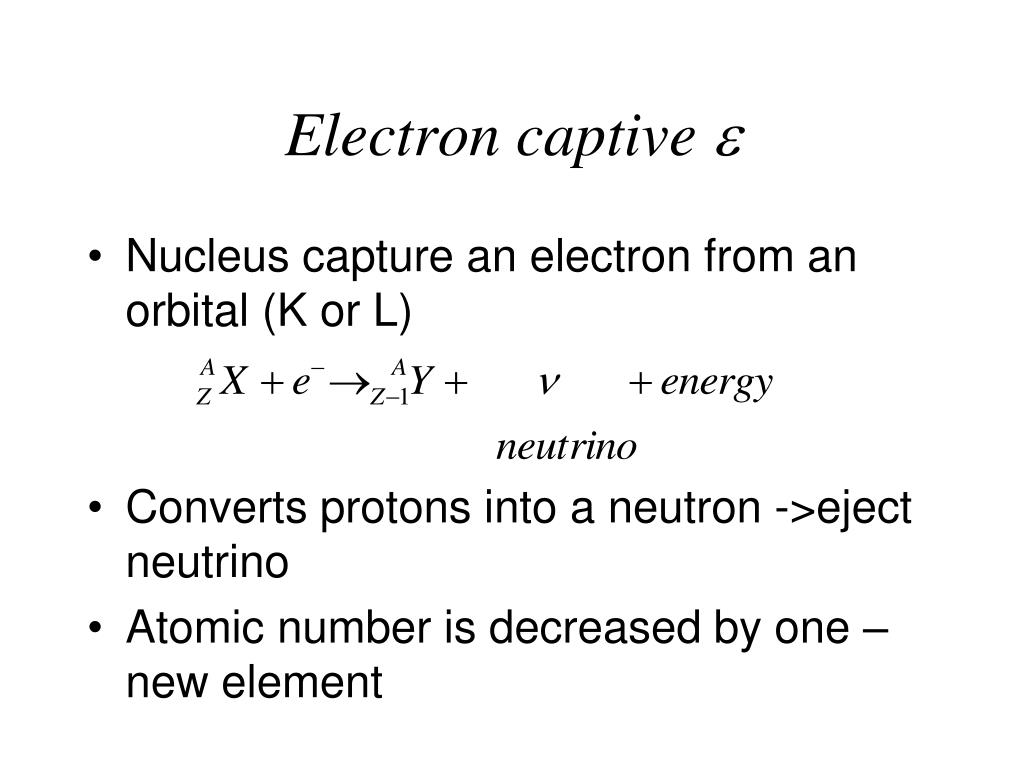

Electron captive e23 l.jpg
Electron captive e

  • Nucleus capture an electron from an orbital (K or L)

  • Converts protons into a neutron ->eject neutrino

  • Atomic number is decreased by one –new element


Electron captive e24 l.jpg
Electron captive e

  • As the electron is captured a vacancy is formed

  • Vacancy filled by higher level electron with Xray emission

  • Used in studies of myocardial perfusion


Isomeric transition l.jpg
Isomeric transition

  • During a radioactive decay a daughter is formed but she is unstable

  • As the daughter rearrange herself to seek stability a g ray is emitted


Slide26 l.jpg

Principle of radionuclide imaging

Introduce radioactive substance into body

Allow for distribution and uptake/metabolism of compound Functional Imaging!

Detect regional variations of radioactivity as indication of presence or absence of specific physiologic function

Detection by “gamma camera” or detector array

(Image reconstruction)


Radioactive nuclide l.jpg
Radioactive nuclide

  • Produced into a cyclotron

  • Tagged to a neutral body (glucose/water/ammonia)

  • Administered through injection

  • Scan time 30-40 min



Positron emission b29 l.jpg
Positron emission b+

Fluorin oxygen


Slide30 l.jpg

PET Positron emission tomography

  • Cancer detection

  • Examine changes due to cancer therapy

    • Biochemical changes

  • Heart scarring & heart muscle malfunction

  • Brain scan for memory loss

    • Brain tumors, seizures

Lymphoma

melanoma


Principles l.jpg
Principles

  • Uses annihilation coincidence detection (ACD)

  • Simultaneous acquisition of 45 slices over a 16 cm distance

  • Based on Fluorine 18 fluorodexyglucose (FDG)


Slide32 l.jpg
PET

  • Ring of detectors surrounds the patient

  • Obtains two projection at opposite directions

  • Patient is injected with a 18 fluorine fluorodeoxyglucose (FDG)


Pet principle l.jpg
Pet principle

  • Ring of detectors


Annihilation radiation34 l.jpg
Annihilation radiation

  • Positron travel short distances in solids and liquids before annihilation

  • Annihilation COINCIDENCE -> photons reach detectors, we collect the photons that happen almost at the same time

    • coincidence? I don’t think so!

Detector 1

Detector 2


True coincidence l.jpg
True coincidence

Detector 1

Detector 2


Random coincidence l.jpg
Random coincidence

  • Emission from different nuclear transformation interact with same detector

Detector 1

Detector 2


Scatter coincidence l.jpg
Scatter coincidence

  • One or both photons are scattered and don’t have a simple line trajectory

Detector 1

False

coincidence

Detector 2


Total signal is the sum of the coincidences l.jpg
Total signal is the sum of the coincidences

Ctotal = Ctrue+Cscattered+Crandom


Slide39 l.jpg

PET noise sources

  • Noise sources:

    • Accidental (random) coincidences

    • Scattered coincidences

  • Signal-to-noise ratio given by ratio of true coincidences to noise events

  • Overall count rate for detector pair (i,j):


Pet detectors l.jpg
Pet detectors

NAI (TI) Sodium iodide doped with thallium

BGO bismuth germanate

LSO lutetium oxyorthosilicate


Slide41 l.jpg

PET

MRI

PET resolution

  • Modern PET ~ 2-3 mm resolution (1.3 mm)

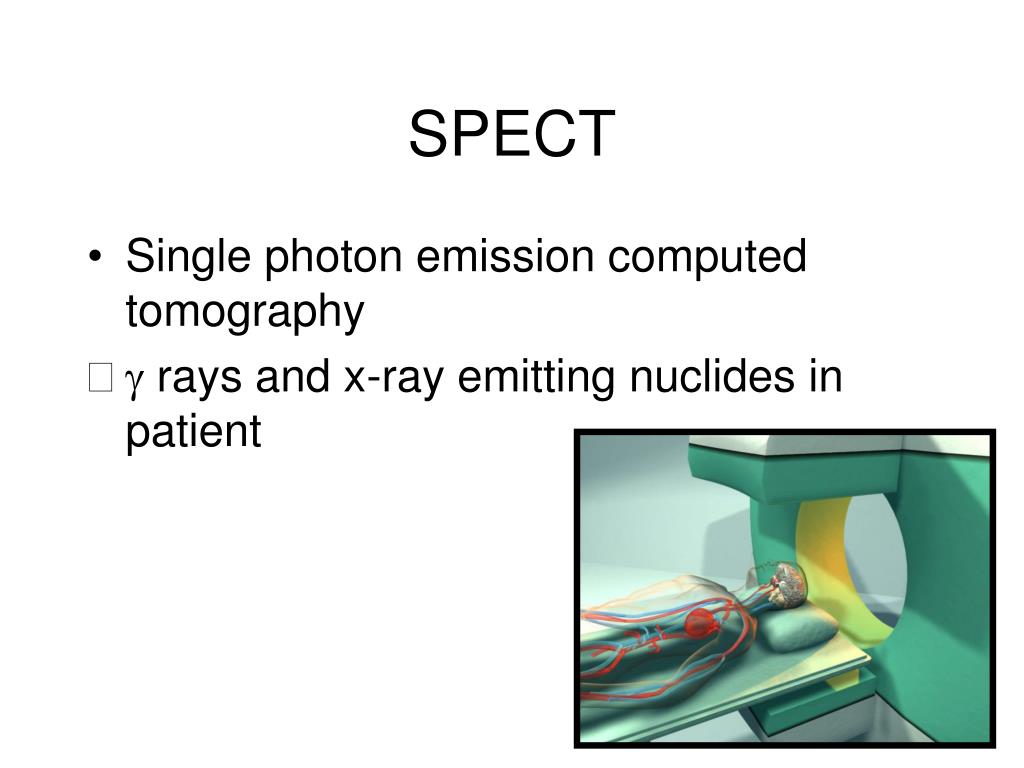

Spect l.jpg
SPECT

  • Single photon emission computed tomography

  •  rays and x-ray emitting nuclides in patient


Spect cnt l.jpg
SPECT cnt

  • One or more camera heads rotating about the patient

  • In cardiac -180o rotations

  • In brain - 360o rotations

  • It is cheaper than MRI and PET

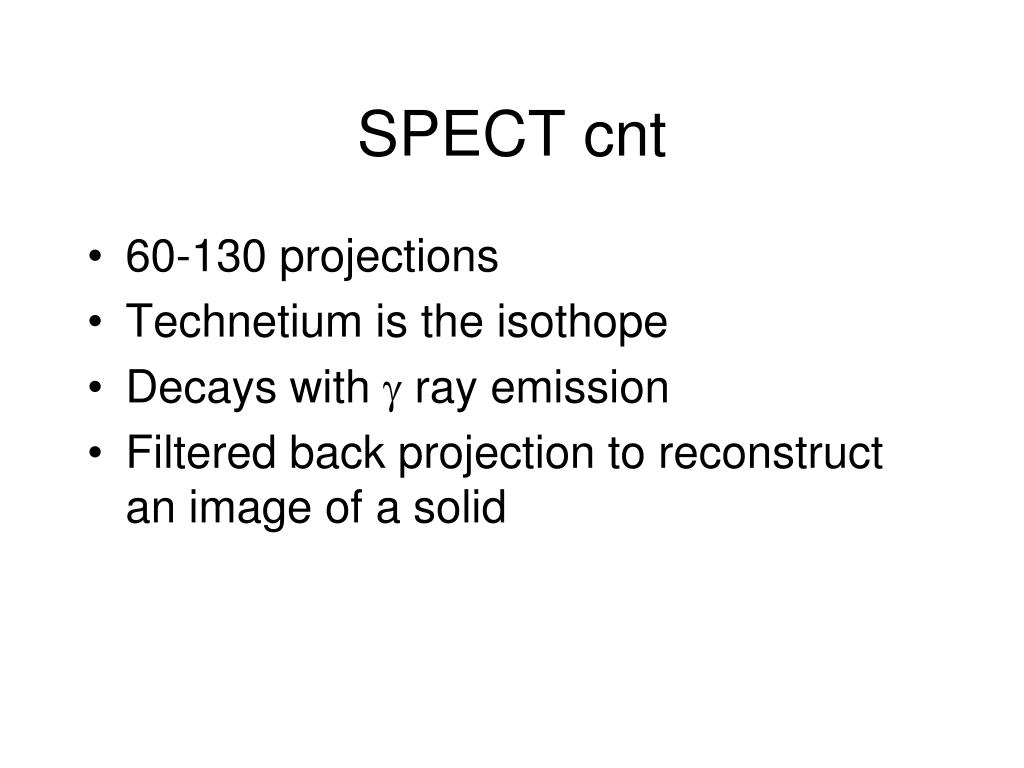

Spect cnt45 l.jpg
SPECT cnt

  • 60-130 projections

  • Technetium is the isothope

  • Decays with  ray emission

  • Filtered back projection to reconstruct an image of a solid


Typical studies l.jpg
Typical studies

  • Bone scan

  • Myocardial perfusion

  • Brain

  • Tumor

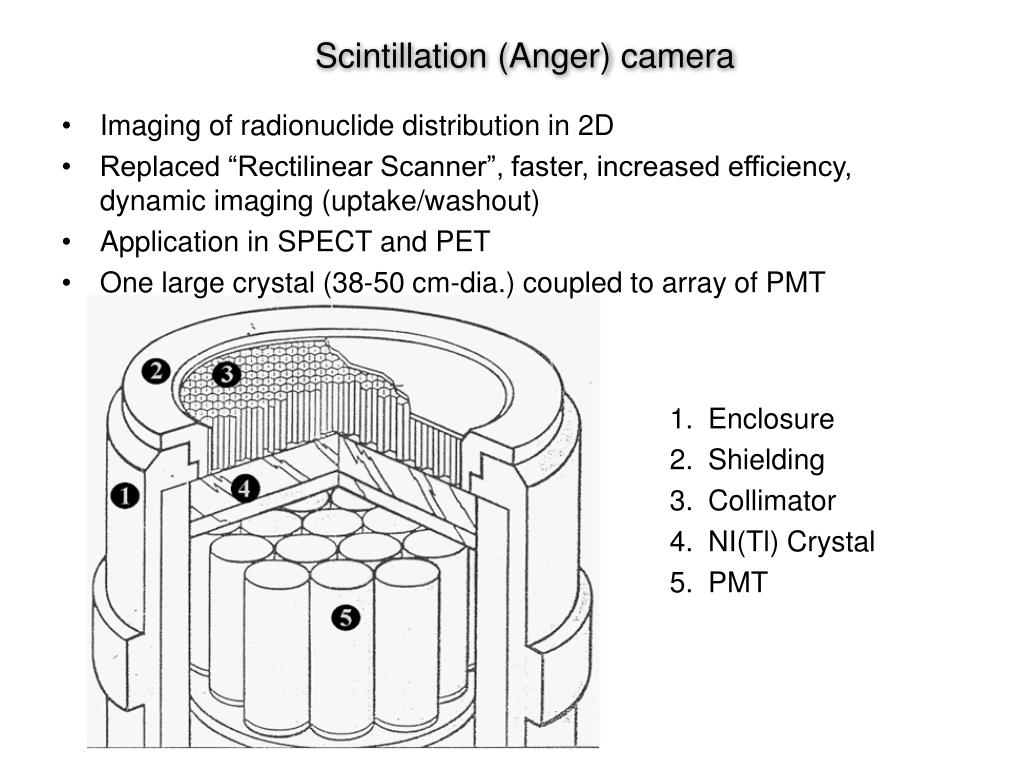

Slide47 l.jpg

Scintillation (Anger) camera

  • Imaging of radionuclide distribution in 2D

  • Replaced “Rectilinear Scanner”, faster, increased efficiency, dynamic imaging (uptake/washout)

  • Application in SPECT and PET

  • One large crystal (38-50 cm-dia.) coupled to array of PMT

  • Enclosure

  • Shielding

  • Collimator

  • NI(Tl) Crystal

  • PMT


Slide48 l.jpg

Anger logic

  • Position encoding example: PMTs 6,11,12 each register 1/3 of total Photocurrent, i.e.:I6 = I11 = I12 = 1/3 Ip

  • Total induced photo current (Ip) is obtained through summing all current outputs

  • Intrinsic resolution ~ 4 mm


Slide49 l.jpg

d

L

Collimators

  • Purpose: Image formation (acts as “optic”)

  • Parallel collimatorSimplest, most common 1:1 magnification

  • Resolution

  • Geometric efficiency

  • Tradeoff: Resolution  Efficiency

Aopen

Aunit


Slide50 l.jpg

Converging

d

L

L

d

d

Diverging

Collimator types

Tradeoff between resolution and field-of view (FOV) for different types:

Converging:  resolution,  FOV

Diverging:  resolution, FOV

Pinhole (~ mm):High resolution of small organs at close distances


Slide52 l.jpg

SPECT applications

  • Brain:

    • Perfusion (stroke, epilepsy, schizophrenia, dementia [Alzheimer])

    • Tumors

  • Heart:

    • Coronary artery disease

    • Myocardial infarcts

  • Respiratory

  • Liver

  • Kidney
