What Is QSFP Transceiver

<br><br>https://www.slideshare.net/CBOGmbH/what-is-qsfp-transceiver<br><br>The Quad Small Form-factor Pluggable is a high density and hot-pluggable transceiver which is used for <br><br>data communications applications. It supports Ethernet, fibre channel and other interfaces.

CBOGmbH
Download Presentation

What Is QSFP Transceiver

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

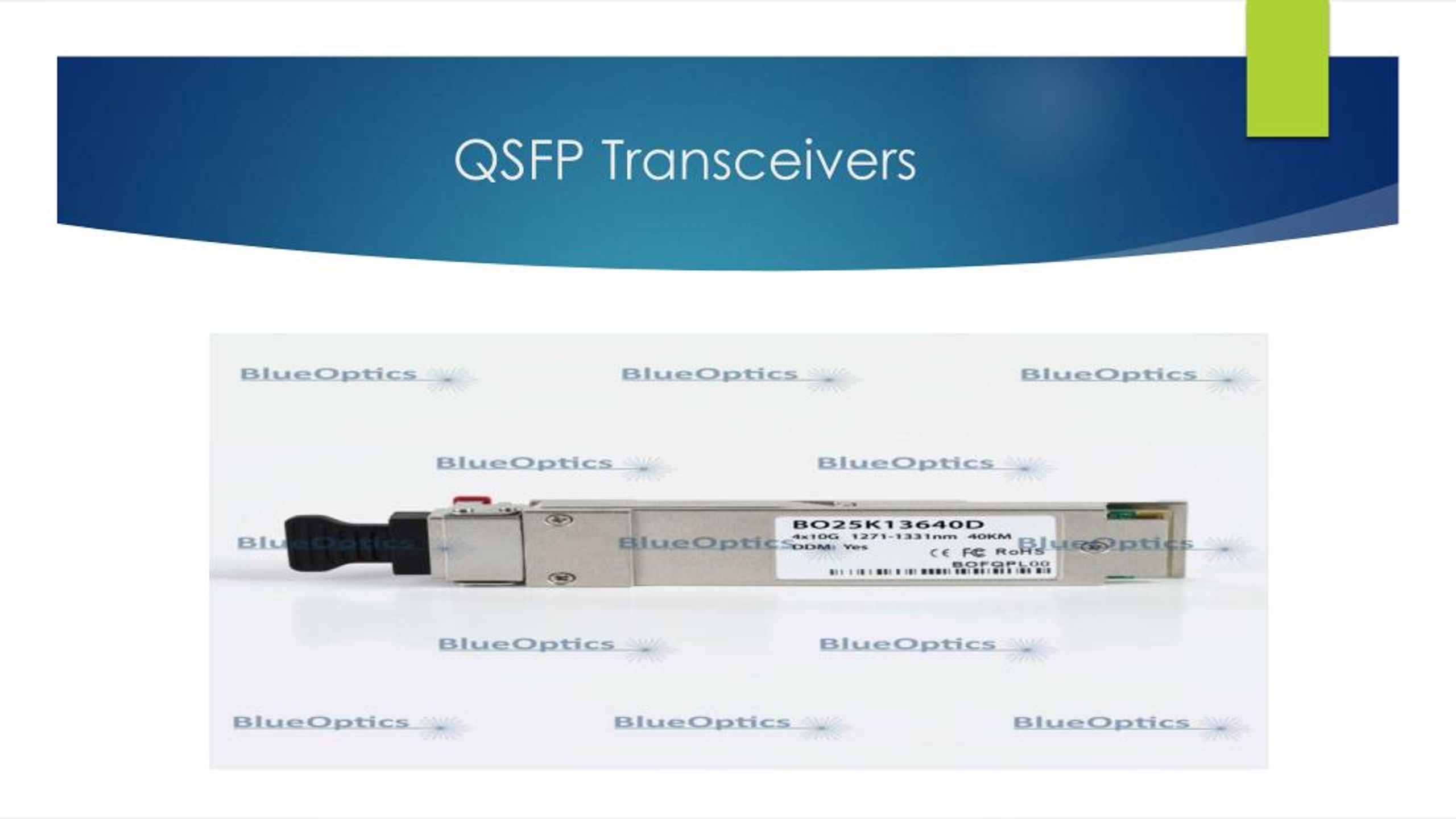

  1. QSFP Transceivers

  2. CBO-ITLocations France Spain Germany Friedhofstraße 2345478 Muelheim an der RuhrGermanyTel: 0049 - 208 - 777 247 - 0Fax: 0049 - 208 - 777 247 - 99Email: info@cbo-it.de Tour Albert 1ER 65 avenue de colmar92507 Rueil-MalmaisonFranceTel: 0033 - 1 - 763600 - 38Email: info.fr@cbo-it.de Calle Lopez de Hoyos 35 - 1°28002 MadridSpainTel: 0034 - 91 - 18757 - 97eMail: info.es@cbo-it.de

  3. About CBO The CBO GmbH, situated in Mülheim-Ruhr, Germany, is a producer of dynamic and latent systems segments. We are had practical experience in the creation of optical transmission arrangements, fiber arrangements and datacenter parts. The primary clients of CBO GmbH are national and global framework integrators, and also Internet Service Providers. The results of the CBO GmbH are as of now utilized by framework intergrators in following ranges: Networking, server farms, vast retail chains, open establishments, social insurance (healing centers), schools, colleges, car, and military.

  4. QSFP Transceivers

  5. What Is QSFP Transceiver? • The Quad Small Form-factor Pluggable is a high density and hot-pluggable transceiver which is used for data communications applications. It supports Ethernet, fibre channel and other interfaces. QSFP transceivers are made to support 20G/40G Infiniband, 40G Ethernet, Serial Attached SCSI and other communication standards. One can browse on the internet to purchase them from various stores. The online forums are flooded with details of storage cables.

  6. Type Of Transceivers • 40GBASE QSFP- This product offers customers a huge variety of high-density 40GB Ethernet connectivity options for data center, enterprise core and distribution layers, high performance computing networks and service provider transport applications.

  7. Type Of Transceivers • 40GBASE-SR4 QSFP- It consists of various features such as supports 40GBASE Ethernet, hot-swappable input/output device, flexibility of interface choice, interoperable with other IEEE-compliant 40GBASE interfaces available in various form factors and support pay-as-you-populate model.

  8. Type Of Transceivers • QSFP-40G-SR4- The transceiver supports link lengths of 100m and 150m on laser-optimized OM3 and OM4 multimode fiber cables. They are also be used in 4x10G mode along with ribbon to duplex fiber breakout cables for connectivity to four 10GBASE-SR optical interfaces. It allows maximum channel insertion loss of 1.5dB over 150m of OM4 cable or 1.9dB over 100m of OM3 cable.

  9. Type Of Transceivers • QSFP-40GE-LR4- It supports link lengths of up to 10km over a standard pair of G.652 single-mode fiber with duplex LC connectors. The 40 GB Ethernet signal is carried over four wavelengths and multiplexing of the four wavelengths is controlled within the device.

  10. Type Of Transceivers • Optical CX4 - QSFP, 4X w/Ejectors. The product is in high demand and is available in 10, 15, 20, 40, and 100 meter lengths. The cable is used for CX4 applications and is RoHS compliant. • QSFP to QSFP Copper Direct-Attach Cables- They are also best for very short distances and offer a very cost-effective way to establish a 40GB link between QSFP ports within racks and across adjacent racks.

  11. Friedhofstraße 2345478 Muelheim an der RuhrGermanyTel: 0049 - 208 - 777 247 - 0Fax: 0049 - 208 - 777 247 - 99eMail: info@cbo-it.de Contact Us:
