Correlation

Correlation

Review and Extension


Questions to be asked
Questions to be asked…

  • Is there a linear relationship between x and y?

  • What is the strength of this relationship?

    • Pearson Product Moment Correlation Coefficient (r)

  • Can we describe this relationship and use this to predict y from x?

    • y=bx+a

  • Is the relationship we have described statistically significant?

    • Not a very interesting one if tested against a null of r = 0


Other stuff
Other stuff

  • Check scatterplots to see whether a Pearson r makes sense

  • Use both r and r2 to understand the situation

  • If data is non-metric or non-normal, use “non-parametric” correlations

  • Correlation does not prove causation

    • True relationship may be in opposite direction, co-causal, or due to other variables

  • However, correlation is the primary statistic used in making an assessment of causality

    • ‘Potential’ Causation

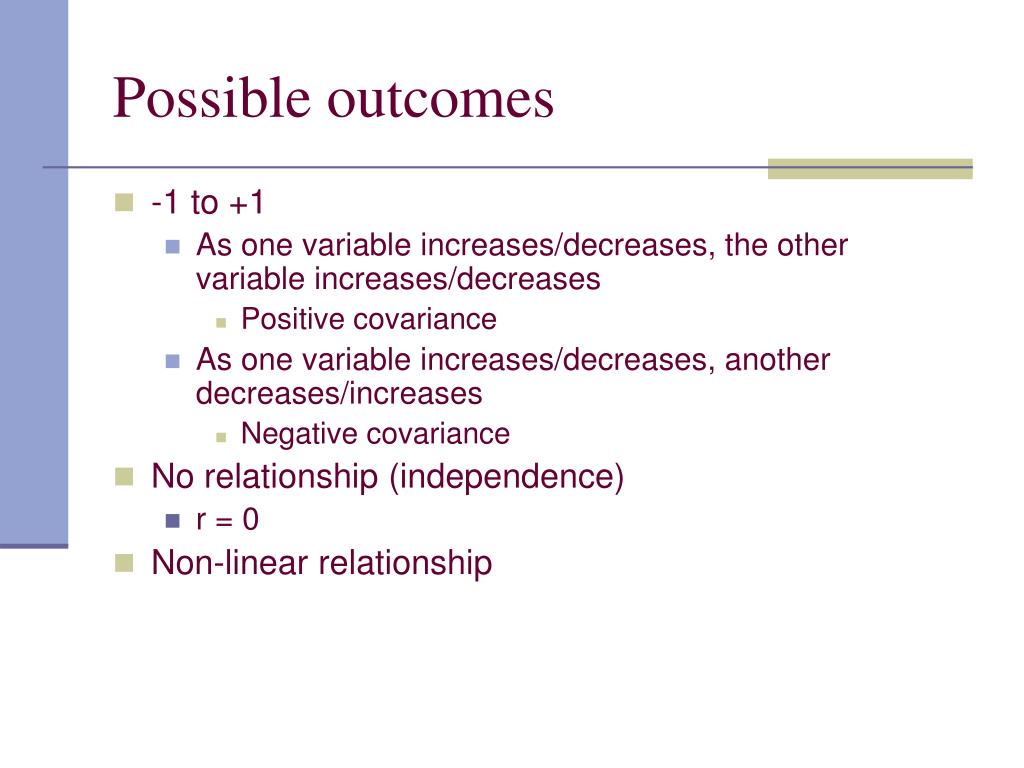

Possible outcomes
Possible outcomes

  • -1 to +1

    • As one variable increases/decreases, the other variable increases/decreases

      • Positive covariance

    • As one variable increases/decreases, another decreases/increases

      • Negative covariance

  • No relationship (independence)

    • r = 0

  • Non-linear relationship


Covariance
Covariance

  • The variance shared by two variables

  • When X and Y move in the same direction (i.e. their deviations from the mean are similarly pos or neg)

    • cov (x,y) = pos.

  • When X and Y move in opposite directions

    • cov (x,y) = neg.

  • When no constant relationship

    • cov (x,y) = 0

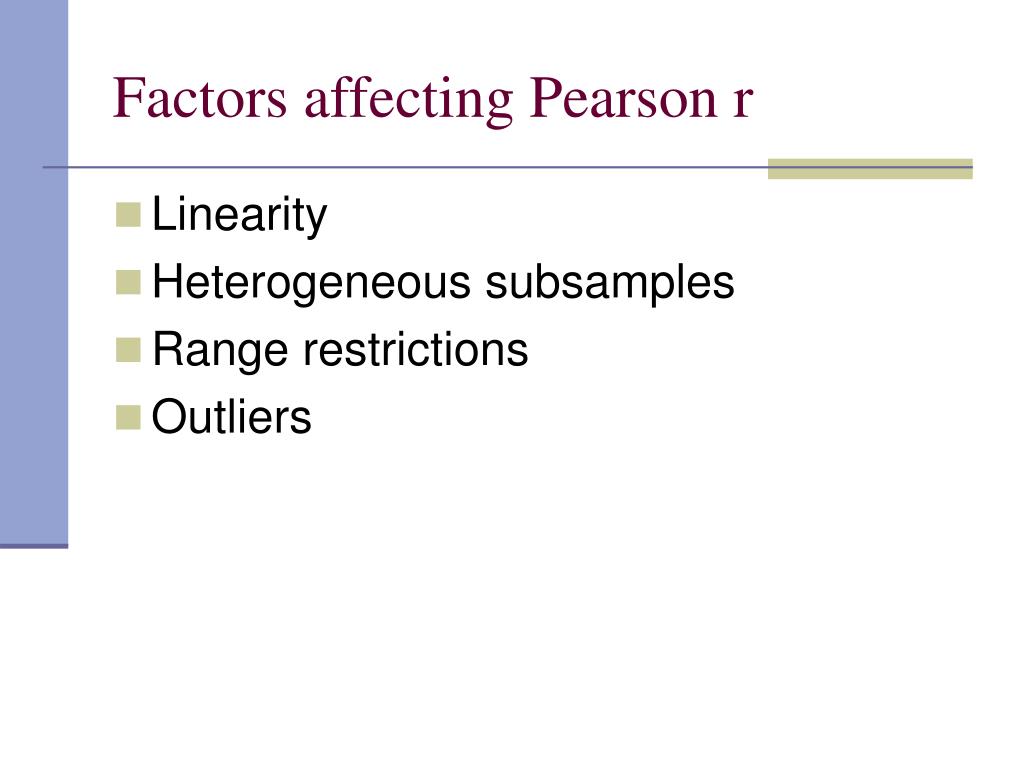

Factors affecting pearson r
Factors affecting Pearson r compared across different scales of measurement

  • Linearity

  • Heterogeneous subsamples

  • Range restrictions

  • Outliers


Linearity
Linearity compared across different scales of measurement

  • Nonlinear relationships will have an adverse effect on a measure designed to find a linear relationship


Heterogeneous subsamples
Heterogeneous subsamples compared across different scales of measurement

  • Sub-samples may artificially increase or decrease overall r.

  • Solution - calculate r separately for sub-samples & overall, look for differences


Range restriction
Range restriction compared across different scales of measurement

  • Limiting the variability of your data can in turn limit the possibility for covariability between two variables, thus attenuating r.

  • Common example occurs with Likert scales

    • E.g. 1 - 4 vs. 1 - 9

  • However it is also the case that restricting the range can actually increase r if by doing so, highly influential data points would be kept out


Effect of outliers
Effect of Outliers compared across different scales of measurement

  • Outliers can artificially and dramatically increase or decrease r

  • Options

    • Compute r with and without outliers

    • Conduct robustified R!

      • For example, recode outliers as having more conservative scores (winsorize)

    • Transform variables

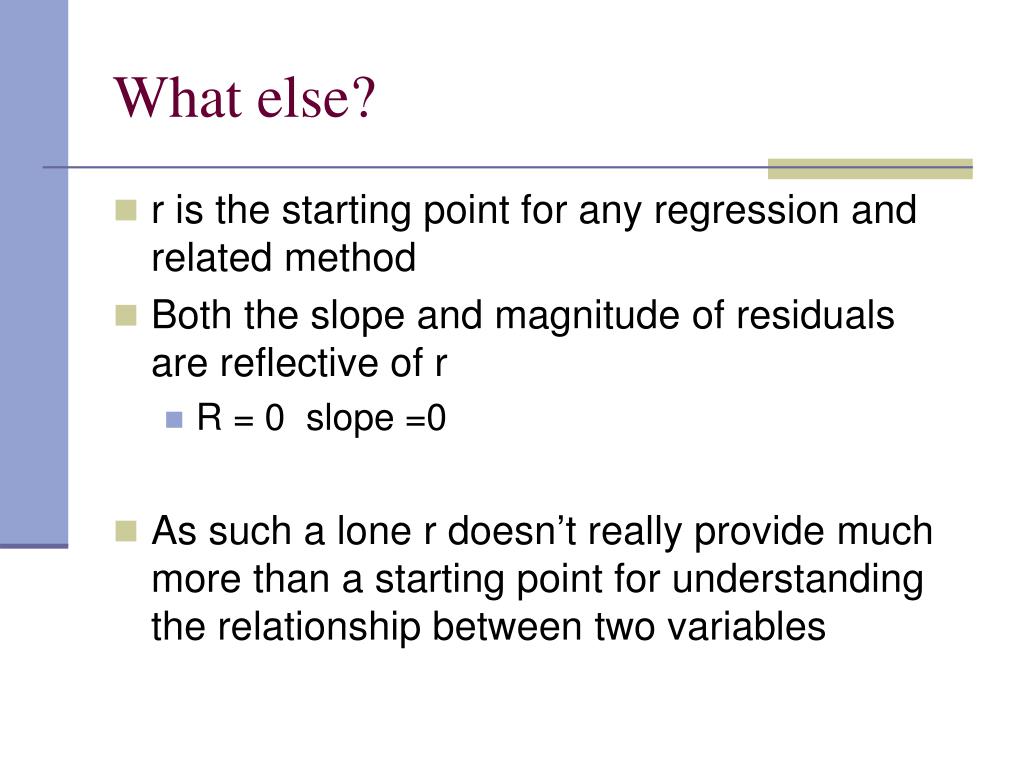

What else
What else? compared across different scales of measurement

  • r is the starting point for any regression and related method

  • Both the slope and magnitude of residuals are reflective of r

    • R = 0 slope =0

  • As such a lone r doesn’t really provide much more than a starting point for understanding the relationship between two variables


Robust approaches to correlation
Robust Approaches to Correlation compared across different scales of measurement

  • Rank approaches

  • Winsorized

  • Percentage Bend


Rank approaches spearman s rho and kendall s tau
Rank approaches: Spearman’s rho and Kendall’s tau compared across different scales of measurement

  • Spearman’s rho is calculated using the same formula as Pearson’s r, but when variables are in the form of ranks

    • Simply rank the data available

    • X = 10 15 5 35 25 becomes

    • X = 2 3 1 5 4

    • Do this for X and Y and calculate r as normal

  • Kendall’s tau is a another rank based approach but the details of its calculation are different

  • For theoretical reasons it may be preferable to Spearman’s, but both should be consistent for the most part and perform better than Pearson’s r when dealing with non-normal data


Winsorized correlation
Winsorized Correlation compared across different scales of measurement

  • As mentioned before, Winsorizing data involves changing some decided upon percentage of extreme scores to the value of the most extreme score (high and low) which is not Winsorized

    • X = 1 2 3 4 5 6 becomes

    • X = 2 2 3 4 5 5

  • Winsorize both X and Y values (without regard to each other) and compute Pearson’s r

  • This has the advantage over rank-based approaches since the nature of the scales of measurement remain unchanged

  • For theoretical reasons (recall some of our earlier discussion regarding the standard error for trimmed means) a Winsorized correlation would be preferable to trimming

    • Though trimming is preferable for group comparisons


Methods related to m estimators
Methods Related to M-estimators compared across different scales of measurement

  • The percentage bend correlation utilizes the median and a generalization of MAD

  • A criticism of the Winsorized correlation is that the amount of Winsorizing is fixed in advance rather than determined by the data, and the rpb gets around that

  • While the details can get a bit technical, you can get some sense of what is going on by relying on what you know regarding the robust approach in general

  • With independent X and Y variables, the values of robust approaches to correlation will match the Pearson r

  • With nonnormal data, the robust approaches described guard against outliers on the respective X and Y variables while Pearson’s r does not


Problem
Problem compared across different scales of measurement

  • While these alternative methods help us in some sense, an issue remains

  • When dealing with correlation, we are not considering the variables in isolation

  • Outliers on one or the other variable, might not be a bivariate outlier

  • Conversely what might be a bivariate outlier may not contain values that are outliers for X or Y themselves


Global measures of association
Global measures of association compared across different scales of measurement

  • Measures are available that take into account the bivariate nature of the situation

  • Minimum Volume Ellipsoid Estimator (MVE)

  • Minimum Covariance Determinant Estimator (MCD)


Minimum volume ellipsoid estimator
Minimum Volume Ellipsoid Estimator compared across different scales of measurement

  • Robust elliptic plot (relplot)

  • Relplots are like scatterplot boxplots for our data where the inner circle contains half the values and anything outside the dotted circle would be considered an outlier

  • A strategy for robust estimation of correlation would be to find the ellipse with the smallest area that contains half the data points

  • Those points are then used to calculate the correlation

    • The MVE


Minimum covariance determinant estimator
Minimum Covariance Determinant Estimator compared across different scales of measurement

  • The MCD is another alternative we might used and involves the notion of a generalized variance, which is a measure of the overall variability among a cloud of points

    • For the more adventurous, see my /6810 page for info matrices and their determinants

      • The determinant of a matrix is the generalized variance

  • For the two variable situation

  • As we can see, as r is a measure of linear association, the more tightly the points are packed the larger it would be, and subsequently smaller the generalized variance would be

  • The MCD picks that half of the data which produces the smallest generalized variance, and calculates r from that


Global measures of association1
Global measures of association compared across different scales of measurement

  • Note that both the MVE and MCD can be extended to situations with more than two variables

    • We’d just be dealing with a larger matrix

  • Example using the Robust library in S-Plus

    • OMG! Drop down menus even!


Remaining issues curvature
Remaining issues: Curvature compared across different scales of measurement

  • The fact is that straight lines may not capture the true story

  • We may often fail to find noticeable relationships because our r, whichever method of “Pearsonesque” one we choose, is trying to specify a linear relationship

  • There may still be a relationship, and a strong one, just more complex


Summary
Summary compared across different scales of measurement

  • Correlation, in terms of Pearson r, gives us a sense of the strength of a linear association between two variables

  • One data point can render it a useless measure, as it is not robust to outliers

  • Measures which are robust are available, and some take into account the bivariate nature of the data

  • However, curvilinear relationships may exist, and we should examine the data to see if alternative explanations are viable
