Presentation Transcript
Slide1 l.jpg

Understanding the Ups and Downs of Blood Glucose

Irl B. Hirsch, M.D.

University of Washington

Slide2 l.jpg


  • Who has the greatest risk of proliferative diabetic retinopathy (PDR) over the next 10 years

    • A 55 y/o man with type 2 diabetes for 5 years, on oral agents, A1c = 9.0%

    • An 18 y/o man with 5 years of type 1 diabetes, on BID NPH/R, A1c = 9.0%

    • An 18 y/o man with 5 years of type 1 diabetes, on CSII, A1c = 9.0%

Why are the risks of PDR different?

Slide3 l.jpg

Postprandial hyperglycemia ≠ glycemic variability

Don’t forget about the “ups” and “downs”!

Oxidative stress what should you know l.jpg
“Oxidative Stress”What Should You Know?

  • Oxygen is critical for life: respiration and energy

  • Oxygen is also implicated in many disease processes, ranging from arthritis, cancer, Lou Gehrig’s disease as well as aging

    • This dangerous form of oxygen is from the formation of “free radicals” or “reactive oxygen species”, or pro-oxidants

    • Normally, pro-oxidants are neutralized by anti-oxidants

Oxidative stress what you should know l.jpg
“Oxidative Stress”: What You Should Know

Oxidative Stress =

Imbalance between pro-oxidants (free radicals, reactive oxygen species) and anti-oxidants

Oxidative stress why is it important l.jpg
Oxidative Stress: Why is it Important?

Free radicals (reactive oxygen species) are known to fuel diabetic vascular complications

Ok what turns on oxidative stress free radicals and reactive oxygen species l.jpg

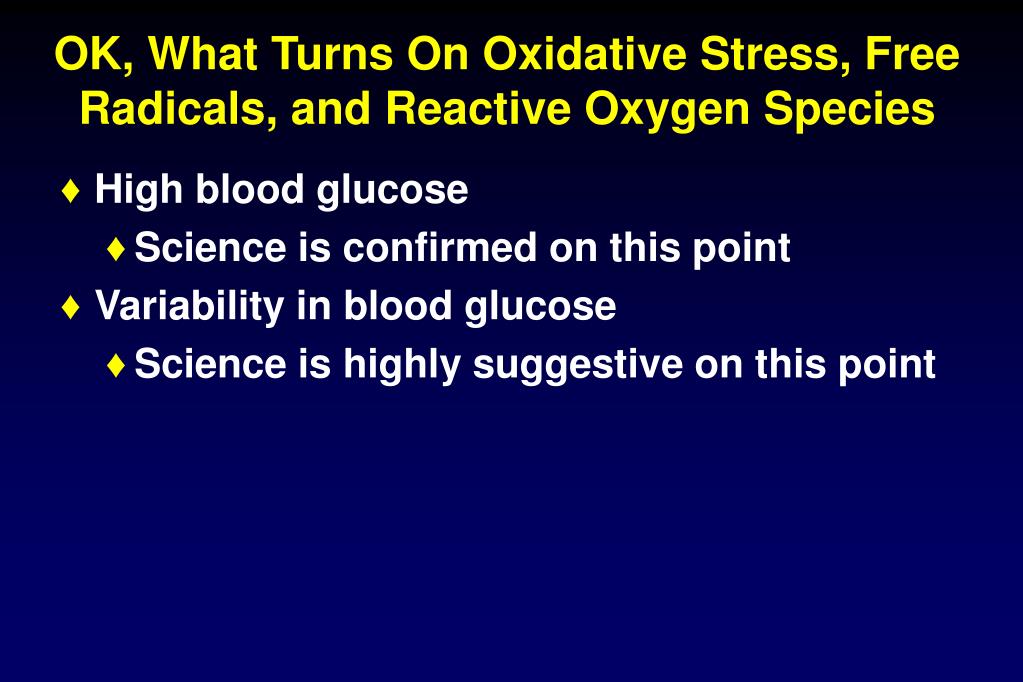

OK, What Turns On Oxidative Stress, Free Radicals, and Reactive Oxygen Species

  • High blood glucose

    • Science is confirmed on this point

  • Variability in blood glucose

    • Science is highly suggestive on this point

Slide8 l.jpg

How Does One Measure…? Reactive Oxygen Species

  • Oxidative Stress

    • Urinary isoprostanes: best marker of oxidative stress in total body

    • “HbA1c of oxidative stress”

  • Glycemic variability

    • Mean Amplitude of Glycemic Excursions (MAGE)

    • Standard deviation on SMBG meter download

I Hirsch

Slide9 l.jpg

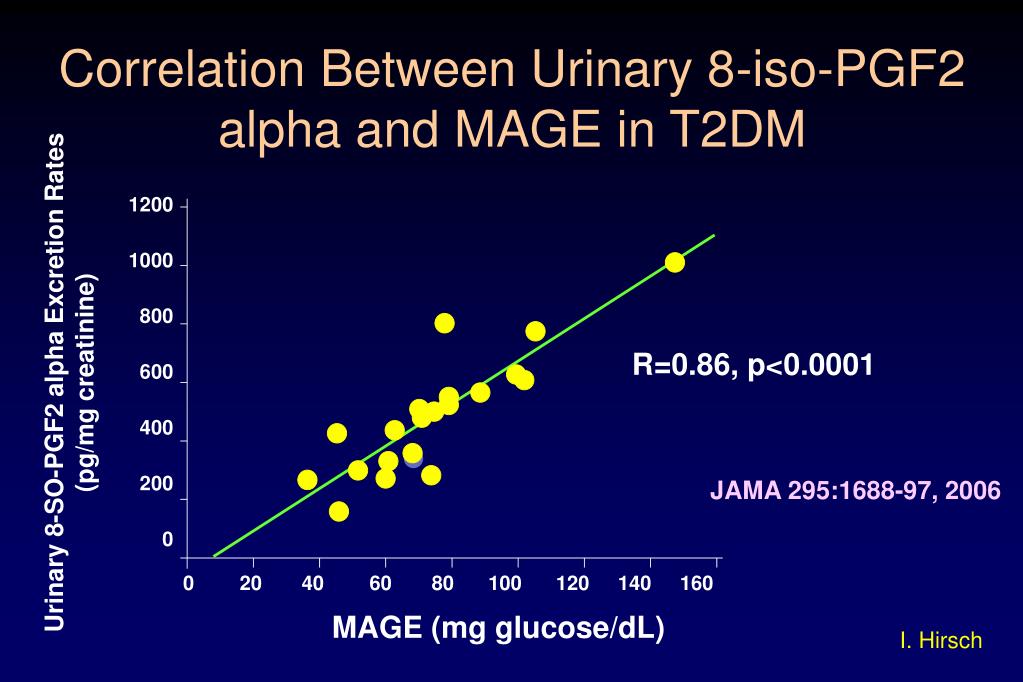

Correlation Between Urinary 8-iso-PGF2 alpha and MAGE in T2DM








R=0.86, p<0.0001

Urinary 8-SO-PGF2 alpha Excretion Rates

(pg/mg creatinine)

0 20 40 60 80 100 120 140 160

MAGE (mg glucose/dL)

JAMA 295:1688-97, 2006

I. Hirsch

Slide10 l.jpg

Why This Study is So Important T2DM

  • Oxidative stress not related to A1c, fasting glucose, fasting insulin, mean blood glucose

  • Stronger correlation of oxidative stress to MAGE than to postprandial glucose levels!

  • MAGE = both the UPS and the DOWNS of blood glucose

I. Hirsch

Slide11 l.jpg

So What T2DMIs The Significance of the Understanding of GV?

  • “…it suggests that different therapeutic strategies now in use should be evaluated for their potential to minimize glycemic excursion, as well as their ability to lower A1c.”

  • “…wider use of real-time continuous glucose monitoring in clinical practice would provide the required monitoring tool to minimize glycemic variability and superoxide overproduction.”

Brownlee M, Hirsch IB: JAMA: 295:1707, 2006

I. Hirsch

Slide12 l.jpg

What About Long-Term Glycemic Variability? T2DM

  • Pittsburgh Epidemiology of Diabetes Complications

  • 16-year follow-up of childhood T1DM, N=408

  • Results:

    • Risks of coronary disease over time related to A1c and variability of A1c!

Diabetes 55 (Supp 1): A1, 2006

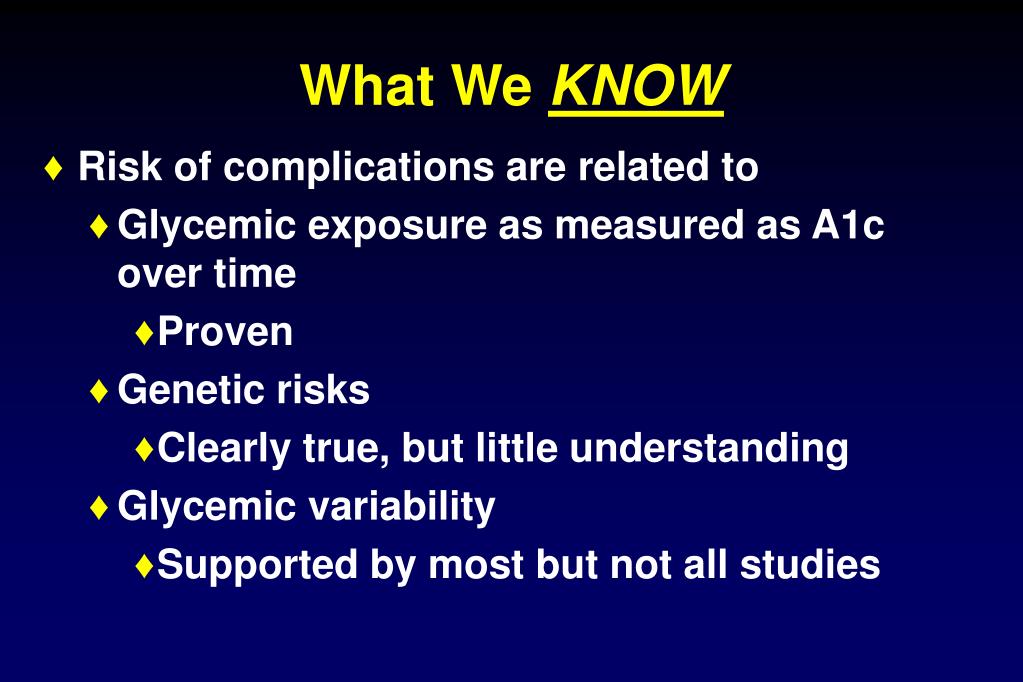

What we know l.jpg

  • Risk of complications are related to

    • Glycemic exposure as measured as A1c over time

      • Proven

    • Genetic risks

      • Clearly true, but little understanding

    • Glycemic variability

      • Supported by most but not all studies

Conclusion 1 l.jpg
Conclusion 1 T2DM

  • Glycemic variability may be an important mechanism increasing oxidative stress and vascular complications

So how do we best measure glycemic variability in our patients with diabetes?

I. Hirsch

Slide16 l.jpg

Which Patient Has More Variable Fasting Glucose Data? T2DM

Joe: HbA1c = 6.5%; on CSII with insulin aspart

Mary: HbA1c = 6.5%; on HS glargine and prandial lispro

Mean = 123 mg% Mean = 123 mg%

SD = 51 SD = 63

I. Hirsch

Slide17 l.jpg

Standard Deviation T2DM

  • A measurement of glycemic variability

  • Can determine both overall and time specific SD

  • Need sufficient data points

    • Minimum 5 but prefer 10

I. Hirsch

Slide18 l.jpg

Calculation To Determine SD Target T2DM


  • Ideally SD X 3 < mean, but extremely difficult with type 1 patients

I. Hirsch

Slide19 l.jpg

Significance of a High SD T2DM

  • Insulin deficiency (especially good with fasting blood glucose)

  • Poor matching of calories (especially carbohydrates) with insulin

    • Gastroparesis

  • Giving mealtime insulin late (or missing shots completely)

  • Erratic snacking

  • Poor matching of basal insulin, need for CSII?

I. Hirsch

Other significance of a high sd l.jpg
Other Significance of a High SD T2DM

Increased Oxidative Stress!

I. Hirsch

Slide21 l.jpg

Caveats of the SD T2DM

  • Need sufficient SMBG data

  • Low or high averages makes the 2XSD<mean rule irrelevant

I. Hirsch

Slide22 l.jpg

Caveats of the SD: Low Mean T2DM

Mean = 81; SD = 29

I. Hirsch

Slide23 l.jpg

Caveats of SD: High Mean T2DM

Mean = 217; SD = 82

I. Hirsch

Slide24 l.jpg

Putting it all together T2DM

  • Typical new patient visit to UW DCC

  • 27 y/o woman on CSII for 5 years

  • Testing 4 to 5 times daily, A1c=6.4%

  • Major problems with hypoglycemia unawareness

  • Poor understanding of basic concepts of insulin use despite seen by specialists for 20 years (last appointment with endocrinologist was no more than 12 min for her “new patient appointment”)

Slide25 l.jpg

Question T2DM

After thinking about glycemic variability and oxidative stress

  • Who has the greatest risk of PDR over the next 10 years?

    • A 55 y/o man with T2DM for 5 years, on oral agents, A1c = 9.0%; Mean/SD = 210/50;

    • An 18 y/o man with 5 years of T1DM, on BID N/R, A1c = 9%; Mean/SD = 210/100;

    • An 18 y/o man with 5 years of T1DM, on CSII, A1c = 9% Mean/SD = 210/75;

The future of glycemic variability measurements for the future l.jpg
The Future of Glycemic Variability: Measurements For the Future

  • SD: used with SMBG for over a decade with meter downloads; underutilized

  • Interquartile ratio: the range where the middle 50% of the values in a distribution falls, calculated by subtracting the 25th from the 75th percentile

    • Compared to SD, IQR not influenced by outliers

  • MAGE: gold standard (?) but requires continuous glucose sensing. May be more useful as we move into the CGM era

I. Hirsch

What we need l.jpg
What We Need Future

Data comparing these tools to markers of oxidative stress!

I. Hirsch

Conclusions l.jpg
Conclusions Future

  • Although there is no definitive proof from a randomized controlled trial, the data suggests that glycemic variability is a risk factor for microvascular complications

  • We have the opportunity to quantitate GV now with meter downloads

I. Hirsch

Slide29 l.jpg

What You Should Take Away From This Discussion Future

A1c is not the only factor contributing to the complications of diabetes
