Presentation Transcript


Drosophila body plan part 2 segmentation l.jpg

Drosophila Body Plan (part 2): Segmentation

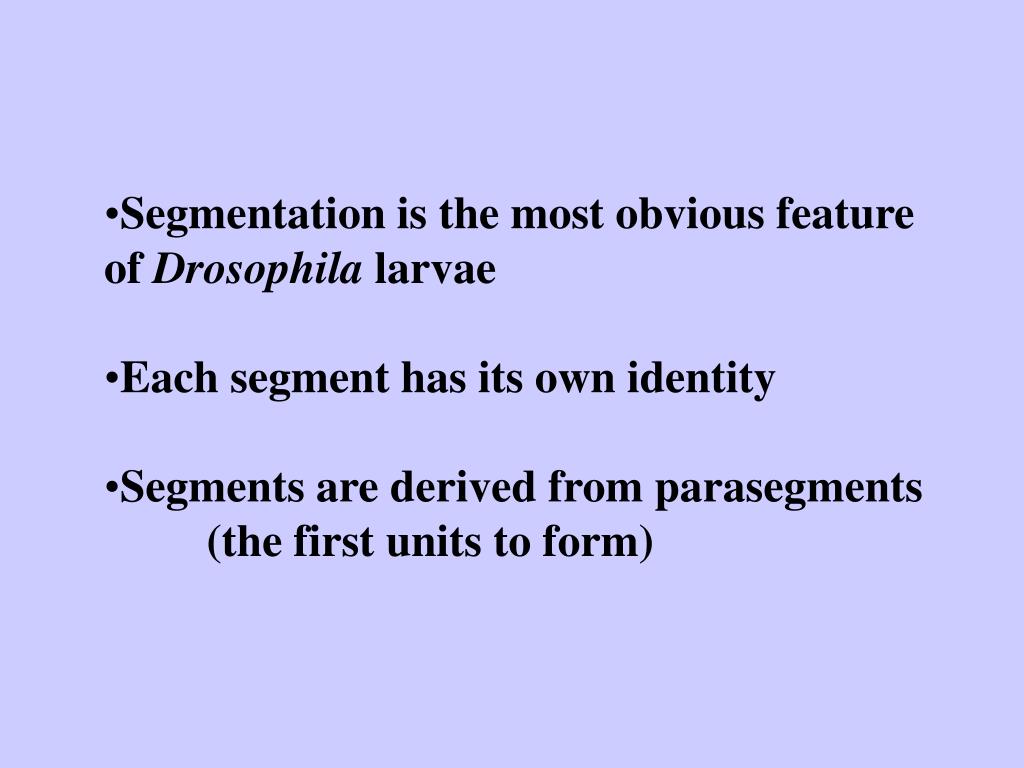

Slide2 l.jpg

  • Segmentation is the most obvious feature of Drosophila larvae

  • Each segment has its own identity

  • Segments are derived from parasegments (the first units to form)


Slide3 l.jpg

  • 14 parasegments appear after gastrulation

  • Delimited by temporary grooves

  • Initially similar, but acquire unique identities

  • Offset from segments – a segment is made up of the posterior half of one parasegment and the anterior half of the next segment

  • Anterior parasegments fuse to form the head

  • Defined by expression of pair-rule genes


Slide4 l.jpg

  • Pair-Rule gene expression is determined by gap genes (non-repeating pattern leads to repeating stripes of pair-rule activity)

  • Pair-Rule genes are each expressed in 7 transverse stripes in alternate

  • parasegments (every other one)

  • Some define odd numbered parasegments (even skipped), while some define even numbered ones (fushi tarazu)

  • Mutations affect alternate parasegments

  • Pattern is present before cellularization, which occurs soon after pair-rule gene expression


Slide5 l.jpg

anterior

posterior

even-skipped (green) and fushi tarazu (red) expression patterns


Slide6 l.jpg

  • Each stripe is only a few cells wide

  • Some define parasegment boundaries

  • Pattern appears gradually –

  • e.g.even skipped expression begins at low levels in all nuclei, narrows as other stripes develop, initially fuzzy, becomes more defined

  • Each stripe is independently specified

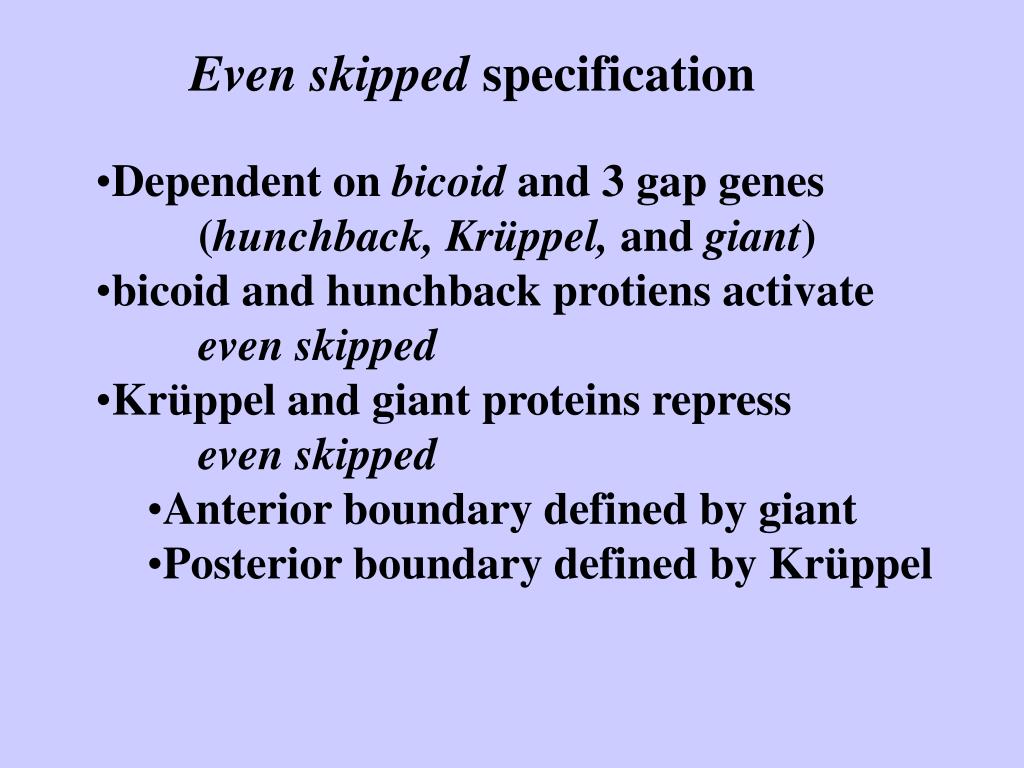

Slide7 l.jpg

Even skipped specification

  • Dependent on bicoid and 3 gap genes (hunchback, Krüppel, and giant)

  • bicoid and hunchback protiens activate even skipped

  • Krüppel and giant proteins repress

  • even skipped

    • Anterior boundary defined by giant

    • Posterior boundary defined byKrüppel


Slide8 l.jpg

  • For independent localization, each stripe must respond to different combinations and concentrations of transcription factors

  • Requires complex control regions with multiple binding sites for each factor

  • The even skipped regulatory region has several separate regions that control each stripe’s localization (shown using lacZ reporter gene – discussed in Box 5A)

  • Isolated regulatory regions contain ~500bp

  • Each determines expression of a single stripe


Slide10 l.jpg

  • Each regulatory region has binding sites for different transcription factors, some activate, others repress

  • Gap genes regulate pair-rule expression in each parasegment

  • Some are not directly regulated by gap genes, but depend on expression of other pair-rule genes (e.g. fushi tarazu)


Slide11 l.jpg

  • Pair-Rule genes encode transcription factors

  • These set up the final segments in the embryo

  • Pair-rule gene expression is temporary and cellularization is occurring

  • How do parasegment positions become fixed and how are segment boundaries formed?


Slide12 l.jpg

  • Segment Polarity Genes

  • Not all transcription factors like gap and pair-rule

  • Diverse, unrelated, and work through different mechanisms

  • Called segment polarity genes because mutations affect anterior-posterior polarity of segments (mirror-image or tandem duplication)

  • Activated by pair-rule genes

  • Each expressed in 14 stripes corresponding to the parasegments

  • Act on cells, not syncytium


Slide13 l.jpg

  • engrailed:

  • Transcription factor

  • Expressed in anterior of each parasegment

  • Delimits a boundary of cell lineage restriction

  • Selector gene – confers regional identity through control of other genes and act for a longer period (engrailed expressed throughout life)


Slide14 l.jpg

  • engrailed activity begins at cellularization

  • 14 stripes at anterior of each parasegment

  • Initially expressed in one line of cells in each parasegment

  • Result of combinations of pair-rule

  • transcription factors

  • Evidence – fushi tarazu mutations

  • lead to engrailed expression

  • only in odd numbered

  • parasegments (missing where

  • fushi tarazu is expressed)


Slide15 l.jpg

  • Anterior margin of engrailed expression is a boundary of cell lineage restriction

  • Cells in a parasegment never move into the adjacent parasegment

  • Suggests common genetic control (controlling development and preventing mixing)

  • Compartments - detected by labelling a single cell to identify all descendents at a later stage

  • Cell lineage studies show that all descendents are restricted to the specific parasegment

  • Forms border between anterior and posterior portions of the final segments (defined by engrailed)


Slide16 l.jpg

  • Minute technique can be used to show common genetic control of cells in a compartment in adult wing development

  • (Box 5B)

  • Normal wing – compartment is constructed of all descendents of a founding cell

  • engrailed mutants – descendents of marked cell are not limited to one part of the segment

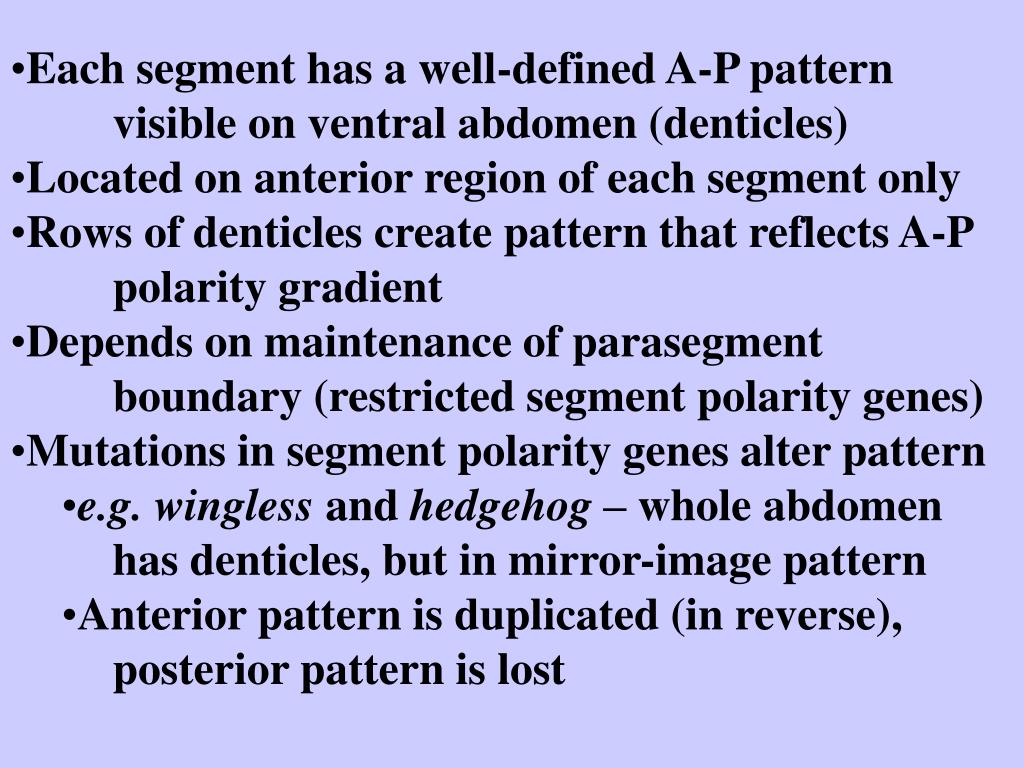

Slide17 l.jpg

  • Each segment has a well-defined A-P pattern visible on ventral abdomen (denticles)

  • Located on anterior region of each segment only

  • Rows of denticles create pattern that reflects A-P polarity gradient

  • Depends on maintenance of parasegment boundary (restricted segment polarity genes)

  • Mutations in segment polarity genes alter pattern

    • e.g. wingless and hedgehog – whole abdomen has denticles, but in mirror-image pattern

    • Anterior pattern is duplicated (in reverse), posterior pattern is lost


Slide18 l.jpg

  • Denticle pattern is created by segment polarity genes, intercellular signalling

  • hedgehog and wingless encode secreted signalling proteins similar to vertebrate sonic hedgehog and Wnt

  • engrailed and hedgehog are expressed at the anterior margin of the parasegment boundary

  • wingless is expressed at the posterior margin

  • patched is expressed in cells where engrailed and hedgehog are not expressed


Slide19 l.jpg

  • hedgehog encodes secreted protein that maintains wingless in the adjacent cell on the other side of the boundary

  • wingless encodes a secreted glycoprotein that maintains engrailed and hedgehog

  • Other segment polarity genes encode other components of these signalling pathways (e.g. patched encodes the receptor for the hedgehog protein)

  • Gradients of hedgehog and

  • wingless signals are set up within

  • each segment boundary


Slide20 l.jpg

Evidence from other insects:

Oncopeltus and Galleria

  • Oncopeltus have hairs covering each segment

  • Normally each hair points in an anterior to posterior direction

  • Gap in the segment boundary leads to disruption of orientation in some individuals

  • Can be explained by a morphogen gradient from anterior to posterior of each segment

  • If the gradient gives hairs their polarity they will point down the gradient

  • Gap in the boundary will lead to a change in the local gradient (opposite direction)


Slide21 l.jpg

  • Galleria provide evidence for this gradient via grafting experiments

  • Have 7 types of cuticle scales arranged in consecutive bands

  • Grafting a piece of larval cuticle to a more anterior position leads to repatterning in that region of the host

  • Best explained by gradient that determines polarity

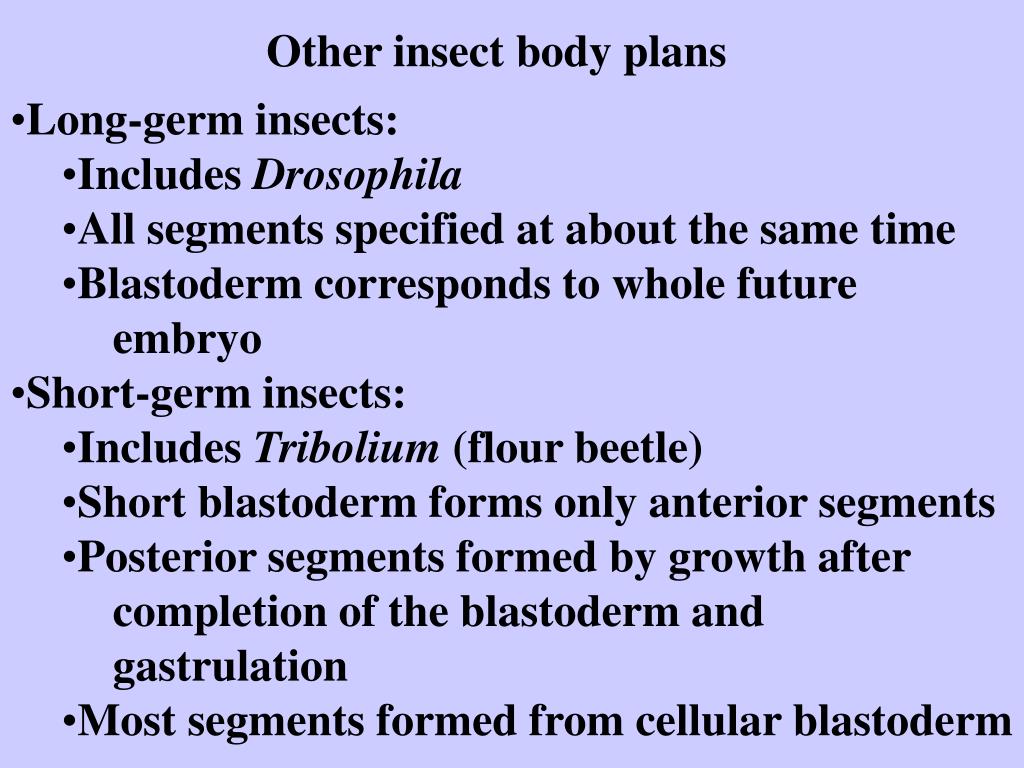

Slide22 l.jpg

Other insect body plans

  • Long-germ insects:

    • Includes Drosophila

    • All segments specified at about the same time

    • Blastoderm corresponds to whole future embryo

  • Short-germ insects:

    • Includes Tribolium (flour beetle)

    • Short blastoderm forms only anterior segments

    • Posterior segments formed by growth after completion of the blastoderm and gastrulation

    • Most segments formed from cellular blastoderm


Slide23 l.jpg

  • Both long- and short-germ insects appear similar as mature embryos

  • All share a common developmental stage (phylotypic stage)

  • Although short-germ insects lay down much of their body plan later than Drosophila (after cellularization), the same genes are involved

  • e.g. Krüppel is expressed in blastoderm stage in the posterior end of Tribolium (different area, but same body region)

  • 2 pair-rule repeats + posterior cap

  • wingless and engrailed expression


Slide24 l.jpg

  • Most genes have not been studied in insects other than Drosophila, but a few are known

  • engrailed is expressed in posterior segments of many insects

  • even skipped is expressed in grasshoppers (short-germ insects), but plays a different role in their development

    • Nervous system

    • Growing posterior germ band


Slide25 l.jpg

  • Leaf Hoppers (Euscelis) have anterior-posterior axis determining mechanism similar to the bicoid gradient

  • Evidence comes from 2 experiments

  • Ligature tied around the fertilized egg causes a gap in the body plan

  • Eggs have a posterior ball of symbiotic bacteria

    • Ball is moved anteriorly with a microneedle, taking some cytoplasm along

    • Ligature tied behind ball causes development of normal structures anterior to the ligature and incomplete mirror-image structures on the other side


Slide26 l.jpg

  • Parasitic wasps provide an example of more dramatic differences

  • Small eggs form a ball of cells during cleavage

  • Ball falls apart forming up to 400 cell clusters

  • Each cluster can develop into a separate embryo

  • Not dependent on maternal information for body axis specification


Slide27 l.jpg

Homeotic Selector Genes

  • Segment polarity genes are turned on in each segment

  • Homeotic selector genes specify the identity of each segment

  • Selector genes are a class of regulatory genes (control activity of other genes)

  • Organized into 2 gene complexes in Drosophila

  • Together they are homologous to a single vertebrate Hox gene complex

  • Homeotic genes code for transcription factors that contain a homeobox sequence (180bp, conserved)

  • Control patterning in vertebrates too, but first identified and best understood in Drosophila


Slide28 l.jpg

  • 2 homeotic complexes

  • Named for mutations that

  • revealed existance

  • Bithorax – part of haltere on

  • 3rd thoracic segment is

  • transformed into part of a wing

  • Antennapedia – dominant

  • mutations transform

  • antenae into legs

  • Homeosis is the

  • transformation of one

  • segment into another related one


Slide29 l.jpg

  • Transformations occur due to the role of selector genes in positional identity

  • Control activity of other genes in a segment

    • e.g. will an imaginal disc develop as a wing, or a leg?


Slide30 l.jpg

posterior

anterior

  • Bithorax controls development of parasegments 5-14

  • Antennapedia controls anterior parasegments

  • Bithorax is best understood (discussed first)

    • 3 genes (regulated by gap & pair-rule)

      • ultrabithorax (parasegment 5 onward)

      • abdominal-A (parasegment 7 onward)

      • abdominal-B (parasegment 10 onward)

      • abdominal-B suppresses ultrabithorax (low in 14)


Slide31 l.jpg

  • The role of genes in the bithorax complex was shown using classical experiments in which all or parts of the complex were missing

  • Larvae lacking the whole bithorax complex – parasegments 5-13 all resemble parasegment 4 (basic pattern represents “default” state)

  • Genes put back one at a time to deduce the role of each

    • Ultrabithorax alone – one parasegment 4, one parasegment 5, and eight parasegment 6

    • Abdominal-A + ultrabithorax – parasegments 4, 5, 6, 7, 8, and five parasegment 9

    • Abdominal-B added – normal development (expression highest in parasegment 14)

  • Differences between segments reflect spatial and temporal pattern of homeotic gene expression


Slide32 l.jpg

  • Bithorax genes act in a combinatorial manner to specify parasegments (seen by removing genes one at a time)

  • Ultrabithorax absent – parasegments 5 and 6 converted to 4, effect on cuticle pattern in 7-14 (characterisctics of thorax in abdomen)

  • Expression of combinations not normally present leads to these abnormalities (nonsense combinations, abdominal-A without ultrabithorax)


Slide33 l.jpg

  • Gap and pair-rule genes control the pattern of homeotic gene expression, but their proteins disappear after about 4 hours

  • Other genes are needed to maintain continued expression of homeotic genes

  • 2 groups of genes are involved

    • Polycomb – maintains transcritional repression in cells where homeotic genes are off

    • Trithorax – maintains expression in cells where homeotic genes are on


Slide34 l.jpg

posterior

anterior

  • Antennapedia complex has five homeobox genes

  • Work on same principle

    • Deformed – mutations affect parasegments 0 and 1

    • Sex combs reduced - mutations affect parasegments 2 and 3

    • Antennapedia - mutations affect parasegments 4 and 5

    • Labial and proboscidea – mouth parts??


Slide35 l.jpg

posterior

anterior

  • In both homeotic gene comlpexes the genes occur in the same spatial and temporal order (3´-5´) in the complex as their expression (A – P) in the embryo

  • Same pattern occurs in vertebrate Hox genes

  • Highly conserved co-linearity probably related to the mechanisms controlling expression


Slide36 l.jpg

  • Complex control of bithorax complex is shown in Drosophila engineered to express ultrabithorax in all segments

  • Ultrabithorax coding sequence is linked to a heat-shock promoter (activated at 290C)

  • Introduced using a P element

  • Heat-shock induces high levels of expression in all cells

    • No effect in most posterior segments that normally produce ultrabithorax

    • Parasegment 5 transformed into 6

    • Anterior parasegments also transformed into 6

    • Parasegment 13 not affected (normally suppressed, somehow inactivated)

  • Role of downstream genes is not well known


Slide37 l.jpg

Homeotic gene expression in visceral mesoderm controls structure of the adjacent gut

  • Engrailed and bithorax complex genes are expressed in the somatic and visceral mesoderm

  • Somatic mesoderm gives rise to main body muscles

  • Visceral mesoderm pattern induces gut endoderm

  • Developing midgut has 3 constrictions

  • Second constriction is in parasegment 7

  • Most homeotic genes are not expressed in endoderm

    • Specificity induced by expression in surrounding somatic mesoderm

    • Visceral mesoderm pattern of bithorax expression is different than ectoderm or somatic mesoderm


Slide38 l.jpg

  • Ultrabithorax is only expressed in the parasegment of visceral mesoderm adjacent to the second gut constriction (parasegment 7)

  • If absent, constriction does not develop and gut is abnormal

  • Ultrabithorax is not expressed in the endoderm, but acts through decapentaplegic and labial

  • Dpp and labial are expressed in the area of constriction, but hardly expressed in absence of ultrabithorax (necessary to activate them)


Slide39 l.jpg

  • Ultrabithorax protein activates decapentaplegic in visceral mesoderm

  • Decapentaplegic protein diffuses into adjacent endoderm

  • Stimulates signalling pathway that activates labial

  • Labial is involved in gut morphogenesis

  • Transfer of positional information from one germ layer to another is similar to vertebrate nervous system induction


  • Login
