Rockwell hardness meter -A11

<br>Rockwell hardness meter is a mechanical & electrical hardness testing instrument with novel design, digital display and micro-processor controlled loading system. Its automatic loading control eliminates operational errors in reading. It is used for the testing of ferrous & non-ferrous materials, plastic materials at Rockwell scale. The digital display shows test force values, dwell time, unloading, hardness results, conversion table etc. to study.

Aliza16
Download Presentation

Rockwell hardness meter -A11

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

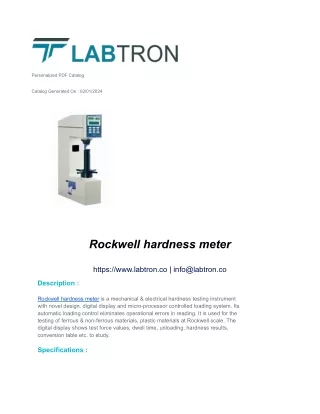

  1. Personalized PDF Catalog Catalog Generated On : 02/01/2024 Rockwell hardness meter https://www.labtron.co | info@labtron.co Description : Rockwell hardness meter is a mechanical & electrical hardness testing instrument with novel design, digital display and micro-processor controlled loading system. Its automatic loading control eliminates operational errors in reading. It is used for the testing of ferrous & non-ferrous materials, plastic materials at Rockwell scale. The digital display shows test force values, dwell time, unloading, hardness results, conversion table etc. to study. Specifications :

  2. Preliminary test force 98 N Total test force 588, 980, 1471 N Total test force dwell time 1 to 30 S Hardness indication Digital display Resolution 0.1 HR Loading control Automatic Maximum height of specimens 170 mm Distance from Indenter’s center to outer wall 165 mm HRA 20 to 88 Range of Rockwell hardness value HRB 20 to 100 HRC 20 to 70 Dimension of the machine 490 × 212 × 750 mm Weight 85 kg Power supply AC 220 V , 50 Hz

  3. Features : Automatic feedback lock among rotary wheels LCD Digital display 1.587 mm steel ball indenter USB connection to printer Automatic loading control Rockwell scale HRA, HRB, HRC Stainless steel weight selection control knob Outside body with cast –iron material Cone diamond indenter Easy to operate Applications : Rockwell hardness tester with digital display has applications in workshops, inspection and production, and plastic industry.

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
