Kinematics Viscometer

<br><br>Kinematics Viscometer is designed with hard glass bath and electric stirring device with 1200 rpm stirring motor. Designed as per ASTM D445 standard configuration, features ambient to 100u00b0C of temperature range and 0 to 9999.9 s of time range. Compact design with RTD PT100 sensor for uniform bath temperature and 6 capillary Pinkevitch viscometer tubes, it is an ideal unit to determine kinematic viscosity of liquid petroleum products (Newtonian fluids) at a constant temperature.

Aliza16
Download Presentation

Kinematics Viscometer

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

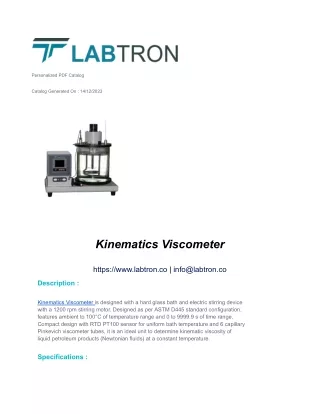

  1. Personalized PDF Catalog Catalog Generated On : 14/12/2023 Kinematics Viscometer https://www.labtron.co | info@labtron.co Description : Kinematics Viscometer is designed with a hard glass bath and electric stirring device with a 1200 rpm stirring motor. Designed as per ASTM D445 standard configuration, features ambient to 100°C of temperature range and 0 to 9999.9 s of time range. Compact design with RTD PT100 sensor for uniform bath temperature and 6 capillary Pinkevich viscometer tubes, it is an ideal unit to determine kinematic viscosity of liquid petroleum products (Newtonian fluids) at a constant temperature. Specifications :

  2. Ambient temperature 15 to 35°C Relative humidity ≤ 85% Capillary viscometer 6 capillary Pinkevitch viscometer tubes Stirring motor 1200 rpm Temperature range Ambient to 100°C Temperature accuracy ±0.1℃ Time range 0 to 9999.9 s Temperature sensor RTD PT100 Capillary viscometer diameter 0.6 mm, 0.8 mm, 1mm, 1.2 mm, 1.5 mm, 2 mm Bath capacity 12 L Bath size Φ255×240 mm Dimension (W×D×H) 500×310×500 mm Net weight 11.5 kg

  3. Features : Hard glass bath, allow personnel to observe liquid flow Electric stirring device with 1200 rpm stirring motor Ambient to 100°C of temperature range and 0 to 9999.9 s of time range RTD PT100 sensor for uniform bath temperature 6 capillary Pinkevich viscometer tubes with different inner diameters Designed as per ASTM D445 standard configuration An ideal unit to determine kinematic viscosity of liquid petroleum products (Newtonian fluids) at a constant temperature Applications : Kinematics Viscometer is used to measure flow times for a fixed volume of fuel to flow under gravity through a capillary of the viscometer across the fields of petroleum and its products industries, research and development department etc.

  4. www.labtron.co Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.co | Website: https://www.labtron.co/ | Phone: +44 2080 043 608
