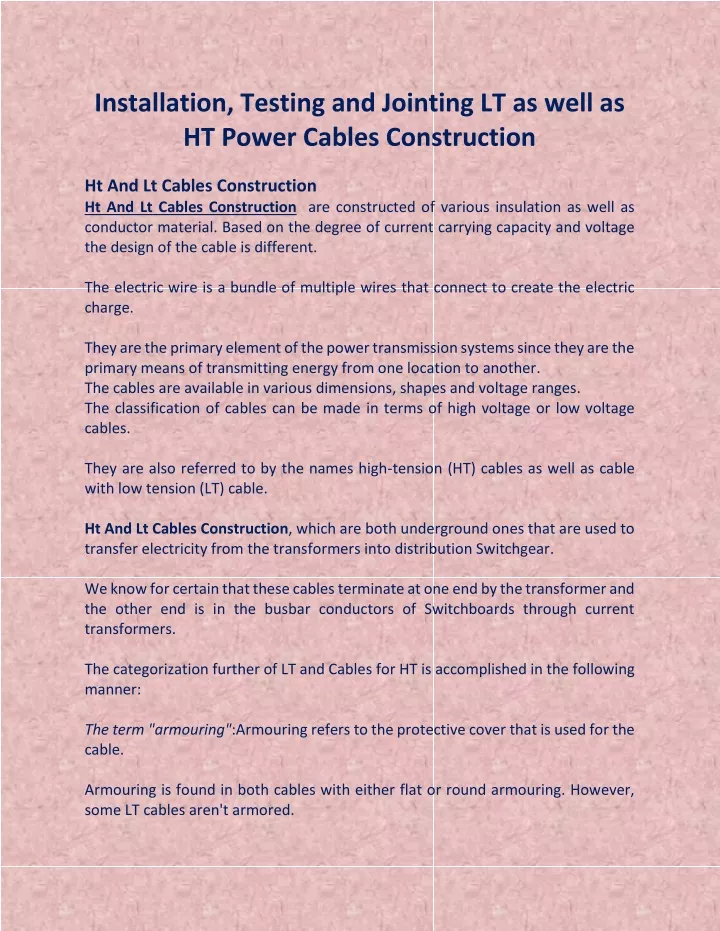

  1. Installation, Testing and Jointing LT as well as HT Power Cables Construction Ht And Lt Cables Construction Ht And Lt Cables Construction are constructed of various insulation as well as conductor material. Based on the degree of current carrying capacity and voltage the design of the cable is different. The electric wire is a bundle of multiple wires that connect to create the electric charge. They are the primary element of the power transmission systems since they are the primary means of transmitting energy from one location to another. The cables are available in various dimensions, shapes and voltage ranges. The classification of cables can be made in terms of high voltage or low voltage cables. They are also referred to by the names high-tension (HT) cables as well as cable with low tension (LT) cable. Ht And Lt Cables Construction, which are both underground ones that are used to transfer electricity from the transformers into distribution Switchgear. We know for certain that these cables terminate at one end by the transformer and the other end is in the busbar conductors of Switchboards through current transformers. The categorization further of LT and Cables for HT is accomplished in the following manner: The term "armouring":Armouring refers to the protective cover that is used for the cable. Armouring is found in both cables with either flat or round armouring. However, some LT cables aren't armored.

  2. Insulation:Unlike other cables, the LT and HT cables are equipped with an insulation layer for protection from external or mechanical factors. LT cables are insulated with substances like polyvinyl chloride (PVC) or cross-linked polyethylene (XLPE). The majority of HT cables have XLPE insulation. Conductors:Conductors used in LT and HT cables are made of Aluminum or Copper. Aluminum is less expensive when compared to Copper. The market price for Copper is subject to fluctuations, so the cost of cables fluctuates in line with it. Applications:LT and HT cables can be used in many fields of use. LT cables are used in various industries, such as power distribution railways, power stations, railways and so on. They are based on a 1.1 KV range. When HT cables are utilized, they're used for power distribution and transmission with a greater range than 1.1 1 kV.

  3. High Temperature Cables Electric Cables offered find application as power cables in facilities that operate in high temperature environments in areas that are not suitable to use normal PVC cables. These areas with high temperatures include close to furnaces, boilers, rotary kilns, boilers and other. The extreme temperatures in the furnace often damage the wiring for motors, control panels and other equipment that require replacement of cables at regular intervals, which causes a significant loss in productivity. H.T as well as L.T cables Construction Coding Information: Every cable LT or HT is equipped with a Construction code which indicates the different types of materials that are used in it. The coding follows Indian standards. By using H.T as well as L.T Cables construction coding we can recognize the components employed in the process.
