planning voice deployments

EXL410

Planning Voice Deployments

Subbu Chandrasekaran

Senior Program Manager

Microsoft Corporation

agenda
Agenda
  • Review Lync 2010 Topology
  • Planning for Lync 2010 features
  • Reference Architecture, High Availability and Resiliency
  • Interoperability Principles
  • IP-PBX Interop
    • Media Bypass
    • Migration Approaches
  • Video Interop
takeaways
Takeaways
  • How to deployment enterprise voice in Greenfield environment
  • How to enable Interop with existing PBX
agenda1
Agenda
  • Review Lync 2010 Topology
  • Planning for Lync 2010 features
  • Reference Architecture, High Availability and Resiliency
  • Interoperability Principles
  • IP-PBX Interop
    • Media Bypass
    • Migration Approaches
  • Video Interop

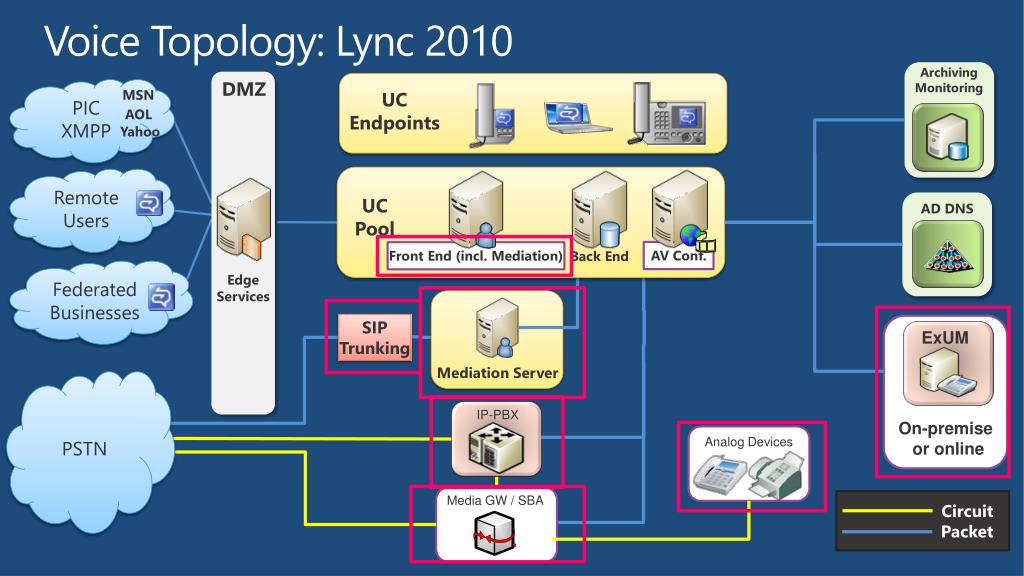

voice topology lync 2010
Voice Topology: Lync 2010

Archiving

Monitoring

DMZ

PICXMPP

MSN

UC Endpoints

AOL

Yahoo

Remote

Users

UC Pool

AD DNS

AV Conf.

Front End (incl. Mediation)

Back End

Federated

Businesses

Edge

Services

Analog Devices

SIP Trunking

ExUM

Mediation Server

PSTN

IP-PBX

Media GW / SBA

On-premise or online

Circuit

Packet

voice resiliency architecture

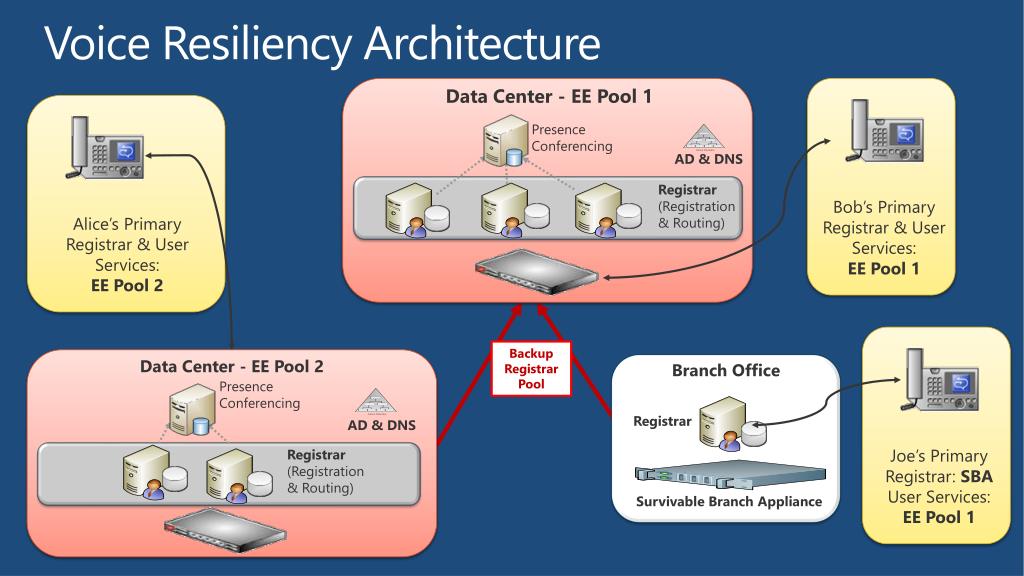

Voice Resiliency Architecture

Data Center - EE Pool 1

Presence

Conferencing

AD & DNS

Registrar

(Registration

& Routing)

Bob’s Primary Registrar & User Services:EE Pool 1

Alice’s Primary Registrar & User Services:EE Pool 2

Backup

Registrar

Pool

Data Center - EE Pool 2

Branch Office

Presence

Conferencing

Registrar

AD & DNS

Joe’s Primary Registrar: SBA

User Services:EE Pool 1

Registrar

(Registration

& Routing)

Survivable Branch Appliance

agenda2
Agenda
  • Review Lync 2010 Topology
  • Planning for Lync 2010 features
  • Reference Architecture, High Availability and Resiliency
  • Interoperability Principles
  • IP-PBX Interop
    • Media Bypass
    • Migration Approaches
  • Video Interop
location and enhanced 911
Location and Enhanced 911
  • Uses LIS (Location Information Server )
  • Location used for Presence, Emergency Routing, or both
  • LIS database Contains):
    • Wireless Access Point (BSSID)
    • LLDP Port
    • LLDP Switch
    • Subnet
    • MAC
  • Location Policy used for E911 and routing
    • User
    • Subnet
  • E911 provided through Emergency Service Provider
    • Include Security Desk IM and conference
  • Outside United States; use location based emergency routing
voice routing trunk translations
Voice Routing – Trunk Translations
  • Centrally manage number formatting prior to routing to PBX/PSTN
  • Alice calls London using Redmond +44221234567  01144221234567
  • Alice calls London using London GW+44221234567  0221234567
caller id presentation controls
Caller ID Presentation Controls
  • Natively control Caller ID presented to PSTN/PBX:
    • Granular controls based on callers and destination number:
    • Alice to external PSTN number, +1 425 707 9050  +1 425 882 8080
    • Alice to internal PBX number, +1 425 707 9050  +1 425 707 9050
    • Controlled by PSTN usage
    • Overrides “simultaneous ringing”:
      • Bob calls Alice; Bob has masking for external calls & also has simultaneous ringing
      • Bob’s caller-id is presented to Alice’s mobile device
exchange unified messaging um
Exchange Unified Messaging (UM)
  • The Only supported voice mail solution
  • Support for Exchange UM 2007 SP1 and newer
  • Co-locate UM and Mailbox servers
    • MAPI traffic is less tolerant of latency than VoIP in this scenario
  • UM and Lync in separate forests is supported
    • Just ensure the EUM settings in the user objects are synched to Lync forest
  • Exchange Online and OnPrem together?
    • Yes
    • Turn on EUM enablement setting on the user object
      • User Move
      • LyncPowershell
    • Edge Server is required to be deployed
and much more

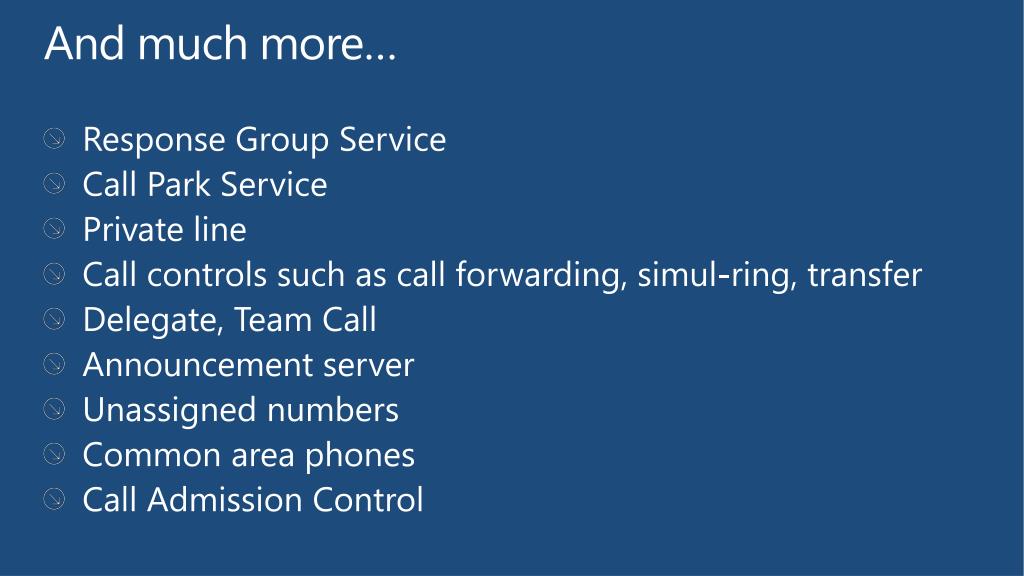

And much more…
  • Response Group Service
  • Call Park Service
  • Private line
  • Call controls such as call forwarding, simul-ring, transfer
  • Delegate, Team Call
  • Announcement server
  • Unassigned numbers
  • Common area phones
  • Call Admission Control
agenda3
Agenda
  • Review Lync 2010 Topology
  • Planning for Lync 2010 features
  • Reference Architecture, High Availability and Resiliency
  • Interoperability Principles
  • IP-PBX Interop
    • Media Bypass
    • Migration Approaches
  • Video Interop
topologies simplified
Topologies Simplified

Topologies

Servers

Optional Servers

Front end

Mediation

Standard Edition

Back end

Group Chat

Director

Archiving

Monitoring

Enterprise Edition

AV Conf

SCOM

Edge

UM

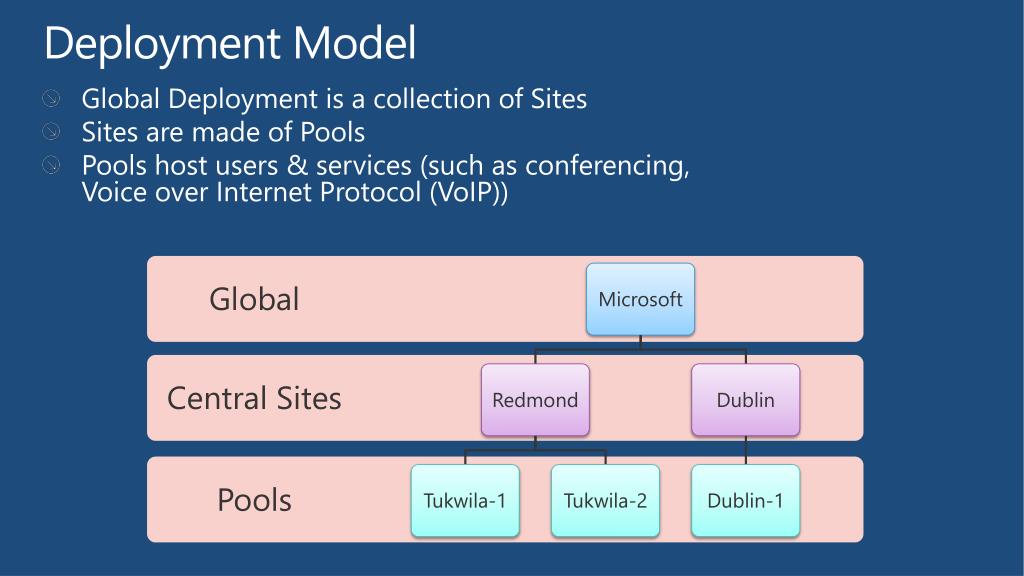

deployment model
Deployment Model
  • Global Deployment is a collection of Sites
    • Sites are made of Pools
    • Pools host users & services (such as conferencing, Voice over Internet Protocol (VoIP))
deployment options

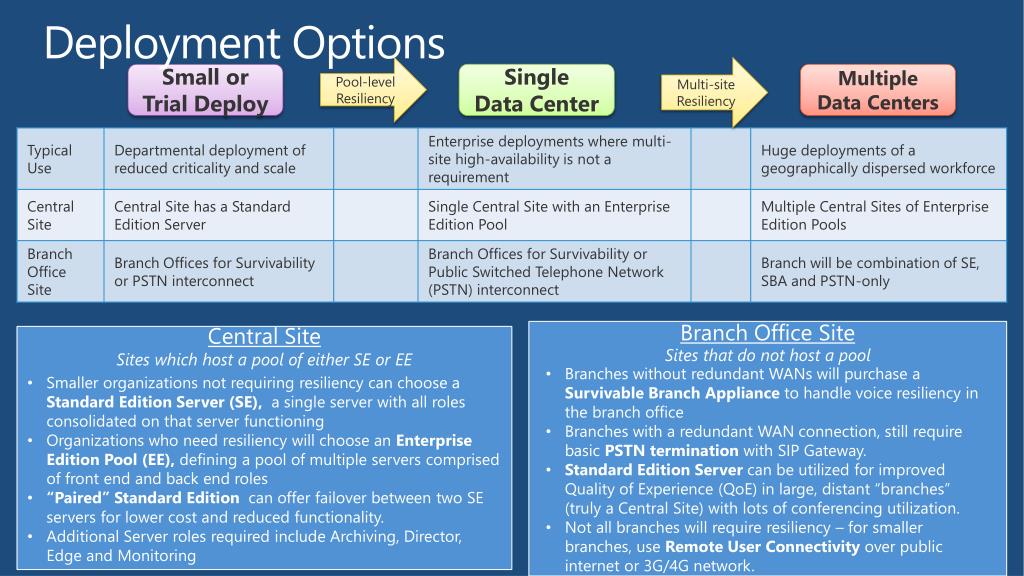

Deployment Options

Pool-level Resiliency

Multi-site Resiliency

Small or Trial Deploy

Single

Data Center

Multiple Data Centers

Branch Office Site

Central Site

Sites that do not host a pool

Sites which host a pool of either SE or EE

  • Branches without redundant WANs will purchase a Survivable Branch Appliance to handle voice resiliency in the branch office
  • Branches with a redundant WAN connection, still require basic PSTN termination with SIP Gateway.
  • Standard Edition Server can be utilized for improved Quality of Experience (QoE) in large, distant “branches” (truly a Central Site) with lots of conferencing utilization.
  • Not all branches will require resiliency – for smaller branches, use Remote User Connectivity over public internet or 3G/4G network.
  • Smaller organizations not requiring resiliency can choose a Standard Edition Server (SE), a single server with all roles consolidated on that server functioning
  • Organizations who need resiliency will choose an Enterprise Edition Pool (EE), defining a pool of multiple servers comprised of front end and back end roles
  • “Paired” Standard Edition can offer failover between two SE servers for lower cost and reduced functionality.
  • Additional Server roles required include Archiving, Director, Edge and Monitoring
reference topologies

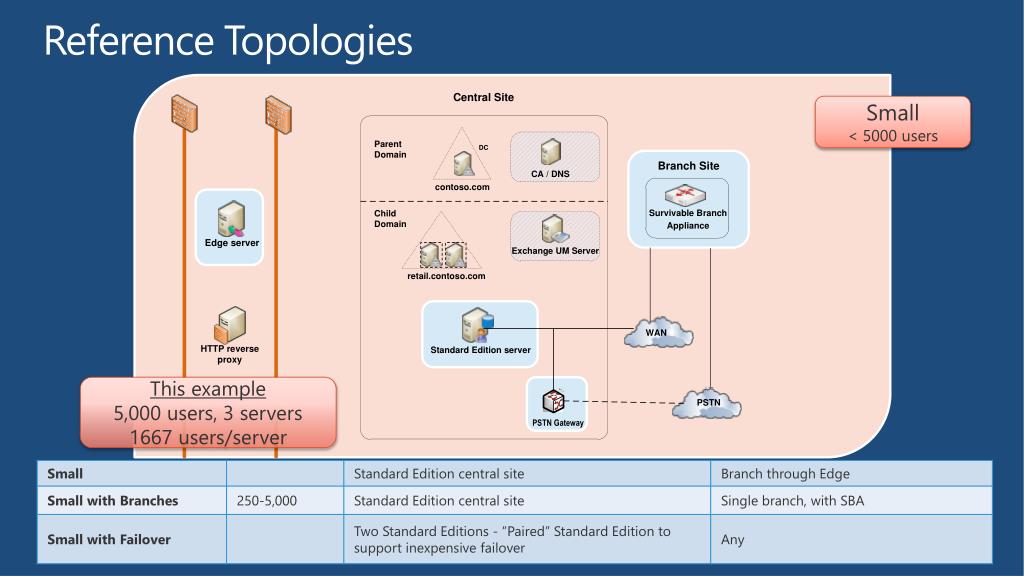

Reference Topologies

Small

< 5000 users

This example

5,000 users, 3 servers

1667 users/server

reference topologies1
Reference Topologies

Single Datacenter

< 100,000 users

This example

20,000 users, HA, 14 servers

1429 users/server

reference topologies2

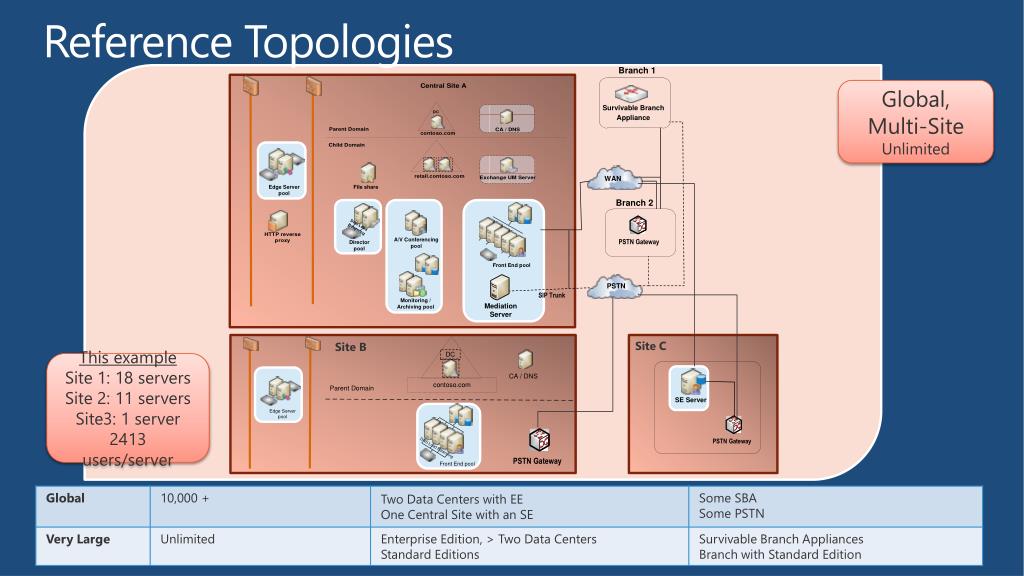

Reference Topologies

Global,

Multi-Site

Unlimited

Site C

Site B

This example

Site 1: 18 servers

Site 2: 11 servers

Site3: 1 server

2413 users/server

survivable branch appliance sba

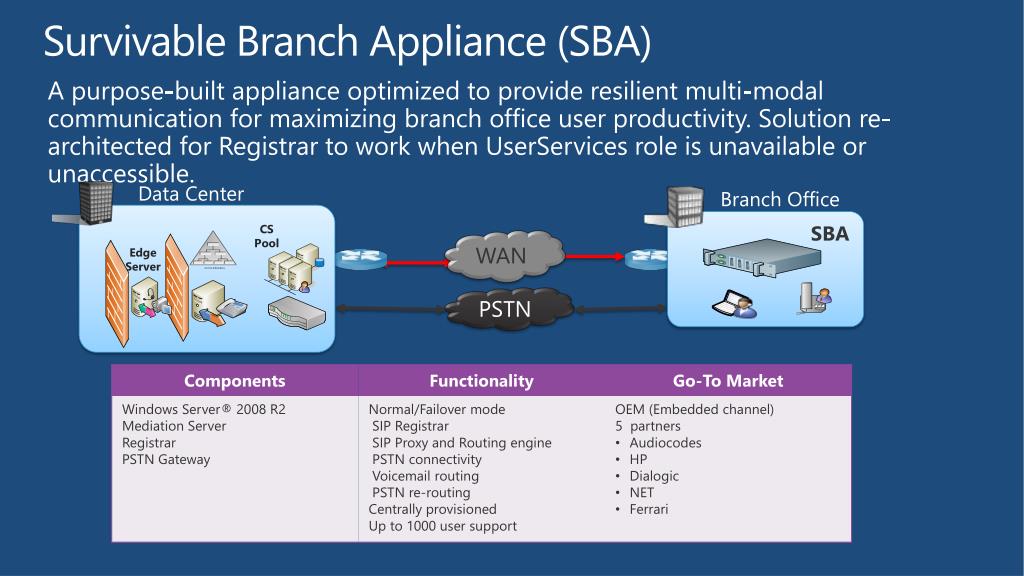

Survivable Branch Appliance (SBA)

A purpose-built appliance optimized to provide resilient multi-modal communication for maximizing branch office user productivity. Solution re-architected for Registrar to work when UserServices role is unavailable or unaccessible.

Data Center

Branch Office

CS

Pool

Edge

Server

SBA

WAN

PSTN

agenda4
Agenda
  • Review Lync 2010 Topology
  • Planning for Lync 2010 features
  • Reference Architecture, High Availability and Resiliency
  • Interoperability Principles
  • IP-PBX Interop
    • Media Bypass
    • Migration Approaches
  • Video Interop
ip pbx interoperability pain points in ocs 2007 r2
IP-PBX InteroperabilityPain points in OCS 2007 R2
  • Interoperability via Direct SIP (OIP qualification)
    • Very broad range of PSTN gateways, Direct SIP to IP-PBX
  • R2 Direct SIP requires routing media through Mediation Server
    • Not a significant problem for central sites
    • But difficult in branches:
      • Requires Mediation Servers in branches and/or
      • Media tromboning (hairpin through the WAN to Mediation Server in central site)
slide23

IP-PBX InteroperabilityinOCS 2007 R2Direct SIP to IP-PBX

OIPqualifiedIP-PBX

OCS pool

MediationServer

OCS end-points

Media

PBX end-points

Signaling

slide24

Lync 2010: Media Bypass

  • Removes need for media transit
    • Signaling continues to transit through Mediation
      • B2BUA: security demarc, interop…
    • Media goes direct
      • 3 Advantages + media resiliency
  • Based on location of Media endpoints
    • Bypass only occurs if client is “local” to next hop
      • G.711 direct – optimized for LAN-like conditions; SRTP supported
    • When client is not “local”, media goes through Mediation
      • Codec optimized for WAN using per session CAC;
      • Mediation provides audio healing
  • Enables “lightweight” Mediation (collocation with FE, SBA)
slide25

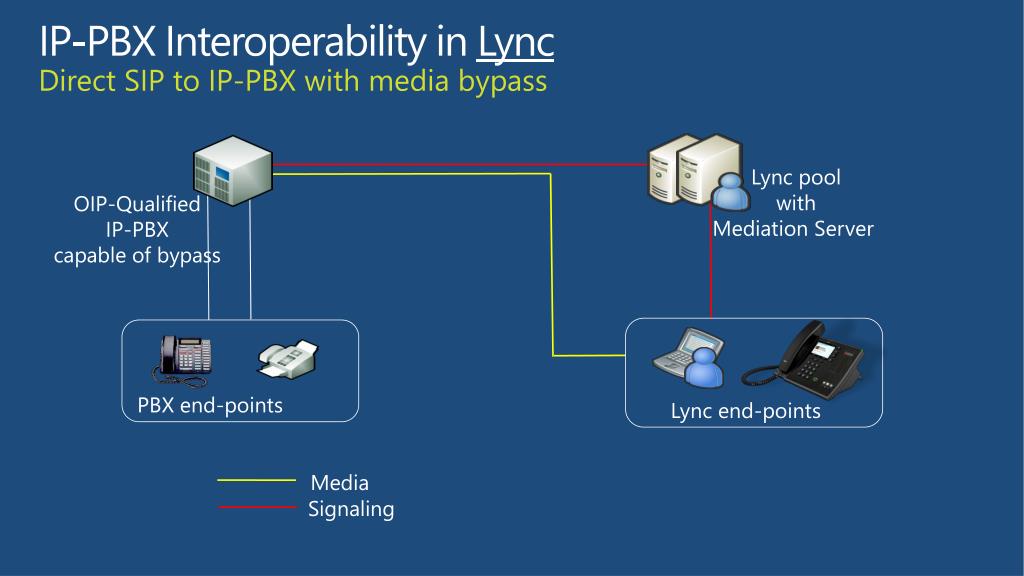

IP-PBX Interoperability in LyncDirect SIP to IP-PBX with media bypass

Lync poolwithMediation Server

OIP-QualifiedIP-PBX

capable of bypass

Lync end-points

Media

PBX end-points

Signaling

slide26

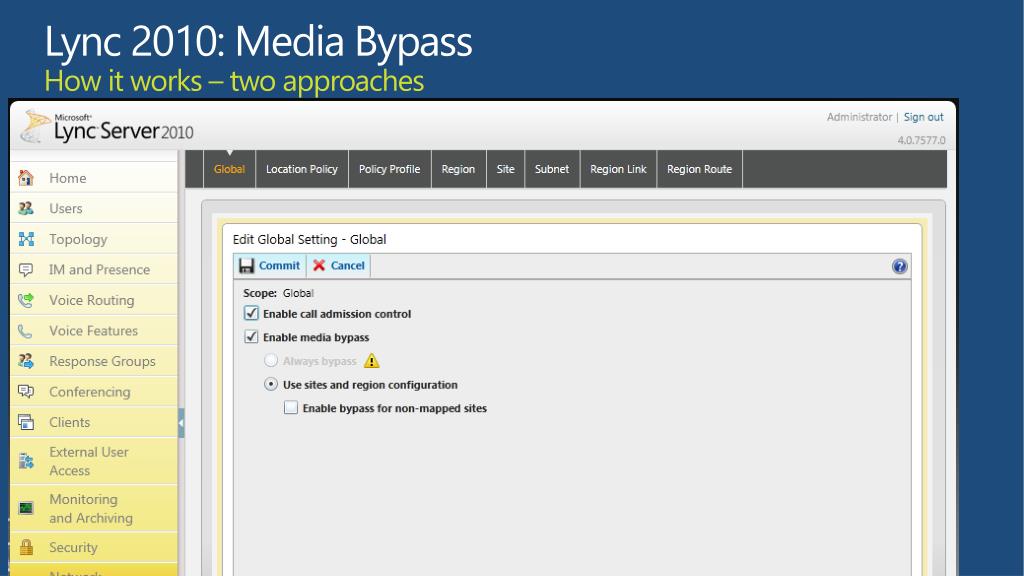

Lync 2010: Media Bypass

How it works – two approaches

  • “Always Bypass” in “Global Settings”
    • Treats as a single site ( requires good connectivity )
    • No Call Admission Control
    • Will always bypass to trunks enabled for bypass
  • Network Configuration Setting
    • Leverages Region/Sites definition
      • Each site/Region is assigned Bypass ID
    • Uses current client location
      • Client IP address  Bypass ID
      • Gateway address (for media)  Bypass ID
    • Comparison of the IDs, bypass if the two IDs match
slide27

Lync 2010: Media Bypass

How it works – two approaches

slide28

Lync 2010: Media Bypass

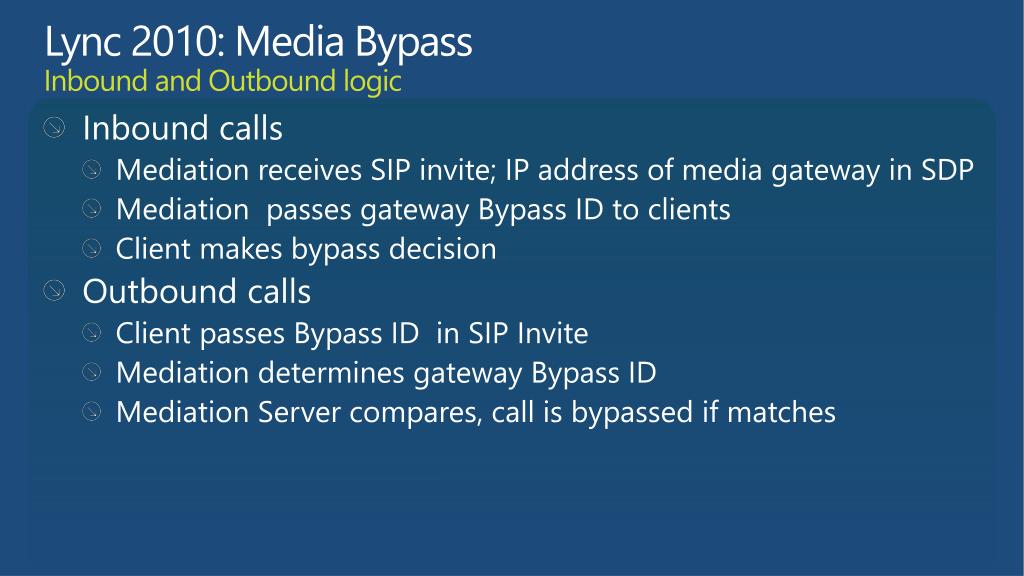

Inbound and Outbound logic

  • Inbound calls
    • Mediation receives SIP invite; IP address of media gateway in SDP
    • Mediation passes gateway Bypass ID to clients
    • Client makes bypass decision
  • Outbound calls
    • Client passes Bypass ID in SIP Invite
    • Mediation determines gateway Bypass ID
    • Mediation Server compares, call is bypassed if matches
slide29

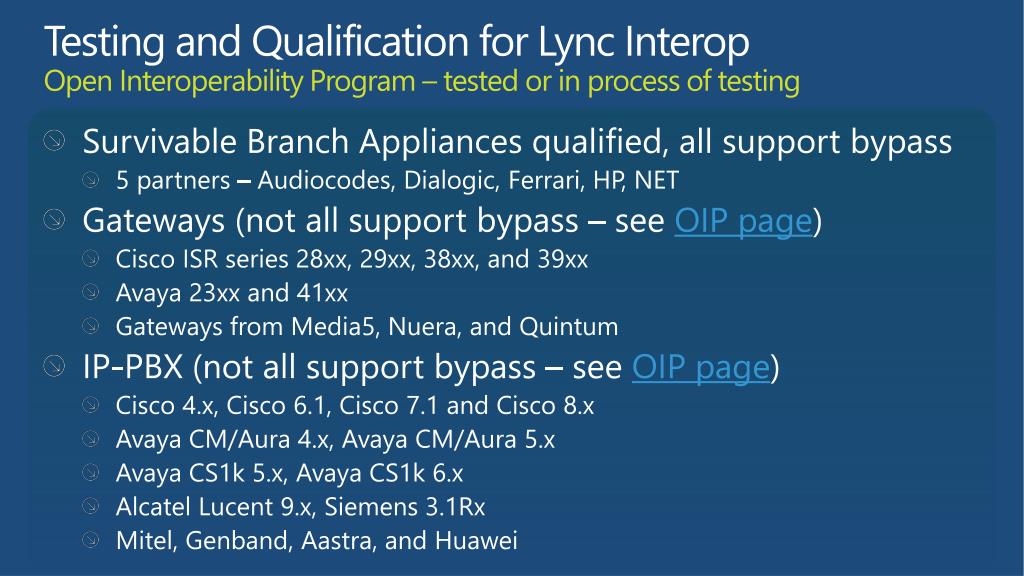

Testing and Qualification for Lync Interop

Open Interoperability Program – tested or in process of testing

  • Survivable Branch Appliances qualified, all support bypass
    • 5 partners – Audiocodes, Dialogic, Ferrari, HP, NET
  • Gateways (not all support bypass – see OIP page)
    • Cisco ISR series 28xx, 29xx, 38xx, and 39xx
    • Avaya 23xx and 41xx
    • Gateways from Media5, Nuera, and Quintum
  • IP-PBX (not all support bypass – see OIP page)
    • Cisco 4.x, Cisco 6.1, Cisco 7.1 and Cisco 8.x
    • Avaya CM/Aura 4.x, Avaya CM/Aura 5.x
    • Avaya CS1k 5.x, Avaya CS1k 6.x
    • Alcatel Lucent 9.x, Siemens 3.1Rx
    • Mitel, Genband, Aastra, and Huawei
slide30

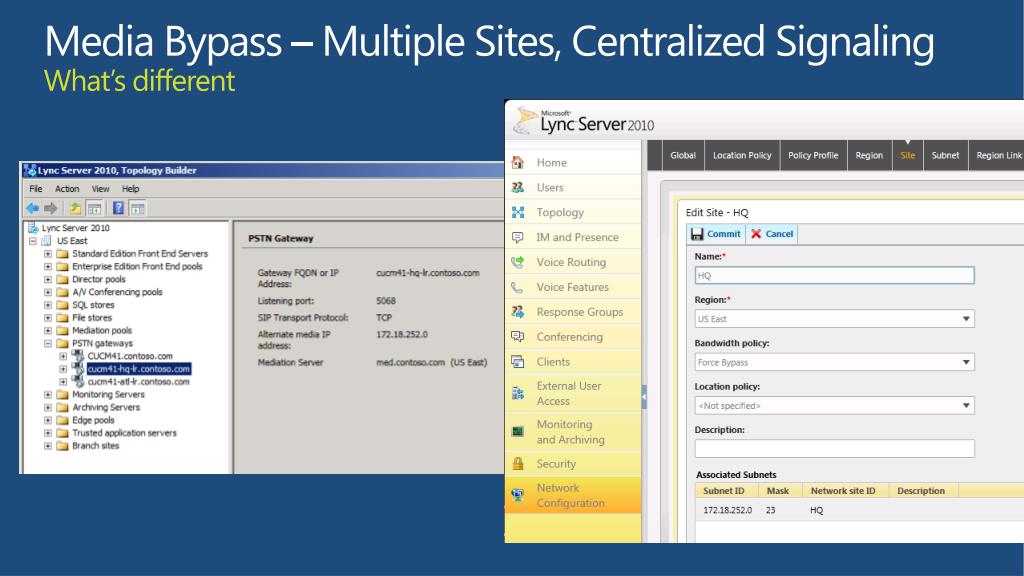

Media Bypass – Multiple Sites, Centralized Signaling

What’s different

  • Centralized IP-PBX with multiple sites
    • Local media gateways in branch sites (ex: Cisco ISR with MTP)
      • Want to bypass media to local gateway when Lync is in the branch site
  • Media bypass in multiple sites?? How to --
    • Define regions and sites in network Configuration
    • Define (virtual) media gateways in topology builder
      • Associate media IP in site to each “media gateway”
      • Define listening ports as appropriate
    • Establish appropriate routing on both systems
      • IP-PBX unaware of Lync dynamic location; suggest routing to local trunk

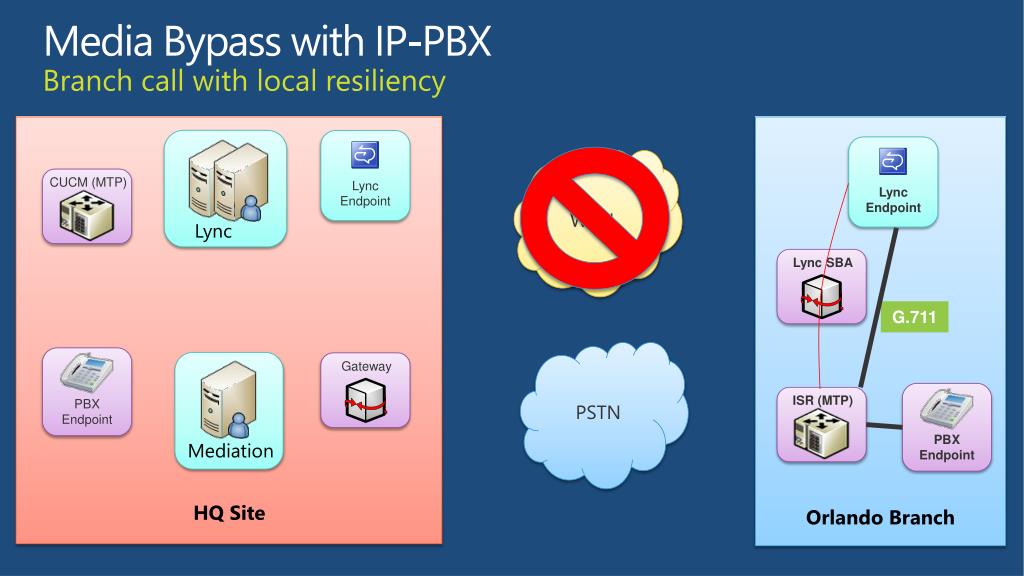

media bypass with cucm in branch call between lync endpoint and cisco phone via branch mtp
Media Bypass with CUCMIn-branch call between Lync endpoint and Cisco phone via branch MTP

WAN

Lync

G.711

Gateway

CUCM (MTP)

ISR (MTP)

PBX

Endpoint

Cisco

phone

PSTN

Mediation

Lync

Endpoint

Lync

Endpoint

HQ Site

Orlando Branch

media bypass with cucm in branch call between lync endpoint and cisco phone via branch mtp1
Media Bypass with CUCMIn-branch call between Lync endpoint and Cisco phone via branch MTP

WAN

Lync

G.711

Gateway

CUCM (MTP)

ISR (MTP)

PBX

Endpoint

Cisco

phone

PSTN

Mediation

Lync

Endpoint

Lync

Endpoint

Call stays up

HQ Site

Orlando Branch

no media bypass for calls on wan wan call between lync in branch and cisco phone via central mtp
No Media Bypass for Calls on WANWAN call between Lync in branch and Cisco phone via central MTP

WAN

RT Audio Narrowband

Lync

Gateway

G.711

CUCM (MTP)

ISR (MTP)

PBX

Endpoint

Ciscophone

PSTN

Mediation

Lync

client

Lync

client

HQ Site

Orlando Branch

media bypass with ip pbx branch call with local resiliency
Media Bypass with IP-PBXBranch call with local resiliency

WAN

Lync

Lync SBA

Gateway

CUCM (MTP)

ISR (MTP)

G.711

PBX

Endpoint

PBX

Endpoint

PSTN

Mediation

Lync

Endpoint

Lync

Endpoint

HQ Site

Orlando Branch

a migration and coexistence plan with cucm and isr

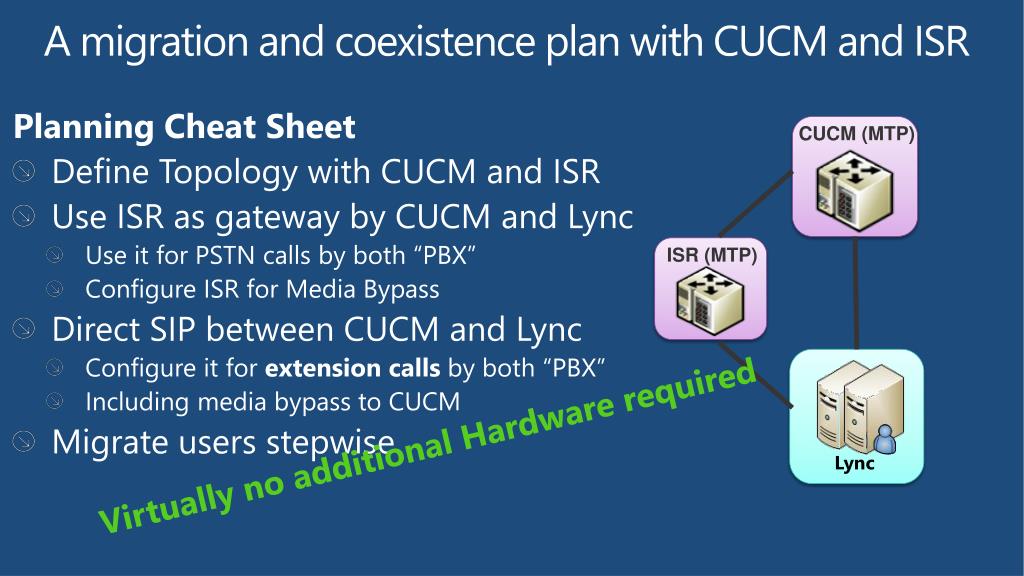

A migration and coexistence plan with CUCM and ISR

Planning Cheat Sheet

  • Define Topology with CUCM and ISR
  • Use ISR as gateway by CUCM and Lync
      • Use it for PSTN calls by both “PBX”
      • Configure ISR for Media Bypass
  • Direct SIP between CUCM and Lync
      • Configure it for extension calls by both “PBX”
      • Including media bypass to CUCM
  • Migrate users stepwise

Lync

CUCM (MTP)

ISR (MTP)

Virtually no additional Hardware required

takeaway

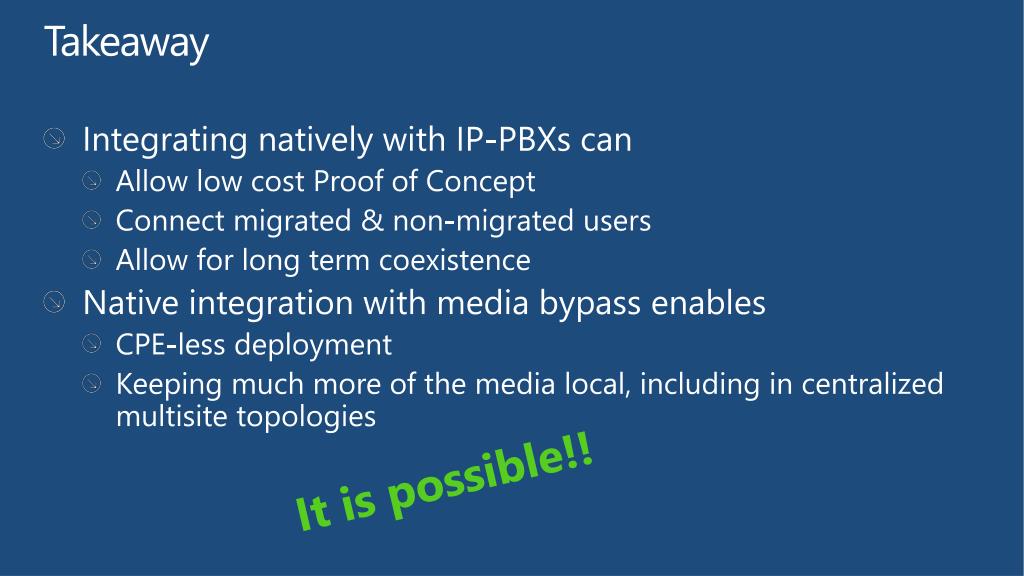

Takeaway
  • Integrating natively with IP-PBXs can
    • Allow low cost Proof of Concept
    • Connect migrated & non-migrated users
    • Allow for long term coexistence
  • Native integration with media bypass enables
    • CPE-less deployment
    • Keeping much more of the media local, including in centralized multisite topologies

It is possible!!

agenda5

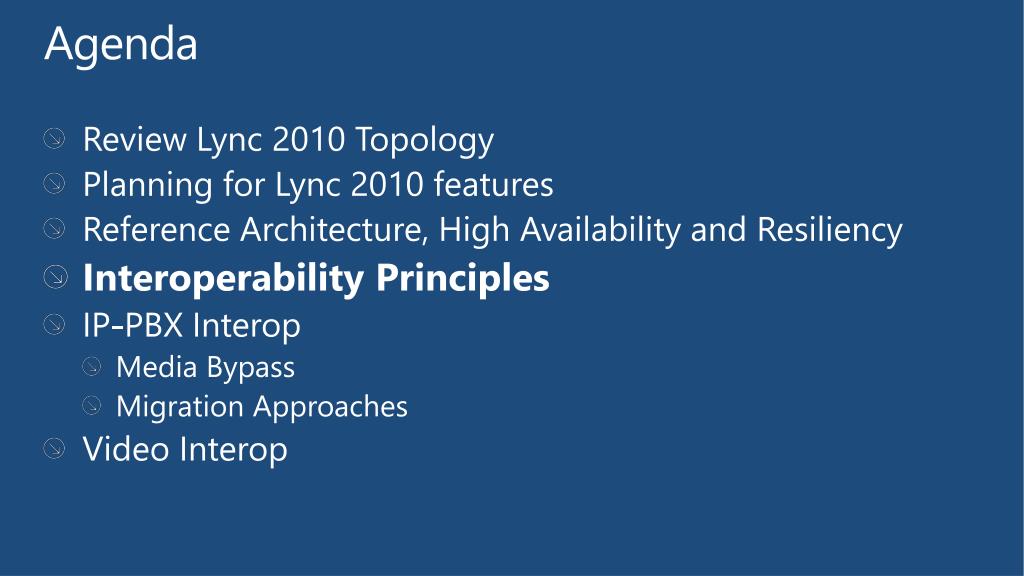

Agenda
  • Review Lync 2010 Topology
  • Planning for Lync 2010 features
  • Reference Architecture, High Availability and Resiliency
  • Interoperability Principles
  • IP-PBX Interop
    • Media Bypass
    • Migration Approaches
  • Video Interop
slide40

LyncVideoStrategy

  • High quality video in every desktop
    • High resolution at low cost
    • Single client experience
    • Integration with applications

High quality video in every desktop

  • Embrace and lead interoperability
    • Connect and integrate all legacy rooms (via gateways)
    • Foster innovation in endpoints natively interoperable with Lync
    • Develop on market standards and contribute to success of UCIF

Improve the

meeting room

experience

Embrace

and Lead Interoperability

  • Improve the meeting room experience
    • Simplify and enrich user experience
    • Expand reach and usage
    • Improve productivity
video partner programs
Video Partner Programs

NATIVESOLUTIONS

INTEROPERABLE SOLUTIONS

  • Optimized for Microsoft LyncLogo Program
  • Webcams
  • PCs
  • IP devices
  • New! Video Interoperability Program
  • Enable 3rd party VTC systems to interop with Lync
video interoperability program
Video Interoperability Program
  • Connect with Lync 2010/OCS 2007 R2
    • Direct registration to Lync
    • Gateways to bridge other systems to Lync
  • Process
    • Qualification program
    • Qualified partner listed on Microsoft website
  • Requirements
    • OCS 2007 R2:
      • Enhanced security, point-to-point video, firewall traversal
    • Lync 2010:
      • Enhanced security, point-to-point video, firewall traversal
      • RTVideo (HD), multiparty video on Lync MCU
partner approaches
Partner Approaches
  • VTC Direct Registration
    • Register directly
    • Multiparty calls on Lync AVMCU
    • VTC endpoints appear as contacts
    • Users can take advantage of existing Lyncfunctionality
      • Click to call, drag and drop, right-click…
    • Committed partners:
      • Polycom, Lifesize
  • Gateway/MCU
    • Gateway pass-through
    • Multipartycalls hosted on partner MCU
    • Virtual rooms appear as contacts
    • Legacy VCS/telepresence interoperability, multiple views, transcoding
    • Committed partners:
      • Polycom, Lifesize, Radvision
cisco telepresence interoperability

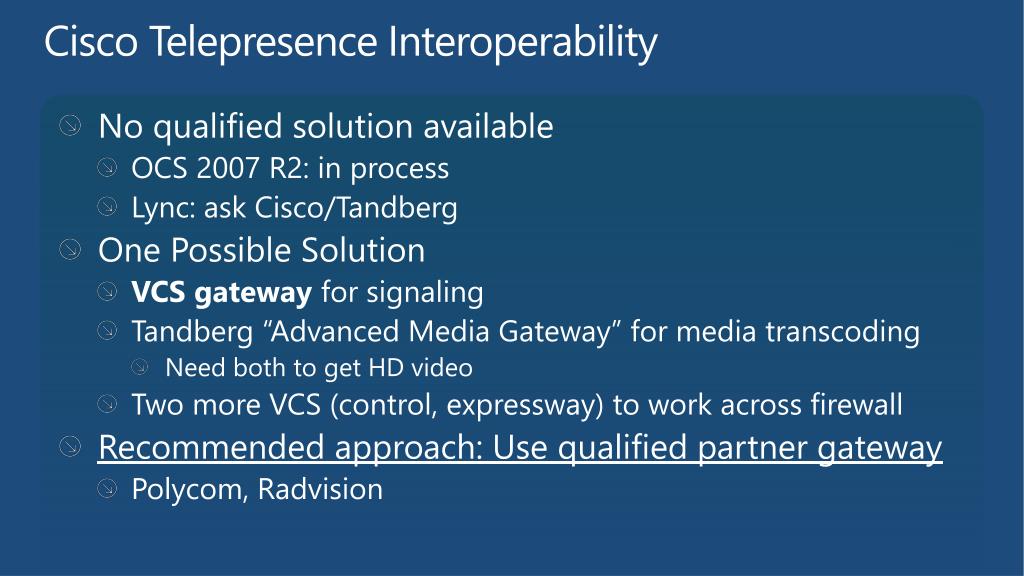

Cisco Telepresence Interoperability
  • No qualified solution available
    • OCS 2007 R2: in process
    • Lync: ask Cisco/Tandberg
  • One Possible Solution
    • VCS gateway for signaling
    • Tandberg “Advanced Media Gateway” for media transcoding
      • Need both to get HD video
    • Two more VCS (control, expressway) to work across firewall
  • Recommended approach: Use qualified partner gateway
    • Polycom, Radvision
recap
Recap
  • Review Lync 2010 Topology
  • Planning for Lync 2010 features
  • Reference Architecture, High Availability and Resiliency
  • Interoperability Principles
  • IP-PBX Interop
    • Media Bypass
    • Migration Approaches
  • Video Interop
track resources
Track Resources
  • Lync Team Blog: http://blogs.technet.com/b/uc/
  • Lync Facebook: http://www.facebook.com/MicrosoftOfficeCommunicator
  • Lync Server Blog: http://blogs.technet.com/b/nexthop/
  • Lync Website: http://lync.microsoft.com/en-us/Pages/unified-communications.aspx
resources
Resources

Learning

TechNet

  • Connect. Share. Discuss.
  • Microsoft Certification & Training Resources

http://northamerica.msteched.com

www.microsoft.com/learning

  • Resources for IT Professionals
  • Resources for Developers
  • http://microsoft.com/technet

http://microsoft.com/msdn

please complete an evaluation your feedback is important
Please Complete an Evaluation Your feedback is important!

Multipleways to Evaluate Sessions

Be eligible to win great daily prizes and the grand prize of a $5,000 Travel Voucher!

Scan the Tag

to evaluate this

session now on myTechEdMobile

slide50

© 2012 Microsoft Corporation. All rights reserved. Microsoft, Windows, Windows Vista and other product names are or may be registered trademarks and/or trademarks in the U.S. and/or other countries.

The information herein is for informational purposes only and represents the current view of Microsoft Corporation as of the date of this presentation. Because Microsoft must respond to changing market conditions, it should not be interpreted to be a commitment on the part of Microsoft, and Microsoft cannot guarantee the accuracy of any information provided after the date of this presentation. MICROSOFT MAKES NO WARRANTIES, EXPRESS, IMPLIED OR STATUTORY, AS TO THE INFORMATION IN THIS PRESENTATION.
