Presentation Transcript
slide1

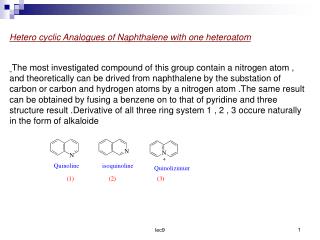

Hetero cyclic Analogues of Naphthalene with one heteroatom

The most investigated compound of this group contain a nitrogen atom , and theoretically can be drived from naphthalene by the substation of carbon or carbon and hydrogen atoms by a nitrogen atom .The same result can be obtained by fusing a benzene on to that of pyridine and three structure result .Derivative of all three ring system 1 , 2 , 3 occure naturally in the form of alkaloide

lec9

slide2

These three type of compound are essentially aromatic in character .The oxygen analogues of naphthalene which will be considered here are those derived from benzopyrylium cation (4) and benzopyranes (5) and (6) derivatives of these systems occure widely in plants and the anthocyanins. subistituted benzopyrylium salt are responsible for most red and blue flower coloure .very few sulphur analogues are known and at present they are not of general interest .

lec9

slide3

C

H

O

C

H

H

O

O

C

3

|

NaOH

H

O

2

2

+

N

H

C

H

O

or KMnO

4

N

2

N

H

O

O

C

2 - amino benzaldehyde

(1)

(2)

O

3

O

3

O

H

C

CHO

|

+

N

C

H

O

N

O

H

C

O

3

diozonide

glyoxalpyridine 2,3

- dicarbaldehyde

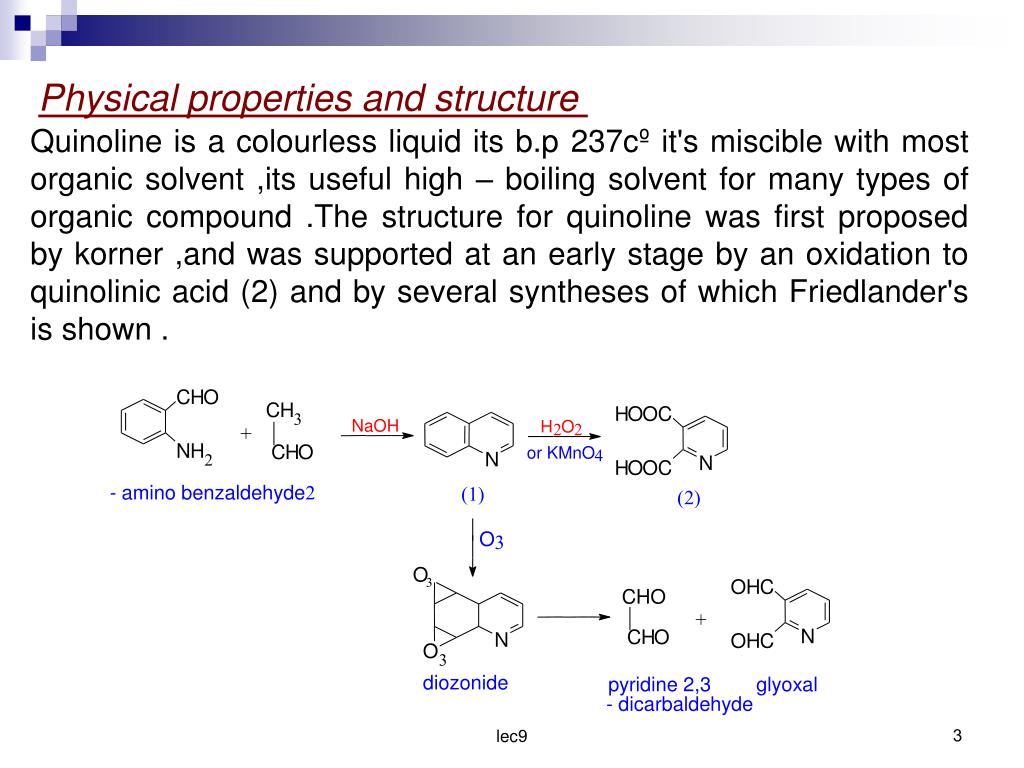

Physical properties and structure

Quinoline is a colourless liquid its b.p 237cº it's miscible with most organic solvent ,its useful high – boiling solvent for many types of organic compound .The structure for quinoline was first proposed by korner ,and was supported at an early stage by an oxidation to quinolinic acid (2) and by several syntheses of which Friedlander's is shown .

lec9

slide4

2

ozone attacke quinoline at the 5,6 and 7,8 position the initial product is a diozonide , decomposition of diozonide give pyridine 2,3 – dicarbaldehyde and glyoxal

The resonance energy of quinoline (47.3) kcal/ mol calculated from heat of combustion data the position of quinoline ring are usually numbered as structure .

lec9

slide5

Chemical reaction

1 – basicity

Quinoline is a slightly weaker base than pyridine and form many salt which sparingly soluble in water .

lec9

slide6

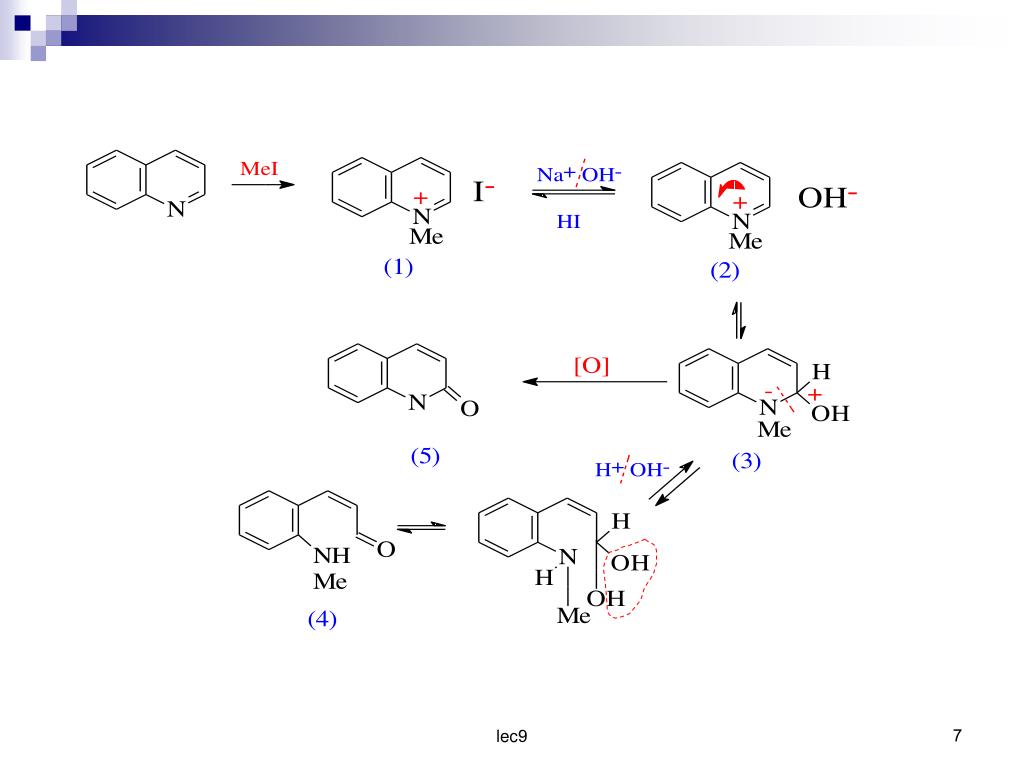

Addition and ring – opening reactions :

Quinoline is a colourless liquid , it form 1 – oxide with hydrogen peroxide and acetic acid and quaternary

salt with methyl iodide which with alkali give the hydroxide these are in equilibrium with the corresponding bases (3) which can be tautomerize to an open – chain (4) the oxidation of (3)give (5) .

lec9

slide8

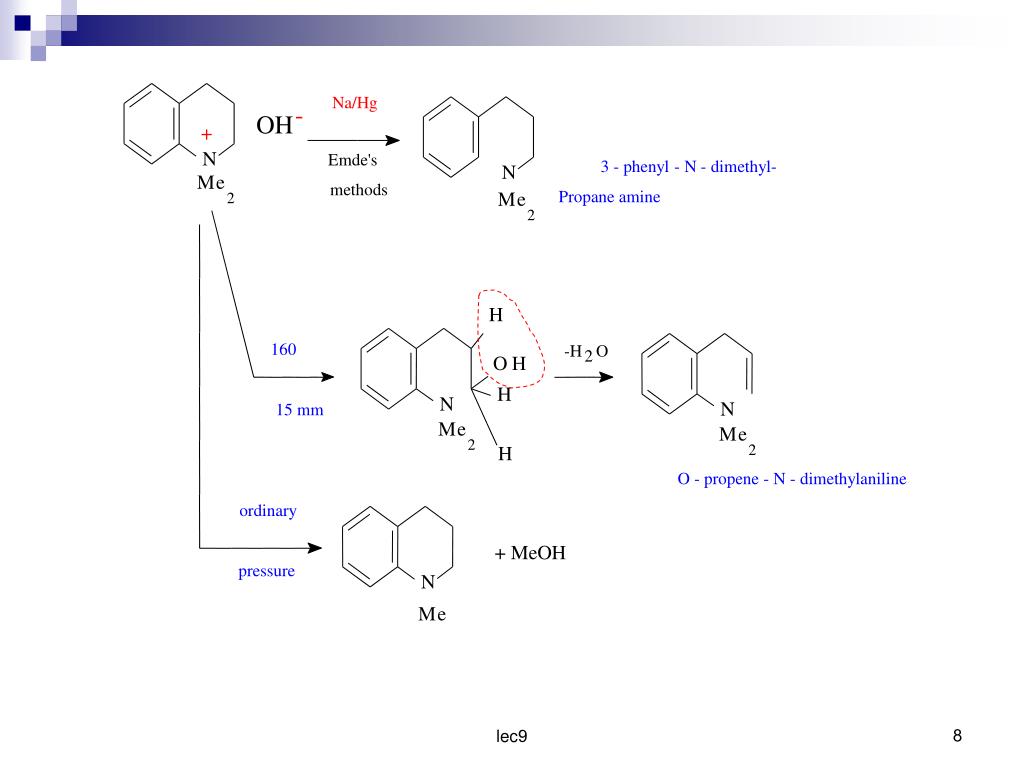

Na/Hg

-

OH

+

N

Emde's

3 - phenyl - N - dimethyl-

N

M

e

methods

Propane amine

M

e

2

2

H

160

-H

O

2

O

H

H

N

N

15 mm

M

e

M

e

2

2

H

O - propene - N - dimethylaniline

ordinary

+ MeOH

pressure

N

M

e

lec9

slide9

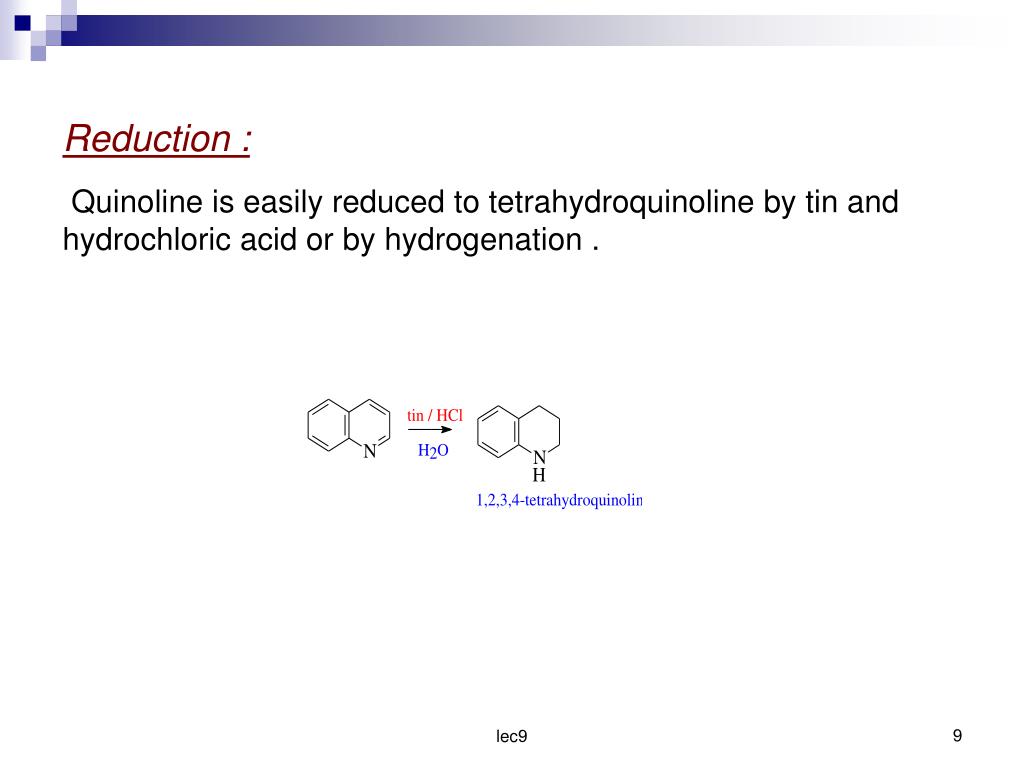

Reduction :

Quinoline is easily reduced to tetrahydroquinoline by tin and hydrochloric acid or by hydrogenation .

lec9

slide10

Oxidation :

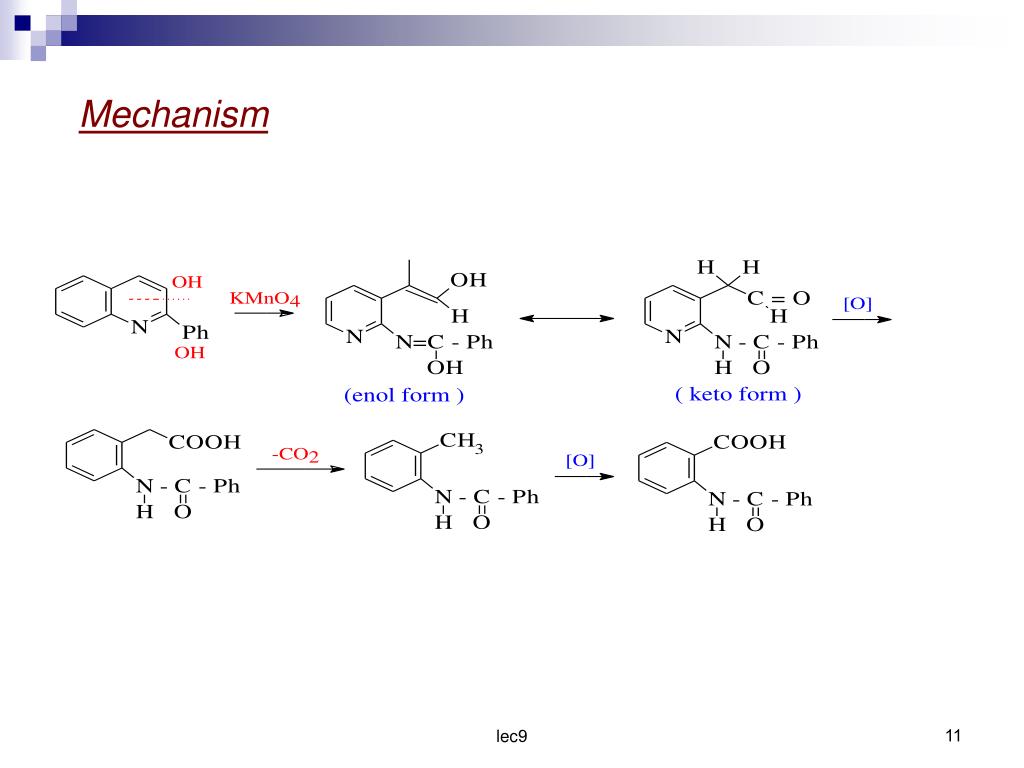

Oxidation of quinoline opens the ring giving quinolinic acid (1) the 2 – phenyl quinoline (2) and hydroxide (3) the nitrogen – containing ring can be split

lec9

slide12

Substitution reaction

The nitrogen atom deactivates the pyridine ring and so the subistituent enter the benzene ring .calculation of charge densities show that position 8 will be attack by electrophilic reagent and position -2- by nucleophilic reagents .In practice nitration and sulphonation give a mixture of – 5 and 8 – substituted product . In bromination the heterocyclic rings is subistituted in the 3 – position .

lec9

slide13

+

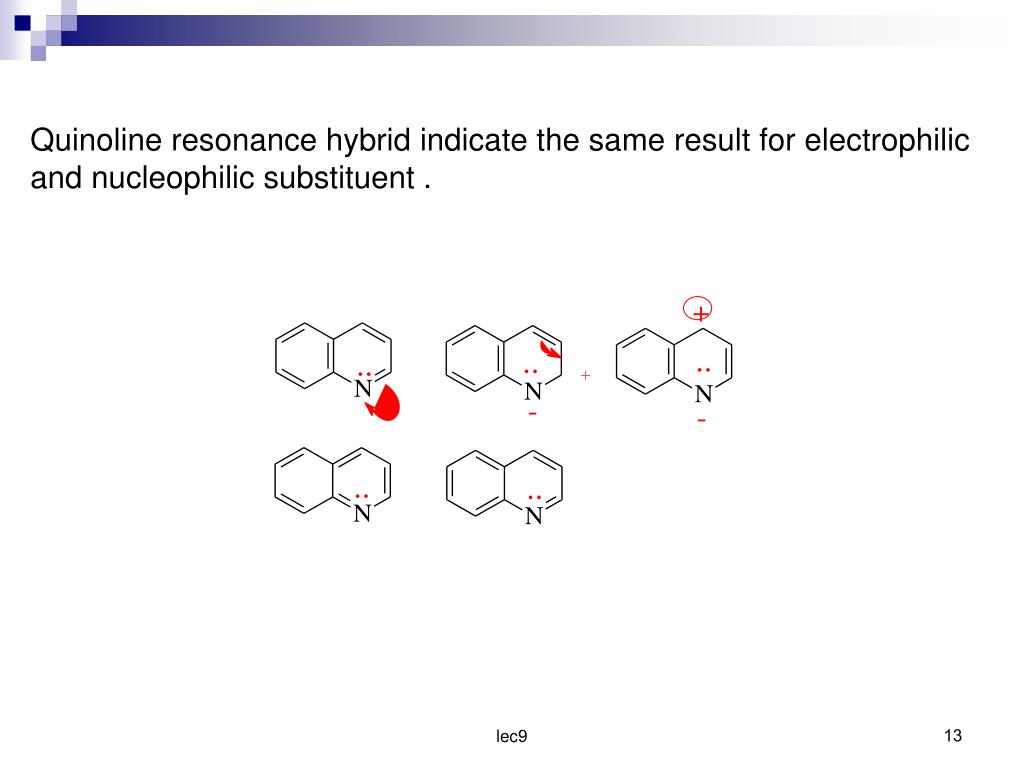

Quinoline resonance hybrid indicate the same result for electrophilic and nucleophilic substituent .

lec9

slide16

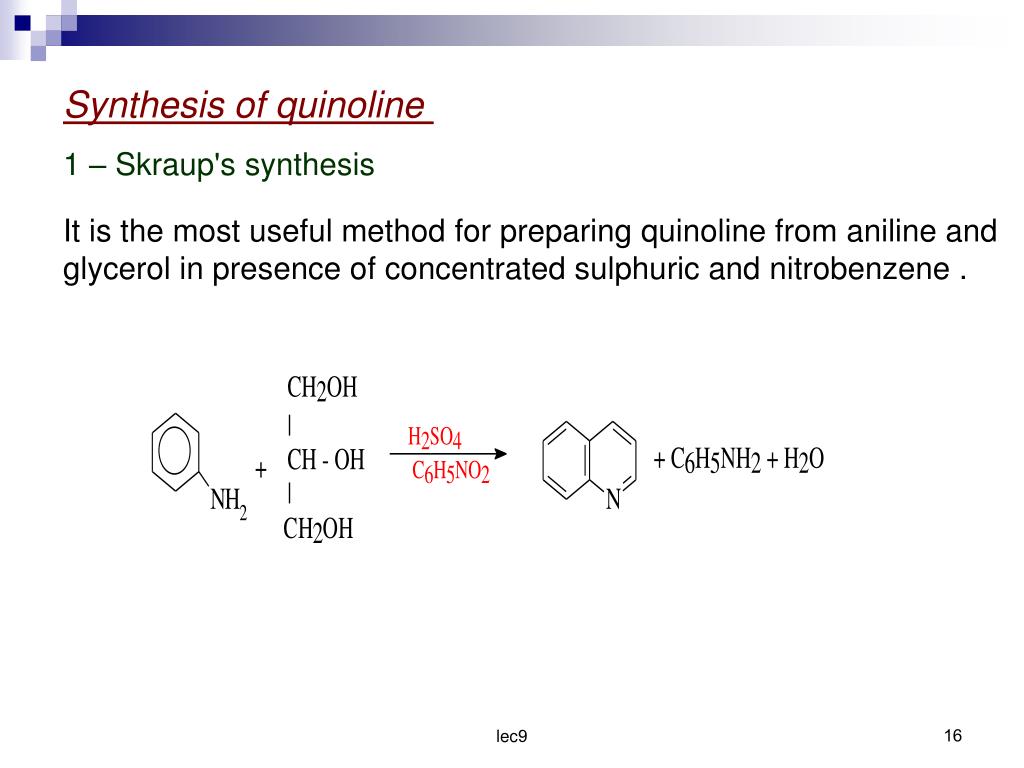

Synthesis of quinoline

1 – Skraup's synthesis

It is the most useful method for preparing quinoline from aniline and glycerol in presence of concentrated sulphuric and nitrobenzene .

lec9

slide17

+

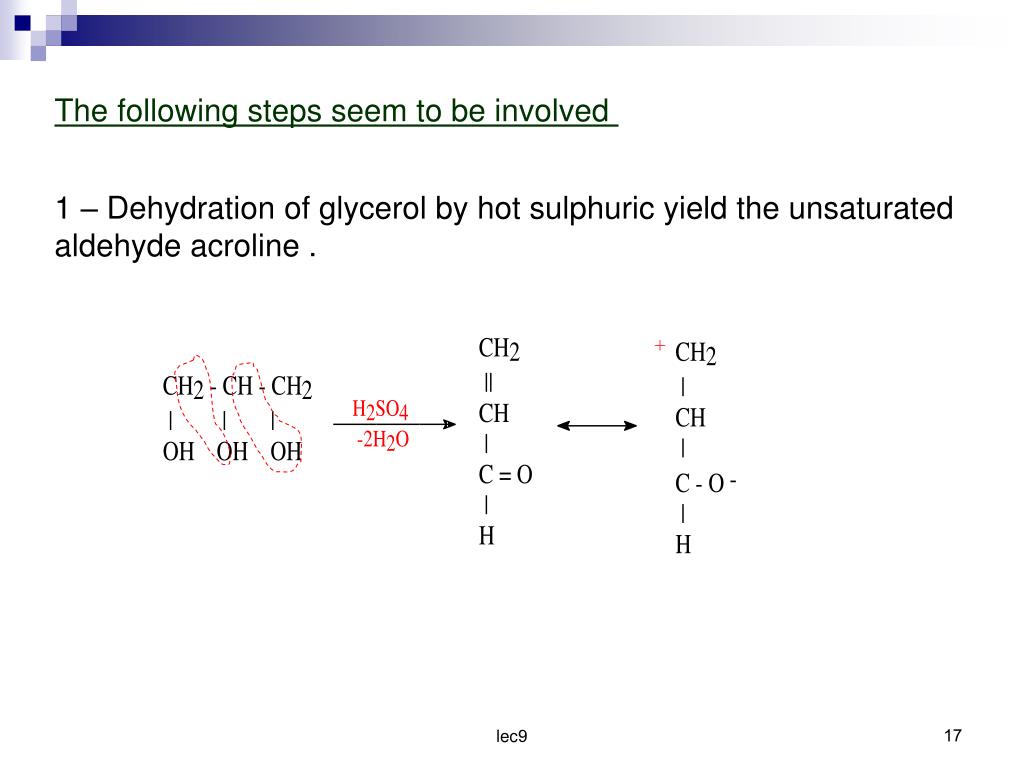

The following steps seem to be involved

1 – Dehydration of glycerol by hot sulphuric yield the unsaturated aldehyde acroline .

lec9

slide18

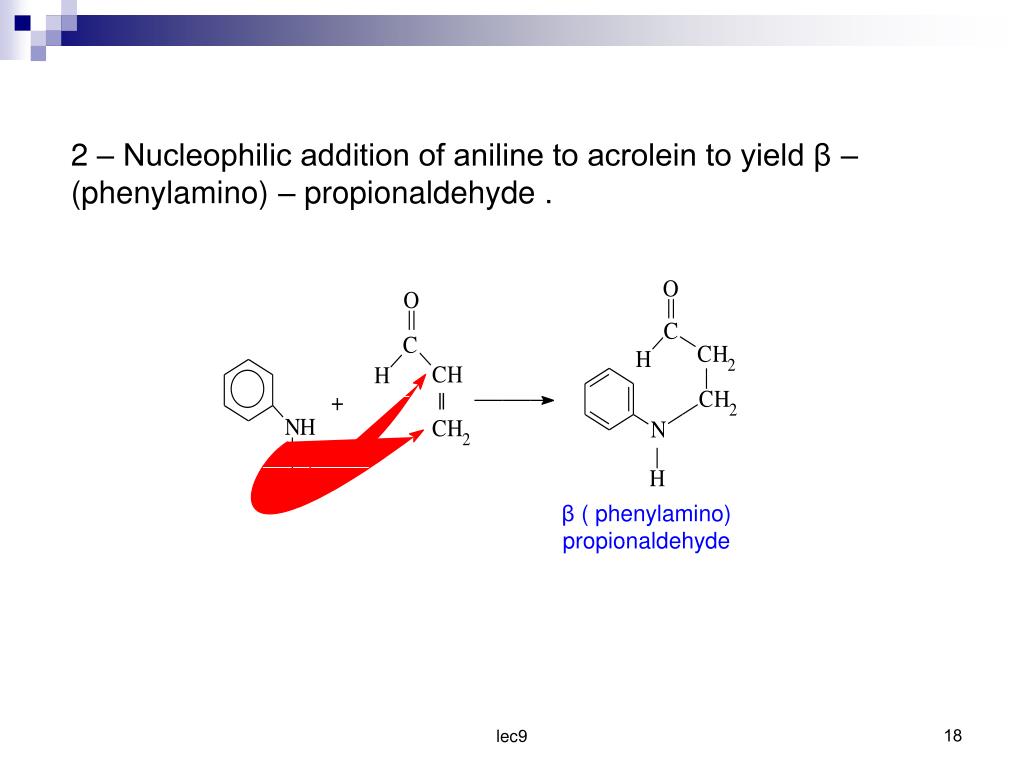

β­ ( phenylamino) propionaldehyde

2 – Nucleophilic addition of aniline to acrolein to yield β – (phenylamino) – propionaldehyde .

lec9

slide19

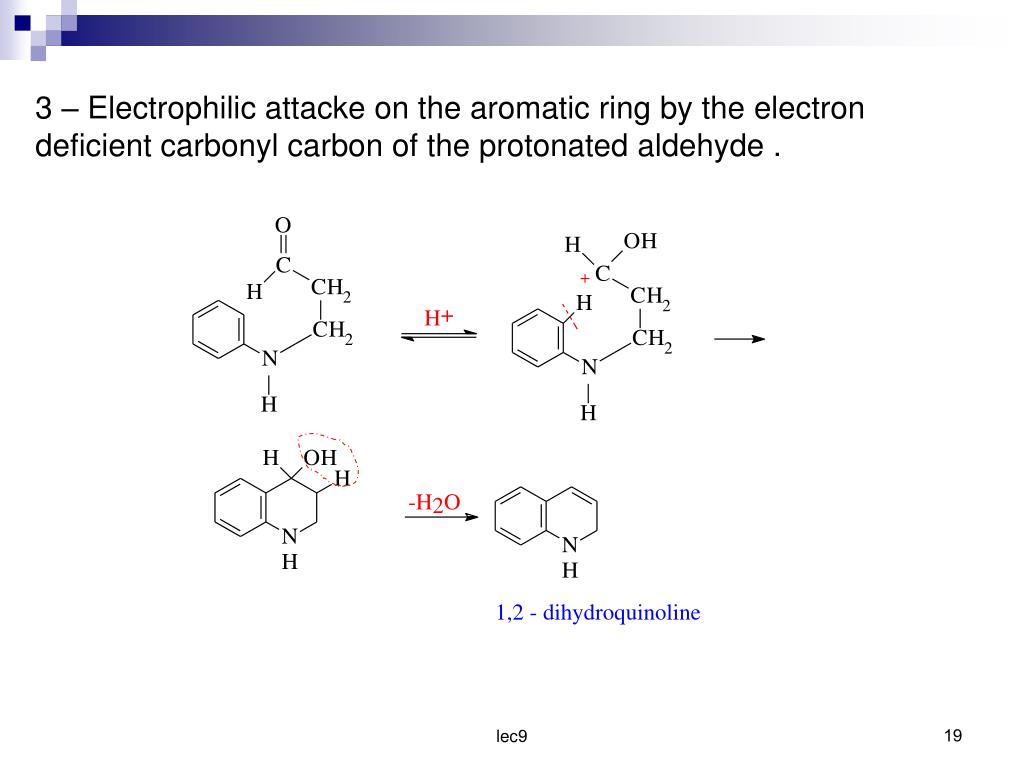

3 – Electrophilic attacke on the aromatic ring by the electron deficient carbonyl carbon of the protonated aldehyde .

lec9

slide20

4 – Oxidation by nitrobenzene resulting in the aromatization of the new formed ring

lec9
