  1. Algorithm Performance CMSC 150 – Introduction to Computing

  2. Big-Oh: Algorithm Complexity • We group algorithms into classes of similar complexity (i.e., how many steps required) • Sequential search is a O(n) algorithm (linear) O(1) O(logn) O(n) O(n2) O(2n) Sequential search Modifying a 2D image Traveling Salesman (brute force) constant-time logarithmic linear quadratic exponential

  3. Some Comparisons • nis the size of the input • Entry in table gives approximate number of steps required by an algorithm of that complexity

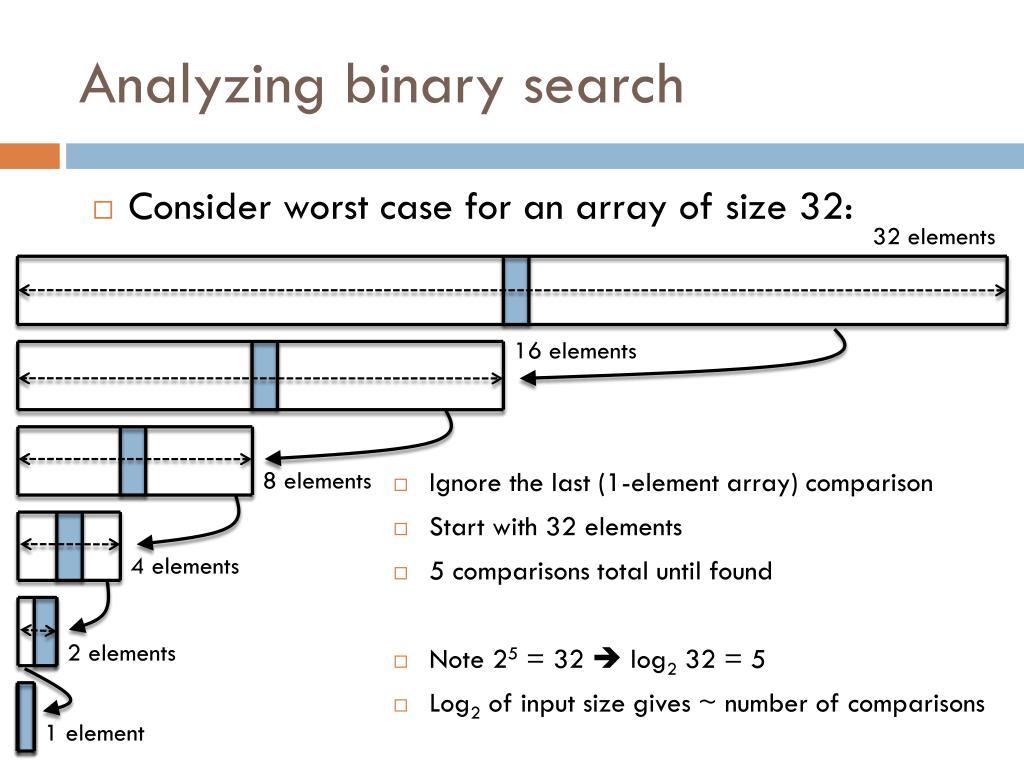

  4. Analyzing binary search • Consider worst case for an array of size 32: 32 elements 16 elements 8 elements 4 elements 2 elements 1 element

  5. Analyzing binary search • Consider worst case for an array of size 32: 32 elements 16 elements 8 elements • Ignore the last (1-elementarray) comparison • Start with 32 elements • 5 comparisons total until found • Note 25 = 32  log2 32 = 5 • Log2 of input size gives ~ number of comparisons 4 elements 2 elements 1 element

  6. Big-Oh: Algorithm Complexity • Binary search is a O(logn) algorithm (logarithmic) O(1) O(logn) O(n) O(n2) O(2n) Binary search Sequential search Modifying a 2D image Traveling Salesman (brute force) constant-time logarithmic linear quadratic exponential

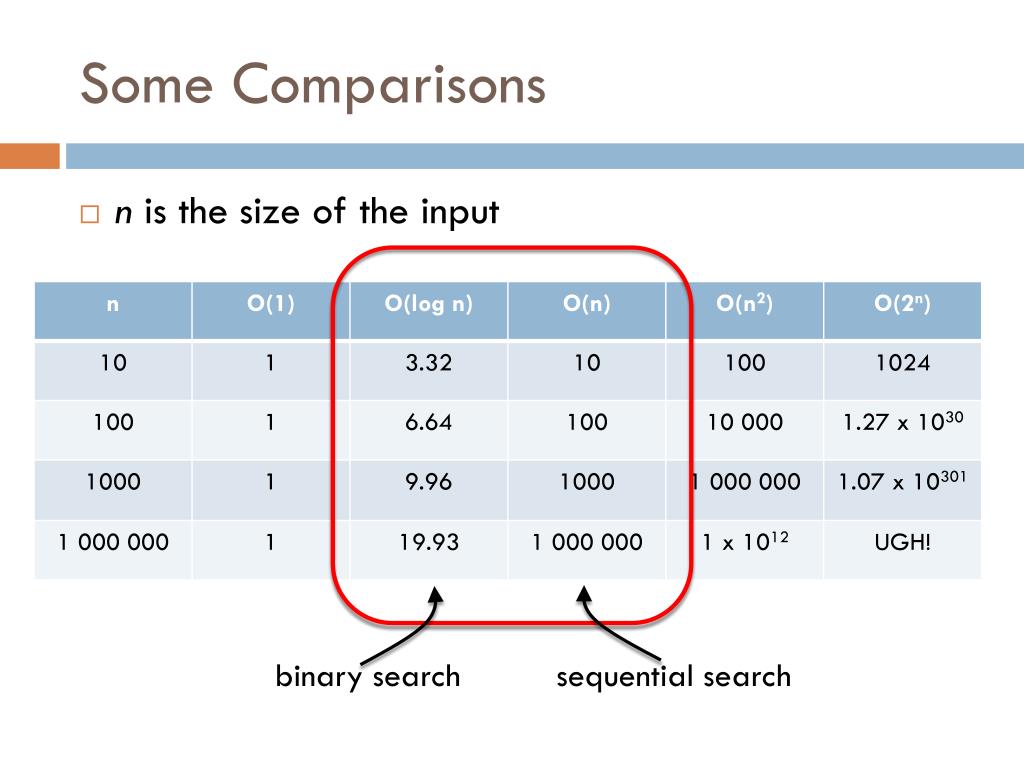

  7. Some Comparisons • nis the size of the input binary search sequential search

  8. Sequential vs. Binary Search • Sequential • O(n): linear • Easy to implement • Inefficient for large input size • Binary: O(logn) • O(logn): logarithmic • Reasonably efficient for large input size • Requires the list to be sorted
