LABNICS-Bottle-Carbon-Dioxide-Pressure-Tester

Labnics Bottle Carbon Dioxide Pressure Tester ensures safety and quality by monitoring COu2082 pressure in sealed systems. With a range of 0/0.6 MPa and COu2082 measurement from 0 to 4.00%V/V, it operates between 0 to 50u00b0C and features a 0.1u00b0C resolution. Enhanced with a pressure gauge for accurate calibration.

zoyagraham
Download Presentation

LABNICS-Bottle-Carbon-Dioxide-Pressure-Tester

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

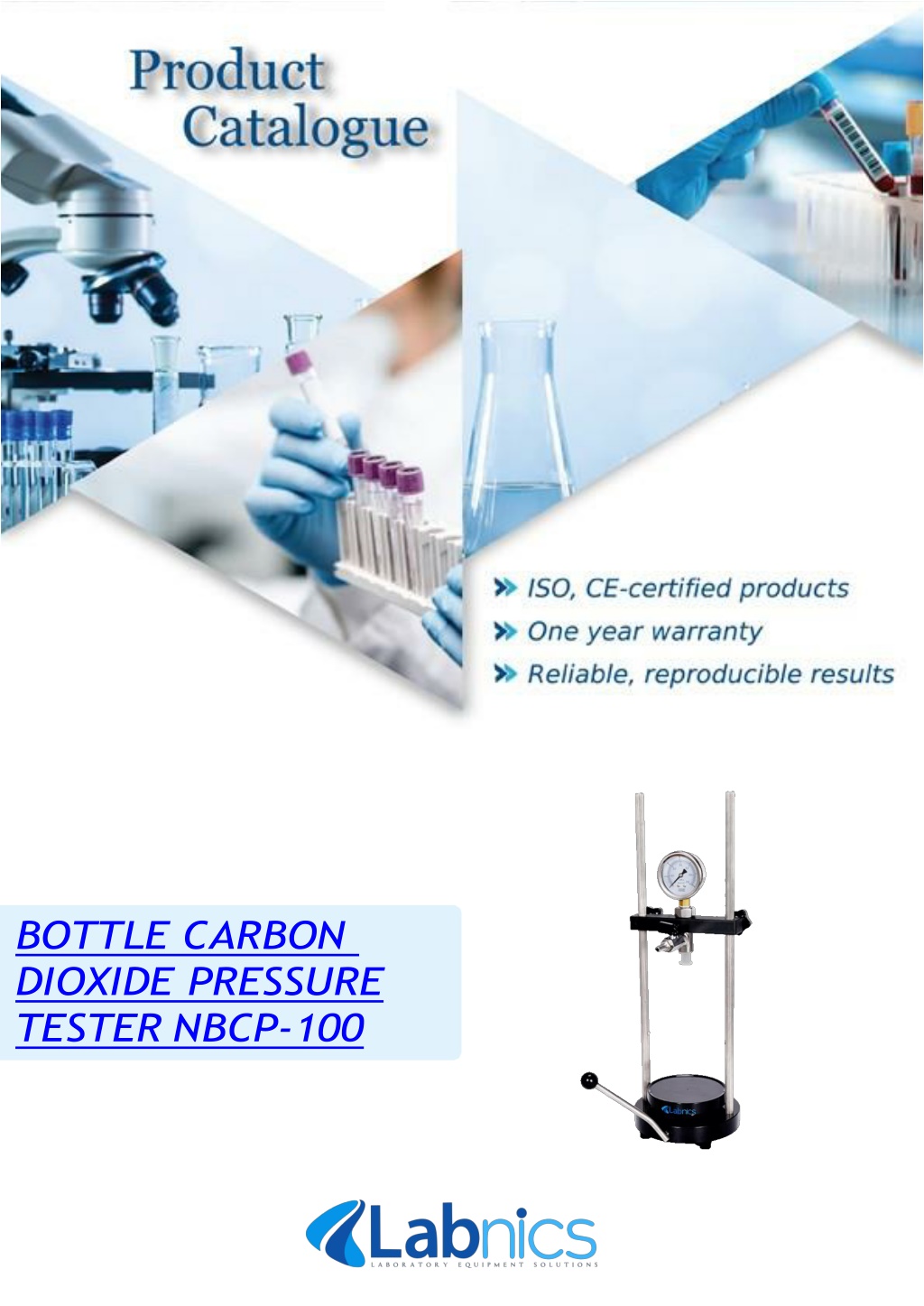

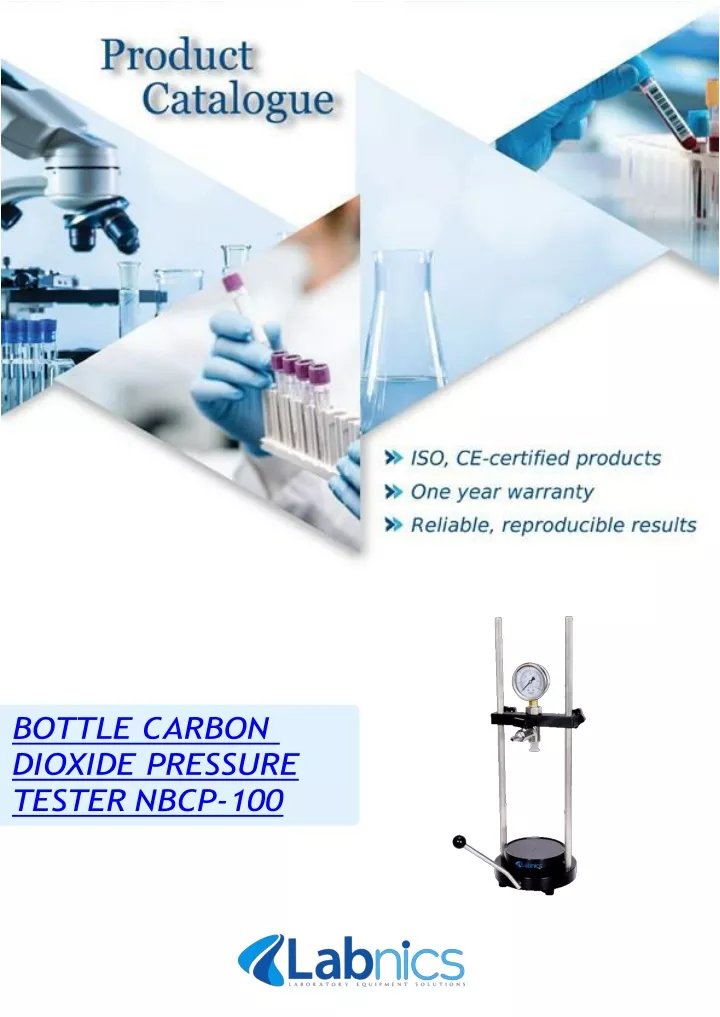

  1. BOTTLE CARBON DIOXIDE PRESSURE TESTER NBCP-100

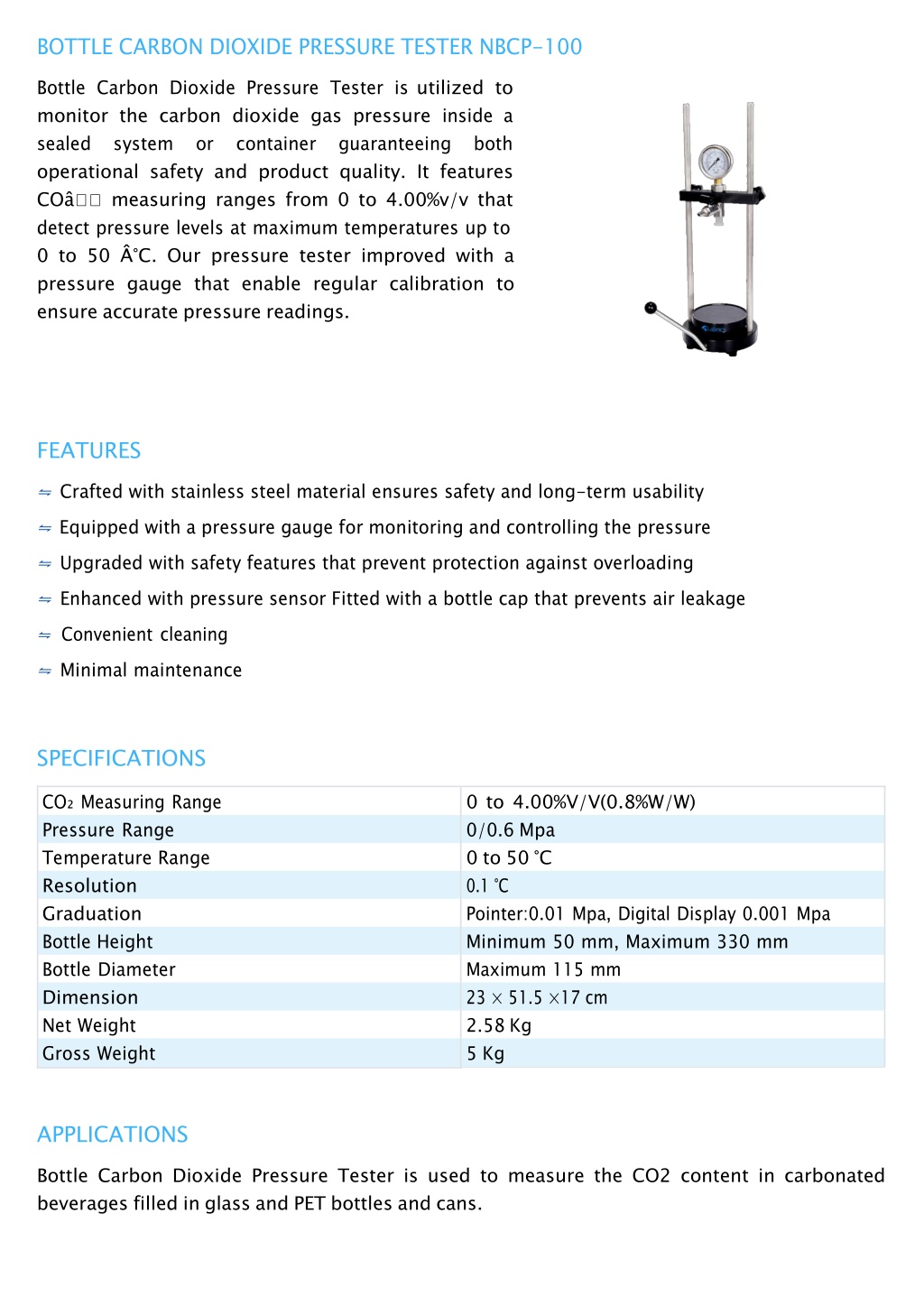

  2. BOTTLE CARBON DIOXIDE PRESSURE TESTER NBCP-100 Bottle Carbon Dioxide Pressure Tester is utilized to monitor the carbon dioxide gas pressure inside a sealed operational safety and product quality. It features COâ‚‚ measuring ranges from 0 to 4.00%v/v that detect pressure levels at maximum temperatures up to 0 to 50 °C. Our pressure tester improved with a pressure gauge that enable regular calibration to ensure accurate pressure readings. system or container guaranteeing both FEATURES ⇋ Crafted with stainless steel material ensures safety and long-term usability ⇋ Equipped with a pressure gauge for monitoring and controlling the pressure ⇋ Upgraded with safety features that prevent protection against overloading ⇋ Enhanced with pressure sensor Fitted with a bottle cap that prevents air leakage ⇋ Convenient cleaning ⇋ Minimal maintenance SPECIFICATIONS CO₂ Measuring Range Pressure Range Temperature Range Resolution Graduation Bottle Height Bottle Diameter Dimension Net Weight Gross Weight 0 to 4.00%V/V(0.8%W/W) 0/0.6 Mpa 0 to 50 °C 0.1 °C Pointer:0.01 Mpa, Digital Display 0.001 Mpa Minimum 50 mm, Maximum 330 mm Maximum 115 mm 23 × 51.5 ×17 cm 2.58 Kg 5 Kg APPLICATIONS Bottle Carbon Dioxide Pressure Tester is used to measure the CO2 content in carbonated beverages filled in glass and PET bottles and cans.

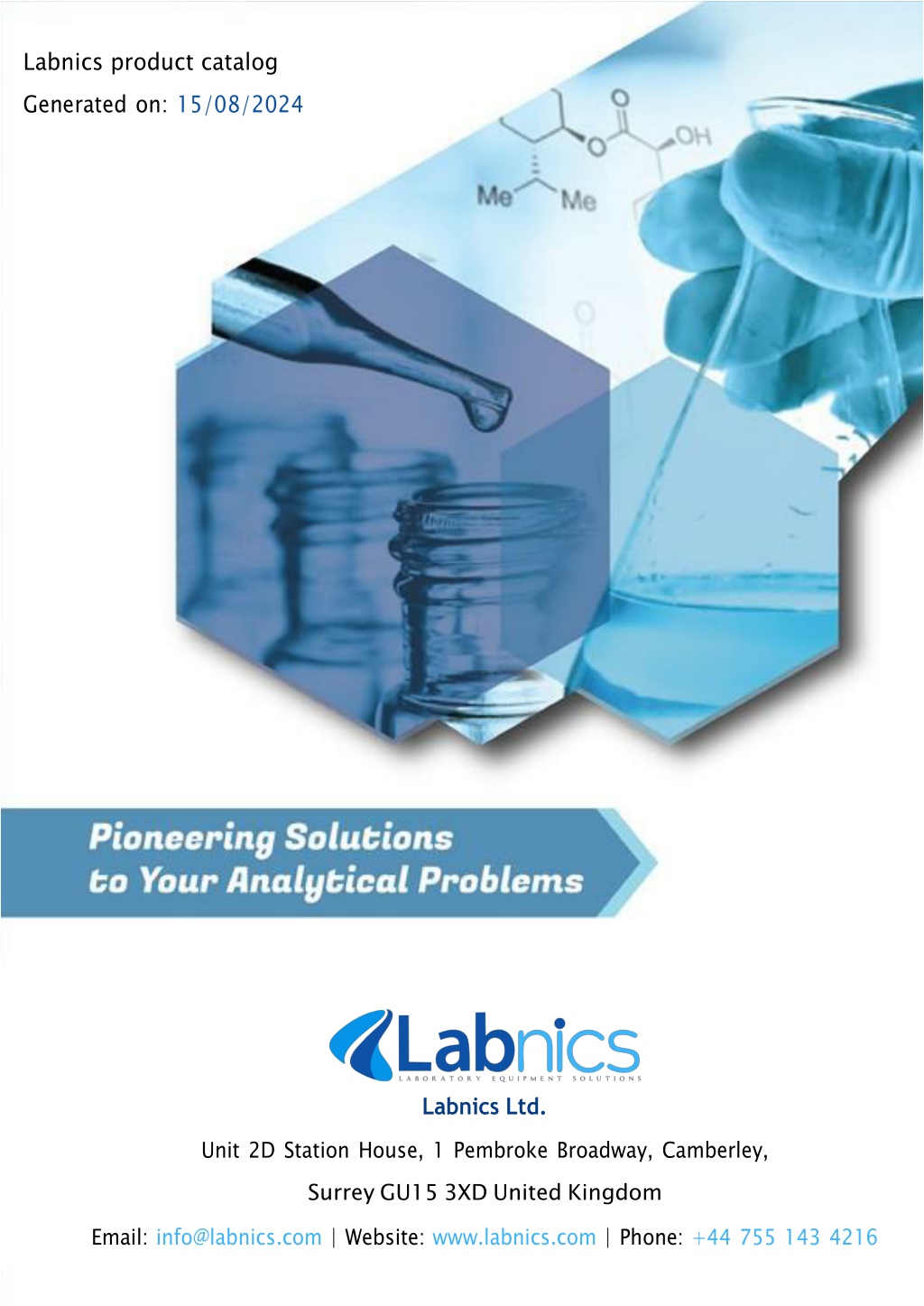

  3. Labnics product catalog Generated on: 15/08/2024 Labnics Ltd. Unit 2D Station House, 1 Pembroke Broadway, Camberley, Surrey GU15 3XD United Kingdom Email: info@labnics.com | Website: www.labnics.com | Phone: +44 755 143 4216
