Presentation Transcript

  1. SIGLENT SDS2000 RIGOL DS2000 PK

  2. 1.Waveform Capture Rate Test Input FM waveform to both oscilloscope(sine 50KHz,4Vpp,FM frequency 50Hz and FM Dev 50KHz),at the same time base of 1us,and turn off the persist . 2715wfm/s 20864wfm/s

  3. 2usTime Base 1430wfm/s 15495wfm/s

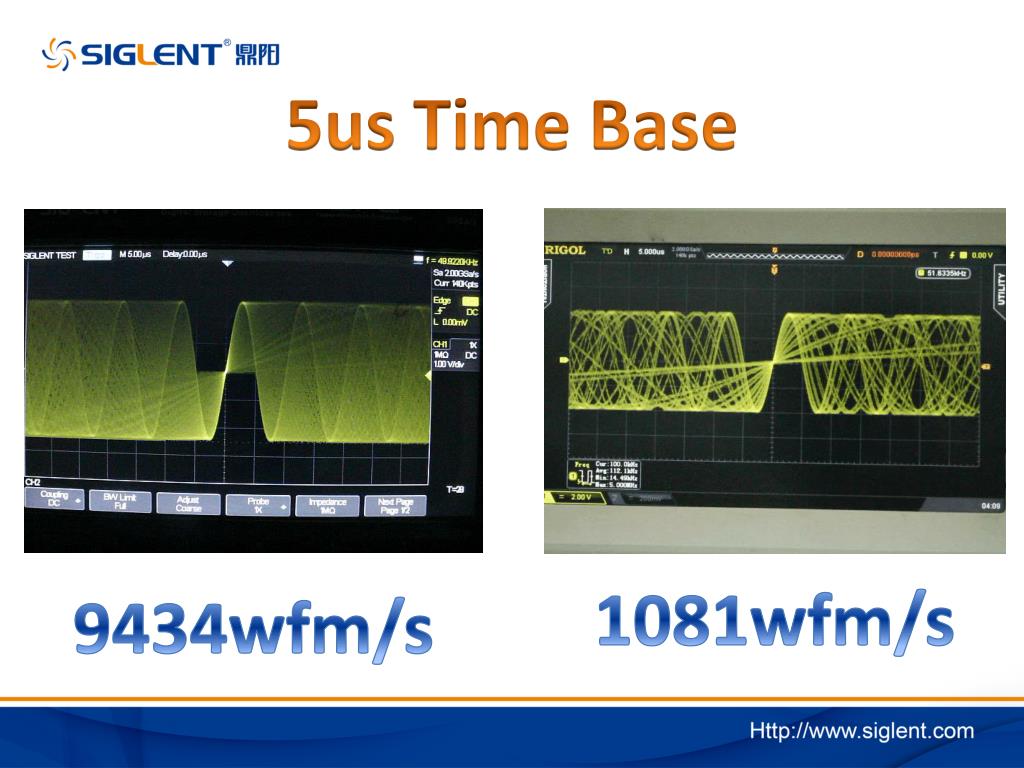

  4. 5usTime Base 1081wfm/s 9434wfm/s

  5. 50nsTime Base 87177wfm/s 24260wfm/s

  6. 100nsTime Base 53573wfm/s 16970wfm/s

  7. 200nsTime Base 53000wfm/s 10650wfm/s

  8. ADC of SDS2000 Siglent MSO/SDS2000 series oscilloscope are using the TI ADC08D1020 chip.ADC08D1020: 8bit Dual 1GSa/s or Single 2GSa/s A/D Converter

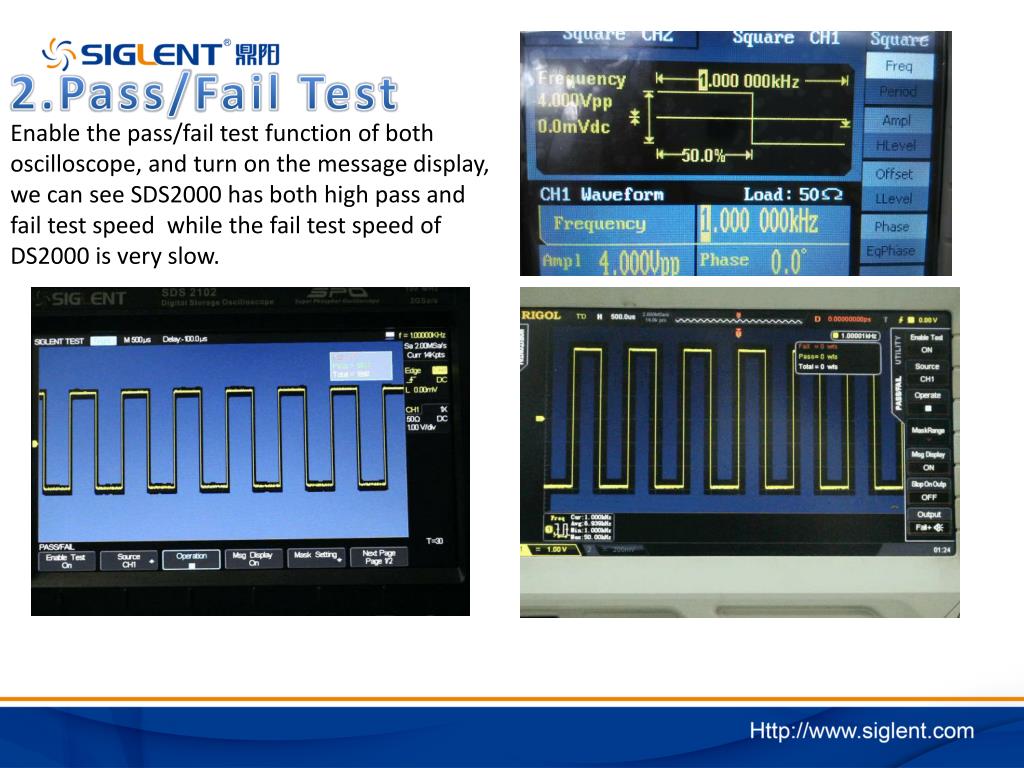

  9. 2.Pass/Fail Test Enable the pass/fail test function of both oscilloscope, and turn on the message display, we can see SDS2000 has both high pass and fail test speed while the fail test speed of DS2000 is very slow.

  10. 3.Zoom FunctionTest Input an sine wave(frequency 10MHz and time base 10ms)to both oscilloscope, then turn to the Zoom mode, adjust the horizontal level, we can see the Zoom waveform of SDS2000 is stable ,while DS2000 is not Stable and has obvious jitter.
