Tablet Counting Machine

DESCRIPTION

Tablet Counting Machine is a small size, light weight benchtop unit comes with faster feed rate, low noise operations and good counting <br>accuracy. With improved slope, hopper blocks unwanted drugs, without relying on damper. Hopper is added with more depth to put more quantity <br>of raw material. Used for quantitate analysis of tablets, others drugs in pharmaceutical and other research fields.<br>

Download Presentation

Tablet Counting Machine

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

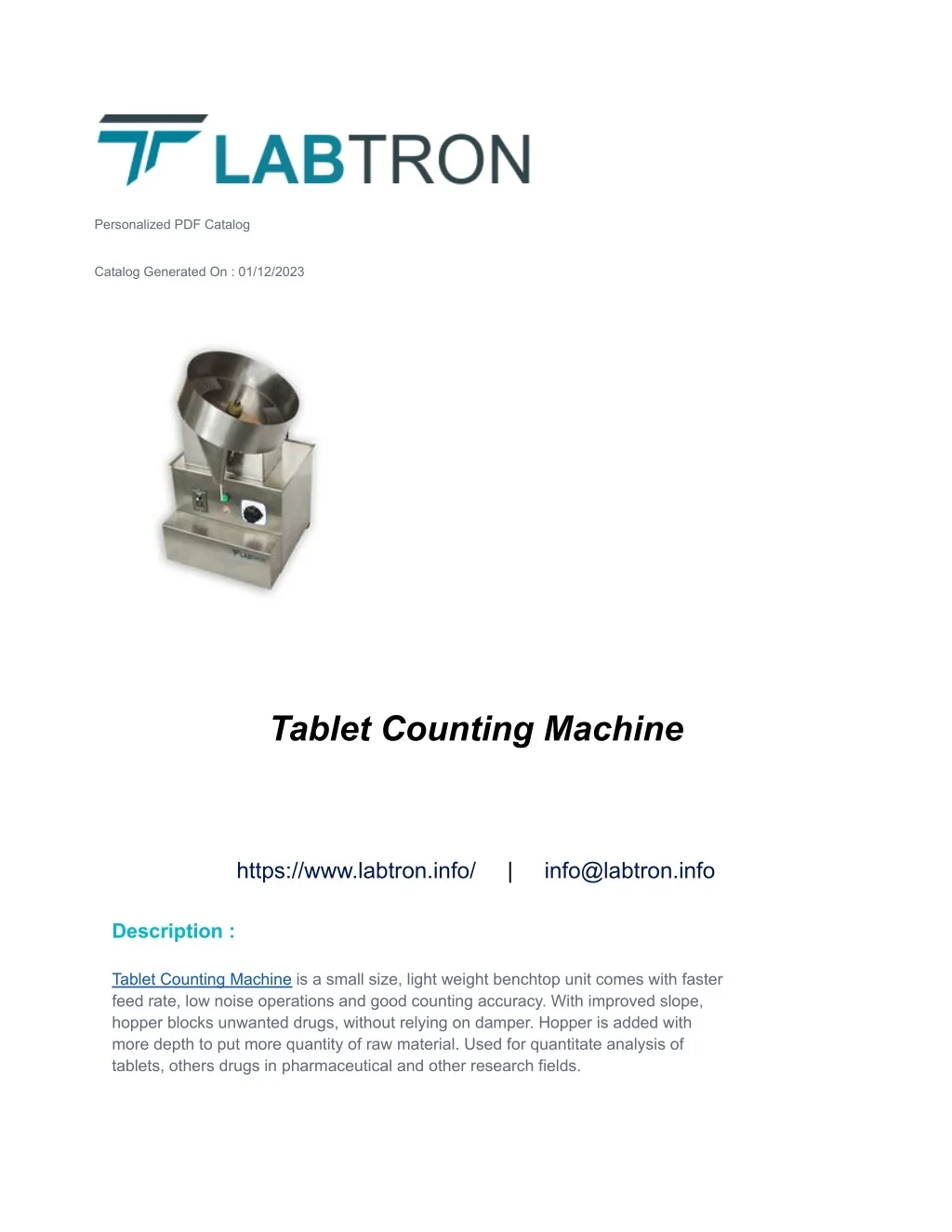

  1. Personalized PDF Catalog Catalog Generated On : 01/12/2023 Tablet Counting Machine https://www.labtron.info/ | info@labtron.info Description : Tablet Counting Machine is a small size, light weight benchtop unit comes with faster feed rate, low noise operations and good counting accuracy. With improved slope, hopper blocks unwanted drugs, without relying on damper. Hopper is added with more depth to put more quantity of raw material. Used for quantitate analysis of tablets, others drugs in pharmaceutical and other research fields.

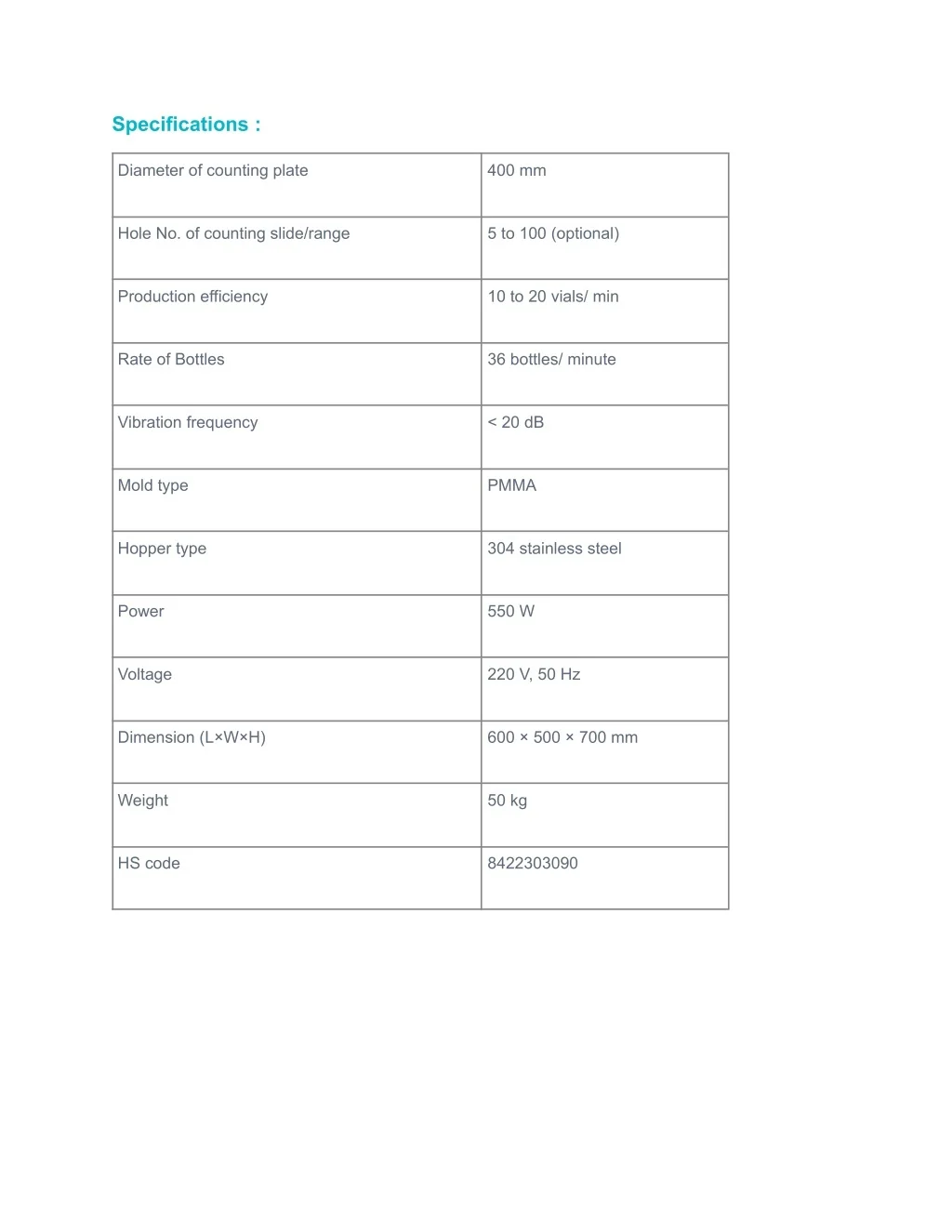

  2. Specifications : Diameter of counting plate 400 mm Hole No. of counting slide/range 5 to 100 (optional) Production efficiency 10 to 20 vials/ min Rate of Bottles 36 bottles/ minute Vibration frequency < 20 dB Mold type PMMA Hopper type 304 stainless steel Power 550 W Voltage 220 V, 50 Hz Dimension (L×W×H) 600 × 500 × 700 mm Weight 50 kg HS code 8422303090

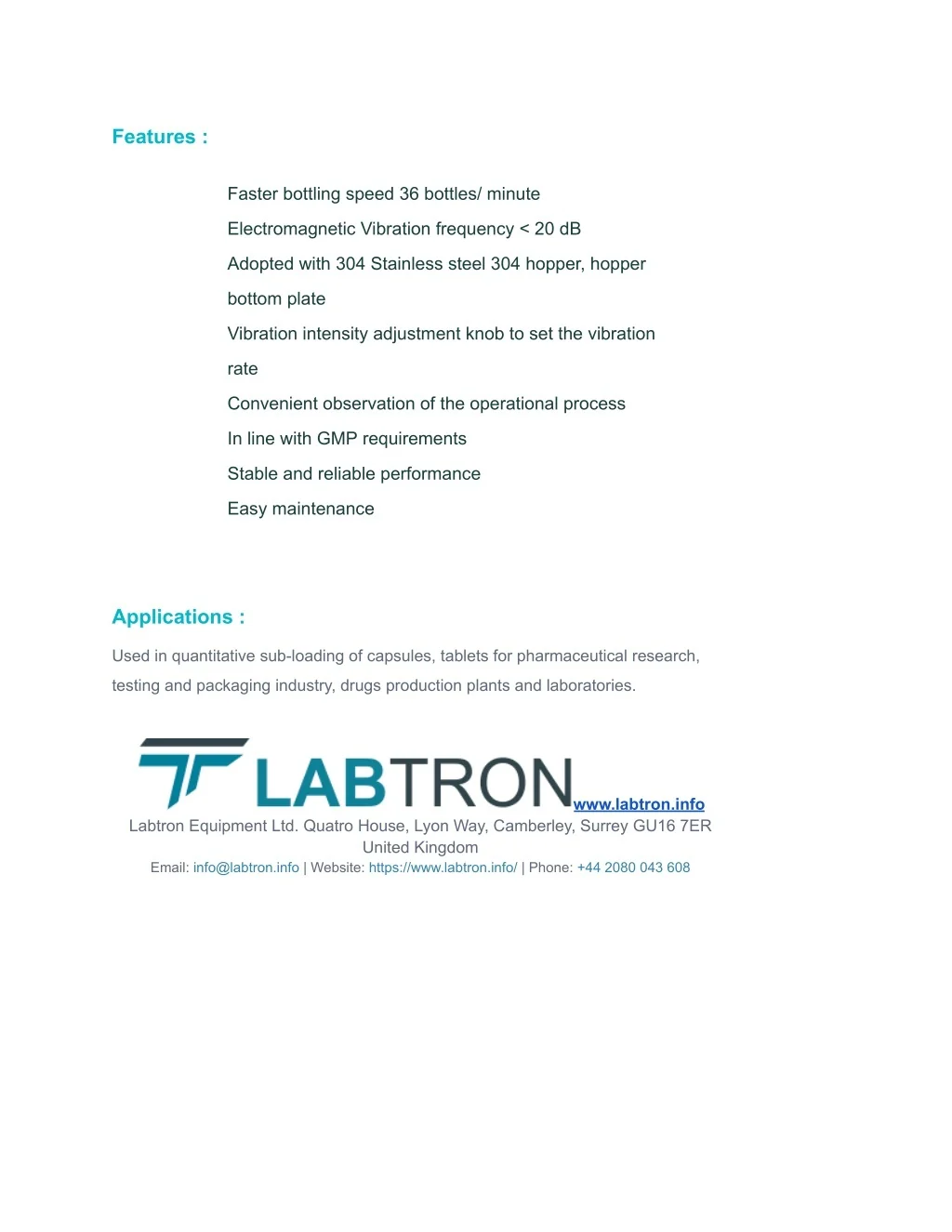

  3. Features : Faster bottling speed 36 bottles/ minute Electromagnetic Vibration frequency < 20 dB Adopted with 304 Stainless steel 304 hopper, hopper bottom plate Vibration intensity adjustment knob to set the vibration rate Convenient observation of the operational process In line with GMP requirements Stable and reliable performance Easy maintenance Applications : Used in quantitative sub-loading of capsules, tablets for pharmaceutical research, testing and packaging industry, drugs production plants and laboratories. www.labtron.info Labtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.info | Website: https://www.labtron.info/ | Phone: +44 2080 043 608
