Sample Concentrator

DESCRIPTION

<br> Sample Concentrator accelerates the concentration of samples by blowing nitrogen gas at the rate of 15 L/min. It comes with a <br>microprocessor controller which controls the temperature of high-purity aluminium when the equipment is in operation. The models have <br>provisions of concentrating around 3 to 24 samples at a time.

Download Presentation

Sample Concentrator

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

Playing audio...

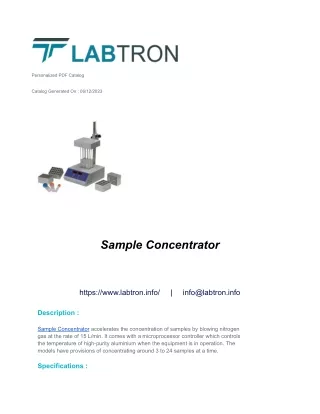

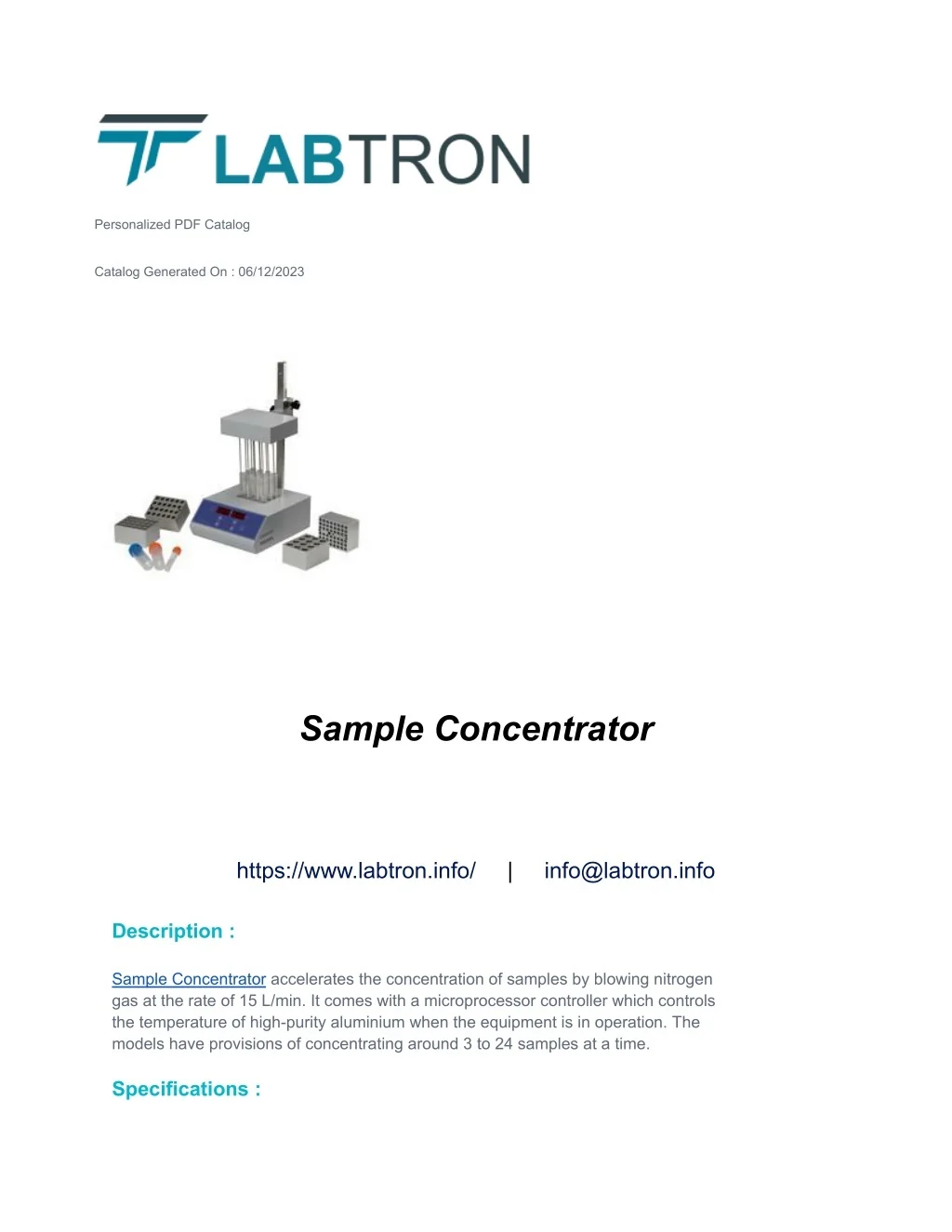

  1. Personalized PDF Catalog Catalog Generated On : 06/12/2023 Sample Concentrator https://www.labtron.info/ | info@labtron.info Description : Sample Concentrator accelerates the concentration of samples by blowing nitrogen gas at the rate of 15 L/min. It comes with a microprocessor controller which controls the temperature of high-purity aluminium when the equipment is in operation. The models have provisions of concentrating around 3 to 24 samples at a time. Specifications :

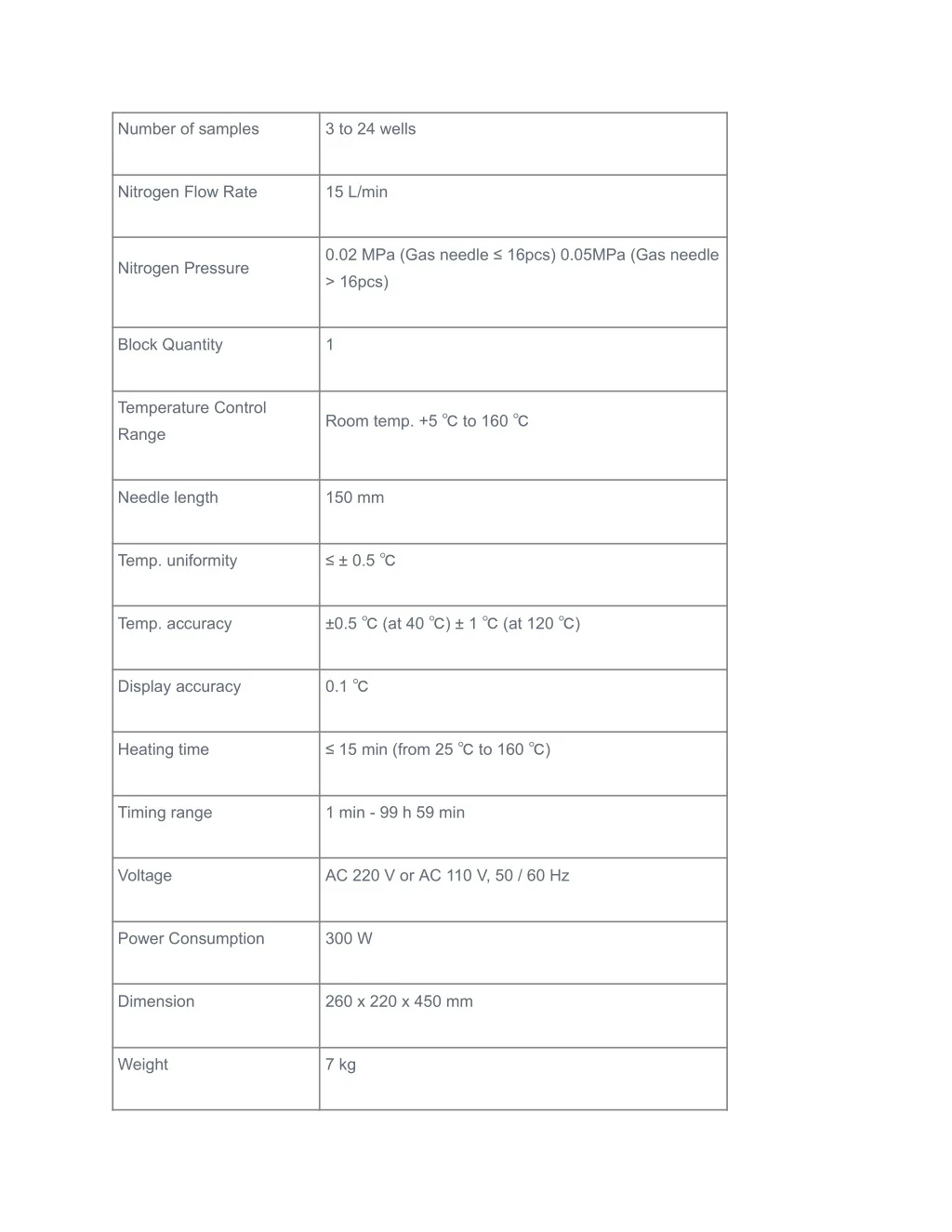

  2. Number of samples 3 to 24 wells Nitrogen Flow Rate 15 L/min 0.02 MPa (Gas needle ≤ 16pcs) 0.05MPa (Gas needle Nitrogen Pressure > 16pcs) Block Quantity 1 Temperature Control Room temp. +5 ℃ to 160 ℃ Range Needle length 150 mm Temp. uniformity ≤ ± 0.5 ℃ Temp. accuracy ±0.5 ℃ (at 40 ℃) ± 1 ℃ (at 120 ℃) Display accuracy 0.1 ℃ Heating time ≤ 15 min (from 25 ℃ to 160 ℃) Timing range 1 min - 99 h 59 min Voltage AC 220 V or AC 110 V, 50 / 60 Hz Power Consumption 300 W Dimension 260 x 220 x 450 mm Weight 7 kg

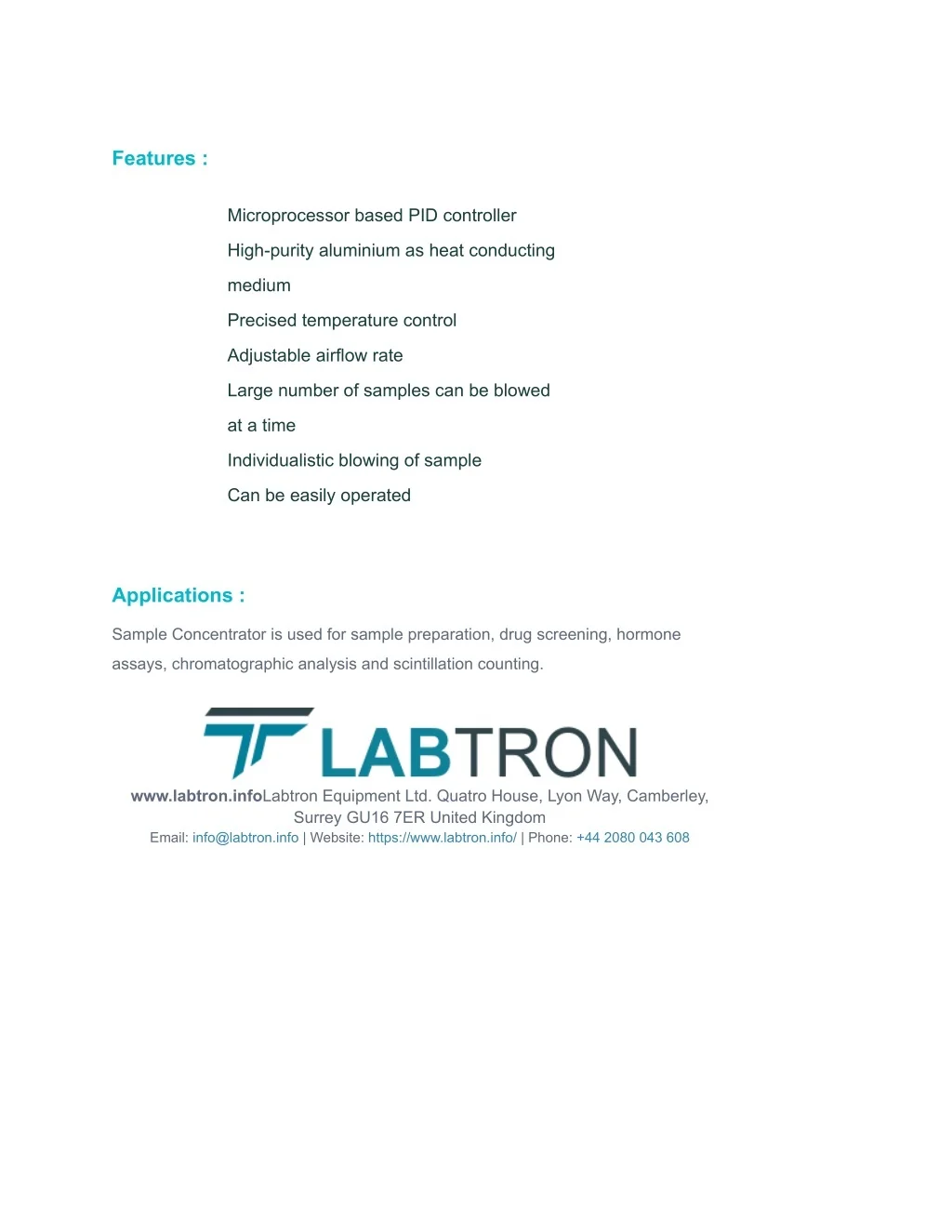

  3. Features : Microprocessor based PID controller High-purity aluminium as heat conducting medium Precised temperature control Adjustable airflow rate Large number of samples can be blowed at a time Individualistic blowing of sample Can be easily operated Applications : Sample Concentrator is used for sample preparation, drug screening, hormone assays, chromatographic analysis and scintillation counting. www.labtron.infoLabtron Equipment Ltd. Quatro House, Lyon Way, Camberley, Surrey GU16 7ER United Kingdom Email: info@labtron.info | Website: https://www.labtron.info/ | Phone: +44 2080 043 608
