  1. AWS AWS uses acoustic well sounding data and fluid levels, to calculate the pressure at midpoint of perforations of oil wells. The program calculates the gas and fluid column pressures separately, and adds or subtracts these, to determine the pressure at MPP. Several different methods are available to calculate the gas column pressure. The results can be plotted, checked and reported on a well, group, pool or total basis.

  2. AWSAgenda • Well data • Pool data • Fluid analysis data • Special Features, System Options, Methods and Correlations • Output Reports and Graphs • Demo • Questions AWS, Sirius Petroleum Software

  3. Well Data • Wells are defined with a pool, group and a lease. • Basic Data: Well name, UWI, group and lease. • Elevations: KB, CF, Perforations, Tubing, and Casing. • Fluid shots: Type of test, date, casing / tubing pressure, watercut and fluid level. AWS, Sirius Petroleum Software

  4. Well Data AWS, Sirius Petroleum Software

  5. Test Table AWS, Sirius Petroleum Software

  6. Test Data AWS, Sirius Petroleum Software

  7. Fluid Level Diagram AWS, Sirius Petroleum Software

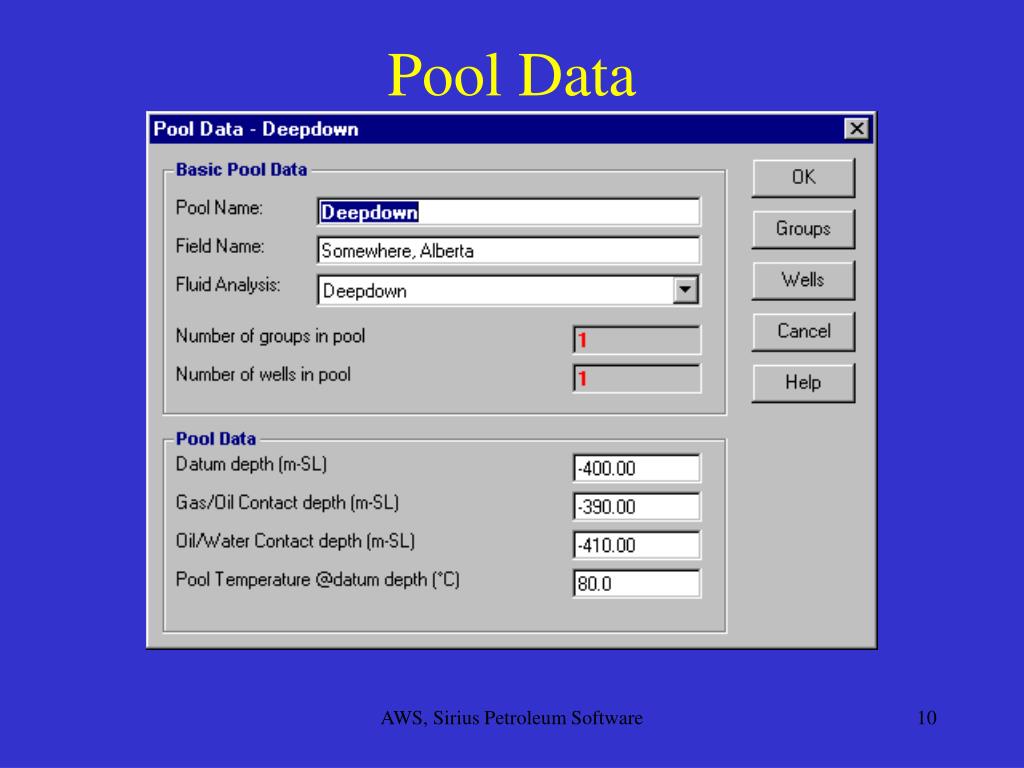

  8. Pool Data • Basic Data: Pool name, Field name, and fluid analysis name. • Reservoir Data: Datum, G/O contact, O/W contact and formation temperature. AWS, Sirius Petroleum Software

  9. Pool Data AWS, Sirius Petroleum Software

  10. Fluid Analysis Data • Oil properties. • Water properties. • Full Gas Analysis: 12 Component gas analysis including N2, CO2 and H2S, C7+ properties (Molecular Weight, Specific Gravity) • Simple Gas Analysis: 3 non-HC including N2, CO2, and H2S, and a total gas specific gravity. AWS, Sirius Petroleum Software

  11. Fluid Analysis AWS, Sirius Petroleum Software

  12. Simple Gas Analysis AWS, Sirius Petroleum Software

  13. Gas PVT correlations Gas gravity correlation (Thomas, Hankinson and Philips, 1970) Sour gas correction (Wichert and Aziz, 1972) z-factor correlation (Biggs and Brill, 1987) AWSSpecial Features AWS, Sirius Petroleum Software

  14. Fluid Levels enter fluid level enter # of joints enter echo return time (sec) Gas Column Average Density Method (1972) Average z-factor average temperature Method Cullender and Smith (1959) AWSSpecial Features, cont. AWS, Sirius Petroleum Software

  15. Results Calculates gas, water, oil and mixed columns Calculates MPP pressure Calculates tubing fluid level based on casing fluid level Limitations 99 wells, 10 pools, 10 groups, 25 leases and 10 companies 20 different fluid tests per well AWSSpecial Features, cont. AWS, Sirius Petroleum Software

  16. System Options AWS, Sirius Petroleum Software

  17. Correlations AWS, Sirius Petroleum Software

  18. Solution Options AWS, Sirius Petroleum Software

  19. Output, Reports and Graphs • Numerous reports • well, pool, group, lease, company, etc. • Numerous graphs • well, pool, group, lease, company, etc. • Map • well results. AWS, Sirius Petroleum Software

  20. Reports AWS, Sirius Petroleum Software

  21. Reports AWS, Sirius Petroleum Software

  22. Reports AWS, Sirius Petroleum Software

  23. Reports AWS, Sirius Petroleum Software

  24. Graphs AWS, Sirius Petroleum Software

  25. Gas Analysis AWS, Sirius Petroleum Software

  26. Temperature Gradient AWS, Sirius Petroleum Software

  27. Pressure Gradient AWS, Sirius Petroleum Software

  28. Well Results Map AWS, Sirius Petroleum Software
