1. AgregandoInteligenciaa la red Patricio Dueñas C. Country Manager F5 Networks - México

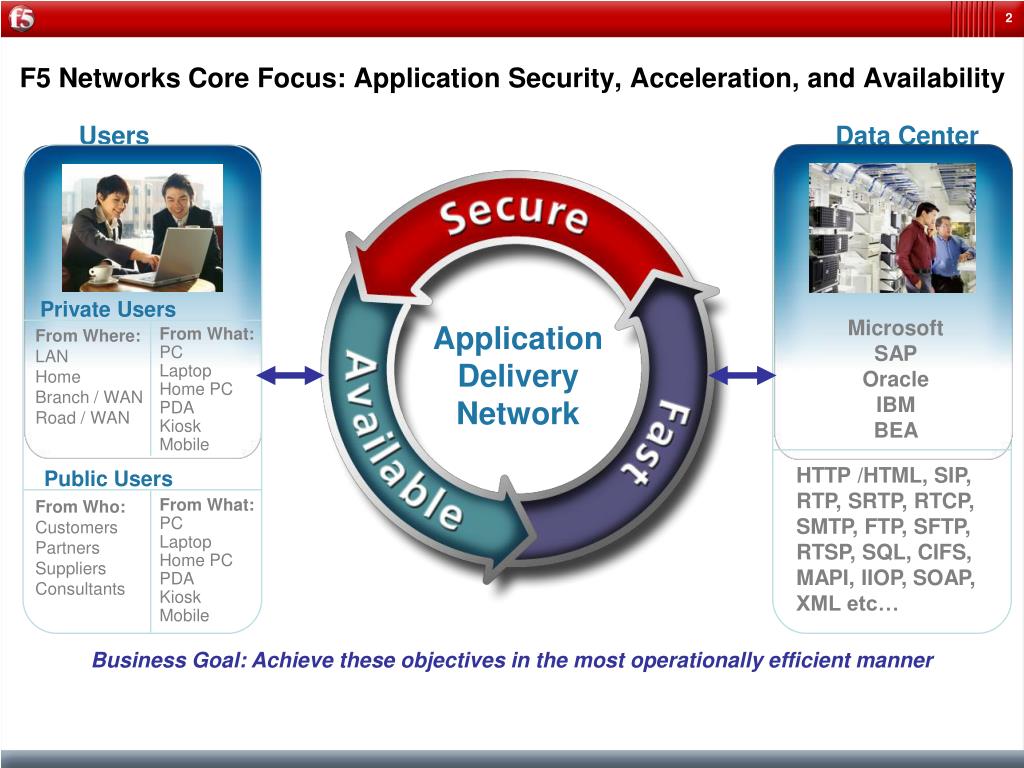

2. Users Data Center Application Delivery Network Private Users Microsoft SAP Oracle IBM BEA From Where: LAN Home Branch / WAN Road / WAN From What: PC Laptop Home PC PDA Kiosk Mobile HTTP /HTML, SIP, RTP, SRTP, RTCP, SMTP, FTP, SFTP, RTSP, SQL, CIFS, MAPI, IIOP, SOAP, XML etc… Public Users From Who: Customers Partners Suppliers Consultants From What: PC Laptop Home PC PDA Kiosk Mobile F5 Networks Core Focus: Application Security, Acceleration, and Availability Business Goal: Achieve these objectives in the most operationally efficient manner

3. Gartner Magic Quadrant for ADC challengers leaders F5 Networks • Offers the most feature-rich AP ADC, combined with excellent performance and programmability via iRules and a broad product line. • Strong focus on applications, including long-term relationships with major application vendors, including Microsoft, Oracle and SAP. • Strong balance sheet and cohesive management team with a solid track record for delivering the right products at the right time. • Strong underlying platform allows easy extensibility to add features. • Support of an increasingly loyal and large group of active developers tuning their applications environments specifically with F5 infrastructure. F5 Networks Citrix Systems | ability to execute | Cisco Systems Radware Foundry Networks Zeus Technology Nortel Networks niche players visionaries | completeness of vision | Source: Gartner (July 2008)

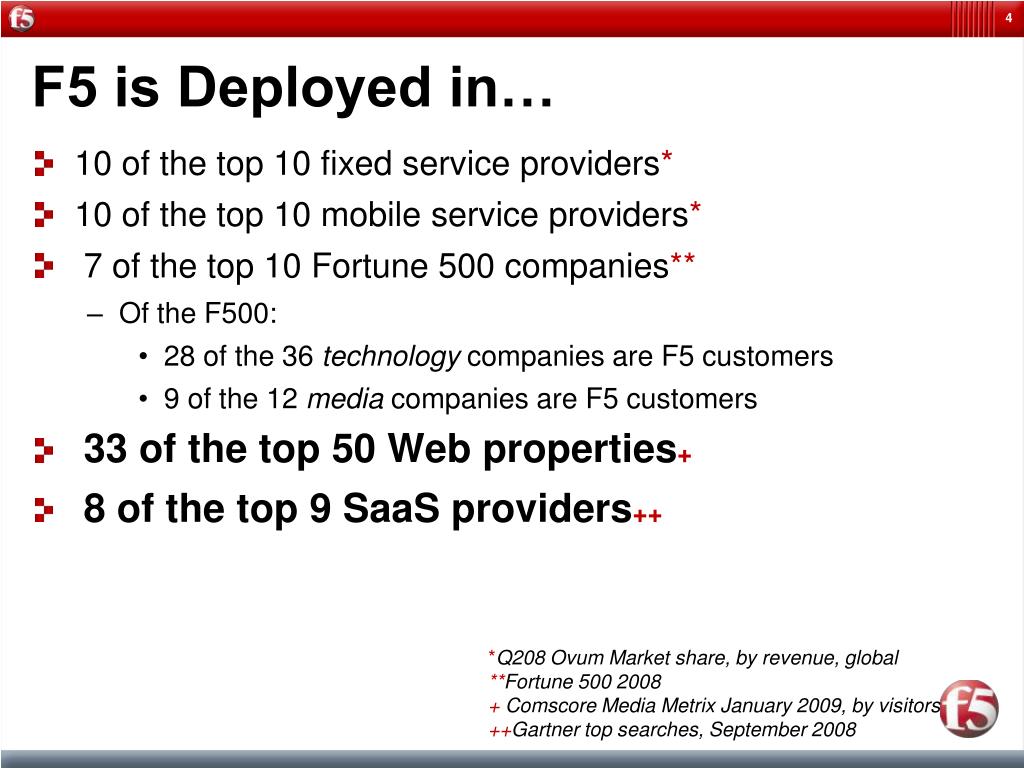

4. F5 is Deployed in… 10 of the top 10 fixed service providers* 10 of the top 10 mobile service providers*  7 of the top 10 Fortune 500 companies** Of the F500: 28 of the 36 technology companies are F5 customers 9 of the 12 media companies are F5 customers 33 of the top 50 Web properties+ 8 of the top 9 SaaS providers++ *Q208 Ovum Market share, by revenue, global **Fortune 500 2008 + Comscore Media Metrix January 2009, by visitors ++Gartner top searches, September 2008

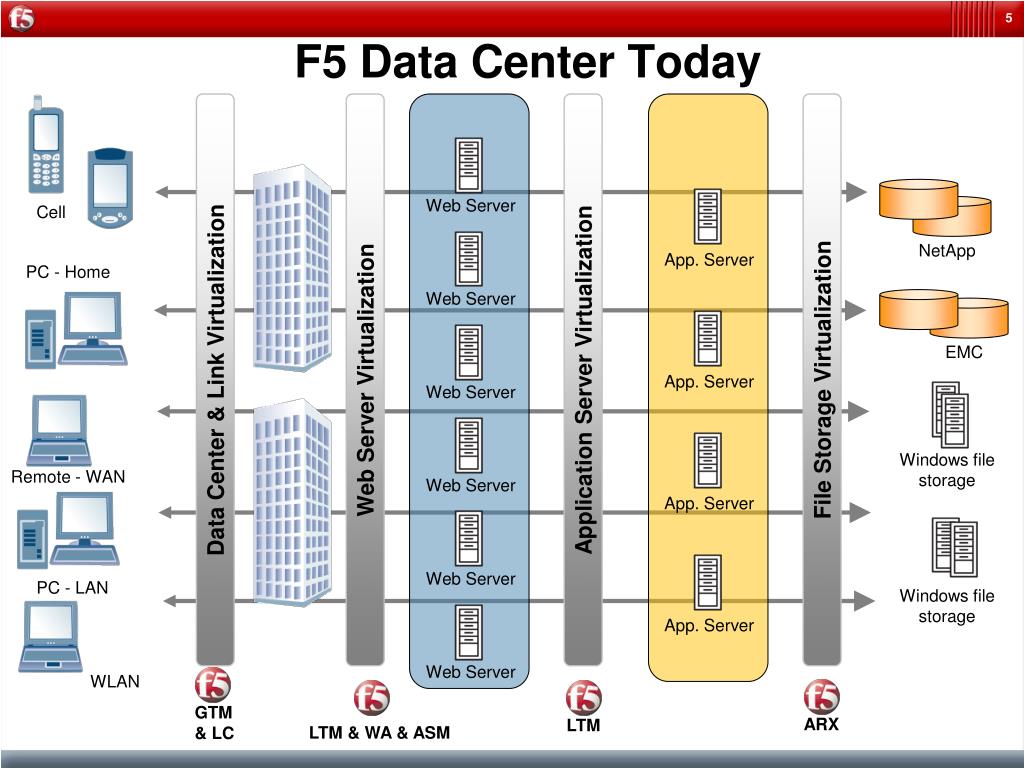

5. F5 Data Center Today Data Center & Link Virtualization Web Server Virtualization Application Server Virtualization File Storage Virtualization GTM & LC ARX LTM LTM & WA & ASM Cell PC - Home Web Server Web Server Web Server Web Server Web Server Web Server Remote - WAN App. Server App. Server App. Server App. Server PC - LAN Windows file storage Windows file storage WLAN EMC NetApp

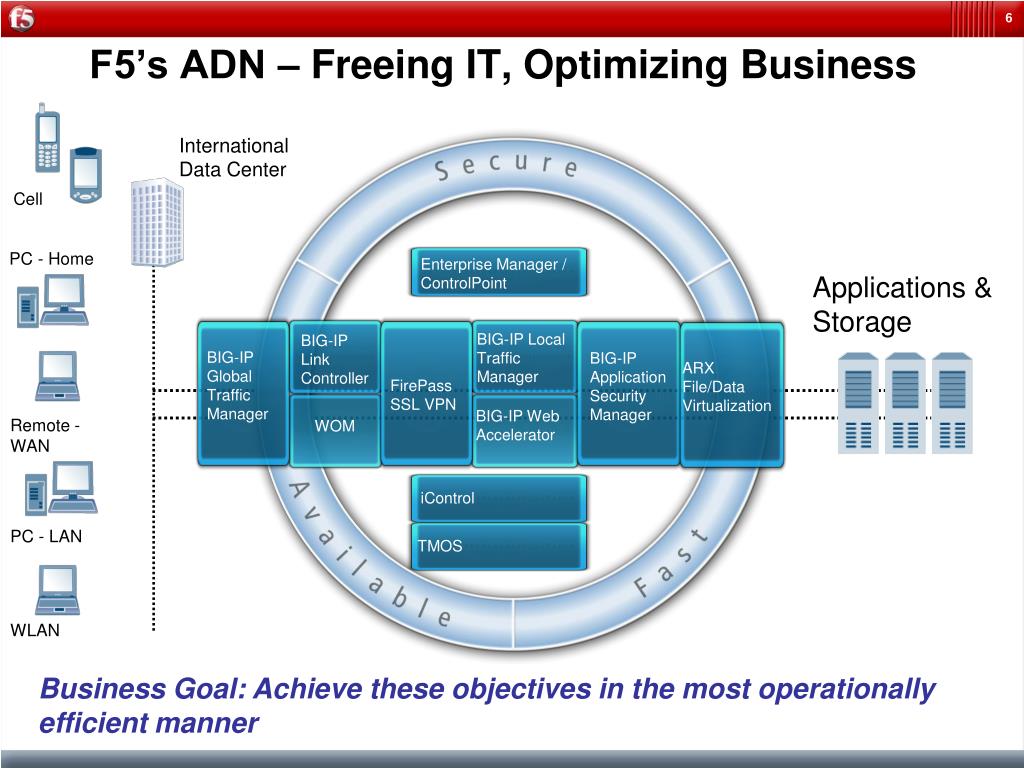

6. F5’s ADN – Freeing IT, Optimizing Business International Data Center Cell PC - Home Enterprise Manager / ControlPoint Applications & Storage BIG-IP Local Traffic Manager BIG-IP Link Controller ARX File/Data Virtualization BIG-IP Global Traffic Manager BIG-IPApplication Security Manager FirePass SSL VPN BIG-IP Web Accelerator Remote - WAN WOM iControl PC - LAN TMOS WLAN Business Goal: Achieve these objectives in the most operationally efficient manner

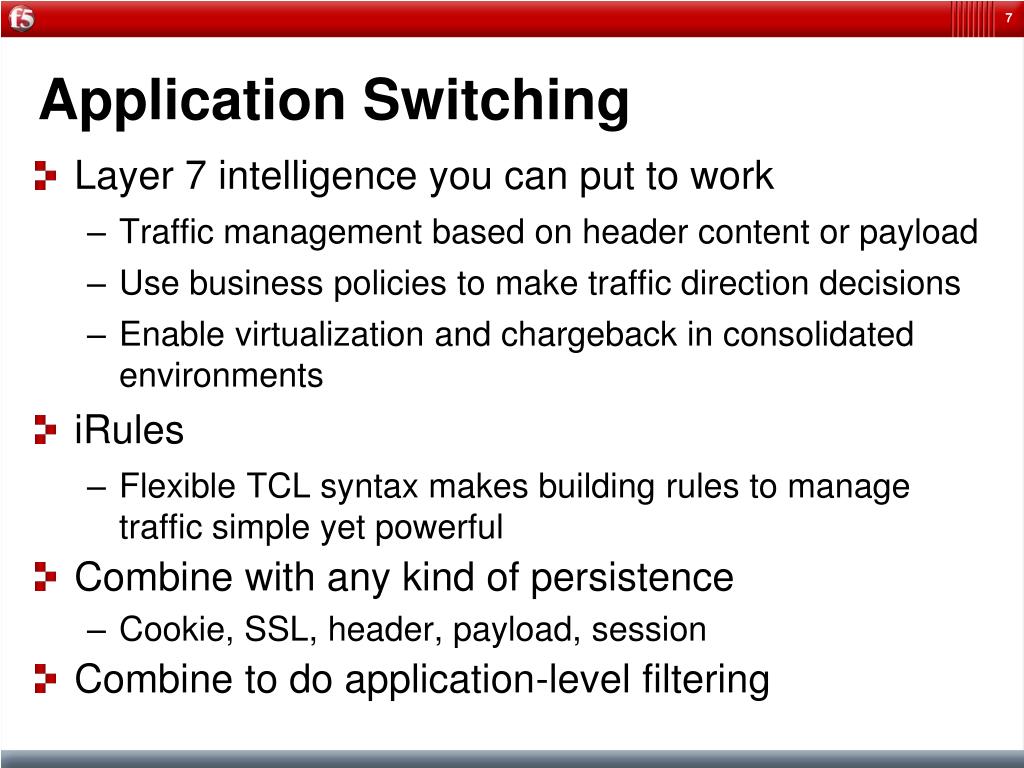

7. Application Switching • Layer 7 intelligence you can put to work • Traffic management based on header content or payload • Use business policies to make traffic direction decisions • Enable virtualization and chargeback in consolidated environments • iRules • Flexible TCL syntax makes building rules to manage traffic simple yet powerful • Combine with any kind of persistence • Cookie, SSL, header, payload, session • Combine to do application-level filtering

8. Server Offload • Compression • Dynamic Caching • Content Spooling • OneConnect • Rate Shaping • Connection limit • Application Acceleration • IBR (Dynamic Content Control) • Multi-Connect • Dynamic Linearization • Dynamic Caching • Dynamic Compression • SSL Acceleration Acceleration Functional Areas and the Effect on Infrastructure Page Generation Time Page LoadTime Page Delivery Time Page Delivery Time Internet WAN 10% 10% Client Browser ServerInfrastructure • Network Acceleration • Compression • Dynamic Caching • TCP Express • Differential Compression • QoS • Security/authentication

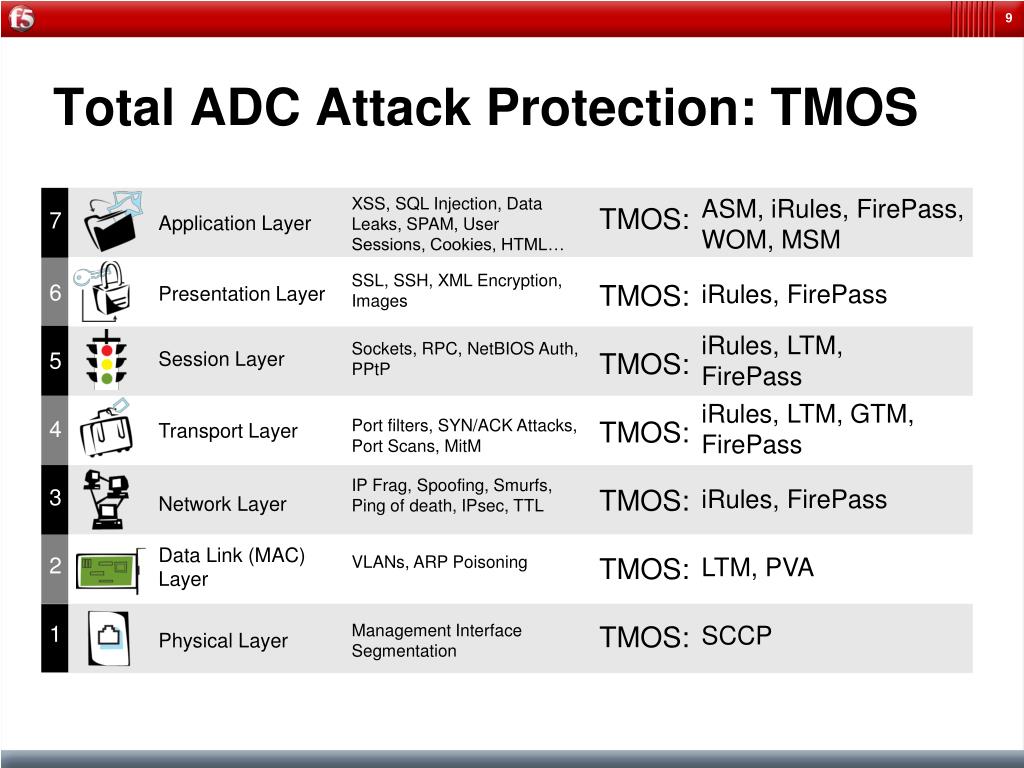

9. ASM, iRules, FirePass, WOM, MSM TMOS: TMOS: iRules, FirePass iRules, LTM, FirePass TMOS: iRules, LTM, GTM, FirePass TMOS: TMOS: iRules, FirePass TMOS: LTM, PVA TMOS: SCCP Total ADC Attack Protection: TMOS XSS, SQL Injection, Data Leaks, SPAM, User Sessions, Cookies, HTML… 7 Application Layer SSL, SSH, XML Encryption, Images 6 Presentation Layer Sockets, RPC, NetBIOS Auth, PPtP 5 Session Layer 4 Port filters, SYN/ACK Attacks,Port Scans, MitM Transport Layer IP Frag, Spoofing, Smurfs, Ping of death, IPsec, TTL 3 Network Layer Data Link (MAC) Layer 2 VLANs, ARP Poisoning 1 Management Interface Segmentation Physical Layer

10. Templates Engineered With CollaborationEnsuring best-practice deployments F5 Solution Center Successful Deployments http://www.f5.com/solutions/applications/sap/ http://www.f5.com/solutions/applications/oracle/ http://www.f5.com/solutions/applications/microsoft/ Etc, etc.

11. 1/3 Reduction in Servers 1/3 Reduction in Licenses 1/3 Reduction in Management Time 95% Fewer Connections 114.8 Million 5 Million 66% Reduction in Bandwidth 1.87 Terabyte 621 Gigabytes End-to-End Page Load Time 200% Faster 3 Seconds 1 Seconds Superior Real-World Performance 350 Million Page Hits in 1 Week

12. Specialized Hardware for App Delivery Hardware designed specifically for Application Delivery • Industry’s best performance – up to 40 Gbps throughput • Hot-Swappable Components • Flexible deployment options – FIPS, NEBS, DC power • Always-on Management • Hardware SSL offload
