Alge-Tiles

Alge-Tiles . For all Alge-Tile work it is essential to remember that RED means minus And Any other colour means plus. Variables. x 2. x. 1. -x 2. -x. -1. Example. Represent the following trinomials using alge-tiles:. 1. 2x 2 +3x+5. 2. x 2 -2x-3. Alge-Tile Uses.

zoe
Download Presentation

Alge-Tiles

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Alge-Tiles For all Alge-Tile work it is essential to remember that RED means minus And Any other colour means plus.

  2. Variables x2 x 1 -x2 -x -1

  3. Example Represent the following trinomials using alge-tiles: 1. 2x2+3x+5 2. x2-2x-3

  4. Alge-Tile Uses • Algebra tiles can be used for (among other things): • Section 1. Identifying ‘like’ and ‘unlike’ terms • Section 2. Adding and Subtracting Integers • Section 3. Simplifying Expressions • Section 4. Multiplying in algebra • Section 5. Factorising trinomials • Section 6. Doing linear equations

  5. Section 1. Like Terms Example 1. 4x+5 Can any of these be added ? Explain your answer Example 2. 4x+5x Can any of these be added ? Explain your answer

  6. Section 2. Adding and Subtracting Integers Example 1. 4-7 Example 2. –3-6

  7. Section 3. Adding and Subtracting Trinomials Example 1. 2x2+3x+5 + x2-5x-1

  8. Section 3. Adding and Subtracting Trinomials Example 1. 2x2+3x+5 + x2-5x-1 Answer 3x2-2x+4

  9. Section 3. Adding and Subtracting Trinomials Example 2. 2x2+3x+2 - ( x2-2x+1 ) - A CONCRETE IDEA FOR CHANGING SIGNS.

  10. Section 3. Adding and Subtracting Trinomials Example 2. 2x2+3x+2 - ( x2-2x+1 ) A CONCRETE IDEA FOR CHANGING SIGNS.

  11. Section 3. Adding and Subtracting Trinomials Example 2. 2x2+3x+2 - ( x2-2x+1 ) Answer x2+5x+1 A CONCRETE IDEA FOR CHANGING SIGNS.

  12. Practice • Simplify the following: • 2-8-1 • -5-1-4+1 • x2+2 • x2+5x+x2-2x • 2x2-x+1 - (2x2-2x-5) • x2- 2x2-2x+4 - (x2+2x+3) • 3x2-4x+2 - (x2+2) • x2+x-2 - 2(x2+2x-3) • -4x-3 - (2x2-2x-4) • Simplify the following: • 6-7 • 3-2-4-1 • 5x2+2x • 2x2+4x+2x2-x • 3x2-2x+4+x2-x-2 • x2-3x-2-x2-2x+4 • 2x2-2x-1-3x2-2x-2 • x2+2x+1- 3x2-x • x2-x+3-2x2+2x+x2-2x-5

  13. Multiplying & FactorisingGeneralAim • Whether multiplying or factorising, the general aim is to generate a rectangle and have no pieces left over. • Also the small squares always go in the bottom right hand corner

  14. Section 4. Multiplying in algebra Example 2. Multiply (x-1)(x-3) Answer: x2-4x+3

  15. Practice • Multiply the following: • x(x+3) • 2(x-5) • 3x(x-1) • (x+4)(x+3) • (x-1)(x+2) • (x-4)(x-2) • (3x-1)(x-3) • (x-1)(x-1) • (2x+1)2 • (x-2)2

  16. Factors and Area Section 5. Factorising Quadratic Trinomials - a geometrical approach Review Multiplication Again

  17. Show (x+1)(x+3) by arranging the tiles in a rectangle. How it works x + 3 Now Arrange them into a Rectangle Remember the little guys go in the bottom right corner x + 1 Rearrangethe tiles to show the expansion: x2 + 4x + 3

  18. Factorise x2 + 6x + 8 Factorise x2+6x+8 x2 + 6x + 8 To factorise this expression form a rectangle with the pieces. x + 4 x + 2 The factors are ( x + 4 )( x + 2 )

  19. Show (x+3)(x-1) by arranging the tiles in a rectangle. - 3 x2 + 3x -1x (x+3)(x-1) x + 3 x - 1 NOTE: REDS ARE NEGATIVE NOW COMPLETE THE RECTANGLE WITH NEGATIVE SQUARES Rearrangethe tiles to show the expansion: = x2 + 2x - 3

  20. Factorise x 2 - 4x + 3 x2 + 3 - 4x Factorise x2-4x+3 x - 3 x - 1 The factors are ( x - 3 )( x - 1 )

  21. Factorise x 2 - x - 12 x2 -12 - x Factorise x2-x-12 ? Clearly there is no way to accommodate the 12 small guys in the bottom right hand corner. What do you do? You add in Zero in the form of +x and –x. And Keep doing it to complete the rectangle.

  22. Factorise x 2 - x - 12 Factorise x2-x-12 x - 4 x + 3 The factors are ? ( x + 3 )( x - 4 )

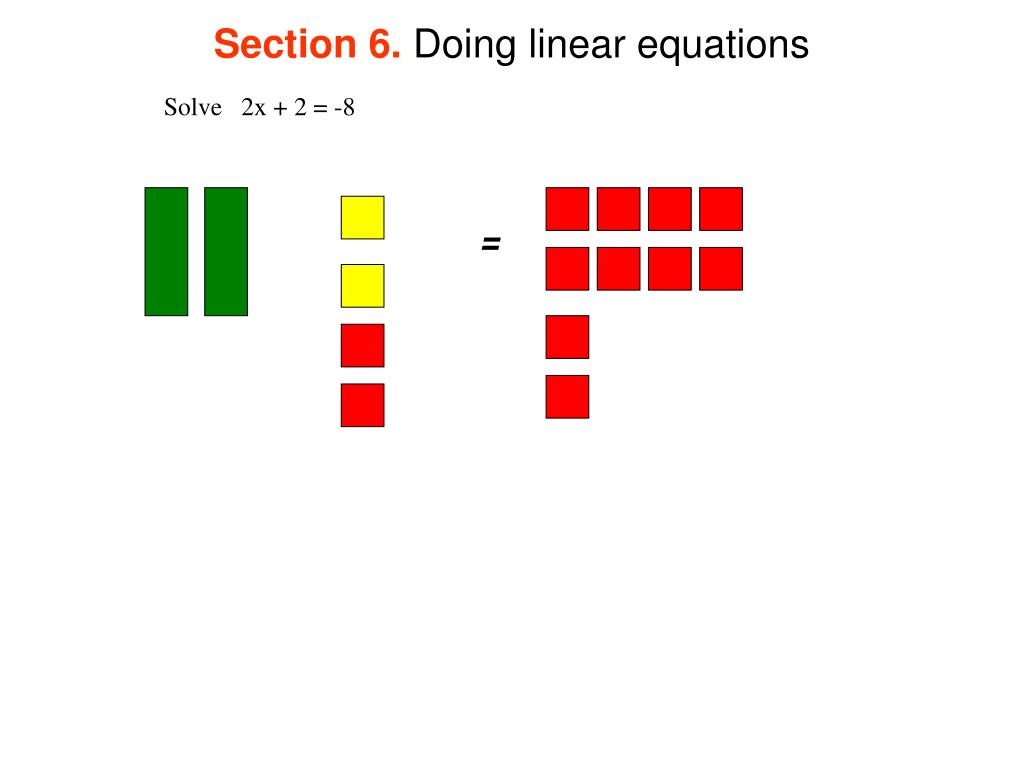

  23. Section 6. Doing linear equations Solve 2x + 2 = -8 =

  24. Section 6. Doing linear equations Solve 2x + 2 = -8 =

  25. Section 6. Doing linear equations Solve 2x + 2 = -8 = = =

  26. Section 6. Doing linear equations Solve 2x + 2 = -8 Solution x = -5 = =

  27. Section 6. Doing linear equations Solve 4x – 3 = 9 + x = You can take away the same thing from both sides

  28. Section 6. Doing linear equations Solve 4x – 3 = 9 + x = You can add the same quantity to both sides

  29. Section 6. Doing linear equations Solve 4x – 3 = 9 + x =

  30. Section 6. Doing linear equations Solve 4x – 3 = 9 + x = = =

  31. Section 6. Doing linear equations Solve 4x – 3 = 9 + x = = = Solution x = 4

  32. Practice • Solve the following: • x+4 = 7 • x-2 = 4 • 3x-1 =11 • 4x-2 = x-8 • 5x+1 = 13-x • 2(x+3) = x-1 • 2x-4 = 5x+8
