Presentation Transcript

  1. PRODUCT NEWS Frankfurt, 15 - 20 / 04 /2012 FOR INTERNAL USE ONLY

  2. SUPER FLAT Flos Architectural • Frankfurt, 15 - 20 / 04 /2012 Description Luminaire that provides diffuse light. The lighting is obtained through specially-designed guides that allow an optimum light output, providing unbeatable visual comfort. The efficacy of this new lighting system makes it possible to prevent power losses in the LEDs. 8-metre adjustable steel cable suspension system. Power supply built into cable. Versions Power LED whit constant current: - Model 120x20: 39W / 2600lm / 3000K / CRI80 - Model 120x30: 42W / 2600lm / 3000K / CRI80 - Model 60x60: 39W / 2600lm / 3000K / CRI80 - Model 90x90: 80W / 5200lm / 3000K / CRI80 - Model 90x90 + 2 Spots: Panel: 80W / 5200lm / 3000K / CRI80 Spots: 2x14.5W / 2x700lm / 3000K / CRI95 Power Supply Remote Power Supply. FOR INTERNAL USE ONLY

  3. SUN Antonio Citterio • Frankfurt, 15 - 20 / 04 /2012 Description Recessed general lighting ceiling fixture for fluorescent lights. Frame made with Soft Architecture technology, allowing the luminaire to be integrated into plastered ceilings, with an opal diffuser. Light Source Fluorescent lamp, combination of T5 and TC-L lamps. Two versions. - High Efficiency: 4x14W T5 + 2x16W TC-L - High Output: 4x24W T5 + 2x24W TC-L Power Supply – Maintenance Electronic ballast integrated in the luminarie. Available non dimmable or dimmable DALI. Is possible to access to the lamps an gears by removing the diffuser from the ceiling. Performance Diffuser made in plastic with rotomolding technology. Frame made with Soft Architecture technology for perfect integration in plasterboard ceilings. Time To Market (Expected) November 2012 FOR INTERNAL USE ONLY

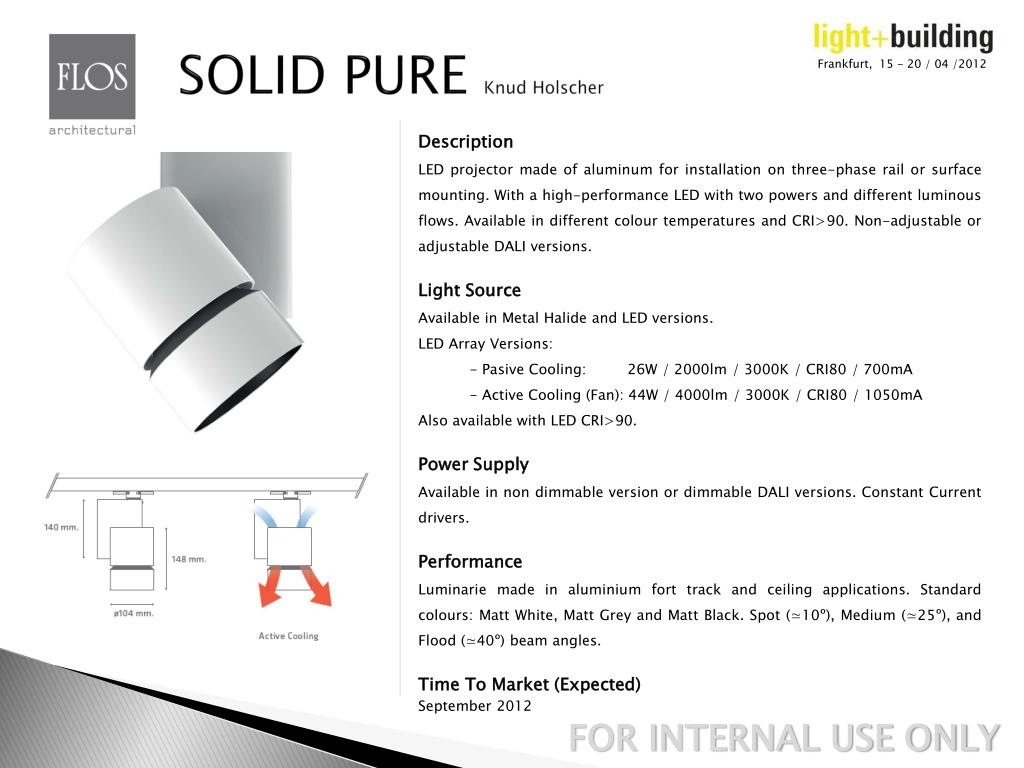

  4. SOLID PURE KnudHolscher • Frankfurt, 15 - 20 / 04 /2012 Description LED projector made of aluminum for installation on three-phase rail or surface mounting. With a high-performance LED with two powers and different luminous flows. Available in different colour temperatures and CRI>90. Non-adjustableoradjustable DALI versions. Light Source Available in Metal Halide and LED versions. LED Array Versions: - Pasive Cooling: 26W / 2000lm / 3000K / CRI80 / 700mA - Active Cooling (Fan): 44W / 4000lm / 3000K / CRI80 / 1050mA Also available with LED CRI>90. Power Supply Available in non dimmable version or dimmable DALI versions. Constant Current drivers. Performance Luminarie made in aluminium fort track and ceiling applications. Standard colours: Matt White, Matt Grey and Matt Black. Spot (≃10º), Medium (≃25º), and Flood (≃40º) beam angles. Time To Market (Expected) September 2012 FOR INTERNAL USE ONLY

  5. FINDME Jorge Herrera • Frankfurt, 15 - 20 / 04 /2012 • Description • LED projector family made of aluminum for recessed mounting in ceilings or for hanging. With decorative cylinders that allow customized effects to be obtained. • High-performance LED with lens for optimum light control. • Light Source • Available LED versions: • - Pasive Cooling: 9W / 560lm / 3000K / CRI80 / 700mA • - Power LED: XM-L EasyWhite 3000K CREE • Power Supply • Remote Power Supply of constant current not included in the product. Must be ordered separately. Non dimmable, dimmable 1-10V, dimmable DALI and Mains Dimming drivers available. • Performance • Cylinder made in aluminium with passive heatsink and decorative front cylinders. • Monopoint Version • With No Trim Frame with mechanism to hide the body into the ceiling or extract and adjust it. • Suspended Version • Two versions, one with canopy with power supply integrated and another for remote drivers. Cable 4m. • Recessed 2L • With No Trim Frame, plastic body, and two adjustable fixtures. • Time To Market (Expected) July 2012 FOR INTERNAL USE ONLY

  6. THE RUNNING MAGNET Flos Architectural • Frankfurt, 15 - 20 / 04 /2012 Description Lighting system for ceiling or wall mounting that permits general lighting to be combined with accent lighting. Made of aluminum grooves with an opening of 35mm into which tracks are incorporated with a low-voltage 24V electric current, to which projectors can be attached using magnetic means or LED line modules for general lighting. Versions Power LED with Step Down (24V) and TOP LED: - Spot Tool: 3W / 180lm / 3000K / CRI80 - Lineal Tool: 24W x meter / 2200lm x meter / 3000K / CRI80 Power Supply Remote Power Supply. FOR INTERNAL USE ONLY

  7. CIRCLE OF LIGHT Flos Architectural • Frankfurt, 15 - 20 / 04 /2012 Description Recessed ceiling luminaires with a high-performance LED light source simulating a circular groove of 35mm in the ceiling. Frame made with Soft Architecture technology to permit optimum integration in plastered ceilings. Light Source Power LED XP-G CREE with Step Down (24V – 700mA) . Is possible to feed with 24V power supplies: - Pasive Cooling: 3WxLED / 180lmxLED / 3000K / CRI80 Power Supply - Maintenance Remote Power Supply of constant voltage 24V not included in the product. Must be ordered separately. Non dimmable, dimmable 1-10V or DALI drivers available. Maintenance removing with a bayonet system the internal circle made in Soft Architecture technology. Performance Round luminarie to be installed in plasterboard ceilings. Frame made with Soft Architecture technology for perfect integration in plasterboard ceilings. Special double focus lens which increase the efficiency of the LEDs avoiding spread light. Time To Market (Expected) October 2012 FOR INTERNAL USE ONLY

  8. GRASHER Flos Architectural • Frankfurt, 15 - 20 / 04 /2012 Description Recessed luminaire with LED light source and high luminous flow, for bathing walls.Frame for integrating the luminaire into plastered ceilings. Can be modulated to obtain the desired length. Light Source Power LED (P4 SEOUL) with Step Down (24V – 550mA). Is possible to feed with 24V power supplies: - Pasive Cooling: 40.5W x meter/ 1800lm x meter / 3000K / CRI93 Power Supply Remote Power Supply of constant voltage 24V not included in the product. Must be ordered separately. Non dimmable, dimmable 1-10V or DALI drivers available. Performance LED modules of different lengths, interconnectableusingtheconnection cable with fast Tyco-type connectors. For power supply with the cable provided for this purpose, available with accessories. Maximum length from a connection point 3 metres. Class III insulation. Time To Market (Expected) December 2012 FOR INTERNAL USE ONLY

  9. GO-IN Jorge Herrera • Frankfurt, 15 - 20 / 04 /2012 Description Recessed luminous sign for installing in plastered walls, with next-generation LED light source. Frame made with Soft Architecture technology for wall mounting. The luminous body is fixed to the frame by a magnetic system that allows for easy product maintenance. Light Source TOP LED with constant voltage 24V (OSRAM DURIS E3): - Pasive Cooling: 0.8W / 60lm / 3000K / CRI85 - Light Colours: White / Orange / Violet Power Supply Remote Power Supply of constant voltage 24V not included in the product. Must be ordered separately. Non dimmable, dimmable 1-10V or DALI drivers available. Performance Front light engine could be removable from the wall pulling since the internal circle. Internal circle, made in aluminum painted in Matt White finish. Time To Market (Expected) June 2012 FOR INTERNAL USE ONLY
