Presentation Transcript
slide1

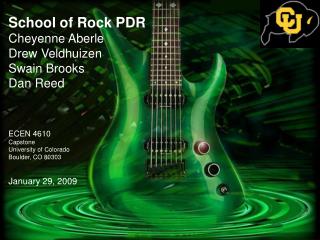

School of Rock PDR

Cheyenne Aberle

Drew Veldhuizen

Swain Brooks

Dan Reed

ECEN 4610

Capstone

University of Colorado

Boulder, CO 80303

January 29, 2009

now presenting
Now Presenting…

Drew Veldhuizen

Capstone PDR

ECEN 4610

project overview
Project Overview

Design of a system that automatically tunes an electric guitar with built-in effects

Capstone PDR

ECEN 4610

design
Design
  • PCB mounted in body of guitar.
  • Motors mounted to the back side of the head of the guitar.
  • Using DSP, A/D converters, and microcontroller, analyze signal and control motor movement to achieve desired pitch.
  • User Interface via LCD touch screen.
  • Multi-colored LED’s next to each string to indicate in tune or out of tune.

Capstone PDR

ECEN 4610

block diagram
Block Diagram

Capstone PDR

ECEN 4610

guitar
Guitar
  • Electric guitar
  • Audio output jack on guitar outputs signal for analysis
  • Signal output via magnetic “pick-ups” already built into the guitar
  • Looking for guitar at local shops and online
  • Based on measurements, torque on tuning knobs requires 12 to 16 oz-in

Capstone PDR

ECEN 4610

pcb design
PCB Design
  • MSP430 Microcontroller
  • Motor Drives
    • Six drives will be built and used to control six stepper tuning motors, one for each tuning knob.
  • DSP Processing Chip
    • Using Fourier Transforms, will process frequency of each string and determine how far off it is from the correct pitch.
  • Accelerometer
    • Used for effects similar to star power in Guitar Hero.
  • LCD/Touch Screen
    • GUI for tuning presets, effects, and feedback to user

Capstone PDR

ECEN 4610

now presenting8
Now Presenting…

Cheyenne Aberle

Capstone PDR

ECEN 4610

microcontroller
Microcontroller
  • TI MSP430 16-bit microcontroller
    • 32 kHz, 1.8V to 3.6V, ultra-low-power
    • Interface to DSP chip through I2C communication

Capstone PDR

ECEN 4610

dsp chip
DSP Chip
  • Freescale Semiconductor DSPB56371
    • 24-bit Audio Digital Signal Processor
    • Utilizes I2C communication with microprocessor
    • 180MHz core, 3.3V

Capstone PDR

ECEN 4610

filtering
Filtering
  • Filtering performed in the microcontroller
    • Ideally, strum all strings at once and circuit filters signals, outputs information to each motor controller for optimized tuning
    • The guitar might need to be strummed 3 to 4 times to provide adequate data for the tuning circuit

Capstone PDR

ECEN 4610

motor design
Motor Design
  • Stepper Motors similar to the Sure Step 83oz-in motor will be used to turn the tuning knobs on the guitar head.
  • Motors will be mounted on the head with wires run through the neck of the guitar to the microcontroller.

Capstone PDR

ECEN 4610

power
Power
  • AC to DC Power Converter
    • Plugs into 120VAC 60Hz outlet.
    • Used to recharge the battery
    • Also good application for use at a performance
      • Ensures guitar always has enough power for tuning during a show
  • Rechargeable Lithium-Ion battery
    • Able to supply enough power to tune the guitar a few times before recharging is necessary.

Capstone PDR

ECEN 4610

now presenting14
Now Presenting…

Dan Reed

Capstone PDR

ECEN 4610

user interface
User Interface
  • LCD Touch Screen
    • Creates a graphical user interface
    • Allows user to select different tuning schemes
      • Drop D, double drop D, standard, etc
      • User can also customize tuning scheme
    • Most logical would be a lay-over resistive touch screen for an LCD display
  • LED’s
    • Next to each string below the bridge.
    • Indicates in or out of tune for each string based on the color (eg. Green for in tune, red for out of tune)

Capstone PDR

ECEN 4610

effects
Effects
  • Adding effects to the guitar can up-scope this project if needed
    • Distortion, Wah Wah, Reverb, etc…
  • The XYZ accelerometer will determine which effect is enabled based on the direction the guitar moves.
  • Can increase (1) the ease of turning on effects and (2) the excitement of performances.

Capstone PDR

ECEN 4610

implementation
Implementation
  • PCB will be set into the body of the guitar.
  • Motors will be attached to the head of the guitar.
  • The LCD touch screen can be mounted in the front or back of the guitar body, whichever is more convenient to the user.
  • The rechargeable battery will be mounted in the backside of the guitar body with an input jack for the AC to DC power converter.

Capstone PDR

ECEN 4610

schedule
Schedule

Capstone PDR

ECEN 4610

division of labor
Division of Labor
  • Drew Veldhuizen
    • Motor Control
    • PCB Design
  • Dan Reed
    • PCB Design
    • Software
  • Cheyenne Aberle
    • DSP
    • Mechanical / Control
  • Swain Brooks
    • DSP
    • Software
  • Group
    • Technical and User Manual

Capstone PDR

ECEN 4610

now presenting20
Now Presenting…

Swain Brooks

Capstone PDR

ECEN 4610

budget
Budget

Capstone PDR

ECEN 4610

extra features
Extra Features
  • Accelerometer
  • USB output used for recording
  • Visualizer on LCD screen and/or LEDs

Capstone PDR

ECEN 4610

risks
Risks
  • Not everything will fit inside the guitar
    • Create external enclosure to house electronics
  • Motors might end up being too large to fit on the head of the guitar
    • Separate free standing enclosure for motors
  • Touch Screen does not work
    • Use LCD and push buttons
  • Not enough time for effects
    • Not essential for project

Capstone PDR

ECEN 4610

fall back plan
Fall Back Plan
  • LCD user interface with corresponding buttons.
  • Set tuning schemes, not customizable.
  • No effects, accelerometer used to activate the tuning program.
  • No battery, just use power cable.

Capstone PDR

ECEN 4610

questions
Questions

Any Questions?
