Areas of Regular Polygons and Composite Figures

Areas of Regular Polygons and Composite Figures. Notes 12 – Section 11.4. Essential Learnings. Students will understand and be able to find areas of regular polygons and composite figures. Vocabulary. Apothem – a segment drawn perpendicular to a side of a regular polygon.

zia
Download Presentation

Areas of Regular Polygons and Composite Figures

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript


  1. Areas of Regular Polygons and Composite Figures Notes 12 – Section 11.4

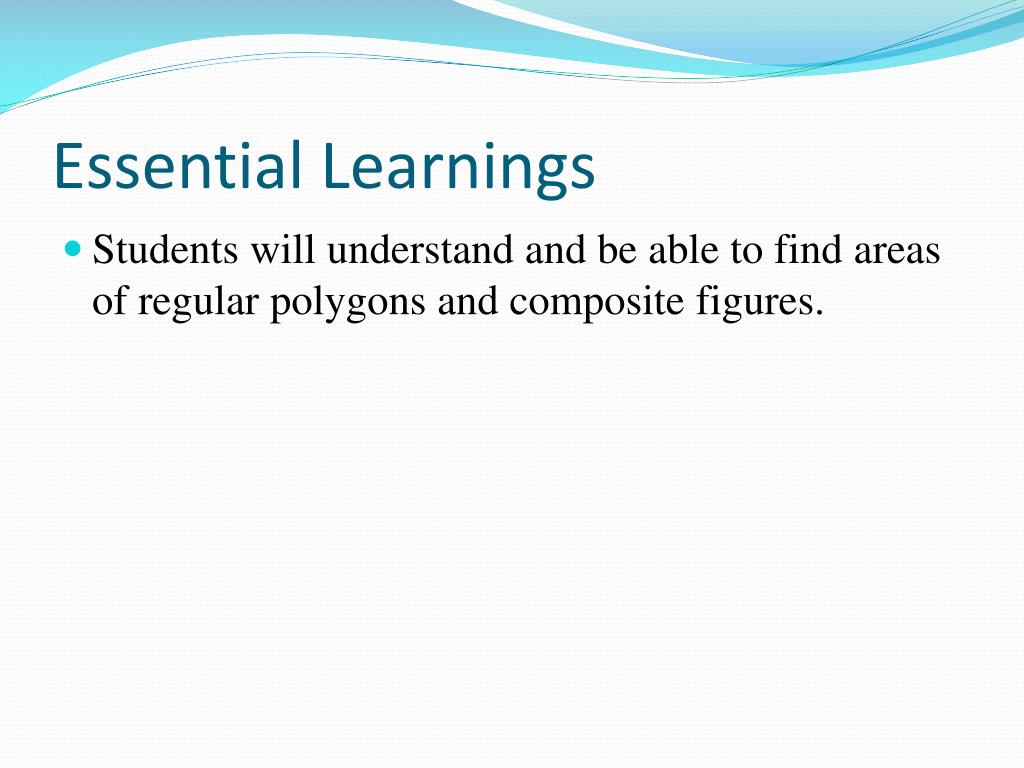

  2. Essential Learnings • Students will understand and be able to find areas of regular polygons and composite figures.

  3. Vocabulary • Apothem – a segment drawn perpendicular to a side of a regular polygon. • The measure of each central angle of a regular n-gon is where n is the number of sides.

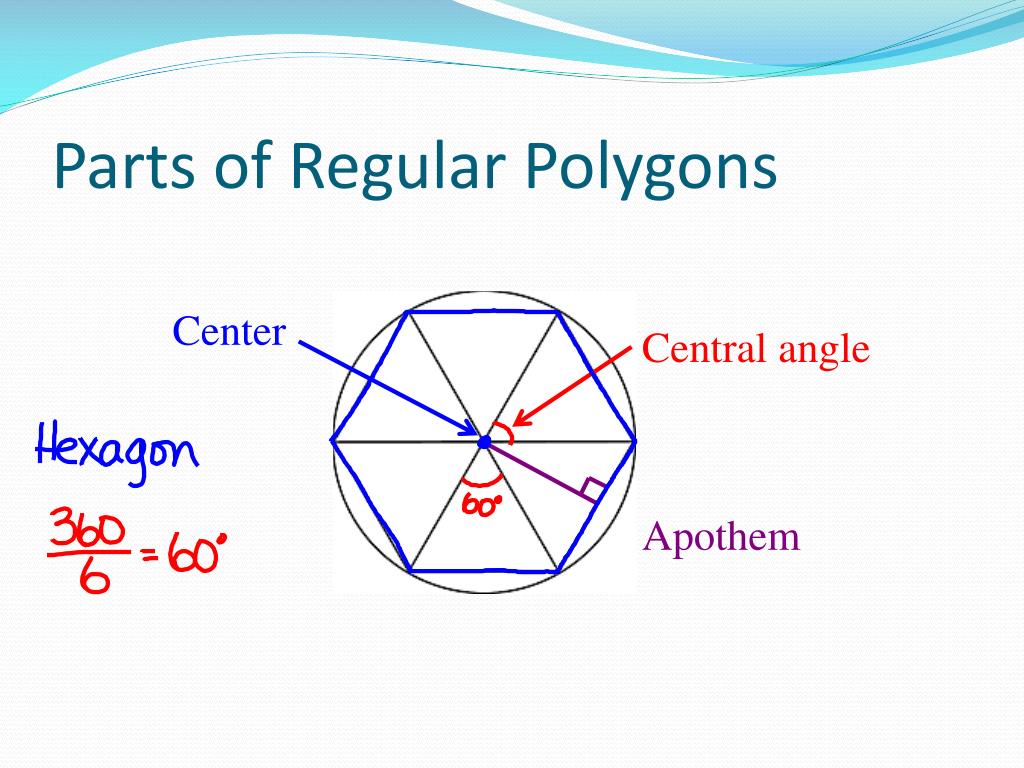

  4. Parts of Regular Polygons Center Central angle Apothem

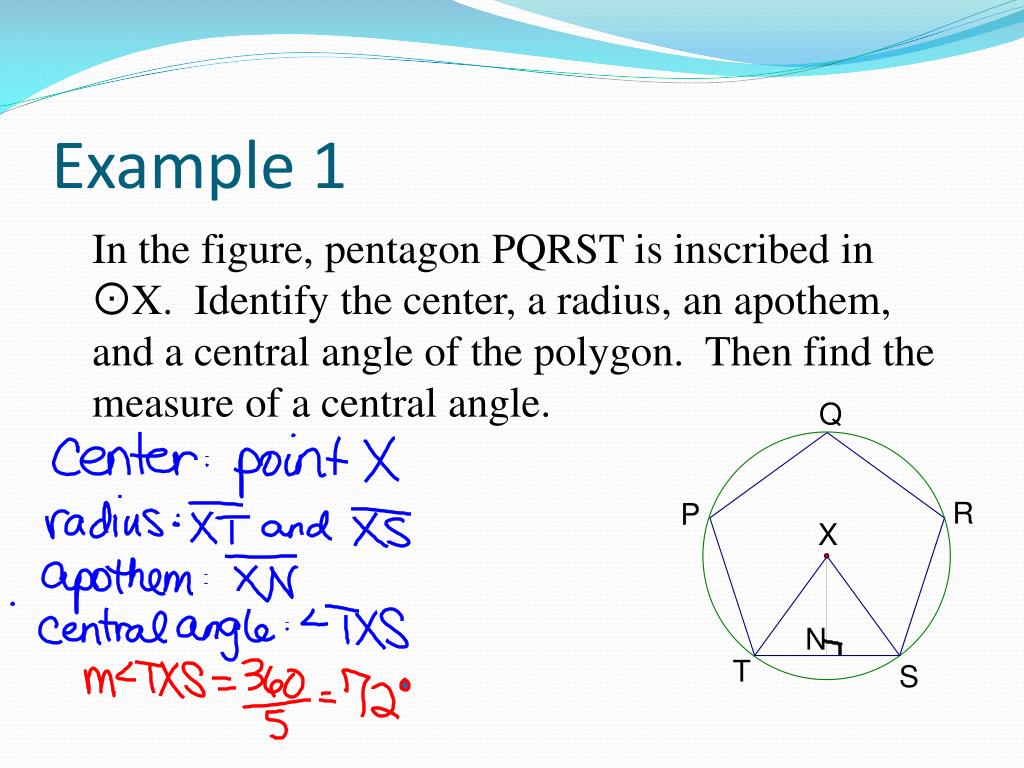

  5. Example 1 In the figure, pentagon PQRST is inscribed in X. Identify the center, a radius, an apothem, and a central angle of the polygon. Then find the measure of a central angle.

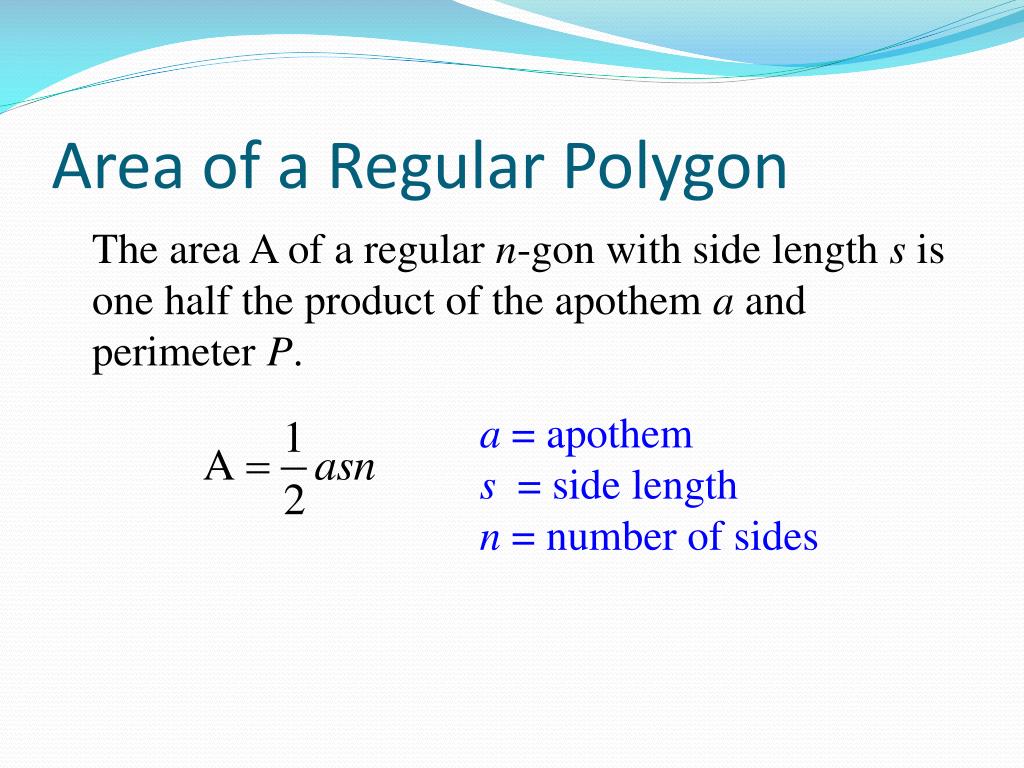

  6. Area of a Regular Polygon The area A of a regular n-gon with side length s is one half the product of the apothem a and perimeter P. a = apothem s = side length n = number of sides

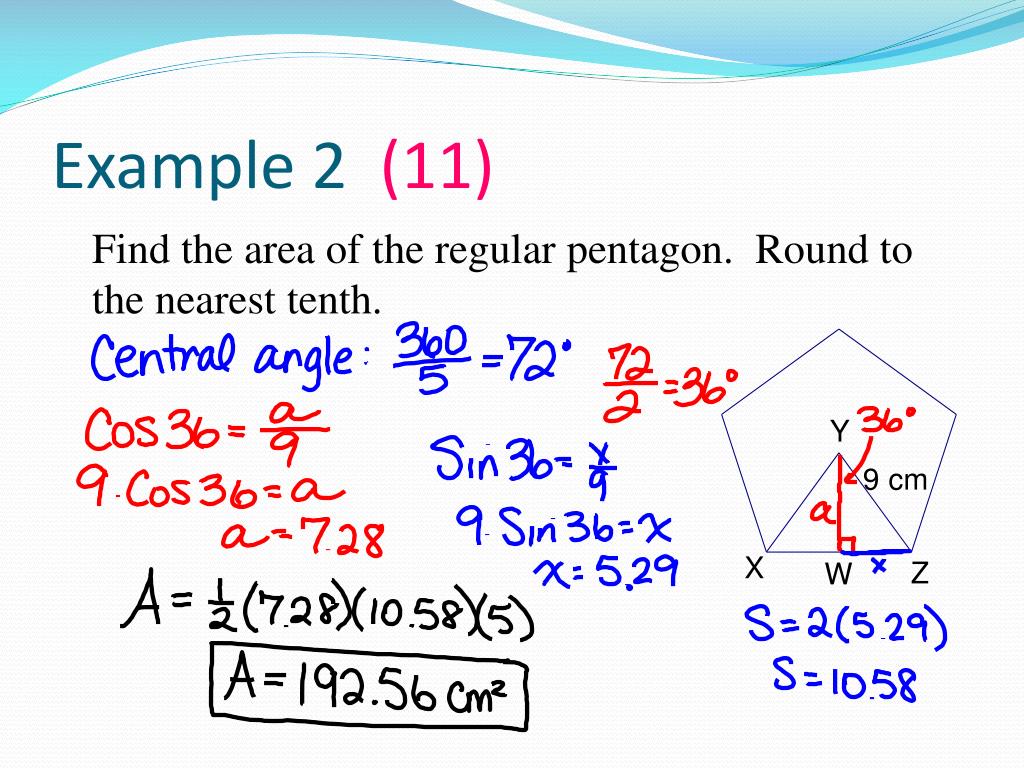

  7. Example 2 (11) Find the area of the regular pentagon. Round to the nearest tenth.

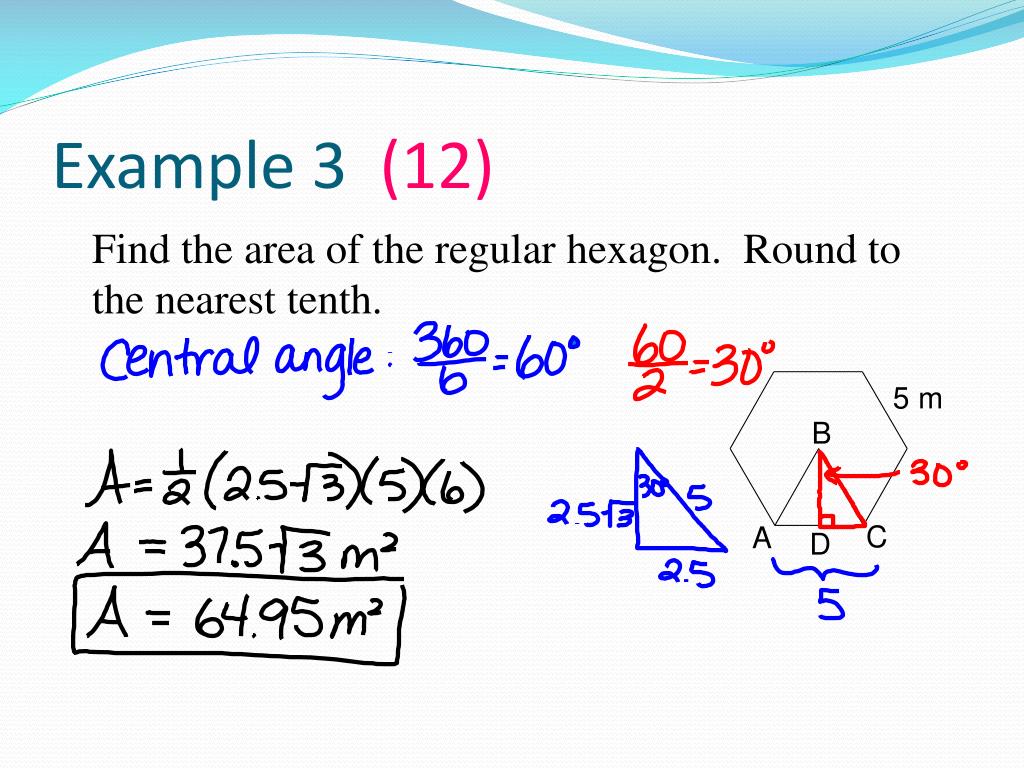

  8. Example 3 (12) Find the area of the regular hexagon. Round to the nearest tenth.

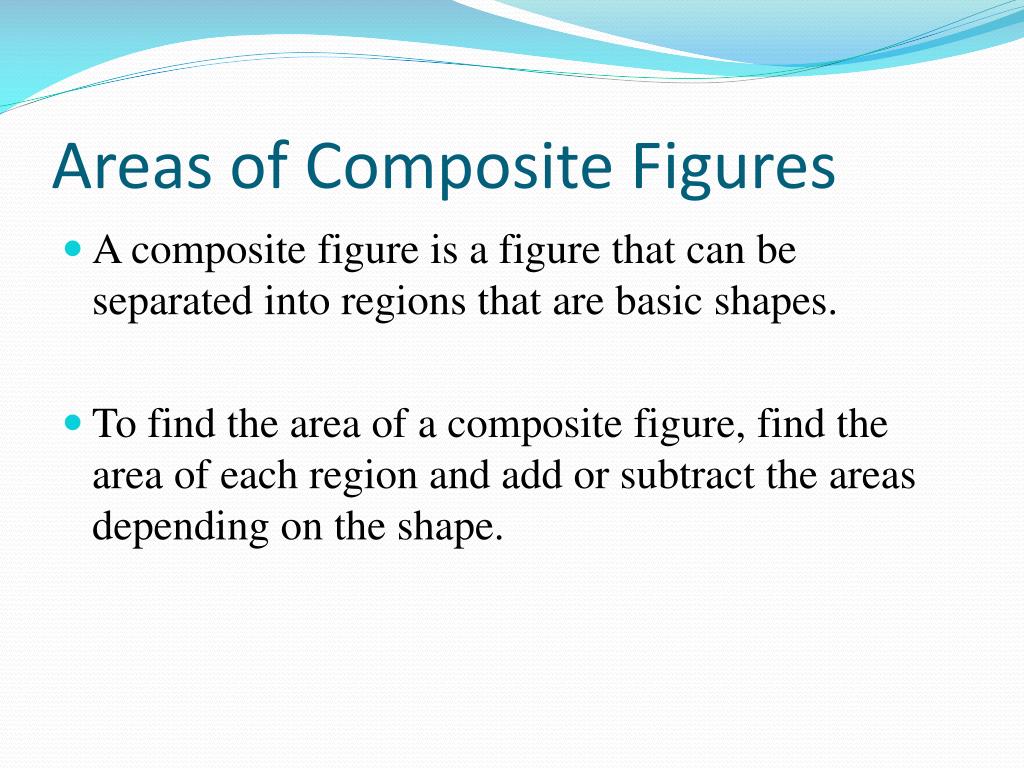

  9. Areas of Composite Figures • A composite figure is a figure that can be separated into regions that are basic shapes. • To find the area of a composite figure, find the area of each region and add or subtract the areas depending on the shape.

  10. Example 4 (15) Find the area of the figure. Round to the nearest tenth if necessary.

  11. Example 5 (20) Find the area of the figure. Round to the nearest tenth if necessary.

  12. Assignment Pages 794: 10 – 20, 22 Math’s Mate 3-1: Due Monday Unit Study Guide 6 Quiz – Wednesday Math’s Mate Quiz - Friday
