Presentation Transcript
slide1

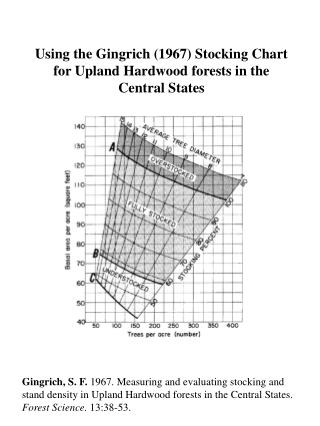

Using the Gingrich (1967) Stocking Chart for Upland Hardwood forests in the Central States

Gingrich, S. F. 1967. Measuring and evaluating stocking and stand density in Upland Hardwood forests in the Central States. Forest Science. 13:38-53.

slide10

Class Exercise:

Determine the percent stocking for a stand with a density of 150 trees ac-1 and basal area of 115 ft2 ac-1

slide11

Determine the percent stocking for a stand with a a density of 150 trees ac-1 and basal area of 115 ft2 ac-1

Answer: 95% Stocking

95

slide12

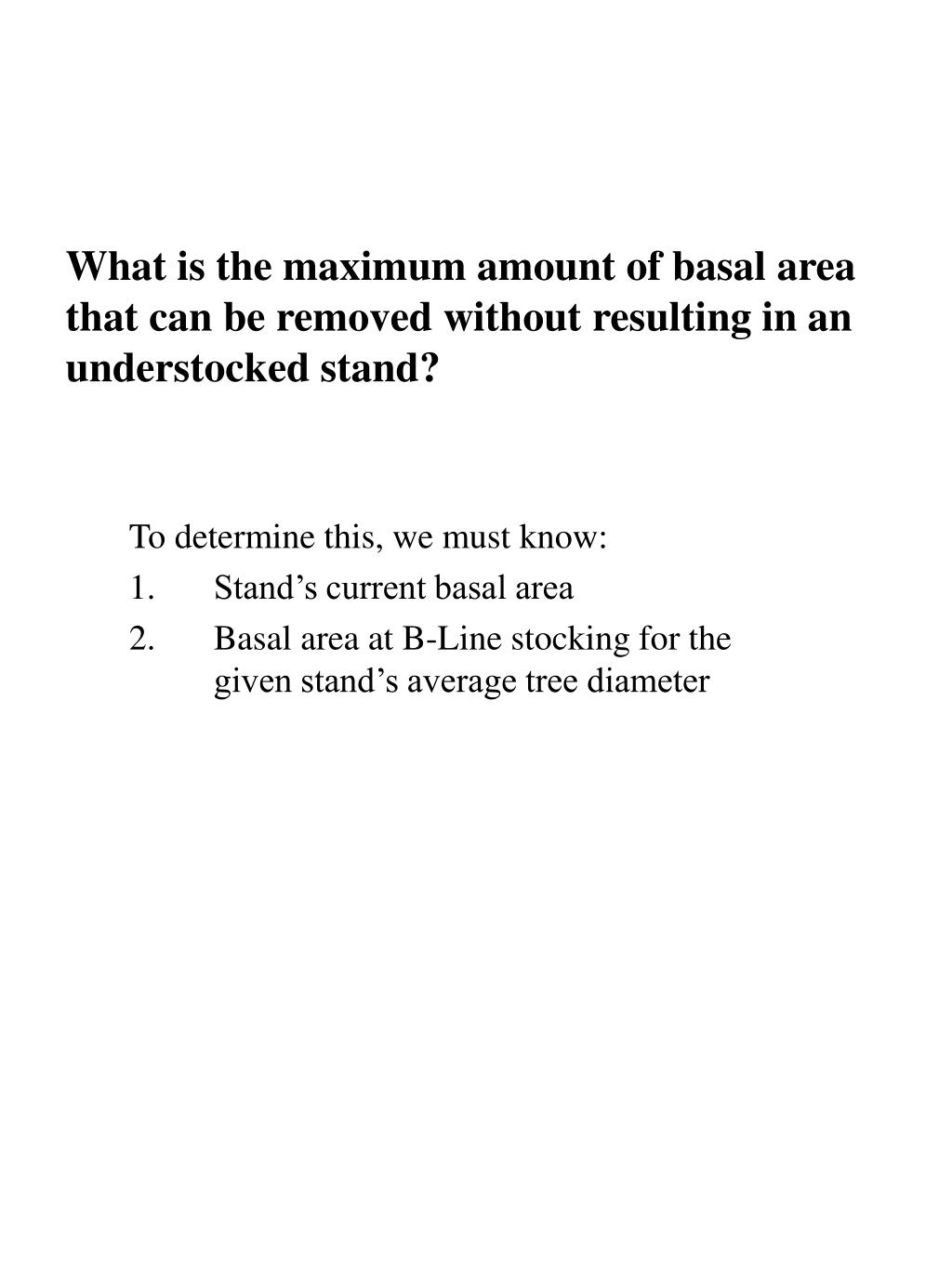

What is the maximum amount of basal area that can be removed without resulting in an understocked stand?

To determine this, we must know:

Stand’s current basal area

Basal area at B-Line stocking for the given stand’s average tree diameter

slide13

What is the maximum amount of basal area that can be removed without resulting in an understocked stand?

To determine this, we must know:

Stand’s current basal area

Basal area at B-Line stocking for the given stand’s average tree diameter

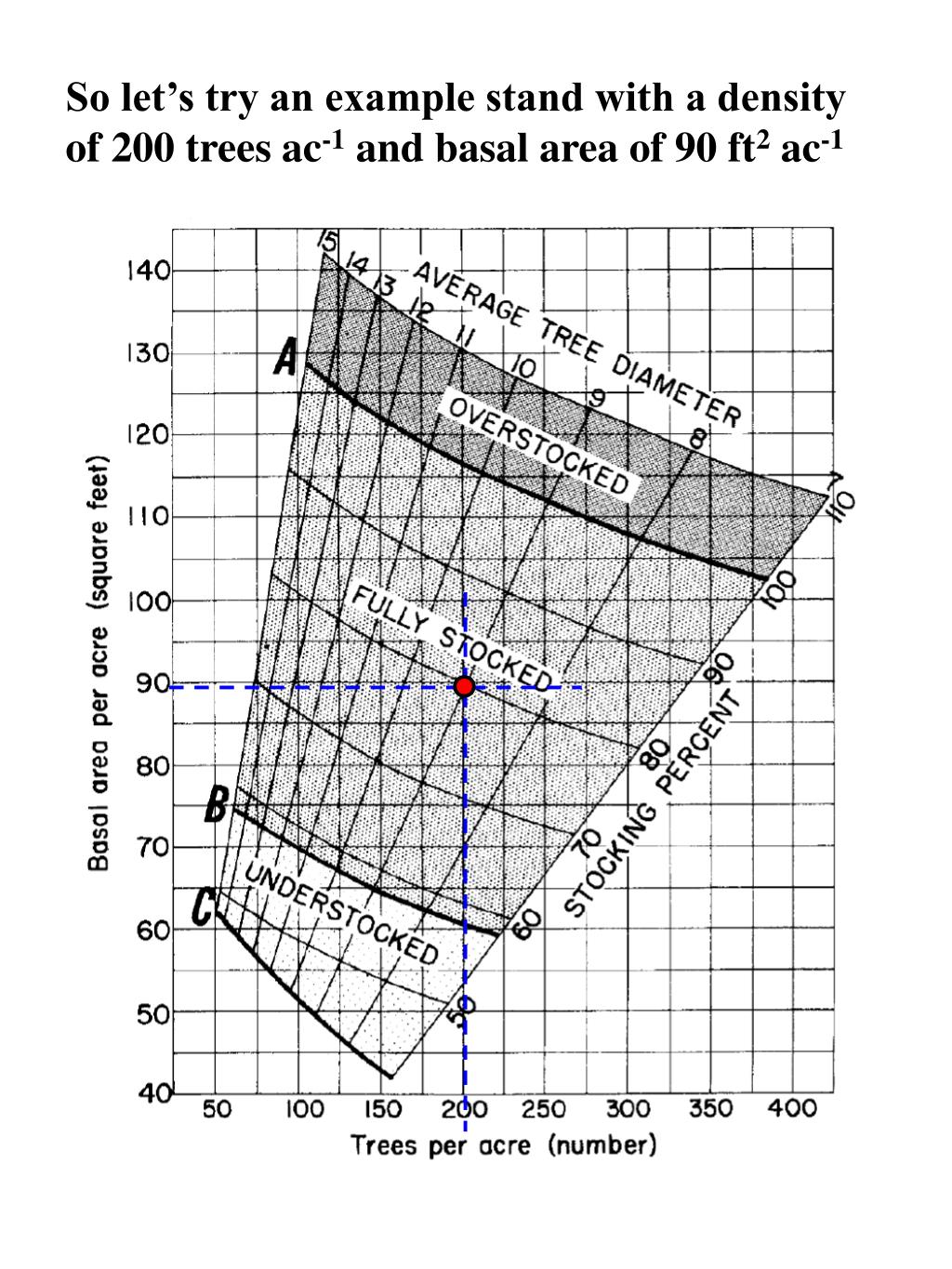

We already know the stand’s current basal area is 90 ft2 ac-1

slide14

What is the maximum amount of basal area that can be removed without resulting in an understocked stand?

To determine this, we must know:

Stand’s current basal area

Basal area at B-Line stocking for the given stand’s average tree diameter

We already know the stand’s current basal area is 90 ft2 ac-1

We determine the basal area at B-Line stocking for the given stand’s average tree diameter by using the stocking chart.

slide15

What is the maximum amount of basal area that can be removed without resulting in an understocked stand?

slide16

What is the maximum amount of basal area that can be removed without resulting in an understocked stand?

slide17

What is the maximum amount of basal area that can be removed without resulting in an understocked stand?

Basal area at B-Line stocking is ~ 65 ft2 ac-1

slide18

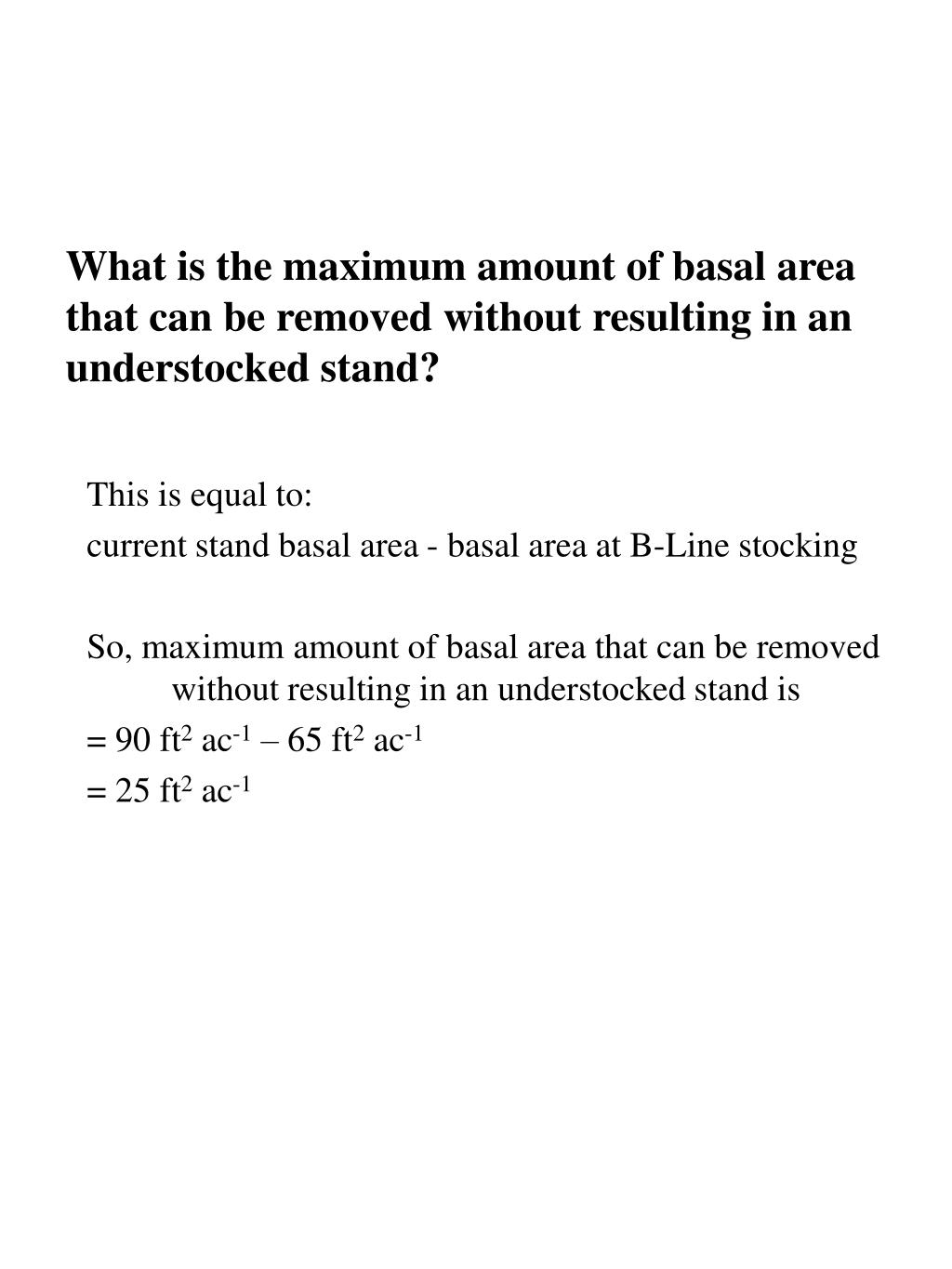

What is the maximum amount of basal area that can be removed without resulting in an understocked stand?

This is equal to:

current stand basal area - basal area at B-Line stocking

So, maximum amount of basal area that can be removed without resulting in an understocked stand is

= 90 ft2 ac-1 – 65 ft2 ac-1

= 25 ft2 ac-1
