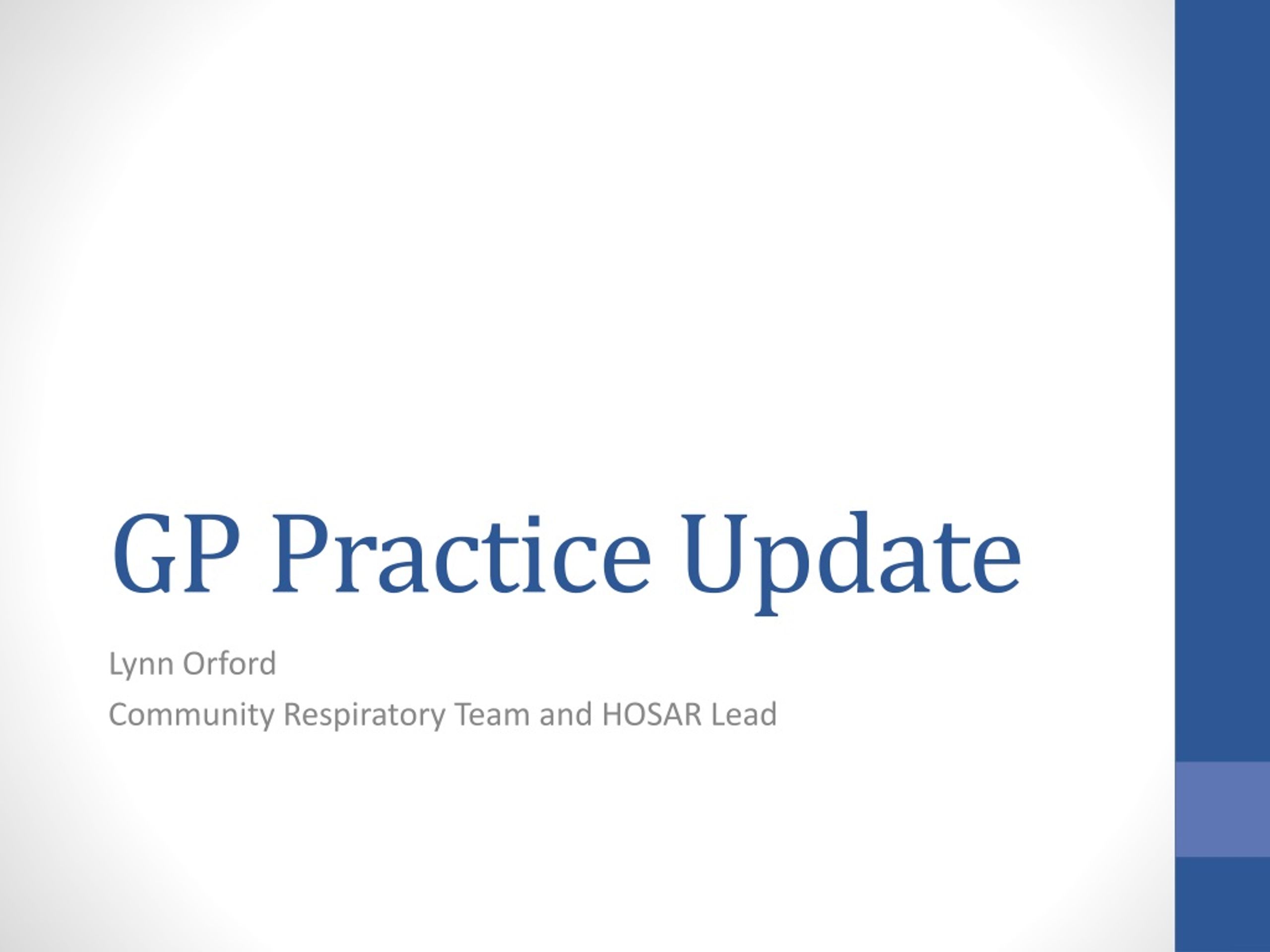

  1. GP Practice Update Lynn Orford Community Respiratory Team and HOSAR Lead

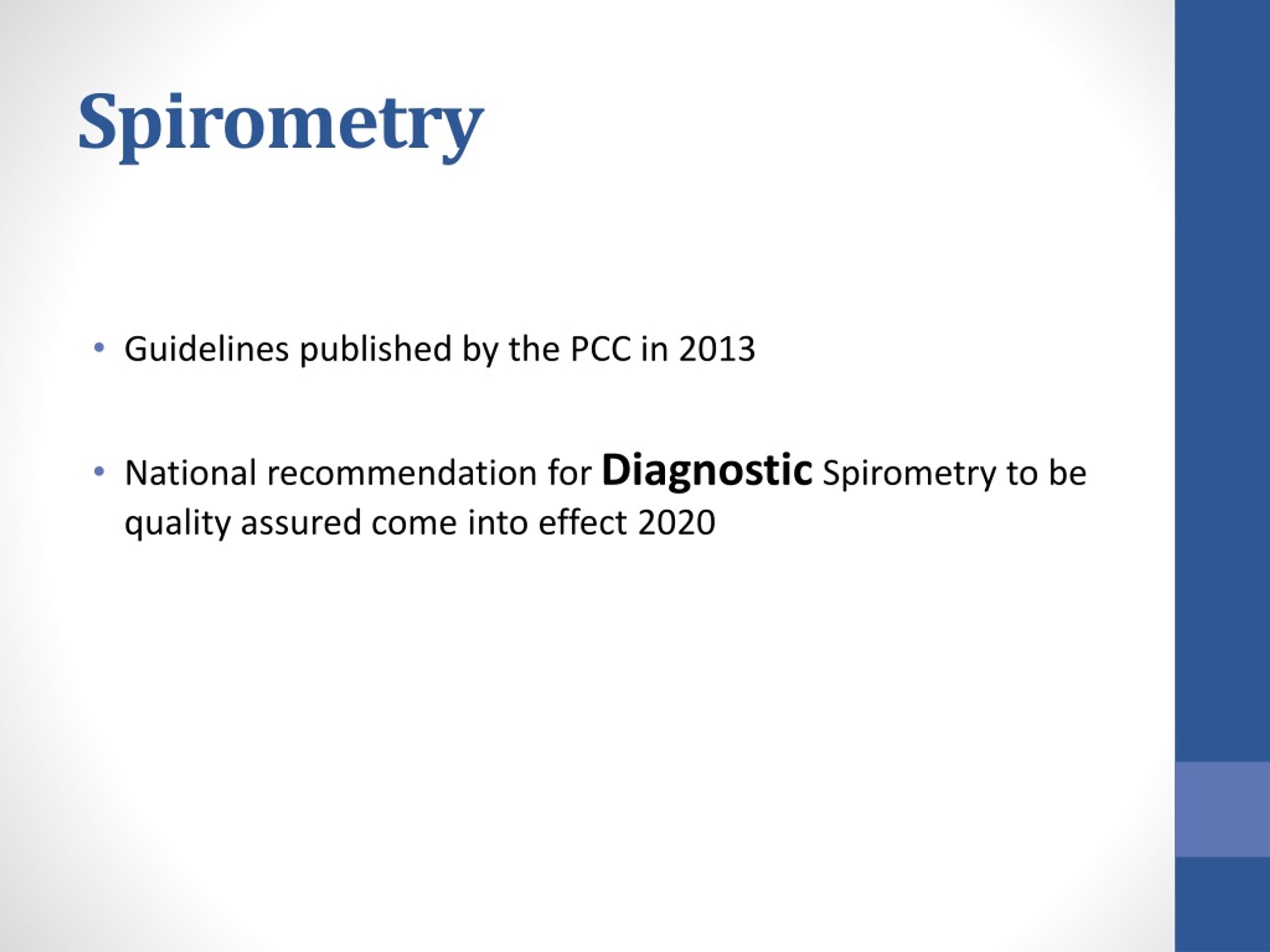

  2. Spirometry • Guidelines published by the PCC in 2013 • National recommendation for Diagnostic Spirometry to be quality assured come into effect 2020

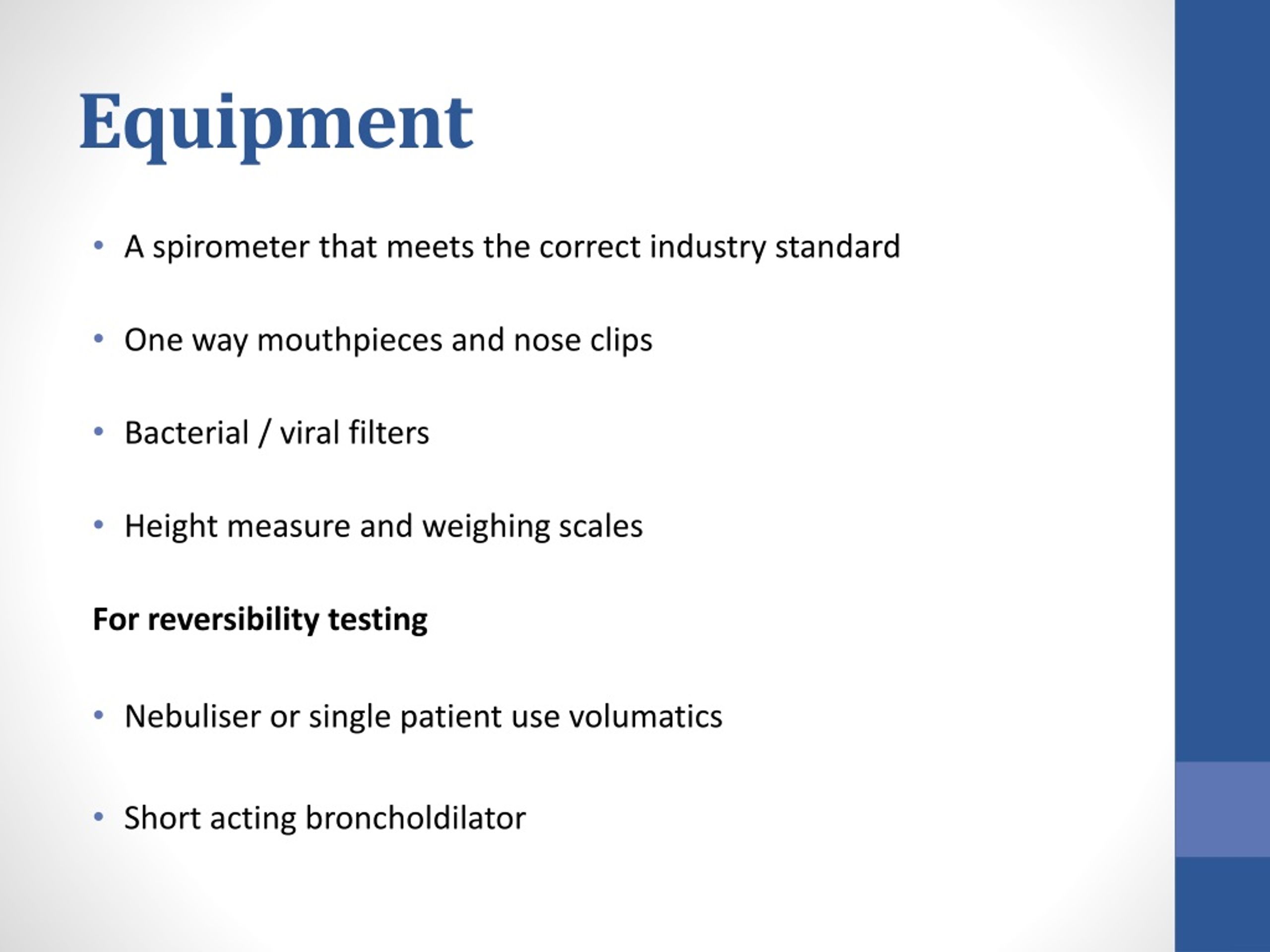

  3. Equipment • A spirometer that meets the correct industry standard • One way mouthpieces and nose clips • Bacterial / viral filters • Height measure and weighing scales For reversibility testing • Nebuliser or single patient use volumatics • Short acting broncholdilator

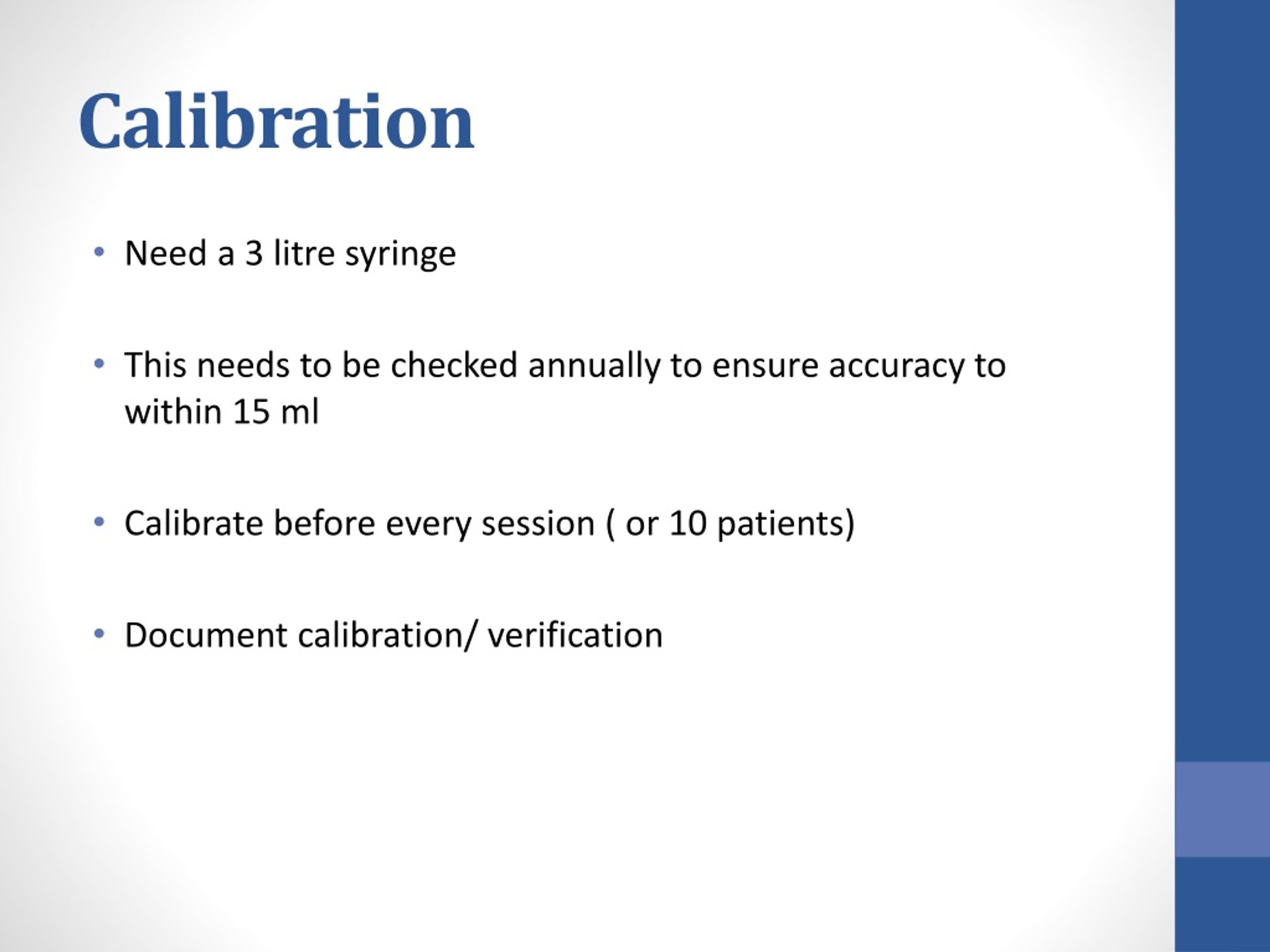

  4. Calibration • Need a 3 litre syringe • This needs to be checked annually to ensure accuracy to within 15 ml • Calibrate before every session ( or 10 patients) • Document calibration/ verification

  5. Cleaning • Regular cleaning schedule • Document schedule • Need appropriate cleaning solution to the machine.

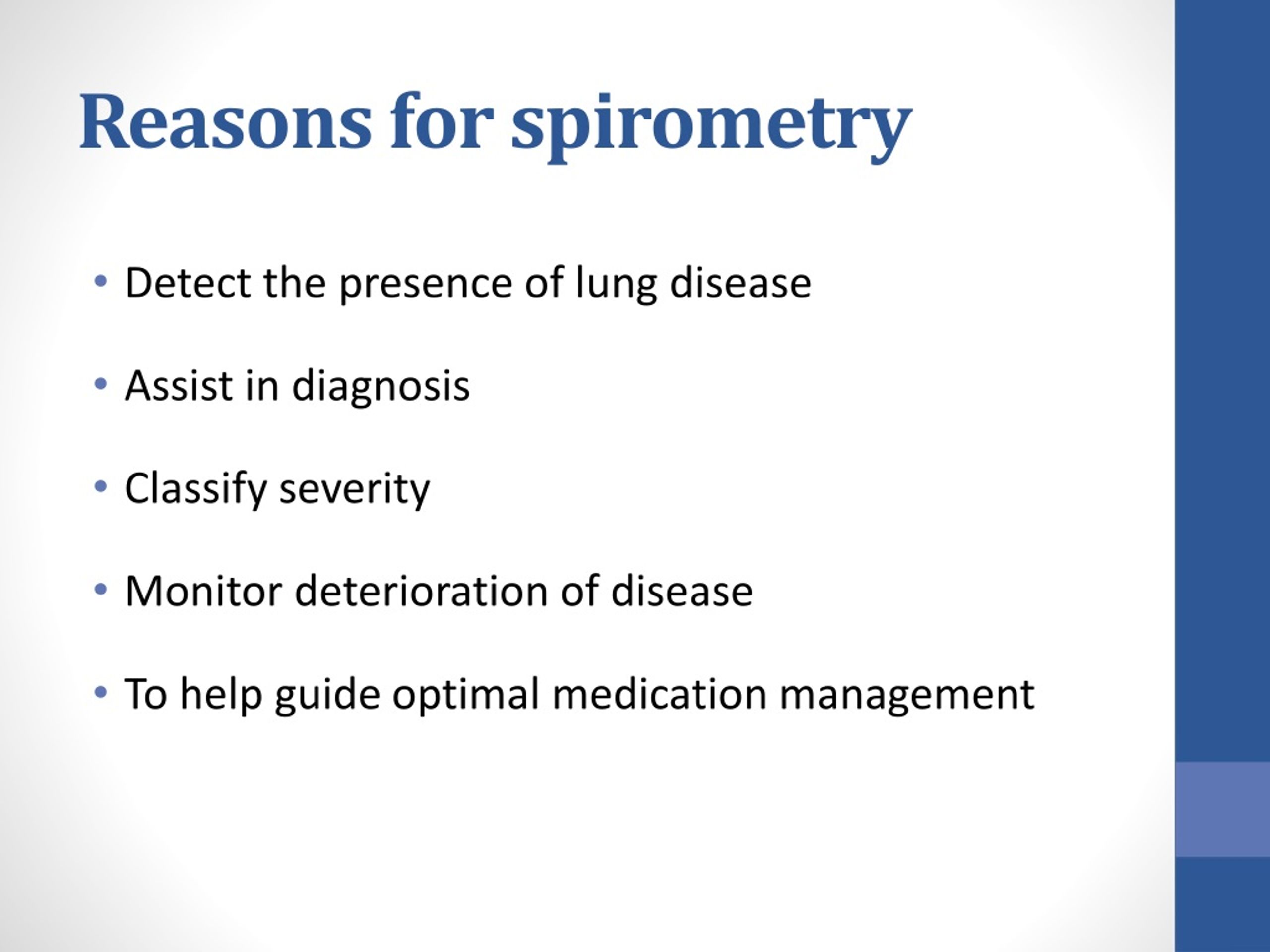

  6. Reasons for spirometry • Detect the presence of lung disease • Assist in diagnosis • Classify severity • Monitor deterioration of disease • To help guide optimal medication management

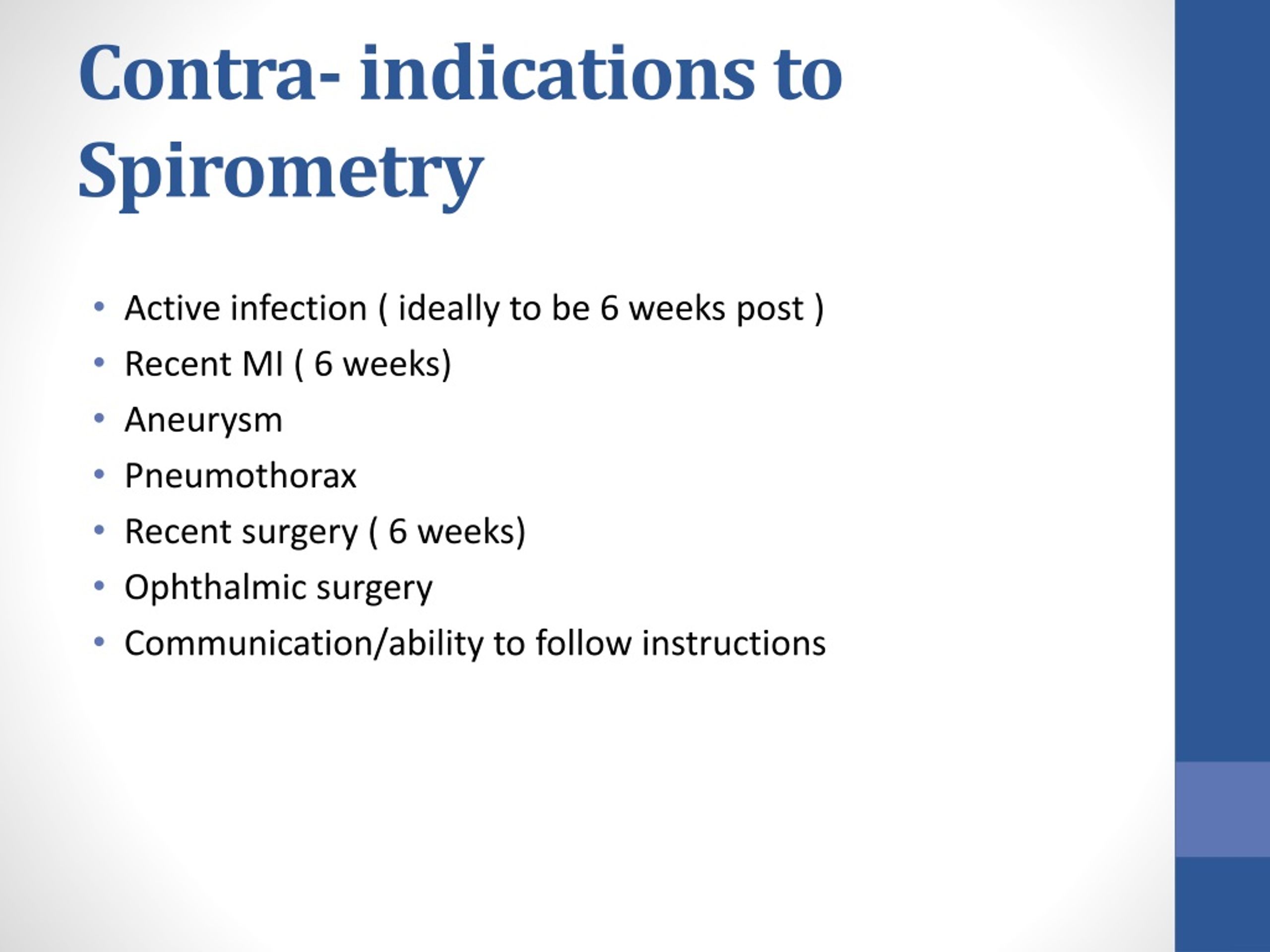

  7. Contra- indications to Spirometry • Active infection ( ideally to be 6 weeks post ) • Recent MI ( 6 weeks) • Aneurysm • Pneumothorax • Recent surgery ( 6 weeks) • Ophthalmic surgery • Communication/ability to follow instructions

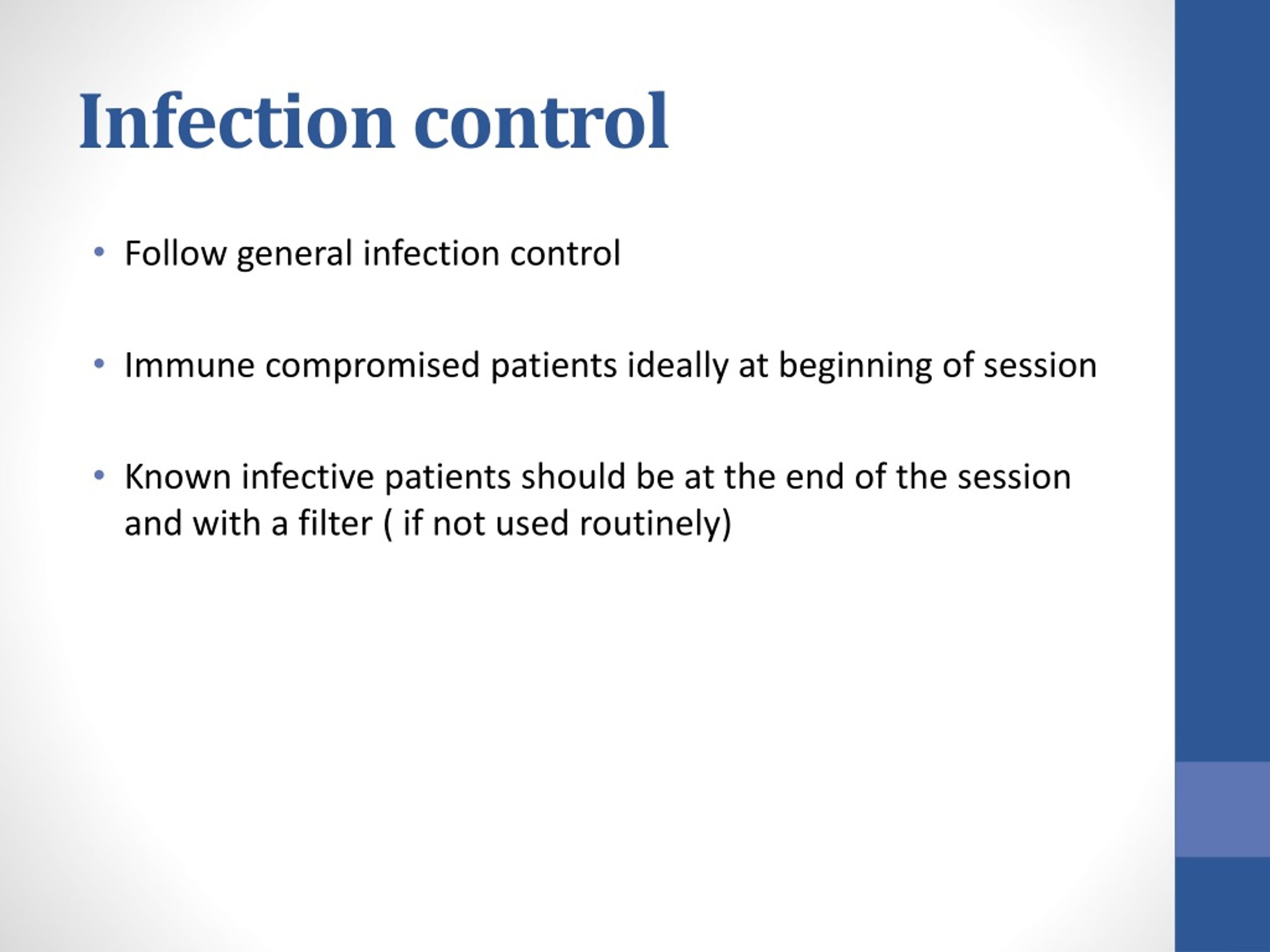

  8. Infection control • Follow general infection control • Immune compromised patients ideally at beginning of session • Known infective patients should be at the end of the session and with a filter ( if not used routinely)

  9. The test • Is it acceptable ? • Is it repeatable ? • At least 3 forced manoeuvres – FEV1 & FVC • Graph should be smooth and free from irregularities • Exhalation – at least 6 seconds • VC, FVC– use the best one to calculate ratio • 2 best tests within 5% or 100 mL of each other

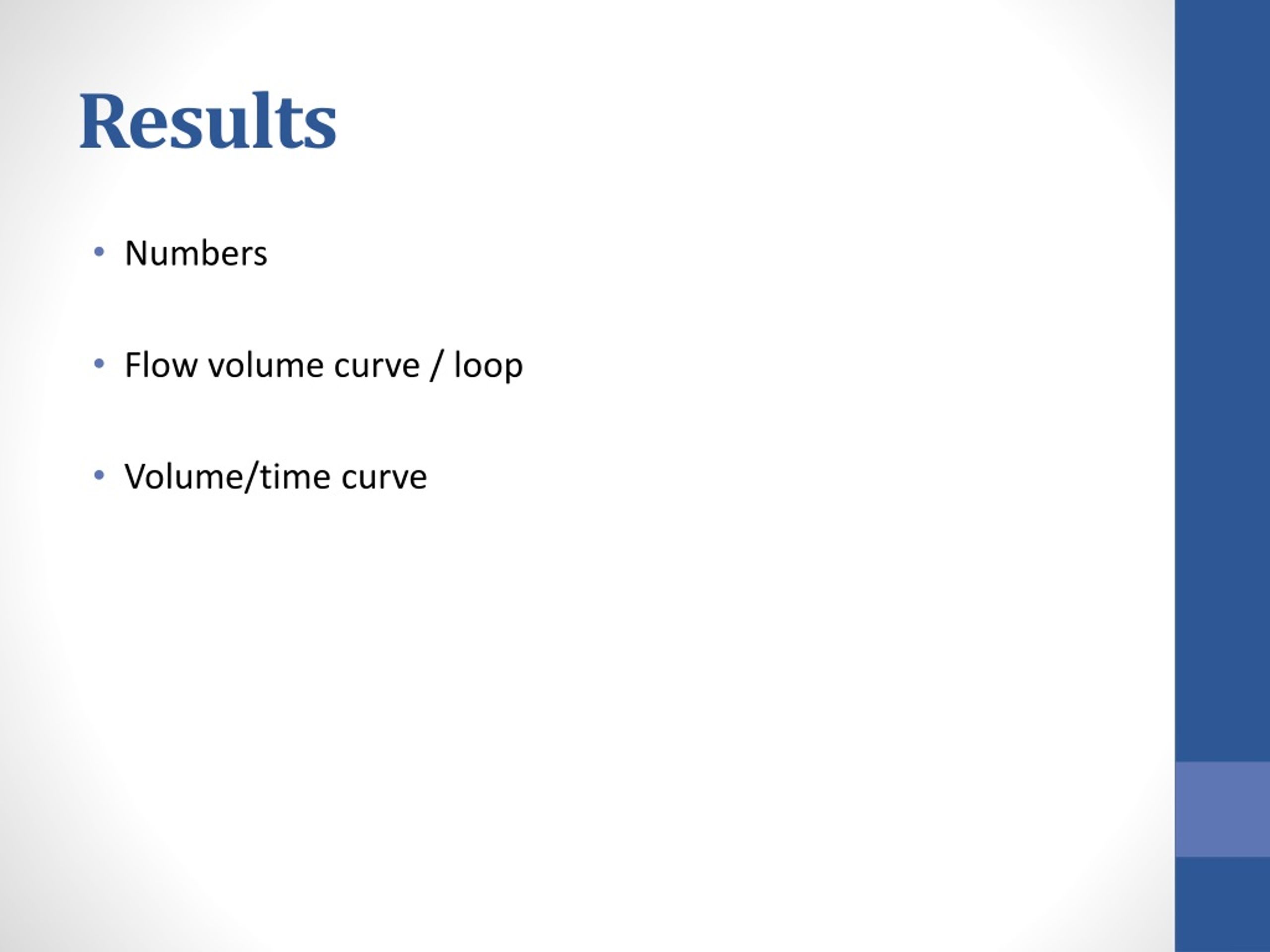

  10. Results • Numbers • Flow volume curve / loop • Volume/time curve

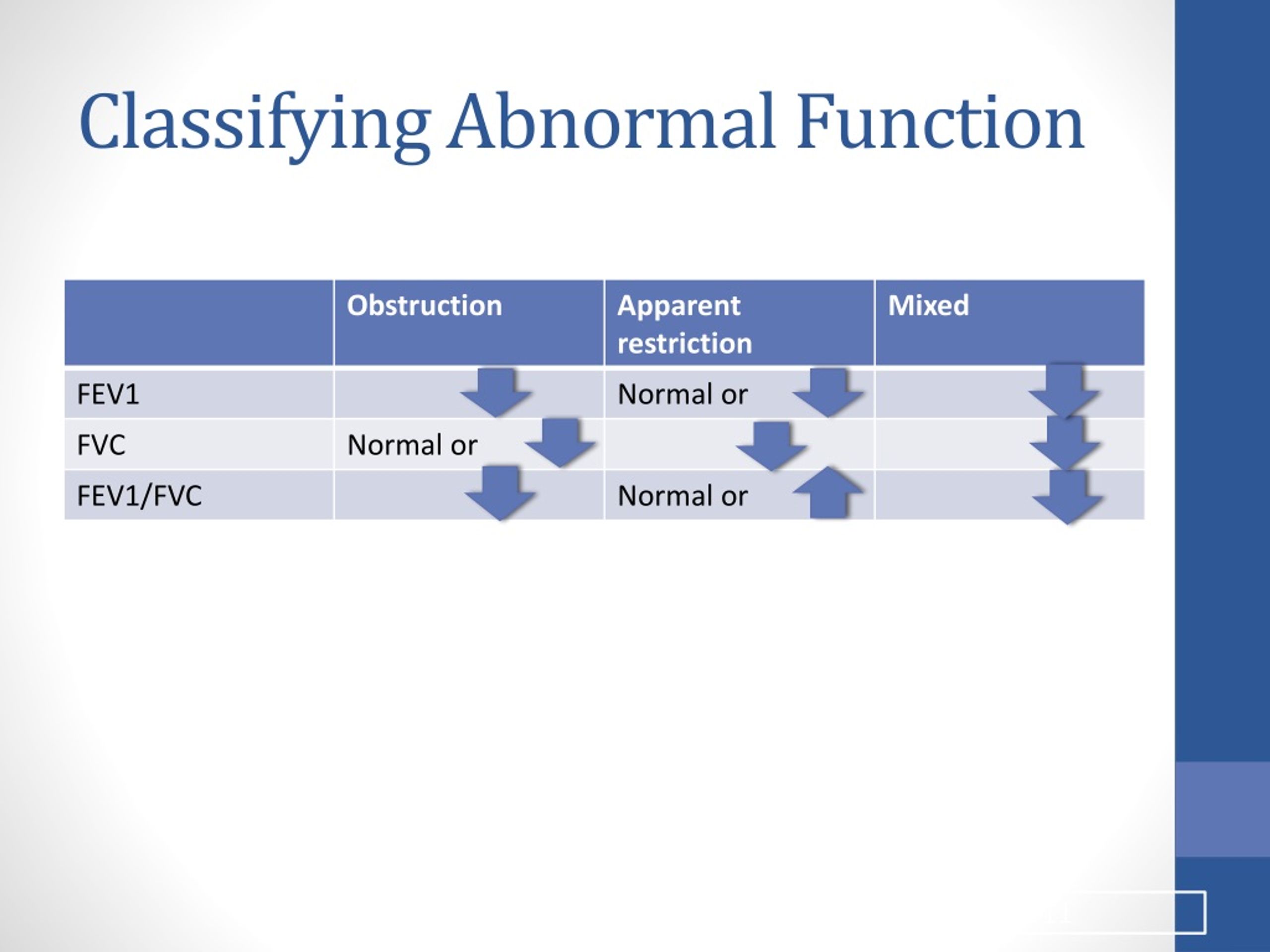

  11. Classifying Abnormal Function

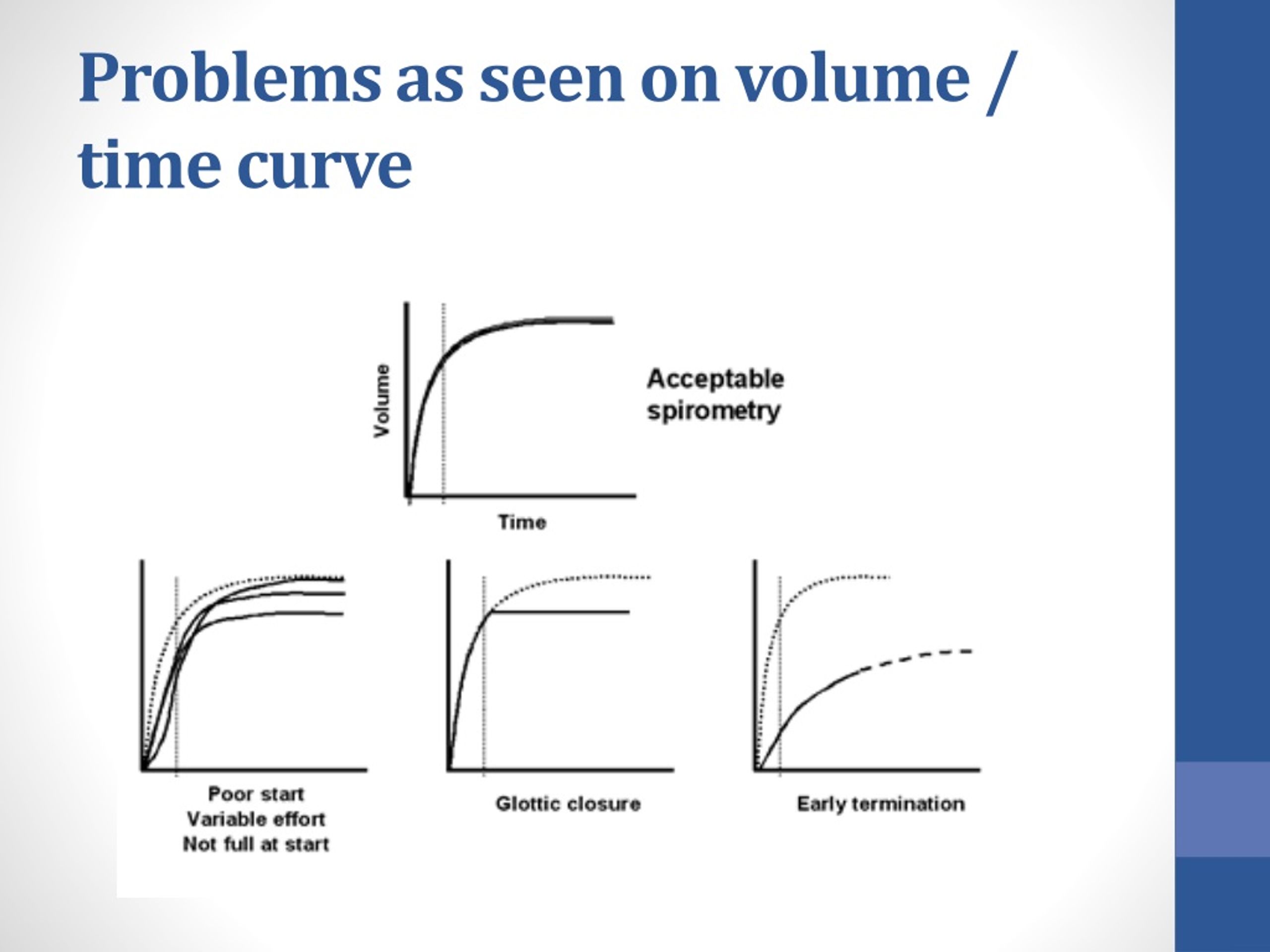

  12. Problems as seen on volume / time curve

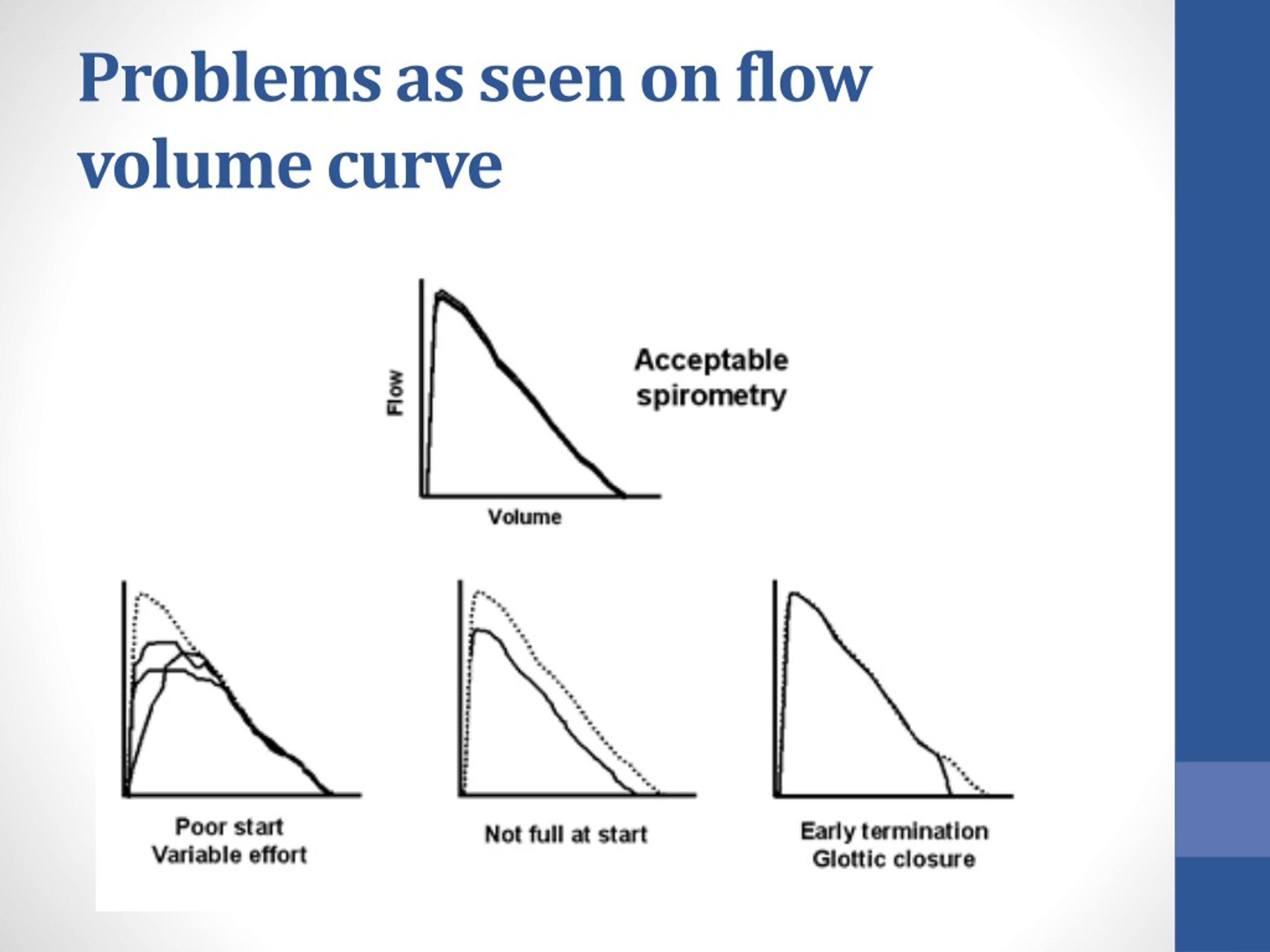

  13. Problems as seen on flow volume curve

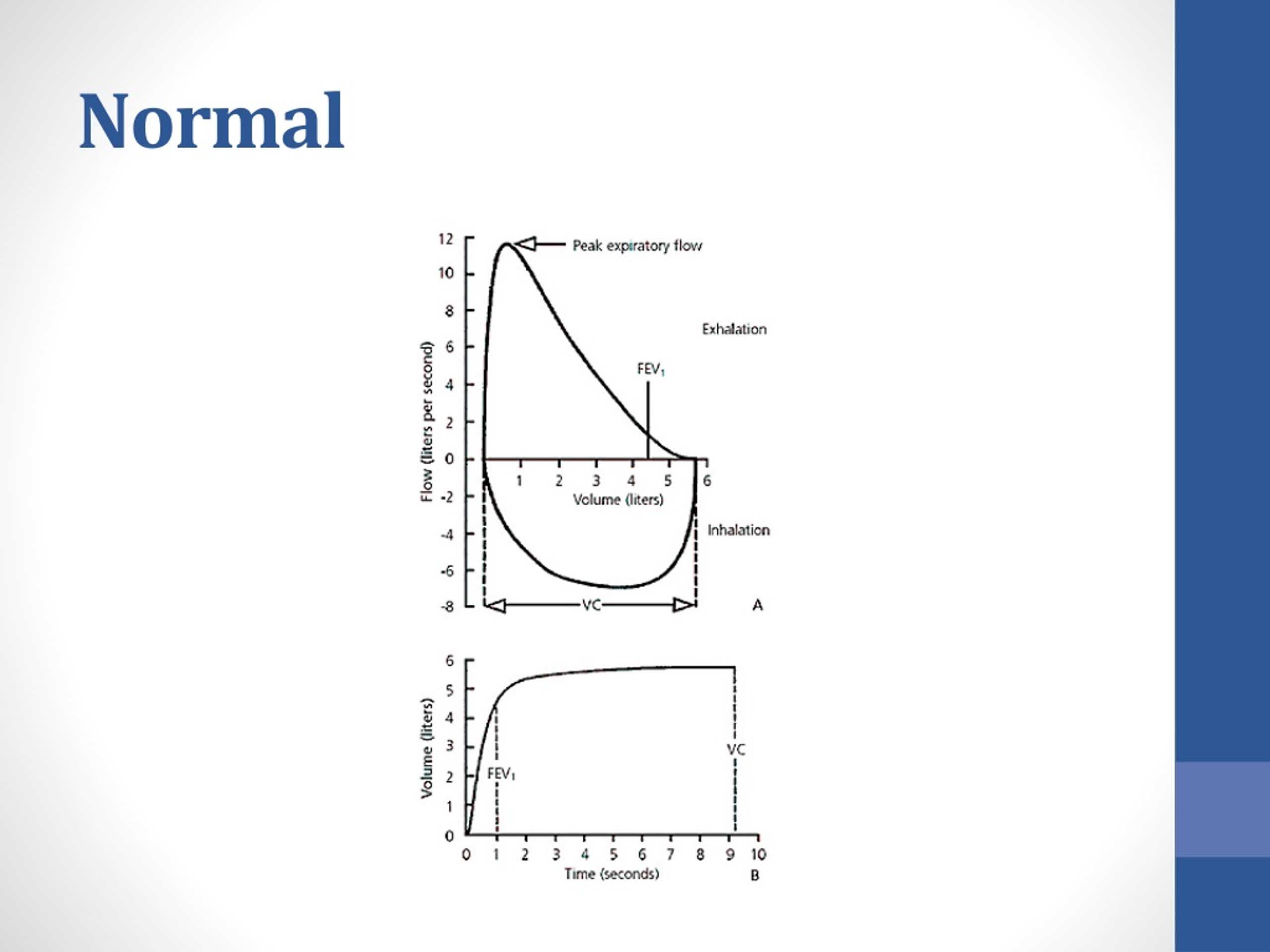

  14. Normal

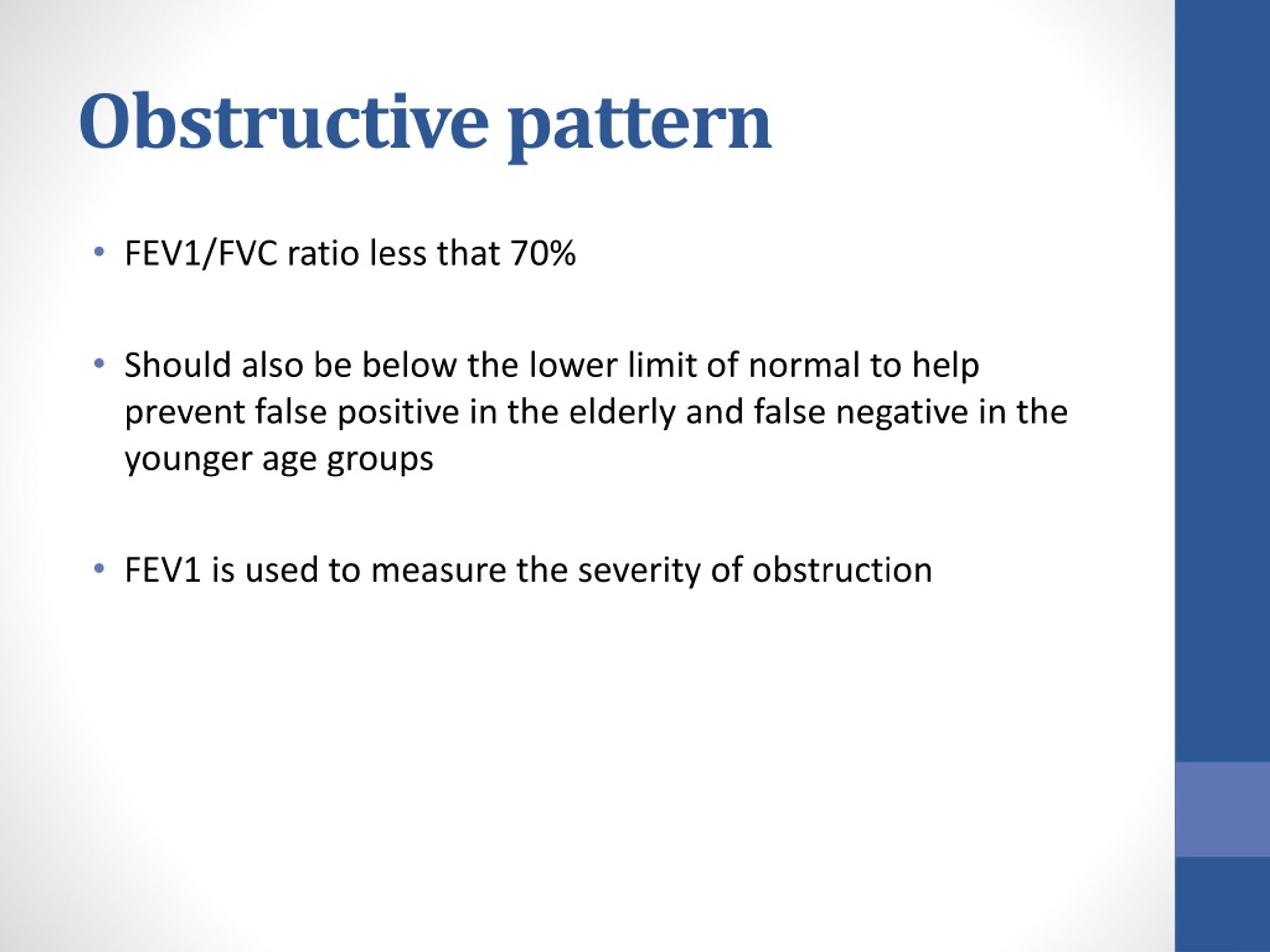

  15. Obstructive pattern • FEV1/FVC ratio less that 70% • Should also be below the lower limit of normal to help prevent false positive in the elderly and false negative in the younger age groups • FEV1 is used to measure the severity of obstruction

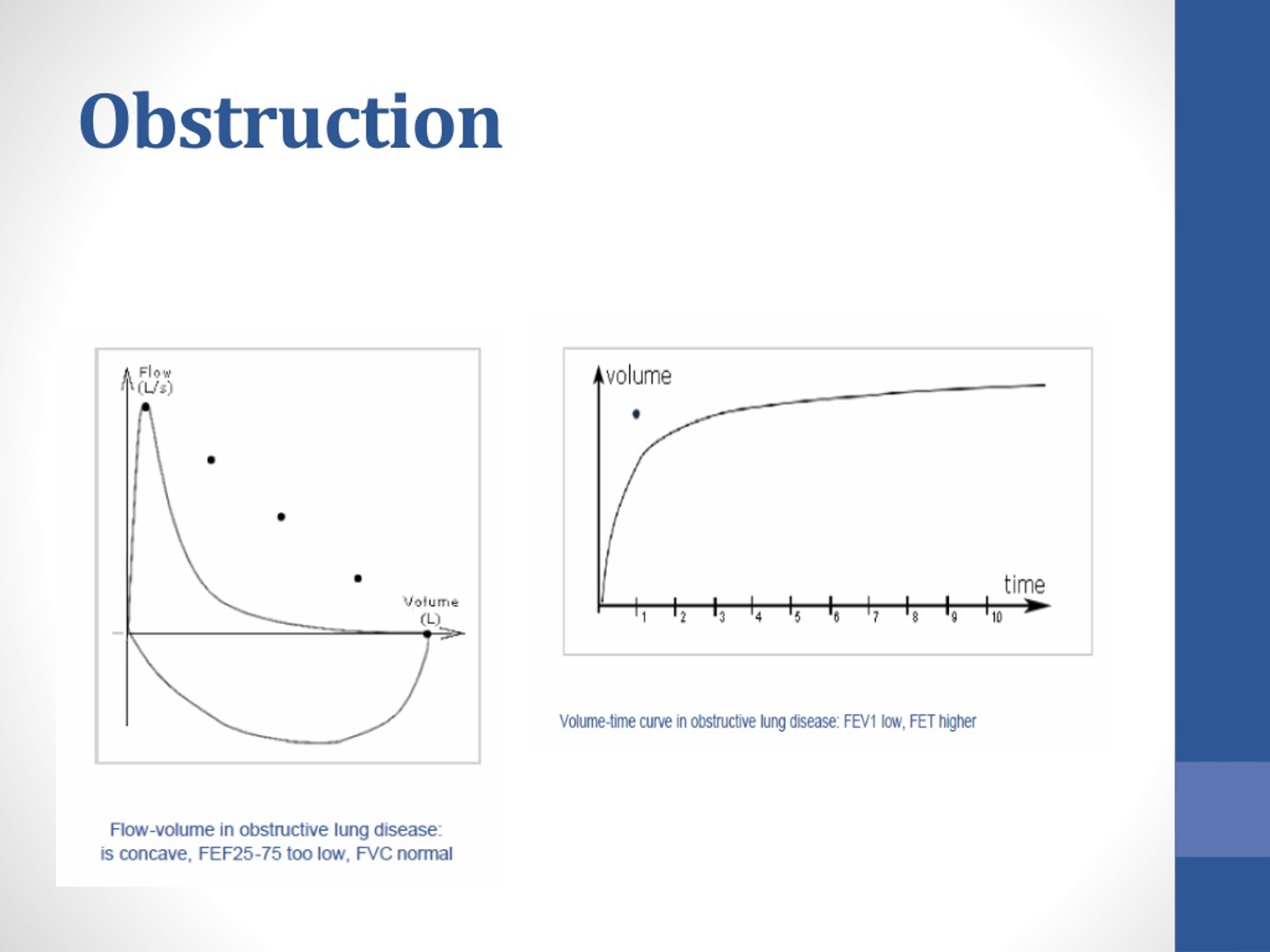

  16. Obstruction

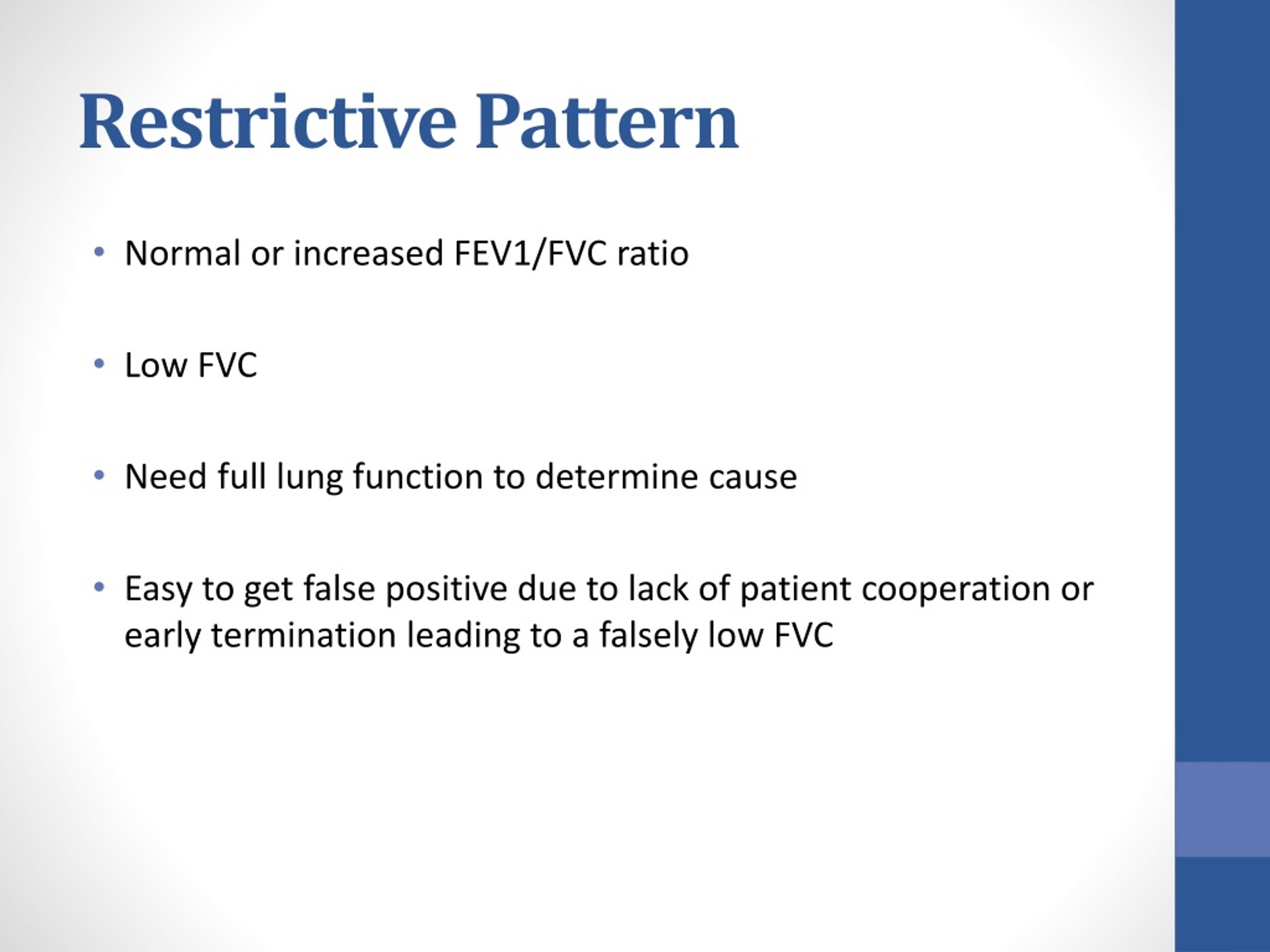

  17. Restrictive Pattern • Normal or increased FEV1/FVC ratio • Low FVC • Need full lung function to determine cause • Easy to get false positive due to lack of patient cooperation or early termination leading to a falsely low FVC

  18. Restriction

  19. Different curves

  20. Mixed pattern • Restrictive and obstructive patterns occur together • FVC and FEV1/FVC ratio below the lower limit of normal • Need full lung function e.g. Total lung capacity and gas transfer

  21. Mixed Pattern

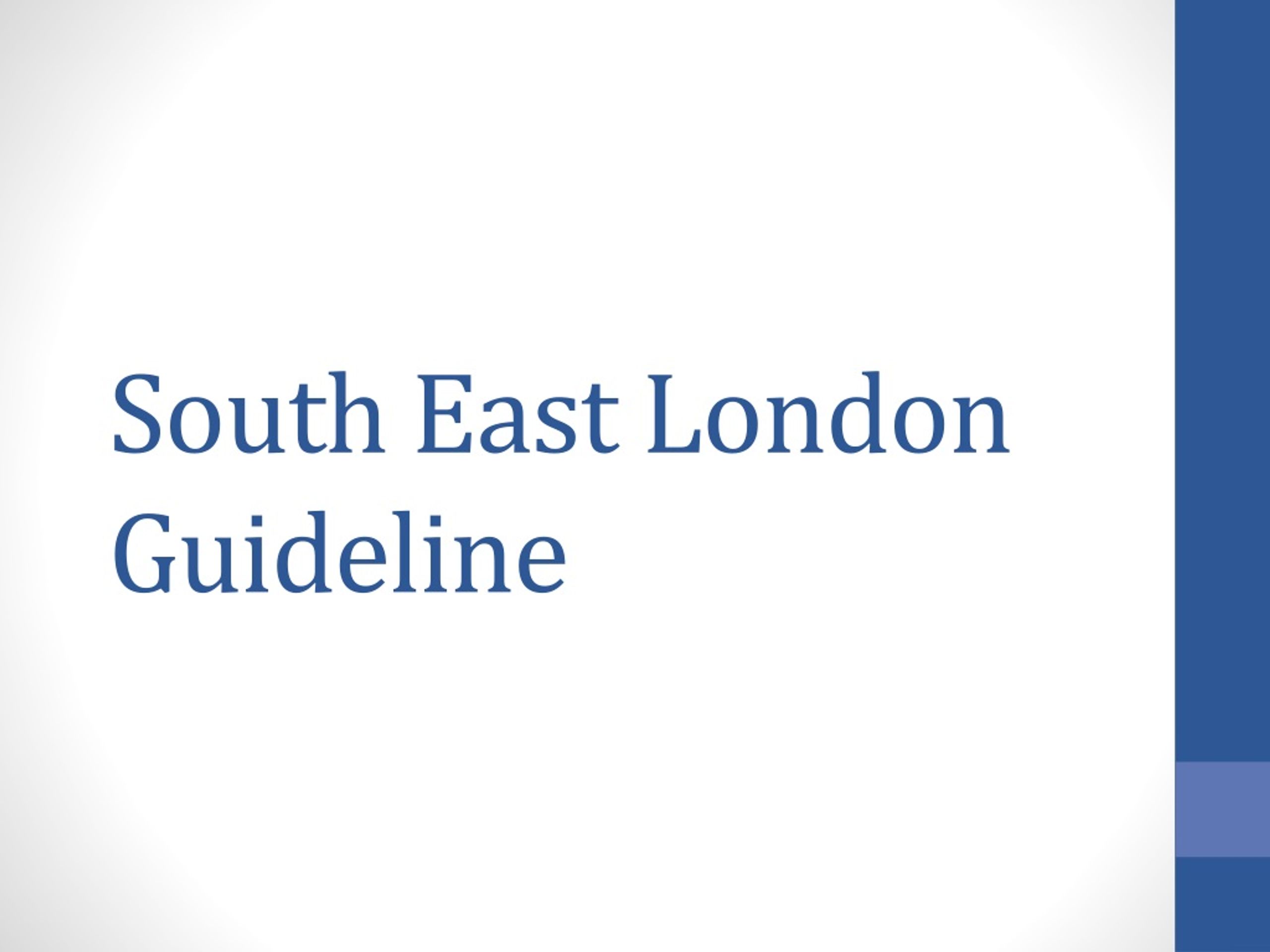

  22. South East London Guideline

  23. Relievers- short acting • Short acting • First line • Examples are • Ventolin, Salbutamol, • Bricanyl, Terbutaline • Atrovent, Ipratropium bromide • Typically previously mostly came in MDI format now available in dry powder

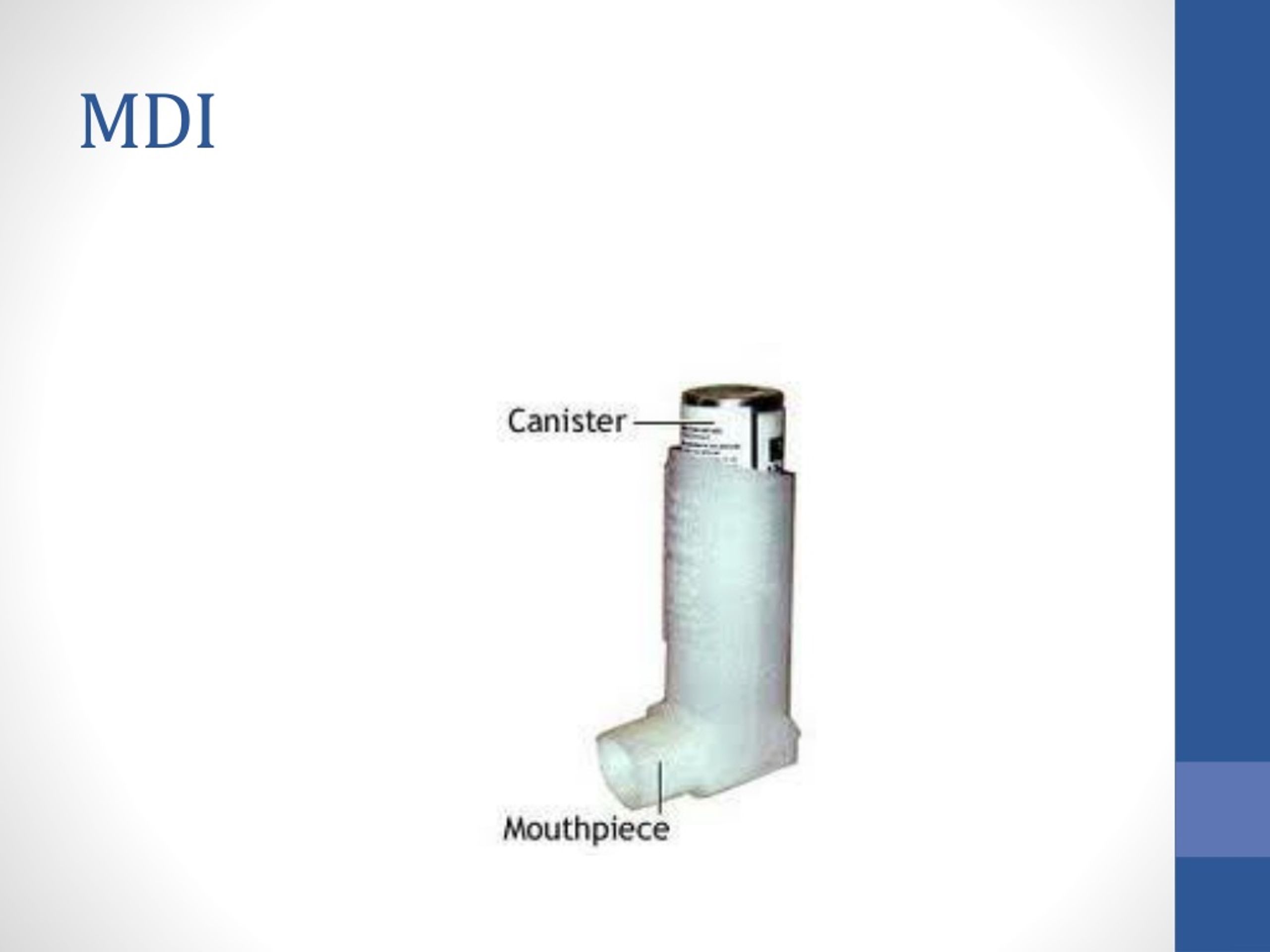

  24. MDI

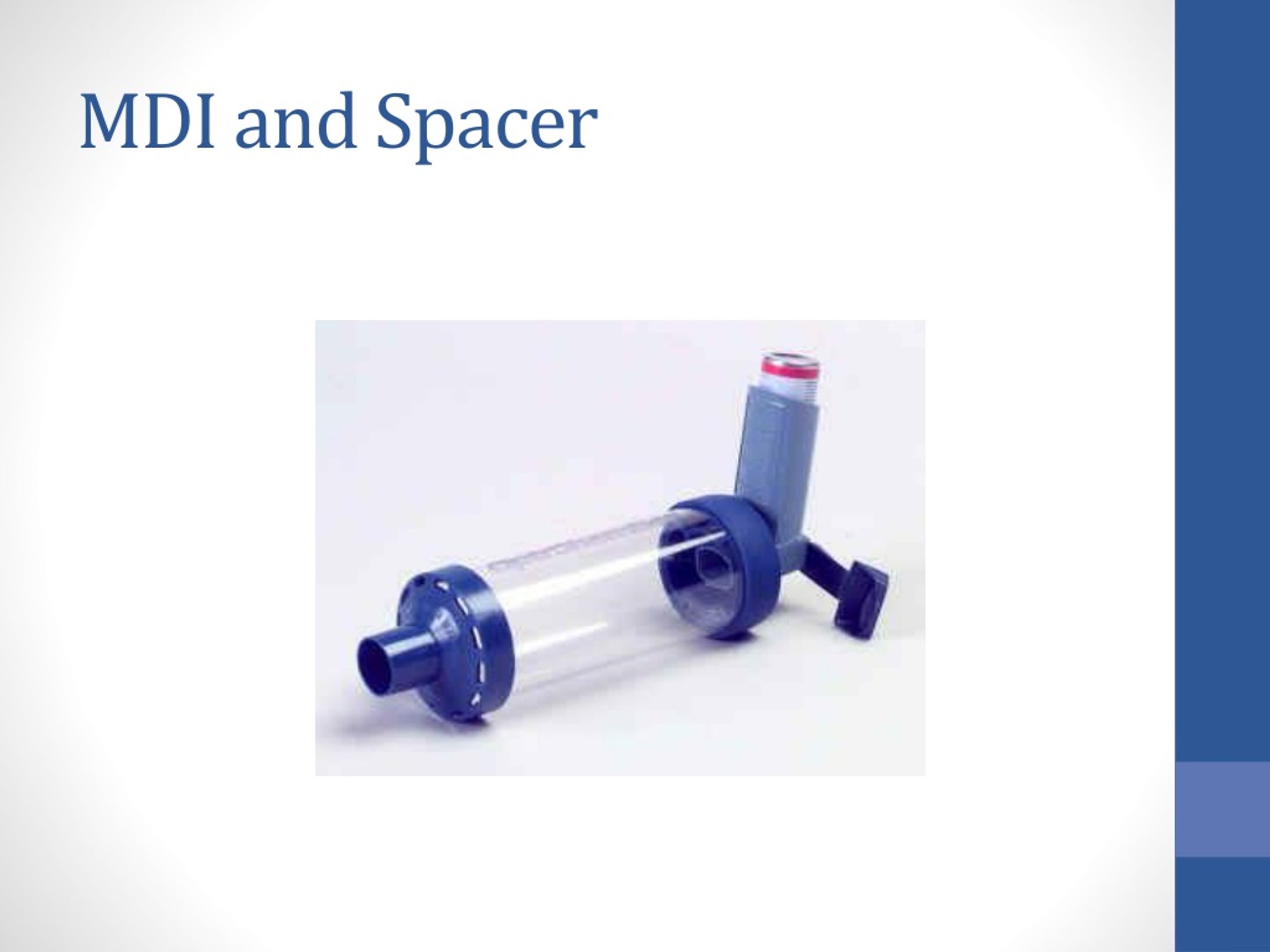

  25. MDI and Spacer

  26. Easi-breathe

  27. Easyhaler

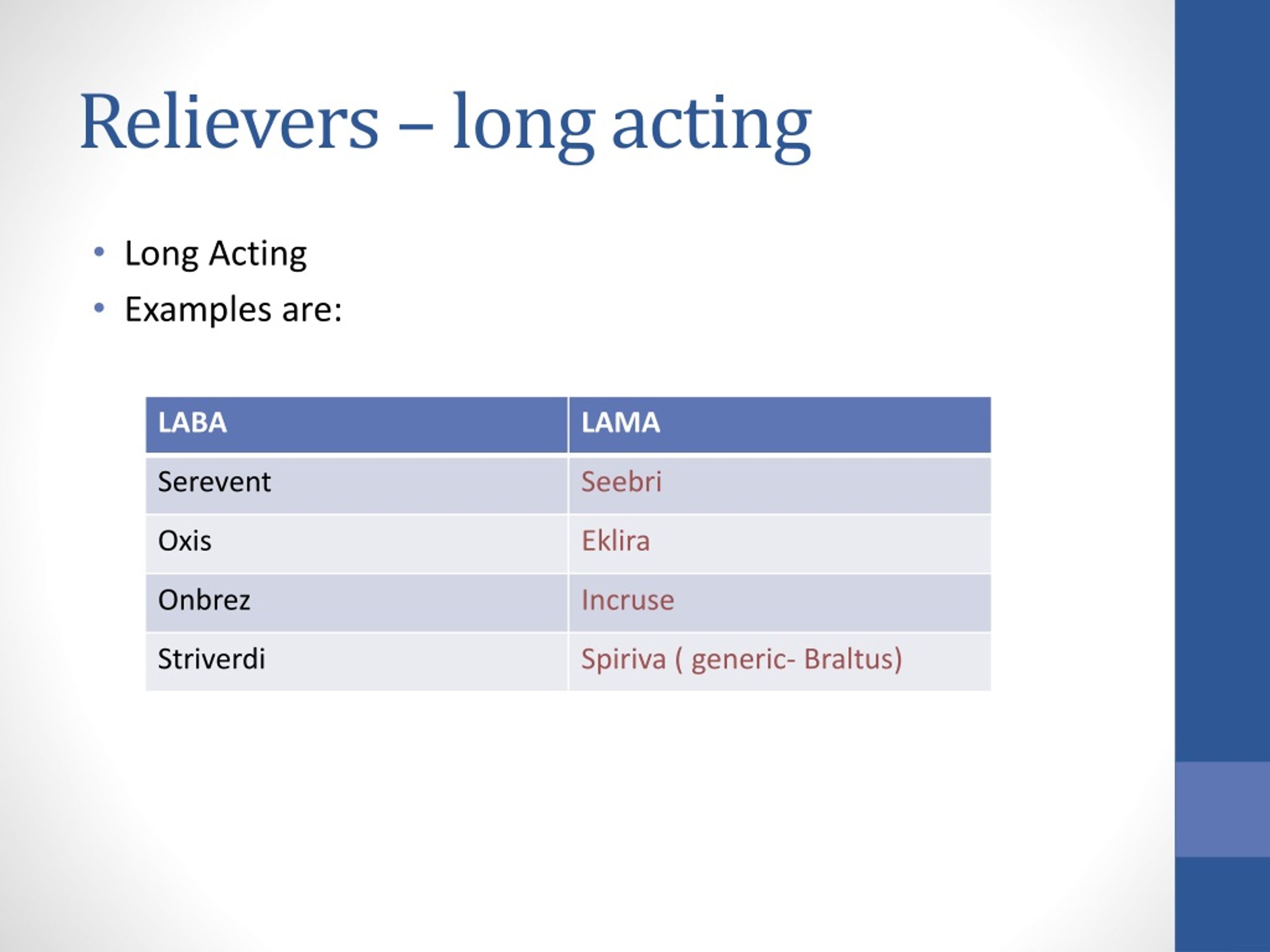

  28. Relievers – long acting • Long Acting • Examples are:

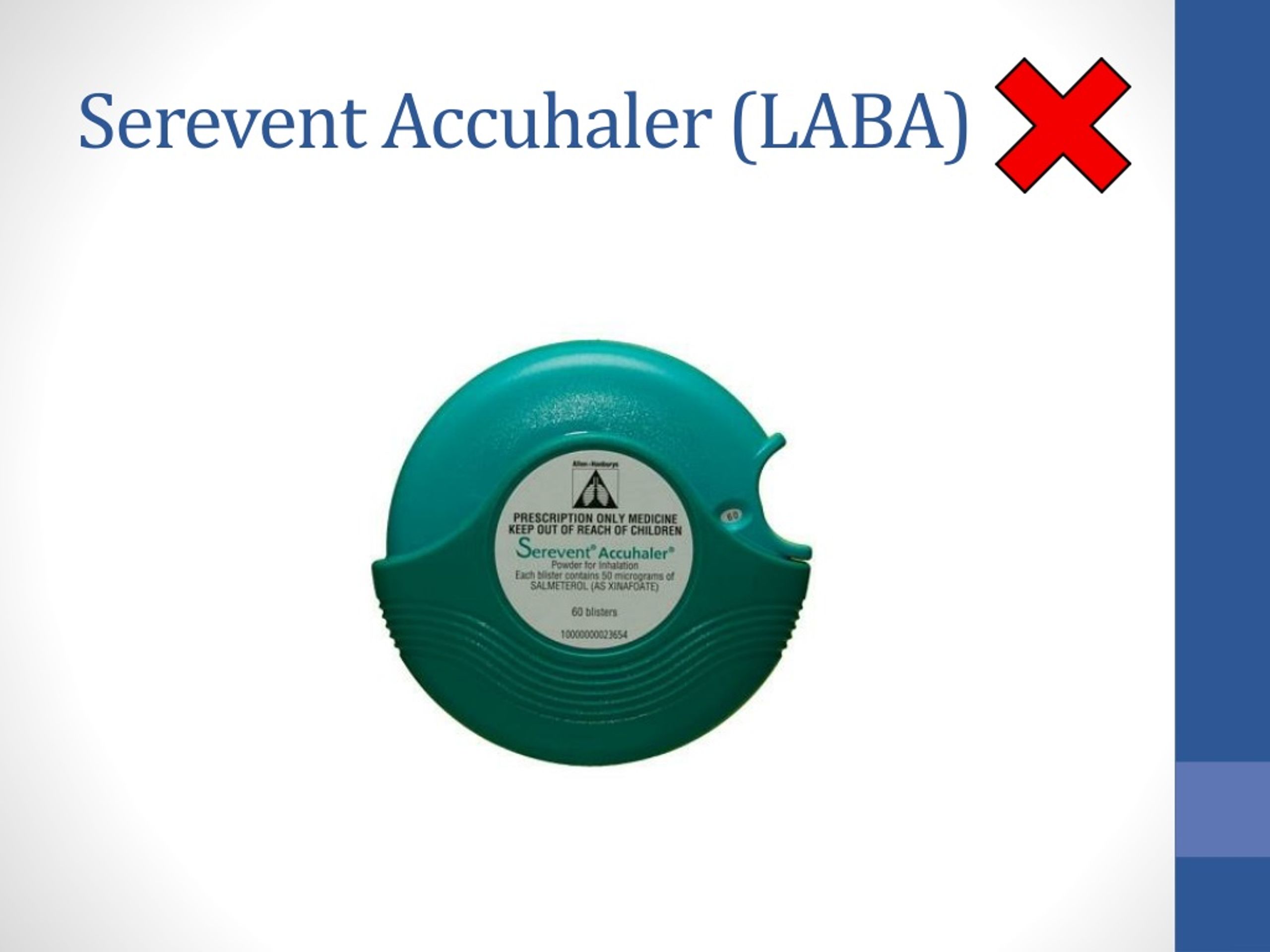

  29. Serevent Accuhaler (LABA)

  30. Oxis Turbohaler (LABA)

  31. Striverdi Respimat (LABA)

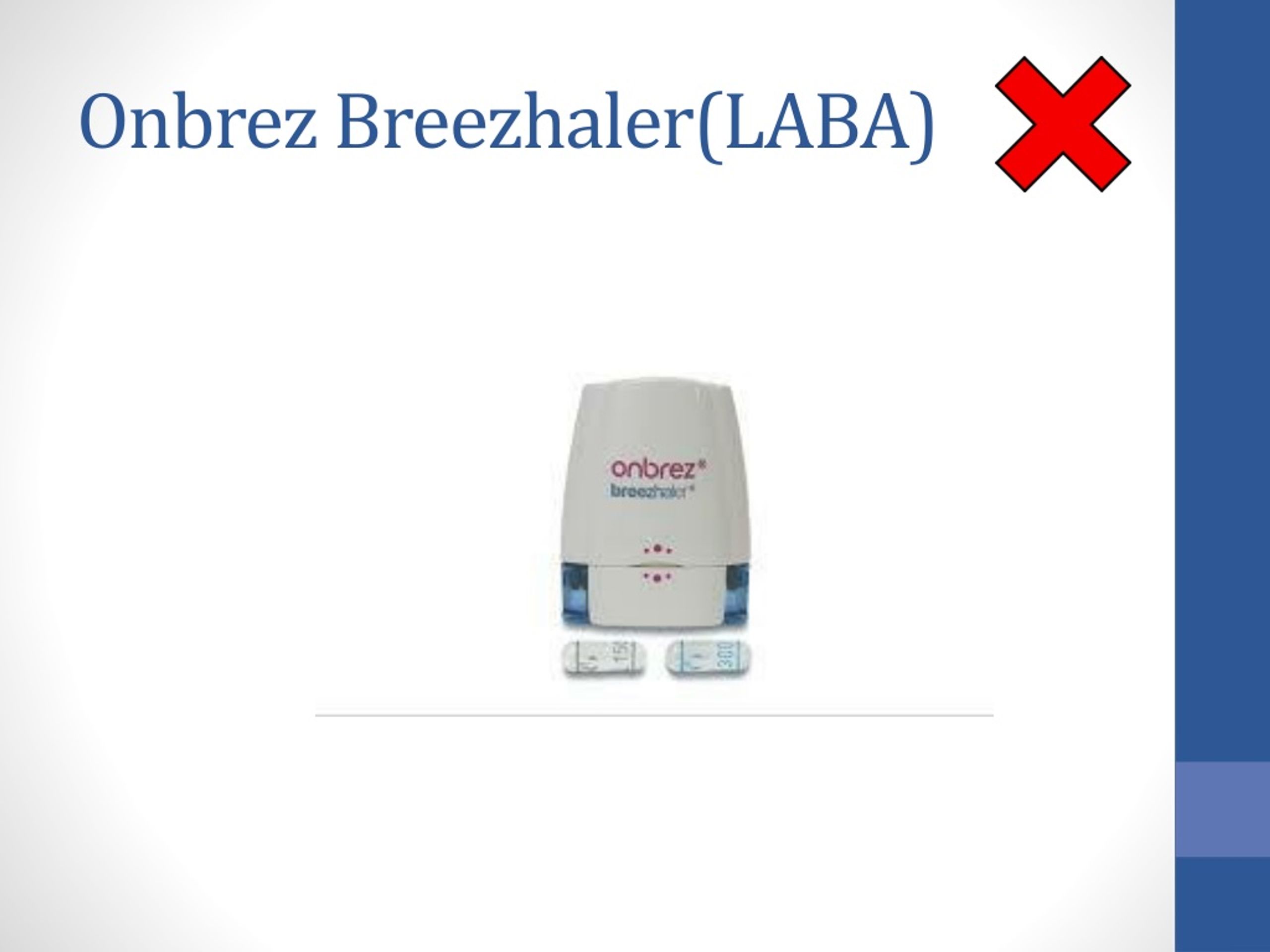

  32. Onbrez Breezhaler(LABA)

  33. Spiriva Handihaler (LAMA)

  34. Spiriva Respimat (LAMA)

  35. Seebri Breezhaler ( LAMA)

  36. EkliraGenuair ( LAMA)

  37. Incruse Ellipta ( LAMA)

  38. LABA /LAMA Combinations • Long acting • Once or twice a day • Maximal Bronchodilatation

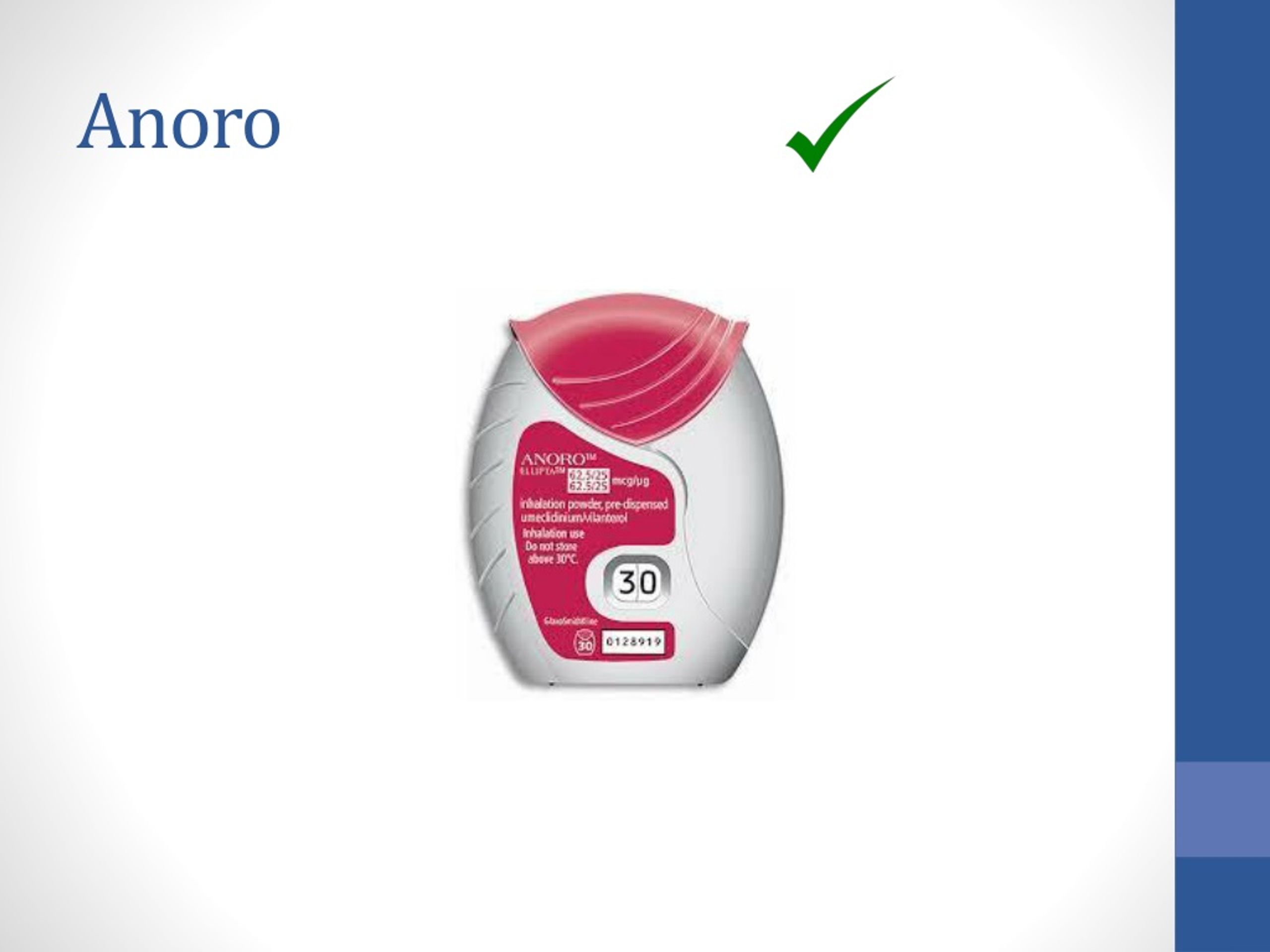

  39. Anoro

  40. Ultibro

  41. Duaklir

  42. Spiolto

  43. LABA/ICS Combination Inhalers • Only 4 Licensed products used locally • Combine a long acting bronchodilator and an inhaled steroid • Seretide 500 Accuhaler – generic- Aerivio Spiromax/ Airflusal Forspiro/ Fusacomb Easyhaler • Symbicort 400/12 and 200/6 Turbohaler - generic is Duoresp Spiromax • Fostair 100/6 MDI and Nexthaler • Relvar Ellipta 92/22 NB Sirdupla / Sereflo /Airflusal / Aloflute- generic versions of Seretide 250 MDI- do not have COPD Licence

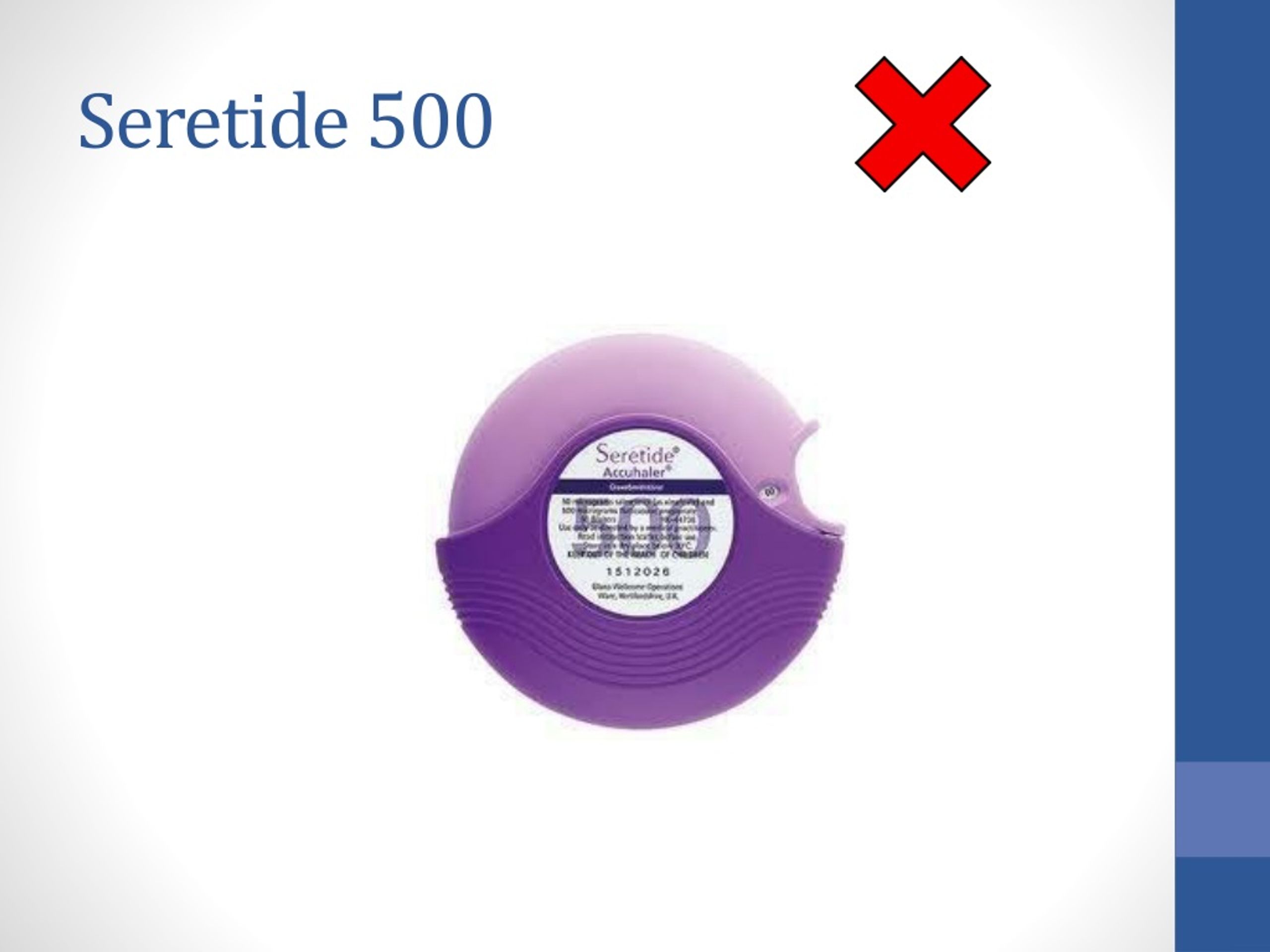

  44. Seretide 500

  45. Symbicort

  46. Fostair

  47. Relvar

  48. Triple Therapy • Combination of inhaled corticosteroid/ LABA/LAMA • Should only be started after seeking advice from or referring to respiratory specialist

  49. Trimbow • Two puffs twice a day- used with a spacer

  50. Trelegy • Once a day
