  1. SIP Cordless Phone System KX-TGP5xx Series For Partners Business Development Team System Sales, PSN

  2. SIP Cordless Phone System IP-Centrex / Hosted PBX service provided by carrier / provider <Business Application> Call Forward , Do Not Disturb Multi-party Conference Voice Mail, Shared call IP network Certified • SIP Cordless Phone System • Designed for IP-Centrex/Hosted PBX Services- Designed as Asterisk/Switchvox SIP Phone • Targeting SOHO, Small Business customers : No.1 Soft Switch Vendor IP-Centrex / Hosted PBX Services : is a business solutions operated by the service provider and is located on the service provider's premises. Asterisk / Switchvox : is a most popular Software based Open Source PBX. SIP Trunking :is NOT supported. A service offered by an ITSP permits businesses that have a PBX installed to use Voice-over-IP (VoIP) on the same connection as the Internet connection.

  3. Market of business use terminal(Worldwide) • Business use terminal shifts to IP product rapidly • Business market structure will change drastically Excluded MicroPBX Worldwide Business Terminals [Extension] Market trend by GMC [ 000s ] Seats for Hosted IP-Centrex Terminal for Asterisk Target market for our SIP Cordless Non IP Extension for PBX IP Extension for PBX

  4. Panasonic SIP Cordless Phone System KX-TGP500 DECT Cordless only KX-TGP550 DECT Cordless with corded base station Cordless Handset + Base Unit w/ Corded Handset Cordless Handset + LF Base Unit • Primary features: • Support for 3 simultaneous network conversations (5 total RF) • DECT radio technology – No need to run CAT5:Ethernet cable • Up to 6 DECT cordless handsets • Support for up to 8 SIP registrations (e.g. up to 8 DID lines or extensions) • Ethernet pass-thru port (TGP550) • CODEC: G.711 / G.729a / G.722 (wideband) KX-TPA50 Optional Handset 3 Certified

  5. Panasonic SIP Cordless Phone System KX-TGP500 : Entry Type DECT Cool and Simple ● Up to 6 Cordless Handsets ● Wall mountable Base Unit ● DID on each Cordless Handset ● Wide Band Audio (G.722) KX-TPA50 : Optional Handset

  6. Panasonic SIP Cordless Phone System KX-TGP550 : Corded and Cordless Type DECT Rich and Comfortable ● Handset Call Button on Base Unit ● Hands-Free Speaker Phone on Base Unit and Cordless Handset ● Up to 6 Cordless Handsets ● DID on each Cordless Handset ● Wide Band Audio (G.722) KX-TPA50 : Optional Handset

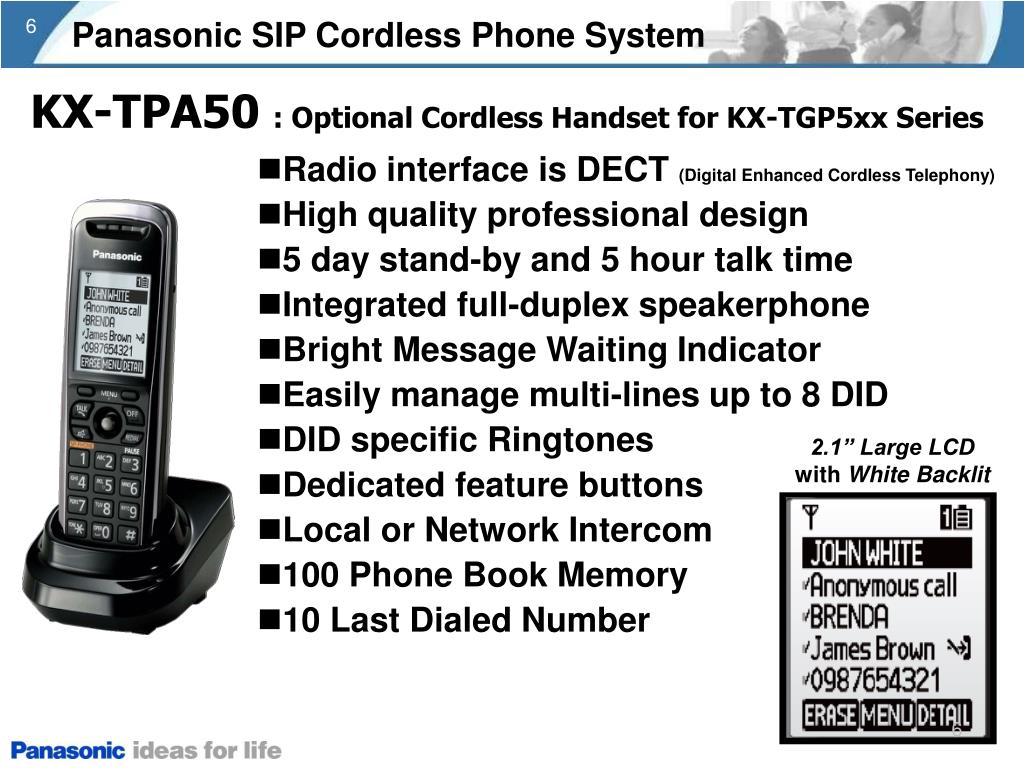

  7. Radio interface is DECT (Digital Enhanced Cordless Telephony) High quality professional design 5 day stand-by and 5 hour talk time Integrated full-duplex speakerphone Bright Message Waiting Indicator Easily manage multi-lines up to 8 DID DID specific Ringtones Dedicated feature buttons Local or Network Intercom 100 Phone Book Memory 10 Last Dialed Number 2.1” Large LCD with White Backlit Panasonic SIP Cordless Phone System KX-TPA50 : Optional Cordless Handset for KX-TGP5xx Series 6

  8. “Easy to Use” Similar Operation with Home Cordless “Easy to Set-up” with Intuitive Web Menu Cover Basic Features Customer Need High Quality “Wideband” Audio to the Cordless Handset Key System or PBX like Configuration 6/7 phones and 8 DID numbers Individual / Group Ring Direct Station Signaling/Busy Lamp Field and Line Status Panasonic SIP Cordless Phone System Easy to Use High Quality PBX Config.

  9. Scene with SIP Cordless Phone System KX-TGP5xx Series

  10. SOHO/Small Business Applications SOHO Warehouse Retail • Most employees are on the floor and will be well served by the cordless handsets • Base station can be placed in manager’s office or telco closet • Overlapping ring assignments allow whoever is not with a customer to take calls • Separate numbers for sales and other functions can ring only on specific handsets • Wired handset in office; cordless available throughout warehouse • No need for difficult inside wiring • Good coverage outside the building on loading docks • One systems for home-office and home • Separate numbers for each, plus a sales only line • Business can ring only on selected handset at selected time of day • Different ringtones for home and office 9

  11. Scenes with Panasonic SIP Cordless Suggestion for 6-User Very Small Office (6 members) 6 x TGP550 High end Solution Member 1 (Boss) Member 2 Member 3 Member 4 Member 5 Member 6 123-0001 123-0002 123-0003 123-0004 123-0005 123-0006 Very Small Office (6 members) Very Small Office (6 members) 1 x TGP500 5 x TPA50 Low end Solution 2 x TGP500 4 x TPA50 6 concurrent call Solution 123-0001 123-0003 123-0004 123-0005 123-0006 123-0001 123-0002 123-0003 123-0004 123-0005 123-0006 123-0002 Simultaneous Call : 3 Simultaneous Call : 6(3+3) 10

  12. Function/Operation of SIP Cordless Phone System KX-TGP5xx Series

  13. Close-up of handset & base station LCD shows how many lines are in use. This example : 1 line is used and lines 2/3 are available. Base unit has call button for cordless handset busy indicator This example : Handset #1 and #2 in-use/busy Handset No. [1] – [8] Call all cordless handsets by pushing [ALL] button Base station can display all line status using this feature key 12

  14. Small Business Receptionist 8 DID registrations (allows 1 for each station PLUS 1 general business number) Fully flexible ringing assignment (phones can ring for multiple lines if desired) Receptionist coverage for all lines/handsets (if desired) Transfer and intercom managed by DECT system Service provider voicemail indication User installable No wiring required to desktop Internet HS1 (IN USE) HS2 (IN USE) HS3 (Free) HS4 (Free) HS5 (Free) HS6 (Free) HS1 [Ext.1] [345-0001] HS2 [Ext.2] [345-0002] “Handset call button” w/HS status [345-0000] [345-0000] [Ext.3] SIP Server [345-0004] SIP HS3 [Ext.3] [345-0003] HS4 [Ext.4] [345-0004] <Reception> [345-0000] 13

  15. Classic Number Assignment Main number + DID [1001] [1003] [1005] handset 1 handset 2 handset 3 Eight numbers( VoIP accounts) can be independently assigned to a base station and/or handset Base station handset 4 handset 5 handset 6 [1000] [1002] [1004] [1006]

  16. Flexible Number Assignment Overlap ringing assignments [1000,1001] [1000,1001] [1000,1001] handset 1 handset 2 handset 3 Eight numbers( VoIP accounts) can be independently assigned to a base station and/or handset Base station handset 4 handset 5 handset 6 [1000] [1000,1001] [1000,1002] [1000,1002]

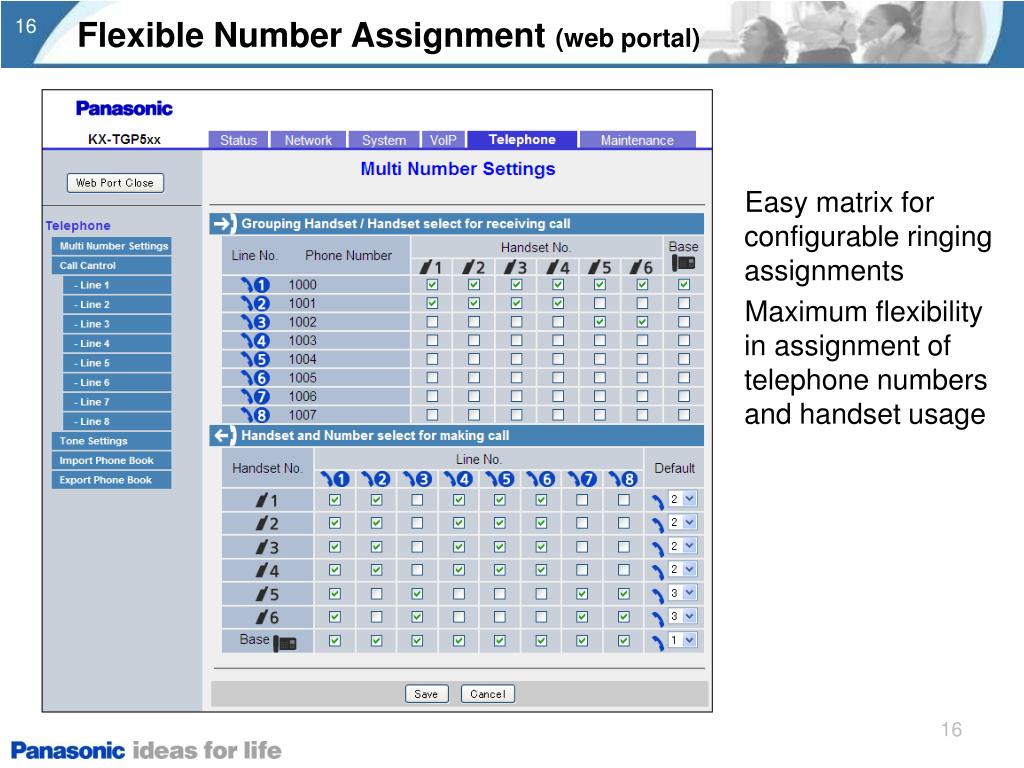

  17. Flexible Number Assignment (web portal) Easy matrix for configurable ringing assignments Maximum flexibility in assignment of telephone numbers and handset usage 16

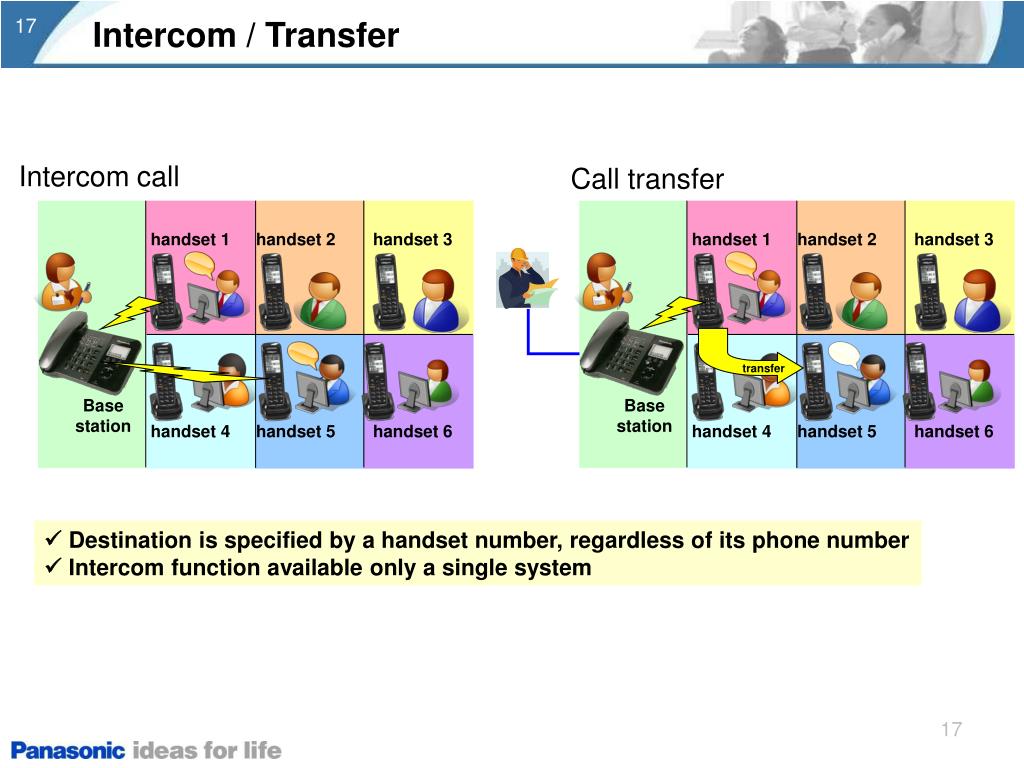

  18. Intercom / Transfer Intercom call Call transfer handset 1 handset 2 handset 3 handset 1 handset 2 handset 3 transfer Base station Base station handset 4 handset 5 handset 6 handset 4 handset 5 handset 6  Destination is specified by a handset number, regardless of its phone number  Intercom function available only a single system 17

  19. Receptionist DSS/BLF Sarah is Handset #3 I simply press  Although handsets 1 to 4 have the same phone numbers, transfer destination can be specified by a handset number.  button to page all handsets. Please transfer me to Sarah [1000,1001] [1000,1001] [1000,1001] handset 1 handset 2 handset 3 Base station - Handset status indicator - Direct handset call button handset 4 handset 5 handset 6 [1000] [1000,1001] [1000,1002] [1000,1002] 18

  20. Internal conferencing capabilities <3-way Conference> A - Handset 1 - Handset 2 <4-way Conference> A – B - Handset 1 - Handset 2 Handset 1 Handset 1 A A B Conference with A Conference with A and B Handset 2 Handset 2 *2 more Handsets can be joined up to 5-way conf. *1 more Handset can be joined up to 5-way conf. <3-way Conference> A - Base Unit - Handset 1 <5-way Conference> A – B - Handset 1 - Handset 2 - Handset 3 Handset 1 Conference with A Handset 1 A A *2 more Handsets can be joined up to 5-way conf. B <3-way Conference> A - B - Handset 1 Conference with A and B Handset 1 Conference with A and B Handset 2 A Handset 3 B *2 more Handsets can be joined up to 5-way conf. 19

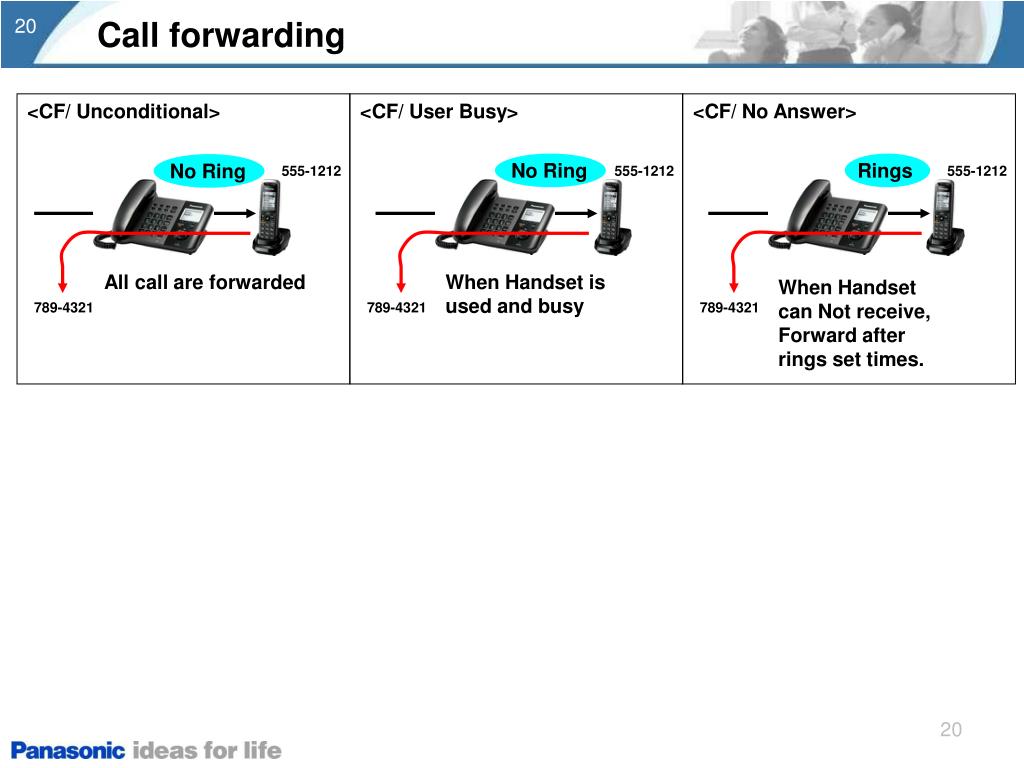

  21. Call forwarding <CF/ Unconditional> <CF/ User Busy> <CF/ No Answer> No Ring Rings No Ring 555-1212 555-1212 555-1212 All call are forwarded When Handset is used and busy When Handset can Not receive, Forward after rings set times. 789-4321 789-4321 789-4321 20

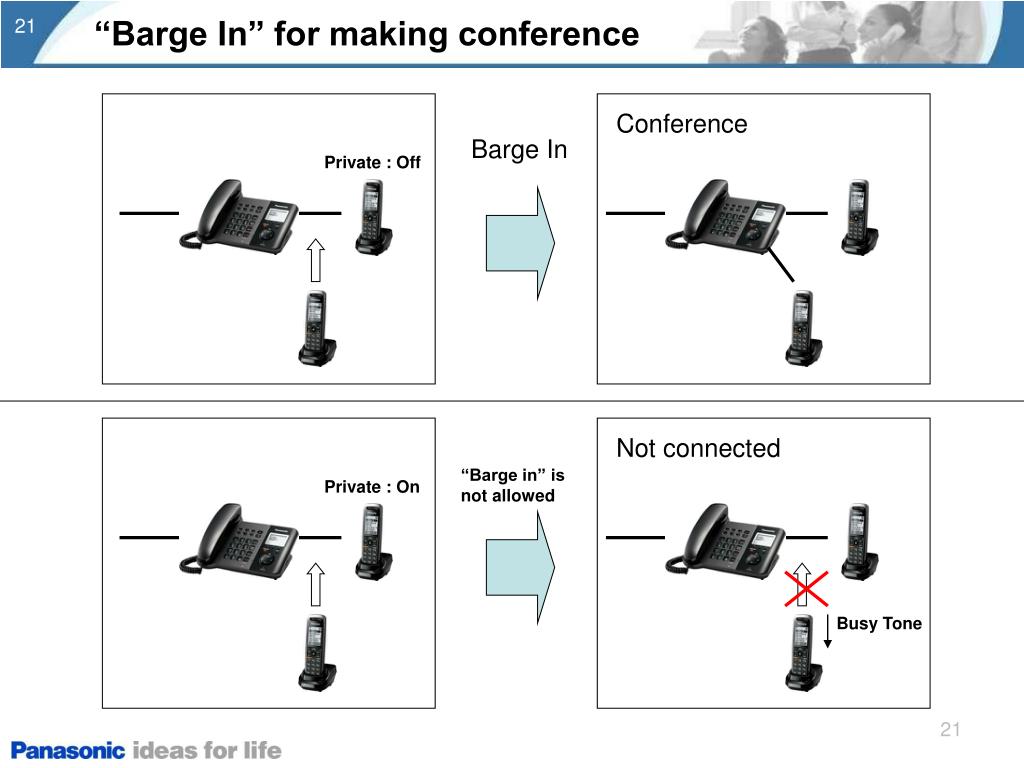

  22. “Barge In” for making conference Conference Barge In Private : Off Not connected “Barge in” is not allowed Private : On Busy Tone 21

  23. Network Based Voicemail Flashing LED indicator Access to voicemail from handset through menu New Voice Mail Voice mail notification LCD displays “New Voice Mail” Access to retrieve LCD displays “New Voice Mail” New voice mail message indication - LCD displays “New Voice Mail” - Voice Mail LED on base station - Ringer LED on handset flashing New Voice Mail Access to voicemail from Base Unit by pushing [VOICE MAIL] button Voicemail feature key 22
