huffman encoder

In The Name Of God

Huffman Encoder

Activity Report 2

Advisor:Dr.Goudarzi

Advanced topics in design hardware

January 2006

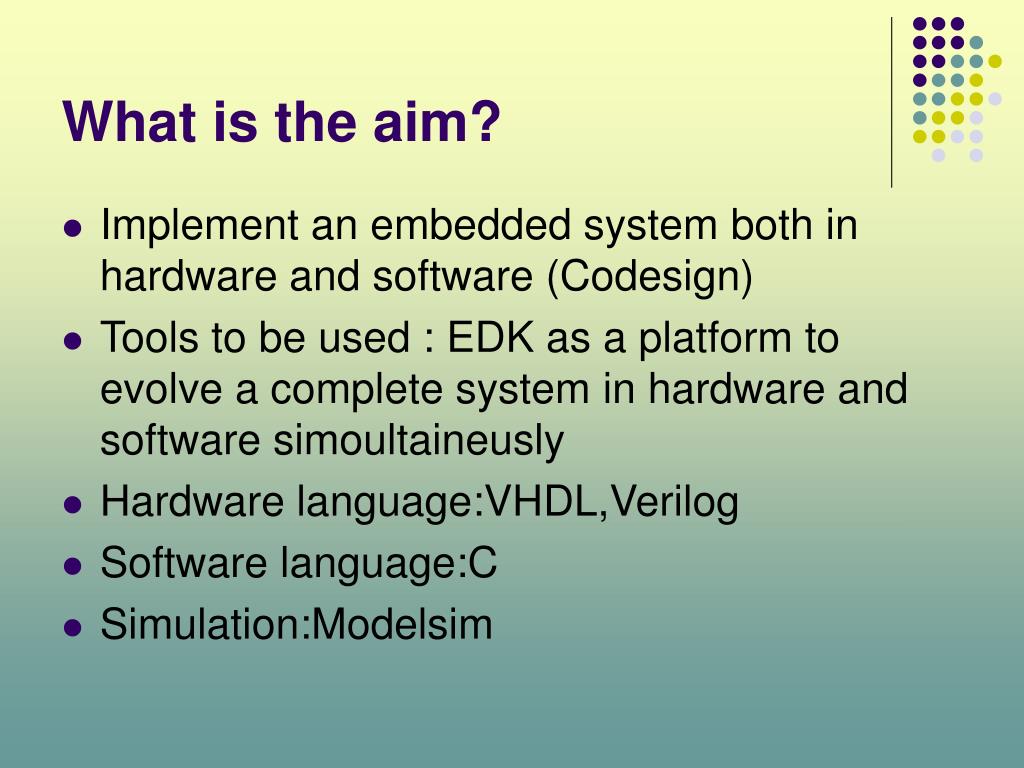

what is the aim
What is the aim?
  • Implement an embedded system both in hardware and software (Codesign)
  • Tools to be used : EDK as a platform to evolve a complete system in hardware and software simoultaineusly
  • Hardware language:VHDL,Verilog
  • Software language:C
  • Simulation:Modelsim
project phases
Project phases:

Think up your system in top level

Hardware/Software partitioning

Using EDK

Choosing an optimal algorithm

Behavorial simulation using Modelsim

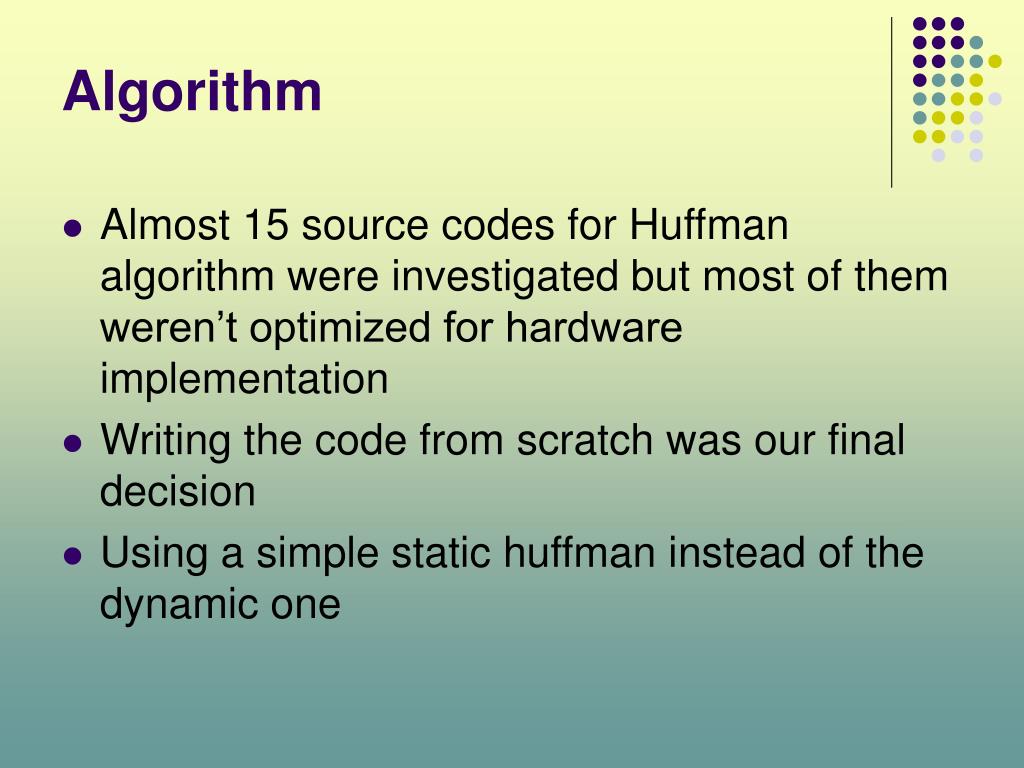

algorithm
Algorithm
  • Almost 15 source codes for Huffman algorithm were investigated but most of them weren’t optimized for hardware implementation
  • Writing the code from scratch was our final decision
  • Using a simple static huffman instead of the dynamic one
data compression classification
Data Compression Classification:

Huffman encoding:A Brief Overview

  • Lossy vs Lossless

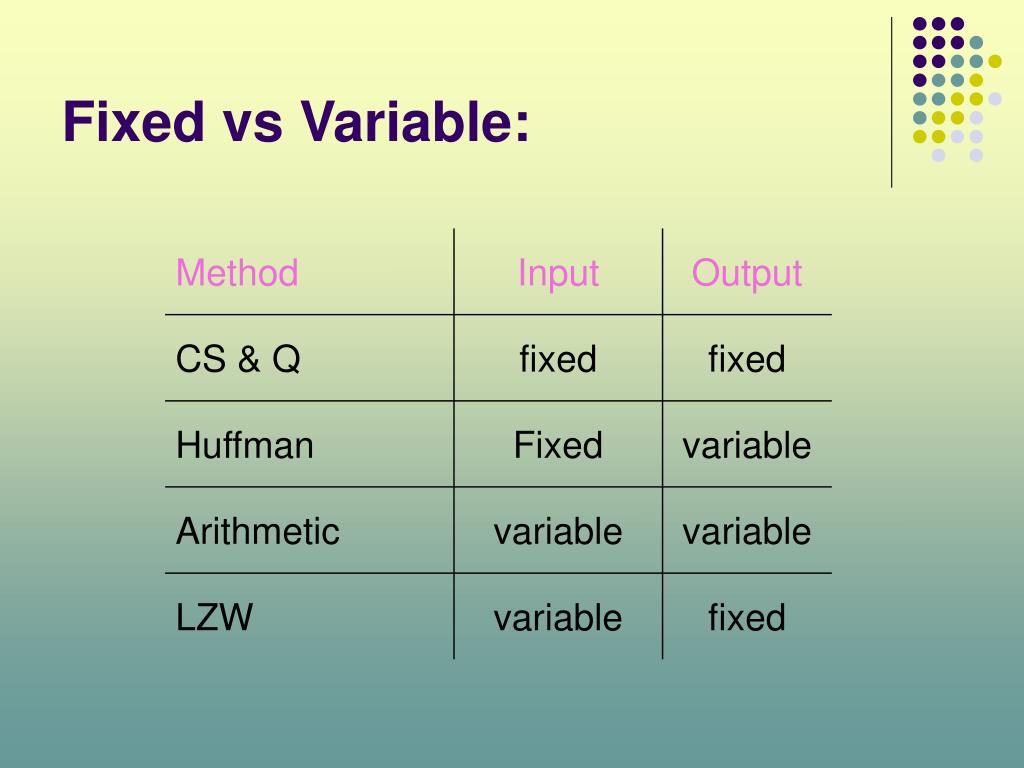

  • Fixed vs Variable Length
slide8

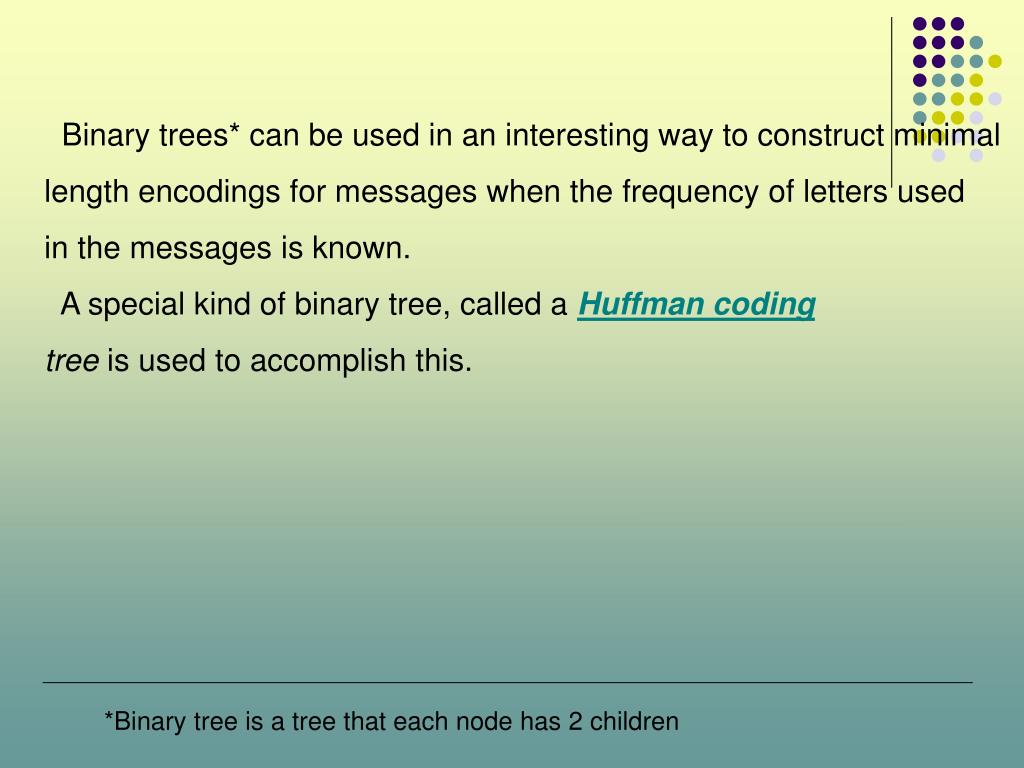

Binary trees* can be used in an interesting way to construct minimal

length encodings for messages when the frequency of letters used

in the messages is known.

A special kind of binary tree, called a Huffman coding

tree is used to accomplish this.

*Binary tree is a tree that each node has 2 children

slide9

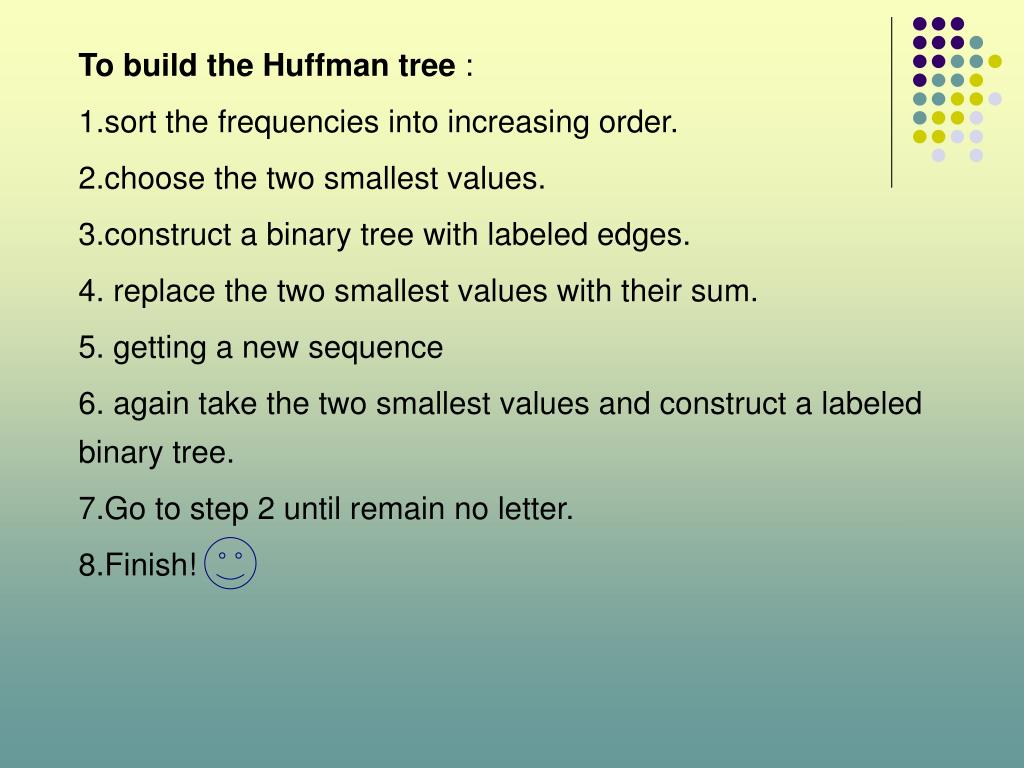

To build the Huffman tree :

1.sort the frequencies into increasing order.

2.choose the two smallest values.

3.construct a binary tree with labeled edges.

4. replace the two smallest values with their sum.

5. getting a new sequence

6. again take the two smallest values and construct a labeled binary tree.

7.Go to step 2 until remain no letter.

8.Finish!

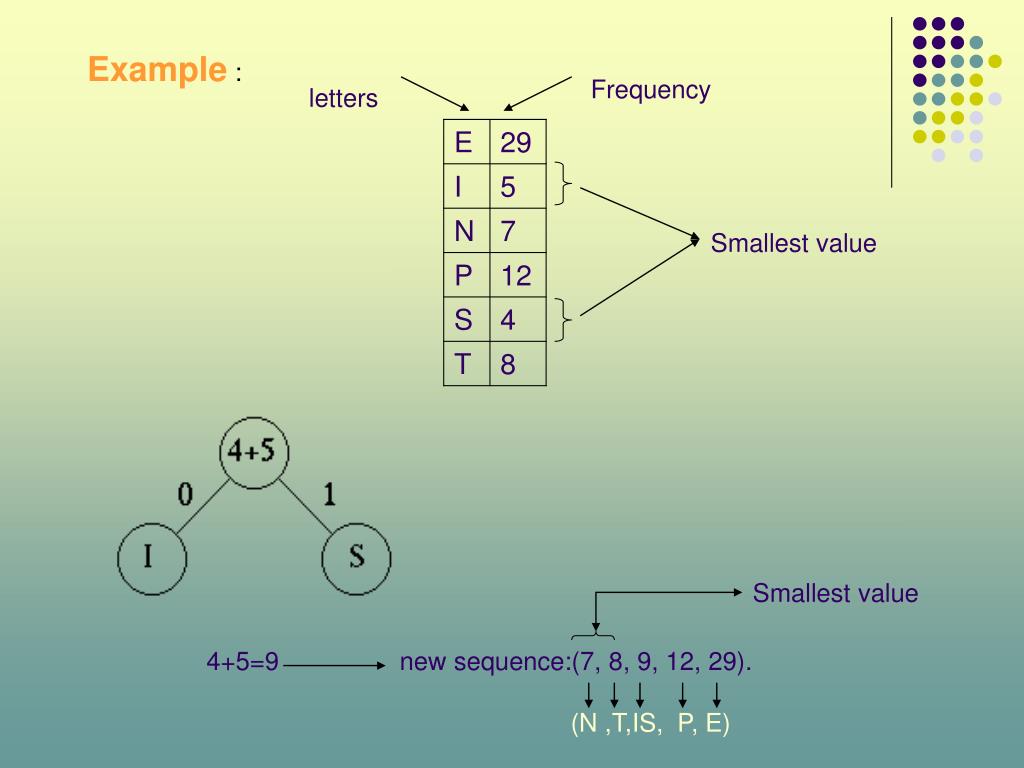

slide10

Example :

Frequency

letters

Smallest value

Smallest value

4+5=9 new sequence:(7, 8, 9, 12, 29).

(N ,T,IS, P, E)

slide11

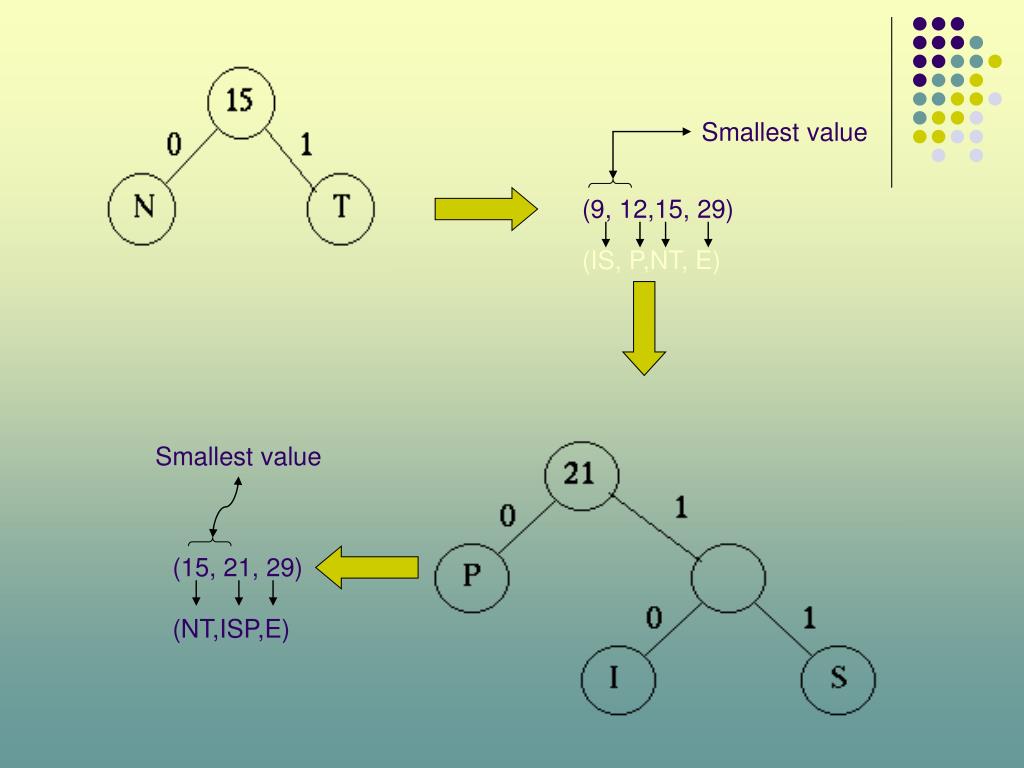

Smallest value

(9, 12,15, 29)

(IS, P,NT, E)

Smallest value

(15, 21, 29)

(NT,ISP,E)

slide12

(29 , 36 )

(E,INPST)

Last Combination

slide13

(36,29)

Result !

slide14

SENT

0111

1

000

001

PREFIX coding

As soon as a 1 is read, you know it is an E.

0110 is an I.

you do not need to see any more bits.

When a 01 is seen, it is either I or P or S, etc.

NOTE:it does not make any difference which one is

placed as the left subtree and which in the right subtree.

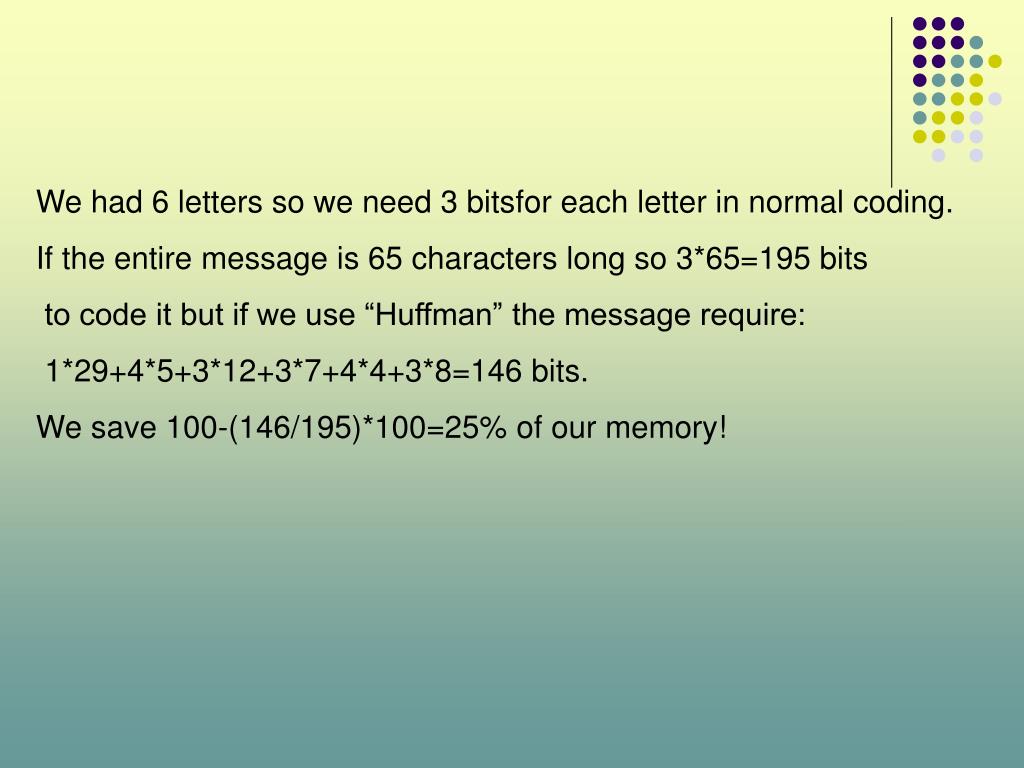

slide15

We had 6 letters so we need 3 bitsfor each letter in normal coding.

If the entire message is 65 characters long so 3*65=195 bits

to code it but if we use “Huffman” the message require:

1*29+4*5+3*12+3*7+4*4+3*8=146 bits.

We save 100-(146/195)*100=25% of our memory!

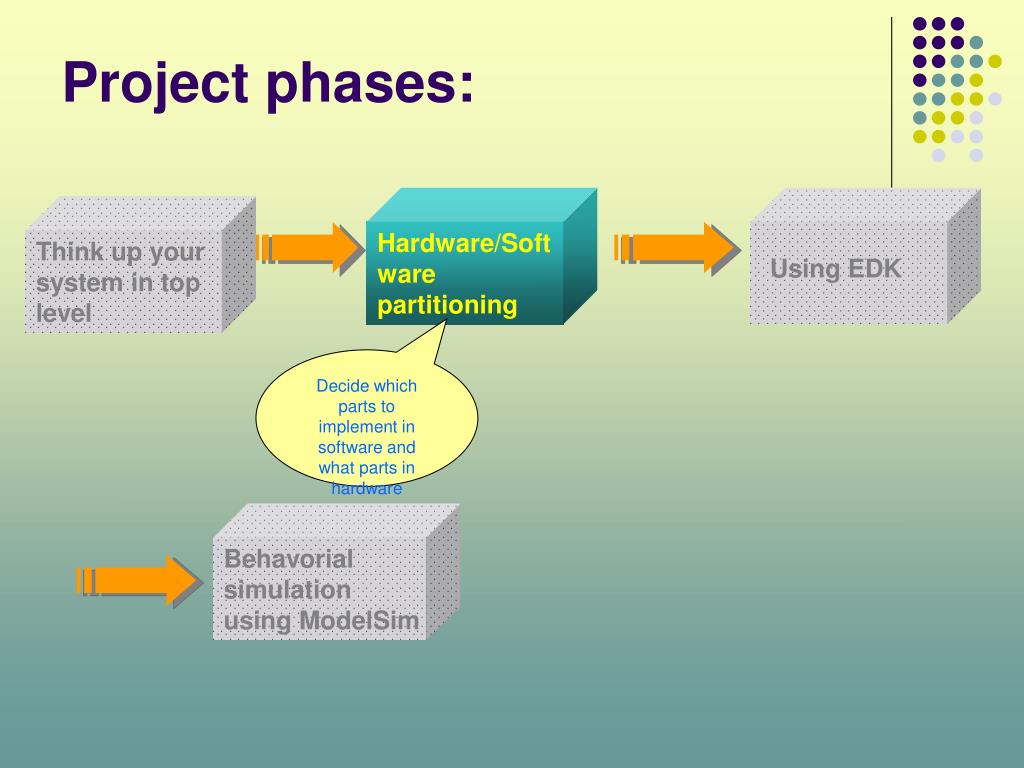

project phases1
Project phases:

Hardware/Software partitioning

Think up your system in top level

Using EDK

Decide which parts to implement in software and what parts in hardware

Behavorial simulation using ModelSim

hardware software partitioning
Hardware/software partitioning:
  • Design includes a powerpc core
  • The Encoder is attached to the on-chip peripheral Bus(OPB)
  • Data stored in two RAMs attached to the OPB

BRAM

PPC

PLB

OPB

RAM1

RAM2

Huff Enc

hardware software partitioning1

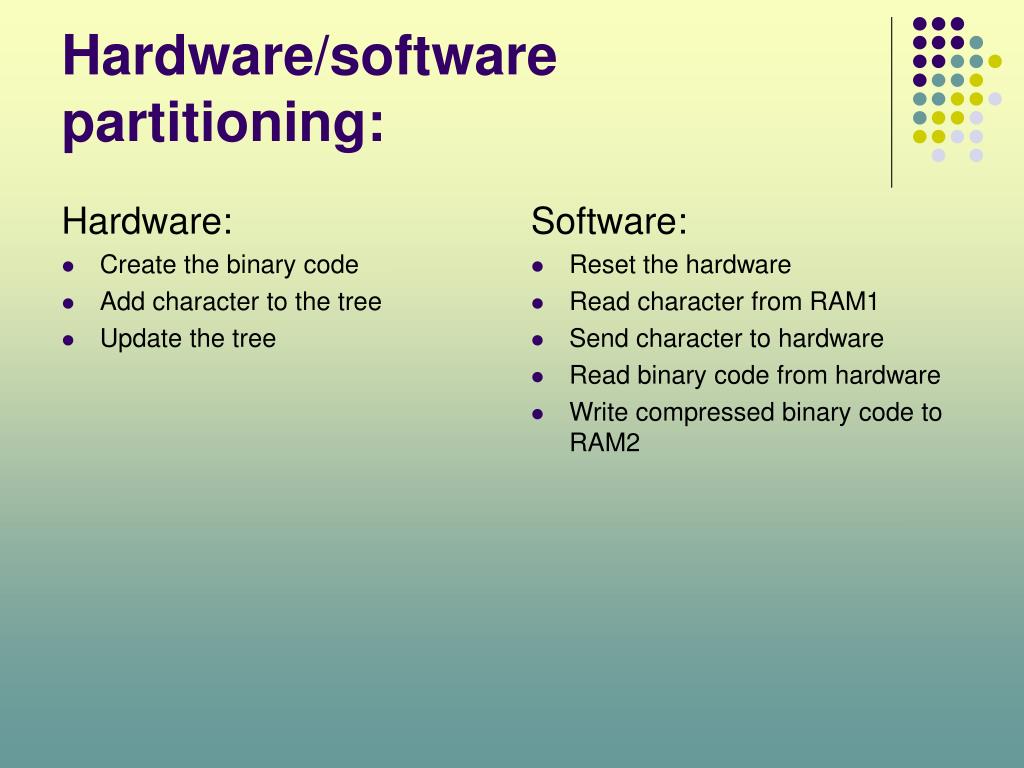

Hardware:

Create the binary code

Add character to the tree

Update the tree

Software:

Reset the hardware

Read character from RAM1

Send character to hardware

Read binary code from hardware

Write compressed binary code to RAM2

Hardware/software partitioning:
project phases2

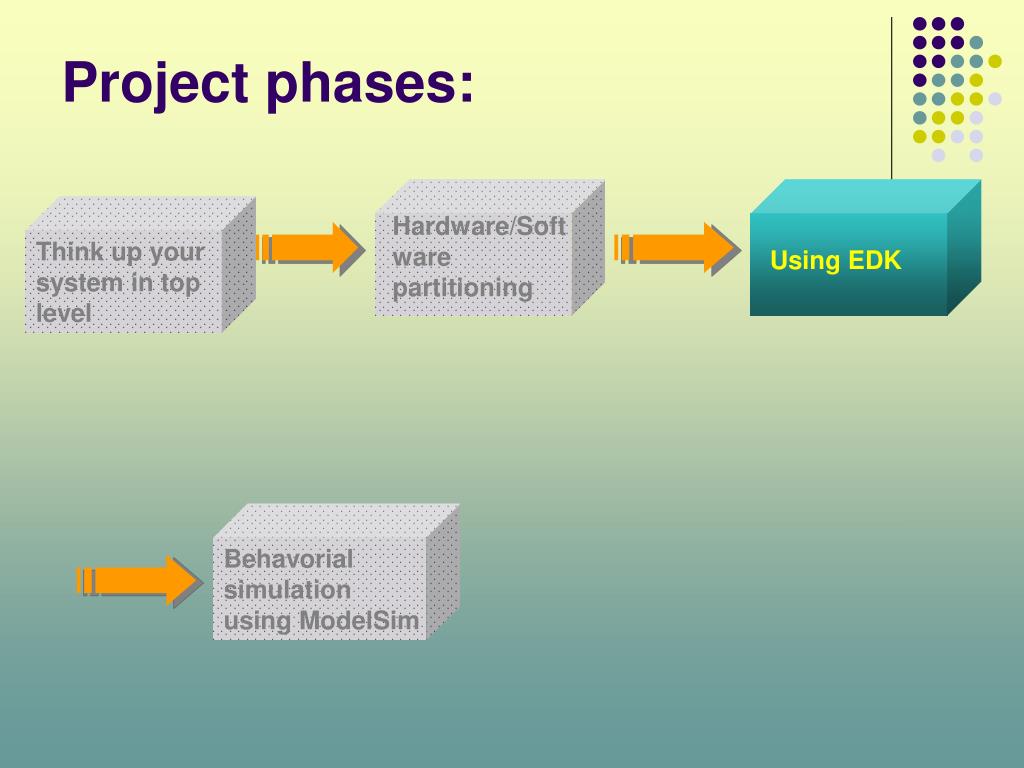

Project phases:

Hardware/Software partitioning

Think up your system in top level

Using EDK

Behavorial simulation using ModelSim

embedded processor design

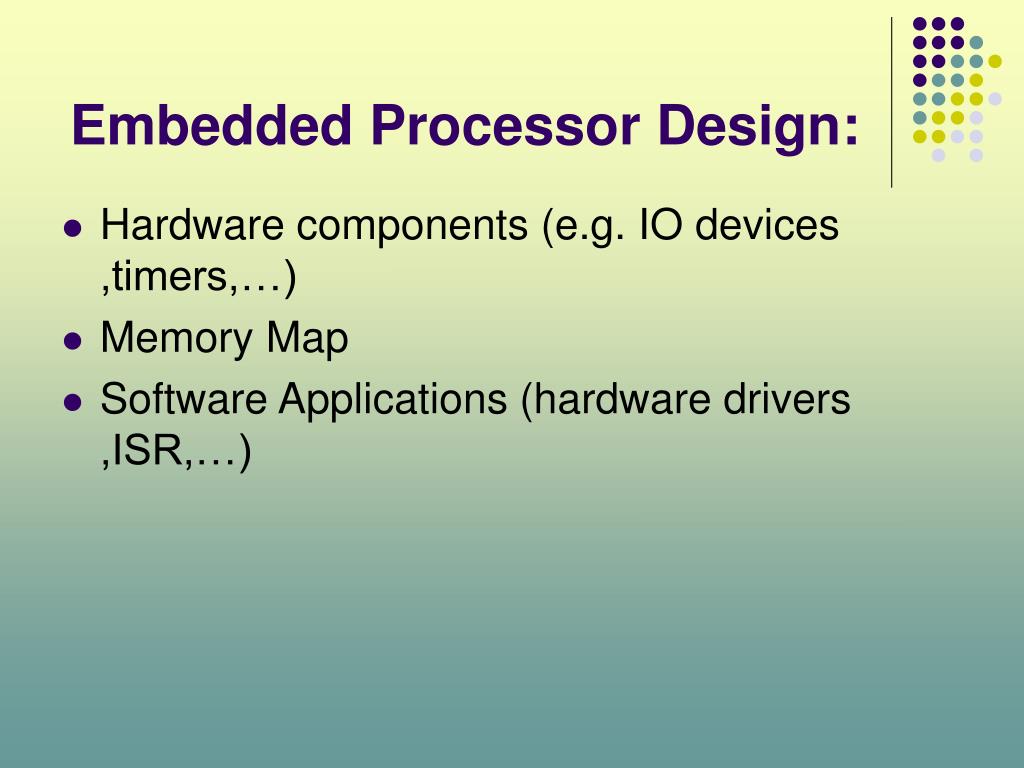

Embedded Processor Design:
  • Hardware components (e.g. IO devices ,timers,…)
  • Memory Map
  • Software Applications (hardware drivers ,ISR,…)

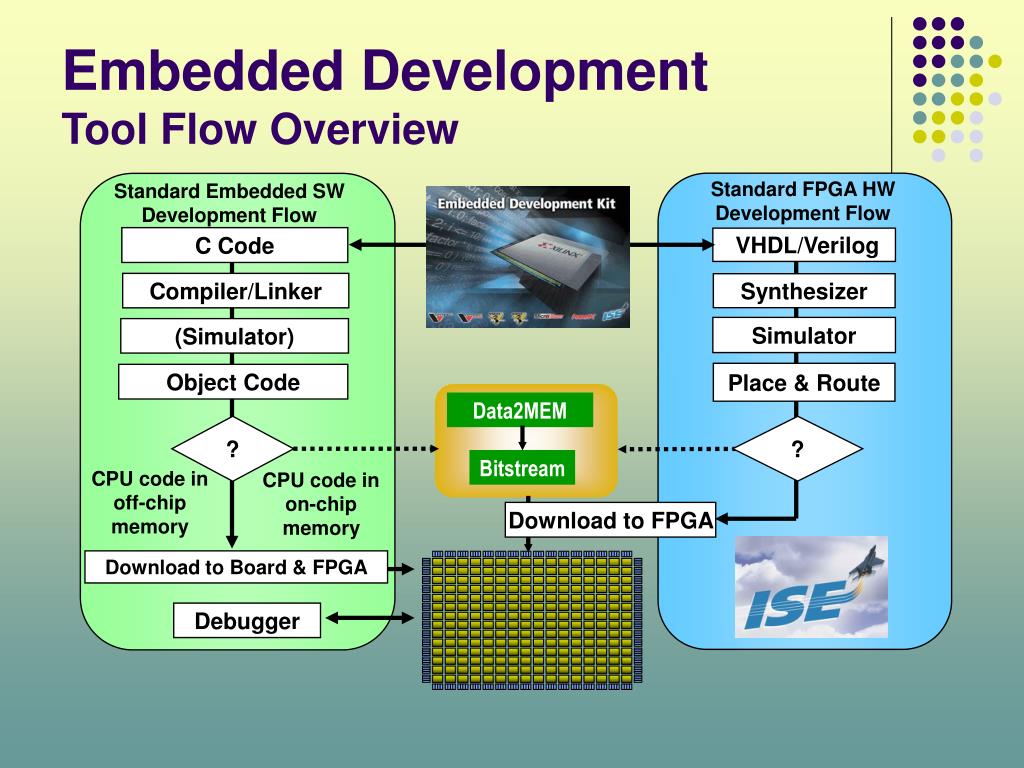

embedded development tool flow overview

Standard FPGA HW

Development Flow

VHDL/Verilog

Synthesizer

Simulator

Place & Route

Data2MEM

?

Bitstream

Download to FPGA

Embedded DevelopmentTool Flow Overview

Standard Embedded SW

Development Flow

C Code

Compiler/Linker

(Simulator)

Object Code

?

CPU code in off-chip memory

CPU code in on-chip memory

Download to Board & FPGA

Debugger

slide22

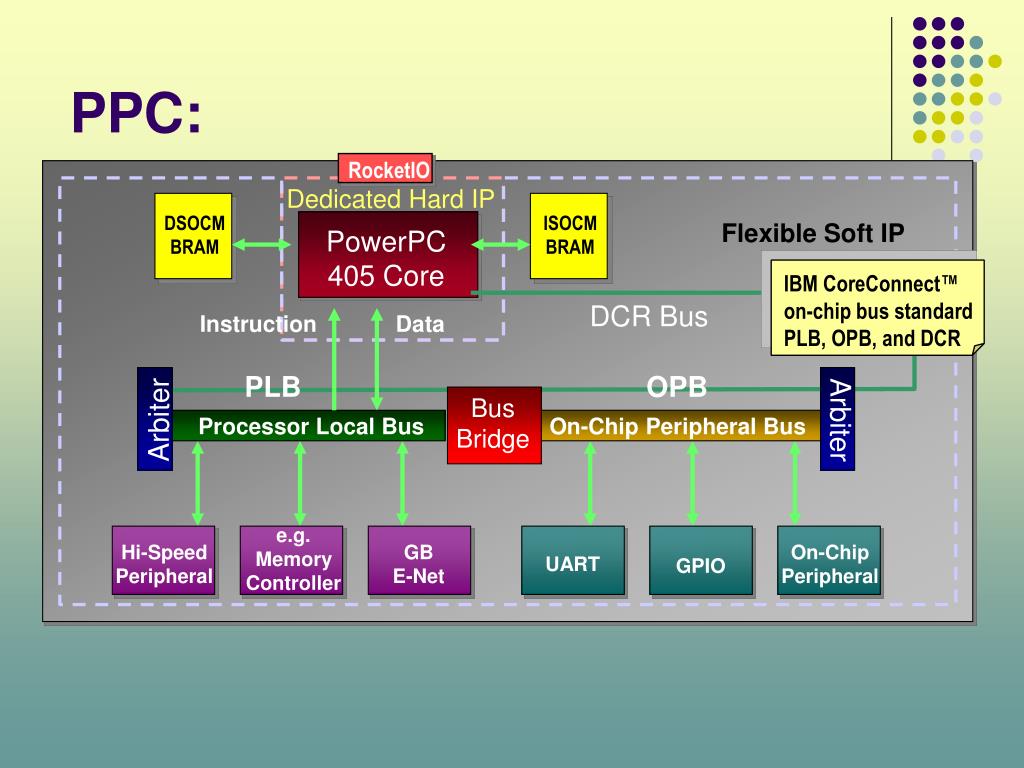

IBM CoreConnect™

on-chip bus standard

PLB, OPB, and DCR

RocketIO

Dedicated Hard IP

DSOCM

BRAM

ISOCM

BRAM

Flexible Soft IP

PowerPC

405 Core

DCR Bus

Instruction

Data

PLB

OPB

Bus

Bridge

Arbiter

Arbiter

Processor Local Bus

On-Chip Peripheral Bus

e.g.

Memory

Controller

Hi-Speed

Peripheral

GB

E-Net

On-Chip

Peripheral

UART

GPIO

PPC:
ppc memory map

0xFFFF_FFFC

Reset Address

PLB/OPB Memory

0xFFFF_0000

PLB/OPB Memory

Peripherals

0x0000_0000

PPC Memory Map:
slide25

We are at the beginning

The project is underway and going on…

Thanks for your attention

Maryam.Moghaddas

Arezoo.Erfanifard
