  1. Computational Intelligence in Biomedical and Health Care InformaticsHCA 590 (Topics in Health Sciences) Rohit Kate Clinical Natural Language Processing

  2. Reading Paper: What can natural language processing do for clinical decision support? Dina Demner-Fushman, Wendy Chapman, Clement McDonald Journal of Biomedical Informatics 42 (2009) 760-772 Paper: 2010 i2b2/VA Challenge on Concepts, Assertions, and Relations in Clinical TextUzuner Ö., South B., Shen S., DuVall S.Journal of the American Medical Informatics Association 2011;18(5):552-556

  3. Clinical Decision Support Systems • A clinical decision support (CDS) system is any computer program designed to help healthcare professionals to make clinical decisions or present them with patient-specific assessments and recommendations • Suggest diagnosis and medications • Trigger reminders • Flag abnormal values • Alert about drug interactions • Remind the user of overlooked diagnoses • Provide advice based on patient-specific data

  4. CDS Systems and Narrative Text • Such computer based support is much more effective if the computer system has access to electronic medical records (EMRs) and has the ability to process them • Major portion of patient records, including radiology reports, operative notes, discharge summaries etc. are recorded as narrative text (dictated, transcribed or directly entered) in a natural language such as English • Facts that should activate a CDS system are often found only in free text

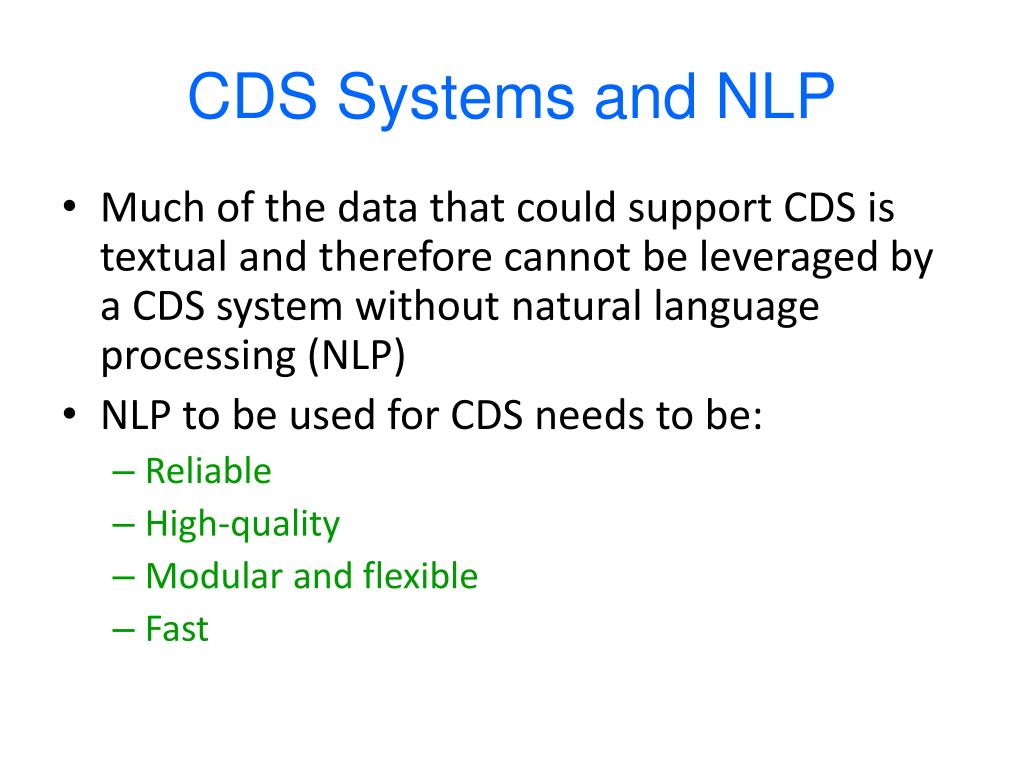

  5. CDS Systems and NLP • Much of the data that could support CDS is textual and therefore cannot be leveraged by a CDS system without natural language processing (NLP) • NLP to be used for CDS needs to be: • Reliable • High-quality • Modular and flexible • Fast

  6. Active and Passive CDS with NLP • Active: System leverages available information and pushes patient-specific information to the user • Passive: The users themselves seek the support • Users: Depending upon the application, besides clinicians users could be patients, researchers, administrators, students, and coders • Besides free text in the clinical records, NLP for CDS could also be processing biomedical literature, web pages etc.

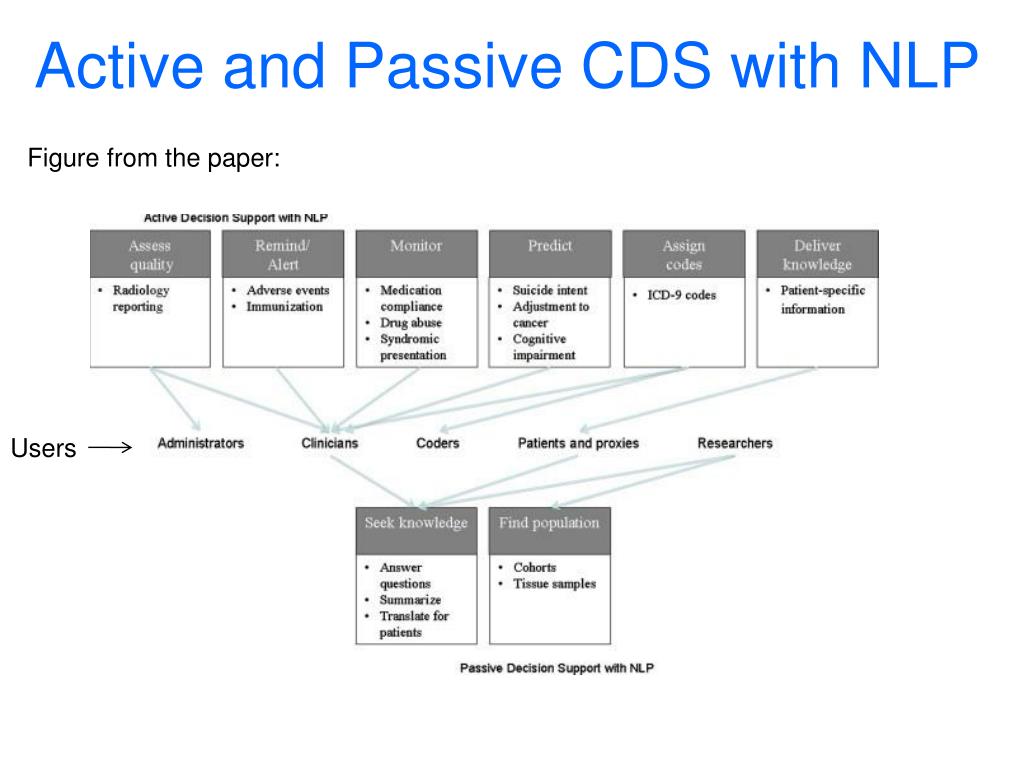

  7. Active and Passive CDS with NLP Figure from the paper: Users

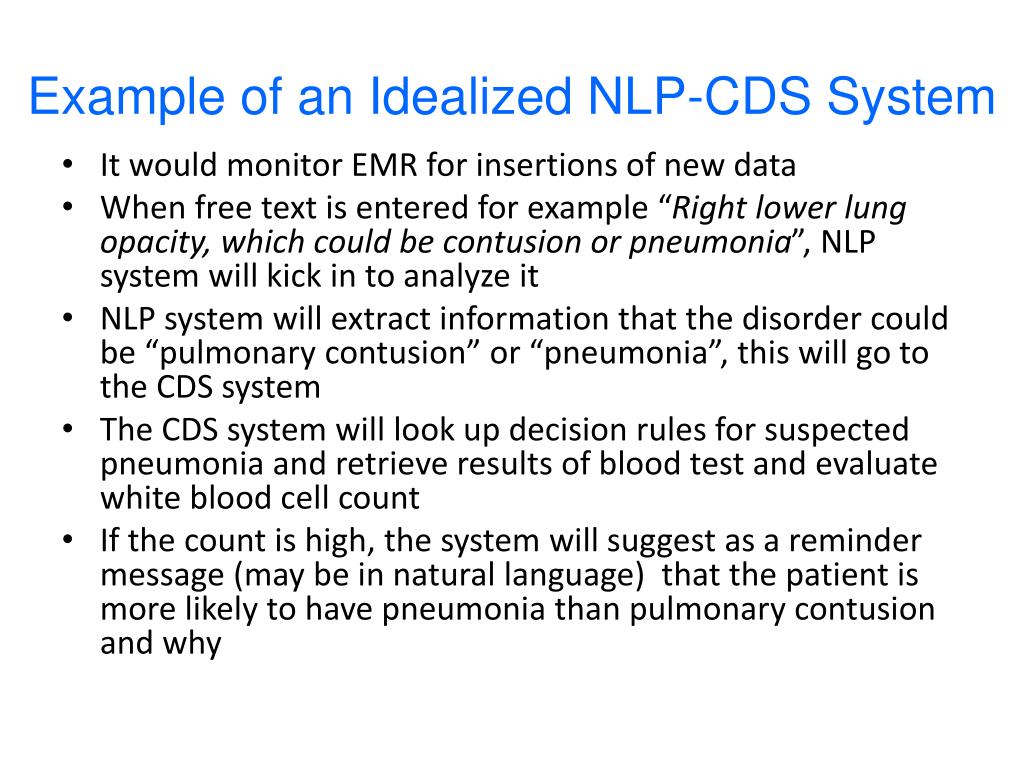

  8. Example of an Idealized NLP-CDS System • It would monitor EMR for insertions of new data • When free text is entered for example “Right lower lung opacity, which could be contusion or pneumonia”, NLP system will kick in to analyze it • NLP system will extract information that the disorder could be “pulmonary contusion” or “pneumonia”, this will go to the CDS system • The CDS system will look up decision rules for suspected pneumonia and retrieve results of blood test and evaluate white blood cell count • If the count is high, the system will suggest as a reminder message (may be in natural language) that the patient is more likely to have pneumonia than pulmonary contusion and why

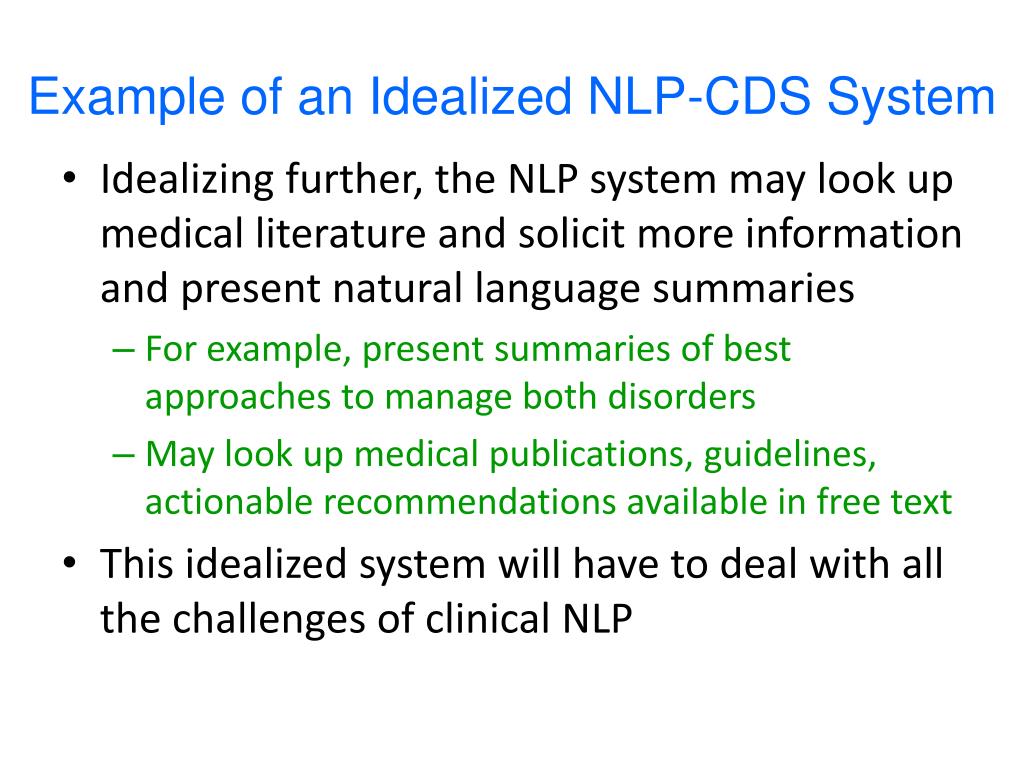

  9. Example of an Idealized NLP-CDS System • Idealizing further, the NLP system may look up medical literature and solicit more information and present natural language summaries • For example, present summaries of best approaches to manage both disorders • May look up medical publications, guidelines, actionable recommendations available in free text • This idealized system will have to deal with all the challenges of clinical NLP

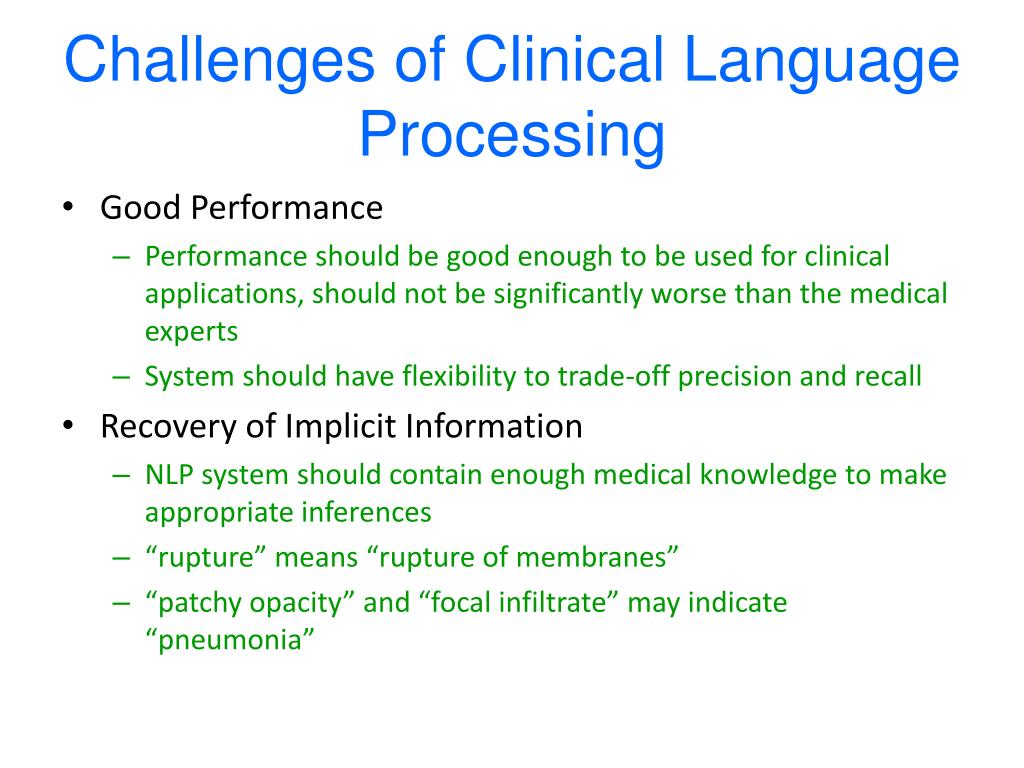

  10. Challenges of Clinical Language Processing • Good Performance • Performance should be good enough to be used for clinical applications, should not be significantly worse than the medical experts • System should have flexibility to trade-off precision and recall • Recovery of Implicit Information • NLP system should contain enough medical knowledge to make appropriate inferences • “rupture” means “rupture of membranes” • “patchy opacity” and “focal infiltrate” may indicate “pneumonia”

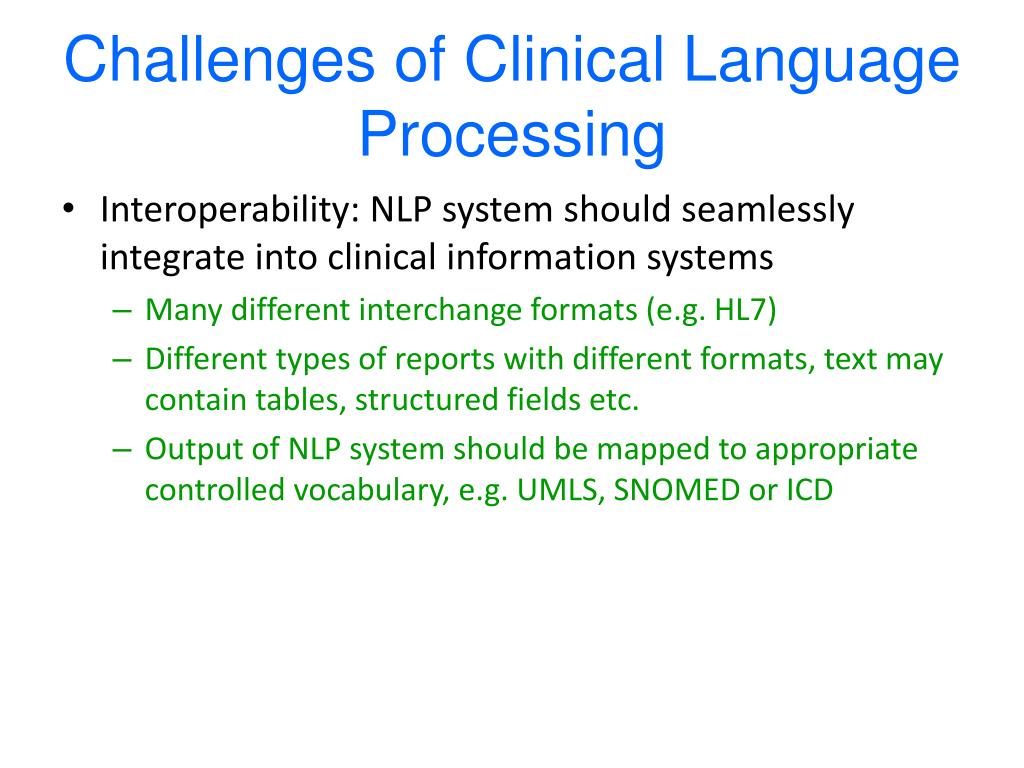

  11. Challenges of Clinical Language Processing • Interoperability: NLP system should seamlessly integrate into clinical information systems • Many different interchange formats (e.g. HL7) • Different types of reports with different formats, text may contain tables, structured fields etc. • Output of NLP system should be mapped to appropriate controlled vocabulary, e.g. UMLS, SNOMED or ICD

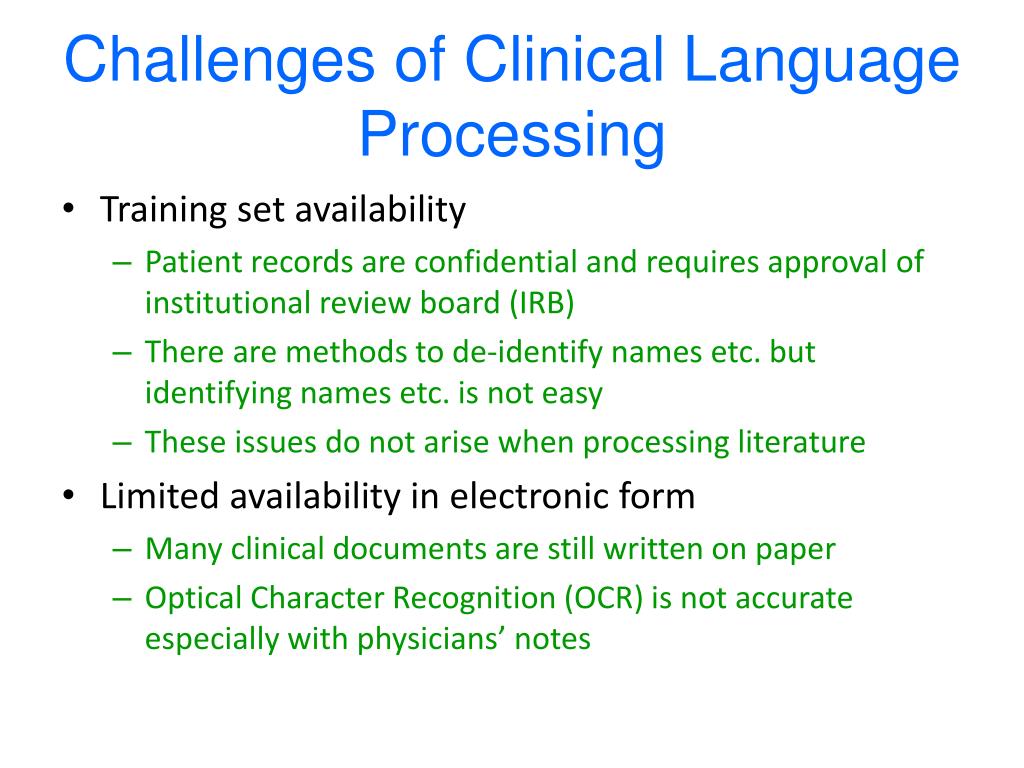

  12. Challenges of Clinical Language Processing • Training set availability • Patient records are confidential and requires approval of institutional review board (IRB) • There are methods to de-identify names etc. but identifying names etc. is not easy • These issues do not arise when processing literature • Limited availability in electronic form • Many clinical documents are still written on paper • Optical Character Recognition (OCR) is not accurate especially with physicians’ notes

  13. Challenges of Clinical Language Processing • Expressiveness • More than 200 different expressions for severity information: faint, mild, borderline, 3rd degree, mild to moderate etc. • Complex modifiers: “no improvement in pneumonia” in text will match a query “improvement in pneumonia” • A lot of abbreviations which could be ambiguous • pvc may mean pulmonary vascular congestion in chest X-ray report and premature ventricular complexes in electrocardigram report

  14. Challenges of Clinical Language Processing • Compactness of text • Very compact containing many abbreviations • Sentence boundaries poorly delineated Admit 10/23 71 yo woman h/o DM, HTN, Dilated CM/CHF, Afib s/p embolic event, chronic diarrhae, admitted with SOB. • Rare events • Medical errors and adverse events are not reported frequently, difficult to train a system to detect them

  15. Shared Tasks in Clinical Language Processing • Evaluation • Difficult to obtain gold-standard data, time-consuming for medical experts to annotate data • Evaluation competitions or Shared Tasks are very useful, they help compare different systems on the same data • i2b2 shared tasks 2008-2012: • https://www.i2b2.org/NLP/Obesity/ • https://www.i2b2.org/NLP/Medication/ • https://www.i2b2.org/NLP/Relations/ • https://www.i2b2.org/NLP/Coreference/ • https://www.i2b2.org/NLP/TemporalRelations/ • ShARe/CLEF eHealth 2013-2014: • https://sites.google.com/site/shareclefehealth/ • http://clefehealth2014.dcu.ie/ • SemEval 2014 Task 7- Analysis of Clinical Text: • http://alt.qcri.org/semeval2014/task7/ • TREC Medical Records task

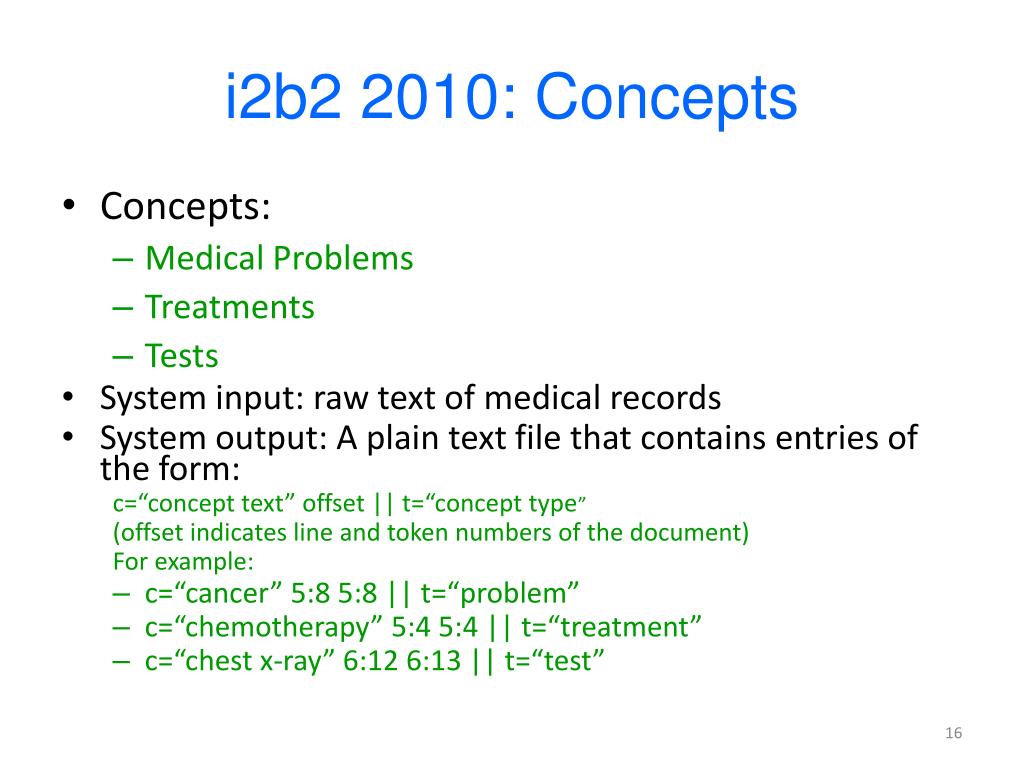

  16. i2b2 2010: Concepts • Concepts: • Medical Problems • Treatments • Tests • System input: raw text of medical records • System output: A plain text file that contains entries of the form: c=“concept text” offset || t=“concept type” (offset indicates line and token numbers of the document) For example: • c=“cancer” 5:8 5:8 || t=“problem” • c=“chemotherapy” 5:4 5:4 || t=“treatment” • c=“chest x-ray” 6:12 6:13 || t=“test”

  17. i2b2 2010: Assertions • Assertions (attributes of medical problems): • Present • Absent • Possible • Conditional • Hypothetical • Not associated with the patient • System input: raw text of medical records and given concepts • System output: Assertions on all problem concepts (and only problem concepts) c=“concept text” offset || t=“concept type” || a=“assertion value” For example: • c=“hypertension” 5:4 5:4 || t=“problem” || a=“absent” • c=“diabetes” 6:12 6:12 || t=“problem” || a=“possible”

  18. i2b2 2010: Relations • Extract the relations that exist between the concepts: • medical problems and treatments • 6 possible relations • medical problems and tests • 3 possible relations • medical problems and other medical problems • 2 possible relations • System input: raw text medical records with given concepts and assertions (optional) • System output: relations of pairs of concepts in the following format: • c="a cardiac catheterization" 9:12 9:14 || r="TeCP" || c="chest pain" 9:5 9:6 • c="a cardiac catheterization" 9:12 9:14 || r="TeRP" || c="an occluded right coronary artery" 9:23 9:27 • c="a cardiac catheterization" 9:12 9:14 || r="TeRP" || c="a 40-50% proximal stenosis" 9:29 9:32

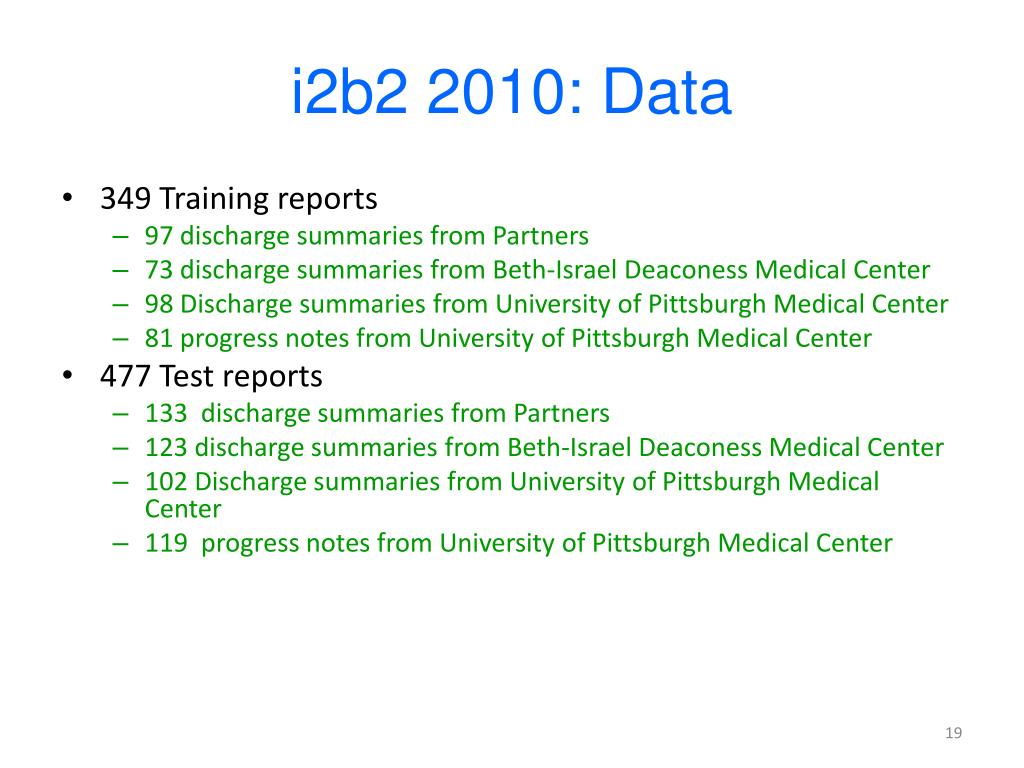

  19. i2b2 2010: Data • 349 Training reports • 97 discharge summaries from Partners • 73 discharge summaries from Beth-Israel Deaconess Medical Center • 98 Discharge summaries from University of Pittsburgh Medical Center • 81 progress notes from University of Pittsburgh Medical Center • 477 Test reports • 133 discharge summaries from Partners • 123 discharge summaries from Beth-Israel Deaconess Medical Center • 102 Discharge summaries from University of Pittsburgh Medical Center • 119 progress notes from University of Pittsburgh Medical Center

  20. i2b2 2010: Best Results • Total 41 teams participated (22 for concepts, 21 for assertions and 16 for relations) Best F-measures (harmonic mean of precision & recall): • Concepts: 85% F-measure • Assertions: 92.6% F-measure • Relations: 73.7% F-measure
