电流控制电压源

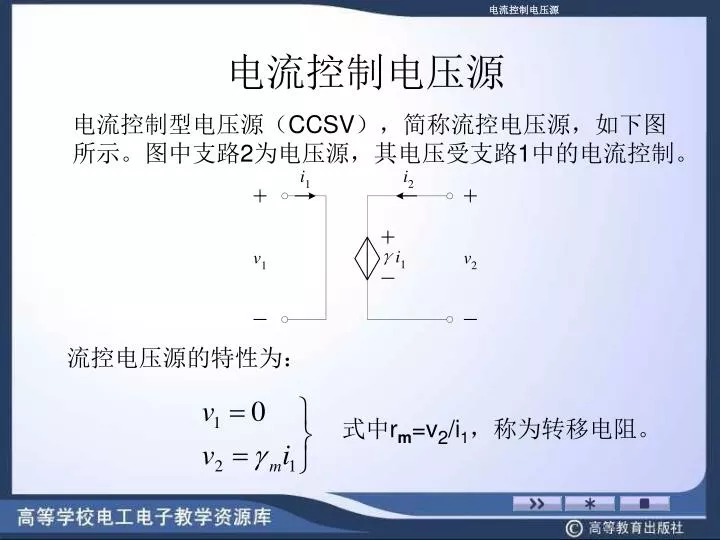

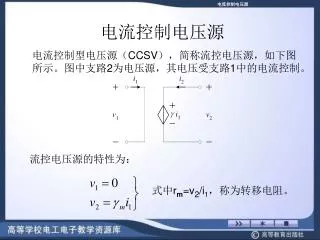

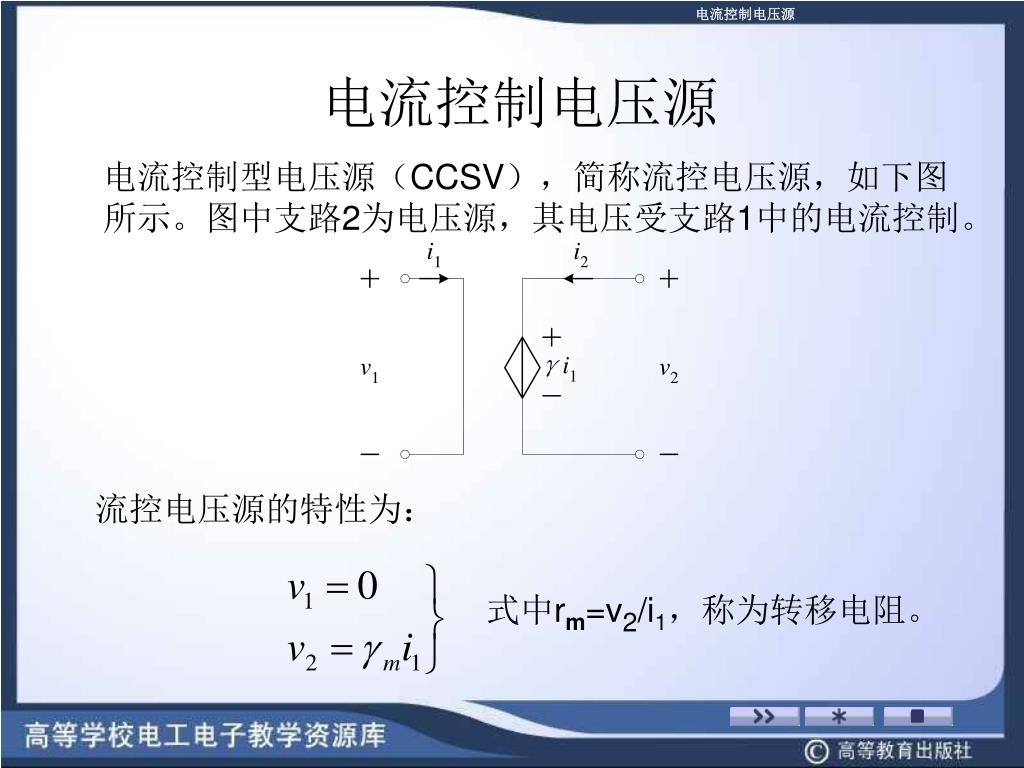

电流控制电压源. 电流控制型电压源（ CCSV ），简称流控电压源，如下图所示。图中支路 2 为电压源，其电压受支路 1 中的电流控制。. 电流控制电压源. 流控电压源的特性为：. 式中 r m =v 2 /i 1 ，称为转移电阻。.
