Net Force Problems

Net Force Problems. There are 2 basic types of net force problems On a horizontal surface, the formula is: F net = F A - F f If it is a “up-down” problem, the formula is: F net = F up - F down F up = applied force F down = weight. “Up – Down”.

zelda-turner
Download Presentation

Net Force Problems

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. Net Force Problems • There are 2 basic types of net force problems • On a horizontal surface, the formula is: • Fnet = FA - Ff • If it is a “up-down” problem, the formula is: • Fnet = Fup - Fdown • Fup = applied force Fdown = weight

  2. “Up – Down” If a ball is thrown upward with a force of 148 N and has a mass of 10 kg, what will it’s acceleration be? Fnet = Fup - Fdown Fup Fdown

  3. “Up – Down” If a ball is thrown upward with a force of 148 N and has a mass of 10 kg, what will it’s acceleration be? Fnet = Fup - Fdown Fnet = 148 N - (10 kg)(9.8m/s2) Fup Fdown

  4. “Up – Down” If a ball is thrown upward with a force of 148 N and has a mass of 10 kg, what will it’s acceleration be? Fnet = Fup - Fdown Fnet = 148 N - (10 kg)(9.8m/s2) F net = 148 N - 98 N Fup Fdown

  5. “Up – Down” If a ball is thrown upward with a force of 148 N and has a mass of 10 kg, what will it’s acceleration be? Fnet = Fup - Fdown (m)(a) = 148 N - (10 kg)(9.8m/s2) 10 kg(a) = 148 N - 98 N a = +5 m/s2( upward direction) Fup Fdown

  6. “Up – Down” Another type of “up –down” problem is where the acceleration is given and you need to find the “up” force. A 2.5 kg ball is thrown upward with an acceleration of 3.5 m/ss. What force is needed to do this? Fup Fdown

  7. “Up – Down” A 2.5 kg ball is thrown upward with an acceleration of 3.5 m/ss. What force is needed to do this? Fnet = Fup - Fdown Fup Fdown

  8. “Up – Down” A 2.5 kg ball is thrown upward with an acceleration of 3.5 m/ss. What force is needed to do this? Fnet = Fup - Fdown (m)(a) = Fup - (m)(g) Fup Fdown

  9. “Up – Down” A 2.5 kg ball is thrown upward with an acceleration of 3.5 m/ss. What force is needed to do this? Fnet = Fup - Fdown (m)(a) = Fup - Fdown (2.5 kg)(3.5 m/s2) = Fup - (2.5kg)(9.8m/s2) Fup Fdown

  10. “Up – Down” A 2.5 kg ball is thrown upward with an acceleration of 3.5 m/ss. What force is needed to do this? Fnet = Fup - Fdown (m)(a) = Fup - Fdown (2.5 kg)(3.5 m/s2) = Fup - (2.5kg)(9.8m/s2) 8.75 N = Fup - 24.5N Fup Fdown

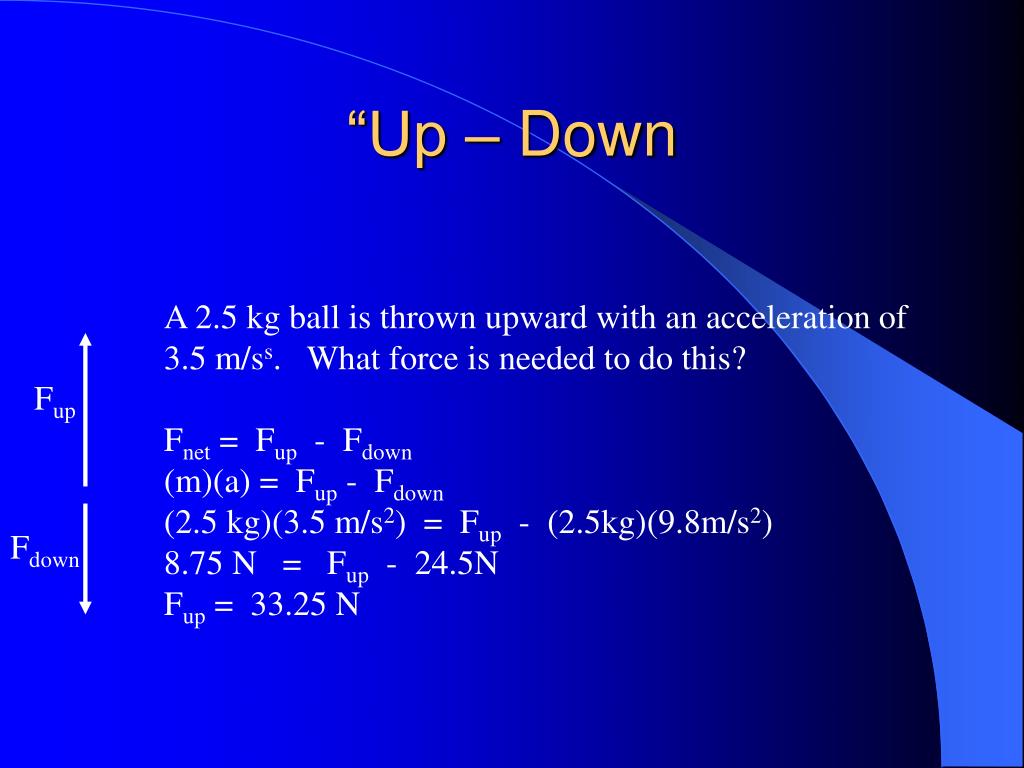

  11. “Up – Down A 2.5 kg ball is thrown upward with an acceleration of 3.5 m/ss. What force is needed to do this? Fnet = Fup - Fdown (m)(a) = Fup - Fdown (2.5 kg)(3.5 m/s2) = Fup - (2.5kg)(9.8m/s2) 8.75 N = Fup - 24.5N Fup = 33.25 N Fup Fdown

  12. Horizontal Problems • In order to do these, we need to understand the force of friction first. • Friction.ppt

  13. Horizontal Problems • There are two types of horizontal problems • One is where the applied force is also horizontal • The other type is when the applied force is at an angle with the surface

  14. Horizontal Problems Ff FA 1. FA 2. Ff θ

  15. Horizontal Problems Ff FA 1. All of the applied force is used in the net Force equation 2. FA Ff θ Only the horizontal component of the force is used

  16. Horizontal Problems Ff FA 1. All of the applied force is used in the net Force equation FA 2. Ff θ Fh Only the horizontal component of the force is used
