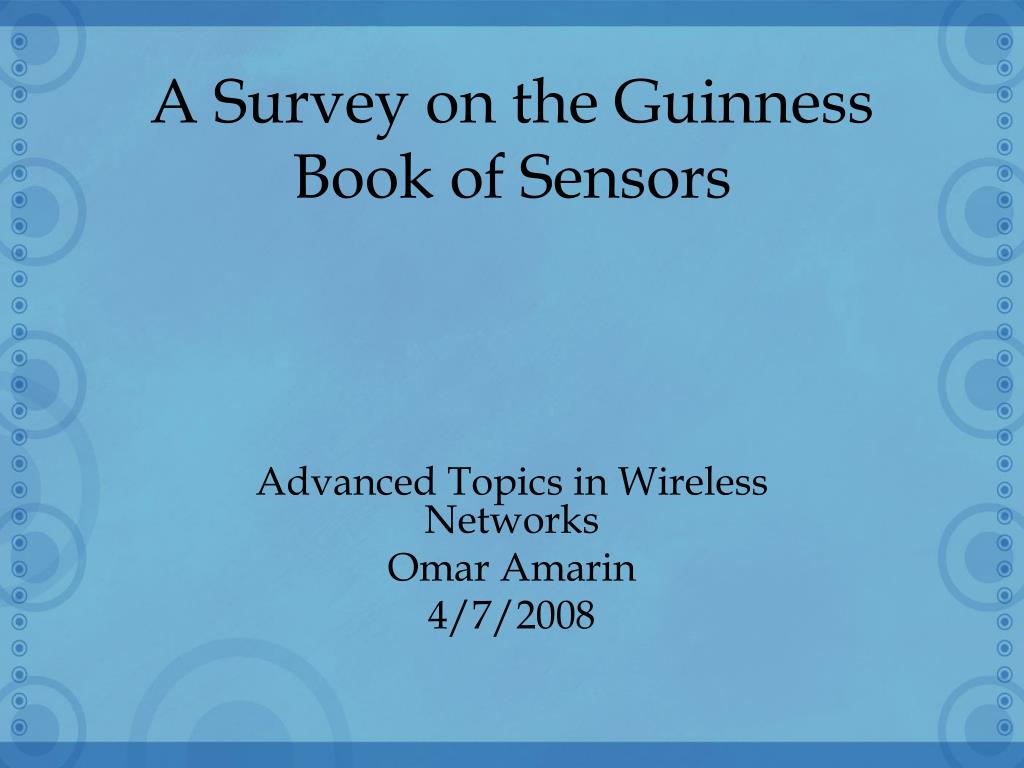

A Survey on the Guinness Book of Sensors. Advanced Topics in Wireless Networks Omar Amarin 4/7/2008. Smallest Sensors Epson, eCAM, Kionix, Samsung Largest Deployment of Sensors Department of Primary Industries (DPI) Longest Lifetime Sensors Transducer Technology, Inc. 2.

zeki
Download Presentation

A Survey on the Guinness Book of Sensors

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. A Survey on the Guinness Book of Sensors Advanced Topics in Wireless Networks Omar Amarin 4/7/2008

  2. Smallest Sensors Epson, eCAM, Kionix, Samsung • Largest Deployment of Sensors Department of Primary Industries (DPI) • Longest Lifetime Sensors Transducer Technology, Inc. 2

  3. Smallest Sensors 1. Epson (uFR-II) Advanced Model of World's Smallest Flying Microrobot from Epson (August 2004) • Micromechatronics technology • The world's new lightest and most advanced microrobot • The uFR-II is only the latest chapter in an Epson success story that began with Monsieur, a microrobot that was listed in the Guinness Book of Records as the world's smallest microrobot. 3

  4. Problem: Limited Range • Solution: Fully wireless operation paired with independent flight capability. The world's smallest and lightest sensor. • Wireless features - Epson's own sensor (world's smallest and lightest) 4

  5. World's Smallest Gyro-Sensor (December 2004) • The XV-3500CB, Characteristics: • Features of the newly developed XV-3500CB Sensor: • 1. Subminiature SMD • 2. Outstanding stability • 3. Sleep mode 4. Airtight structure 5

  6. 2. eCAM: Ultra Compact, High Data-Rate Wireless Sensor Node with a Miniature Camera • constructed by plugging a VGA video camera to the Eco node. • Eco is an ultra-compact, high-bandwidth wireless sensor node developed by authors. It measures only 13mm(L) × 11mm(W) × 7mm(H) and weights 2 grams. • Great Power Consumption • Other Advantages Authors: Chulsung Park and Pai H. Chou Center for Embedded Computing System, University of California, Irvine. 6

  7. Some Properties: • Ultra-Compact Form Factor: 13x11x7mm, 2grams • 2.4GHz Radio, 128 Channels, 1Mbps • On-Board 3-Axis Accelerometer, Temperature Sensor, • Optical Sensor • Low Power Consumption • 40mAh Li-Polymer Rechargeable Battery, Continuous Listening: about 4 hours • Flex-PCB Expansion Port: Analog/Digital I/O, SPI, UART, I2C, and Interrupts, 7

  8. 3. Kionix, KXPS5, June 30, 2006 • The device, the KXPS5, is just 0.9 millimeters thick, The sensor measures acceleration and is primarily used for free-fall detection in hard drives. • The KXPS5 family of products was specifically engineered to have a very small form factor so that they can be incorporated directly into the hard disk drive. • use specifically in the hard drives of mobile-electronic devices such as cell phones and iPods. 8

  9. How it works • Other Uses: computer and video gaming, global positioning systems, sports diagnostics, and vehicle-stability applications. 9

  10. 4. Samsung, 8.4MP CIS, September 8th, 2005 Sensor Size: 9×6.5 mm Power consumption: 10 mW. More importantly, the sensor’s output is not an analog signal but a digital signal. Micro unit (MCU)” Intelligent function 10

  11. Ideas to Help in the Future • New custom printed circuit boards (PCBs): • Leads to: (Risks) • Extra hardware development effort • Risking introduction of new errors 11

  12. Largest Deployment of Sensors World's Largest Agricultural Wireless Sensor Network Department of Primary Industries (DPI) • Nectarine orchard covered with 47 nodes, 273 sensors. • Sensors include soil moisture, soil and air temperature, canopy temperature, humidity, leaf wetness, trunk diameter, wind speed and direction, solar radiation and GPS co-ordinates. 12

  13. Problems: • 1. Interruptions • 2. Rainfall • Good Ideas: They have started to monitor the sensor network using alerts that are automatically transmitted to a mobile phone by SMS. 13

  14. Longest Lifetime Sensors Transducer Technology, Inc. • High performance • No recharge is required for more than a year. • “Pocket CO” D6F-P MEMS-based D6F-P air flow sensor 14

  15. Problems & Enhancements. Algorithm Up to Five times better lifetime 15

  16. THANK YOU !
