Common Chromosomal Abnormalities

Common Chromosomal Abnormalities. Anthony Liu, M.D. Overview- DNA. DNA By the Numbers: 3,000,000,000: Number of base pairs in the human genome 90%: Have no identifiable function 50,000: Total number of encoded genes 16,000: Base pairs in mitochondrial DNA. Overview.

zebulon
Download Presentation

Common Chromosomal Abnormalities

An Image/Link below is provided (as is) to download presentation Download Policy: Content on the Website is provided to you AS IS for your information and personal use and may not be sold / licensed / shared on other websites without getting consent from its author. Content is provided to you AS IS for your information and personal use only. Download presentation by click this link. While downloading, if for some reason you are not able to download a presentation, the publisher may have deleted the file from their server. During download, if you can't get a presentation, the file might be deleted by the publisher.

E N D

Presentation Transcript

  1. CommonChromosomalAbnormalities Anthony Liu, M.D.

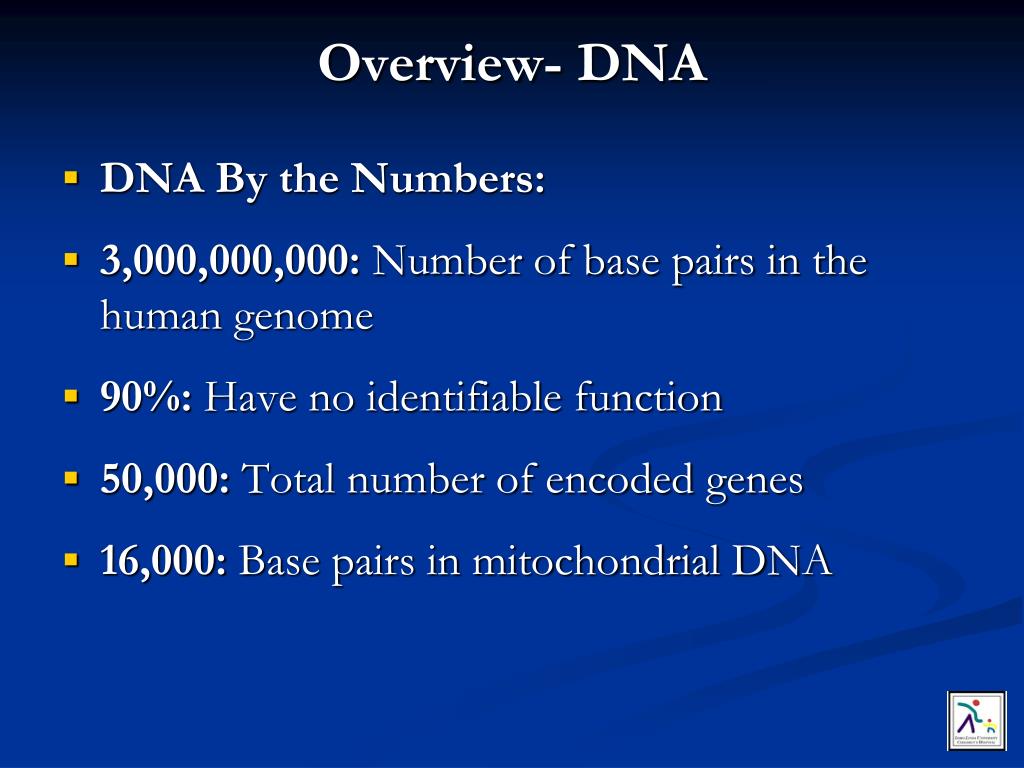

  2. Overview- DNA • DNA By the Numbers: • 3,000,000,000: Number of base pairs in the human genome • 90%: Have no identifiable function • 50,000: Total number of encoded genes • 16,000: Base pairs in mitochondrial DNA

  3. Overview • Chromosomal anomalies include abnormalities of chromosome number and structure • Occur in 0.4% of live births • Important cause of MR • Accounts for 12% of pediatric admissions • Genetic malformations: 25% of neonatal deaths in the US • Present in much higher frequencies among spontaneous abortions, still births • Phenotypic anomalies that result from chromosomal aberrations: due to imbalance of genetic information

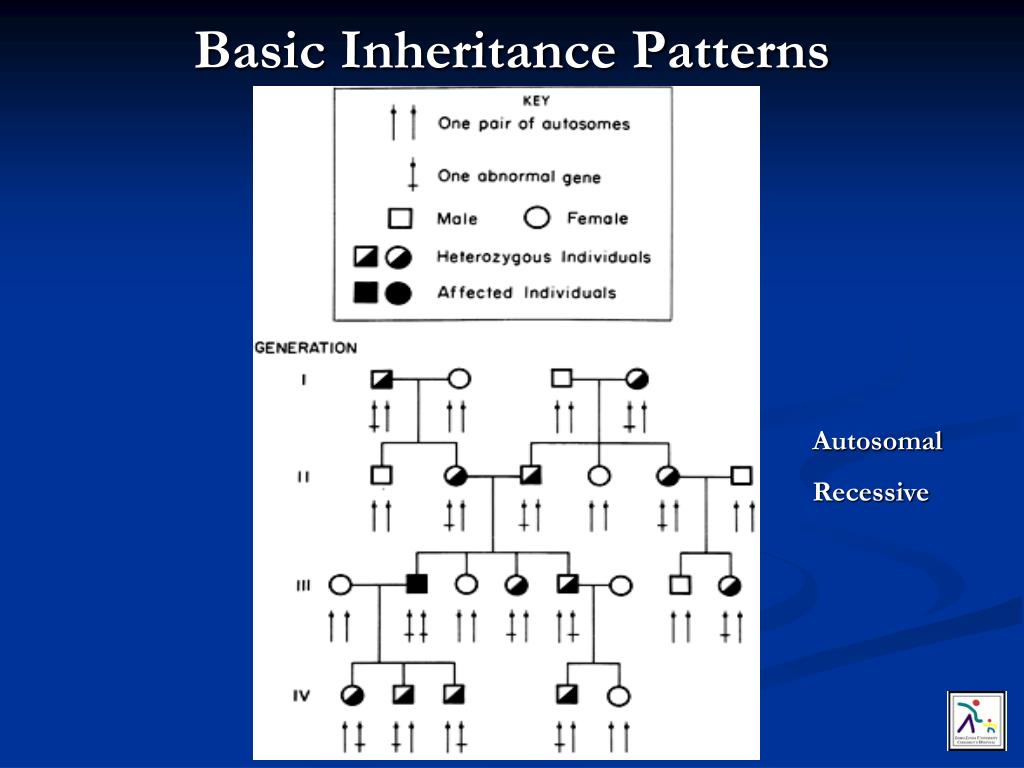

  4. Basic Inheritance Patterns Autosomal Recessive

  5. Inheritance Patterns X- Linked Dominant

  6. Inheritance Patterns Autosomal Dominant

  7. Autosomal Dominant • TS • Achondroplasia • Retinoblastoma • Marfan’s Syndrome • Alport Syndrome • NF • Waardenburg, Huntington’s, vWF Disease

  8. Waardenburg

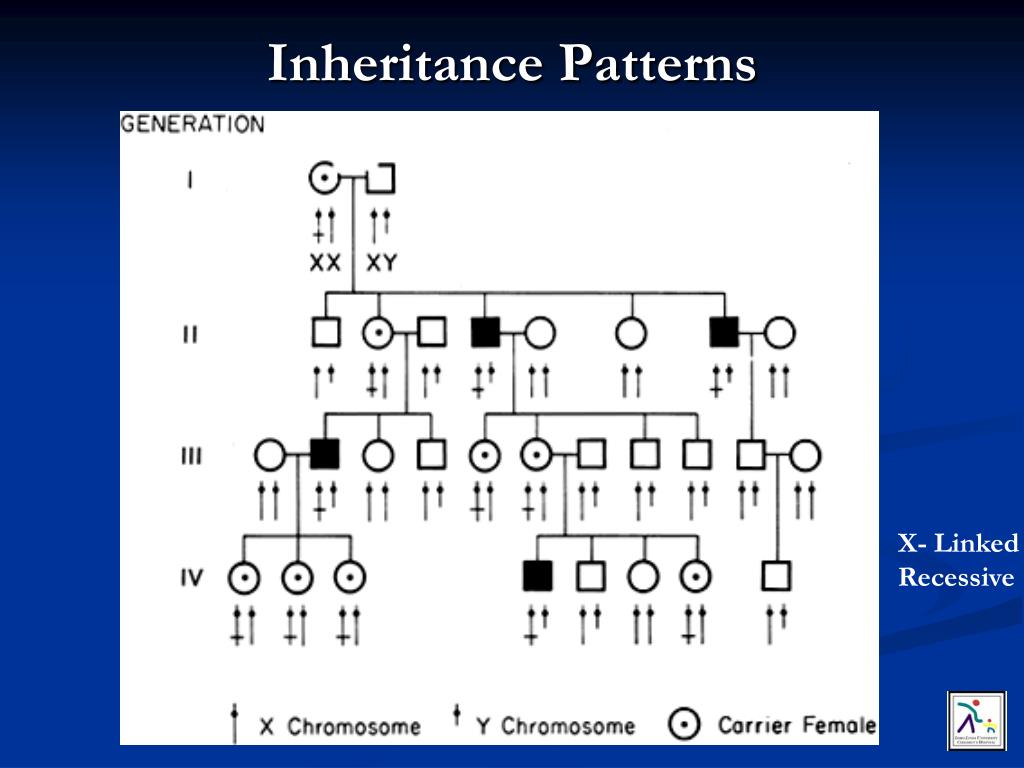

  9. Inheritance Patterns X- Linked Recessive

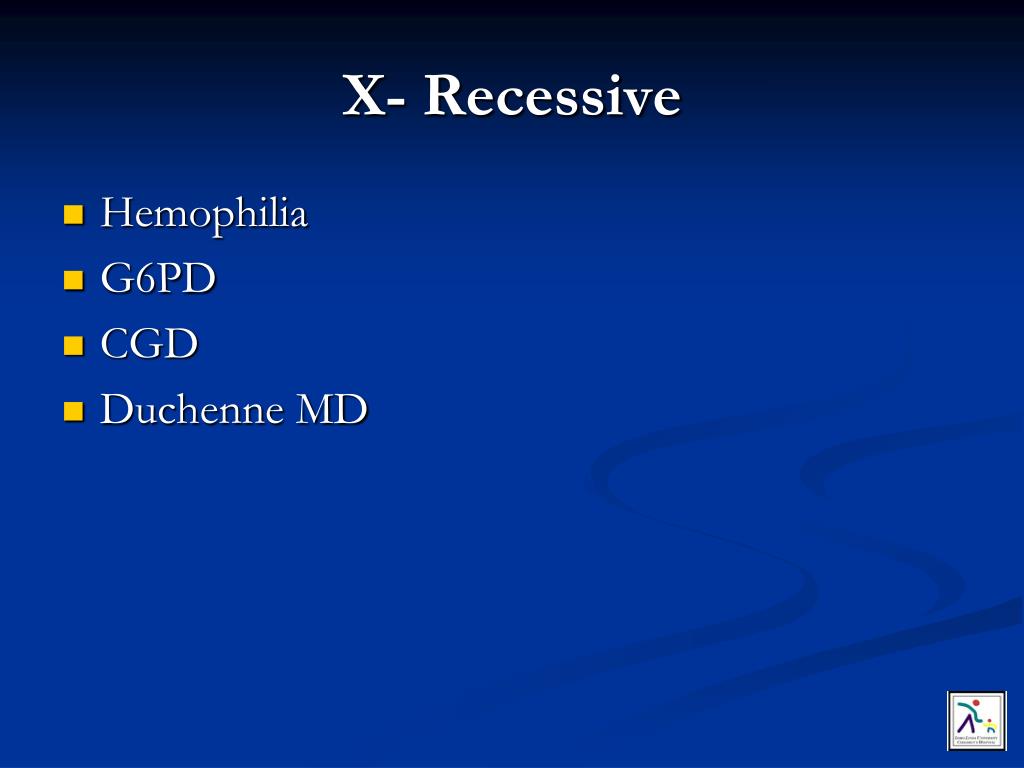

  10. X- Recessive • Hemophilia • G6PD • CGD • Duchenne MD

  11. Abnormalities of Chromosome Number • Euploidy- exact multiple of haploid number (46) • Polyploidy- euploidy with > 46 chromosomes • Conceptions- usually not viable unless mosaic • Triploidy- 3 sets of chromosomes • Result in abortion, occasionally viable • Aneuploidy- deviation from the multiples of haploid number; missing or extra chromosomes

  12. TRISOMIES • Most common abnormality of chromosome # • 3 representatives of a chromosome instead of 2 • Usually results from meiotic nondisjunction (failure of a chromosome pair to separate) • May be present in all cells or may occur in mosaic form • Pts exhibit a consistent phenotype depending on the chromosome

  13. Trisomy 21 • 1/600 births, 80% diagnosed as neonate • Varying MR and growth retardation • Pelvic dysplasia, cardiac malformations • Short, broad hands, transverse crease, hypoplasia of 5th finger, intestinal atresia, high arched/cleft palate • Hypotonia, flat face, slanted palpebral fissures, epicanthic folds • 5% of patients with phenotypic Down syndrome are the result of a translocation: t(14q21q), t(15q21q), t(13q21q)

  14. Speckled Iris:Brushfield Spots

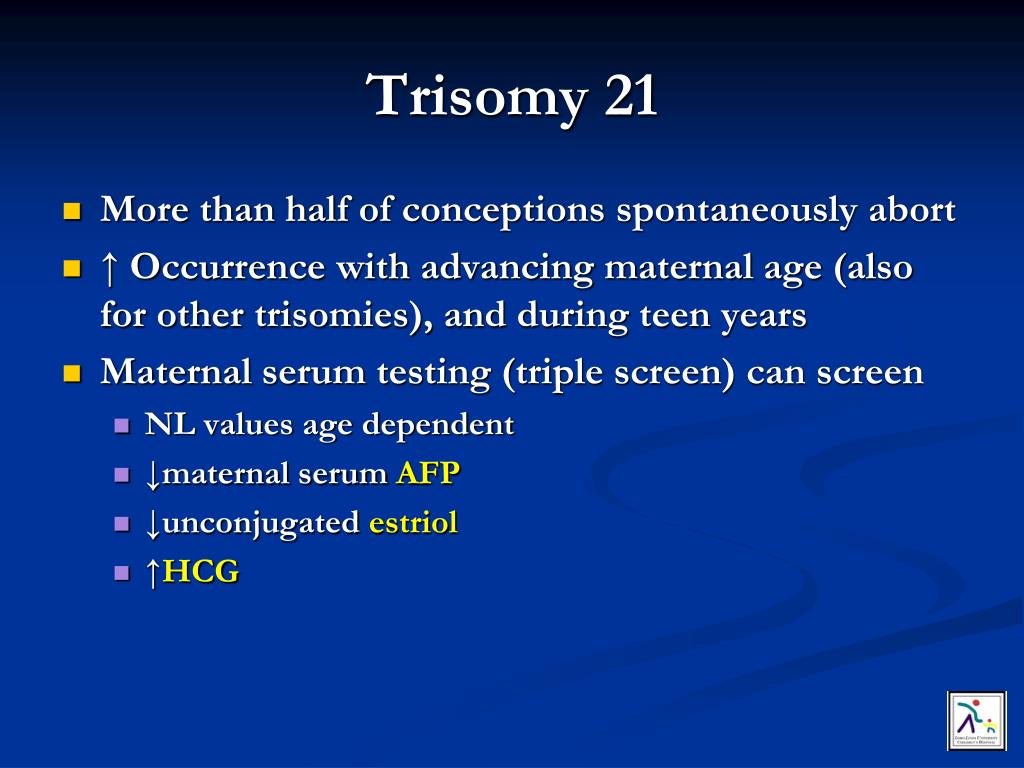

  15. Trisomy 21 • More than half of conceptions spontaneously abort • ↑ Occurrence with advancing maternal age (also for other trisomies), and during teen years • Maternal serum testing (triple screen) can screen • NL values age dependent • ↓maternal serum AFP • ↓unconjugated estriol • ↑HCG

  16. Trisomy 21 Q Banding • Left: Two of a patient's chromosomes transmitted by the mother • Right: Two chromosomes paternal nondisjunction at second meiotic division

  17. Trisomy 18- Edwards syndrome • 1/5,000 births • Low BW, closed fists with index finger overlapping the 3rd digit and 5th overlapping the 4th • Narrow hips with limited abduction, short sternum, rocker–bottom feet, hypertonia • Head- microcephaly, prominent occiput, micrognathia, fine/small facial features • Cardiac, renal malformations, MR • 95% of cases are lethal in the 1st yr

  18. Trisomy 18 • Microcephaly prominent occiput micrognathia • Fine/small facial features • Hypertonia

  19. Trisomy 18 • Note finger position, hypoplasia of 5th fingernail • Simple arch pattern of the fingerpads • Toe dorsiflexion with hypoplasia of toenails • Often syndactyly

  20. Trisomy 13- Patau syndrome • 1/7,000 births • Cleft lip/palate, flexed fingers with polydactyly, ocular hypotelorism, bulbous nose • Low-set malformed ears, small abnormal skull • Cerebral malformation, ie. holoprosencephaly • Microphthalmia; cardiac malformations; scalp defects; hypoplastic ribs; visceral and genital anomalies • Lethal in the 1st yr

  21. Trisomy 13 • Midline cleft lip/palate, microcephaly, hypotelorism, microphthalmos, bulbous nose, polydactyly, overlapping of fingers

  22. Trisomy 8, Mosaicism • 1/20,000 births • Long face, high prominent forehead, wide upturned nose, thick everted lower lip, microretrognathia, low-set ears, cleft palate • Osteoarticular anomalies common • Moderate MR

  23. MONOSOMIES • One representative of a chromosome is present • Nondisjunction: • One cell ends up with one copy (monosomic) and the other has 3 (trisomic) • Anaphase lag: • chromosome fails to move into the new daughter cell • All complete autosomal monosomies- lethal • Can survive in mosaic forms

  24. Sex Chromosome Anomalies: TURNER SYNDROME • 1/2,000 liveborn females • Loss of part or all of one sex chromosome • 45,X or may be mosaic. • Y material presence: gonads need removal (tumor) • Female, short stature, underdeveloped gonads • 10% have some Y chromosome material in cells • 1/3 dx at birth, other 2/3 dx with presentation of short stature or amenorrhea

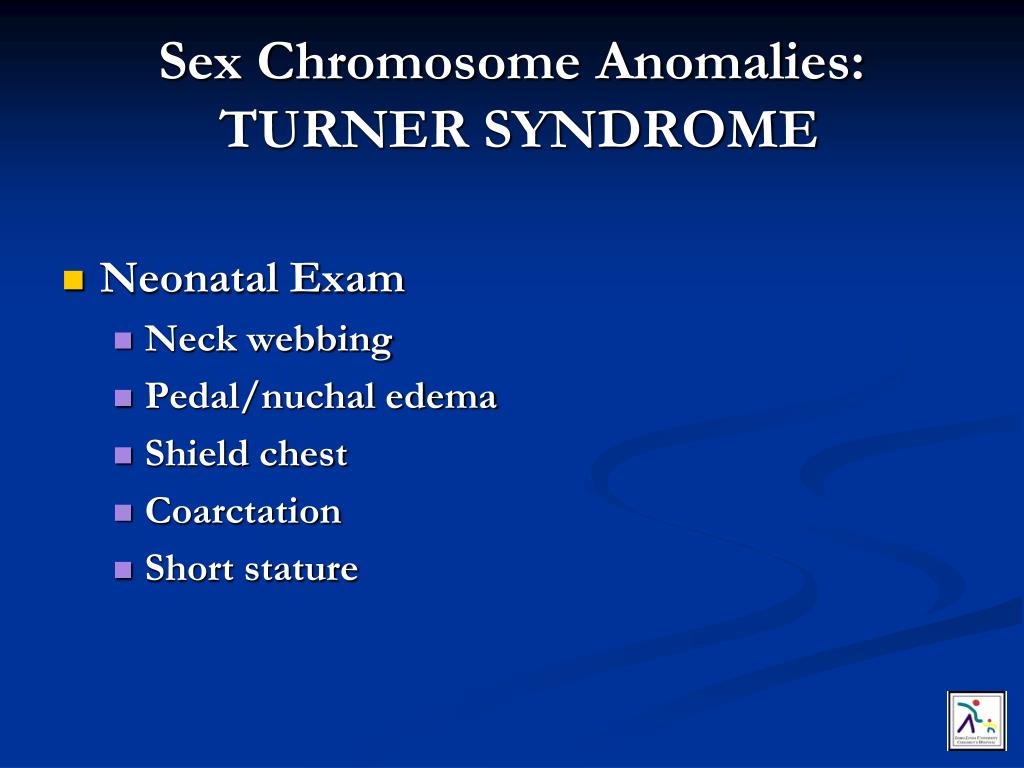

  25. Sex Chromosome Anomalies: TURNER SYNDROME • Neonatal Exam • Neck webbing • Pedal/nuchal edema • Shield chest • Coarctation • Short stature

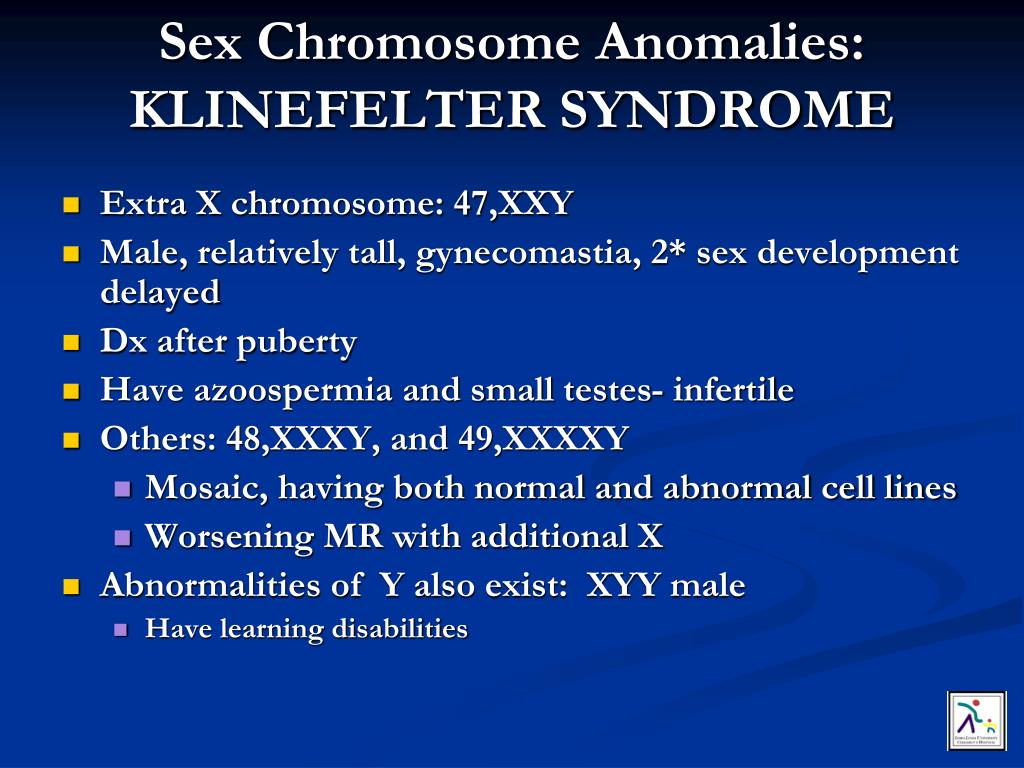

  26. Sex Chromosome Anomalies: KLINEFELTER SYNDROME • Extra X chromosome: 47,XXY • Male, relatively tall, gynecomastia, 2* sex development delayed • Dx after puberty • Have azoospermia and small testes- infertile • Others: 48,XXXY, and 49,XXXXY • Mosaic, having both normal and abnormal cell lines • Worsening MR with additional X • Abnormalities of Y also exist: XYY male • Have learning disabilities

  27. KLINEFELTER SYNDROME

  28. Sex Chromosome Anomalies:FRAGILE X SYNDROME • The fragile site located on the distal long arm of chromosome X (Xq27.3)- expanded segment • Most common form of MR in males • Other sites: FRAXE and FRAXF • Clinical: MR, macro-orchidism (puberty), long face, prominent jaw/ears • Females: Varying degrees of MR • Worsens with generation: Triple repeat sequence • Anticipation

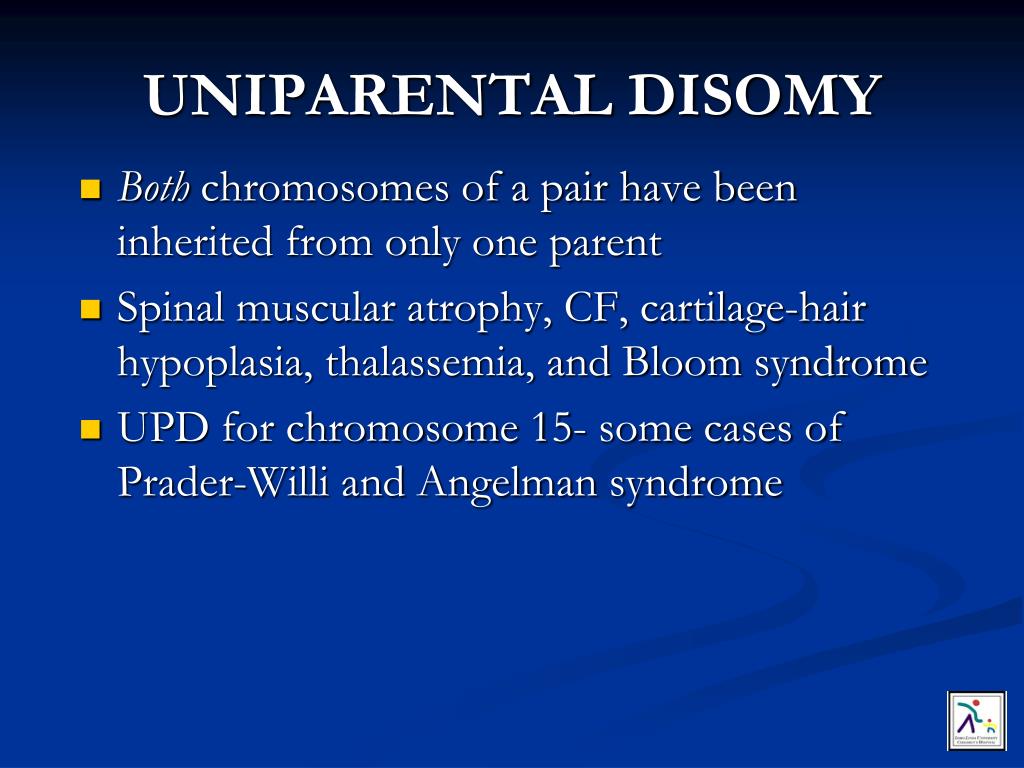

  29. UNIPARENTAL DISOMY • Both chromosomes of a pair have been inherited from only one parent • Spinal muscular atrophy, CF, cartilage-hair hypoplasia, thalassemia, and Bloom syndrome • UPD for chromosome 15- some cases of Prader-Willi and Angelman syndrome

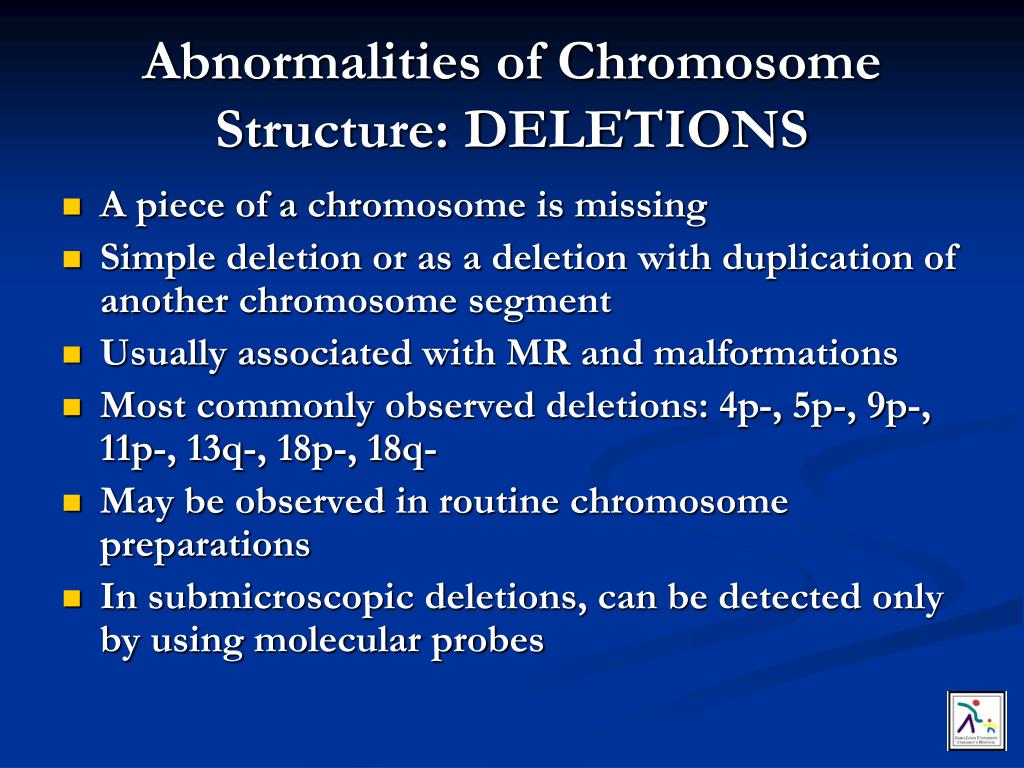

  30. Abnormalities of Chromosome Structure: DELETIONS • A piece of a chromosome is missing • Simple deletion or as a deletion with duplication of another chromosome segment • Usually associated with MR and malformations • Most commonly observed deletions: 4p-, 5p-, 9p-, 11p-, 13q-, 18p-, 18q- • May be observed in routine chromosome preparations • In submicroscopic deletions, can be detected only by using molecular probes

  31. Deletions • 4p–Wolf–Hirschhorn syndrome • “Greek helmet” facies with ocular hypertelorism, prominent glabella and frontal bossing; microcephaly, dolichocephaly, hypoplasia of the eye socket, ptosis, strabismus, nystagmus, epicanthic folds, cleft, beaked nose with prominent bridge, hypospadias, cardiac malformations, MR • 5p–Cri–du–chat syndrome • hypotonia, short stature, characteristic cry, microcephaly, protruding metopic suture, moonlike face, hypertelorism, bilateral epicanthic folds, high arched palate, wide nasal bridge, MR

  32. Wolf–Hirschhorn syndrome • Hypertelorism, frontal bossing; microcephaly, dolichocephaly, epicanthic folds, cleft lip and palate, beaked nose with prominent bridge

  33. Cri–du–Chat Syndrome • Small chin, flat nose • Protruding teeth • Thin Build • Moon facies • Hypertelorism • Bilateral epicanthic folds

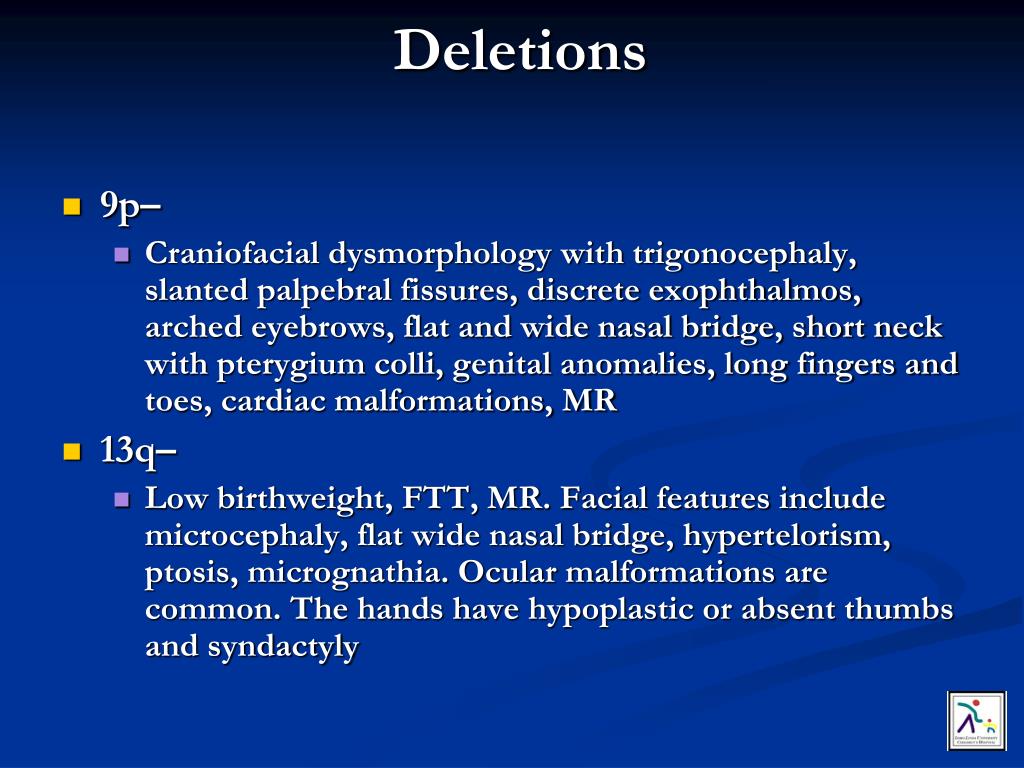

  34. Deletions • 9p– • Craniofacial dysmorphology with trigonocephaly, slanted palpebral fissures, discrete exophthalmos, arched eyebrows, flat and wide nasal bridge, short neck with pterygium colli, genital anomalies, long fingers and toes, cardiac malformations, MR • 13q– • Low birthweight, FTT, MR. Facial features include microcephaly, flat wide nasal bridge, hypertelorism, ptosis, micrognathia. Ocular malformations are common. The hands have hypoplastic or absent thumbs and syndactyly

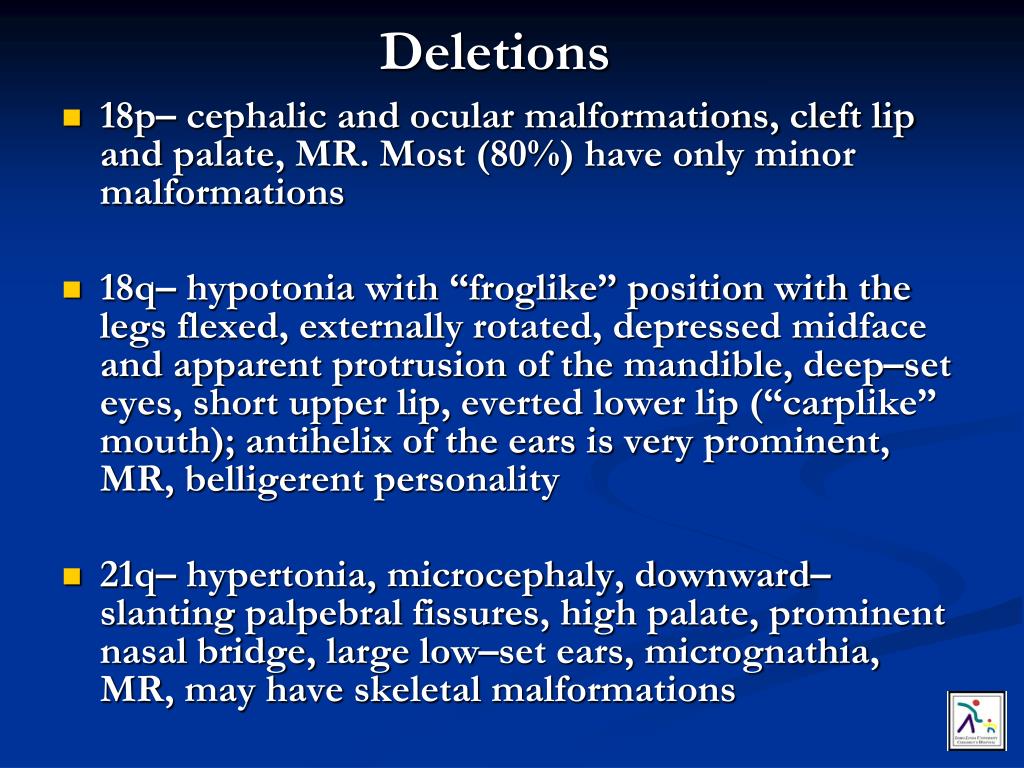

  35. Deletions • 18p– cephalic and ocular malformations, cleft lip and palate, MR. Most (80%) have only minor malformations • 18q– hypotonia with “froglike” position with the legs flexed, externally rotated, depressed midface and apparent protrusion of the mandible, deep–set eyes, short upper lip, everted lower lip (“carplike” mouth); antihelix of the ears is very prominent, MR, belligerent personality • 21q– hypertonia, microcephaly, downward–slanting palpebral fissures, high palate, prominent nasal bridge, large low–set ears, micrognathia, MR, may have skeletal malformations

  36. Microdeletions • 7q23–Williams • Round face with full cheeks, stellate pattern in iris, strabismus, supravalvular aortic stenosis, varying MR, and a very friendly personality • 8q24.1–Langer-Giedion • Sparse hair, multiple cone-shaped epiphyses, multiple cartilaginous exostoses, bulbous nasal tip, thickened alar cartilage, upturned nares, prominent philtrum, large protruding ears, MR

  37. Williams Syndrome • Round face with full cheeks and lips • MR • Very friendly personality

  38. Microdeletions • 11p13–Hypernephroma (Wilms tumor) • Aniridia, male genital hypoplasia of varying degrees, gonadoblastoma, long face, upward slanting palpebral fissures, ptosis, beaked nose, low–set poorly formed auricles, and MR • 16p13–Rubinstein-Taybi • microcephaly, ptosis, beaked nose with low-lying philtrum, broad thumbs and large toes, and MR

  39. Imprinting • Genomic imprinting: Phenotypic expression depends on the parent of origin for certain genes and chromosome segments • 15q11–13 (paternal) Prader-Willi • 15q11–13 (maternal) Angelman

  40. Prader-Willi • 1/15,000 live births • Hypotonia at birth, obesity, short stature, small hands and feet, hypogonadism, MR • Compulsive eaters • 15q11–13 deletion

  41. Prader-Willi

  42. Angelman Hypotonia, fair hair, midface hypoplasia, prognathism, seizures, jerky ataxic movements, uncontrollable bouts of laughter, severe MR

  43. Microdeletions • 20p12–Alagille syndrome • Bile duct paucity with cholestasis, heart defects, particularly pulmonary artery stenosis, ocular abnormalities (posterior embryotoxin), butterfly vertebrae, long nose with broad midnose • 22q11–DiGeorge-VCF • Hypoplasia or agenesis of the thymus and parathyroid glands, hypoplasia of auricle, abnormal facies, cardiac anomalies (truncus, TOF), cleft palate, short stature, behavioral problems

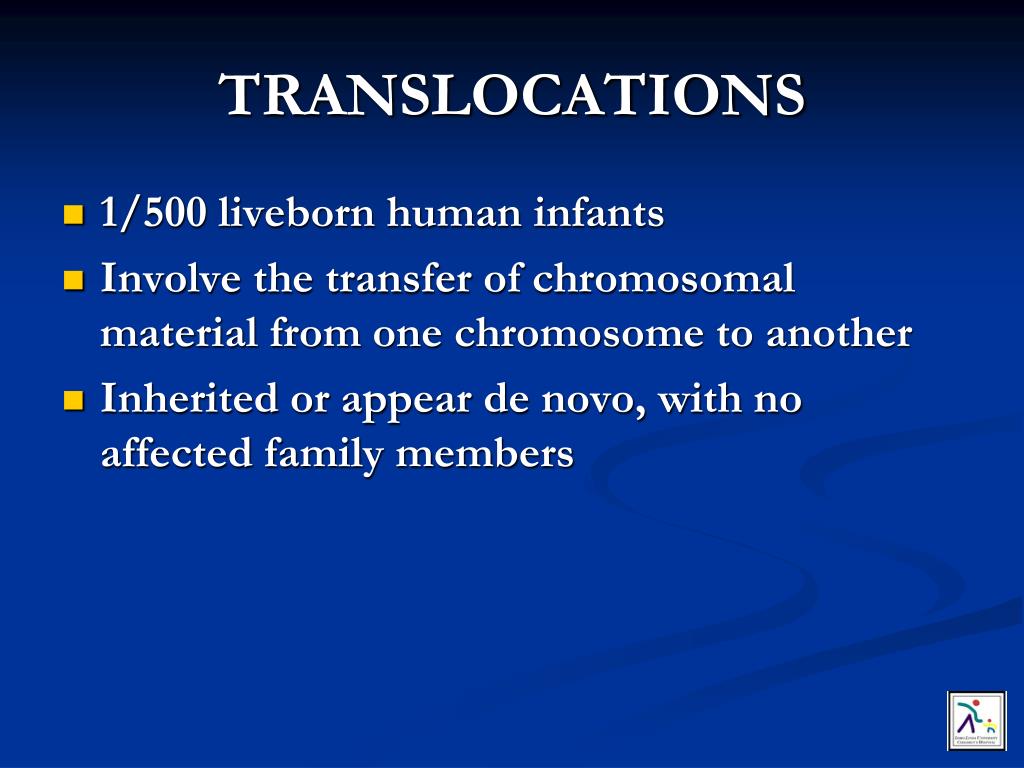

  44. TRANSLOCATIONS • 1/500 liveborn human infants • Involve the transfer of chromosomal material from one chromosome to another • Inherited or appear de novo, with no affected family members

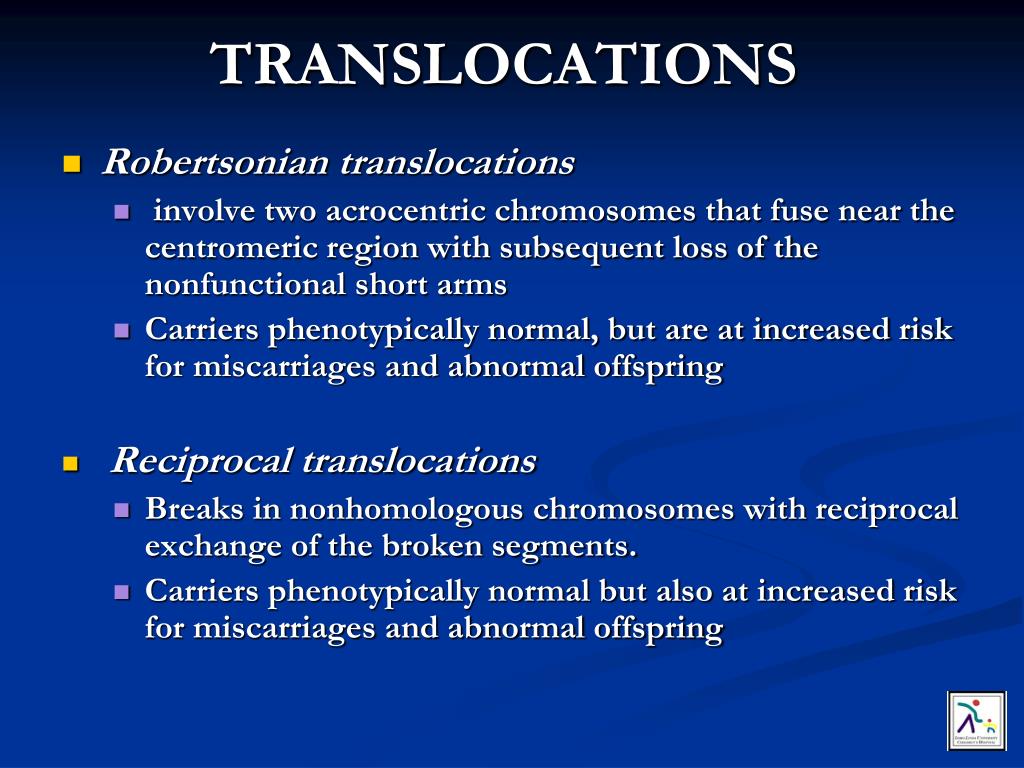

  45. TRANSLOCATIONS • Robertsonian translocations • involve two acrocentric chromosomes that fuse near the centromeric region with subsequent loss of the nonfunctional short arms • Carriers phenotypically normal, but are at increased risk for miscarriages and abnormal offspring • Reciprocal translocations • Breaks in nonhomologous chromosomes with reciprocal exchange of the broken segments. • Carriers phenotypically normal but also at increased risk for miscarriages and abnormal offspring

  46. Other • INVERSIONS- chromosome breaks at two points, broken piece is then inverted and joined into the same chromosome • RING CHROMOSOMES- deletion at each end of the chromosome. The “sticky” ends then join to form the ring.

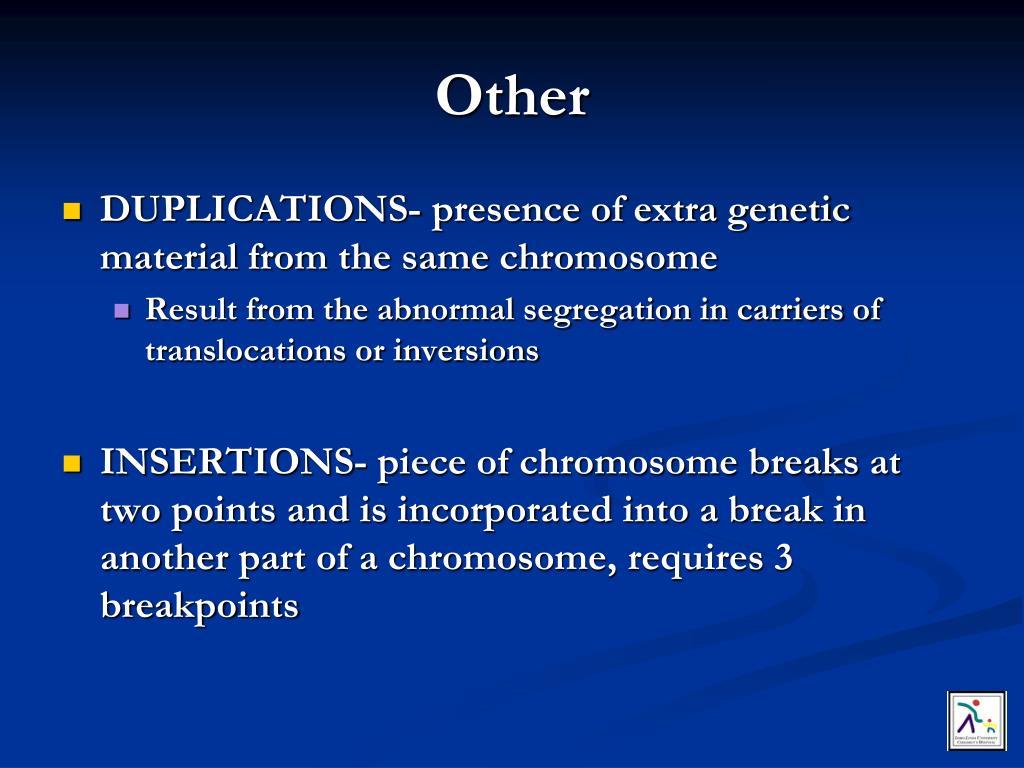

  47. Other • DUPLICATIONS- presence of extra genetic material from the same chromosome • Result from the abnormal segregation in carriers of translocations or inversions • INSERTIONS- piece of chromosome breaks at two points and is incorporated into a break in another part of a chromosome, requires 3 breakpoints
