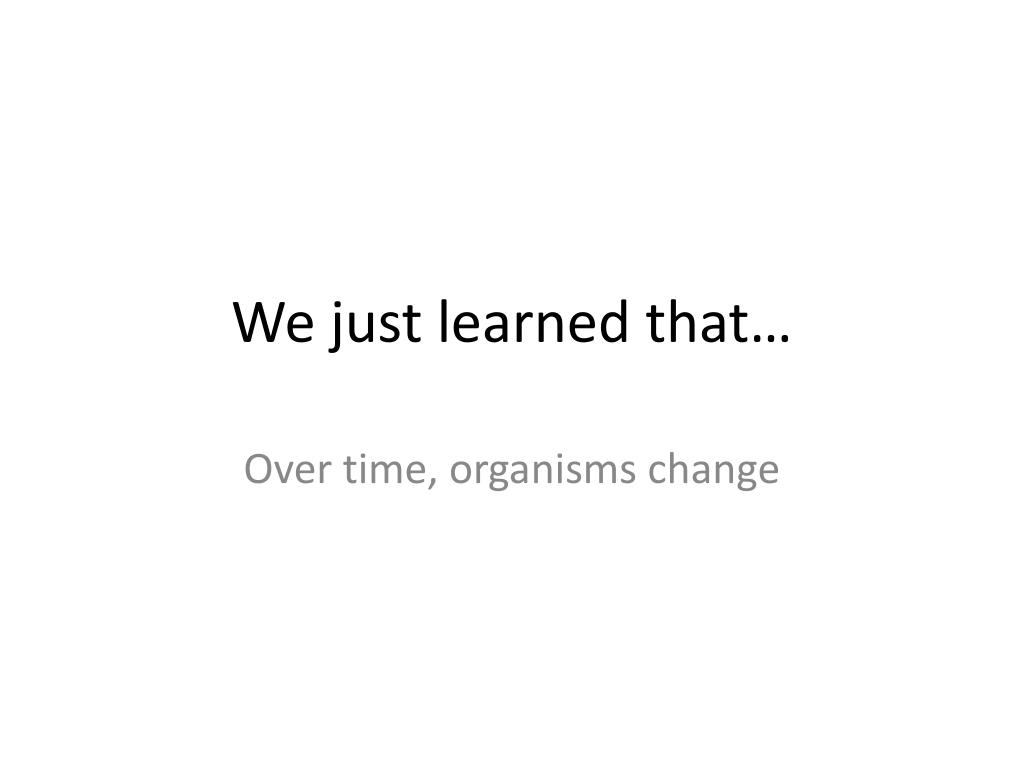

  1. We just learned that… Over time, organisms change

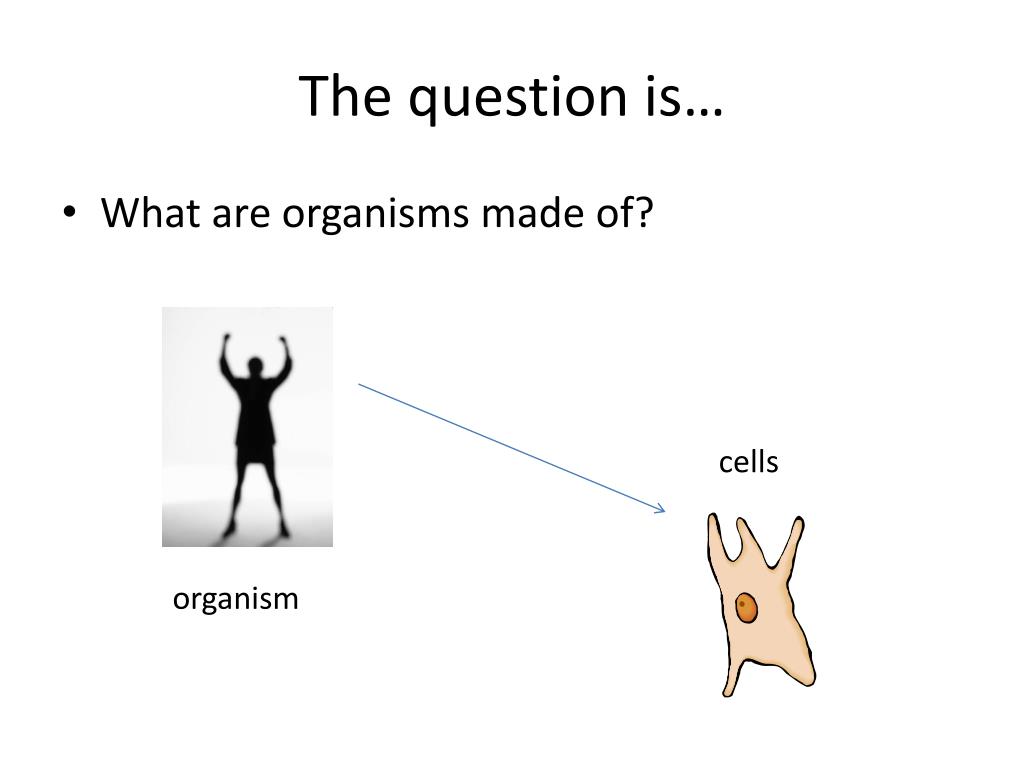

  2. The question is… • What are organisms made of? cells organism

  3. Anything living is made of cells Fungi Plants Animals Bacteria

  4. Cells contain DNA nucleus DNA

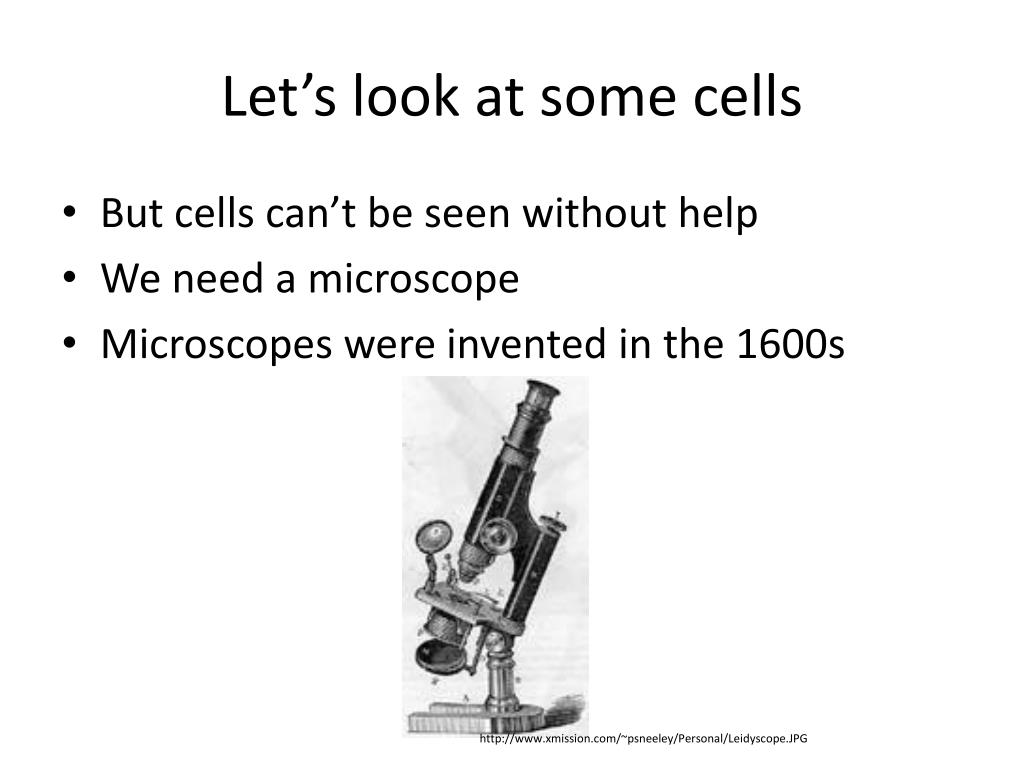

  5. Let’s look at some cells • But cells can’t be seen without help • We need a microscope • Microscopes were invented in the 1600s http://www.xmission.com/~psneeley/Personal/Leidyscope.JPG

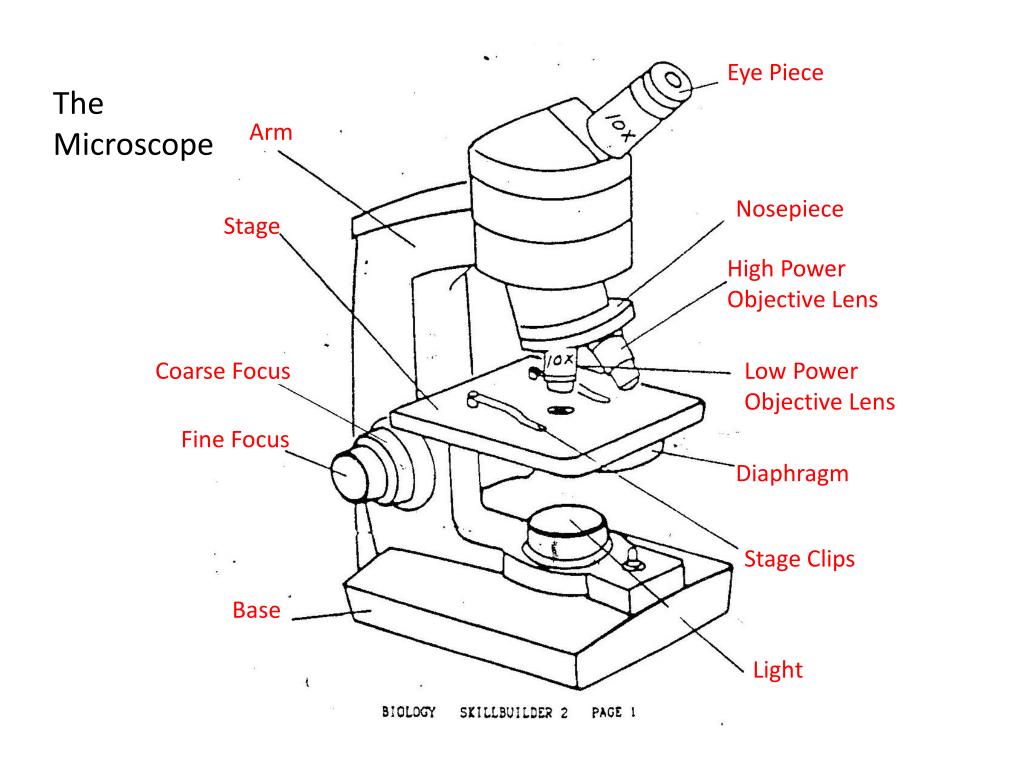

  6. Eye Piece The Microscope Arm Nosepiece Stage High Power Objective Lens Coarse Focus Low Power Objective Lens Fine Focus Diaphragm Stage Clips Base Light

  7. Lab: Animal vs. Plant • Part A: Using the microscope • How to use a microscope • Part B: Comparing animal and plant cells • Observe & explain the differences in structure between animal and plant cells • Part C: • Classify an unknown cell as a plant or animal

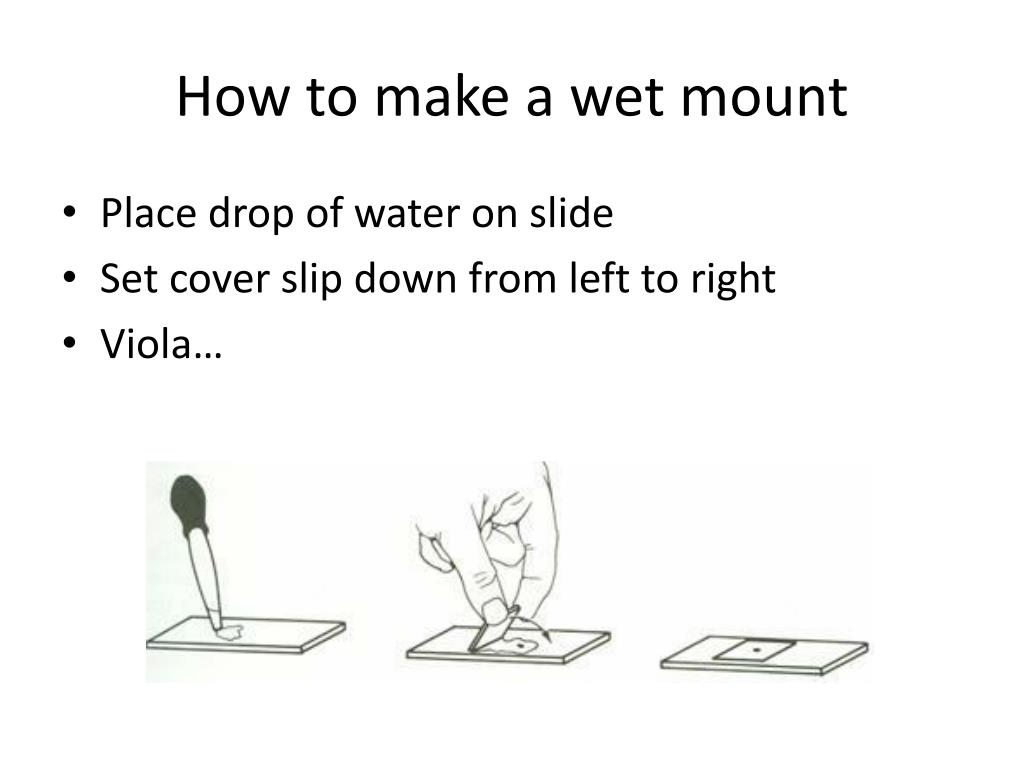

  8. How to make a wet mount • Place drop of water on slide • Set cover slip down from left to right • Viola…

  9. Lab: Comparing plant and animal cells • View the newspaper letter “e” under the microscope • Draw it as you see it • 100X • What happens when you move the slide away from you? • Move the slide to the left, which direction does it appear to move? Letter “e”

  10. Lab: Comparing plant and animal cells Make a wet mount of onion skin • Place the skin of the onion on a slide • Place a drop of iodine and a drop of water on top to stain the onion • Cover with a coverslip Start on low power (10X objective) • Adjust with coarse adjustment, then focus with fine adjustment, draw the cells Enlarge with high power (43X objective) • Adjust only with fine adjustment knob, draw the cells

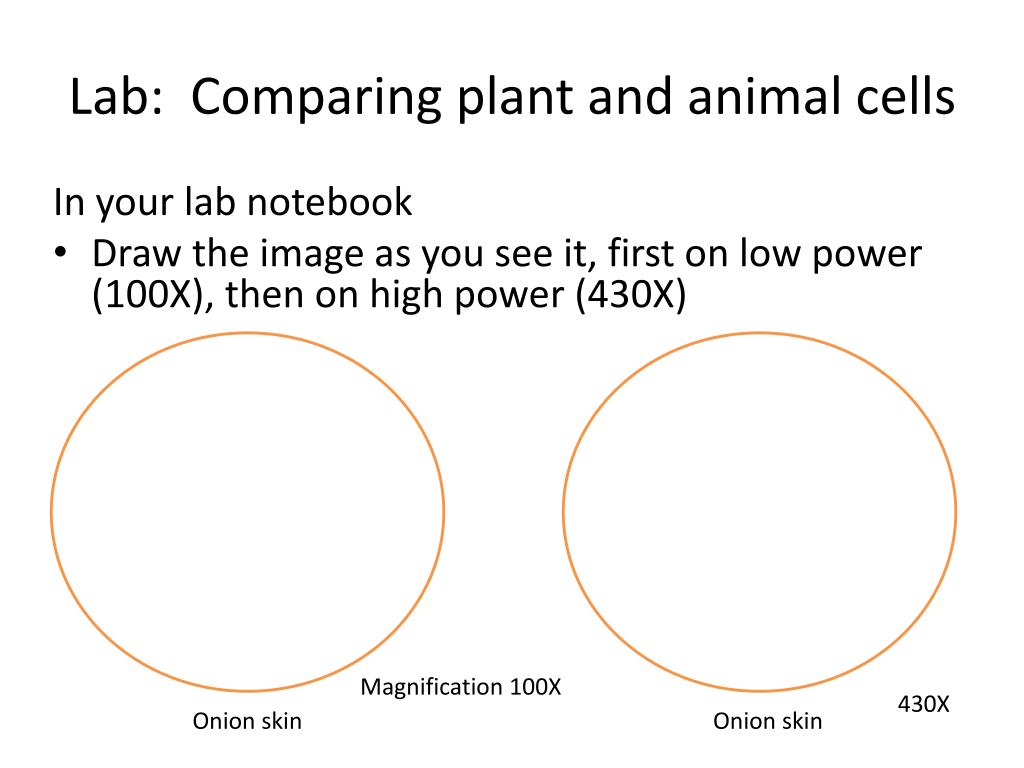

  11. Lab: Comparing plant and animal cells In your lab notebook • Draw the image as you see it, first on low power (100X), then on high power (430X) Magnification 100X 430X Onion skin Onion skin

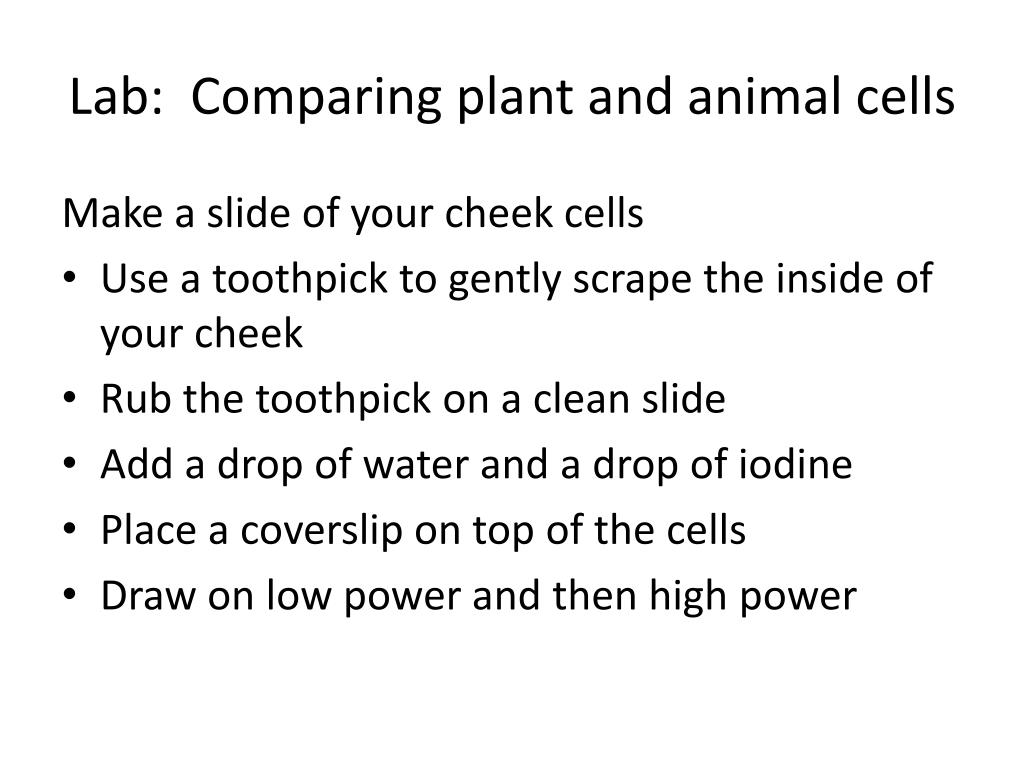

  12. Lab: Comparing plant and animal cells Make a slide of your cheek cells • Use a toothpick to gently scrape the inside of your cheek • Rub the toothpick on a clean slide • Add a drop of water and a drop of iodine • Place a coverslip on top of the cells • Draw on low power and then high power

  13. Lab: Comparing plant and animal cells • In your lab notebook • Draw the image as you see it, first on low power (100X), then on high power (430X) Human Cheek Cells 430X Human Cheek Cells 100X

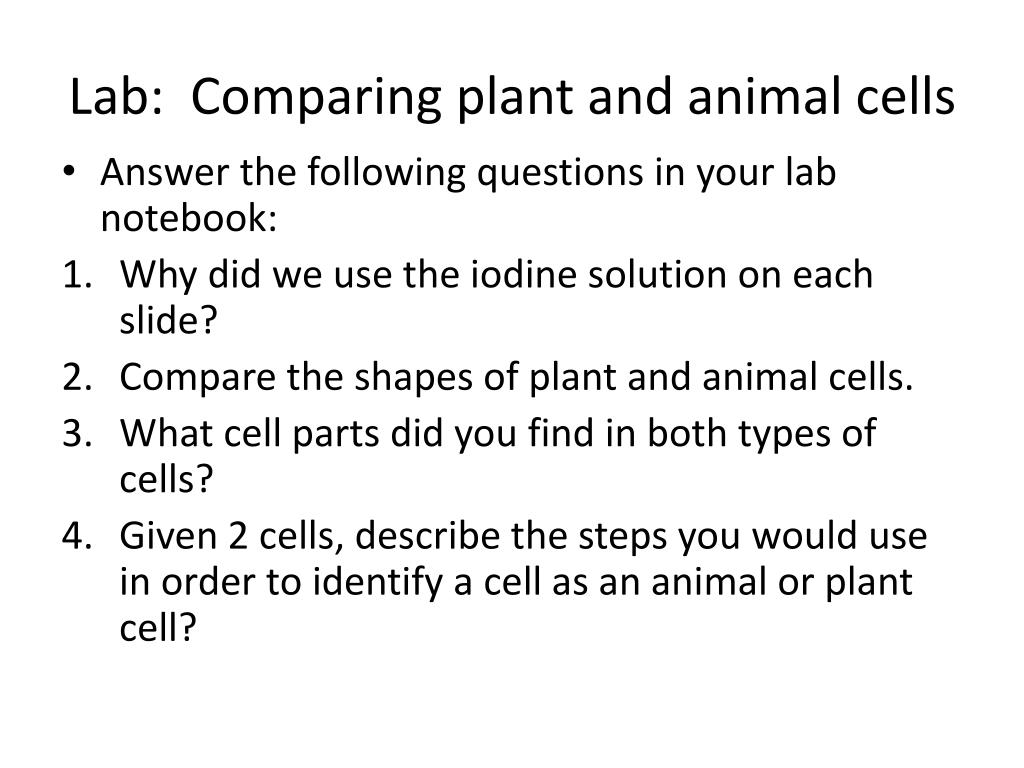

  14. Lab: Comparing plant and animal cells • Answer the following questions in your lab notebook: • Why did we use the iodine solution on each slide? • Compare the shapes of plant and animal cells. • What cell parts did you find in both types of cells? • Given 2 cells, describe the steps you would use in order to identify a cell as an animal or plant cell?

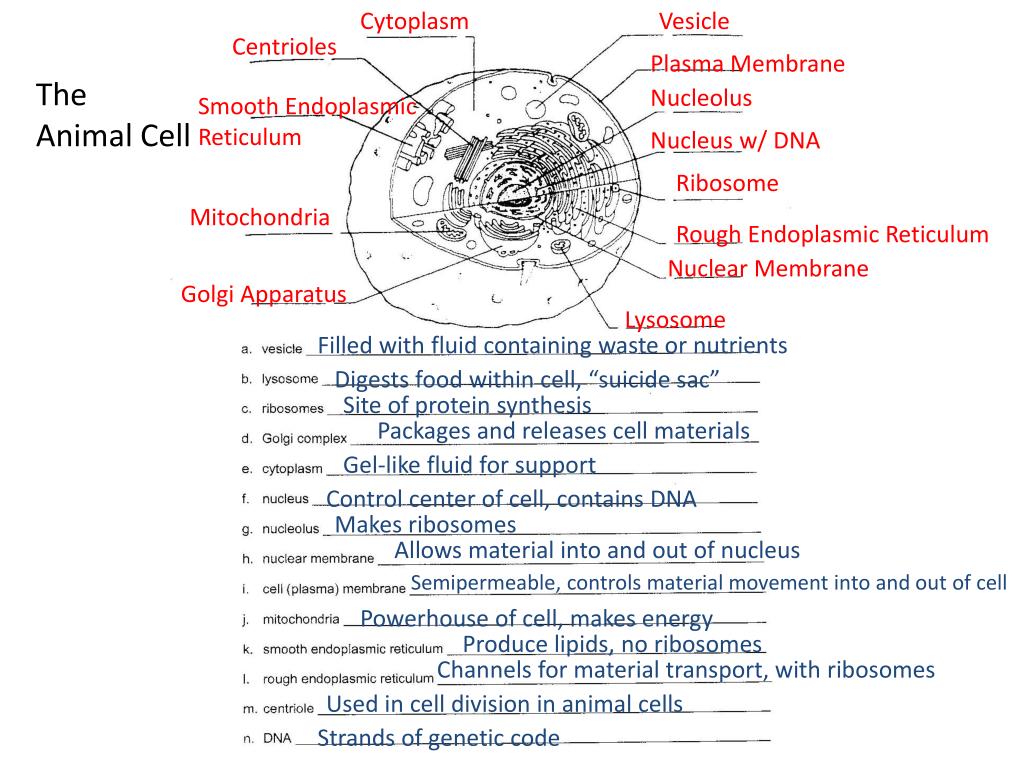

  15. Cytoplasm Vesicle Centrioles Plasma Membrane The Animal Cell Nucleolus Smooth Endoplasmic Reticulum Nucleus w/ DNA Ribosome Mitochondria Rough Endoplasmic Reticulum Nuclear Membrane Golgi Apparatus Lysosome Filled with fluid containing waste or nutrients Digests food within cell, “suicide sac” Site of protein synthesis Packages and releases cell materials Gel-like fluid for support Control center of cell, contains DNA Makes ribosomes Allows material into and out of nucleus Semipermeable, controls material movement into and out of cell Powerhouse of cell, makes energy Produce lipids, no ribosomes Channels for material transport, with ribosomes Used in cell division in animal cells Strands of genetic code

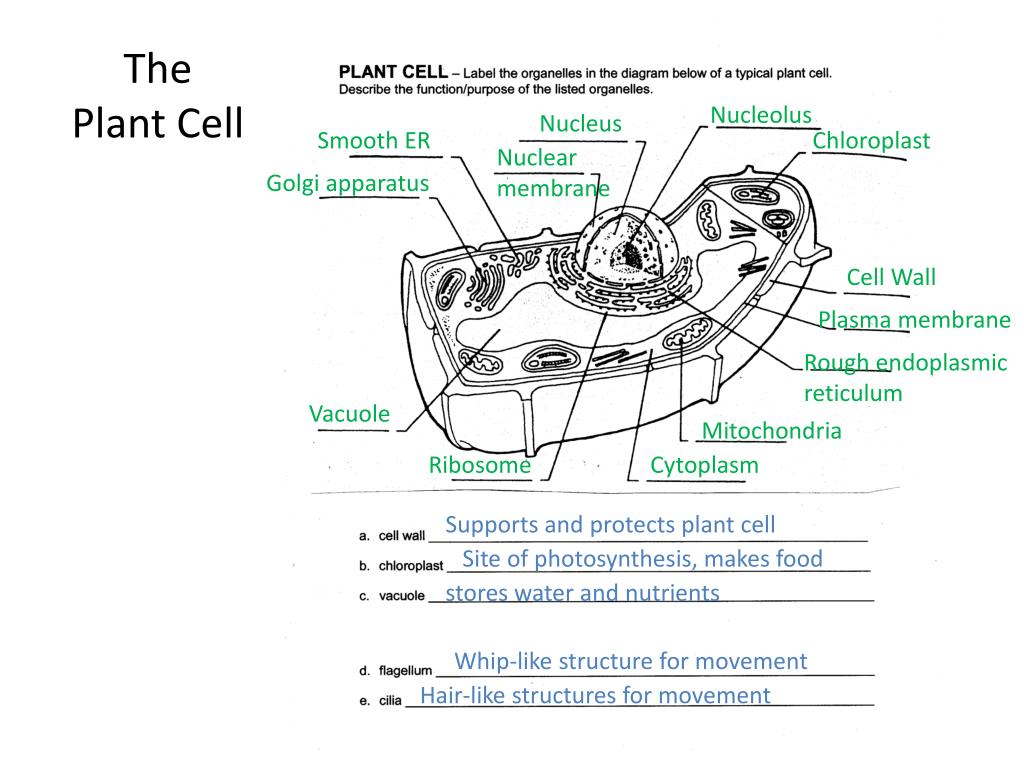

  16. The Plant Cell Nucleolus Nucleus Smooth ER Chloroplast Nuclear membrane Golgi apparatus Cell Wall Plasma membrane Rough endoplasmic reticulum Vacuole Mitochondria Ribosome Cytoplasm Supports and protects plant cell Site of photosynthesis, makes food stores water and nutrients Whip-like structure for movement Hair-like structures for movement

  17. Cell Notes • Organisms are made of cells • Cells  tissues  organs  organ systems  organism • The cell is the basic unit of life, the smallest living thing • Robert Hooke first discovered cells in cork tree bark

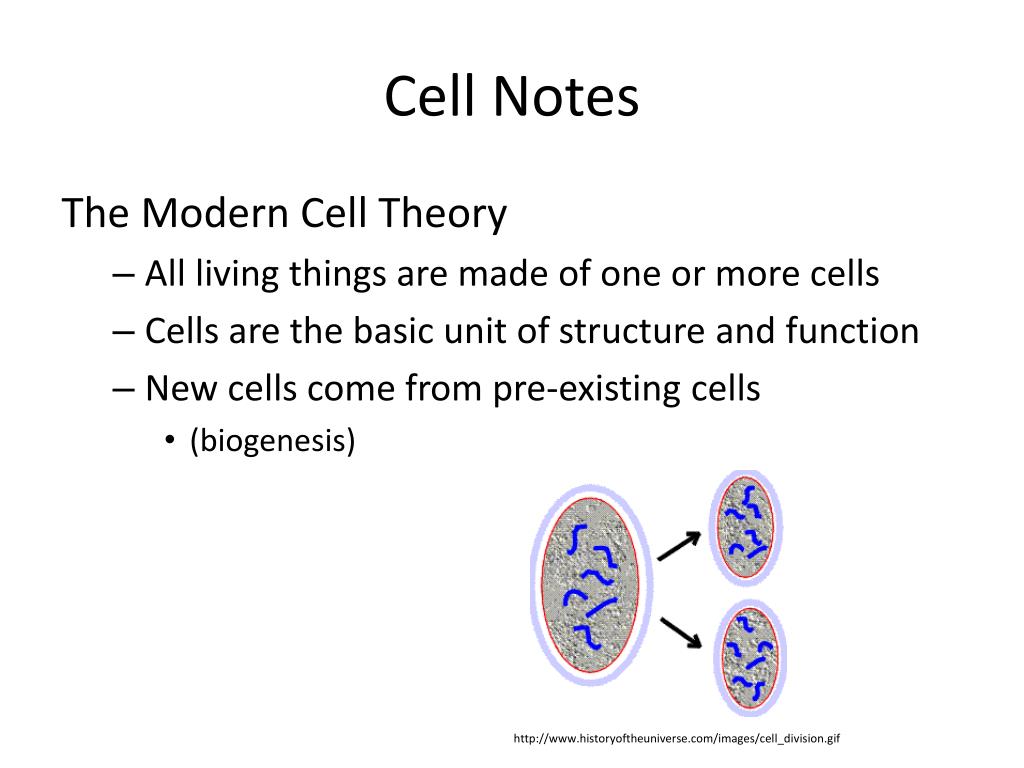

  18. Cell Notes The Modern Cell Theory • All living things are made of one or more cells • Cells are the basic unit of structure and function • New cells come from pre-existing cells • (biogenesis) http://www.historyoftheuniverse.com/images/cell_division.gif

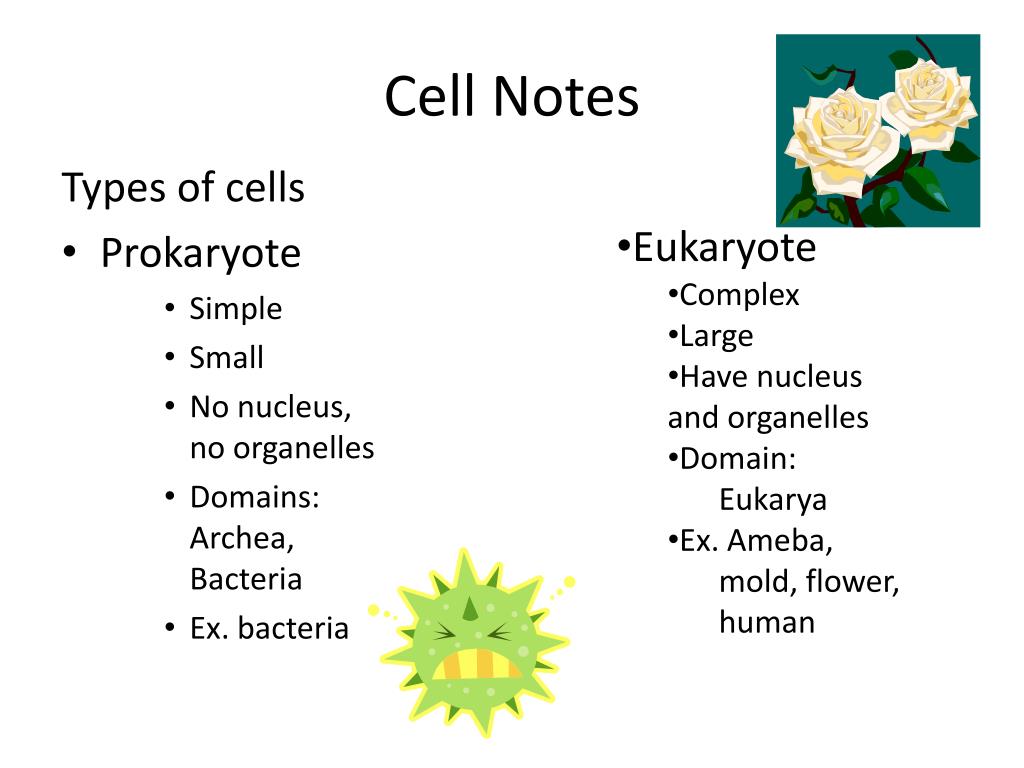

  19. Cell Notes Types of cells • Prokaryote • Simple • Small • No nucleus, no organelles • Domains: Archea, Bacteria • Ex. bacteria • Eukaryote • Complex • Large • Have nucleus and organelles • Domain: Eukarya • Ex. Ameba, mold, flower, human

  20. Cell Video

  21. How does a plant cell relate to your school?

  22. SELL THAT ORGANELLE Working with a partner, make a creative poster to describe your organelle. Include a large, bright drawing of the organelle, a colorful advertisement of its function(s), and a bridge map for the title. Cell wall Cell Bones Body as structure Relating factor: _____________
